LCI Tri-Fold Sofa Instruction Manual

Rev: 05.23.2017 Page 1 Tri Fold Sofa Owners and Service Manual
Tri-Fold Sofa
OWNER'S AND SERVICE MANUAL

Rev: 05.23.2017 Page 2 Tri Fold Sofa Owners and Service Manual
TABLE OF CONTENTS
Introduction 2
Safety Requirements 3
Operation Instructions 3
Preparation 4
Tools Required 4
Back Cushion Replacement Instructions 4
Full Cushion Assembly 4
Cushion Foam 4
Cushion Cover 4
Stationary Back Replacement Instructions 5
Full Stationary Back Assembly 5
Stationary Back Interior Foam 5
Stationary Back Interior Frame 5
Stationary Back Cover 5
Couch Seat Replacement Instructions 6
Couch Seat Assembly 6
Couch Seat Interior Foam 6
Couch Seat Interior Frame 6
Couch Seat Cover 6
Couch Seat Legs 6
Middle Seat Replacement Instructions 6
Middle Seat Assembly 7
Middle Seat Interior Foam 7
Middle Seat Interior Frame 7
Middle Seat Cover 7
V2 Frame Replacement Instructions 7
Front Kick Rail Replacement Instructions 8
Rear Kick Rail Replacement Instructions 8
Arm Insert Replacement Instructions 9
Foot Assembly Replacement Instructions 9
Care and Cleaning 9
Maintenance 9
Warranty 9
Introduction
Our one-piece, steel frame Tri-Fold Sofa requires no spare mattress to store. In just four simple steps, it transforms
into a comfortable bed. Traditional hide-a-beds have uncomfortable mattresses with support bars that can make
sleeping uncomfortable. Air mattress hide-a-beds eliminate the support bar issue, but can be damaged more easily
and become unusable. The Tri-Fold Sofa coverts from sofa to a very supportive, high-density foam sleep surface in
four simple steps. Now campers can actually look forward to sleeping on the couch!
Additional information about this product can be obtained from www.lci1.com/support or by downloading the free
myLCI app. The app is available on iTunes® for iPhone® and iPad® and also on Google Play™ for Android™ users.
iTunes®, iPhone®, and iPad® are registered trademarks of Apple Inc. Google Play™ and Android™ are trademarks of
Google Inc.

Rev: 05.23.2017 Page 3 Tri Fold Sofa Owners and Service Manual
NOTE: Lippert Components, Inc. recommends that the following inspections, troubleshooting, component
replacement, and verifications be completed only by certified RV technicians.
Safety Requirements

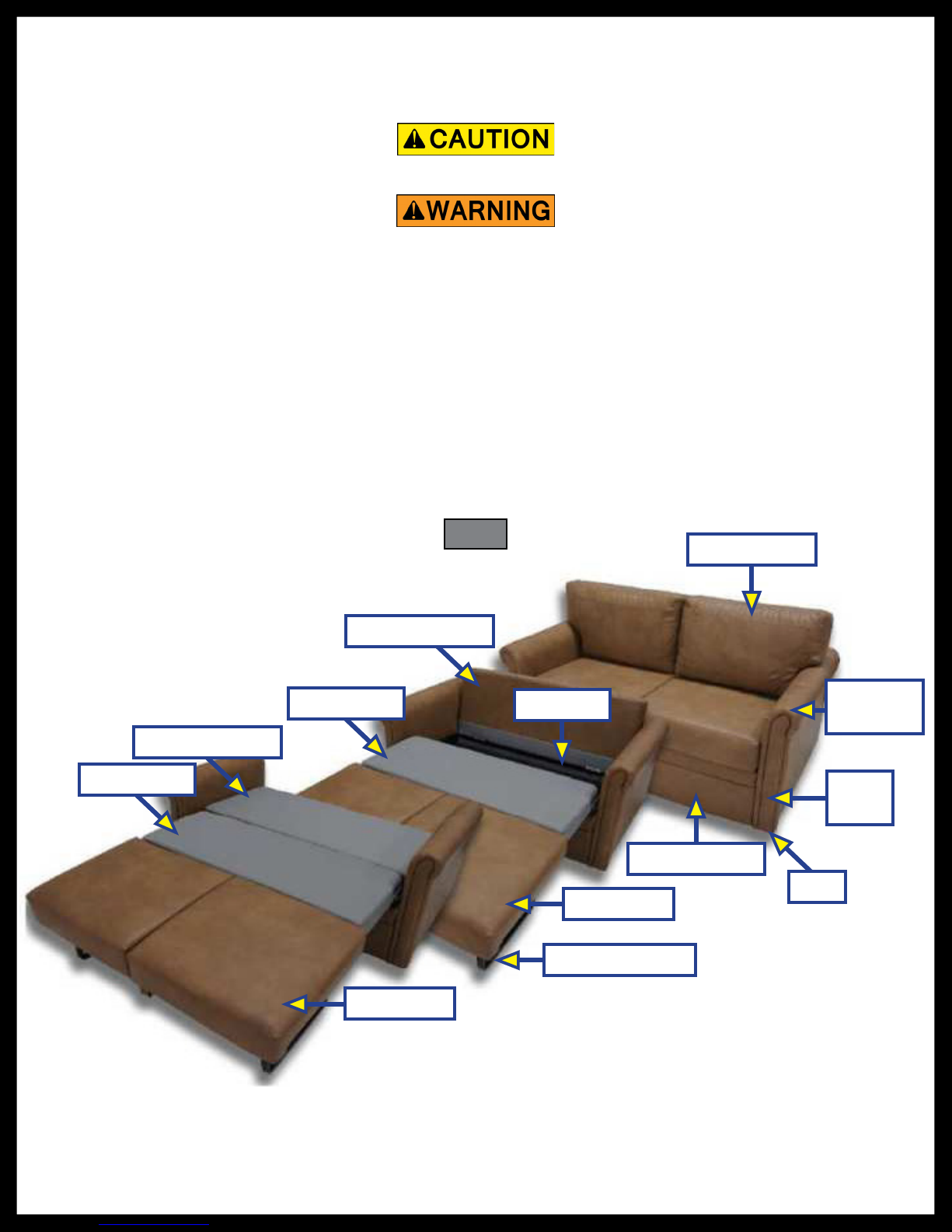

Fig. 1
Moving parts can pinch, crush or cut. Keep clear and use caution.
Failure to follow the instructions provided in this manual may result in death, serious injury, unit
damage, or voiding of the component warranty.
Operation Instructions
NOTE: Refer to (Fig. 1) for steps 1-5.
1. Remove back cushions from the hook and loop fabric strips and set aside.
2. Fold out the couch seat to expose the middle seat.
3. Fold out the couch seat legs and set upright.
4. Fold down the stationary back.
5. Use back cushions as headrest or pillows.
Back Cushion
Couch Seat
Couch Seat Legs
Couch Seat
Front Kick Rail
Foot
Arm
Insert
Arm
Assembly
Stationary Back
Middle Seat V2 Frame
Middle Seat
Stationary Back

Rev: 05.23.2017 Page 4 Tri Fold Sofa Owners and Service Manual
Fig. 2
Preparation
Tools Required
• Cordless or electric screw gun or drill
• ½" Socket (Import tri-fold sofas may use a 8mm socket)
• Appropriate screw drivers
• Appropriate drive bits
Back Cushion Replacement Instructions
Full Cushion Assembly
1. Remove cushion from sofa. The cushions are held in place by hook and loop fabric strips (Fig. 2).
2. Place new cushion back on sofa.
Cushion Foam
1. Remove back cushion from the sofa. The cushions are attached by hook and loop fabric strips (Fig. 2).
2. Unzip and remove cover from foam.
3. Discard the foam.
4. Insert new foam into cover.
5. Zip cover completely around new foam.
6. Place cushion back on sofa.
Cushion Cover
1. Remove the cushion from the sofa. The cushions are attached by hook and loop fabric strips (Fig. 2).
2. Unzip and remove the cover from foam.
3. Discard the cover.
4. Insert new cover around foam cushion.
5. Zip new cover completely around foam.
6. Place cushion back on sofa.
Hook and Loop
Fabric Strips

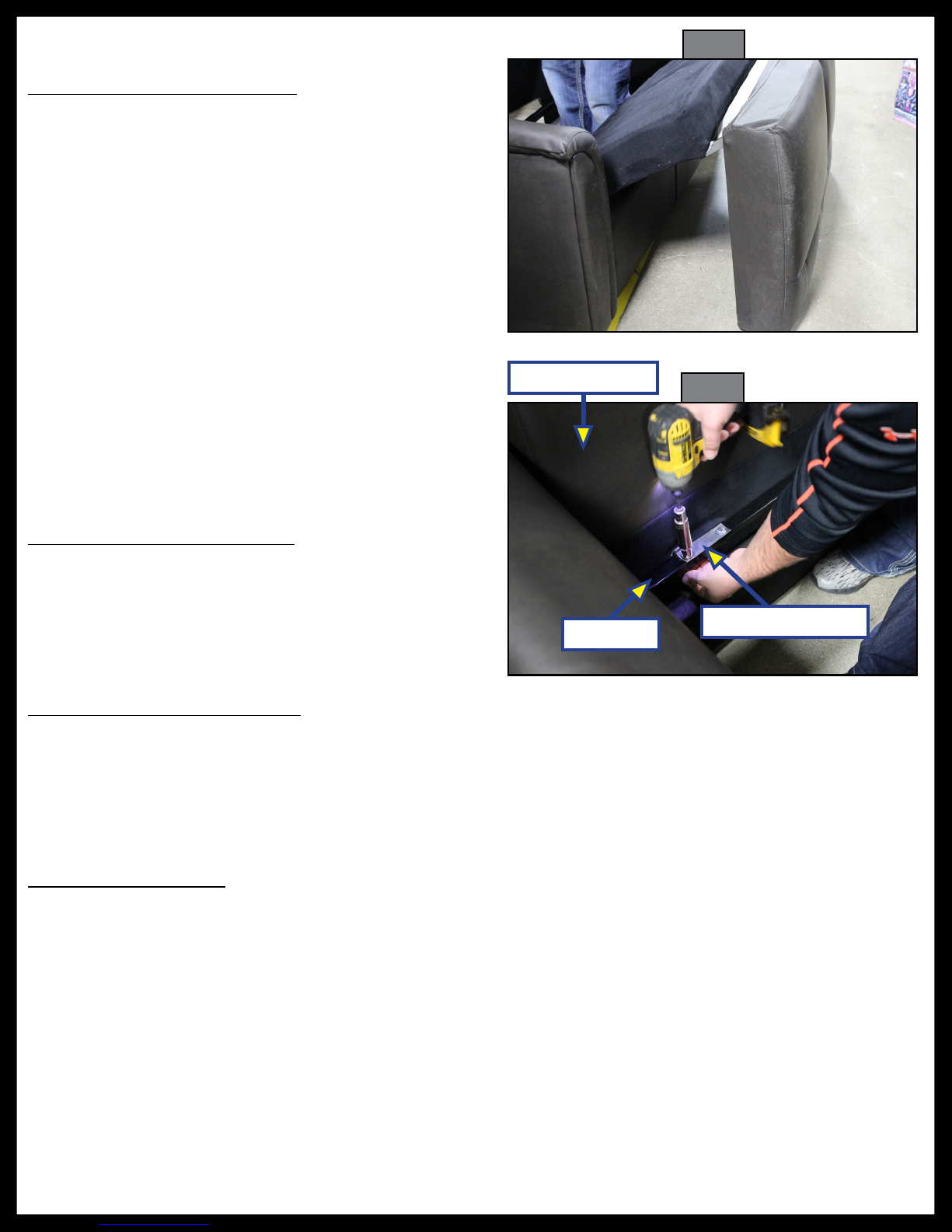

Rev: 05.23.2017 Page 5 Tri Fold Sofa Owners and Service Manual
Stationary Back Replacement Instructions
Full Stationary Back Assembly
1. Remove back cushions from sofa and set aside.
2. Unfold front seat and middle seat to expose
mounting bolts and nuts (Fig. 3).
3. Remove the 2 nuts and 2 bolts from each
mounting bracket and set aside (Fig. 4). Discard
back assembly.
4. Set new back assembly in place with holes in
mounting brackets aligned with holes in V2
frame.
5. Insert bolts through mounting bracket and V2
frame.
6. Secure bolts with nuts.
7. Fold front seat and middle into stored position.
8. Reattach back cushions.
NOTE: To replace the stationary back interior foam,
stationary back interior frame or stationary
back cover, the stationary back asssembly
needs to be removed first for easier access.
Stationary Back Interior Foam
1. Unzip cover from the stationary back.
2. Remove and discard foam.
3. Place new foam on the interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Stationary Back Interior Frame
1. Unzip cover from the stationary back.
2. Remove and discard the old interior frame.
3. Place foam on the new interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Stationary Back Cover
1. Unzip cover from the stationary back.
2. Remove and discard the old cover.
3. Slip new cover over the interior frame and foam.
4. Zip cover completely.
Fig. 4
Fig. 3
Stationary Back
V2 Frame Mounting Bracket

Rev: 05.23.2017 Page 6 Tri Fold Sofa Owners and Service Manual
Couch Seat Replacement Instructions
Couch Seat Assembly
1. Remove cotter pins from the end of the clevis
pins (Fig. 5).
NOTE: There is one clevis pin on each side of the Tri-
fold sofa at the bottom of the seat. The clevis
pins are attached to the steel tab connected to
the middle seat.
2. Push clevis pin through hole (Fig. 6) of the steel
tab with a screw driver.
3. Repeat on the other side. The couch seat will
detach from the middle seat.
NOTE: The steel tab (Fig. 6) connects the couch seat
to the middle seat. The shorter end of the steel
tab goes to the V2 frame. The longer end of
the steel tab goes to the seat.
NOTE: To replace the couch seat interior foam, couch
seat interior frame or couch seat cover, the
couch seat asssembly needs to be removed
first for easier access.
Couch Seat Interior Foam
1. Unzip cover from the couch seat (Fig. 7).
2. Remove and discard foam.
3. Place new foam on the interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Couch Seat Interior Frame
1. Unzip cover from the couch seat.
2. Remove and discard the old interior frame.
3. Place foam on the new interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Couch Seat Cover
1. Unzip cover from the couch seat.
2. Remove and discard the old cover.
3. Slip new cover over the interior frame and foam.
4. Zip cover completely.
Couch Seat Legs
1. Remove the legs by removing the (4) bolts and
nuts (Fig. 8) on either side.
2. Place new legs in the same position the old legs
were removed from and add bolts and nuts.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Cotter Pin Clevis Pin
Steel Tab
Bolt
Nut

Rev: 05.23.2017 Page 7 Tri Fold Sofa Owners and Service Manual
Middle Seat Replacement Instructions
Middle Seat Assembly
1. Remove one side of V2 Frame first. Start by
removing 3 screws using a combo head square
drive (Fig. 9).
2. Remove cotter pin (Fig. 10).
3. Lift up, push clevis pin out from the steel tab
using a screw driver (Fig. 11).
4. Repeat 2-3 for the other side of the seat.
NOTE: During replacement, make sure the pillow
side of the middle seat is up.
NOTE: To replace the middle seat interior foam,
middle seat interior frame or middle seat
cover the middle seat asssembly needs to be
removed first for easier access.
Middle Seat Interior Foam
1. Unzip cover from the middle seat.
2. Remove and discard foam.
3. Place new foam on the interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Middle Seat Interior Frame
1. Unzip cover from the middle seat.
2. Remove and discard the old interior frame.
3. Place foam on the new interior frame.
4. Slip cover over the interior frame and foam.
5. Zip cover completely.
Middle Seat Cover
1. Unzip cover from the middle seat.
2. Remove and discard the old cover.
3. Slip new cover over the interior frame and foam.
4. Zip cover completely.
Fig. 9
Fig. 10
Fig. 11
Clevis Pin
V2 Frame
Cotter Pin

Rev: 05.23.2017 Page 8 Tri Fold Sofa Owners and Service Manual
Fig. 12
Fig. 13
V2 Frame Replacement Instructions
NOTE: To replace the V2 frame the middle seat,
couch seat and stationary back asssembly
needs to be removed first for easier access.
1. Remove the V2 frame by removing the 3
screws on each side.
2. Install the V2 frame by making sure the U
shape faces the back (Fig. 12).
3. Install the 3 screws on each side (Fig. 13).
Front Kick Rail Replacement Instructions
NOTE: To replace the front kick rail, the V2
frame, middle seat, couch seat and
stationary back asssembly need to be
removed first for easier access.
1. Remove the old front kick rail by removing
the 3 screws on each side (Fig. 14).
2. Install the new front kick rail by making sure
rails are flush with bottom of kickboard.
Insert the 3 screws on each side.
Rear Kick Rail Replacement Instructions
NOTE: To replace the rear kick rail, the V2 frame,
middle seat, couch seat and stationary
back asssembly needs to be removed first
for easier access.
1. Remove the old kick rail by cutting a small
slit in the typar material to show the 2
screws on each side. Remove the 2 screws
on each side (Fig. 15) of the couch.
2. Install the new rear kick rail by inserting the
two screws on each side.
Fig. 14
Fig. 15
Screws

Rev: 05.23.2017 Page 9 Tri Fold Sofa Owners and Service Manual
Warranty
LIPPERT COMPONENTS® LIMITED WARRANTY
(NORTH AMERICAN OEM SALES)
This Limited Warranty (“Warranty”) outlines applicable coverage and claim procedures for Products, as defined
herein, sold by Lippert Components, Inc. or its subsidiaries or affiliates (the direct seller being the only warrantor
referenced herein as “Warrantor”, “we”, “us” or “our”).
Coverage. Subject to these terms, we warrant ONLY to you, the original equipment manufacturer (“OEM”, “you”
or “your”), that the products that we manufacture, distribute and/or sell to you that are not already covered by a
separate written warranty from another manufacturer (the “Product(s)”) will be free from defects in materials and
workmanship at the time of sale. We will honor this Warranty for a period of one (1) year from the date of retail
purchase, and cover only Products sold and used in the United States and Canada.
Service. For Products having a covered defect within the Warranty period, we will, in our sole and absolute
discretion, repair or replace the Product with a new or refurbished component, or provide a pro rata refund of that
portion of the Product. Labor will be allowed if a designated flat rate time is outlined by us and will be limited to the
published flat rate amount. There is no other warranty.
Notice. No remedy will be required or offered unless we receive written notice of a claimed defect. You MUST
make any claim of defect, including without limitation under this Warranty, in writing, with full particulars, promptly
after the defect was or reasonably should have been discovered, and in any event no later than sixty (60) days of
Arm Insert Replacement Instructions
1. The arm insert has a tack strip on
the back. Remove the old arm insert
by prying the insert off the arm.
2. Install the new arm insert by
tapping on the front with a mallet
(Fig. 16).
Foot Assembly Replacement
Instructions
1. Remove the old foot assembly by
removing the two screws at the
bottom of the foot assembly (Fig.
17).
2. Install the new foot assembly by
inserting the two screws into the
bottom of the new foot assembly
(Fig. 17).
Fig. 16 Fig. 17
Care and Cleaning
Use warm water only to clean material. LCI does not suggest any chemicals of any sort.
Maintenance
It is recommended that the bolts and nuts of the legs of the fold out portion of the Tri-Fold Sofa be tightened on a
monthly basis. Over time the bolts and nuts can loosen, which could cause damage to the middle cushion cover.
Arm Insert

Rev: 05.23.2017 Page 10 Tri Fold Sofa Owners and Service Manual
its discovery. In the event of any accident, injury to person, damage to property, or other loss involving a Product,
you MUST notify us in writing within thirty (30) days of the incident or within ten (10) days of notification to you,
whichever is earlier. In the event of any survey, test, or inspection to be conducted on a Product, you MUST notify
us in writing immediately so that we, at our sole election, may participate in that activity or conduct our own survey,
test, or inspection in advance. Your written notice MUST describe the defect, provide the customer’s name and
address, state the location of the Product, and provide us full particulars (see below). As a condition of coverage,
we MUST be provided access to the original Product for inspection, testing, or other work at our discretion. The
Product MUST remain unmodified. We will not consider any claims for Products (or any components thereof) that
are not in their original form. Failure to give us proper or timely notice of a claimed defect, or failure to return the
defective Product, or performing any modification, self-help, or alteration of the Product, without our prior written
approval, will constitute an absolute waiver and release of all your claims and rights under this Warranty.
Transferability. THIS WARRANTY IS NOT ASSIGNABLE OR TRANSFERABLE. THIS WARRANTY EXTENDS ONLY TO
YOU, THE ORIGINAL OEM PURCHASER PURCHASING A PRODUCT DIRECTLY FROM WARRANTOR’S FACILITIES, AND
WILL NOT BE CONSTRUED TO EXTEND TO ANY THIRD-PARTY, INCLUDING WITHOUT LIMITATION THE ULTIMATE
RETAIL PURCHASER OR CONSUMER OF AN END PRODUCT. YOU MAY NOT REPRESENT TO ANYONE, INCLUDING
YOUR CUSTOMER OR AN END CONSUMER THAT THIS WARRANTY EXTENDS TO THEM.
Limitations. THERE IS NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE
FULL EXTENT DISCLAIMER IS PERMITTED BY LAW. IN ANY EVENT, ANY IMPLIED WARRANTY THAT MAY ARISE BY
LAW IS LIMITED IN DURATION TO THE TERM HEREIN AND TO THE COVERED PRODUCTS. THE REPAIR, REPLACEMENT,
OR REFUND PROVIDED HEREIN IS EXCLUSIVE AND IN LIEU OF ALL OTHER REMEDIES. EXCEPT AS PROVIDED IN
THIS WARRANTY, ALL PRODUCTS ARE BEING SOLD “AS IS” AND “WITH ALL FAULTS.” ALL RISKS AS TO PRODUCT
QUALITY OR PERFORMANCE NOT CONTEMPLATED BY THIS WARRANTY WILL BE BORNE EXCLUSIVELY BY YOU,
THE PURCHASER. IF A PRODUCT PROVES DEFECTIVE AFTER ITS PURCHASE, YOU, NOT US, ASSUME THE ENTIRE
COST OF ALL NECESSARY SERVICING OR REPAIR THAT IS NOT COVERED UNDER THIS WARRANTY. IN NO EVENT
WILL WE BE LIABLE FOR COSTS OF REMOVAL OR REINSTALLATION OF THE PRODUCTS, OR ANY EXPENSE RELATED
TO REINSTALLATION. WE WILL HAVE NO LIABILITY TO ANYONE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL,
INDIRECT, EXEMPLARY, OR PUNITIVE DAMAGES OF ANY KIND WHATSOEVER, INCLUDING WITHOUT LIMITATION
PROPERTY DAMAGE, LOST PROFITS, LABOR COSTS, OR ANY OTHER PECUNIARY DAMAGE, WHETHER DUE TO
ANY DEFECT IN THE PRODUCTS, BREACH, DELAY, NON-DELIVERY, NON-PERFORMANCE, RECALL, OR ANY OTHER
REASON. ALL CLAIMS FOR NEGLIGENCE AND FOR FAILURE OF ESSENTIAL PURPOSE ARE EXPRESSLY WAIVED AND
RELEASED. UNDER NO CIRCUMSTANCES WILL OUR LIABILITY FOR ANY DEFECT IN THE GOODS, WHETHER BASED
ON CONTRACT, TORT, WARRANTY, OR ANY OTHER THEORY, EXCEED THE PURCHASE PRICE OF THE PRODUCTS.
THERE ARE NO THIRD-PARTY BENEFICIARIES TO THE WARRANTY’S TERMS. YOU WAIVE ANY RIGHT TO A JURY
TRIAL AND CLASS ACTION RELATING TO THIS WARRANTY, AND MAY NOT JOIN OR CONSOLIDATE CLAIMS AS A
REPRESENTATIVE OF A CLASS ACTION OR IN A PRIVATE ATTORNEY GENERAL CAPACITY.
THESE PROVISIONS PROVIDE SPECIFIC LEGAL RIGHTS AND LIMITATIONS. SOME MAY NOT APPLY BASED ON STATE
OR FEDERAL LAW, AND OTHER LEGAL RIGHTS MAY EXIST.
Exclusions. This Warranty only covers the Products. Due to the intended use of our Products, any and all items
and components not sold by us but attached to, incorporated into, or using our Products carry NO WARRANTY
WHATSOEVER from us regardless of circumstance. We will not be liable for any defects, whether due to
workmanship, materials or any other reason whatsoever, for those items and components not sold by us. This
Warranty also does not cover customer instruction, installation and labor (except as provided herein), parts
supplied by others, abuse, misuse, neglect, improper installation or improper repair by anyone other than us,
improper usage, overloading, accidents, unreasonable use, improper loading, improper operation, improper repair,
improper maintenance, normal wear and tear, color fade, mold, mildew, corrosion, rust formation, modifications,
or attempted repair by anyone other than a qualified repair facility. This Warranty does not cover chemical damage
caused by acids, fuel, oil, or other chemicals. Use of our Products in or as part of a unit in a rental fleet, or for a
commercial purpose, voids your rights under this Warranty.

Rev: 05.23.2017 Page 11 Tri Fold Sofa Owners and Service Manual
Indemnity. You agree to indemnify and hold us, as well as our officers, agents, employees, and representatives,
harmless from and against all claims, causes of action, liabilities, losses, damages, judgments, and proceedings,
whether based in contract, quasi-contract, subrogation, tort, strict liability, or any other legal or equitable theory,
including without limitation all expenses, costs, damages or injury to person or property, and attorney fees incident
thereto, arising from or relating to your handling, storage, transportation, possession, processing, fabrication,
resale, or any other activity involving the Products after delivery, or relating to any extension or attempt to extend,
assign, transfer, or pass this Warranty through to anyone else. At our request, and subject to our sole discretion to
choose our own counsel, you will also defend us from any such claims, causes of action, or proceedings.
Statute of Limitations. Any action, lawsuit or other proceeding, under this Warranty or otherwise, related to the
Product MUST be commenced within one (1) year after the earlier of (a) the expiration of the Warranty coverage
period, (b) our alleged failure to repair the defect at issue; or (c) the date on which your claim accrues under
applicable law. Unless prohibited by law, the performance of repairs will not prevent the limitations period from
expiring, nor will any tolling or estoppel doctrine apply. This Warranty does not extend to future performance.
Applicable Law & Venue. This Warranty will be governed by and construed in accordance with the laws of the
State of Indiana without regard to principles of conflicts of law. Any disagreement, dispute, controversy, or claim
arising out of or relating to this Warranty MUST be submitted to binding arbitration in accordance with the Rules
of the American Arbitration Association. Judgment upon the award may be entered in any court having jurisdiction
thereof. In the event you bring any claim against us in violation of this Warranty or for claims waived or released
under this Warranty, you agree to pay our attorney and paralegal fees and costs to defend such suit.
Modifications. We will not be liable for commitments, promises, or agreements made by any employee, agent, or
dealer that is not in accordance with this Warranty. The current warranties and terms outlined on the Warrantor’s
website (www.lci1.com) applicable on the date of purchase take precedence over any other warranties, whether
oral or written. We reserve the right to alter our warranties from time to time, as the laws and our business needs
and industry change. Any conditions or exceptions that may be stated in any communication or document to us
from any entity or individual, including but not limited to the retail purchaser or consumer, shall be of no effect
unless specifically agreed to in writing and hand-signed by our authorized representative.
Miscellaneous. Any legally or otherwise invalid provision hereof will be considered severable, with all remaining
provisions enforceable. We have all rights and remedies given to sellers by applicable law, and our rights and
remedies are cumulative and may be exercised from time to time. No waiver by us of any provision of this Warranty
will be effective unless in writing, nor will it operate as a novation or waiver of any other provision or affect our right
to exercise thereafter any right or remedy. We will not lose any right because we have not exercised that right in
the past.
For questions and claims, contact Lippert Components, Inc., Attn. Warranty Dept., 2703 College Avenue,
Goshen, Indiana 46528. The telephone number to obtain the name and address of the service and repair
facility nearest you is 1-574-537-8900. You may also email your claim to [email protected]. To
process your claim, we will need the following information: vehicle identification number (VIN), date of
manufacture, date of purchase, the make and full model number, pictures of alleged defect, and description
of alleged defect. Please include this information with any correspondence and have this information
available when you call.

The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”).
LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an
authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty.
The information contained in this manual is subject to change without notice and at the sole discretion of LCI.
Revised editions are available for free download from www.lci1.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact
Lippert Components, Inc.
Ph: [phone] | Web: lci1.com | Email: [email protected]
Rev: 05.23.2017 Page 12 Tri Fold Sofa Owners and Service Manual
