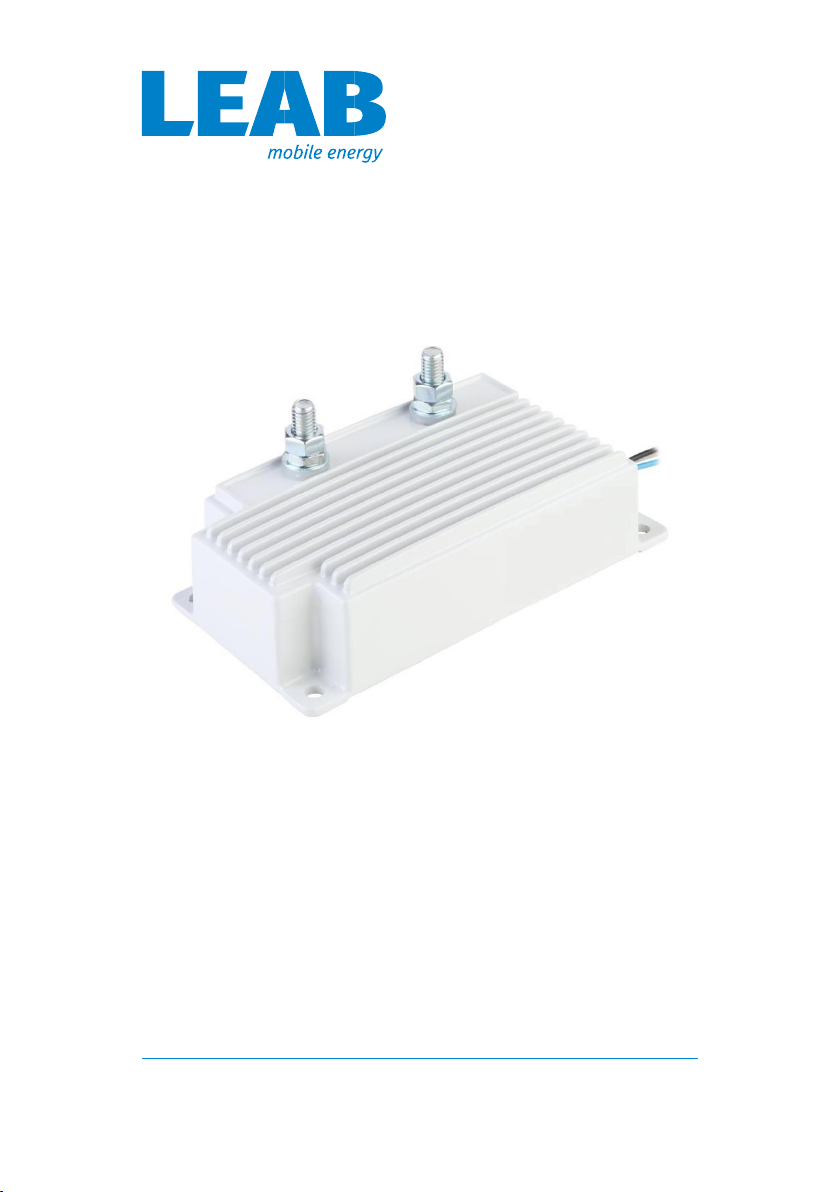

LEAB CDR 200/40 User manual

LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
User Manual
Version: V 2.0
Issue date: 30.09.2019
CDR 200/40, CDR 200/100
Electronic current distributor for the charging of two batteries via
the alternator or charger
User Manual

Installation Instructions About this Manual
Page 1 of 6
Table of Contents
1About this Manual .................................................................................1
2General Safety........................................................................................2
3Package Contents...................................................................................3
4Technical Specifications .........................................................................3
5About the CDR .......................................................................................4
6Mounting ...............................................................................................4
7Installation .............................................................................................4
8Optional Functions.................................................................................5
9Maintenance..........................................................................................6
10 Disposal..................................................................................................6
11 EU Declaration of Conformity ................................................................6
1About this Manual
Read this manual carefully and keep it in a safe place. This manual is
intended for professionals in the automotive electrical field.
Throughout the manual, you will be alerted to warnings and safety notices
about potential hazards associated with handling the device. The colours and
signal words indicate the severity of the hazard:
Signal word
Meaning
DANGER
Warns of imminent danger resulting in death or
serious injury.
WARNING
Warns of a potentially dangerous situation that can
result in death or serious injury.
CAUTION
Warns of a potentially dangerous situation that can
result in moderate or minor injuries.
NOTICE
Warns of a potentially dangerous situation that can
result in material and environmental damage.

Installation Instructions General Safety
Page 2 of 6
In this manual you will find the following symbols:
Shows you useful tips and information about the device.
Indicates a mandatory requirement for the following
instruction.
Shows the result of an instruction.
2General Safety
This manual supports safe handling of the device. Use the device solely in
accordance with its intended use:
The LEAB CDR enables virtually loss-free charging of two batteries from one
source, such as an alternator or charger. The CDR is installed between the
starter and auxiliary batteries and serves as a current distributor. The LEAB
CDR is bidirectional, charging takes place in both directions.
Any modifications to the device or its components are prohibited and do not
conform to its intended use.
Observe the following safety instructions:
Danger from damaged, frozen or deformed batteries: Before charging,
make sure that the battery is undamaged and the electrolyte is not
frozen.
Only charge batteries in well-ventilated rooms and away from ignition
sources.
When handling batteries, wear acid-proof clothing.

Installation Instructions Package Contents
Page 3 of 6
3Package Contents
4Technical Specifications
Model
CDR 200/100
12 V /24 V
CDR 200/40
12 V / 24 V
Part number
1301171460
1301171450
Current limit
100 A
40 A
Input voltage
universal 12 V or 24 V
Typical switch-on voltage
13.5 V | 27.0 V
Typical switch-off voltage
12.8 V | 25.6 V
Quiescent current switched off
< 1 mA
Quiescent current switched on
< 25 mA
Operating temperature range
-20 °C … +60 °C
IP rating
IP67
Weight
1.1 kg
Dimensions (L x H x W)
155 x 80 x 43 mm
(with screw terminal height 63 mm)
Package Contents
No.
CDR
x1
User Manual
x1
Insulating caps
x2
Hexagon nut, M8
x2
Washers
x2

Installation Instructions About the CDR
Page 4 of 6
5About the CDR
6Mounting
To mount the device, perform the following steps:
Do not mount the device directly next to or above batteries.
To allow adequate cooling, ensure an unimpeded supply of
cooling air.
Fasten the device to the 4 lateral holes (6 mm Ø).
7Installation
To install the CDR, perform the following steps:
No.
Part Name
1
Screw terminal 1 / Input
2
Screw terminal 2 / Output
3
Connection cable LED (grey)
Connection cable GND (black)
Connection cable bypass button (blue)
The device is mounted.
In vehicles with generator management, additional batteries are
not sufficiently charged by conventional cut-off relays or current
distributors.
We recommend the LEAB charge booster (part number):
1041003001).




Installation Instructions Optional Functions
Page 5 of 6
Connect the positive terminal of the starter battery to the screw
terminal 1 (input).
Connect the positive terminal of the additional battery to the screw
terminal 2 (output).
Connect the connection cable GND to a ground.
Connect the negative terminal of the starter battery and the negative
terminal of the additional battery to a shared ground.
Should the battery connected to the alternator or charger exceed a
voltage of 13.5 V or 27 V, the CDR will switch on the auxiliary
battery for charging.
Should the voltage drop below 12.8 V or 25.6 V, the CDR will
disconnect the batteries to prevent mutual discharge.
The LED integrated in the CDR lights up when current (> 1 A) is
connected through.
Optional: To connect an external LED, connect the blue connecting cable
to an LED.
Optional: To connect a bypass button, connect the blue connecting
cable to a button.
The CDR is installed.
8Optional Functions
Bypass Function
The bypass function is used to charge the starter battery with the additional
battery if the voltage of the starter battery is too low.
To use this function, connect a button with the connection cable for the
bypass button.
LED Remote Display
An external LED can be connected and used as a remote display to detect
whether the CDR is conducting current.
To use this function, connect an LED (output 5 V, max. 5 mA) to the
connecting cable for the LED.

Installation Instructions Maintenance
Page 6 of 6
9Maintenance
Check the current distributor as follows each time before using it:
Check the cables and connections for damage.
Ensure that the wiring between the current distributor and the
batteries is secure.
Check the current distributor for external damage.
For battery maintenance, refer to the battery manufacturer's
instructions.
10 Disposal
Dispose of the device in accordance with the Waste Electrical and Electronic
Equipment Regulations (WEEE).
The device must not be disposed of with household waste.
Take it to a recycling point or send it to your point of sale.
11 EU Declaration of Conformity
The LEAB CDR
models 200/40 and 200/100
complies with the requirements of the following
directives:
2014/30/EU: EMC
2011/65/EU: RoHS

LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
Germany
Tel.: [phone]
Fax: [phone]
Email: [email protected]
Web: www.leab.eu
