Lec essenChill LC BRG50B User manual

USER GUIDE
LC BRG50B
Part No: 083521000 Date: 29/07/2015

SAFETY
Ensure that the appliance is earthed.
Ensure that the appliance is disconnected
from the mains supply before attend covers
(if tted).
Ensure that the appliance is disconnected
from the mains supply before cleaning inter-
nally or defrosting.
WARNING: Do not store ammable,
corrosive or explosive substances in the
appliance.
WARNING: Do not allow unsupervised
children to use this appliance
WARNING: This appliance is not in-
tended for use by persons (including
children) with reduced physical, sen-
sory or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instruc-
tion concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appli-
ance.
WARNING: Do not use mechanical de-
vices or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not damage the refrig-
erant circuit.
WARNING: Do not store explosive
substances such as aerosol cans with a
ammable propellant in this appliance.
WARNING: When positioning the
appliance ensure the supply cord is not
trapped or damaged.
WARNING: Do not locate extension
sockets or charging transformers/power
supplies adjacent to the compressor as
they could overheat.

BEFORE YOU SWITCH ON
Consider the location
Your drinks cooler should not be installed on
a carpet, this may prevent proper air circula-
tion.
Do not locate your drinks cooler near a heat
source, e.g. cooker, boiler or radiator. Avoid
placing in direct sunlight.
When installing it is important to keep a min-
imum clearance of 25mm (1 inch) all around
the cabinet and 6 inches at the back, to allow
for ventilation.
Unpack your drinks cooler
Remove all external and internal packing.
Clean your drinks cooler
We recommend that you clean your drinks
cooler before use, refer to the section ‘Clean-
ing your drinks cooler’
Ensure your drinks cooler is level. Adjust the
rotating feet at the front. A very slight back-
ward lean will ensure that the door closes;
better.
Leave your drinks cooler for 2hours
before switching on leave your drinks cooler
upright for 2hours to allow the coolant uid
time to settle.
Reversing the Door Swing Tools
Required: Phillips style screwdriver / Flat
bladed screw driver / Hexagonal spanner
• If you want to have the door swing re-
versed, we recommend that you contact
a qualied technician. You should only try
to reverse the door yourself if you believe
that you are qualied to do so.
• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their high-
est position.
• To take the door off it is necessary to tilt
the unit backwards You should rest the
unit on something solid so that it will not
slip during the door reversing process.
• All parts removed must be saved to do
the re installation of the door.
• Do not lay the unit at as this may dam-
age the coolant system.
• We recommend that 2 people handle the
unit during assembly.

1. Tilt the unit slightly towards the rear and
prop it securely. Two people are required
to tilt the unit during the door reversal
process.
2. Remove the top right hinge cover.
3. Undo the screws. Then remove the hinge
bracket.
4. Remove the top left screw cover
5. Remove the screws and bottom hinge.
Then remove the adjustable feet from
both sides.
6. Remove the door limiting stopper from
the door bottom right to left side.
7. Ret the bracket tting the bottom hinge
pin. Replace both adjustable feet. Put the
hinge cover and the screw cover back.
BEFORE YOU SWITCH ON

BEFORE YOU SWITCH ON
8. Place the door back on. Ensure the door
is aligned horizontally and vertically so
that the seals are closed on all sides be-
fore nally tightening the top hinge.
9. Insert the hinge bracket and screw it to
the top of the unit.
10.Use a spanner to tighten it if necessary.
11.Put the hinge cover and the screw cover
back.
12.With the door closed, check that the door
is aligned horizontally and vertically and
that the seals are closed on all sides be-
fore nally tightening the bottom hinge.
Re-adjust the levelling feet as needed.

PLUG IN AND SWITCH ON
The drinks cooler runs on an electricity sup-
ply of 220-240V 50Hz and must be earthed
Plug in the drinks cooler and switch it on at
the socket.
To turn your drinks cooler off, simply switch it
off at the socket
Temperature Setting
Your drinks cooler is factory set to provide
your drinks with an optimum environment for
storage and longevity.
The thermostat is located on the unit step,
inside the cabinet at the rear bottom.
Thermostat Setting Temperature Range
(°C)
Max About 7 -10
Normal About 11 -15
Min About 16 -18
Your drinks cooler should be plugged in and
allowed to run for 24hours before making
any temperature adjustments
TEMPERATURE CONTROLS

CHANGING THE INTERNAL LIGHT GLASS DOOR CONDENSATION
DF72G only
Before carrying out the bulb replacement al-
ways switch off and disconnect the electricity
supply.
To replace the bulb:
• Switch off and disconnect the electricity
supply to the drinks cooler.
• Remove the upper two shelves
• Hold the lens cover so that it does not fall
and using a Philips screwdriver, remove
the screw at the rear of the lens cover.
• Remove the bulb and replace it with a
new 15 watt bulb.
• Replace the lens cover and the screw at
the rear of the cover.
• Plug in the cooler and switch on at the
socket.
From time to time, depending on the external
temperature and humidity level, some con-
densation may appear on the glass door. This
phenomenon has no effect on the product
and will disappear when the difference be-
tween the external and internal temperature
is reduced.

CLEANING YOUR DRINKS COOLER DEFROSTING YOUR DRINKS COOLER
On the outside
Use a good wax furniture polish to clean your
drinks cooler’s exterior. Make sure that the
doors are closed, to prevent polish getting on
the magnetic door seal or inside. Do not use
an aerosol polish as the spray may damage
plastic parts.
On the inside
• Switch off and unplug from the main
supply.
• Remove all the shelves.
• Wipe the inside with a soft cloth damp-
ened with a solution of one teaspoon of
bicarbonate of soda to one litre of warm
water. Rinse with clean warm water and
dry thoroughly.
• After replacing shelves, plug in and switch
on the mains supply.
Take care to avoid the light and thermostat
control. Water could cause serious electrical
damage.
Do not use soaps, wire wool, scouring pow-
der or disinfectants of any kind
Your drinks cooler automatically defrosts reg-
ularly, every time it nishes a cooling cycle.
The defrost water will collect in the trough,
located at the back of the cooler. It is impor-
tant to keep the defrost drain (the small hole
in the middle of the trough) clear, otherwise
defrost water will overow onto the inside
oor of the cooler. If the drain does become
blocked you can clear it by carefully using
a exible rod such as a pipe cleaner or net
curtain wire

CHANGING THE PLUG TROUBLESHOOTING
Your drinks cooler is tted with a fused three
plug which will be suitable for use in all resi-
dences tted with sockets to current speci-
cations.
The drinks cooler runs on electricity supply of
220-240 V 50Hz and must be earthed. If the
plug is removed it should not be re-used, but
thrown away immediately. A cut off plug can
be dangerous if plugged into a socket.

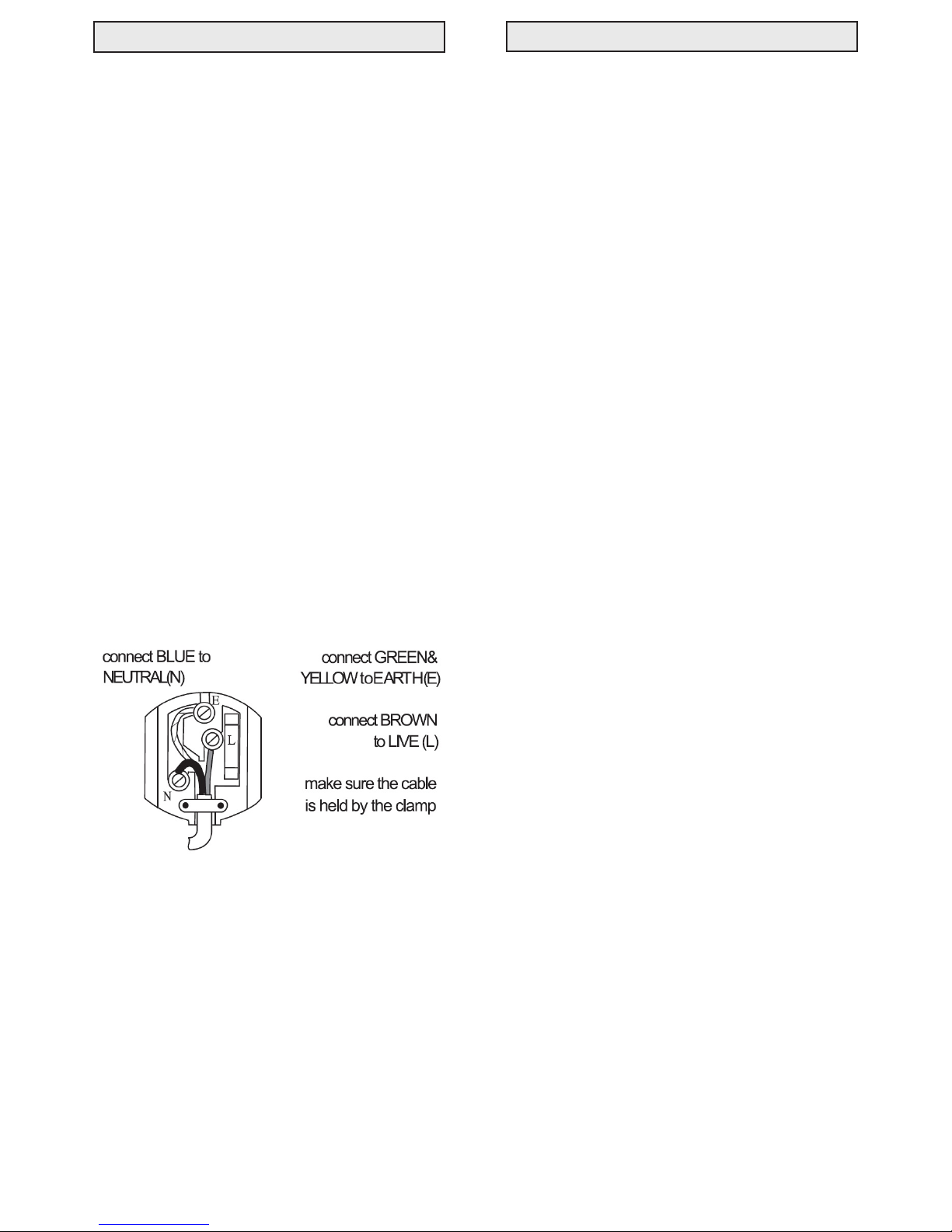

If the plug supplied becomes damaged it
must be replaced with a new one and the
exible mains lead connected as shown.
Note: only 13amp fuses approved to BS 1362
A.S.T.A should be used. After replacing or
changing a fuse, the fuse cover in the plug
must be replaced. If lost, replacement fuse
covers are available for a nominal change
from:
Spares Department, Glen Dimplex
Professional Appliances, Stoney Lane, Pres-
cot, Merseyside, L35 2XW
Tel: [phone]
Do not push excess mains lead into the
compressor (motor compartment as this may
cause and electrical hazard.
Your drinks cooler is not cool enough
• Make sure that the cooler is away from
direct sunlight and heat sources.
• Check that the door is properly closed.
Internal light does not come on
(DF72G)
• Check the light bulb. Make sure that the
electrical socket is switched on.
Internal light does not go out
• Make sure that the door is closed
If the ideas given above here have not solved
the problem, call customer service. Do not
attempt repairs on your own, particularly on
electrical components.

USEFUL TIPS DISPOSAL
If your appliance is to be out of service for
any length of time ensure that the interior is
carefully cleaned and dried. Leave the door
open and disconnect the plug from the mains
socket.
Your cabinet is CFC and HCFC free and there-
fore has no ozone depletion potential (zero
ODP).
However, all refrigeration appliances should
be disposed of in a responsible manner.
Ensure that none of the pipes on the back of
the appliance are damaged prior to disposal.
Up to date information concerning options for
disposing of your old appliance and packag-
ing from your new appliance can be obtained
from your retailer or local council ofce.

Please record your model number and serial number in the space below. Having these numbers to
hand will help us to help you, quickly and more efciently.
When contacting us, please use the Customer Care number located in the bottom of this page.
Model Number
Serial Number
Date of purchase Installers stamp / print
name Date of installation
Purchased from
Date Part(s) replaced Engineers stamp /
printed name
In the event of a problem, please call our Customer Care Centre
on: 08344 815 3742
CUSTOMER CARE

GUARANTEE
Lec Guarantee
Your Lec drinks cooler is made from the very best materials to the highest standards of
manufacture and has been extensively tested and inspected before leaving our factory. It
conforms with current British and European Electrical Safety Standards. It is guaranteed
for one year from the date of purchase, against mechanical and material defects, with the
exception of light bulbs.
In the event of a defect to which this guarantee applies, please produce your receipt (as
proof of purchase) to your supplier, who will make the necessary arrangements for rectica-
tion as quickly as possible.
This guarantee does not apply if:
• The drinks cooler has been improperly installed or used in a manner contrary to the op-
erating instructions issued with it.
• The drinks cooler has been treated in an abnormal or abusive manner
• The drinks cooler has been used for industrial or commercial purposes.
• Any repair work has been carried out by any person other than a Lec approved engineer.
• Any parts have been tted which are not genuine Lec approved parts.
• The drinks cooler has been modied in any way or the serial number has been removed
or altered.
• Any toxic or corrosive products have been used or stored in or near to the drinks cooler.
Without prejudice to the rights of the buyer no liability is accepted for any consequen-
tial loss or damage resulting from failure of the drinks cooler or for any reason whatsoever.
You are strongly advised to insure under the special Lec Food and Freezer Scheme which is
enclosed with this guarantee or which is obtainable from the company.
Acceptance of this guarantee does not affect your statutory rights: Consumer Transactions
(Restrictions on Statements)Order 1976.
This guarantee is applicable only in the United Kingdom and Channel Islands.

Please keep this handbook for future reference, or for anyone else who may use the
appliance.

Please keep this handbook for future reference, or for anyone else who may use the
appliance.

Please keep this handbook for future reference, or for anyone else who may use the
appliance.

Glen Dimplex Professional Appliances,
Stoney Lane, Prescot, Merseyside, L35 2XW
Customer Care Centre: 08344 815 3742
www.lec-commercial.co.uk
Glen Dimplex Professional Appliances, a division of Glen
Dimplex Home Appliances
