LENCO BRP-430 User manual

Please read this User Manual carefully to ensure proper use of this
product and keep this manual for future reference.
BLU-RAY DISC PLAYER
BRP-430
BLU-RAY DISC PLAYER BRP-430
For information and support, www.lenco.eu

Important Safety Instructions
9. Specifications
1. Overview
. Output Illustration
4
5.System Setting
6. Audio, Video, Picture files on disk or USB devices
7. BD-Live Operation
2. Front Panel and Rear Panel Illustration
3
. Remote Control
8. Trouble shooting
2
3
4
7
9
11
15
20
22
23
Content
1

2
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lightening storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily
operable.
15) The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19)Portable Cart Warning
A product and cart combination should be moved with care. Quick stop,
excessive force, and uneven surface may cause the product and cart
combination to overturn.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
WARNING: The batteries must not be exposed to excessive heat such as sunshine, fire or
the like.
The symbol indicates that dangerous voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are important operating and maintenance
instructions in the literature accompanying this unit.
This symbol indicates that this product incorporates double insulation between
hazardous main voltage and user accessible parts. When servicing use only
identical replacement parts.

5
3
TM
Blu-Ray Disks
DVD Video Disks
(DVD-ROM)
DVD-RW
1.1 PLAYABLE DISK TYPES
The following typesof disks canplay in theREF player:
1. OVERVIEW
This BD playerhas the capabilityof providing high-definition,cinema-like pictures and
multi-channel audio. Soundtracksin more thanone language areusually included on
the disk, andsubtitles in morelanguages are oftenincluded as well.
DVD-R
Audio CDs
(CDDA)
DVD-RAM
VCD SVCD
MP3/WMA/JPEG
Data CD
DTS-CD
NOTES:
For writeabl DVD-RAM, DVD-RW, DVD-R)
Only DVD-RAM/-RW/-R recorded with UDF or ISO9660 format can be played back.
The disks must be finalized, VR-mode only
This Blu-ray disk player supports DVD disks that are compatible with DVD-RAM
Standard Version 2.0.
Playback may not work for some types of disks, or when specific operations, such as
angle change and aspect ratio adjustment, are being performed. Information about
the disks is written in detail on the box. Please refer to this if necessary.
Some DVD-VR disks will be playable but not all features are available.
For writeab
Only CD-R/-RW media recorded with UDF or ISO9660 format can be played, and they
must be finalized.
e DVD disks (
le CD disks
1.2 REGION CODE
If the Regionnumber of aBD or DVDdisk does notcorrespond to theregion number of
this Blu-ray diskplayer, theBD player cannotplay the disk. The region code is printed
on the rearpanel of theBDPlayer.

AUDIO OUT
L
RCOAXIAL
VIDEO OUT
HDMI OUT(1080P)
LAN USB
Y
Pr
Pb
COMPONENT
4
2. Front Panel and Rear Panel Illustration
2.1 Front panel
1
3
2 CHAudio output(L,R)
21
2.2 Rear panel(2CHAudio output)
2
4
Digital AudioCOAXIAL output
HDMI output
5
Composite VIDEO output
LAN
6
7
USB 2.0
DISPLAY
1
2
3
POWER
4
USB
CABIN DOOR
7PLAY/PAUSE BUTTON
9
10
11
8
STOP BUTTON
5
6
SENSOR
PREV BUTTON
NEXT BUTTON
OPEN/CLOSE BUTTON
BD LIGHT
123457689 10
11
356 7
4
Component Video output(Y,Pb, Pr)

2.3 TV SetConnections
5
AUDIO IN
HDMI IN
VIDEO IN
VIDEO
R
L
Y
U
V
HDMI
YPbPr IN
COMPONENT IN
AUDIO IN
2.3.1 CONNECT BDPLAYER TO TV SET BY AVCABLE
Connect the BDplayer s FLand FR jackto the audioinput jack on the TV.
Connect the BDplayer s videoout jack to the video input jack of TV.
2.3.2 CONNECT THEBD PLAYER TO TV SET USINGTHE Y/Pb/Pr JACKS
Use the COMPONENTCable(not supplied) to connect BD playerto your TV.
Connect the BDplayer sAudio output Land R jackto the audio input jack onthe TV.
2.3.3CONNECT THE BDPLAYER TO TV SET USING THE HDMI OUTPUT
Use the HDMIcable (not supplied)to connect BD player to your TV.
Notes: The player supports video resolutionup to 1080p60Hz on HDMIoutput.
AUDIO OUT
L
RCOAXIAL
VIDEO OUT
HDMI OUT(1080P)
LAN USB
Y
Pr
Pb
COMPONENT

2.3.3 Connecting to an AV Amplifier with Digital Audio Input
Coaxial
Coaxial cable
Notes:
1. Select the Coaxial digital audio output.
2. Set the digital Amplifier to the AV input connected to the BD player.
Digital Amplifier
6
AUDIO OUT
L
RCOAXIAL
VIDEO OUT
HDMI OUT(1080P)
LAN USB
Y
Pr
Pb
COMPONENT

3.1 Video Output Capabilities
Each of thevideo outputs arecapable of different levels offunctionality, as described
in the tablebelow.Actual output willdepend on setup menu settings and TV capabilities
for HDMI televisions.
BD Player
Video Output
Resolutions Supported
(NTSC Models)
Resolutions Supported
(PALModels)
HDMI
Component Video
Composite Videov
1080p 60/50/30/25/24
1080i 60
720p 60/30/24
420p 60/30/24
480i
1080i 60/48
720p 60/30/24
576p 60/30/24
480p 60/30/24
NTSC SD (480i)
NTSC SD (480i)
1080p 60/50/30/25/24
1080i 50
720p 50/30/24
576p 60/30/24
576i 50
1080i 60/48
720p 60/30/24
576p 60/30/24
480p 60/30/24
PALSD (576i)
PALSD (576i)
3.2 Audio Output Capabilities
Each of theaudio outputs arecapable of different levels offunctionality, as described
in the tablebelow.Actual output willdepend on
BD player setupmenu settings,
What types ofaudio tracks areencoded on the disk, and,
Surround sound receivercapabilities (for BDplayers connected to a surround-
sound system throughHDMI or SPDIF)
BD Player
Audio Output Audio tracks thatcan be sentdirectly to output
Dolby TrueHD
Dolby Digital Plus
DTS-HD High-Resolution Audio
Dolby Digital
DTS
PCM (From mono up to 7.1 channels @96 Khz)
Dolby Digital
DTS
PCM (stereo only, upto 96 Khz)
HDMI
SPDIF
3. Output Illustration
7

3.3.2. Stereo Audio Outputs
These are analog,“old fashioned”stereo (left/right) outputs.If your TV does nothave
an HDMI input,you can connectthese outputs tothe stereo audioinputs of aTV.
3.3.3. Composite Video
If your TV does nothave component orHDMI video inputs,connect this outputto the
composite video inputof the television.
3.3.4. HDMI 1.3Audio/Video Output
If you areusing a surround-soundaudio receiver withan HDMI input, connect
the HDMI outputof the BDplayer to theHDMI input ofthe audio receiver. (You will need
to connect asecond HDMI cablefrom the HDMIoutput of theaudio receiver tothe HDMI
input of thetelevision)
If your surround-soundaudio receiver doesnot have anHDMI input (orif you arenot
using a surround-sound receiver), connectthis output directlyto the HDMIinput of the
TV. One of theother audio outputscan be connectedto the audioreceiver.
3.3.5. Ethernet Connector
For BD-Live only, use anEthernet cable toconnect this connectorto access Ethernet
while playing BD-Livedisk.
3.3.6. USB 2.0Connector
Used for externalUSB memory access, play supported audio/videofiles on USB
memory or storedownload content intoUSB memory forBD-Live
8
3.3 Connectors Description
3..3.1 SPDIF Digital Audio Output audio output
The SPDIF outputis a digitalaudio output. Ifyou have asurround-sound receiver with
a SPDIF (coaxial)input,connect this outputto the coaxialinput of thesurround sound
receiver.

STANDBY
ANGLE
POP MENU/TITLE
SUBTITLE
MENU
SECONDARY
AUDIO
BONUS
VIEW SECONDARY
SUBTITLE
AUDIO
RANDOM
DISPLAY
REPEAT A-B
GOTO
OPEN/CLOSE
+
1
4
7
2
5
8
0
3
6
9
CLEAR
REV
FWD
NEXT
PREV
MUTE
STOP
VOL
RETURN
SLOW
SETUP
STEP
ENTER
1
19
20
21
22
23
25
27
28
29
30
31
24
26
2
3
4
7
9
10
11
12
14
16
18
15
17
13
5
8
6
4. Remote Control
1.Open/Close
Press this buttonto open/close thedisk tray.
2.Audio
This key isused to cyclethrough the movieaudio
soundtracks available onthe disk. (Notavailable on all
disks).
3.Subtitle
This key canbe used toenable/disable subtitles during
BD/DVD playback. Ifthe disk hasmore than one
subtitle language, itcan also beused to cyclethrough
the subtitle languages.
4.Random
Used for randomplayback of audiofiles on disk.(Not
available on alldisks).
5.Menu
Pressing this keywill immediately stopplayback, and
bring up themain or 'top'menu of theBD or DVDdisk.
(Not available onall disks)In themain menu, youcan
typically choose subtitlelanguage, audio track,or
different scene etc.
6.Colour Keys
The red, green,yellow, andblue keys areused to
implement disk-specific featureson some BDdisks.
(Not available onall disks).
7.Secondary Subtitle
Used to bringup the subtitle(if available) forthe picture-
in-picture (director's commentary, etc) ona BD title.If
the disk hasmore than onedirector's commentary
subtitle language, itcan also beused to cyclethrough
the subtitle languages.(Not available onall disks).
x1/8
x1/4
x1/2
8.Bonus View
On BD disks,this button isused to turnthe video portionof the director'scommentary
(picture-in-a-picture) on andoff. (Not available on alldisks).
Note: Director's commentarymust have beenturned on inthe BD's mainmenu in
order for thiskey to work.
9.Menu Navigation Keys
These keys areused when navigatingthe menus onBD and DVDs.They are also
used for navigatingthe setup menusfor the BDplayer.
10.DISPLAY
Press this buttonto show currentplay status andtime information.
11.SLOW
Pressing this buttonwill cause thevideo to beplayed at 1/2,1/4, 1/8 speed.
12.NEXT
Press this buttonto play nexttitle, chapter,track or fileif valid.
13.PREV
Press this buttonto play previoustitle, chapter,track or fileif valid.
14.MUTE
Pressing this buttonto avoid audiooutput, pressing theMUTE button againwill
resume audio output.
9
Mute Mute Off

15.Play/Pause
Pressing the bottomof this buttonwill pause audioand video playback.Pressing the
top of thisbutton will resumeplayback.
16.STOP
This button stopsplayback of aBD/DVD movie orfiles on disk.
17. CLEAR
When entering numericvalues via thenumeric keypad ,this button isused to cleara
number entered incorrectly.
18.GOTO
This button isused with thenumeric keypad tojump to aspecific track onan audio CD.
19. STANDBY
Press the STANDBY button to turn theBD player onor off.
Note: Press STANDBY key during system (about20s) startup willbe no effect.
Press STANDBY key during system ison, system willenter low powerstandby
mode in about6s.
20.Angle
Some BD andDVDs are filmedwith more thanone camera angle. During playback
of such adisk, pressing thisbutton will allowyou to switchcamera angles. (Not
available on alldisks)
21.Pop Menu/Title
On BD disksonly, this button canbe used tobring up themain movie menu.(Not
available on alldisks).
22.Secondary Audio
On BD disksequipped with multipledirector's commentaries inseveral languages,
pressing this keywill cycle throughall of thelanguages available forthe director's
commentaries. (Not availableon all disks).
23.Setup
Bring out thesettings menu ofthe BD player. This key will notwork during diskplay-
back
24. Step
Pressing this buttonwill play movieby one frame.
25.Fast Reverse
Used to “FastReverse” during contentplayback .
26.Fast Forward
Used to “FastForward” during contentplayback.
27.Volume
Pressing the top(+) half ofthis button willincrease the volumeof the BDplayer's
audio output. Pressingthe bottom (-)half of thisbutton will decreasethe volume of
the BD player'saudio output.
28.Numeric Keypad
These buttons areused with theGOTO button to jump tospecific title/chapter (track)
or time.
29.REPEAT
This button isused to cyclethrough the possible“repeat”modes based oncontent
played.
BD/DVD or videofiles on disk:
CDDA oraudio Files ondisk:
30.A-B
When a diskis playing, pressingthis button oncewill save a“start point” forrepeating
playback. Pressing thisbutton again toselect a “endpoint” then playbackwill repeat
from the startpoint to theend point.
31.Return
When navigating fileson a dataCD or USBstick, pressing thisbutton will returnyou
to the previousfolder or menu.
16
09
Repeat File Repeat Off Repeat All
C
T
Repeat Title Repeat Chapter Repeat Disk Repeat Off
x2 x128
…
x128
…
x2
10

5.System Setting
Press SETUP button under stopstatus or pressRIGHT button in main menu.System
will bring outsetting menu asbelow picture:
Settings
Main Menu SettingMenu
System
Network
Info
Display
Audio
Language
Parental
5.1Language
5.1.1 OSD: setlanguage.
5.1.2 Menu: setlanguage used forBD\DVD menu (notavailable on alldisk).
5.1.3 Audio:select audio languagefor BD\DVD disk(not available onall disk) .
5.1.4 Menu: selectsubtitle language usedfor BD\DVD disk(not available onall disk).
11

Note:4:3PS and 4:3LBonly valid underSD mode (resolutionis 480p/576p or480i/576i).
5.2.4 Film Mode:system will output1080p 24Hz ifthis item isset to ONand disk
movies are recordedon film atrate of 24frames per second.
Note: this itemonly effect when Resolution isset to 1080p,and make sureyour TV can
support 1080P24Hz mode.
12
5.2Display
5.2.1 TV Type: Select to output NTSC or PAL video format .
5.2.2 Resolution: Setmaximum resolution ofyour TV here to getbest video quantity,
if you arenot sure, pleaseuse HDMIAuto, system will read the preferred
resolution your TV supported viaEDID.
5.2.3 TV Aspect: Selectright video ratiobased on yourTV.( Refer tobelow table)
Note: Aspectsetting only effect HDMI andcomponent output, and 4:3 setting has
no effect if resolution hasbeen set to720p or 1080ior1080p).

5.3.2 Digital Output:
If you onlyhave two speakers,set PCM stereo.

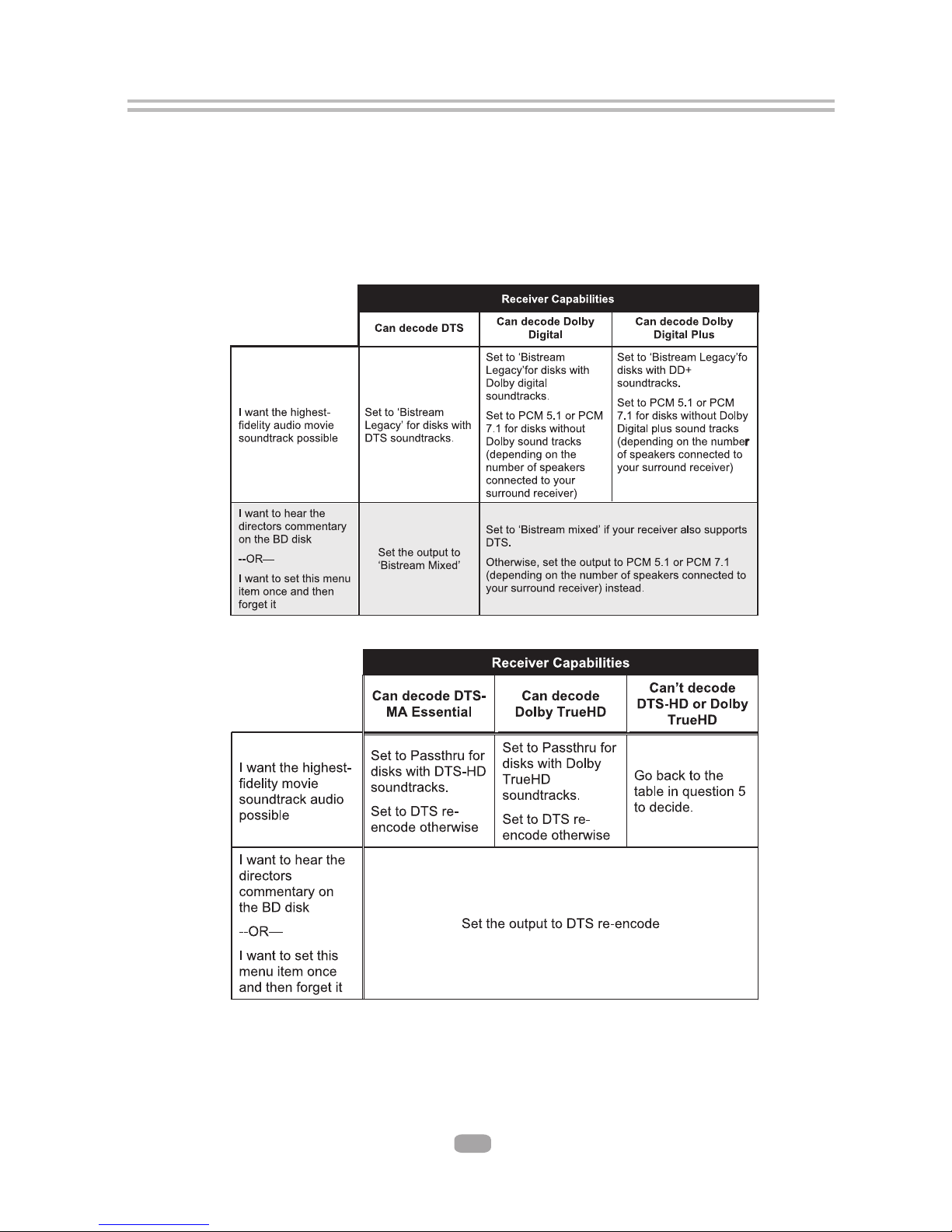

If you connectreceiver with morethan two speakers,please refer tobelow tables:
5.3.3 Dynamic RangeControl: means that youcan allow theBD player tomake the loud
parts of amovie'saudio track quieterthan they wouldbe in thetheatre, without
making the dialogof theactors anyquieter. (Iteffects on analog audio output and
digital output shouldbe set toPCM or BitstreamMixed).
5.3 Audio
5.3.1 PCM Downsampling:select right bitratefor PCM signalto ensure yourSPDIF
receiver can handleit correctly. It's noeffect for HDMI digital audiooutput.
13

5.4.2 BD-Live InternetAccess: ControlBD player accessinginternet
Limit access :Only allow theinserted Blu-Ray diskto download contentfrom a
BD-Live website whichhas a validonline certificate. This will reducethe chances
of downloading maliciouscontent onto theplayer.
Always allow access: Allow the BDthe inserted Blu-Raydisk to accesscontent
from all BD-Liveinternet sites whoseinternet address isencoded onto thedisk.
There is no danger ofmalicious code downloadfrom valid commercialBD disks,
but choosing thisoption and downloadingBD-live content viaillegally authored
BD disks, ordisks obtained fromquestionable sources, couldresult in malicious
code being downloadedonto the player.
Prohibit access :Blocks the insertedBlu-Ray disk fromaccessing BD-Live content
over the internet.
5.4.3 BD-Live Storage:
Show BD-Live storageinformation, select storagedevice to clearBlu-ray storage.
5.4.4 Screen SaverDuration:
This BD player will screen saver modeby video output (TVwill
go “ ”) after certainperiod of timeset by thisitem when systemis playing
music file orin stop/fullstop mode.
5.4.5 CEC support:
Set this itemto enable/disable CEC:
The CEC feature is designedto allow CEC-enableddevices to commandand
control each otherwithout user intervention.For example: Ifyour TV is also CEC
-enabled and youwill turn off your TV,the Blu-Ray playerwill get aCEC signal and
turn off automatically. Or if youturn on yourBlu-Ray player,your TV will automatically
turn on andswitch to HDMIinput.
Note: Not everyCEC-Enabled unit iscompatible with theBRP-430 or otherwise.
5.4.6 Reset Settings:
Reset all settingsto factory default(Parental Control levelwill not bereset).
5.5 Network
Press “ENTER” buttonwhen the itemis highlighted, thenselect “ WIRED”to config
network:
5.5.1 Link Status:
Show if ethernetcable is connectedto BD player.
5.5.2 MACAddress
Show MAC addressof this BDplayer.
5.5.3 IP Mode
Choose IP mode here forinternet access. “Manual” mode, 4.5.5~ 4.5.8
will be activatedfor user input,otherwise they areinactivated.
5.5.4 IP Address:
Show current IPaddress or accessuser input whilein “Manual” IPmode.
5.5.5 Subnet Mask:
Show current SubnetMask or accessuser input whilein “Manual” IPmode.
5.5.6 Gateway:
Show current Gatewayor access userinput while in“Manual” IP mode.
5.5.7 Primary DNS:
Show current PrimaryDNS or accessuser input whilein “Manual” IPmode.
activate shutting
Blank
Choosing
5.4 System
5.4.1 Optical DiscAuto Play:This option is used totell the BDplayer whether ornot to
start loading themain title menuof a disk as soon as the disk tray is closed.
14

5.7 Parental
5.7.1 Parental Country:
Use this menuitem to tellthe BD playerwhat country you are in.(Currently this
menu item hasno effect)
5.7.2 Parental Control:
To turn parentalcontrol ON orOFF,
5.7.3 Parental Level:
To restrict playbackof disks encodedwith a ratinglevel equal to or higher than the
level you set.Parental Control must be turned on for this menu item to have an
affect
5.7.4 Parental Password:
Change new passwordfor Parental Controlmenu operation. (Default value is: 6666)
6. Audio, Video, Picture files on disk or USB devices
6.1 INTRODUCTION
This section explainshow to playback PC-type audio,pictures, and video files
that have beenplaced onto adisk or USBmemory stick.
6.2 Supported Audio, Video, Picture files types
Video
.MPEG4 (.mp4) files
.m4v files
.mkv files
Music:
.mp3 files
.wma files
.aac files
Picture:
.jpeg files
.Png files
6.3 Disk orUSB devices preparation
6.3.1 CD-R/RW, DVD+/-R, DVD+/-RW, BD-Ror BD-RE withsupported files recordedin
UDF or ISO9660format (must befinalized) can be playback on this BD player.
6.3.2 USB devicewith supported fileson it's FAT/FAT32 partition will be recognized.
15
5.5.8 Secondary DNS:
Show current SecondaryDNS or accessuser input whilein “Manual”IP mode.
Press ENTER keywhile Applybutton is highlightedto activate settingyou made,
or press ENTERkey while Cancelbutton is highlightedto cancel changesyou made for
network settings.
5.6 Info
This item showssoftware and hardwareinformation for loaderand main board,no
changes are allowed.

Figure 5-2 Video Browser Screen
Figure 5-1 Video Media Selector
Settings
Music
Pictures
Optical Disk
Playlist
USB
Videos
Add all to Playlist
Previous folder
Play File
Folder1
Folder2
…
File1
File2
...
6.4.1 Select Videos icon inmain menu whichwill appear afterBD player readout disk
or/and USB device.Press ENTER keywhile Video icon is highlighted,system will
bring out asub menu forfile source selection.(Figure5-1)
6.4.2 Select diskor USB toopen a browserwhich allow youto view fileson current disk/
USB device, soyou can chooseany files youwant to play.(Figure 5-2 )
6.4 Browsing videofiles
...
16

Figure 5-4 Audio Browser Screen
Figure 5-3 Audio Media Selector
Settings
Optical Disk
Playlist
USB
Add all to Playlist
Previous folder
Play File
Folder1
Folder2
…
File1
File2
...
6.5 BrowsingAudio files
6.5.1 Select Musicicon in mainmenu which willappear after BDplayer read outdisk or
/and USB device.Press ENTER keywhile Music iconis highlighted, systemwill
bring out asub menu forfile source selection.(Figure 5-3 )
6.5.2 Select diskor USB toopen a browserwhich allow youto view fileson current disk/
USB device, soyou can chooseany files youwant to play.(Figure 5-4 )
Pictures
Music
Videos
...
17

6.6 Browsing picturefiles
6.6.1 Select Picturesicon in mainmenu which willappear after BDplayer read outdisk
or/and USB device. Press ENTERkey while Picturesicon is highlighted,system
will bring outa sub menufor file sourceselection.(Figure 5-5)
Figure 5-5 PictureMedia Selector
Settings
Music
Optical Disk
Playlist
USB
6.6.2 Select diskor USB toopen a browserwhich files on current
disk/USB device, soyou can chooseany files youwant to play.(
allows you toview
Figure 5-6 )
Add all to Playlist
Previous folder
Play File
Folder1
Folder2
…
File1
File2
...
Figure 5-6 PictureBrowser Screen
Pictures
Videos
...
18

Figure 5-7 Multi-filesoperation
Add all to Playlist
Previous folder
Play File
Folder1
Folder2
…
File1
File2
...
Please select play mode
Play Current Folder
Cancel
Play All
...
Add to playlist
Play(File)
Add all to Playlist
Previous folder
Play File
Folder1
Folder2
…
File1
File2
...
6.7 File playback
6.7.1 Refer toFigure 5-7, select“ PlayAll” to playall selected typefiles on selected
media, or select”Play Current Folder”to play allselected type filesin current
folder.
6.8 Creating Playlistand Playlist Playback
6.8.1 In filebrowser mode( referto Figure 5-2,5-4 and 5-6),press “ ENTER”key while “
AddAll to Playlist”is highlighted all selected typefiles in currentfolder
into playlist,
or refer toFigure 5-8,choose “Addto playlist” iconand press ” to add
current highlighted fileinto playlist.
6.8.3 In MediaSelector Menu(refer to
and will add
“ENTER
Figure 5-1), youcan choose “playlist”to play files
in playlist.
6.7.2 Alsoyou can chooseto play currenthighlighted file refer toFigure 5-8.
Figure 5-8 Singlefile operation
...
19
