Lexus 2002 ES 300 Navigation system User manual

ES300 Navi (U)
2003 Lexus Navigation System
Owner’s Manual
ES300_Navi_U (L/O 0208)

ES Navi (U)
E2002 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.
о−2
Publication No. OM33592U
Part No. 01999−33592
Printed in Japan 01−0208−00 I
ES300 NavigationɊᝌᛆUɋ
ES300_Navi_U (L/O 0208)

Foreword
ES300_Navi_U (L/O 0208)
i
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
stored in your vehicle at all times.
The Lexus Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite
signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sen-
sors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is designed
to direct you to a destination that is unfamiliar to you in efficient manners. The system uses the maps of DENSO based on NAVTECH maps,
GDT maps and infoUSA POIs. The calculated routes are neither the shortest routes nor routes without traffic congestion. Your own personal
local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 50 point of interest categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will route
you there. The system will provide both a visual map and audio instructions. The audio instructions will announce the distance and direction
to go when you are approaching a fork or intersection. These voice instructions will help you keep your eyes on the road and are timed to
provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to pages 50 through 52.

Introduction
ES300_Navi_U (L/O 0208)
ii 2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your Lexus and its equipment.
INFORMATION
This provides additional information.
Initial screen
OLE600
When you start the engine or turn the ignition
switch to “ACC”, the initial “LEXUS” screen
appears and the system begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the “CAUTION” screen
appears.
L00002
Touch either “English” or “French” to se-
lect a language. Read and follow the in-
structions.
When you touch the “I agree” switch on
the screen, the “map” screen appears.
You can access this screen when you push
the “INFO” button and touch the
“Language” switch. Then you can select
a language.

Safety Instruction
ES300_Navi_U (L/O 0208)
iii
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
L00002
To use your system as safely as possible, fol-
low all the safety tips shown below.
This system is intended to assist you in
reaching your destination and, if used prop-
erly, can do so. You, as the driver, are solely
responsible for the safe operation of your ve-
hicle and the safety of your passengers.
Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while you are driving should al-
ways be the safe operation of your vehicle.
While you are driving, be sure to observe all
traffic regulations.
Before attempting to use this system while
you are driving, learn how to use it and be-
come thoroughly familiar with it. Read the
entire Navigation System Manual to make
sure you understand the system. Do not al-
low others to use this system until they have
read and understood these and other in-
structions in this manual.
For your safety, some functions may become
inoperable when you start driving. Unavail-
able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.
CAUTION
For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If a
traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.
While you are driving, listen to the voice in-
structions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice gui-
dance. Use it just for your information. If the
system cannot determine your current posi-
tion correctly, there is a possibility of incor-
rect, late or non–voice guidance.
The data in the system may occasionally be
incomplete. Road conditions, including driv-
ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow any instruction from the system,
look to see whether you can comply with the
instruction safely and legally.
This system cannot warn you about such
things as the safety of an area, condition of
streets, and availability of emergency servi-
ces. If you are unsure about the safety of an
area, do not drive into it. Under no circum-
stances is this system a substitute for the
driver’s personal judgement.

Safety Instruction
ES300_Navi_U (L/O 0208)
iv 2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting video screens within
sight of the driver.

Overview of Touch Screen and Switches
ES300_Navi_U (L/O 0208)
v
2003ES300 Navigation from Aug. ’02 Prod. (OM33592U)
Switch operation
This system is operated mainly by the
switches on the screen. To prevent dam-
age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen or push a
button, a beep sounds.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.

Symbols, Switches and Buttons
NE001
Map/Guidance
Touch this switch to change the
screen mode. For details, see
page 32.
Current vehicle position mark
To indicate the current position.
For details, see page 36.
MAP/VOICE tab
Touch this tab to repeat voice
guidance, cancel one touch scroll
and start guidance. For details,
see page 37.
DEST tab
Touch this tab to display the
“Destination” screen. For details,
see page 5.
MENU tab
Touch this tab to display the
“Menu” screen. This screen
allows you to make adjustments or
correct settings of various options
and functions.
TILT button
Push this button to tilt the display.
For details, see page 2.
DISPLAY button
Push this button to display the
“Display” screen. For details,
see page 96.
GPS mark (Global Positioning
System)
Whenever your vehicle is
receiving signals from the GPS,
this mark is displayed. For details,
see page 50.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. If you input more than
two destinations, it displays the
distance and time to the next
destination. Touching this
indication will change it to the
distance and time to the other
destinations. The direction will be
indicated when your vehicle is off
the route.
INFO button
Push this button to display the
“Information menu” screen. For
details, see pages ii, 84, 89 and
97.
NAVI button
Push this button to turn the
navigation system on.
Current street name
Turn on this function to indicate
the current street name. For
details, see page 83.
North–up or heading–up symbol and
scale of map
Indicates a map view with north up or
heading up. Touching this symbol changes
the map orientation. The figure indicates
the map scale. For details, see page 49.
ES300_Navi_U (L/O 0208)
vi 2003ES300 Navigation from Aug. ’02 Prod. (OM33592U)

Symbols, Switches and Buttons
ES300_Navi_U (L/O 0208)
vii
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
Changing the route
guidance
When you touch this switch, the “Change
route” screen will appear. For details, see
page 32.
One–touch registration of
marked point
To register the current vehicle position as a
marked point. For details, see page 70.
Display of point of
interest
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For de-
tails, see page 44.
Zoom in/zoom out
These switches magnify or reduce the map
scale. For details, see page 48.

ES300_Navi_U (L/O 0208)
viii 2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)

SECTION I
ES300_Navi_U (L/O 0208)
1
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

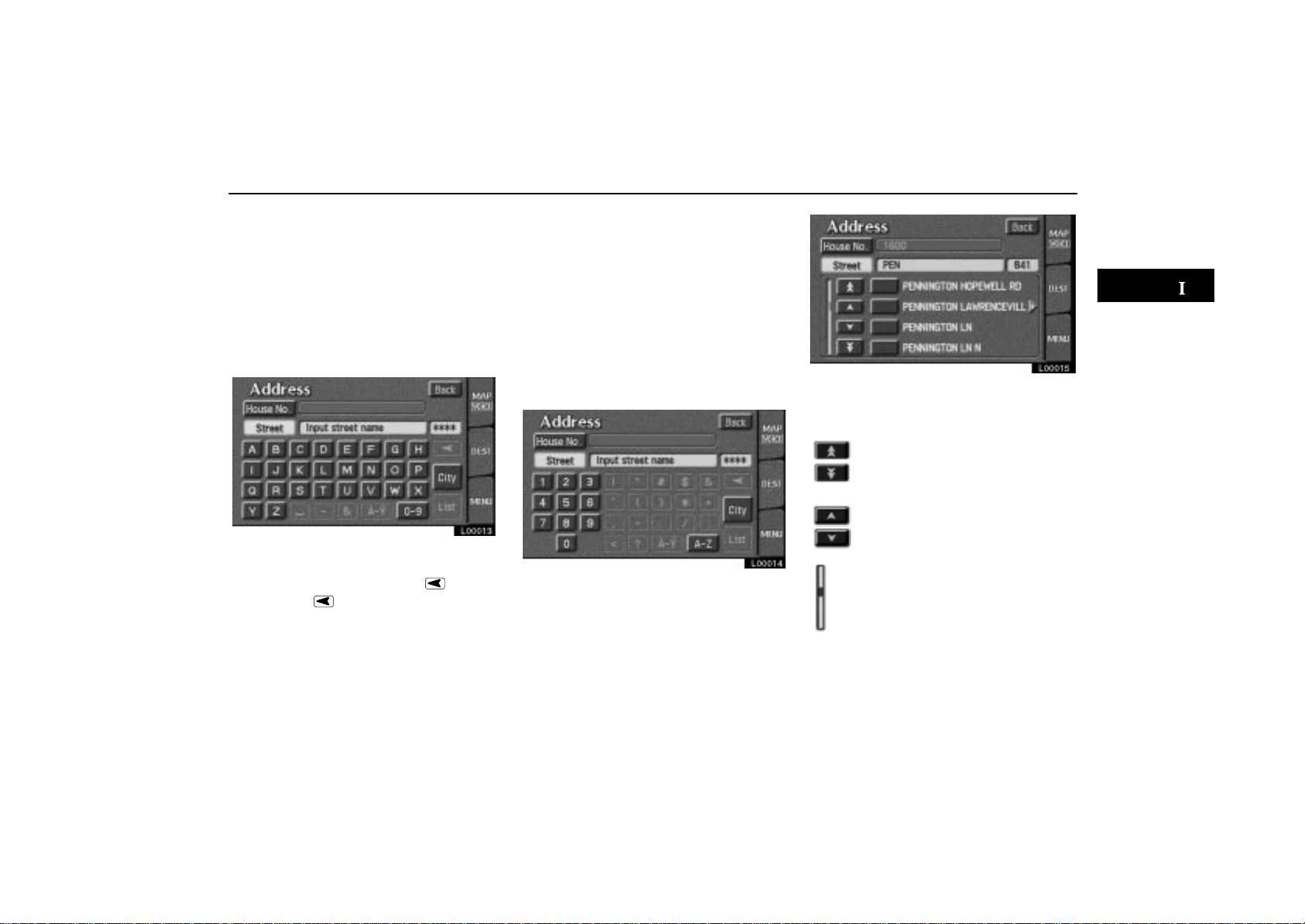

Inputting letters and numbers 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting preferred road 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering your home 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering preset destinations 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying POI 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map appearance 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scrolling 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Orientation of the map 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Your Navigation System
ES300_Navi_U (L/O 0208)
22003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
NE003
You can adjust the angle of the display by
pushing the “TILT” button. Each push
of the “TILT” button will tilt the display
to position 1 , 2 , 3 and then back to
0 in that order.
If you turn the ignition switch off, the display
will automatically move back to position 0 .
The display will automatically resume the
previous position you used when the ignition
switch is turned to the “ACC” or “ON” posi-
tion.
CAUTION
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your naviga-
tion system.

Inputting Letters and Numbers
ES300_Navi_U (L/O 0208)
3
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
The navigation system is operated by
switches on the screen and the buttons
located on the front face around the
screen. When you touch a switch or push
a button, a beep sounds. When using the
switches on the touch screen, please use
only light pressure with your finger to
protect the screen from damage. Do not
use objects other than your finger to
touch the screen.
L00013
To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the switch.
Touching the switch erases one letter.
Touching the “List” switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays “”on the
screen.
To input numerals, touch the “0–9” switch
and the display will change the screen to
number input display.
L00014
Touching the “A–Z” switch changes the
screen back to the previous name input dis-
play.
L00015
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed screen
position.

Inputting Letters and Numbers How to Move the Cursor
ES300_Navi_U (L/O 0208)
42003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
If appears to the right of the item
name, the complete name is too
long for the display. Touch , and
the name will scroll to the end of the
name.
Touching will scroll the name to
the beginning of the name. L00016
1. Touch the “Adjust” switch to move
the cursor .

How to Move the Cursor Destination Input
ES300_Navi_U (L/O 0208)
5
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)

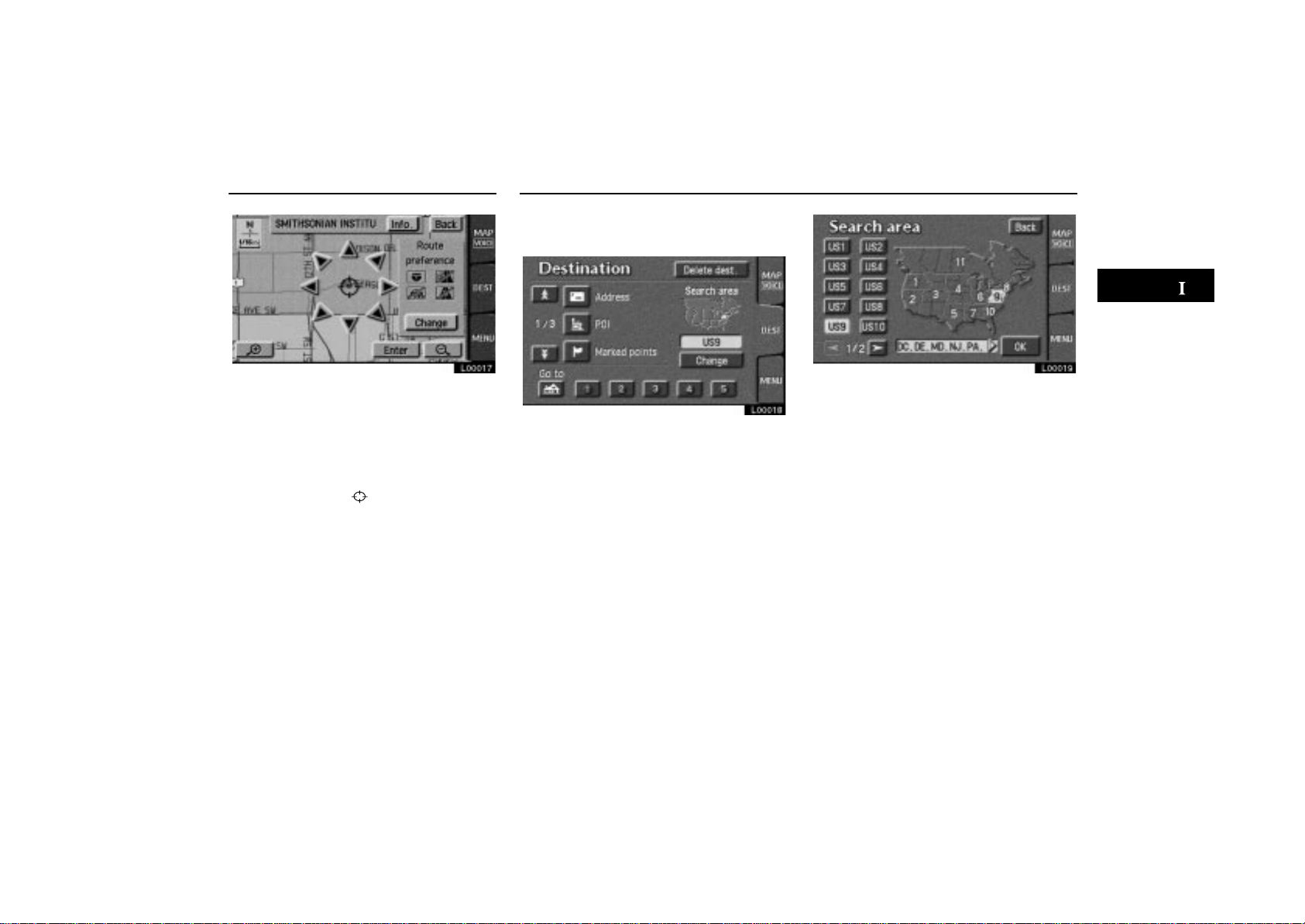

L00017
 Position locating screen on the map
2. When you touch an arrow facing your
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
3. If you touch the “Enter” switch, the
position of cursor is set.
Touch the “DEST” tab on the screen and
the “Destination” screen appears.
L00018
The “Destination” screen allows you to se-
lect the area to search for your destination.
Touch the “Change” switch on the
“Destination” screen to display a map of
the United States and Canada divided
into 11 areas. See page 53 for map data-
base information and updates.
L00019
Touch one of the “US1” through “CAN”
switches to select a search area. Touch the
“OK” switch and the “Destination” screen
returns.
Once you choose the area to search, you
can use one of 11 different methods to enter
your destination.

Destination Input
ES300_Navi_U (L/O 0208)
62003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
USA
Switch States included in the search
area
US1 Idaho
Oregon
Washington
US2 California
Nevada
US3
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
US4
Iowa
Kansas
Minnesota
Missouri
Nebraska
North Dakota
South Dakota
US5 Oklahoma
Texas
US6
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
US7
Alabama
Arkansas
Louisiana
Mississippi
Tennessee
US8
Connecticut
Maine
Massachusetts
New Hampshire
New Jersey
New York
Rhode Island
Vermont
US9
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
Washington, D.C.
West Virginia
US10 Florida
Georgia
North Carolina
South Carolina
Canada
Switch Provinces and regions included
in the search area
CAN
Alberta
British Columbia
Manitoba
New Brunswick
Newfoundland and Labrac
Nova Scotia
Ontario
Prince Edward Island
Québec
Saskatchewan

Destination Input
ES300_Navi_U (L/O 0208)
7
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
You can find your destination using various
methods. See pages 8 through 25 for the
detailed steps.
1. By Home ( switch on the “Destina-
tion” screen): You can select your own
home without entering the address each
time. In this case, it is necessary to register
your home beforehand. See page 8 for the
detailed steps.
2. By Preset Destination ( —
switches on the “Destination” screen):
You can select one of 5 preset destinations
directly. In this case, it is necessary to regis-
ter the destinations beforehand. See page
9 for the detailed steps.
3. By Address: You can input the house
number and the street address by using the
input keys. See page 10 for the detailed
steps.
4. By POI: You can select one of the many
points of interest that have been already
stored in the system’s database. There are
about 50 categories to choose from, includ-
ing restaurants, banks and automotive loca-
tions. See page 12 for the detailed steps.
5. By Marked Point: You can register your
own favorite destinations as a “Marked
Point”. The system allows you to store up
100 marked points. See page 19 for the de-
tailed steps.
6. By Previous Destination: You can se-
lect a destination from any of the last 20 pre-
viously set destinations. See page 20 for the
detailed steps.
7. By Emergency: You can select one of
the three points of emergency service points
that have been already stored in the sys-
tem’s database. See page 21 for the detailed
steps.
8. By Intersection: You can enter the
names of two intersecting streets. This is
helpful if you do not know the specific street
address of your destination but know the
general vicinity. See page 22 for the detailed
steps.
9. By Freeway Entrance/Exit: You can en-
ter the name of the freeway (interstate) en-
trance or exit. See page 23 for the detailed
steps.
10.By Previous Starting Point: You can
enter a point where the system has started
to guide last time. See page 25 for the de-
tailed steps.
11.By Map Selection: You can select a
destination simply by touching the location
on the displayed map. See page 25 for the
detailed steps.
INFORMATION
 When inputting the destination, the
response to the switch may be slow.
 “Points of Interest” registration is
made based on the NAVTECH
“Standard POI Inclusion List” and
infoUSA POI data.
 If there is no point registered,
switches such as “Marked Point”,
“Previous Destination” or “Previous
Starting Point” are dimmed and not
available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route or
a route without traffic congestion.
 Route guidance may not be available
if there is no road data for the speci-
fied location.

Destination Input Destination Input by HOME
ES300_Navi_U (L/O 0208)
82003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
 When setting the destination, you
should use the map on a scale of one
half mile or smaller.
 To select an “Address”, “Point of In-
terest”, “Freeway Entrance/Exit” or
“Intersection” in a different area, it is
necessary to change the search
area.
CAUTION
While you are driving, be sure to follow
traffic regulations and keep the road
condition in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.
Touch the switch on the “Destina-
tion” screen.
The screen changes and displays the
map location of your home.
Guidance starts from your current position to
your home immediately after you touch the
switch during driving.
For the steps to register your home, see
“Registering your home” on page 40.

Destination Input by PRESET DESTINATION
ES300_Navi_U (L/O 0208)
9
2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)
Touch any of — (preset destina-
tion) switches on the “Destination”
screen.
The screen changes and displays the
map location of the preset destination.
Guidance starts from your current position to
the preset destination immediately after you
touch the preset destination switch.
For the steps to register a preset destination,
see “Registering preset destinations” on
page 41.

Destination Input by ADDRESS
ES300_Navi_U (L/O 0208)
10 2003 ES300 Navigation from Aug. ’02 Prod. (OM33592U)

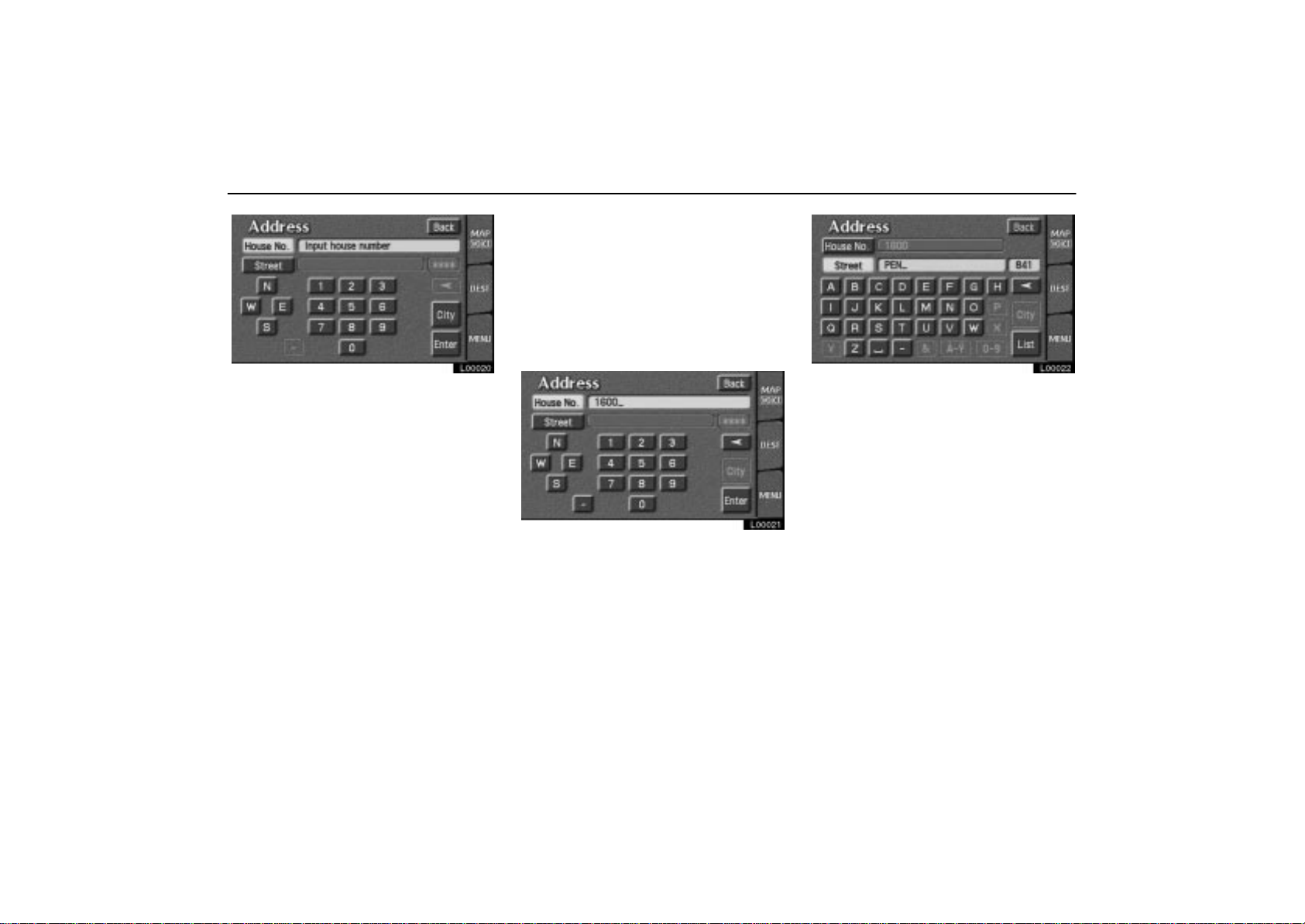

L00020
There are 2 ways to input a destination by
address.
(a) Inputting a house number
and a street name
Touch the “Address” switch on the
destination screen. The “Address”
screen appears, and then you can input a
house number.
Touch letters directly on the screen to in-
put a house number.
L00021
After inputting a house number, touch the
“Enter” switch to display the screen which
you can input a street name.
It is possible to input a street name first.
Touch the “Street” switch to display the
screen which you can input a street name.
L00022
After each letter is input, the system
searches the database for street names that
match. Alphabet keys are dimmed if the da-
tabase does not have a match for the next
letter in the remaining list of matching street
names.
When you input numerals, touch the
“0–9” switch to display the screen for
numeral input.
Based on your input, the number of matching
sites appears at the top right of the screen.
After the number decreases to some extent,
touch the“List” switch to display the street
selection list. If the number of matches de-
creases to 4 or less, the screen changes au-
tomatically to the selection list.
