LG 24UD58 User manual

www.lg.com
Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
24UD58
27UD58

2
ENG
ENGLISH
Contents
CONTENTS
17 USER SETTINGS
18 Customizing settings
18 - Menu Settings
18 - -Quick Settings
19 - -Picture
22 - -General
23 - -Reset
24 TROUBLESHOOTING
26 SPECIFICATIONS
26 24UD58
27 27UD58
28 Factory Support Mode (Preset Mode, PC)
28 HDMI
28 DisplayPort
29 HDMI Timing (Video)
29 Power LED
3 LICENSE
4 ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
10 - Detaching the Stand Base
11 - Using the cable holder
11 - Installing onto a table
12 - Adjusting the angle
13 - Using the Kensington lock
13 - Installing the wall mount plate
14 - Installing to a wall
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI connection
15 - DisplayPort connection
16 Connecting to AV Devices
16 - HDMI connection
16 Connecting to External Devices
16 - Connecting Headphones

3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

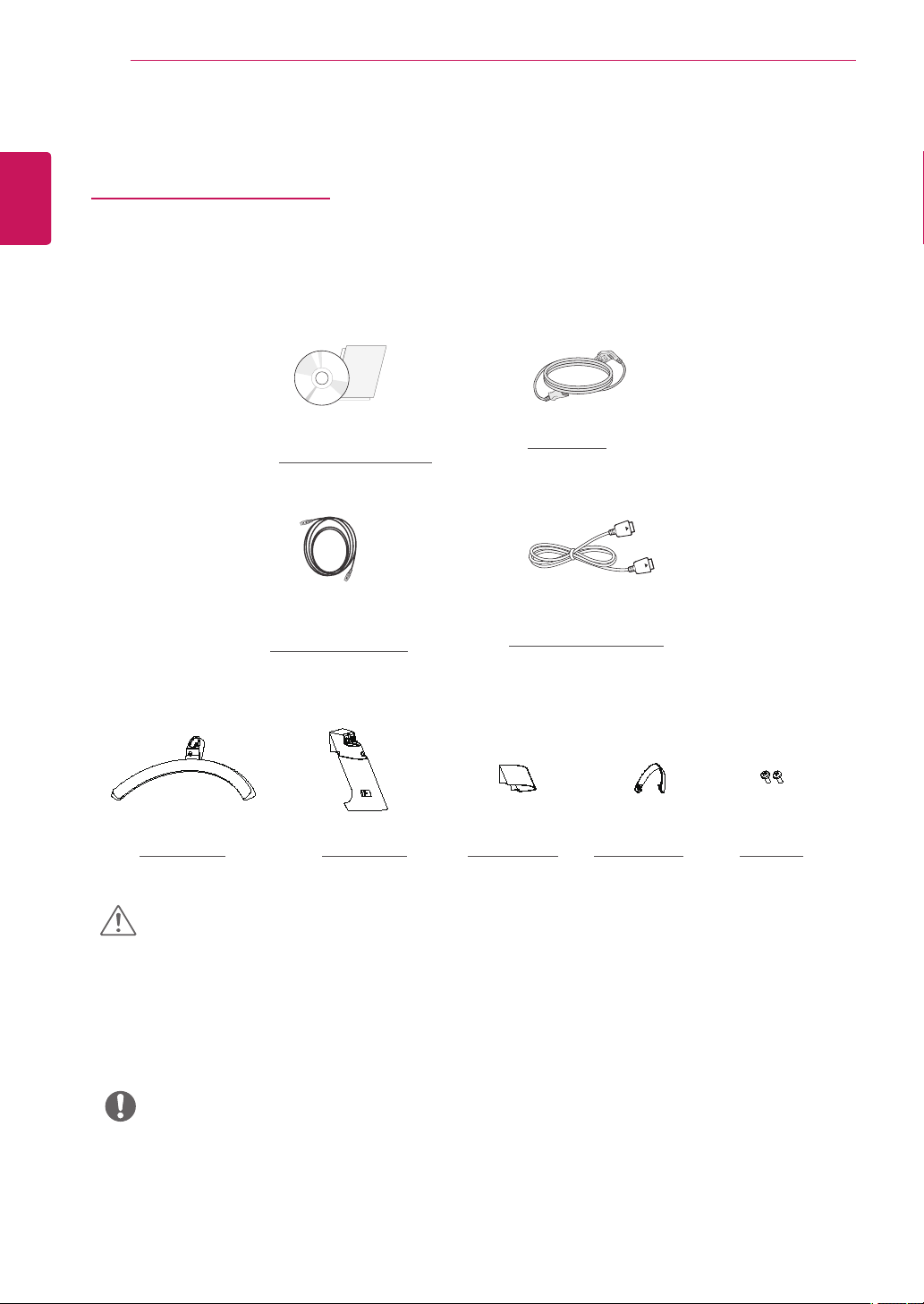

Product Components
Please check whether all the components are included in the box before using the product. If there are missing com-
ponents, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
 Always use genuine components to ensure safety and product performance.
 The product warranty will not cover damage or injury caused by the use of counterfeit components.
 It is recommend that use the supplied components.
 If you use generic cables not certified by LG, the screen may not display or there may be image noises.
 Note that the components may look different from those shown here.
 Without prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
 To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
CD(Owner's Manual) /
Card
Display Port Cable
( This cable is not included in
all countries. )
Stand Base Stand Body
HDMI Cable
( This cable is not included
in all countries. )
Power Cord
Cable Holder 2 Screws
Screw Cover

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product
package.
 Required and Recommended: You can download and install the latest version from the enclosed CD or from the
LGE website (www.lg.com).
Drivers and Software Installation Priority 24UD58,27UD58
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Recommended O

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Component and Button Description
Power LED
 On: power is on
 Off: power is off Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on the
monitor.
Power off Press and hold the joystick button once with your finger to turn off the
monitor.
◄/►Volume
Control You can control the volume by moving the joystick button left/right.
y
The joystick button is located at the bottom of the monitor.
NOTE

7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Input Connector

8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
 As far as possible, avoid touching the monitor
screen. This may result in damage to the screen or
some of the pixels used to create images.
 It is advisable to place the monitor in the original
box or packing material before attempting to
move it.
 Before moving or lifting the monitor, disconnect
the power cord and all cables.
 Hold the top and bottom of the monitor frame
firmly. Do not hold the screen itself.
 When holding the monitor, the screen should face
away from you to prevent it being scratched.
 When moving the monitor, avoid any strong shock
or vibrations to the product.
 When moving the monitor, keep it upright, never
turn the monitor on its side or tilt it sideways.
CAUTION
 If you use the monitor panel without the stand
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.

9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor
Assembling the stand base
 To protect the screen from scratches, cover the
surface with a soft cloth.
CAUTION
1 Place the screen face down.
3
2 Check the direction of the stand body (front, back)
and then mount the stand body onto the stand
hinge.
Use a tool to attach the stand body as shown in
the figure.
Stand
Body
Stand Body
Stand Base
Screw Cover
Attach the Stand Base to Stand Body.
Tighten the screw to the right.
1
2
4 Attach the screw cover.
Applying excessive force when tightening the
screws may cause damage to the monitor. Dam-
age caused in this way will not be covered by the
product warranty.
CAUTION
It may hurt your foot off the stand, so be careful.
CAUTION

10
ENG
ENGLISH
ASSEMBLING AND PREPARING

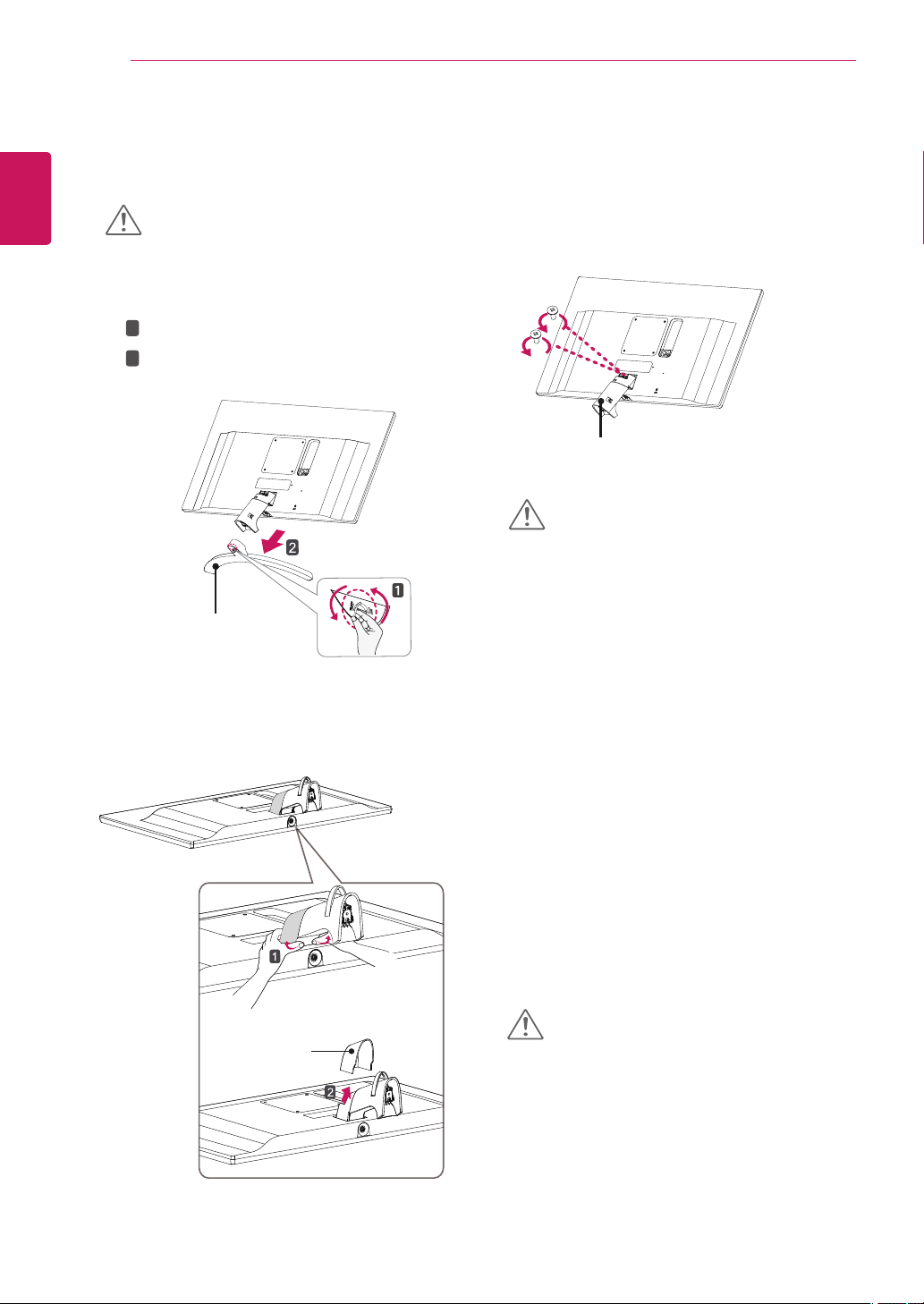

Detaching the Stand Base
Screw Cover
Stand Body
Stand Base
1 yyPlace the screen face down.
y
To protect the screen from scratches, cover the
surface with a soft cloth.
CAUTION
2
3
Turn the screw to the left.
Pull out the Stand Base.
As shown in the illustration, pull Screw Cover out to
separate it from the set.
4 Remove the two screws on the back of stand body.
As shown in the illustration, disconnect the stand
body from the stand hinge.
1
2
y
Illustrations in this document represent typical
procedures, so they may look different from the
actual product.
y
Applying excessive force when tightening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
y
Be careful not to hurt your hand on the edges of
the screw covers.
y
Do not carry the monitor upside down by just
holding the base. This may cause the monitor
to fall off the stand and could result in personal
injury.
y
When lifting or moving the monitor, do not touch
the monitor screen. The force applied to the moni-
tor screen may cause damage to it.
CAUTION
It may hurt your foot off the stand, so be careful.
CAUTION

11
ENG
ENGLISH
ASSEMBLING AND PREPARING

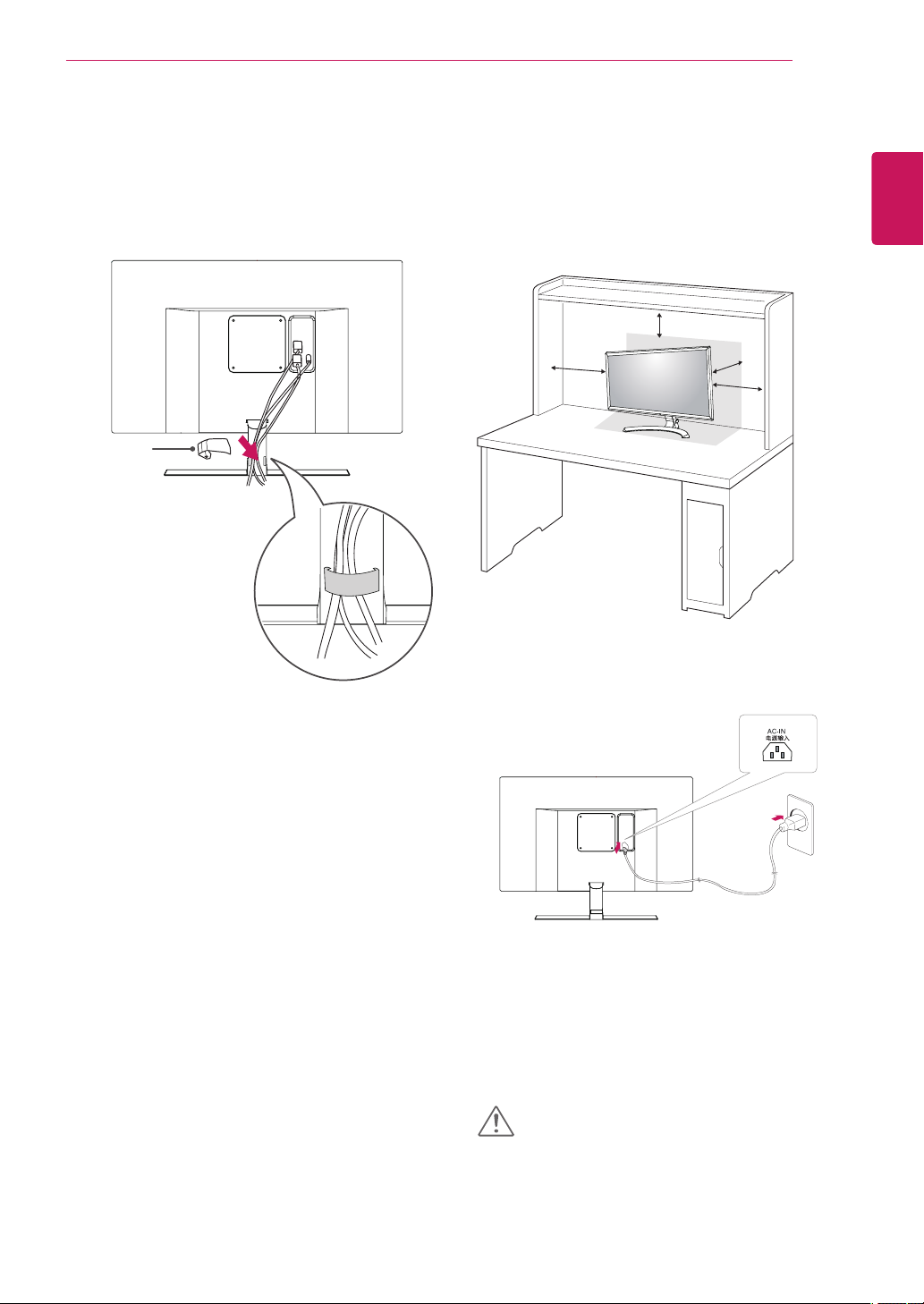

Using the cable holder
Cable Holder
Arrange the cables using the cable holder as shown in
the illustration.
Installing onto a table
1 Lift the monitor and place it on the table in an up-
right position.
Place at least 10 cm away from the wall to ensure
sufficient ventilation.
2 Connect the power adapter to the monitor and then
plug the power cord into the wall outlet.
10 cm
10 cm
10 cm
10 cm
 Unplug the power cord prior to moving or install-
ing the monitor. There is risk of electric shock.
CAUTION
3 Press the joystick button on the bottom of the
monitor to turn on the monitor.

12
ENG
ENGLISH
ASSEMBLING AND PREPARING
20°
15°
24UD58
27UD58

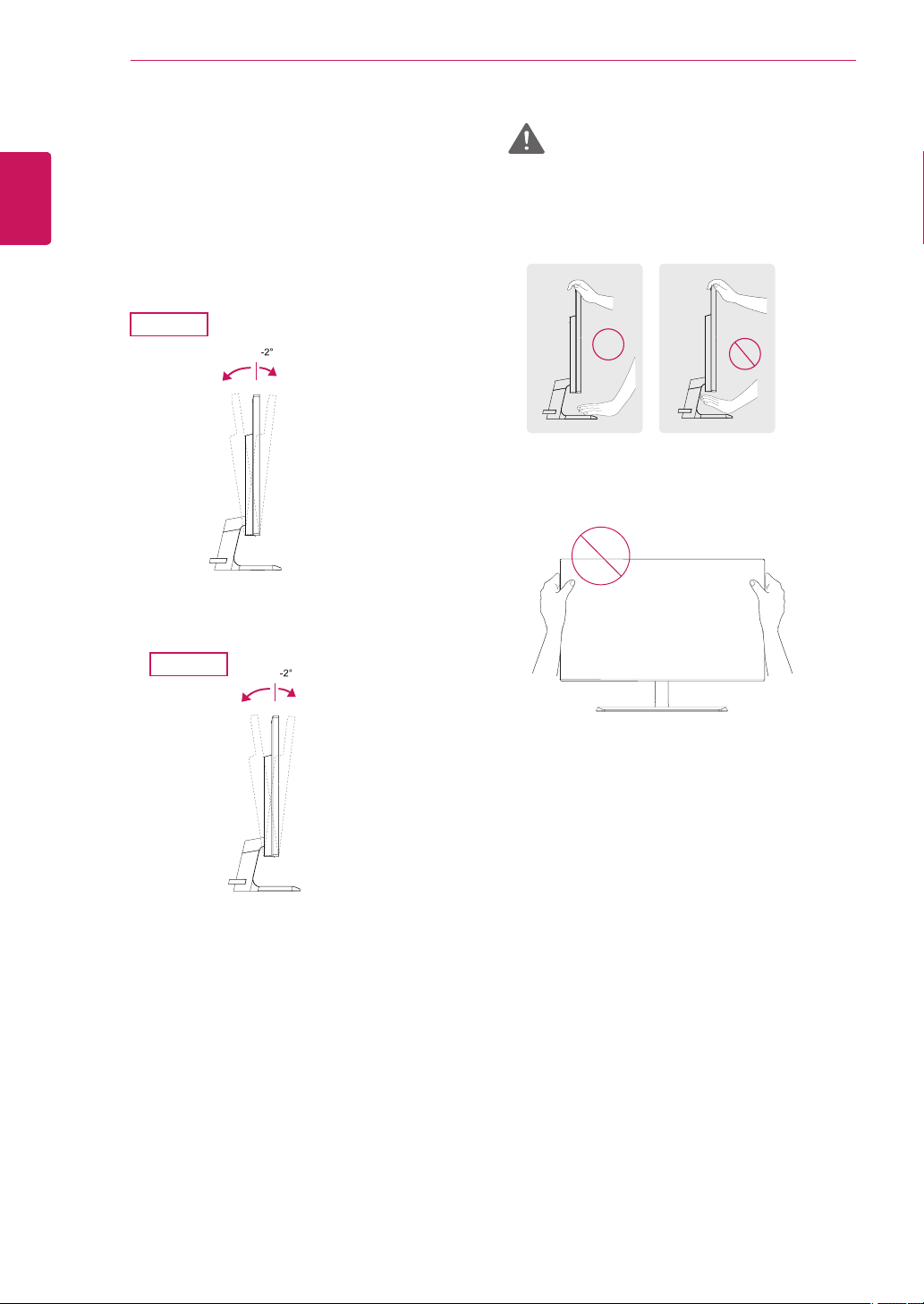

Adjusting the angle
1 Place the monitor in an upright position, mounted
on the stand base.
2 Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front Side
Front Side
Rear Side
Rear Side
 To avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni-
tor's frame as illustrated below.
WARNING
 Be careful not to touch or press the screen area
when adjusting the angle of the monitor.

13
ENG
ENGLISH
ASSEMBLING AND PREPARING
 Use of the Kensington lock is optional. The acces-
sories can be purchased at your local electronics
store.
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1 Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2 Place the wall mount plate onto the monitor and
align it with the screw holes.
3 Tighten the four screws to fix the plate to the moni-
tor using a screwdriver.
 The wall mount plate is sold separately.
 For more information on installation, refer to the
wall mount plate's installation guide.
 Be careful not to use excessive force when
mounting the wall mount plate, as this can dam-
age the monitor's screen.
NOTE
NOTE
Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.

14
ENG
ENGLISH
ASSEMBLING AND PREPARING

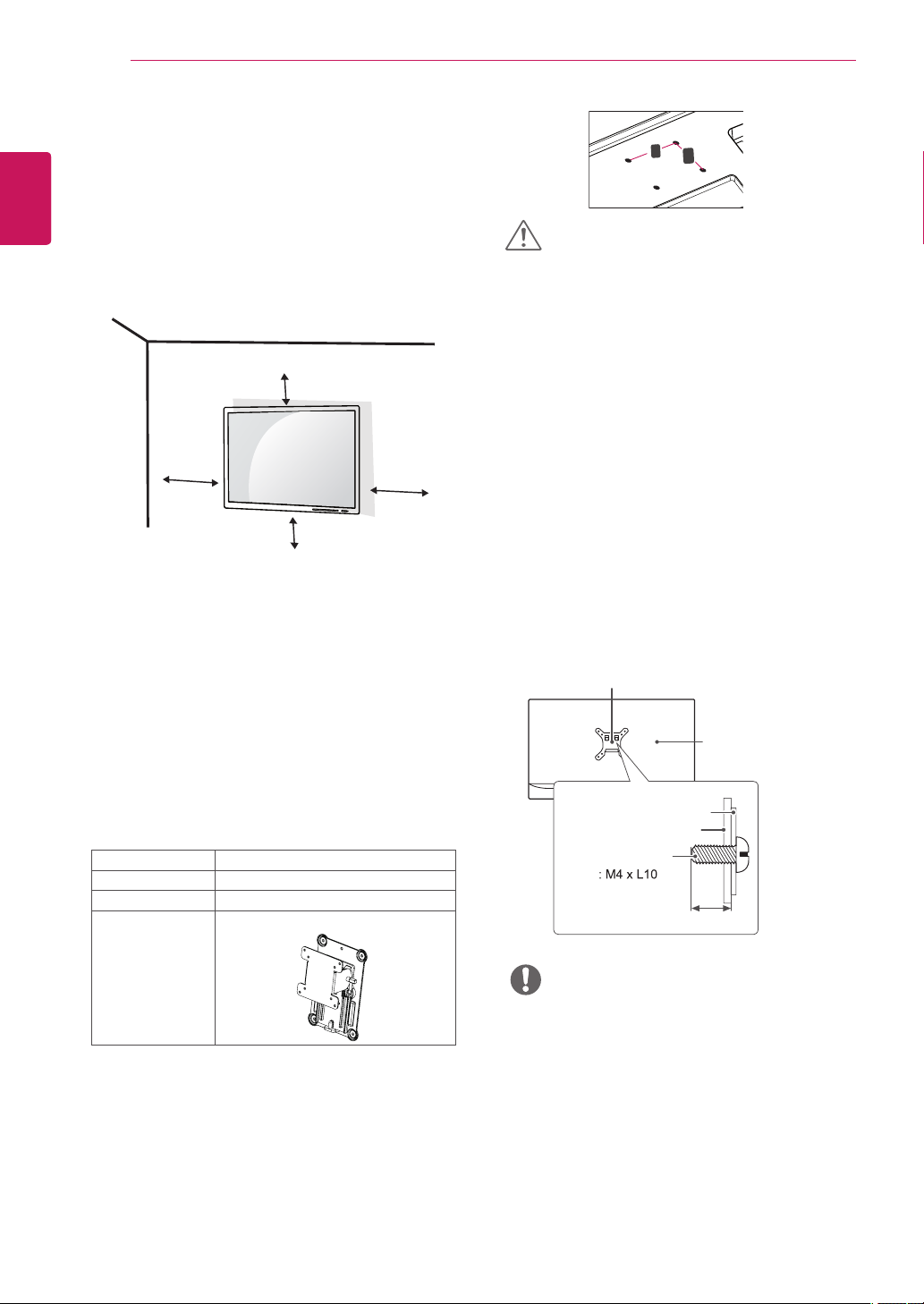

To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1 If you use screw longer than standard, the monitor
might be damaged internally.
2 If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 10 cm away from the wall
and leave about 10 cm of space at each side of the
monitor to ensure sufficient ventilation. Detailed instal-
lation instructions can be obtained from your local retail
store. Please refer to the manual to install and set up a
tilting wall mounting bracket.
10 cm
10 cm
10 cm
10 cm
 Unplug the power cord before moving or install-
ing the monitor to avoid electric shocks.
 Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Please use the genu-
ine LG wall mounting bracket. For more informa-
tion, contact your local retail store or a qualified
installer.
 Applying excessive force when fastening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
 Use the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
 Screw length from outer surface of back cover
should be under 8mm.
 Use the screws specified by the VESA standard.
 The wall mount kit includes the installation guide
and all necessary parts.
 The wall mounting bracket is optional. The acces-
sories can be purchased at your local retail store.
 The length of the screw may differ for each wall
mounting bracket. Ensure the correct length
screw is used.
 For more information, please refer to the user
manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max.8mm
 Wall Mount (A x B)
A
B
Wall Mount (A x B) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate
(Optional)
RW120

15
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR

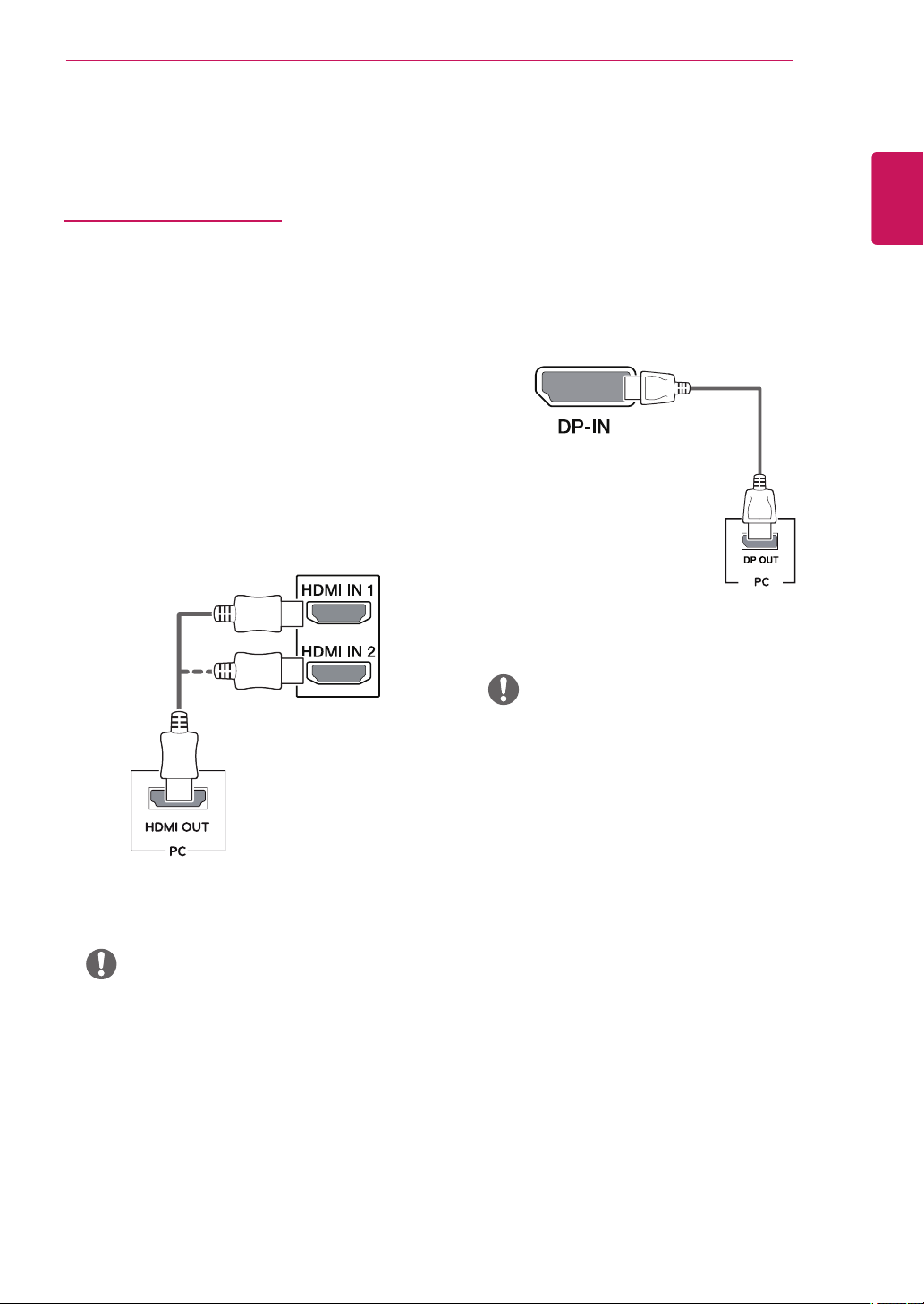

Connecting to a PC
 This monitor supports the *Plug and Play feature.
*Plug and Play: A feature that allows you to add
a device to your computer without having to
reconfigure anything or install any manual drivers.
 There may be no video or audio output depending
on the DP version of the PC.
y
If you use generic cables not certified by LG, the
screen may not display or there may be image
noises.
DisplayPort connection
Transmits the digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor us-
ing the Displayport cable as illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
 If you use HDMI PC, it can cause compatibility
problem.
 Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
 Recommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet

16
ENG
ENGLISH
USING THE MONITOR
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
 If you use HDMI PC, it can cause compatibility
problem.
 Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
 Recommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Connecting to External Devices
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause a prob-
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
y
Depending on the audio settings of the PC and
external device, headphones and speaker functions
may be limited.
NOTE

17
ENG
ENGLISH
User Settings
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the
monitor this way at any time, including when the OSD is on.)
◄
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the input feature.
▲Main menu disabled Enables the main menu.
Main menu enabled Enters the game mode feature.
▼
Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
y
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Game Mode You can change Picture Mode to a gaming mode.
Input Sets input mode.
Monitor off Turns off the monitor.
Exit Exits the main menu.
USER SETTINGS
Activating the Main Menu
1 yyPress the joystick button on the bottom of the monitor.
2 yyMove the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 yyPress the joystick button once more to exit the main menu.
Joystick Button

18
ENG
ENGLISH
User Settings
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1 yyTo view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2 yyGo to Quick Settings > Brightness by moving the joystick.
3 yyConfigure the options following the instructions that ap-
pear in the bottom right corner.
4 yyTo return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5 yyIf you want to exit the OSD menu, move the joystick to ◄
until you exit.
Menu > Quick Settings Description
Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
NOTE
 Jog joystick button down (
y
) in the Volume menu will enable/
disable the Mute function.
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
NOTE
 The display may look the same for Wide, Original options at the recommended resolution.
 The ratio is disabled in the interlaced signal.
Wide

19
ENG
ENGLISH
User Settings

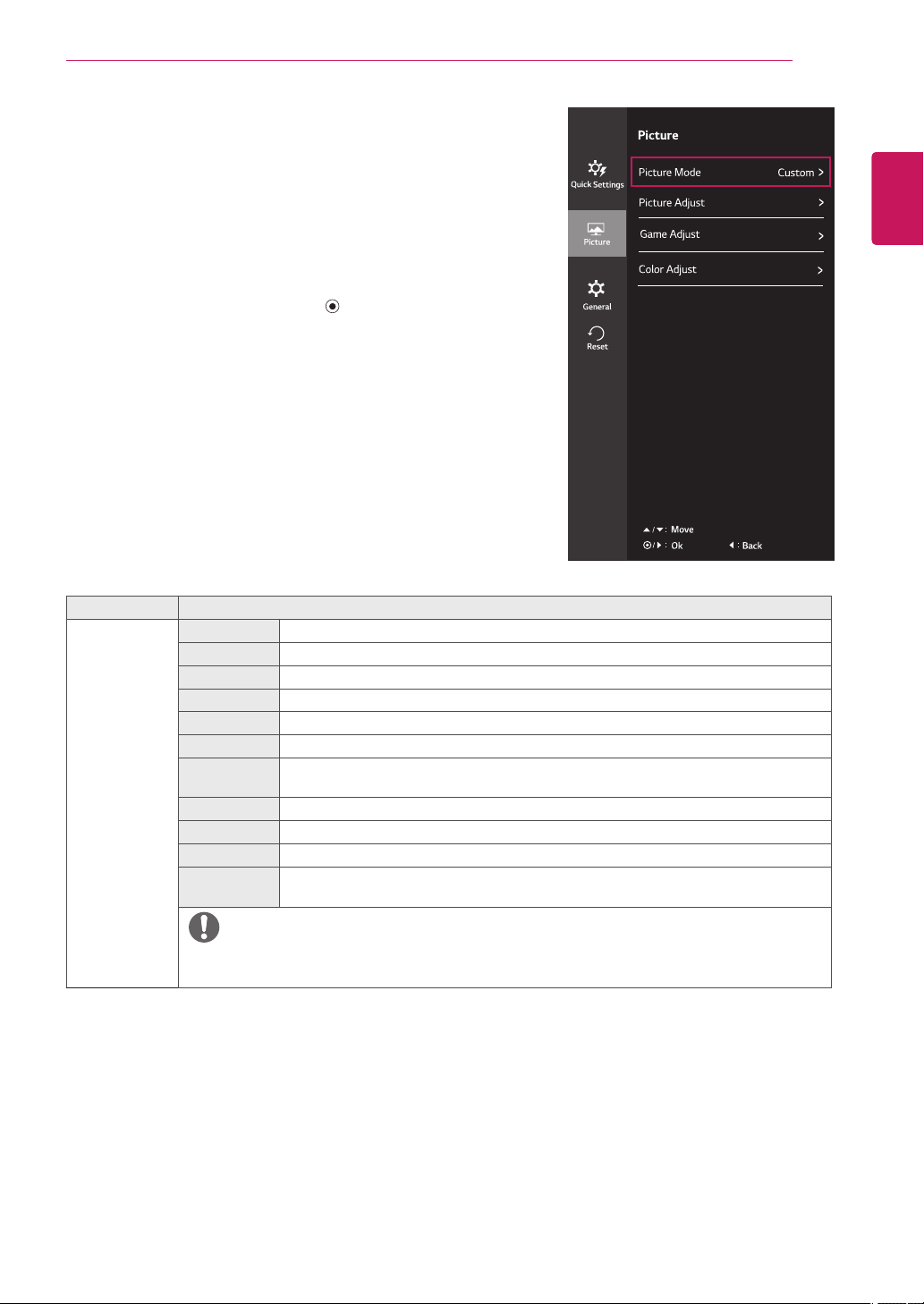

Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Dark Room 1 This mode adjusts the brightness to the optimal level for working in a dark environment.
Dark Room 2 This mode sets the brightness to a lower level than Dark Room 1.
Color
Weakness
This mode is for users who cannot distinguish between red and green. It enables users with
color weakness to easily distinguish between the two colors.
FPS Game 1 This mode is optimized for FPS games.
FPS Game 2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
RTS Game This mode is optimized for RTS Game.
Custom
(Game)
In this mode, users can customize various elements including game-related options.
NOTE
y
If the picture mode is changed in the DP (DisplayPort) input, the screen may flicker
or the resolution of your PC screen may be affected.
Each option is described below.
-Picture
1 yyTo view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2 yyGo to Picture by moving the joystick.
3 yyConfigure the options following the instructions that ap-
pear in the bottom right corner.
4 yyTo return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5 yyIf you want to exit the OSD menu, move the joystick to ◄
until you exit.
Wide

20
ENG
ENGLISH
User Settings
Picture Adjust SUPER RESOLUTION+ High Optimized picture quality is displayed when a user wants crystal
clear images. It is effective for high quality video or game.
Middle The optimized picture quality is displayed when a user wants im-
ages between low and high modes for comfortable viewing. It is
effective for UCC or SD video.
Low The optimized picture quality is displayed when a user wants
smooth and natural images. It is effective for slow-moving pic-
tures or still images.
Off Select this option for everyday viewing. SUPER RESOLUTION+ is
turned off in this mode.
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
Offset: as a reference for a video signal, this is the darkest color the monitor
can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the
current contrast ratio of the screen.
HDMI ULTRA HD Deep
Color
Provides sharper images when connected to a device supporting ULTRA HD
Deep Color.
4K@60 Hz Support Format1)
Resolution Frame rate
(Hz)
Color Depth / Chroma Sampling
8 bit 10 bit
3840 x 2160 59.94
60.00
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB 4:4:4 -
1) Supported when HDMI ULTRA HD Deep Color is set to On.
DFC Adjusts the brightness automatically according to the screen.
NOTE
y
If the connected device does not support ULTRA HD Deep Color, the
feature may not work properly.
y
If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off.
