LG 65EF950V.AEE User manual

www.lg.com
OWNER’S MANUAL
Please read this manual carefully before operating your set and retain
it for future reference.
*MFL68823613*
P/NO : MFL68823613 (1705-REV07)
Printed in Korea
EG91** EG92**
EG96** EF95**

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-10 Tidying cables
A-10 MAKING CONNECTIONS
A-10 Antenna connection
A-13 Satellite dish connection
A-14 HDMI connection
A-18 - ARC (Audio return channel)
A-19 DVI to HDMI connection
A-21 Component connection
A-22 Composite connection
A-23 Headphone connection
A-25 Audio connection
A-25 - Digital optical audio connection
A-27 USB connection
A-30 CI module connection
A-32 Euro scart connection
LANGUAGE LIST
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
PORTUGUÊS
NEDERLANDS
ΕΛΛΗΝΙΚΆ
SLOVENŠČINA
B-1 SPECIFICATIONS
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may dier from your TV.
Attaching the stand
55EG91**
1
1
1
Stand cover
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION

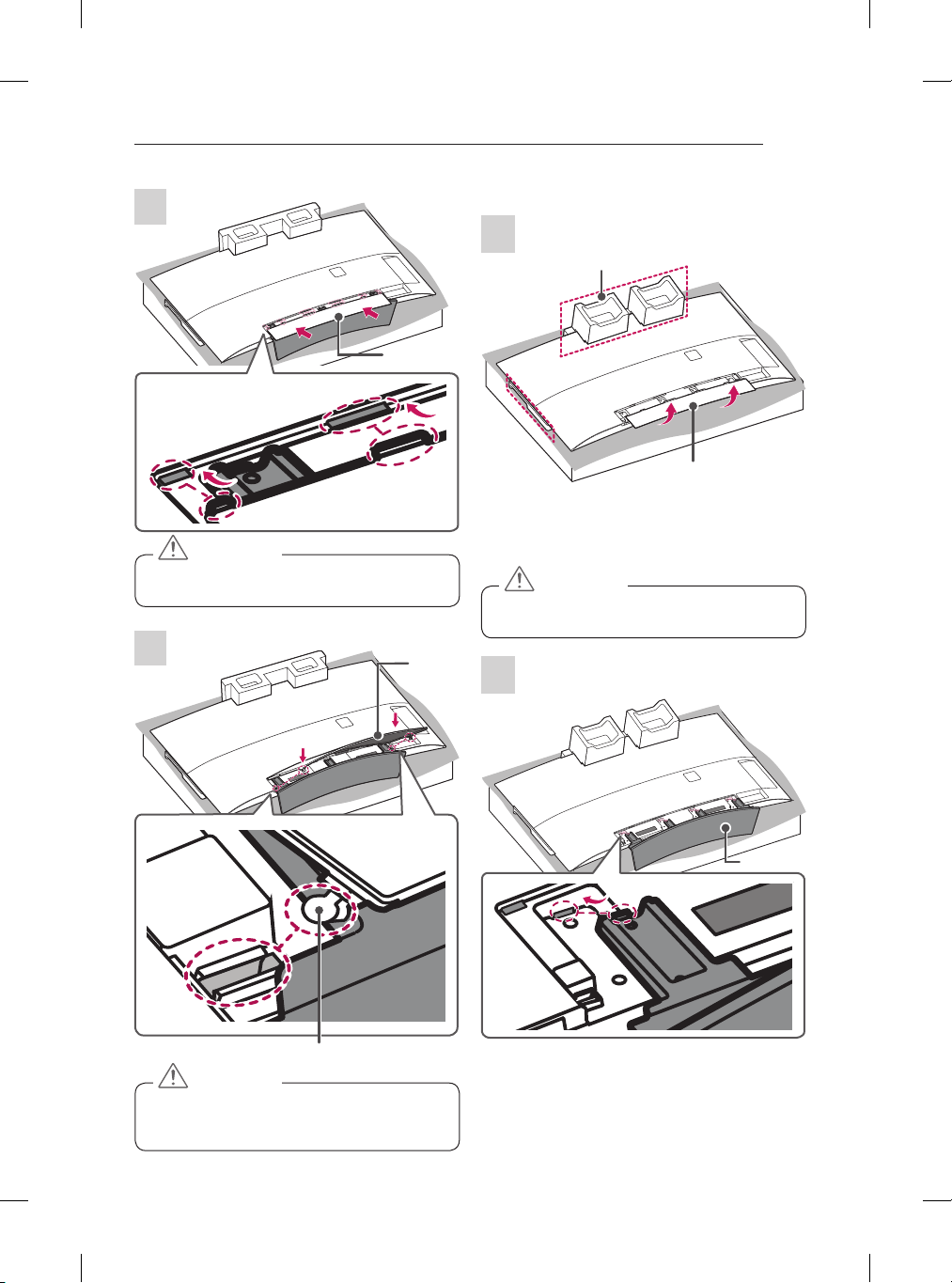

2
Stand assy
3
M4 x L20
4 EA
4
Stand cover
yInsert the protruding parts of the Stand cover into
the holes.
CAUTION

A-4 SETTING UP THE TV
55EG92**, 55EG96**
1
1
1
Stand cover
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy
3
M4 x L20
5 EA
5
Cover holder
Stand
cover
yInsert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION

A-5
SETTING UP THE TV
4
Stand cover
yInsert the protruding parts of the Stand cover into
the holes.
CAUTION
5
Cover holder
Stand
cover
yInsert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION
65EG96**
1
Stand cover
1
1
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy

A-6 SETTING UP THE TV
5
Cover holder
Stand
cover
yInsert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION
3
M4 x L20
8 EA
4
Stand cover
yInsert the protruding parts of the Stand cover into
the holes.
CAUTION

A-7
SETTING UP THE TV
55EF95**
1
Stand cover
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
yUse a flat tool to remove the Stand cover.
CAUTION
2
Stand assy
3
M4 x L14
5 EA
4
Stand cover
yInsert the protruding parts of the Stand cover into
the holes.
CAUTION

A-8 SETTING UP THE TV
5
Cover holder
Stand
cover
yInsert the Cover holder of the Stand cover into the
holes until it clicks.
CAUTION
65EF95**
1
Stand cover
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
yUse a flat tool to remove the Stand cover.
CAUTION
2
Stand assy

A-9
SETTING UP THE TV
3
M4 x L14
8 EA
4
Stand cover
yInsert the protruding parts of the Stand cover into
the holes.
CAUTION
5
Cover holder
Stand
cover
yInsert the Cover holder of the Stand cover into the
holes until it clicks.
CAUTION
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
NOTE
yWhen attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after being
installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and not
tighten correctly.
CAUTION

A-10
SETTING UP THE TV / MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the EG9609 models.
Antenna connection
Wall
antenna
socket
(*Not
provided)
English
Connect the TV to a wall antenna socket with an RF cable
(75 Ω).
yThe external device connection may differ from the
model.
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplifier
properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
yAn antenna cable and converter are Not provided.
ySupported DTV Audio: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yFor a location that is not supported with ULTRA
HD broadcasting, this TV cannot receive ULTRA HD
broadcasts directly. (Depending on model)
NOTE
Tidying cables
Image shown may dier from your TV.
Gather and bind the cables with the cable holder.
Cable holder
yDo not move the TV by holding the cable holder,
as the cable holder may break, and injuries and
damage to the TV may occur.
CAUTION
