LINEA VZ 18545 Operating instructions

USER AND MAINTENANCE MANUAL
User manual version 11/2009
1
User and maintenance manual
HOT-AIR PELLET INSERT
18545

USER AND MAINTENANCE MANUAL
User manual version 11/2009
2
Dear Customer,
Thank you for having chosen one of our products. We are confident
that we have delivered you a latest-generation, high-tech product that has
been fully tested in every stage of production: in fact, during final testing,
every stove is ignited to check operation, and therefore any dirt or
combustion residues in the firebox are reassurance that testing has been
successfully completed.
This manual contains information and advice on this product and how
to use it in the best and safest possible way, as well as instructions for
routine maintenance.
In providing this manual, LINEA VZ SRL declines all liability, both civil and
criminal, for any accidents resulting from partial or total failure to observe
the instructions contained herein.
LINEA VZ SRL moreover declines all liability due to improper use of the
stove, incorrect use by the user, unauthorised modifications and/or repairs
or the use of non-original spare parts for this model.
The manufacturer declines any direct or indirect civil or criminal liability
due to:
poor maintenance
Failure to follow the instructions provided in this manual
use not in compliance with safety directives
installation not in compliance with the regulations in force in the
country concerned
installation by unqualified and/or untrained personnel
modifications and repairs that are not authorised by the manufacturer
use of non-original spare parts
exceptional events
LINEA VZ SRL

USER AND MAINTENANCE MANUAL
User manual version 11/2009
3
WARNING:
LINEA VZ SRL reserves the right to make minor modifications to the stove’s
components that, not involving significant differences, may not be reported in this
manual. Any changes of a cosmetic nature with respect to the product brochures
are a result of normal updates due to the seasonal nature of the collections.
Contents:
General safety regulations p. 4
Technical specifications:
18545 p. 5
Installation-positioning the stove p. 6
Connection to the power supply p. 6
Connections (chimney, flue gas exhaust, air intake) p. 7-9
Fuel to be used p. 10

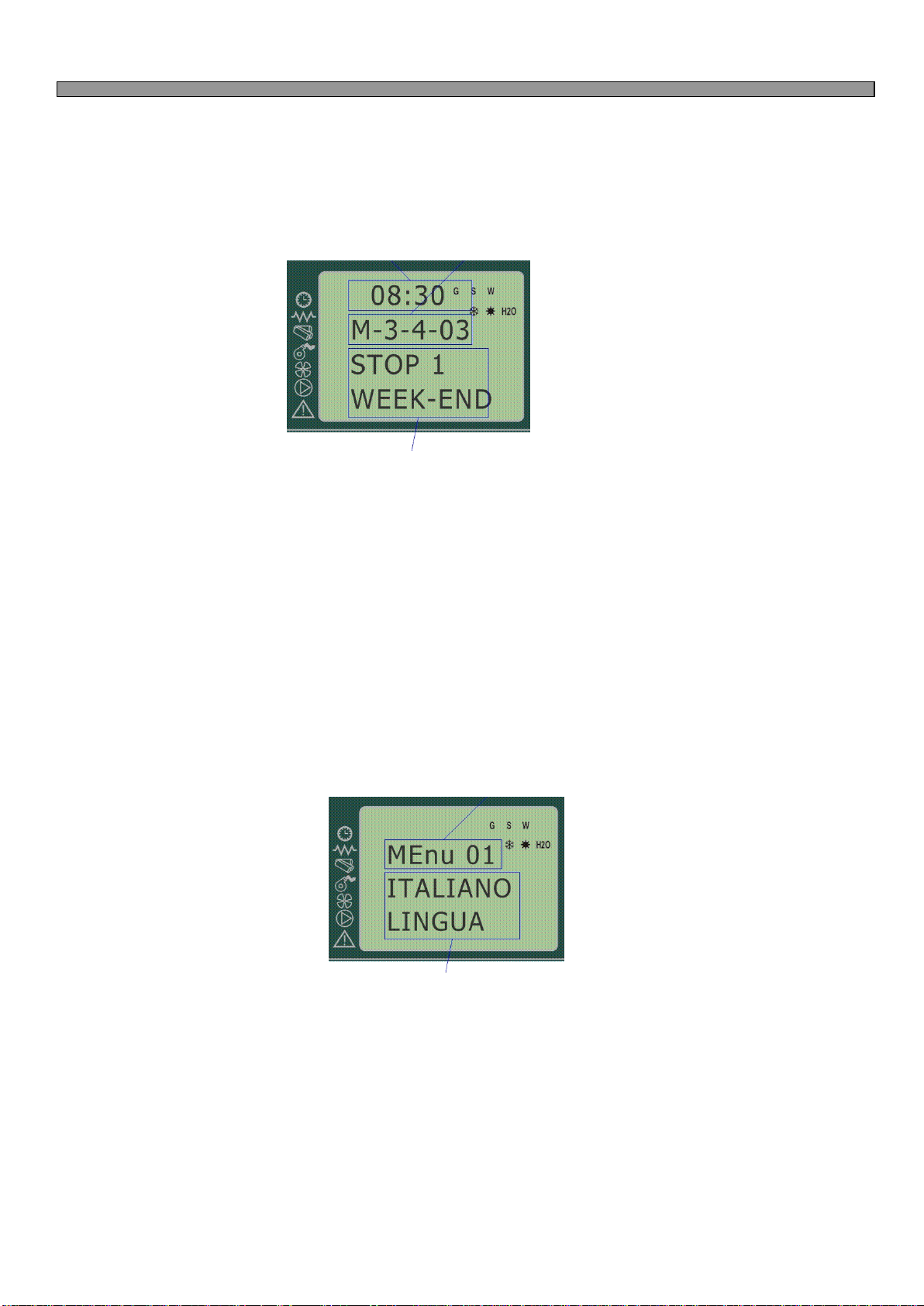

Display and menu p. 11-15
Setting the clock p. 11

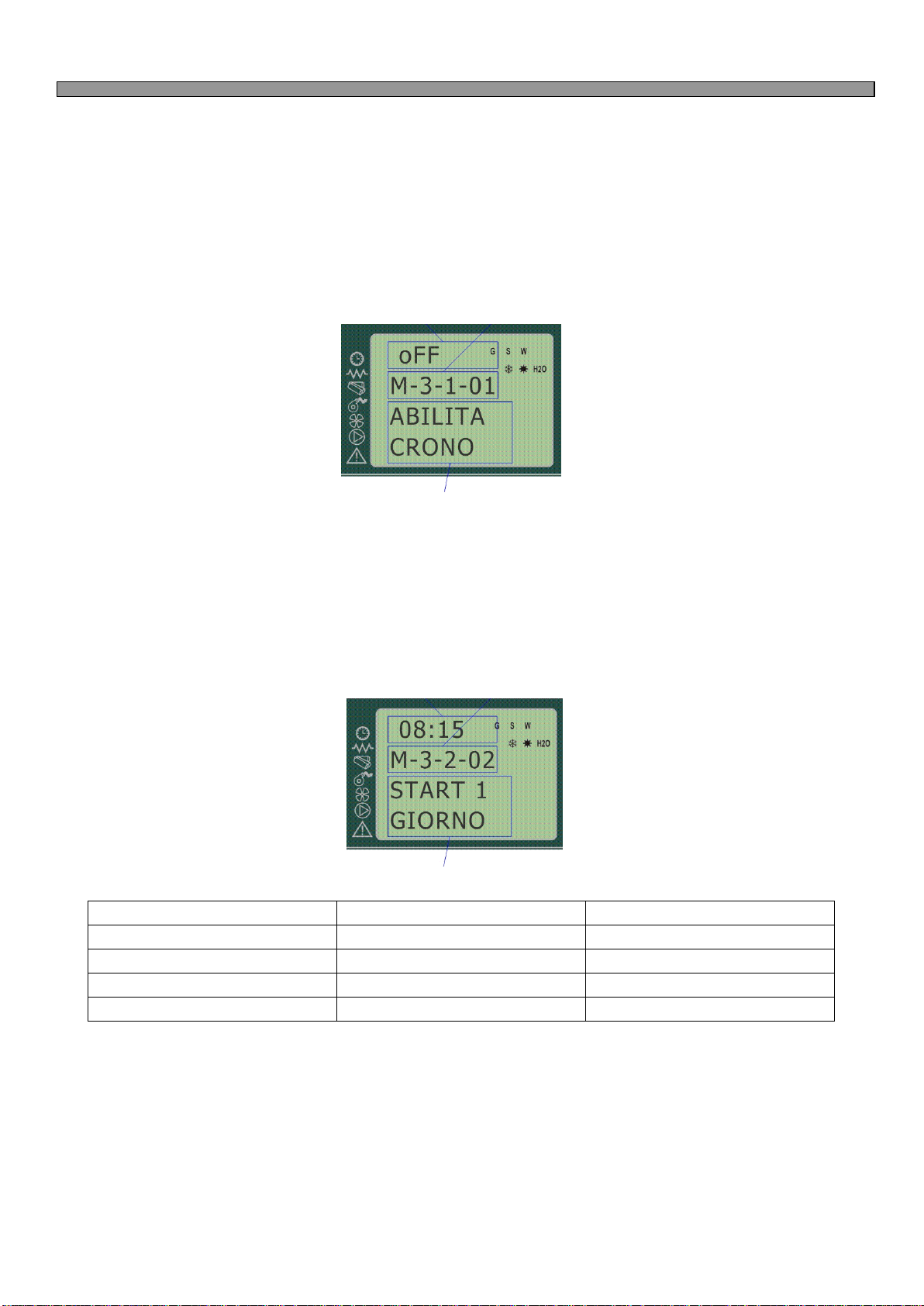

Automatic ignition (timer-thermostat) p. 12-14
Initial feed p. 15

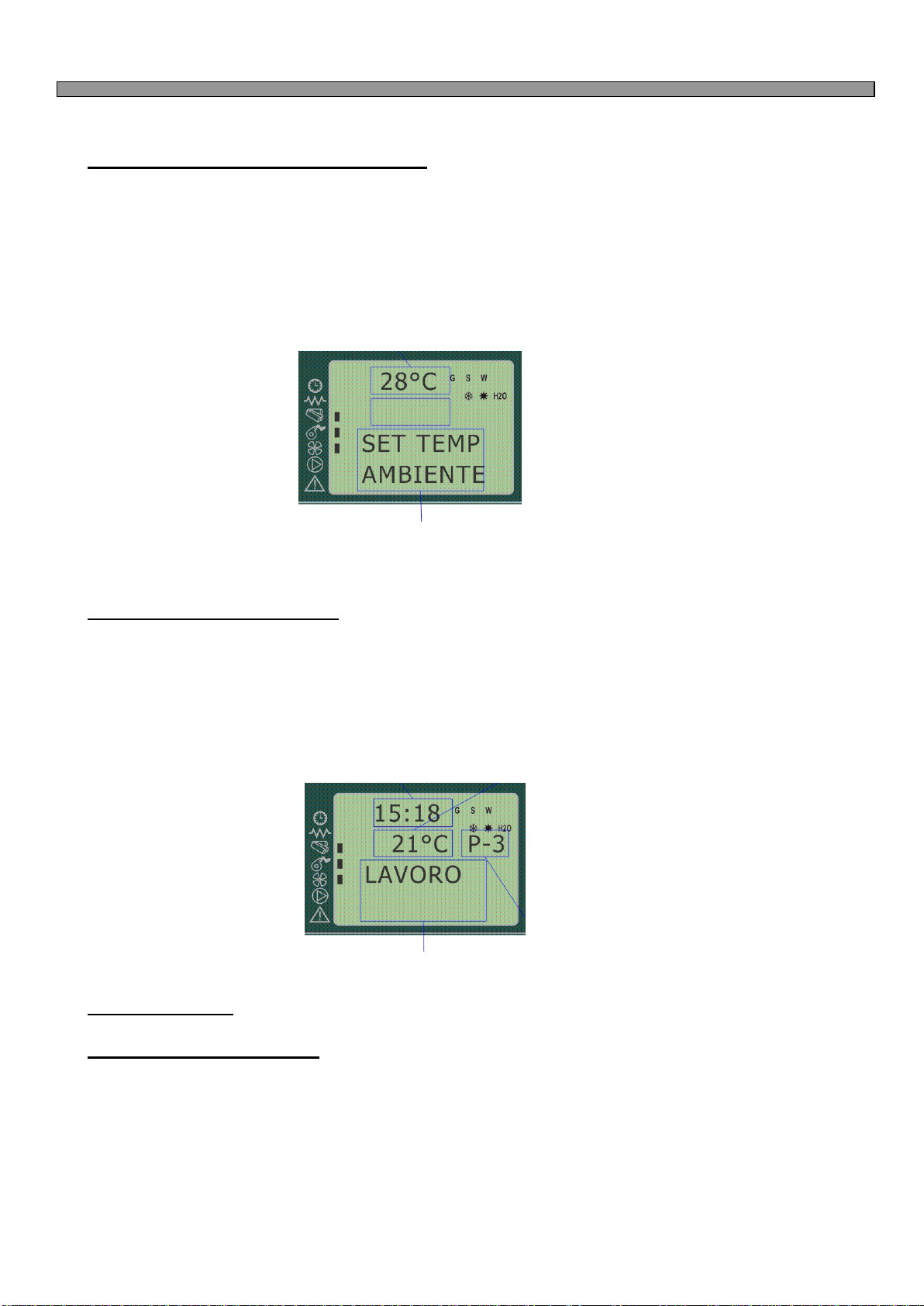

Room temperature setting p. 16
Flame level setting p. 16
Manual and automatic programming p. 17
Switching on/off p. 18-20
Alarm signals p. 21-23
Using the remote control p. 23
Cleaning and maintenance p. 24-26
Troubleshooting p. 26-27
Connecting the electronic boards p. 28
Warranty p. 29
Firstignitionchecklist(tobecompletedbyauthorisedtechnicianforwarranty) p. 30
Service log p. 31

USER AND MAINTENANCE MANUAL
User manual version 11/2009
4
GENERAL SAFETY RULES
WARNING!!! You can never be too careful: before installation, read and observe these basic
rules:
When installing the stove, the regulations in force for flue gas exhaust must be complied with.
Correct installation and periodic maintenance of the product must be entrusted to a specialist
installer, who will verify efficient chimney draught before and during combustion. (Authorised
technician in accordance with EEC 46/90)
Complete cleaning of the stove and the system must be carried out annually by an authorised
service centre. Failure to do so will result in the product warranty being void.
The stove requires a certain amount of air for combustion, and consequently intake of air from
outside of the room where the stove is installed is required, in addition to a supplementary indirect
air intake of at least 180 cm2.
Given the weight of the stove, before installation it must be verified that the place where it will be
positioned is able to bear such weight.
Place a floor protector underneath the stove if the floor is made from flammable material, e.g.
parquetry or carpet (the protector must protrude at least 25/30 cm on all sides of the stove).
It is advisable for safety reasons to leave a distance of at least 20 cm between the hot sides of the
stove and any flammable coverings, e.g. timber panels, wallpaper, etc., or use specific insulating
materials available on the market. The same rule applies to furniture, chairs, curtains, etc. (distance
of 100 cm at the front).
Do not insert the stove in narrow spaces that have not been specially prepared or lean it against
walls that may prevent correct air flow (at least 3 cm).
Absence of chimney draught (or, for example, obstruction or closing of the burn pot air intake or
the burn pot itself) will alter operation of the stove, and during automatic ignition may cause an
excessive amount of pellets to be fed into the burn pot due to delayed ignition. Excessive smoke in
the combustion chamber may cause the flue gas to self-combust, causing a violent flare; never
open the combustion chamber door in such conditions.
Flammable liquids must never be used to ignite the fire.
Do not touch the glass when the stove is at working temperature, and use caution before touching
it at any time.
Do not allow children to be left alone near the stove when this is on, as all of its hot parts may
cause severe burns.
Do not carry out any work on the stove other than what is needed for normal use or recommended
in this manual to solve minor problems. Always unplug the stove from the power socket before
commencing any work. If it is essential to remove a foreign body that has got stuck, remember to
always unplug the power cable, so as to prevent accidents from occurring due to the stove starting
automatically, if programmed.
Always make sure that the combustion chamber door is tightly closed during ignition and operation
of the stove.
Automatic ignition of the pellets is the most delicate phase, and to ensure this runs smoothly,
always keep the stove and the burn pot clean.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
5
TECHNICAL SPECIFICATIONS
HOT-AIR PELLET STOVE model 18545
Max.
Min.
Pellet hopper capacity
15 kg
Efficiency
85.19 %
90.24 %
Nominal heat output
9.12 kW
3 kW
Max. operating time
10 h
20 h
Pellet consumption
0.7 kg/h
1.5 kg/h
Heatable space
180 cubic metres
Weight
100 kg
Max. stove dimensions
650 x 51 x H 570
Flue connection diameter
Ø 80 mm
Air intake diameter
Ø 40 mm
Power consumption at 220 V, 50 Hz.
300 watts
50 watts
Protection on main power supply
Fuses
Protection on electrical board
Fuses
INCLUDED
Room temperature probe
Flue gas temperature probe
Weekly timer-thermostat
Five pellet feed settings
Five fan speed settings
Warm air supply fan
Self-cleaning glass
Ash drawer
Remote control
Packaging
The packaging comprises a recyclable cardboard box according to RESY standards,
recyclable EPS foam inserts, wooden pallets and an external wooden structure. All of the
packaging materials can be reused for similar purposes or can be disposed of as municipal
solid waste in compliance with regulations in force. After removing the packaging, make sure
the product is intact.
Warning!
Handle the product using suitable equipment, In accordance with safety regulations in force.
Do not overturn the packaging, and pay special attention to the ceramic parts.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
6
INSTALLATION
The installation position must be chosen according to the surroundings, the flue gas exhaust
and the chimney. Check with local authorities whether there are any restrictive regulations
concerning combustion air intake, air change and the flue gas exhaust system, including the
chimney and chimney pot. The manufacturer declines all liability for installations that do not
comply with the laws in force, incorrect air change, electrical connections not in compliance
with regulations and improper use of the appliance. Installation must be carried out by a
qualified technician, who shall provide the customer a declaration of system conformity, thus
taking complete responsibility for the final installation and consequent correct functioning of
the product. The stove is supplied with a booklet describing the testing and periodic
maintenance to be carried out by the installer.
POSITIONING THE STOVE
The stove should be positioned in the most central point of the room being heated, so as to
ensure uniform distribution of heat and optimum efficiency.
CONNECTION TO THE POWER SUPPLY
1. The stove must be connected to the power supply using an earthed socket, making sure
that the socket is working correctly before plugging the stove in.
2. During installation, make sure that the connection cable is not in contact with hot parts of
the stove and is not crushed, to avoid the risk of short circuits.
NB the stove is protected by fuses fitted in the main switch located at the rear of the stove.
Always remember to switch off the stove before carrying out any maintenance and/or
checks!
CONNECTION TO THE CHIMNEY
Connection of the stove to the chimney/flue is an important operation that can affect correct
operation and must therefore always be carried out and checked by specialist and qualified
personnel. Avoid “DIY” installation of the stove, especially without properly knowing all of the
necessary information.
Before installing, always check that the inside diameter and height of the chimney/flue are
adequate to ensure correct draught and that it is not obstructed or poorly installed.
NB in the section connecting the flue gas pipes to the chimney, no reductions in diameter are
allowed from the outlet provided on the stove; to ensure correct operation, avoid horizontal
sections as these may fill with ash and consequently reduce the available diameter; also avoid
excessive bends (maximum 2), which must be fixed stably, to ensure less pressure drop.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
7
FLUE GAS EXHAUST INSTALLATION
FIG. 1 Installation without masonry chimney.
Flue gas exhaust Ø 80: solution with one 90° bend
The first section, horizontal (flue gas pipe) runs directly to the outside of the building.
The second section, vertical (chimney and chimney pot) is outside of the building.
The outside vertical section must end, as shown, above the roof.
For best stove performance, a greater height is recommended.
FIG. 2 Installation with masonry chimney and outlet above the roof
Flue gas exhaust Ø 80: solution with one 90° bend
The first horizontal section (flue gas pipe) connects to a traditional chimney either inside or
attached to the building. If the chimney is made from masonry or is too large, a steel pipe no
smaller than 80 mm should be inserted. The chimney must end above the ridge of the roof.
COMBUSTION AIR INTAKE INSTALLATION
Both Figures 1 and 2 apply
For all the solutions illustrated, there are two possible alternatives:
1 Take in air directly from the outside through a pipe connected to the fitting provided on the
rear of the stove.
2 Take in air directly from the room where the stove is installed.
In the latter case, near the stove, an air intake measuring at least 180 cm² must be
provided on a wall connecting to the outside.
In both cases, periodically check that nothing is obstructing air flow (protect the air
intake with a suitable grill).
REMEMBER THAT THE FOLLOWING ARE ALWAYS NECESSARY:
Proper air intake
Horizontal sections must have a minimum gradient of 5° and a minimum length of 2 metres
The vertical section must have a minimum height of 2 metres
Sections of flue gas piping must be accessible for inspection
Mastic or high-temperature gaskets should be used to seal the pipe connection to the flue
gas outlet fitting.
A condensate drain and ash collection opening are recommended.
IMPORTANT: never connect chimneys/flues from different stoves, fireplaces, etc. to
each other.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
8
Installazio
ne senza
canna
Installazione senza canna Installazione con canna
Fumaria in muratura fumaria esistente
Installation without
masonry chimney
Installation with
existing chimney
combustion air
taken in from
the outside
combustion air
taken in from
the outside
combustion air
taken in from
the outside
combustion air
taken in from
the outside
Fig. 3
Fig. 4
Fig. 2
Fig. 1
Masonry
chimney
Protective insulation
on chimney H. min.
200 cm

USER AND MAINTENANCE MANUAL
User manual version 11/2009
9
TABELLA DI CALCOLO CANNA FUMARIA STUFE A PELLET
Type of stove
Chimney type Height and protrusion
Stove heat
output up
to 10 kW
Fig 1
From H 200 = 0.5-1.5
80
To H 600 = 1.5-3.0
100
Fig. 2
From H 200 = 0.5-1.5
80
To H 600 = 1.5-3.0
80
Fig. 3
From H 200 = 0.5-1.5
80
To H 600 = 1.5-3.0
100
Fig. 4
From H 200 = 0.5-1.5
80
To H 600 = 1.5-3.0
100
Fig. 1
From H 600 = 0.5-1.5
100
To H 1200 = 1.5-3.0
120
Fig. 2
From H 600 = 0.5-1.5
80
To H 1200 = 1.5-3.0
100
Fig. 3
From H 600 = 0.5-1.5
100
To H 1200 = 1.5-3.0
120
Fig. 4
From H 600 = 0.5-1.5
100
To H 1200 = 1.5-3.0
120
Fig. 1
From H 1200 = 0.5-1.5
120
To H 1800 = 1.5-3.0
140
Fig. 2
From H 1200 = 0.5-1.5
80
To H 1800 = 1.5-3.0
100
Fig. 3
From H 1200 = 0.5-1.5
120
To H 1800 = 1.5-3.0
140
Fig. 4
From H 1200 = 0.5-1.5
120
To H 1800 = 1.5-3.0
140
It should be noted that the table is used for new installations and provides general parameters to
guide the installer in correctly defining the chimney/flue diameter so that if not included in the
ranges described above, it must be suitably adapted and calculated, while existing chimneys
must be checked and cleaned where necessary to ensure the best possible draught.
TABLE FOR CALCULATING PELLET STOVE CHIMNEYS

USER AND MAINTENANCE MANUAL
User manual version 11/2009
10
Height-negative pressure
The negative pressure (draught) of a chimney also depends on its height. The negative
pressure required for the various models of pellet stoves is from 15 pa to 20 pa (0.15 to 0.20
mbars).
FUEL TO BE USED
Pellets are fuel that comes in the form of small cylinders measuring about 6 mm in diameter,
obtained from pressing sawdust and shredded waste wood, without using additives, dyes or
other foreign materials.
Pellet technical specifications:
Diameter 6-6.5 mm
Maximum length 20-25 mm
Maximum moisture content 6%
Heat value approx. 4,800 kcal/kg
The stove is built to burn pellets made from non-resinous wood, preferably beech.
NB the use of pellets with features other than those specified above will reduce stove
efficiency, cause fouling and poor combustion and make it necessary to recalibrate the
combustion parameters, on all versions. The stove is not guaranteed to work properly
with pellets other than the type described above.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
11
REMOTE CONTROL
The radio remote control can be used both to set the stove operating parameters and for normal
operation of the stove.
In addition, the remote control can also be used as a room timer-thermostat and installed on the
wall using the bracket supplied.
The meanings of the status
indicators on the left side of the
display are described in the figure.
When one of the segments in the
“status” area of the display comes
on it means the corresponding
device has been activated, as
shown in the list alongside.
timer
glow plug
screw
flue gas exhaust
heat exchanger
not used
alarm

USER AND MAINTENANCE MANUAL
User manual version 11/2009
12
4.1 Keypad
The remote control is illustrated below, together with a description of the buttons and the main
functions.
Display
Sensore temperatura
ambiente
ON/OFF
Incremento
Decremento
Accesso al menu
SET tipo alimentazione
Set Temperatura ambiente
Scorri menu
Set Potenza
Scorri menu
Display
Room temperature
sensor
Increase
ON/OFF
Decrease
Room temperature set point
Scroll the menu
Heat output
setting
Scroll the menu
Access the menu
Feed setting

USER AND MAINTENANCE MANUAL
User manual version 11/2009
13
MENU
Press P7 (MENU) to access the menu.
This is divided into various items and levels to access the settings and program the board. To
access the various menu items, after pressing P7 for two seconds, scroll the list until reaching
the desired item with P1 and P2 and confirm by pressing P3
01 FAN SET menu
02 CLOCK SET menu
03 TIMER SET menu
04 LANGUAGE menu
05 STANDBY menu
06 BUZZER MODE menu
07 INITIAL FEED menu
08 STOVE STATUS menu
09 TECHNICAL CALIBRATION menu
Menu 02 - clock set
Set the current time and date. The board is fitted with lithium battery that ensures the internal
clock more than 3-5 years’ operation.
From the CLOCK SET menu, press P1 and P2 to scroll through the desired data and confirm
by pressing P3

USER AND MAINTENANCE MANUAL
User manual version 11/2009
14
Menu 03 - timer set
Sub-menu 03 - 01 - enable timer
This is used to globally enable and disable all of the timer-thermostat functions.
Sub-menu 03 - 02 - daily program
This is used to enable, disable and set the daily timer-thermostat functions.
Two time bands can be programmed, defined by times set in the following table,
where the OFF setting tells the clock to ignore the setting:
Selection
Meaning
Possible values
START 1
switch on time
time - OFF
STOP 1
switch off time
time - OFF
START 2
switch on time
time - OFF
STOP 2
switch off time
time - OFF

USER AND MAINTENANCE MANUAL
User manual version 11/2009
15
Sub-menu 03 - 03 - weekly program
This is used to enable, disable and set the weekly timer-thermostat functions.
The weekly programmer has four independent programs; the overall effect is the combination
of these four individual programs.
The weekly programmer can be enabled or disabled. Furthermore, by setting OFF in the time
field, the clock ignores the corresponding setting.
Warning: set the programs with care, in general avoid setting overlapping switch on/off
times on the same day in different programs.
PROGRAM 1
Menu level
Selection
Meaning
Possible values
03-03-02
START PROG 1
switch on time
time - OFF
03-03-03
STOP PROG 1
switch off time
time - OFF
03-03-04
MONDAY PROG 1
on/off
03-03-05
TUESDAY PROG 1
on/off
03-03-06
WEDNESDAY PROG 1
on/off
03-03-07
THURSDAY PROG 1
on/off
03-03-08
FRIDAY PROG 1
on/off
03-03-09
SATURDAY PROG 1
on/off
03-03-10
SUNDAY PROG 1
on/off

USER AND MAINTENANCE MANUAL
User manual version 11/2009
16
Sub-menu 03 - 04 - weekend program
This is used to enable, disable and set the timer-thermostat functions on
weekends (days 5 and 6, i.e. Saturday and Sunday).
TIP: in order to avoid confusion and unwanted on/off cycles, activate only
one program at a time until the exact outcome is known.
Disable the daily program if wanting to use the weekly program. Always
keep the weekend program disabled if using the weekly programs 1, 2, 3
and 4.
Enable weekend programming only after disabling weekly programming.
Menu 04 - set language
This is used to select the display language from the options available.
Menu 05 - standby mode
This activates “STANDBY” mode, which shuts down the stove when the room
temperature remains above the SET temperature for the time defined by Pr44.
After shutting down in this way, the stove can only start again only when the following
condition is true:
TSET < (Troom - Pr43)

USER AND MAINTENANCE MANUAL
User manual version 11/2009
17
Menu 06 - buzzer mode
When “OFF”, the audible signal is disabled.
Menu 07 - initial feed
This is used to pre-feed the pellets for a time of 110 seconds when the the stove is
off and cold. Start by pressing P1 and stop by pressing P3.
Menu 08 - stove status
This is used to read the feed screw and heat output setting parameters, and above all
the flue gas temperature.
flue gas temperature
exhaust fan speed
heat exch. 2 and 3 status
instant heat output
status
exch. 2 fan speed
exch. 3 fan speed
operating status

USER AND MAINTENANCE MANUAL
User manual version 11/2009
18
ROOM TEMPERATURE SETTING
To set the room temperature, simply press P4 to enter the temperature setting menu and then
P1 or P2 to increase or decrease the value. The display shows the current SET temperature;
press P3 to exit the menu. figure
FLAME LEVEL SETTING
Press P5, and then press P1 or P2 to increase or decrease by stove heat output and
automatically set all of the corresponding parameters. The display shows the selected heat
output. If the room temperature measured by the probe exceeds the temperature set on the
display, the control unit automatically reduces heat output to the minimum (level 1).
PROGRAMMING
OPERATING MODE MENU
This function is used to select the stove operating mode.
MANUAL Continuous operation of the stove. The signal to ignite/shut off the flame is
sent manually using the ON/OFF button.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
19
AUTOMATIC The stove automatically switches on and off according to the weekly
program (see the timer menu).
Press ENTER to confirm, or cancel the setting by pressing the function button.
Once the desired option has been selected, the stove will return to the main menu.
The operating mode can also be switched from automatic to manual by pressing the button,
the following message will be shown on the display:
and then the daily program.
STARTING THE HOT-AIR STOVE
Normal operation of the controller installed on the hot-air stove is described below, with
reference to the functions available to the user. The following information refers to the
controller fitted with the timer-thermostat option. The programming procedures are then
analysed the subsequently.
Before switching on the stove, the display will be as shown in the figure
To start the stove:
The stove is switched on manually by pressing and holding P3 (ON/OFF) for a few seconds.
The same button is used to switch the stove off. A complete cycle usually comprises five
distinct phases (ignition, flame stabilisation, normal operation, economy and shutdown), which
alternate depending on the flue gas temperature measured and certain other parameters.
Ignition phase
Ignition starts by pressing and holding P3 (ON/OFF) for a few seconds. The procedure begins
with activation of the glow plug (heater) and continuous feeding of pellets by the screw. The
messages “IGNITION", “PELLET FEED” and “AWAITING FLAME” will be shown on the display
in succession. After about 45 seconds, the gearmotor stops and the flue gas exhaust fan is
activated (at a predefined speed). Once the pellets have ignited and the flue gas temperature
reaches 50°C, the glow plug switches off and the flame is stabilised. The ignition phase ends
when a temperature of 65°C is reached, however for safety reasons and to safeguard the glow
plug, there is a maximum time of 15 minutes, after which if the pellets do not ignite, the display
will show the “FAILED IGNITION” alarm.

USER AND MAINTENANCE MANUAL
User manual version 11/2009
20
Flame stabilisation phase
In this phase the feed screw loads the pellets at a predefined speed. When the flue gas
temperature exceeds 50°C, the stove enters flame stabilisation mode. In the flame
stabilisation phase, the flue gas exhaust fan works at the set speed, and the temperature
remains stable for a certain time, after which it goes into “OPERATING” mode.
Normal operation
The board features an input for an external thermostat. The stove will operate depending on
the external thermostat and room thermostat settings and the room temperature measured:
T room : room temperature measured by the probe
T setRoom : room temperature set on the external thermostat
T setTherm : room temperature set for the SET ROOM TEMP parameter
External thermostat closed (Troom > TsetTherm): The message “ton” is shown on the display
and the stove operates at the set output level, until the thermostat contact opens.
External thermostat open (Troom > TsetTherm): The stove operates at the set output level
until reaching TsetTherm (Troom < TsetTherm), after which it switches to economy mode.
Modulating operation will begin if the room temperature reaches the “SET TEMPERATURE”
value. During this phase, the feed screw and the flue gas exhaust and heat exchanger fans
work at minimum speed, and the message “MODULATION” is shown on the display.
