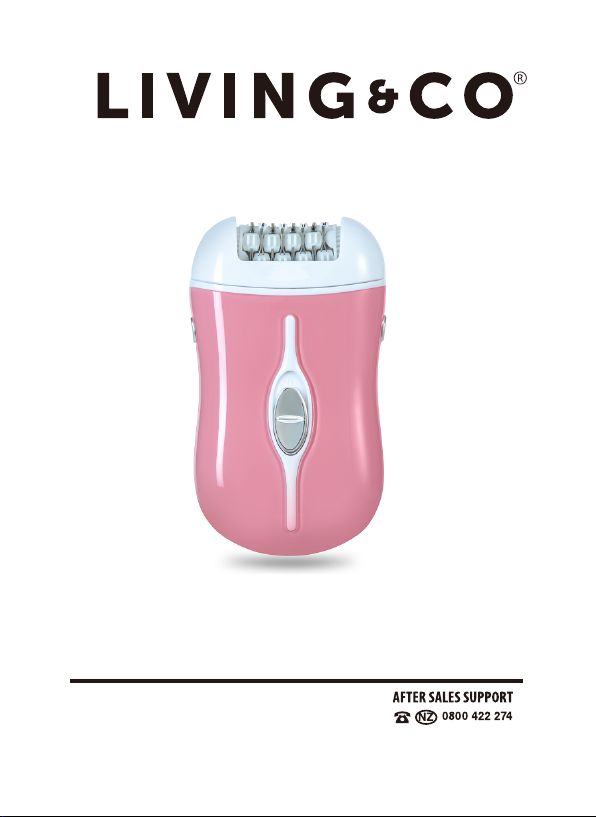

Living & Co EP-02 User manual

Rechargeable Epilator
Instruction Manual
EP-02

CONTENTS
IMPORTANT
SAFETY
INSTRUCTIONS
WARNINGS
2-3
SAFETY PRECAUTIONS
3-5
BATTERY REMOVAL
5
TECHNICAL DATA
5
PRODUCT OVERVIEW
6
CHARGING YOUR EPILATOR
6-7
GENERAL INFORMATION ON EPILATOR
7
USING YOUR EPILATOR
7-8
CLEANING AND MAINTENANCE
9
DISPOSAL
10
WARRANTY
11
2
13 0 0 886 649
A U
13 0 0 886 649
A U
1

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THE FOLLOWING SAFETY WARNINGS
AND THE INSTRUCTIONS CAREFULLY BEFORE USING
THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.
WARNINGS
• This appliance is intended for domestic household use only
and should not be used for any other purpose or in any other
application, such as for non-domestic use or in a commercial
environment.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• WARNING: Keep the appliance dry.
• WARNING: For the purposes of recharging the battery, only
use the detachable supply unit provided with this appliance.
• The external flexible cable of the power supply cannot be
replaced, if the cord is damaged, it is necessary to dispose of
the power supply and obtain a replacement.
• Regarding the detailed instructions concerning the method
and frequency of cleaning, please see section “Cleaning and
Maintenance” on page 9.
• The battery must be removed from the appliance before it is
discarded and then safely dispose of, check with your local
council for information relating to suitable disposal location
points.
5
1300 886 649
AU
2

IMPORTANT SAFETY INSTRUCTIONS CONTINUED
• The batteries (batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
• Dispose of used batteries according to the instructions.
• If battery leakage occurs, avoid contact with skin. Isolate the
leaking battery in a sealed plastic bag and put it in the bin
following disposal instructions. If contact with the skin,
mucous membranes or eyes, rinse thoroughly with water and
contact your doctor or ophthalmologist.
• The appliance is only to be used with the power supply unit
provided with the appliance.
• Regarding the detail on how to remove the battery, refer to the
section “Battery Removal” on page 5.
SAFETY PRECAUTIONS
• Do not reach for an appliance that has fallen into water.
Unplug immediately.
• Do not place or store appliance where it can fall or be pulled
into a tub or sink. Do not place in or drop into water or other
liquid.
• Always turn off and disconnect the appliance from power
adapter and then unplug the power adapter from the mains
socket when not in use or before cleaning.
• Use this appliance only for its intended use as described in
this manual. Do not use attachments not recommended by
the manufacturer.
• Never drop or insert any object into any opening.
• Keep the cord away from heated surfaces.
2
13 0 0 886 649
A U
13 0 0 886 649
A U
3

• Never operate the appliance if it has a damaged cord or plug,
if it is not working properly, if it has been dropped or damaged,
or dropped into water. Return the appliance to a service
center for examination and repair.
• Do not operate the appliance outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
• CAUTION: Methods of removing hair by the root can cause
in-grown hairs and minor skin injuries. Please consult your
doctor if you have any questions about the use of the epilator.
• Do not use the epilator if you suffer from varicose veins,
rashes, spots or blemishes, or when the skin is irritated or if
you have in-grown hairs or a tendency to produce in-grown
hairs. Consult your doctor first.
• The epilator should only be used after prior consultation with
your doctor if you have or experience:
 Open wounds
 Eczema, psoriasis (scaly eczema), inflamed skin
reactions such as folliculitis, skin rashes or the tendency
to allergy or allergic skin reactions
 Immune deficiency or disorders
 Couperose, rosacea, or varicose veins
 Pregnancy
 Reduced skin immunity as a result of diabetes,
pregnancy, Raynaud’s disease, etc.
 Hemophilia
 If you have moles, raised skin bumps, etc.
 If you have been or begin taking hormone medication, or
recently been pregnant, a change in your hormone levels
may influence the thickness, colour or amount of hair
growth. This is caused by the hormonal changes, not by
this method of hair removal.
5
1300 886 649
AU
4

 To prevent accidents and injury to you or damage to the
appliance, when using the appliance keep it away from
the hair on your head, eyelashes, eyebrows, clothing,
brushes, wires, threads and cords etc.
TECHNICAL DATA
Model: EP-02
Power adapter:
Input: 100-240V~ 50/60Hz 0.2A Max
Output: 5V DC 1000mA
Epilator: DC 5V 1000mA
BATTERY REMOVAL
•
The epilator has a built-in 320mAh
Lithium battery which is not
readily accessible.
•
Remove the built-in battery before
disposing of the epilator.
•
Disconnect the power cord from the
epilator when removing the battery.
•
Perform the steps 1 to 7 and lift the
battery to remove it.
2
13 0 0 886 649
A U
13 0 0 886 649
A U
5

PRODUCT OVERVIEW
CHARGING YOUR EPILATOR
For best performance, fully charge the appliance before
use.
Charging time: Approximately 1 hour 30 minutes
One full charge allows for 40 minutes of cordless
operation.
1. Ensure that your epilator is switched off.

Epilating Head
Epilating cap for legs/arms
Epilating head release button
On/off switch (high speed / low speed / off)
Epilating cap for underarms / bikini-line
Cleaning brush

Power adaptor (charger)
5
1300 886 649
AU
6

2. Attach the power adapter to the epilator and plug the
power adapter into the mains socket.
• The indicator light will illuminate, indicating that
the battery is charging.
3. After charging is completed, unplug the power
adapter from the mains socket and epilator.
GENERAL INFORMATION ON EPILATOR
• In some cases, inflammation of the skin can occur
when bacteria penetrate the skin (when gliding the
appliance over the skin). Thorough cleansing of the
epilation head and cap after each use will minimize the
risk of infection.
• When using an epilator for the first time, it is
recommended that you begin at an area with little hair
growth. This will help the skin adjust to the process of
epilation.
• The optimum length of the hair for epilation is 3 – 4 mm.
If hairs are longer, it is recommended that you shave or
trim the hair first.
• If you experience some skin irritation after epilating,
epilate in the evening as most skin irritation disappears
overnight.
• After using your epilator, you can apply a non-alcoholic
based mild cream or body lotion which will help reduce
the possibility of skin irritation.
USING YOUR EPILATOR
Before epilating, make sure your skin is clean, dry and
free from creams or oils.
Ensure that your epilator is switched off.
2
13 0 0 886 649
A U
13 0 0 886 649
A U
7

Attach the correct cap to the epilating
head.
Switch on your epilator by selecting the
desired speed (low / high). The indicator
light will illuminate.
Epilating legs or arms
Epilating underarms or bikini-line
After epilating, switch off the epilator.
• Using your free hand, hold the skin taut
so that the hairs stand upright. Position
the epilator so that the tweezers are at a
90º angle and flat against the skin.
• Gently press and move the epilator
slowly over the skin against the direction
of hair growth. Do not apply pressure as
the epilator will slow down or stop.
• Repeat until all unwanted hair is
removed.
• When epilating the underarm area keep
your arm raised so that the skin is
stretched. If required, use your raised
hand to pull underarm skin taught
• When epilating the bikini line hold the
skin around the bikini line taut.
• Hold the epilator at a right angle to the
skin and move it with light pressure
against the direction of the hair growth.
5
1300 886 649
AU
8

CLEANING AND MAINTENANCE
• After each use, turn off the epilator and
clean it thoroughly.
• Press the release buttons on the both
sides of your epilator to pull the epilating
head with cap out of your epilator.
• Remove the cap from the epilating head.
• Use the supplied cleaning brush to brush
the accumulated hair from the head.
• Never immerse the appliance in water
or any other liquid.
• Never use abrasive or chemical
cleaning agents.
2
13 0 0 886 649
A U
13 0 0 886 649
A U
9

DISPOSAL
As a responsible retailer we care about the
environment. As such we urge you to follow
the correct disposal procedure for the
appliance and packaging materials and if
applicable, batteries. This will help conserve
natural resources and ensure thatit is recycled in a
manner that protects health and the environment.
You must dispose of this appliance and its packaging
according to local laws and regulations.
Because this appliance contains electronic components
and may contain batteries, the appliance and its
accessories must be disposed of separately from
household waste when the appliance reaches its end of
life.
Contact your local authority to learn about disposal and
recycling.
We apologise for any inconvenience caused by minor
inconsistencies in these instructions, which may occur as
a result of product improvement and development.
5
1300 886 649
AU
10

Warranty
We pride ourselves on producing a Range
of quality home appliances that are both packed with features,
and completely reliable.
We are so confident in our products,
we pack them up with a 1 year warranty.
Now you too can relax knowing that you are covered.
Customer Helpline NZ: 0800 422 274
This product is covered by a 1 year warranty
when Accompanied by proof of purchase.
IM Version 1.0 – February 2020
2
13 0 0 886 649
A U
13 0 0 886 649
A U
11
