Living & Co LC-H145W User manual

LC-H145W
CHEST FREEZER
145L
Instruction Manual
0800 422 274
NZ N13275

2
0800 422 274
NZ
Contents
03 General Safety Instructions
06 Product Overview
07 Getting Started
08 Instructions
11
13
FAQs and Troubleshooting Guide
Other Useful Information

3
0800 422 274
NZ
General Safety Instructions
Pay particular attention to messages that follow this safety alert symbol
or the words DANGER, WARNING or CAUTION. These words are
used to alert you to a potential hazard that can seriously injure you and
others. The instructions will tell you how to reduce the chance of injury
and let you know what can happen if the instructions are not followed.
WARNING: Do not damage the refrigerant circuit! Never use an appliance with
a damaged refrigerant circuit! If the refrigerant circuit becomes damaged, avoid
proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate
the room in which the appliance is located.
It is hazardous for anyone other than an authorised service person to service this
appliance. In Queensland, the authorised service person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which
involve the removal of covers.
The room for installing the appliance must be at least 1m³ per 8g of refrigerant.
The amount and type of refrigerant in the appliance can be found in the Technical
Specifications on page 15 and on the appliance rating plate.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with this type
of product. The safety precautions enclosed herein reduce the risk of fire, electric
shock and injury when correctly adhered to. Keep the manual in a safe place for
future reference, along with the completed warranty card, purchase receipt and
carton. If applicable, pass these instructions on to the next owner of the appliance.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a gas with a high level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the appliance, ensure that none of
the components of the refrigerant circuit become damaged.
This symbol alerts you to take care as the appliance contains
flammable materials: isobutane as refrigerant and cyclopentane as
insulation blowing gas. Do not expose it to high heat, sparks and
open flames.

4
0800 422 274
NZ
To reduce the risk of fire, electric shock or injury, always follow basic safety precautions
and accident prevention measures when using this appliance, including the following:
Electrical safety
• Voltage: Plug the appliance in a 220-240V, 50Hz, properly earthed power outlet,
which must be in good working order. Make sure your outlet voltage and circuit
frequency correspond to the voltage stated on the appliance rating label.
• Power connection: Do not use an adaptor; do not use an extension cord. Plug the
power plug directly into a power point that cannot easily be turned off accidentally,
and that is easily accessible so you can switch it off when required.
• Power cord: Do not kink or damage the power supply cord. Do not leave it exposed
or dangling. Secure it behind the appliance so no one steps on or places anything
on the power supply cord or against it. A squashed or damaged power plug may
overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage along
its length or at either end. Any damage to the cord may cause a short circuit, fire
and/or electric shock. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent. Contact the after sales support line for advice.
• WARNING! The light bulb supplied with this appliance is a special use bulb, which
is only suitable for use with this appliance, it is not usable for domestic lighting. Do
not operate the appliance without the lamp installed. Do not touch the light bulb if it
has been on for a long period of time, as it could be very hot.
• Disconnection: Never unplug the unit by pulling the cord. Always grip the plug
firmly and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by a qualified electrician.
General Safety Instructions (Cont.)
Installation
• Heavy: This appliance is heavy, take care when moving it. To avoid back or other
injury, consider a two person lift or mechanical aid when installing it. Failure to do so
can result in back or other injury.
• Damage: When unpacking, check the appliance carefully for damage. If it is
damaged, do not install the appliance. Contact our after sales support centre for
advice on examination or return of the damaged appliance.
• Protect from moisture: Install the appliance in an indoor area protected from wind,
rain, water spray or drips.
• Protect from heat: Do not install it next to an oven, grill or other source of high
heat, or where it will be exposed to direct sunlight for prolonged periods of time.
• WARNING: Ventilation: To ensure proper ventilation, keep any ventilation openings,
in the appliance enclosure or in the built-in structure, clear of obstructions. Ensure
adequate air circulation around the appliance to prevent overheating.
• Level: Install the appliance level in order to ensure proper operation.

5
0800 422 274
NZ
General Safety Instructions (Cont.)
Usage conditions and restrictions
• Indoor domestic use only: This appliance is intended for indoor domestic use only,
which includes use in households, staff kitchen areas in shops, offices, in farm
houses and in other working environments, use by clients in hotels, motels, bed and
breakfast establishments, other residential type environments and in catering and
similar non-retail applications. It is not suitable for industrial or commercial use.
• Intended purpose: Do not use this appliance for anything other than its intended
purpose, and only use it as described in this manual. Do not attempt to alter or
modify this appliance in any way.
• Usage restrictions: The appliance can be used by children aged from 8 years and
above, and persons with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
• Children: Supervise children to ensure they do not play with the appliance. Never
allow children to operate, play with or crawl inside the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged
from 8 years and above and supervised.
• WARNING! Do not use any electrical appliances (such as ice cream makers)
inside refrigeration appliances, unless they are approved for this purpose by the
manufacturer.
Cleaning and maintenance
• Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can
result in electric shock, injury or death. Do not connect or disconnect the plug when
your hands are wet.
• Flames: Do not let open flames or ignition sources enter the appliance.
• Flammable/explosive substances: Never clean this appliance with flammable
fluids. Do not store or use volatile, flammable or explosive propellants or liquids in or
close to this or any other appliance. The fumes can create a fire hazard or explosion.
• Solvents: Do not use solvent based cleaning agents or abrasives on the interior as
these may damage or discolour the surfaces of the appliances.
• WARNING! Do not use mechanical devices or other means to accelerate the
defrosting process. Never use a sharp or metal instrument to remove frost or clean
the appliance. Use a plastic scraper, if necessary.
• Service: Do not attempt to repair, modify or replace any part of the appliance unless
specifically recommended in this manual. Refer all other servicing to a qualified
technician, or contact the after sales support line for advice on examination or repair
of the appliance.

6
0800 422 274
NZ
Scope of delivery
A Parts list
1 Counter balanced lid
2 Interior light
3 Power indicator light
4 Thermostat control
5 Roll wheels
(4, underneath each corner)
6 Drainage hole
7 Freezer compartment
8 Wire storage basket
9 Plastic ice scraper (not shown)
B Documentation (not shown)
Instruction Manual, Warranty Certificate
Product Overview
1
5
6
8
7
2
4
3
Inside View

7
0800 422 274
NZ
Getting Started
Unpacking
• Packaging materials: This product has been packaged to protect it against
transportation damage. Remove all packaging materials from around and inside the
appliance and keep the original packaging carton and materials in a safe place. It
will help prevent any damage if the product needs to be transported in the future,
and you can use it to store the appliance when it is not in use. In the event that the
carton is to be disposed of, please recycle all packaging materials where possible.
Plastic wrapping can be a suffocation hazard for babies and young children, so
ensure all packaging materials are out of their reach and disposed of safely.
• Parts: Check to ensure you have all the parts pictured opposite.
• Power cord: Unwind the power cord to its full length and inspect it for damage.
Do not use the appliance if the appliance or its cord have been damaged or are not
working properly. In case of damage, contact our after sales support line for
advice on examination, repair or return of the damaged product.
• Read the manual: Before installing your new freezer, read all safety instructions,
especially the sections on installation and electrical safety on page 4. Then follow the
installation instructions below and on the next page.
• Clean: Make sure the freezer is disconnected from the power supply before
cleaning the interior surfaces and all internal accessories with lukewarm water, a
soft cloth and a neutral/mild soap/detergent. This will remove any dust from transit
and storage and help remove the typical smell of a brand new product. Then dry
thoroughly. Important: do not use harsh or abrasive detergents or powders as these
will damage the finish.
Installation
Location
Install the appliance in an area that meets the following requirements:
• Ambient temperature: The ambient temperatures must correspond to the climate
class (T) indicated on the rating plate of the appliance: 16°C – 43°C.
• Floor surface: The floor must be sturdy, level and strong enough to support the unit
when it is fully loaded.
• Areas to avoid: Avoid areas where the appliance would be exposed to direct
sunlight, sources of heat (stove, heater, radiator, etc.), extreme cold ambient
temperatures or excessive moisture and high humidity. Installing it in the coolest
area of the room will save energy consumption and running costs.
• Wheels: The appliance has four roll wheels (one underneath each corner), for easy
manoeuvrability.

8
0800 422 274
NZ
Instructions
Space requirements
• Clearances: Ensure that air can circulate freely around the back of the cabinet,
which is necessary to cool the compressor and condenser. Allow at least 12cm clear
space at the back and 5cm at the sides of the unit.
• Overhanging wall units: Ideally, the appliance should not be positioned below
overhanging wall units. However, if the appliance must be positioned below an
overhanging wall unit, make sure to allow sufficient room so you can comfortably
open the lid and access the contents.
Electrical connection
• WARNING! It must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
• Before plugging in your new freezer, let it stand upright for at least 4 hours.
This will allow the refrigerant gases to settle into the compressor and reduce the
possibility of a malfunction in the cooling system.
• The appliance must be earthed. The plug of the power supply cord is equipped
with a contact for this purpose. Do not under any circumstances cut or remove the
third (earth) prong from the power cord. If the plug does not fit your outlet, consult a
licensed electrician for advice to have the outlet changed.
• Pug the unit into a dedicated, properly earthed wall outlet. Ensure that your outlet
voltage and circuit frequency correspond to the voltage stated on the rating label.
• Secure the freezer’s supply cord behind the unit. Do not leave it exposed or
dangling to prevent injury and accidental disconnection from the power supply.
• Adjust the temperature control as described below.
• When first starting up, and after a period out of use, allow the unit to cool
down on the MAX setting for at least 2 hours before placing food in the freezer.
Temperature setting
The temperature control is located at the front of the freezer
cabinet, in the bottom right corner (Fig.1). It has seven
settings, from 1 (cold, the warmest setting) to 7 (the coldest
setting), plus a MAX position for fast freezing large amounts
of fresh food.
• The first time you turn the unit on, set the temperature
control to the MAX position. Then, after 24 hours, adjust
the temperature control to the setting that suits your
needs, position 5 should be appropriate for normal use.
• To turn the freezer off, turn the temperature control to the minimum position, then
unplug the unit from the power supply.
NOTE: The unit may not work at the set temperature on particularly hot days, or if the
lid is opened too frequently. To ensure efficient operation, do not open the
lid unnecessarily or for prolonged periods of time.

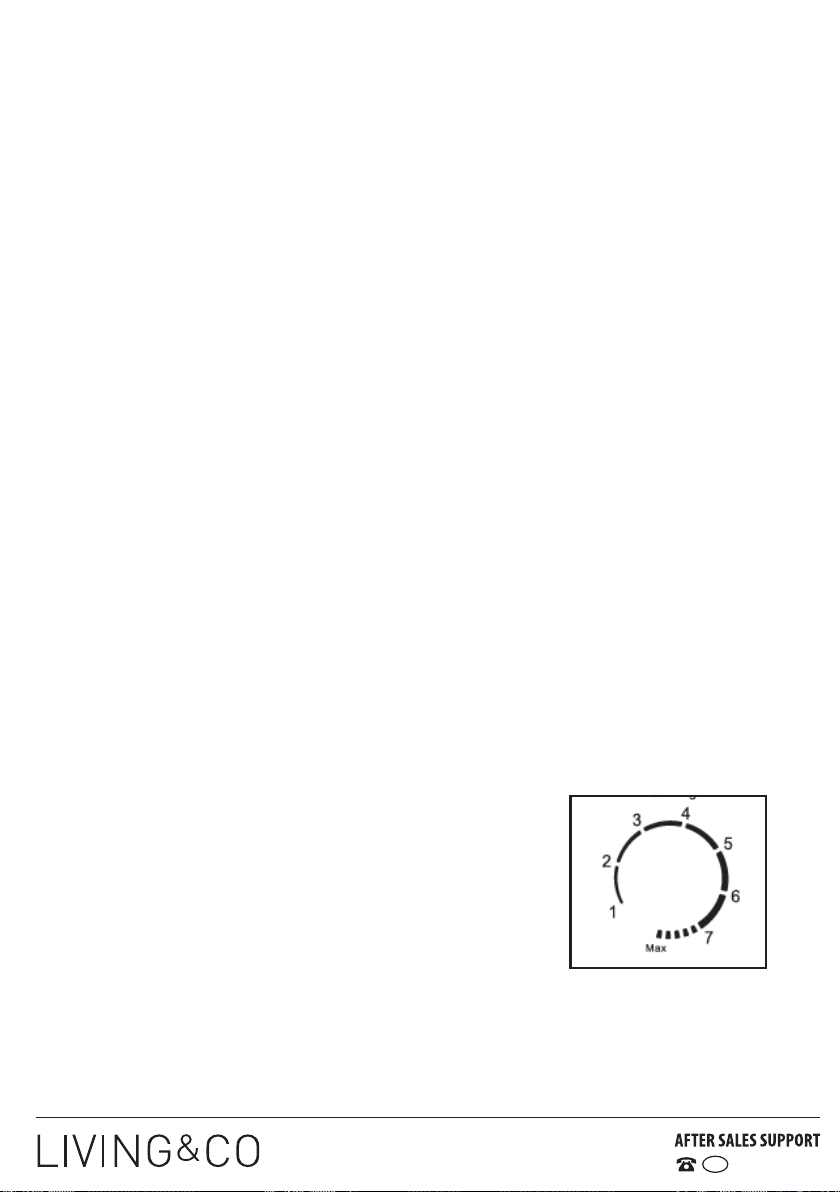

Fig.1

9
0800 422 274
NZ
Instructions (Cont.)
The freezer compartment
The freezer compartment is suitable for freezing fresh food and long-term storage (up
to three months) of frozen food. It is designed to operate in ambient (surrounding air)
temperatures between 16°C and 43°C. For convenient access and organised storage,
the freezer compartment is equipped with a wire storage basket.
Freezing fresh food
• Only freeze fresh food that has been thoroughly cleaned.
• Do not store food uncovered in the freezer. Always use good quality, freezer-proof
packaging to maintain food quality. Remove air from packages of solid food and
seal bags tightly before freezing.
• Ensure that food placed in the freezer is dated and labelled. This will help you keep
track of storage times.
• Keep portions small to ensure they are frozen (and subsequently defrosted) rapidly.
• Make sure that fresh, unfrozen food packages do not touch food that is already
frozen, thus avoiding a temperature rise in the frozen food.
• When freezing food, do not push food together too much, leave some space for air
to circulate around each item. Do not place packages directly against the back wall.
• When adding large amounts of fresh food to the freezer, keep in mind that it will
take approximately 24 hours for fresh food to freeze to solid frozen state. For best
results, do not add other fresh food to the freezer drawer during this time.
• Do not place hot foods or liquids which may evaporate in the freezer compartment.
Storing frozen food
• When buying frozen food, only buy quantities that you can store straight away; use
an insulated container for your shopping and when you get home, place the food in
the freezer immediately.
• When storing pre-packed, commercially frozen food, follow the food manufacturer’s
instructions for storing the food in a home freezer. Do not exceed any storage times
listed on the packaging.
• Once you have opened a packet of frozen food, rewrap it airtight to prevent surface
evaporation which causes drying or freezer burn.
• Do not place carbonated liquids such as bottles of fizzy drink in the freezer as the
container could explode under pressure and damage the freezer.
• Do not refreeze food once it has been defrosted.
• Frozen food which has thawed accidentally should either be used immediately or
thrown away. Alternatively, if the food is uncooked and has not been completely
defrosted, it may be cooked and then refrozen.
• CAUTION! Do not remove items from the freezer if your hands are damp or wet as
this could cause skin abrasions.

10
0800 422 274
NZ
Saving energy
• Locate the freezer in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.
• Let hot foods cool to room temperature before placing them in the freezer.
Overloading the freezer forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the
freezer. This cuts down on frost build-up inside the unit.
• Do not line the storage basket with aluminium foil, wax paper or paper towelling.
Liners interfere with cold air circulation, making the freezer less efficient.
• Do not pack food packages close together as this prevents air circulating.
• Organise and label food to reduce lid openings and extended searches. Remove as
many items as needed at one time and close the lid as soon as possible.
• Do not open the freezer lid unnecessarily or for too long, especially during a power
failure.
• Do not run the appliance permanently on the MAX temperature setting. The MAX
setting is recommended on very hot days, or when you have added a large quantity
of fresh food.
Instructions (Cont.)
Power failure
• Most power failures are corrected within a few hours and should not affect the
temperature inside your freezer, if you minimise the number of times the lid is
opened. However, if the power is going to be off for a longer period of time, you
need to take proper steps to protect your food.
• Do not refreeze frozen food without checking its condition first.
• If in doubt, discard the food. Do not refreeze food that has thawed completely.
Going away?
• Short vacation: Leave the freezer operating during vacations of less than a month.
• Long vacation: If you are not going to use the freezer for longer periods, remove all
food and unplug the power cord. Clean and dry the interior thoroughly. To prevent
odour and mould growth, leave the lid open slightly, blocking it open, if necessary.
(Restrict children’s access to the room with the open freezer to avoid creating a
child entrapment risk.)
Moving the freezer
• Remove all food from inside the freezer, securely tape down the wire divider and
basket and tape the lid shut.
• Protect the outside of the unit with a blanket or similar soft material and make sure
the freezer stays secure in the upright position during transportation.

11
0800 422 274
NZ
Problem Possible cause
The freezer does not work. • It is not plugged in.
• The circuit breaker tripped or a blown fuse.
• The thermostat knob is set to the minimum
position.
The compressor turns on and off
frequently. Does that indicate that
there is a problem?
• The room temperature is hotter than normal.
• A large amount of food has been added to the
freezer.
• The lid is being opened too often.
• The lid is not closed completely.
• The temperature control is not set correctly.
• The lid gasket does not seal properly.
• The freezer does not have the correct
ventilation clearances.
• The freezer has recently been disconnected
for a period of time. At least 2 hours are
required for the freezer to cool down with the
thermostat set to the MAX position.
The temperature inside the
freezer is too warm.
• The temperature control is set too warm.
Turn the control to a cooler setting and allow
several hours for the temperature to stabilise.
• The lid is kept open too long or is opened too
frequently. Warm air enters the freezer every
time the lid is opened. Open the lid less often.
• The lid is not closed completely.
• The lid gasket does not seal properly.
• A large amount of warm or hot food might
have been stored recently. Wait until the
freezer has had a chance to reach its selected
temperature.
• The freezer has recently been disconnected
for a period of time. At least 2 hours are
required for the freezer to cool down with the
thermostat set to the MAX position.
FAQs and Troubleshooting Guide
If you experience a problem with your chest freezer, check in the following table for
solutions to help you solve the problem. If after these checks you still have a problem
with your freezer, contact our after sales support line for advice.
CAUTION: Before troubleshooting, disconnect the power supply. Any troubleshooting
that is not mentioned in this manual may only be carried out by a qualified electrician
or similarly qualified person.

12
0800 422 274
NZ
The temperature inside the
freezer is too cold.
• The temperature control is set too cold. Turn
the control to a warmer setting and allow
several hours for the temperature to stabilise.
• The thermostat is set to the MAX position,
which causes continuous running of the
compressor and bypasses the temperature
control.
The temperature of the external
freezer surface is warm.
• The exterior freezer walls can be warmer than
room temperature. This is normal while the
compressor works to transfer heat from inside
the freezer cabinet.
There is a popping or cracking
sound when the compressor
comes on. Does that indicate
a problem with cooling
performance?
• Metal parts undergo expansion and
contraction, just as hot water pipes. This is
normal. The sound will level off or disappear
as the freezer continues to run.
There is a bubbling or gurgling
sound, like water boiling.
• Refrigerant (used to cool the freezer) is
circulating throughout the system. This is
normal.
There are vibrations; what is
causing them? How can I stop
the vibrations?
• Check to ensure that the freezer is on a level
surface.
• The floor is uneven or weak. The freezer rocks
on the floor when it is moved slightly. Be sure
your floor can adequately support the freezer.
• Put a piece of metal or timber underneath
parts of the freezer to level it.
• The freezer is touching the wall. Re-level the
freezer and move it away from the wall.
Moisture forms on the inside
freezer walls.
• Hot and humid weather increases the internal
rate of frost build-up. This is normal.
• The lid is slightly open.
• The lid is kept open too long, or is opened too
frequently. Open the lid less often.
• The lid is not sealed properly.
Moisture forms on the outside of
the freezer.
• The lid is slightly open, causing cold air from
inside the freezer to meet warm, moist air
from the outside.
The lid will not close properly. • The freezer is not on a level surface.
• The gasket is dirty.
• The storage basket is out of position.
FAQs and Troubleshooting Guide (Cont.)

13
0800 422 274
NZ
Other Useful Information
Defrosting the freezer
• For efficient operation and minimum energy consumption, defrost the freezer
compartment when the frost on the freezer walls is building up; do not let frost build
up to more than 3–4mm thickness. Preferably, choose a time when your stock of
frozen food is low. Then follow the simple steps below.
• Turn the temperature control to the minimum position, unplug the freezer and
remove the food and storage basket. (Keep any frozen food temporarily in a fridge
or cooler bag to keep defrosting to a minimum.)
• During defrosting, any ice and frost that has accumulated will melt into the freezer
cabinet. To drain the water, you will need to open two plugs to the drainage hole,
one is located at the bottom of a side panel (Fig.2) and the other one at the bottom
of the freezer cabinet (Fig.3).
• Place a shallow tray and some dry towels
underneath the outer drain plug for the
water to drain into. Then slightly pull out
the plug and rotate it 180 degrees (Fig.4)
so the water can flow out the hole.
• Defrosting usually takes a few hours. To
defrost faster keep the freezer lid open.
• Check the tray occasionally so the water
does not overflow.
• Wipe any remaining water out of the freezer cabinet with a dry, soft cloth.
• When done, push the drain plug in and also re-plug the drain plug inside the freezer
cabinet.
• Clean and/or dry all interior freezer surfaces thoroughly, then turn the freezer
temperature control to the desired setting and plug in the freezer to restart it.
WARNING!
To reduce the risk of electric shock or injury, always switch off the appliance and
disconnect it from the power supply before defrosting or cleaning it.
Fig.4
Fig.3
Fig.2

14
0800 422 274
NZ
WARNING!
• Never use sharp or metallic tools to scrape off frost from the evaporator as you
could damage it. To scrape ice off surfaces, use a plastic scraper.
• Never use boiling water to accelerate defrosting as it may damage the plastic parts.
Other Useful Information (Cont.)
Cleaning the freezer
For hygienic reasons clean the appliance interior and accessories regularly. We
recommend cleaning the freezer after defrosting it, while all frozen food packages and
the storage basket are already removed from the compartment.
• Make sure the temperature control is set to the minimum position, the freezer is
unplugged from the power supply and all food and the storage basket are removed.
• Wash the inside surfaces and the interior accessories with a damp, warm cloth
moistened in a water and baking soda solution. The solution should be about 2
tablespoons of baking soda to 1 litre of water. Rinse and wipe dry with a soft cloth.
• Clean the outside of the unit with a damp, well wrung out cloth, keeping the area of
the controls dry. Keep the lid gasket (seal) clean.
• Regularly examine the drain in the freezer for defrost water. If necessary, clean the
drain. If the drain is blocked, water will collect in the base of the appliance.
• After cleaning/defrosting, push the drain plug in and also re-plug the drain plug
inside the freezer cabinet.
• After everything is dry, place appliance back into service.
• Allow approximately 1–2 hours for the cabinet to cool down again (depending on
the length of time the freezer was disconnected from the power). To speed up the
cooling down time, set the thermostat to the MAX position for 2 hours, then turn it
back to your normal position and return the food to the freezer.
WARNING!
• Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent, or
with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning
as the fumes from these substances can create a fire hazard or explosion.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in
the electrical components, danger of electric shock! Hot vapours can lead to the
damage of plastic parts.
• The appliance must be completely dry before it is placed back into service.
IMPORTANT!
• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the
juice form orange peel, butyric acid, or cleansers that contain acetic acid. Do not
allow such substances to come into contact with the appliance parts.

15
0800 422 274
NZ
Other Useful Information (Cont.)
Interior light
This chest freezer has an interior light bulb built into the lid. It alights and extinguishes
automatically when the lid is opened and closed. If the light bulb needs replacing,
contact our after sales support centre to book a service call. The light bulb can only
be replaced by properly qualified service personnel.
Responsible disposal
• At the end of its working life, do not throw this appliance out with your household
rubbish. Electrical and electronic products contain substances that can have
a detrimental effect on the environment and human health if disposed of
inappropriately. Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling and recovery of the
refrigerant and blowing agent. Contact your municipal authorities for advice on
recycling facilities in your area.
• This refrigeration appliance contains flammable refrigerants and insulation blowing
gases, which must be removed before disposal. Contact your municipal authorities
for any codes or regulations concerning the disposal of such materials.
• DANGER! Risk of child entrapment: When discarding the freezer, make sure to
take off the lid so that children cannot easily climb in and get trapped inside.
Compliance
This appliance has been fully tested and meets all requirements as set out by
standards AS/NZS 60335.1 and AS/NZS 60335.2.24.
Technical specifications
Rated voltage 220-240VAC
Rated frequency 50Hz
Rated current 0.55A
Climate class T
Dimensions (mm) 845 (H) x 705 (W) x 545 (D)
Capacity 145L
Refrigerant R600a, 42g
Insulation Blowing Agent Cyclopentane
Net weight 28kg
NOTE: Due to continued product improvement, images and illustrations in this
manual may vary slightly from the product purchased. All images in this manual are for
reference purposes only. Parts are not necessarily pictured to scale.

0800 422 274
NZ
Warranty
We pride ourselves on producing a range
of quality home appliances that are both packed with features
and completely reliable. We are so confident in our products,
we back them up with a 1 year warranty.
Now you too can relax knowing that you are covered.
Customer Helpline NZ: 0800 422 274
This Product is covered by 1 year warranty when
accompanied by proof of purchase.
V1.0
