Locke FP User manual

Mulching and Finishing
Mowers
MP and FP
Locke Turf
307 Highway 52E, Opp, Alabama 36467, [phone]
Parts Manual

Transport Wheel, Tire & Spindle
MP and FP
ALPHABETICAL INDEX
CONTENTS PAGE
50017492 Hydraulic Cylinder (Rear) 7-1
70015 Gearbox Assembly Deck Drive 3-1
70833 Divider Gearbox 3-2
76644 Driveshaft, Wing 4-2
76678 Driveshaft, Center 4-1

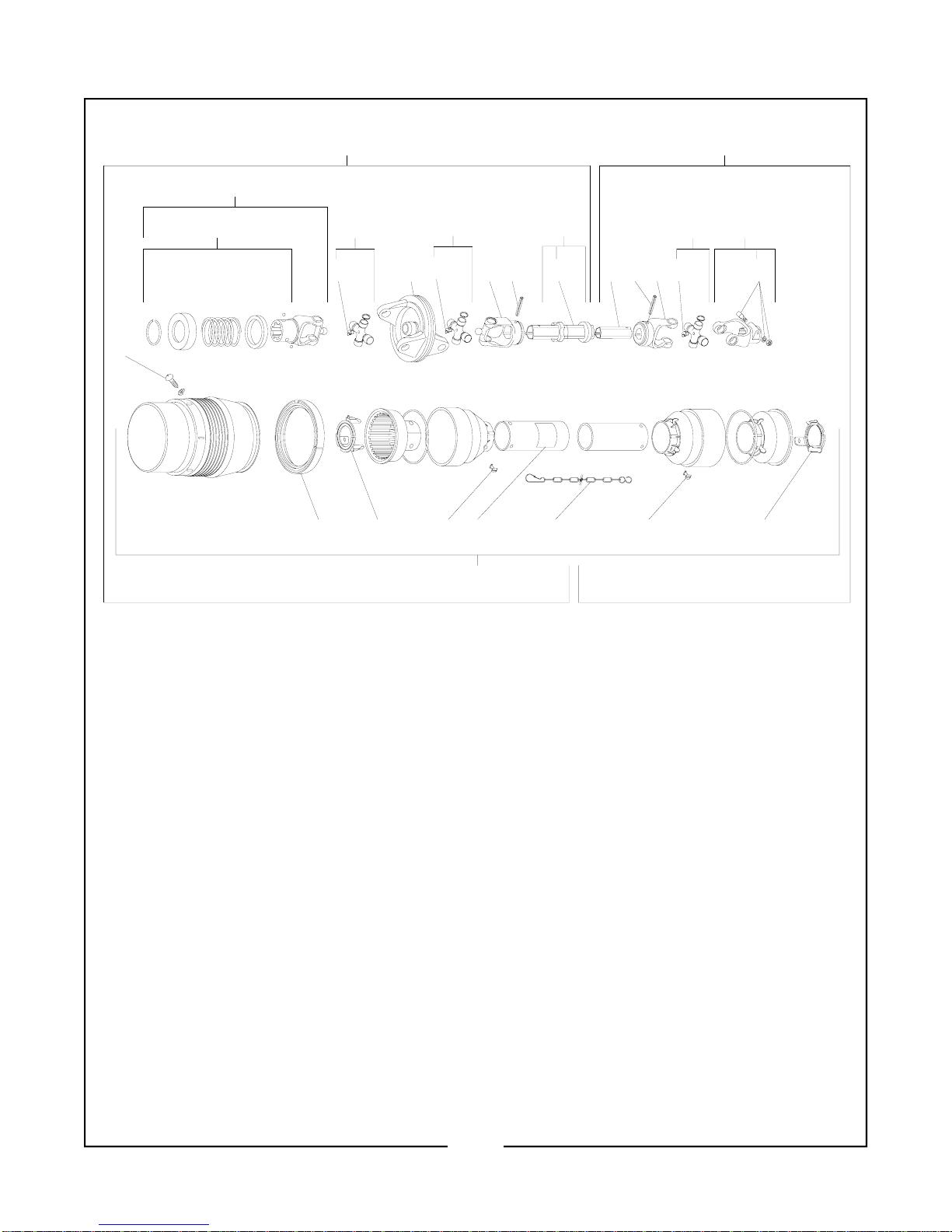

93063 C.v. Driveshaft (Input) 4-3
99564 Wing Lift Hydraulic Cylinder 7-2
BaseFrame&Shielding 1-1
BladeSpindle(MP) 2-3
BladeSpinde(FP) 2-4
Blades,Belts&Pulleys(MP) 2-1
Blades,Belts&Pulleys(FP) 2-2
Caster Arm & Wheel Assemblies 5-1
HydraulicAssembly 6-1
Mainframe&RelatedParts 1-2
RearArmAssembly 1-3
RollerAssembly 5-3
Shielding, Center Transfer Gearbox 3-3
TransportLatchingParts 1-4
TransportWheel,Tire&Spindle 5-2

13
14
14
13
124
11
15 3
8
14
13
12
10
79
21
16
21 19 18
15
22
522 17
22
5
22 22
20
22
22
5
6
4
MP3132
FP3132
223
REF. PART QTY DESCRIPTION
NO. NO.
1 50026138 1 Deck w/Decals
2 500033 1 Decal, Locke (Large)
3 50012616 2 Decal, Danger
4 99498 1 R.H. Shield w/Decals
5 50012615 3 Decal, Warning
6 98082 2 Decal. Belt Installation
7 89477 1 Decal, Warranty
8 15165 3 HHCS 5/8” x 1-3/4”
9 50021133 1 Gearbox Stand w/Decal
10 83105 1 Decal, Warning
11 82619 1 Decal, Danger
12 20414 4 Locknut, Flange 5/8”
13 15916 4 Flatwasher 1/2”
REF. PART QTY DESCRIPTION
NO. NO.
14 1056 4 HHCS 1/2” x 1-1/4” Gr.5
15 19518 4 Locknut, Flange 1/2”
16 98253 1 Shield Mount Bracket
17 98174 1 Shield w/Decal
18 44215 4 HHCS M8 x 1.25 x 15mm
19 44311 4 Lockwasher M8
20 99499 1 L.H. Shield w/Decals
21 50014067 2 Cap
22 98284 7 Swell Latch
23 50100010 1 Decal, Model (MP Series)
50100006 1 Decal, Model (FP Series)
24 500034 2 Decal, Locke (Small)

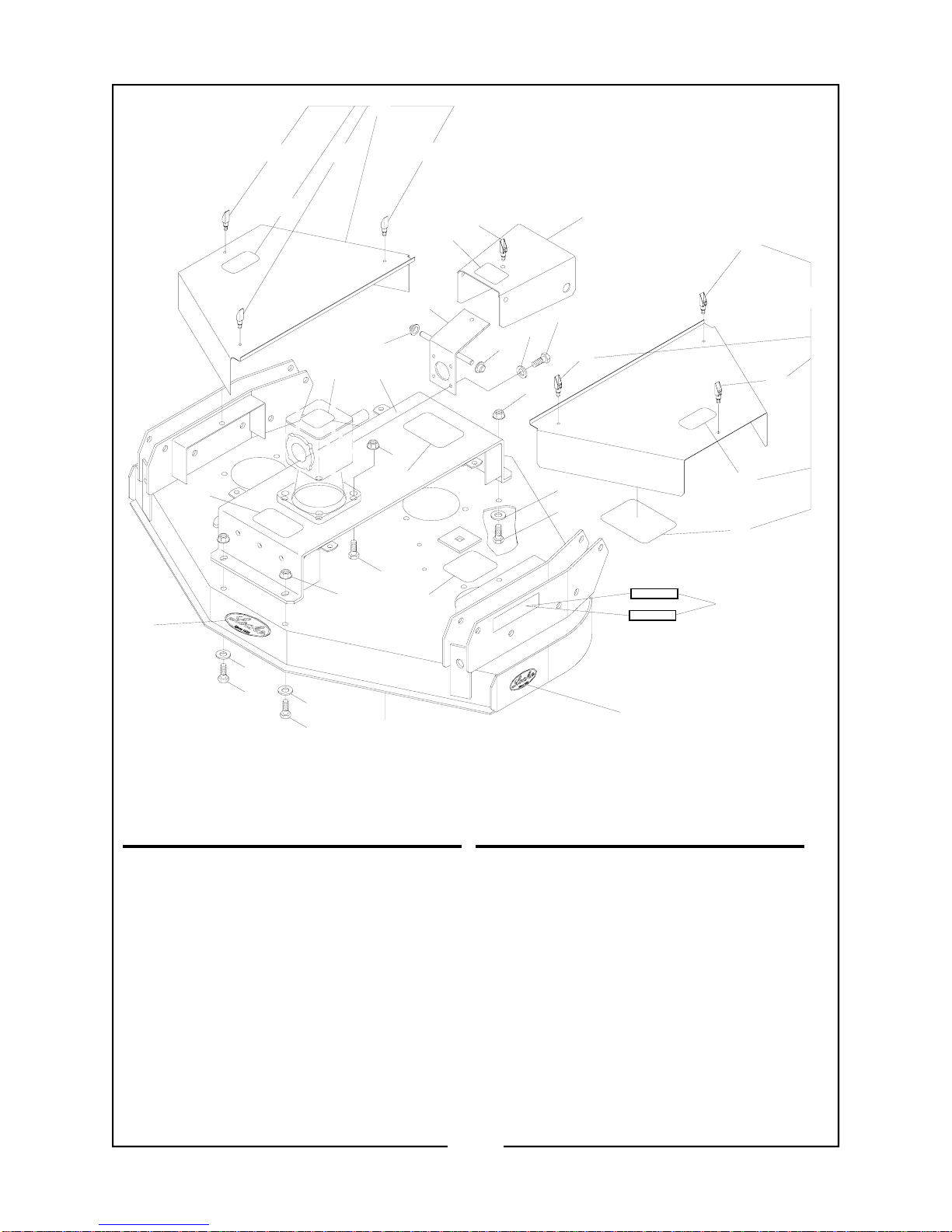

Base Frame & Shielding
1-1

39434243
35
36
42 41 40 38
44
424344
41
4037
42
49
36
39
43
4732 33
34
47
33
34
30
31
8
14
65
29
16
17
48
10
11
13
22 5344
3
1
2
20
18
21
19
23
24
24 23
15
50
6
11
10
48
17
16
7
28
31
14
30
13
65
49
39 43
42 49 36
44 43 42 41 40 38
37
35
45 46 37
40
41424344
42
49
36
39
43
34333247
47
3433
2526
3
4
48
27
15
66
9
26
25
43
48 15
12
60
64
57
63
59,58,
6160, 60,59, 61
51
54,53, 55
62
52
56
REF. PART QTY DESCRIPTION
NO. NO.
1 97143 1 Hitch Weldment
2 20923 2 HHCS 5/8” x 6” Gr.5
3 19486 4 Lockwasher 5/8”
4 15509 4 Hex Nut 5/8”
5 50024783 1 Tongue w/Decals
6 24D25128 1 Jackstand Assembly
7 50024784 1 Wing Assembly, L.H.
8 50024785 1 Wing Assembly, R.H.
9 44204 2 HHCS M12 x 1.75 x 25 Gr.8
10 20567 2 Flatwasher 1-1/4”
11 15474 2 Cotter Pin 1/4” x 1-3/4”
12 50018633 1 Frame Weldment
13 50031214 2 Reflector, Red
14 53315 2 Reflector, Amber
15 50020352 4 Spring Bushing 1-1/2” x 1-1/4” x 3/4”
16 83343 2 Decal, Warning
17 500033 2 Decal, Locke
18 82683 1 Decal, Warning
19 87317 1 Decal, Drawbar
20 87340 1 Decal, Important
21 60873 1 Decal, Caution
22 20766 2 HHCS 3/4” x 7-1/2”
23 146 2 Lockwasher 3/4”
24 44704 2 Hex Nut 3/4”
25 44008 2 HHCS 5/8” x 2-1/4”
26 50020226 2 Pivot Pin
27 2 Lockwasher M12
28 50017147 1 Swivel Weldment, LH
29 50017140 1 Swivel Weldment, RH\
30 50017145 2 Collar
31 20237 2 Roll Pin 3/8” x 2-1/2”
32 50021164 2 Pin
33 20376 4 Flatwasher 1” SAE
34 15474 4 Cotter Pin 1/4” x 1-3/4”
35 50021120 2 Deck Roll Bracket
Mainframe and
Related Parts
REF. PART QTY DESCRIPTION
NO. NO.
36 50020221 4 Bushing
37 44040 4 Flatwasher, Belleville
38 20496 4 HHCS 1/2” x 5-1/2” Gr.5
39 9161600 4 Locknut 1/2”
40 44513 4 HHCS 1/2” x 2” Gr.5
41 98725 4 Limit Spacer
42 15829 8 Flatwasher 1/2”
43 15806 8 Lockwasher 1/2”
44 8151600 4 Hex Nut 1/2”
45 15519 2 Jam Nut 1/2”
46 44357 2 Setscrew 1/2” x 1-3/4”
47 50021149 4 Spring Bushing 1.0” ID x 1.5”
48 50020353 4 Spring Bushing 1.25” ID x 1.5”
49 50020350 4 Spring Bushing .75” ID x 1.75”
50 91091 1 Safety Tow Chain
50024992 1 Toolbox Assembly (52-64)
51 50024991 1 Box Weldment
52 98298 1 Top Weldment
53 4 Pan Head Screw #10 x 1/2”
54 8150600 4 Hex Nut #10
55 16040600 4 Lockwasher #10
56 98284 1 Swell Latch
57 50024988 1 Bracket Weld., Upper Mtg.
58 20084 2 HHCS 3/8” x 3/4”
59 8151200 4 Hex Nut 3/8”
60 15812 6 Lockwasher 3/8”
61 44721 4 HHCS 3/8” x 3/4”
62 99459 1 Strap
63 50024989 1 Bracket, Lower Mtg.
64 1 HairPin
65 50026940 2 Decal, Float Information
66 50029494 1 Decal, Lube
1-2

32 35 16 17 10
9
34
17 16
10
18
17
21
20
19
15 16 17 1814
19
20
21
17
18
161710 34 13
24 24 23 25 26 2625 22
27
11 8 12
29
28
33
17
18 16 15 11
8
34
30
31
1
7
6
2
3
4
5
REF. PART QTY DESCRIPTION
NO. NO.
1 50023270 1 Rear Arm Assembly
(Includes swivel assembly &
related fasteners, bushings)
2 50021320 1 Spindle & Hub Assy.
3 15554 2 Locknut 1/2”
4 20864 2 HHCS 1/2” x 3” Gr.5
5 15093 4 HHCS 1/2” x 1-1/2” Gr.5
6 15804 4 Lockwasher 1/2”
7 15508 4 Hex Nut 1/2”
8 20496 1 HHCS 1/2” x 5-1/2”
9 50020217 1 Bushing
10 9161600 4 Locknut 1/2”
11 44040 4 Flatwasher, Belleville
12 50021135 1 Cradle Weldment
13 50020221 2 Bushing
14 20110 2 HHCS 1/2” x 2” Gr.8
15 94281 2 Limit Spacer
16 15916 6 Flatwasher 1/2”
17 15806 5 Lockwasher 1/2”
REF. PART QTY DESCRIPTION
NO. NO.
18 8151600 2 Hex Nut 1/2”
19 44153 2 HHCS 1/2” x 2” Gr.8
20 98725 2 Limit Spacer
21 15906 2 Flatwasher 1/2”
22 94360 1 SMV Sign Bracket
23 94359 1 SMV Placard
24 1160806 2 HHCS 1/4” x 3/4”
25 15905 2 Lockwasher 1/4”
26 15531 2 Hex Nut 1/4”
27 20034 2 HHCS 3/8” x 1”
28 15812 2 Lockwasher 3/8”
29 8151200 2 Hex Nut 3/8”
30 50028252 1 Swivel Assembly
31 50026940 1 Decal, Float Information
32 50020219 1 Bushing
33 20580 1 HHCS 1/2” x 6-1/2” Gr.5
34 50020350 7 Spring Bushing (1.75” Long)
35 50021050 2 Spring Bushing (1.25” Long)

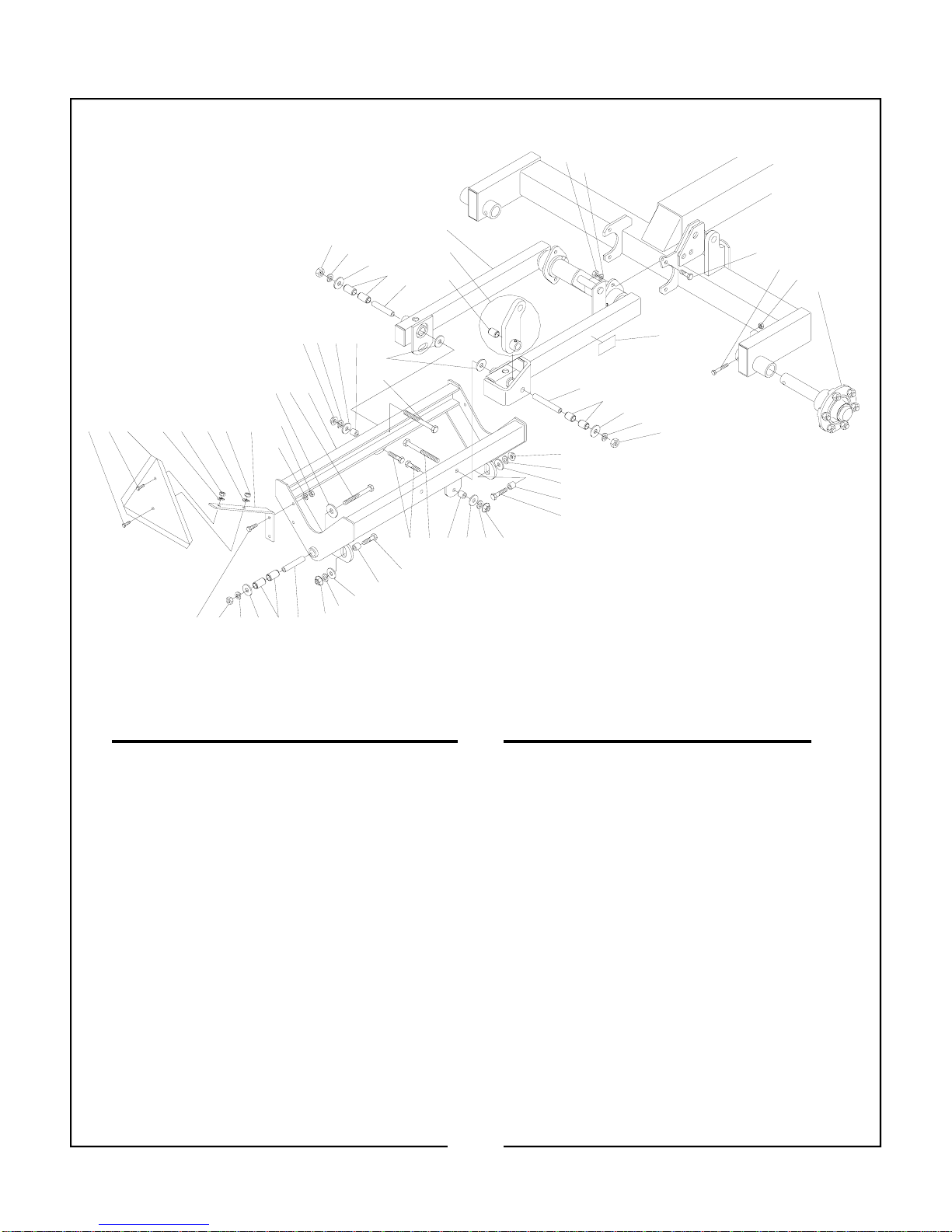

Rear Arm Assembly
1-3

11
10
9
18
10
9
13
8
5
13
12
1
3
6743
14
215 910 16
19
117
620 7
REF. PART QTY DESCRIPTION
NO. NO.
1 94375 2 Spring
2 50018541 1 Wing Lock Weldment, LH
50018540 1 Wing Lock Weldment, RH
3 15675 2 Cotter Pin 5/32 x 1-1/2”
4 94331 1 Pin
5 50017303 1 Chain w/ Sleeve
6 84672 3 Wing Lock Pin
7 1273 3 HairPin
8 20881 1 HHCS 3/8” x 1-1/2”
9 8151200 7 Hex Nut 3/8”
10 15812 5 Lockwasher 3/8”
11 50018562 1 Handle Weldment
12 50024037 1 Hook
13 94862 2 Spring Snap
14 5121222 2 Carriage Bolt 3/8” x 2-1/4” Gr.5
15 50018623 2 Pin
16 44174 2 HHCS 3/8” x 1-3/4”
17 10151200 2 Jam Nut 3/8”
18 15915 1 Flatwasher 3/8”
19 1161212 2 HHCS 3/8” x 1-1/4”
20 94374 2 Pin
Transport Latching Parts
1-4

1
26
25
29 55
24
28
27
34
31 32
33
30
33
32 31
34
18
35
23
16 21
39
59
9
40
9
12
17
22
20
19
4
5
48
36
47 43
39
15
14
56 12
548
49
50 746
41
12
43
474245 44
7
46
45
44
42
57
40
58
11
12 52
53
51
54
12
13
15
56
12
11
10
3
65
248
14
37
NOTE:
Items 31, 32 & 34 are
Available in kit form:
Kit 88161 Contains:
(20) 527747 counter-
Clockwise rotation blades.
Kit 88162 Contains:
(40) 527745 blade bolts
(40) 527495 blade bolts

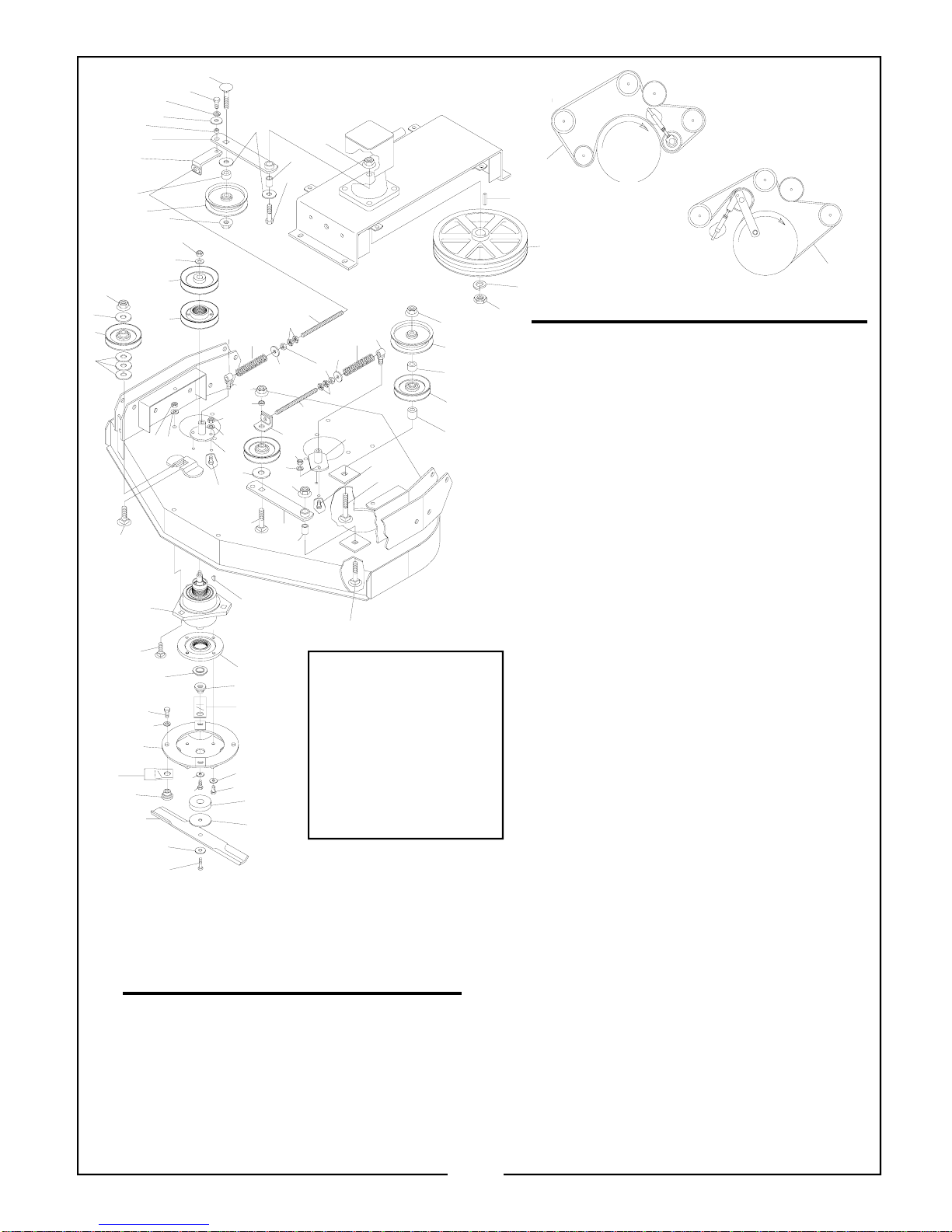

Blades, Belts & Pulleys
MP
REF. PART QTY DESCRIPTION
NO. NO.
1 20034 4 HHCS 3/8” x 1”
2 15812 9 Lockwasher 3/8”
3 96800 1 Adjustment Rod Weldment
4 1161212 1 HHCS 3/8” x 1-1/4”
5 15915 1 Flatwasher 3/8”
6 95807 1 Bushing
7 96997 2 Threaded Rod
8 20314 1 Carriage Bolt 5/8” x 3”
9 6050133 4 Flatwasher 5/8” Special
10 96801 2 Spacer
38
REF. PART QTY DESCRIPTION
NO. NO.
11 88663 2 Idler, Flat
12 20414 6 Locknut, Flanged 5/8”
13 96813 1 Pivot Bolt
14 96649 2 Idler Arm Weldment
15 50014112 2 Pivot Sleeve
16 98773 3 Spindle & Pulley Assembly
(Items16-22)
17 96165 1 Sheave, Lower
18 96161 1 Carrier, Blade
19 9162000 1 Locknut, 5/8”
20 20748 1 Flatwasher 5/8”
21 88753 1 Woodruff Key #606
22 95752 1 Sheave, Upper
23 50017379 3 Blade Bushing
24 50034015 3 Washer, Shaft
25 44040 12 Washer, Heavy Duty
26 44506 3 HHCS 1/2”-20 UNF x 1-3/4”
27 95782 12 Washer, Belleville
28 19100 12 HHCS 3/8”-16 UNF x 3/4”
29 82323 3 Blade, Clockwise 17”
50029157 3 Blade, Mulching, 17”
30 50017381 3 Disc Weldment
31 527747 12 Blade, Counterclockwise
32 527745 12 HHCS Flange
33 12 Flatwasher
34 527495 12 Blade Nut
35 5161614 9 HHCS 1/2” x 1-1/2”
36 15806 9 Lockwasher 1/2”
37 96815 1 Lower Belt 101”
38 96814 1 Upper Belt 115”
39 15666 2 Carriage Bolt 5/8” x 2-1/2”
40 97111 2 V-Idler Pulley, 5.5” Dia.
41 44498 1 Carriage Bolt 5/8” x 4-1/2”
42 15916 2 Flatwasher 1/2”
43 96816 2 Pivot Mount Weldment
44 95818 2 Pivot Weldment
45 95827 2 Spring
46 15519 4 Jam Hex Nut 1/2”
47 8151600 11 Hex Nut 1/2”
48 8151200 4 Hex Nut 3/8”
49 96996 1 Angle Pivot Weldment
50 95803 1 Bushing
51 94906 1 Sheave
52 70287 1 Nut M30 x 2
53 70286 1 Lockwasher M30
54 70288 1 Key, Square
55 97658 A/R Spacer
56 20748 2 Flatwasher 5/8”
57 97920 1 Spacer (long)
58 97921 1 Spacer (short)
59 44226 1 Carriage Bolt 5/8” x 2”
60 97043 1 “V”-Idler Pulley, 4.7” Dia.
Lower Belt
Upper Belt
2-1

21
20
18
19
36
17
34
13
14
16
35
3
652
4
11
9
10
21
8
26 28 7
28
22
27 4
5
29
25
38
12
31
32
33
30
24
7
1
37
36 REF. PART QTY DESCRIPTION
NO. NO.
1 15519 2 Jam Hex Nut 1/2”
2 15812 1 Lockwasher 3/8”
3 96800 1 Adjustment Rod Weldment
4 1161212 1 HHCS 3/8” x 1-1/4”
5 15915 1 Flatwasher3/8”
6 95807 1 Bushing
7 20314 1 Carriage Bolt 5/8” x 3”
8 96801 2 Spacer
9 88663 2 Idler, Flat
10 96813 1 Pivot Bolt
11 96649 2 Idler Arm Weldment
12 50017112 2 Pivot Sleeve
13 9162000 1 Locknut, 5/8”
14 20748 1 Flatwasher 5/8”
15 88753 1 Woodruff Key #606
16 95752 1 Sheave, Upper
17 50034015 3 Washer, Shaft
18 44040 1 Washer, Heavy Duty
19 44506 1 HHCS 1/2”-20 UNF x 1-3/4”
20 82323 3 Blade, Clockwise 17”
21 5161614 4 Carriage Bolt, 1/2” x 1-1/2”
22 15806 4 Lockwasher 1/2”
24 96814 1 Upper Belt 115”
25 44498 1 Carriage Bolt 5/8” x 4-1/2”
26 15916 2 Flatwasher 1/2”
27 96816 2 Pivot Mount Weldment
28 8151600 1 Hex Nut 1/2”
29 8151200 1 Hex Nut 3/8”
30 91906 1 Sheave
31 70287 1 Nut M30 x 2
32 70286 1 Lockwasher M30
33 70288 1 Key, Square
REF. PART QTY DESCRIPTION
NO. NO.
34 97658 A/R Spacer
35 20748 2 Flatwasher 5/8”
36 98773 3 Spindle & Pulley Assembly
See Page 10
36 95818 1 Pivot Weldment
37 95827 1 Spring
38 97111 1 V-Idler Pulley, 5.5” Dia

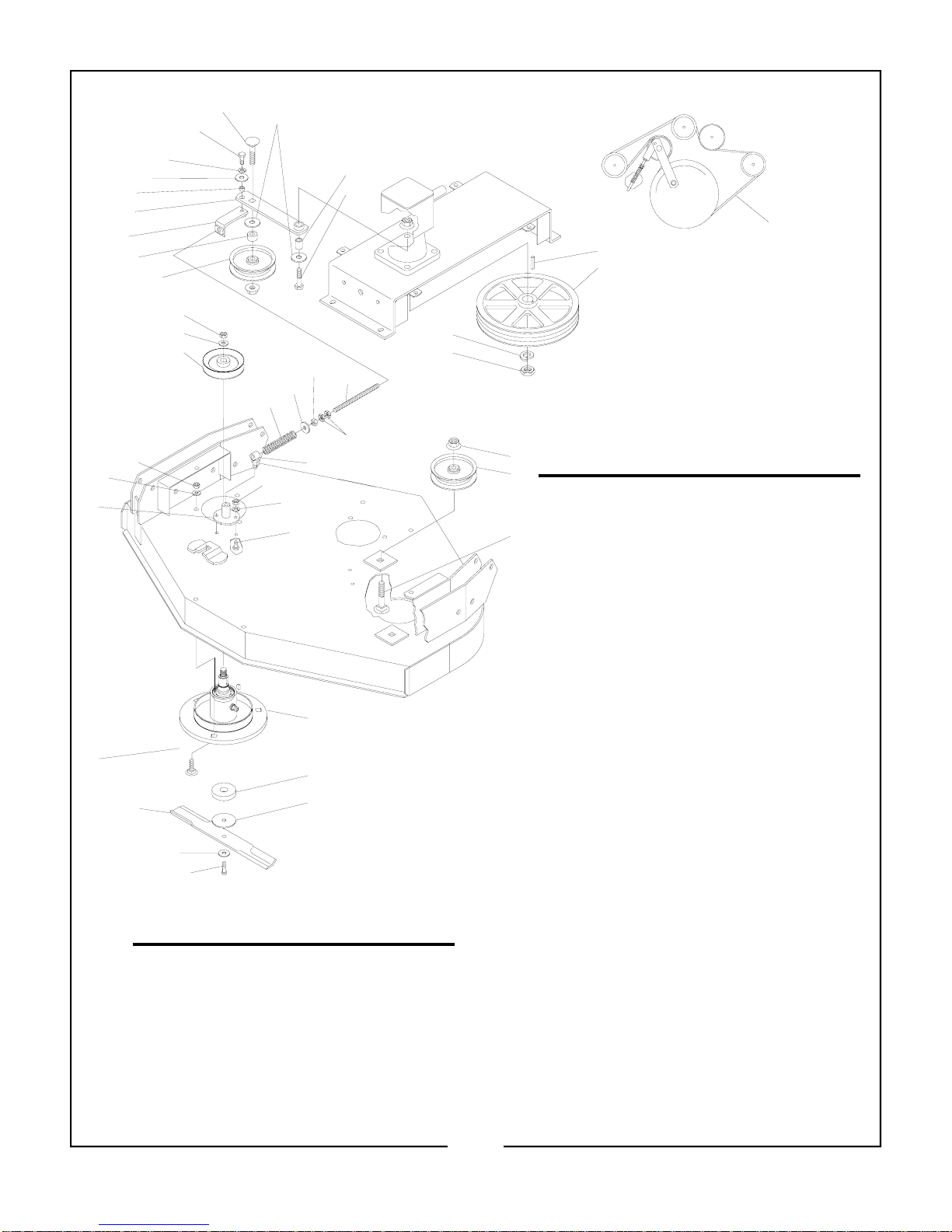

Blades, Belts & Pulleys
FP
2-2

REF. PART QTY DESCRIPTION
NO. NO.
98773 1 Replacement Spindle Assy.
(Items1-13)
1 9162000 1 Lock Nut 5/8”
2 20748 1 Flatwasher 5/8”
3 95752 1 Upper Sheave
4 96165 1 Lower Sheave
5 95764 2 Bearing, Inner Shaft
6 95757 1 Shaft, Inner
7 88753 1 Woodruff Key 606
8 94953 2 Bearing, Outer Shaft
9 96162 1 Shaft, Outer
10 92924 1 Hub, Machined
11 96161 1 Blade Carrier
12 44040 1 Washer, Heavy Duty
13 44506 1 HHCS 1/2”-20 UNF x 1-3/4”
14 50026133 1 Bearing Kit
13
42 3
4
Blade Spindle
MP
REF. PART QTY DESCRIPTION
NO. NO.
1 50026084 1 Wrench Weldment
2 50026086 1 Sheave Wrench Weld.
3 44174 2 HHCS 3/8” x 1-3/4” Gr.5
4 15915 2 Flatwasher 3/8”
1
2
3
4
5
6
7
8
9
10
8
5
11
12
13
14
2-3

Blade Reinforcement
Washer Rotated 180°
For Clarity
REF. PART QTY DESCRIPTION
NO. NO.
1 9162000 1 Lock Nut 5/8”
2 20748 2 Flatwasher 5/8”
3 95752 1 Upper Sheave
4 97685 2 Snap Ring
5 95764 2 Bearing, Inner Shaft
6 50100001 1 Machined Housing Weldment
7 449 1 Grease Fitting
8 20593 1 Woodruff Key
9 95757 1 Shaft, Inner
10 50100049 1 Blade Bushing
11 50034015 1 Washer, Heavy Duty
12 82323 1 Blade
13 50100045 1 Washer, Heavy Duty
14 44506 1 HHCS 1/2”-20 UNF x 1-3/4”
2-4
1
2
3
4
5
6
7
8
9
5
4
10
11
12
13
2
14

10 913
11
1
12
14
27
15
1
7
8
6
5
1
2
3
4
24
25
26
16
17
12
18
19
20
21
22
23
REF. PART QTY DESCRIPTION
NO. NO.
1 70329 A/R Shim .3mm
70330 A/R Shim .4mm
70331 A/R Shim .5mm
70332 A/R Shim 1.3mm
2 70107 1 Bearing
3 70133 1 Retaining Ring
4 70279 1 Cap
5 70226 1 Key M10 x 8 x 30
6 70281 1 Shaft
7 70110 2 Outside Retaining Ring
8 70094 1 Gear 26 Teeth
9 70326 4 HHCS M8 x 16
10 70092 1 Top Plate
REF. PART QTY DESCRIPTION
NO. NO.
11 70282 1 Pinion 12 Teeth
12 70082 2 Bearing
13 70393 1 Vent Plug
14 N/A 1 Serial Number Plate
15 70129 1 Bearing
16 70283 1 Housing
17 70284 1 Spacer Ring
18 70081 1 Gasket
19 70285 1 Bushing
20 70080 1 Seal
21 70079 1 Shoulder Ring
22 70286 1 Spring Washer
23 70287 1 Hex Nut
24 70288 1 Key 6 x 6 x 30 mm
25 70290 1 Seal
26 70291 1 Retaining Ring
*27 70152 1 Gasket
* Silicone Sealer may be used in place of gasket.
Gearbox Assembly
Deck Drive
MP and FP
3-1

352117
4
16
14
9
10
7213
86
4
15
12 7213 119 12 17 18 14
9
17
7
13 2
10
16 14 1253
11
REF. PART QTY DESCRIPTION
NO. NO.
1 70229 3 Bearing
2 F7502875 5 Shim
3 70108 2 Oil Seal 35 x 72 x 10
4 70921 2 Shaft
5 70110 2 Snap Ring
6 70292 1 Plug
7 70797 3 Taper Bearing Set
8 70922 1 Casing
9 70923 2 Screw, Hex Socket M12 x 40
10 70449 2 Blank Washer
11 70924 1 Shaft
12 70698 2 Oil Seal
13 70249 3 Gear 18 Tooth
14 70113 12 HHCS M12 x 25
15 80538 1 Plug, Breather
16 70132 2 Extension Housing
17 70261 3 Gasket
18 F7502730 1 Cover
19 F7502867 1 Shim

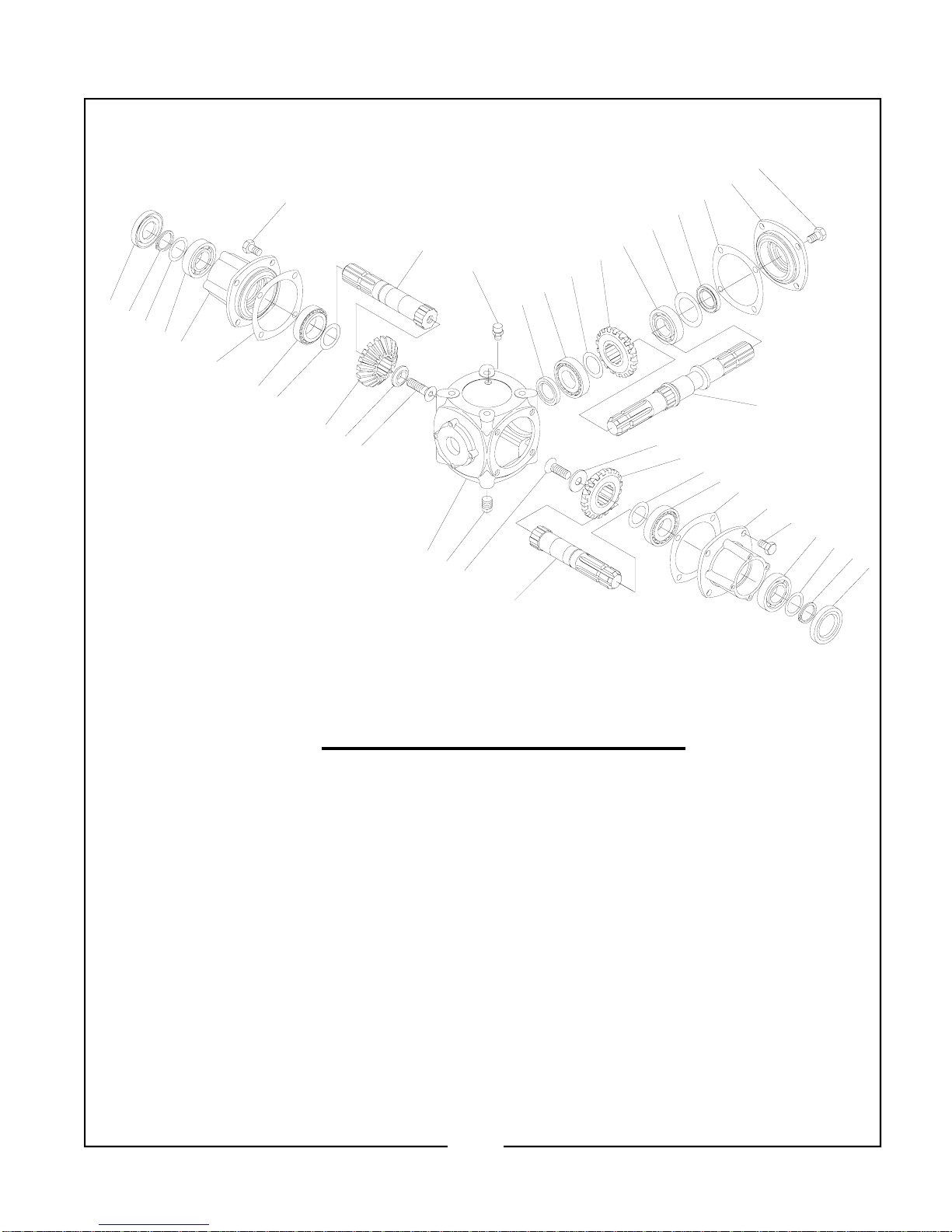

Divider Gearbox
3-2

5
7
9
10
5
6
3
8
2
4
1
REF. PART QTY DESCRIPTION
NO. NO.
1 44394 4 HHCS M12 x 1.75 x 30
2 70925 1 Plug
3 50024786 1 Shield w/ Decals
4 50018614 1 Shield Mount Weldment
5 50012615 2 Decal, Warning
6 82617 1 Decal, Warning
7 82618 1 Decal, Warning
8 44200 4 Lockwasher, M12
9 20054 2 HHCS 1/2” x 1”
10 15806 2 Lockwasher 1/2”

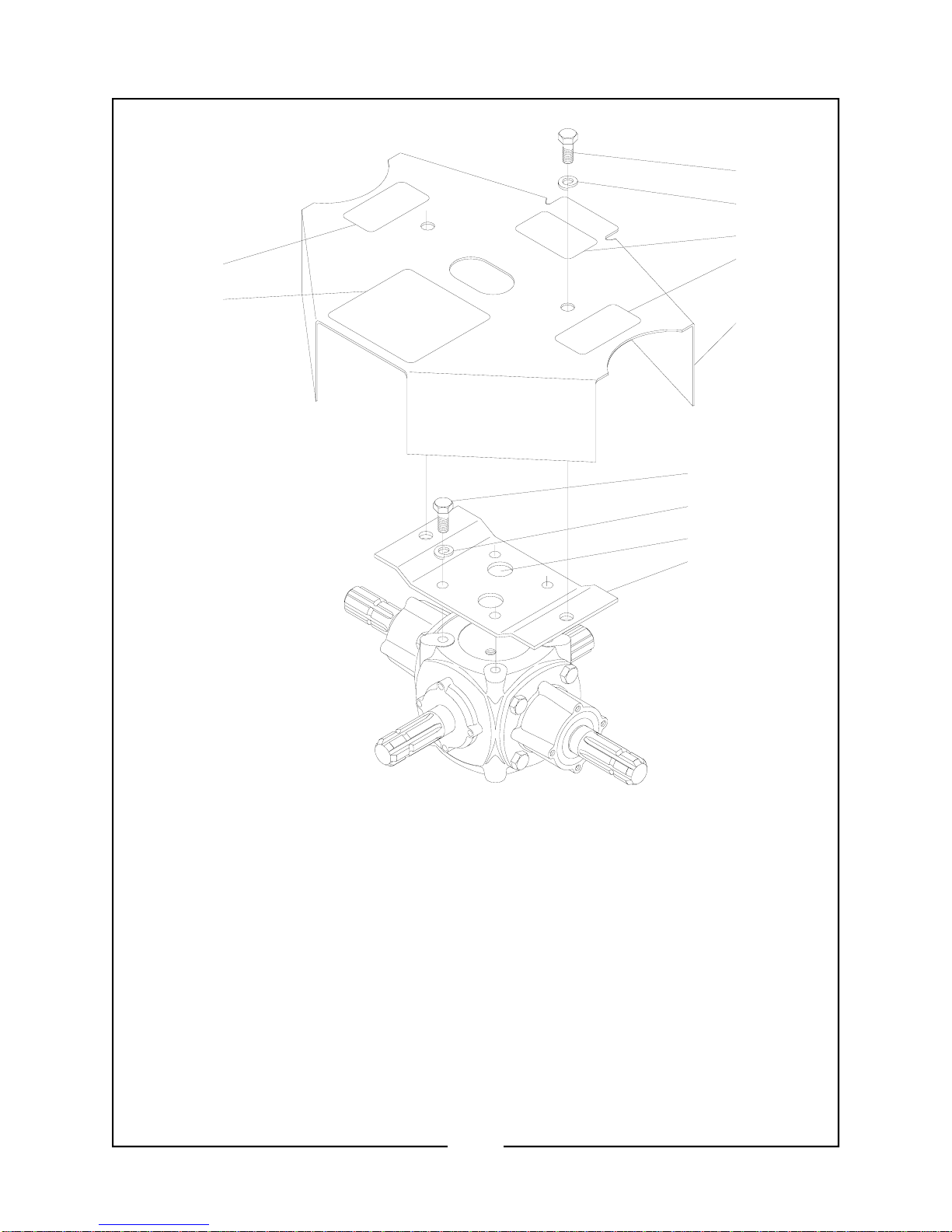

Shielding, Center Transfer Gearbox
MP and FP
3-3

17 34527 6 8 9 10 2 22 18 23 21 30
2019
29 2 7 11
1
25 26
1312 28 15 13 14
16
24
REF. PART QTY DESCRIPTION
NO. NO.
1 76801 1 Complete Collar Yoke
2 64610 2 Cross Journal Set
3 63956 2 Grease Nipple
4 66112 1 Outer Yoke
5 66869 1 Roll Pin For Outer Tube
6 76072 1 Bushing with Grease Nipple
7 76847 1 Complete Outer Tube
8 76848 1 Inner Tube
9 66110 1 Roll Pin for Inner Tube
10 66109 1 Inner Yoke
11 76616 1 Complete Shear Bolt
12 87995 1 Collar for Outer Tube
13 87992 6 Bolt
14 87993 1 Collar for Inner Tube
15 64814 2 Safety Chain
REF. PART QTY DESCRIPTION
NO. NO.
16 76849 1 Complete Shield
17 76282 3 Ball 1/2”
18 76618 1 Yoke
19 76202 23 Ball
20 76062 1 Push Pin Set 1-3/8”
21 76619 1 Hub
22 44525 6 HHCS M10 x 1.5 x 55
23 63946 1 Grease Fitting
24 76850 1 Male Tube Yoke w/ Roll Pin
25 76851 1 Half Female Shaft w/ Shield
26 76852 1 Half Male Shaft w/ Shield
27 76786 1 Decal, Danger, Outer Tube
28 78608 1 Decal, Danger, Outer Shield Tube
29 50017480 1 Ball Collar Kit 1-3/8”
30 44342 1 Hex Nut M10

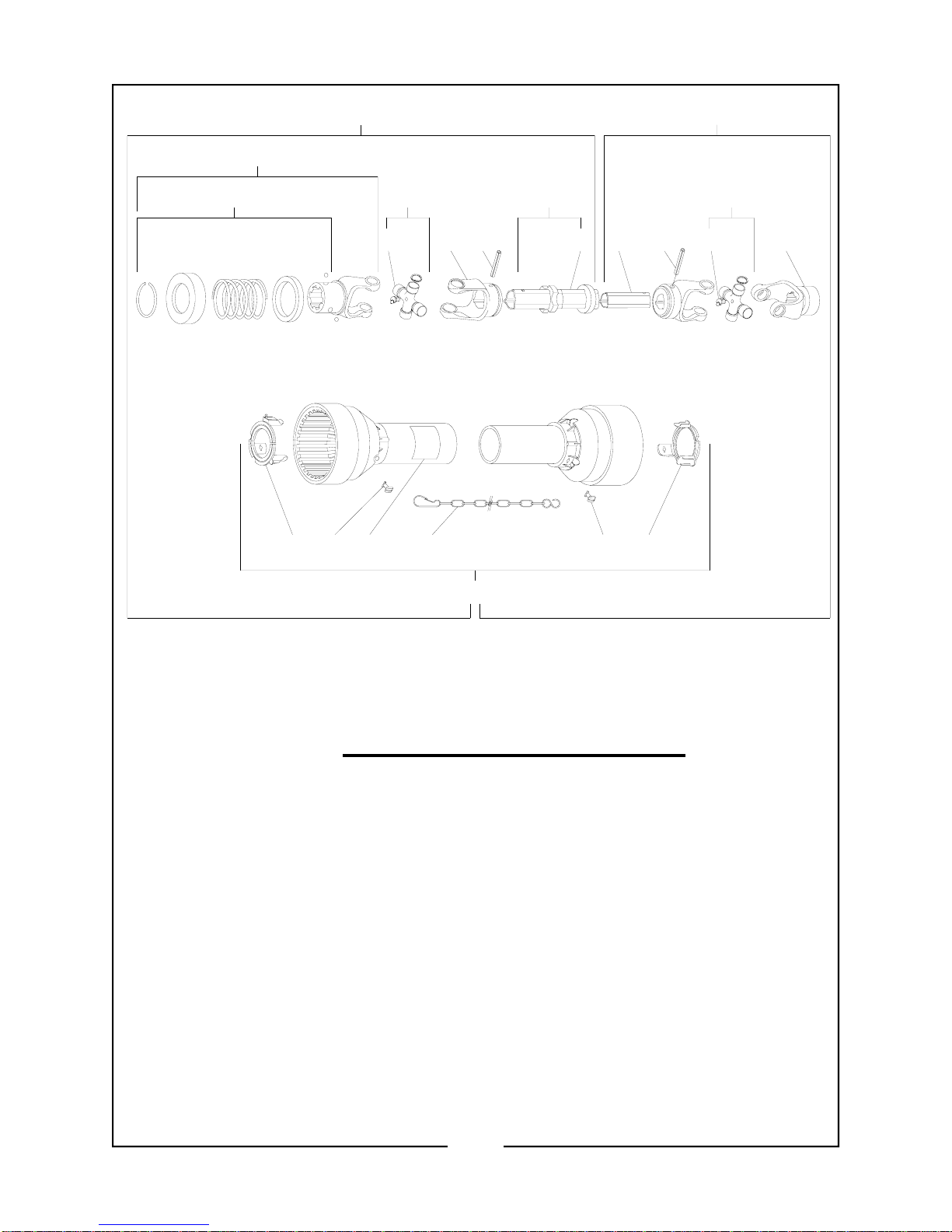

76678 Driveshaft, Center
540 RPM - 1-3/8”-6 Spline
Manufactured by Comer
4-1

3
219
4 5 17
6
1
7 8 3
2
1
11
10 11 18 13 12
14
15 16
REF. PART QTY DESCRIPTION
NO. NO.
1 76711 2 Complete Collar Yoke
2 64694 2 Cross Journal Set
3 63956 2 Grease Nipple
4 78571 1 Outer Yoke
5 78577 1 Roll Pin for Outer Tube
6 76712 2 Complete Outer Tube
7 76713 1 Inner Tube
8 78578 1 Roll Pin for Outertube
9 78570 1 Inner Yoke
10 76192 1 Guard Retaining Collar, Outer
11 87992 6 Bolt
12 76191 1 Guard Retaining Collar, Inner
13 64814 2 Safety Chain
14 76714 1 Complete Shield
15 76715 1 Half Female Shaft w/ Shield
16 76716 1 Half Male Shaft w/ Shield
17 78786 1 Danger Decal, Outer Tube
18 78608 1 Danger Decal, Outer Shield
19 50017480 1 Ball Collar Kit 1-3/8”
76644 Driveshaft, Wing
Manufactured by Comer
4-2

7
6
87
6
10912
11
18 17 16 7
15 13
14
1 2
5
4
19
20 21 22 23 24 22 25
3
REF. PART QTY DESCRIPTION
NO. NO.
1 76521 1 Tractor Half Assy.
2 76522 1 Implement Half Assy.
3 76514 1 Complete Shield Assy.
4 50017505 1 Yoke Assy. w/ Collar
5 50017480 1 Collar Kit
6 76420 2 Cross Bearing Kit
7 63956 3 Grease Fitting
8 76421 1 Double Yoke Assy.
9 76471 1 Outer Yoke
10 66866 1 Roll Pin
11 76474 1 Outer Tube Assy.
12 78786 1 Decal, Danger Outer
13 76056 1 Yoke, & Pin Assy.
REF. PART QTY DESCRIPTION
NO. NO.
14 76064 1 Taper Pin Kit
15 64663 1 Cross Bearing Kit
16 66870 1 Inner Yoke
17 66869 1 Roll Pin
18 76475 1 Inner Tube
19 76362 6 Screw
20 76423 1 Bearing Ring
21 76057 1 Outer Bearing
22 87992 6 Shield Bolt
23 78608 1 Danger Decal
24 64814 3 Safety Chain
25 76059 1 Inner Bearing
93063 C.V. Driveshaft (Input)
540 RPM
Manufactured by EG
4-3

176 5
12
1
76
51
12
7
6
15
18
19
18
16
17
8
9
10
11
14 11
13
9
10
8
567
5
12 1
7
612
1
6
7
1
12
5
2
6
7
7
16
5
12
567112
763
7
6
54
5
6
7
2
12
REF. PART QTY DESCRIPTION
NO. NO.
1 50021071 8 Arm Weldment (Round Hole,
Curved)
2 98293 2 Arm Weldment (Hex Hole,
Straight)
3 50023311 1 Arm Weldment, RH (Hex Hole,
Curved)
4 50023312 1 Arm Weldment, LH (Hex Hole,
Curved)
5 44107 24 HHCS 5/8” x 3-1/2”
6 19486 24 Lockwasher 5/8”
7 15563 24 Hex Nut 5/8”
8 50017304 12 Lynch Pin
9 99292 24 Spacer 1/4”, Round/ Hex Hole
10 99291 24 Spacer 1/2”, Round/ Hex Hole
11 99290 24 Spacer 1”, Round/ Hex Hole
REF. PART QTY DESCRIPTION
NO. NO.
12 50021066 16 Bushing Bronze
8 Fork & Tire Assy. (Round Shaft)
4 Fork & Tire Assy. (Hex Shaft)
13 50020433 1 Caster Weldment (Round Shaft)
50024400 1 Extended Caster Weldment
(Round Shaft)
14 50020434 1 Caster Weldment (Hex Shaft)
50024401 1 Extended Caster Weldment
(HexShaft)
15 20776 1 HHCS 1/2” x 6”
16 15554 1 Locknut 1/2”
17 97948 1 Tire Assembly (410/350 x 4
Pnuematic Tire)
18 98342 2 Bearing
19 50021519 1 Spacer, Wheel
Caster Arm & Wheel Assemblies
MP and FP
5-1

6
78
915
16 10 11 12 13
17
18
14
5
2
4
3
1
REF. PART QTY DESCRIPTION
NO. NO.
1 50024407 2 Tire & Wheel Assy.
2 50024406 1 Tire
3 94378 1 Wheel
4 50001181 1 Valve Stem
5 50021320 2 Spindle & Hub Assy.
6 50021317 1 Spindle
7 15675 1 Cotter Pin, 5/32” x 1-1/2”
8 50021318 1 Rear Seal
9 50000115 1 Bearing Cone (Inner)
10 50076 1 Bearing Cone (Outer)
11 20571 1 Flatwasher 7/8”
12 20429 1 Castle Nut 7/8”
13 3750021 1 Hub Cap
14 50021319 1 Hub w/ Cups & Bolts
15 50000113 1 Inner Bearing Cup
16 14-6-197 1 Outer Bearing Cup
17 20775 6 Lug Bolt 1/2” x 1-7/8”
18 15515 6 Lug Nut 1/2” x 20 UNF

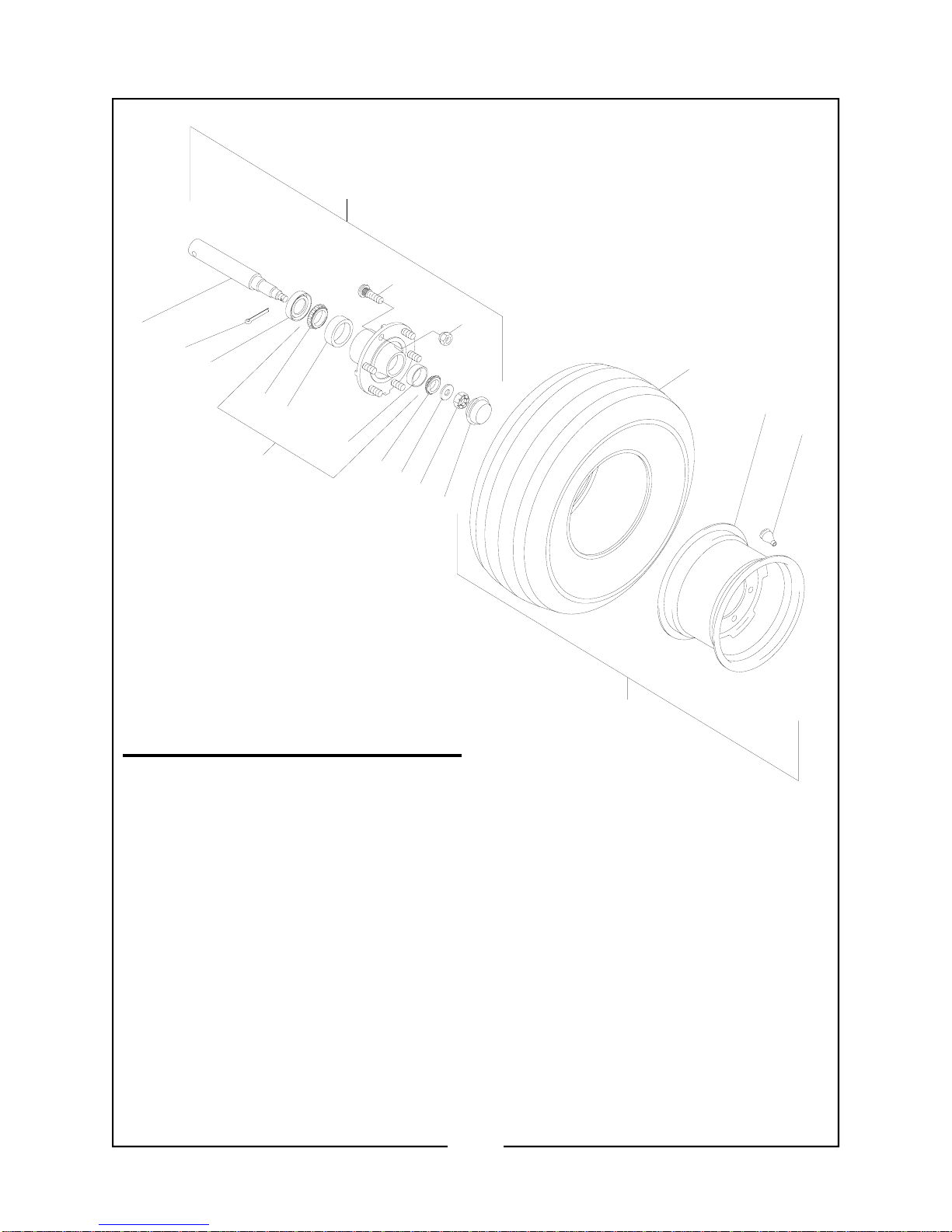

Transport Wheel, Tire & Spindle
5-2

13
2
20 10
9
8
12
15
1
9
12
8
19
18
17
15
11
414 9 8 7 6 3 9 78
13
5
16
13
10
REF. PART QTY DESCRIPTION
NO. NO.
1 95415 1 Roller Assembly (Under)
2 50021173 1 Roller Shaft (Under)
3 79057 1 Roller Assembly (Front)
4 20580 1 HHCS 1/2” x 6-1/2”
5 50021168 1 Right Hand Roller Mount
6 50021169 1 Left Hand Roller Mount
7 20034 4 HHCS 3/8” x 1”
8 15812 8 Lockwasher 3/8
9 15830 8 Flatwasher 3/8”
10 50021171 2 Roller Bracket
11 1161212 4 HHCS 3/8” x 1-1/4”
12 8151200 4 Hex Nut 3/8”
13 9161600 2 Locknut 1/2”
14 50021170 1 Sleeve
15 50020073 2 Baffle
16 44109 8 Carriage Bolt 3/8” x 1”
17 15830 8 Flatwasher 3/8”
18 15812 8 Lockwasher 3/8”
19 8151200 8 Hex Nut 3/8”
20 50021172 1 Sleeve
Roller Assembly
MP and FP
5-3

15 23 20 17
15 14 16
28
24
27
25
26
8
24
25
26
19 30 29 31
5
21
17 32 33
5
17
31 530 29 518 22
2
3
12
13
12
13
1
5
6
3
7
4
9
11
10
REF. PART QTY DESCRIPTION
NO. NO.
1 50017830 1 Valve Body
2 25H42303 1 O-Ring Plug
3 53340 6 Straight Thread Adaptor
4 50017834 1 Check Valve
5 14-40-98 7 Elbow 90°
6 53341 1 Straight Thread Adaptor
7 62006 3 Plug Assembly
8 97666 1 Bracket, Valve
9 50017007 1 Shield Weldment
10 15918 2 Flatwasher 1/4”
11 2 HHCS 1/4” x 2-3/4”
12 15905 2 Lockwasher 1/4”
13 15531 2 Hex Nut 1/4”
14 25D25683 1 Adaptor
15 25H43870 2 Coupler
16 61469 1 Hydraulic Hose 72”
REF. PART QTY DESCRIPTION
NO. NO.
17 53329 3 Hydraulic Hose 72”
18 25H41710 1 Hydraulic Hose 21”
19 25H46123 1 Hydraulic Hose 37”
20 94878 1 Safety Tag
21 62430 1 Hydraulic Hose 48”
22 25H41146 1 Hydraulic Hose 31”
23 24-6-434 1 Straight Adaptor
24 20947 2 HHCS 5/8” x 2”
25 19486 2 Lockwasher 5/8”
26 15509 2 Hex Nut 5/8”
27 15925 1 Flatwasher 5/8”
28 12031 1 Hose Holder
29 95425 2 Clevis Pin
30 63633 4 Hair Pin
31 99564 2 Hydraulic Cylinder, Wing
32 50017492 1 Hydraulic Cylinder, Rear
33 50015044 1 Restrictor Union 9/16”-18
JICM/F
Hydraulic Assembly
MP and FP
6-1
