Locke TVM-3077 User manual

Verticutter Mower
TVM-3077 and TVM-5130
Locke Turf
307 Highway 52E, Opp, Alabama 36467, [phone]
Parts Manual

TVM 3077 & TVM 5130
VERTI - CUTTER
INDEX
SECTIONDESCRIPTION SECTION
MainframeandRelatedParts 1
Guards 2
Drives, Gearboxes, Belts, Driveshafts 3
Wheels, Axles, Hubs 4
Hydraulics 5
MowingUnits 6
Decals 7
PARTDESCRIPTION PAGE
BeltIdler 3-9
Compensator, Single 1-5
Dual 1-6
Cutter Head, TVM 3077 6-2, 6-3
Cutter Head, TVM 5130 6-4, 6-5
Adjusting Wheel 6-1
Decals 7-1,7-2
Driveshaft, C.V. 3-5

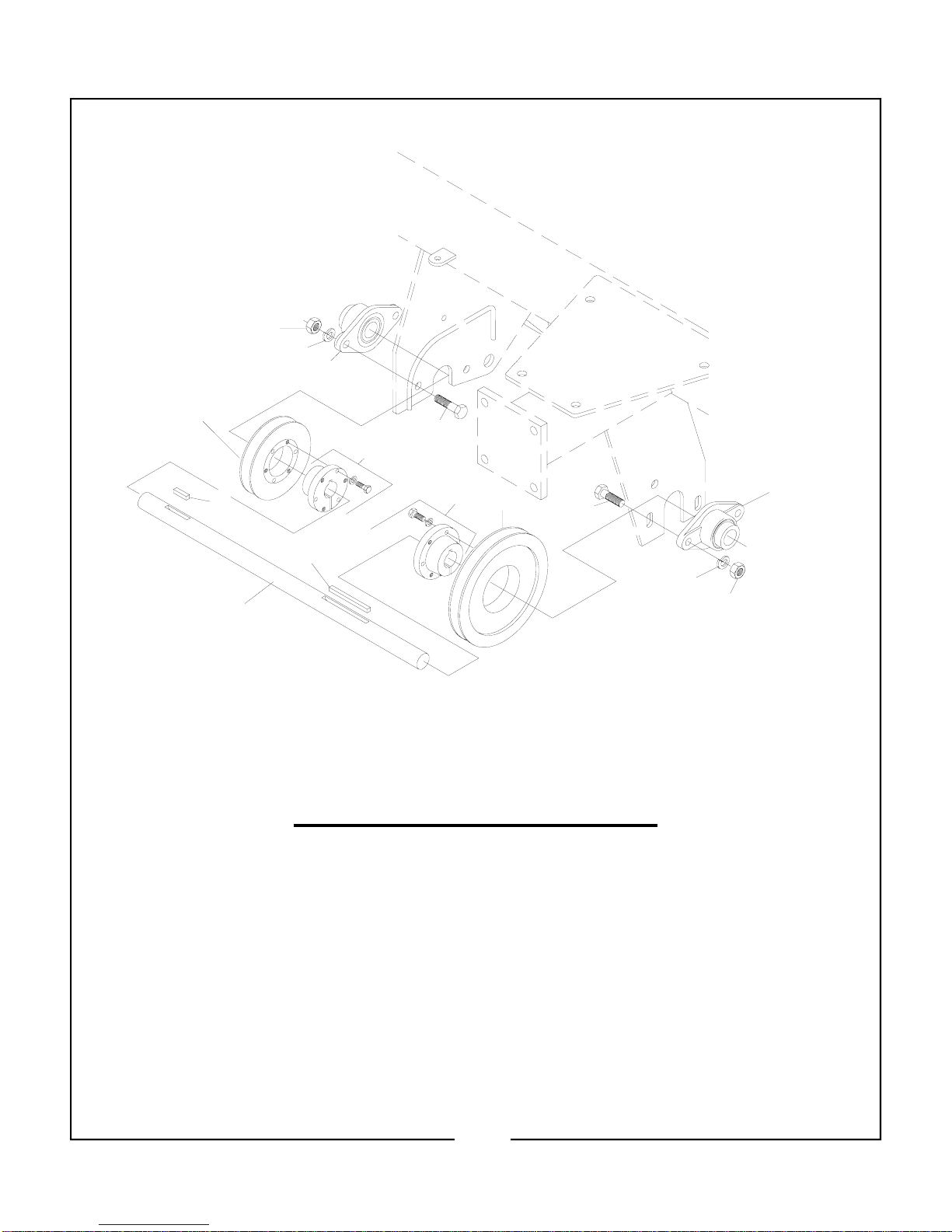

FrontJackshaft 3-6
Rear Jackshaft, TVM 5130 3-7
Rear Jackshaft, TVM 3077 3-8
Gearbox and Sheaves, TVM 5130 3-1, 3-2
TVM 3077 3-3, 3-4
Guards,Primary 2-1
V-Belt, TVM 5130 2-2
V-Belt, TVM 3077 2-3
Hydraulic System, TVM 5130 5-1
TVM 3077 5-2
Lift Assembly TVM 5130 1-2
TVM 3077 1-4
Mainframe TVM 3077 1-1
TVM 5130 1-3
Wheel, Axle, Hub Assembly 4-1
(Note HHCS = Hex Head Cap Screw)

1-1
Main Frame
TVM 5130 Verti Cutter
REF. PART QTY DESCRIPTION
NO. NO.
1 50022306 1 Mainframe
2 50022176 1 Tongue W/Decals
3 50019541 1 Swivel
4 50019888 1 Tongue Brace, RH
5 50019938 1 Tongue Brace, LH
6 15093 8 HHCS 1/2”-13 x 1-1/2” Gr.5
7 15806 8 Lock washer 1/2”
8 8151600 8 Hex Nut 1/2”
9 19055 4 HHCS 3/8”-16 x 3” Gr.5
10 8151200 3 Hex Nut-Nylock 3/8”-16
11 50019944 1 Stud, Belt Guard
12 50019942 1 Spacer, RH Shield
13 44600 1 Nut, Coupling 3/8”-16 x 1-3/4”
14 10151200 1 Hex Nut, Jam 3/8-16
15 50019542 1 Ball Hitch Assy.
16 50022369 2 Deflector Assembly (17-22)
17 50022236 4 Deflector Clamp
18 50022235 2 Mounting Angle
REF. PART QTY DESCRIPTION
NO. NO.
19 50022367 2 Deflector
20 50022366 2 Clamp Bar
21 20011 4 HHCS 5/16”-18 x 1-1/2” Gr.5
22 44553 18 Hex Nut-Nylock 5/16”-18
23 50022109 1 Jackstand Assy.
24 50019877 1 Hose Holder Assy.
25 19065 4 HHCS 1/2”-13 x 2-1/2” Gr.5
26 44539 4 Hex Nut-Nylock 1/2”-13
27 50022073 1 Warning Decal
28 50022081 1 Notice Decal
29 50022067 1 Decal, Flag
30 50022070 1 Warning Decal
31 50022066 2 Danger Decal
32 44721 1 HHCS 3/8”-16 c 3/4”
33 15830 2 Flatwasher 3/8”
34 91091 1 Safety Tow Chain
1
8
7
14
11
12
13
33
32
7
8
29
30
6
4 5
31
2
28
34
27
15
6
3
25
21 369
18
22
19
26
10
16
20
35
23
87
24

REF.PART QTY DESCRIPTION
NO. NO.
17 10151200 6 Jam Nut 3/8”-16
18 50019916 2 Clevis Yoke w/ Hole
19 50019915 2 Clevis Yoke.
20 8151200 2 Hex Nut 3/8”-16
21 50019952 2 Transport Lock Chain
22 50019949 1 Lift Chain #1
23 50019893 2 Lift Chain #2 & #3 Outer
24 50019950 2 Lift Chain #4 & #5 Inner
25 50019895 2 Lift Chain #4 & #5 Outer
26 50022099 4 Polly Strap 9”
50022100 2 Polly Strap 15”
27 44566 12 Nylock Hex Nut 1/4”-20
28 44579 12 HHCS 1/4”-20 x 1-1/2” Gr.5
29 15918 12 Flatwasher 1/4”
30 50019939 2 Lift Chain #2 & #3 Inner
REF. PART QTY DESCRIPTION
NO. NO.
1 50022328 1 Lift Arm (5 Gang) LH
2 50022329 1 Lift Arm (5 Gang) RH
3 50019948 4 Bearing Cup Assy.
4 50019873 1 Synchronizing Rod
5 50019872 2 Rod End RH 3/4”-16F 3/4” Bore
6 50019644 12 Fender Washer 1/4” x 1”
7 44606 2 Jam Nut 3/4”-16
8 19021 2 HHCS 3/4”-10 x 3” Gr.5
9 50019914 2 Spacer
10 19517 2 Hex Nut 3/4”-10
11 50019659 2 Clevis Pin 1” x 2-3/4”
12 1273 2 Presto Pin 3/16”
13 25H49039 4 Clevis Pin 3/8” x 1-1/2”
14 21020510 4 Cotter Pin 5/32” x 1”
15 44174 4 HHCS 3/8”-16 x 1-3/4”
16 15830 8 Flatwasher 3/8”
1
2 9
5
7 4
7 5 10
14
19
23
30
13
21
17
14
18
20
25
13
2
24
15
16 17
3
24
1516
11
27
29
26
6
28

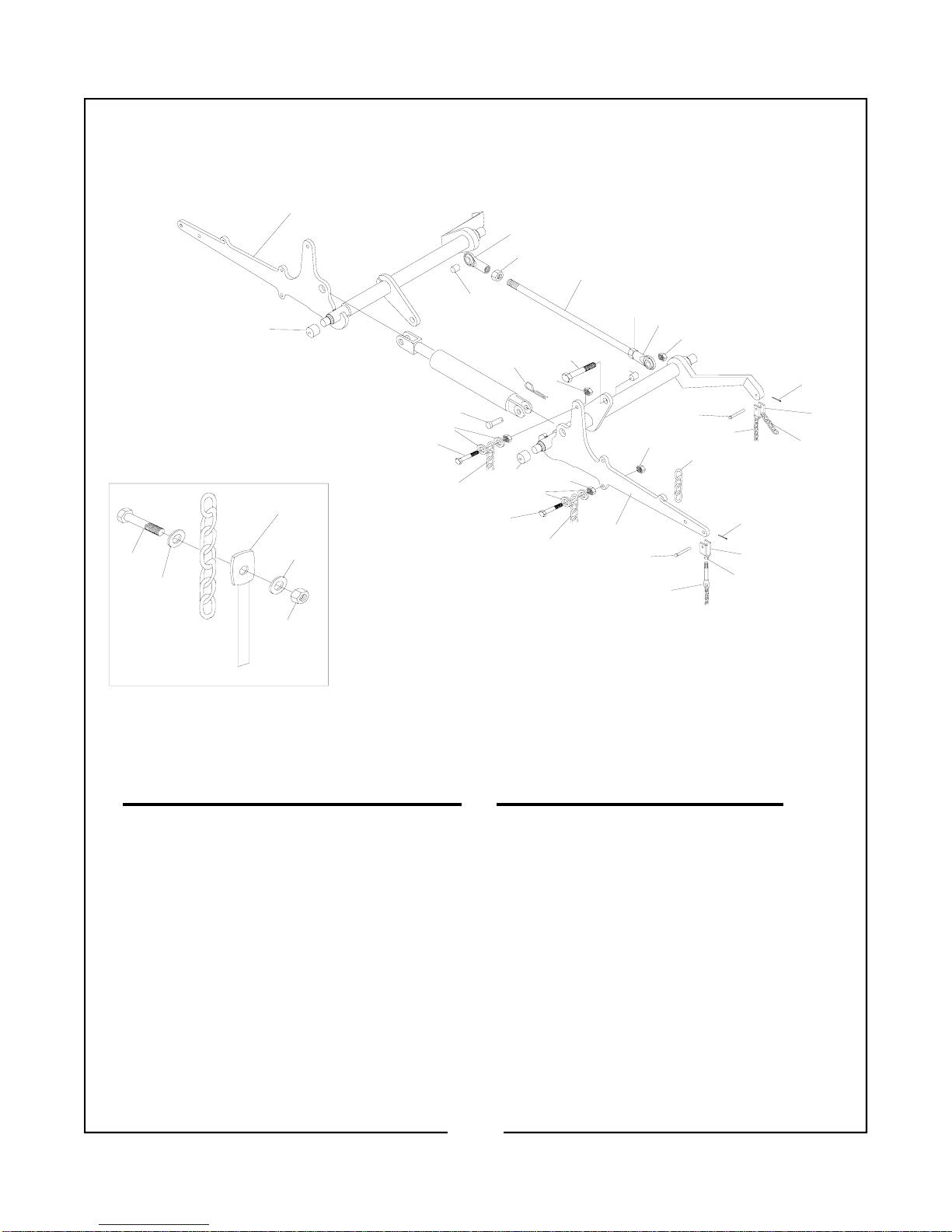

TVM 5130 Equalizer and Lift Arm Assembly
9
12 17 8
1-2

REF. PART QTY DESCRIPTION
NO. NO.
1 50022352 1 Mainframe
2 50022176 1 Tongue W/Decals
3 50019541 1 Swivel
4 50019888 1 Tongue Brace, RH
5 15093 10 HHCS 1/2”-13 x 1-1/2” Gr.5
6 15806 10 Lock washer 1/2”
7 8151600 10 Hex Nut 1/2”
8 44721 1 HHCS 3/8”-16 x 3/4” Gr.5
9 50019944 1 Stud, Belt Guard
10 50019942 1 Spacer, RH Shield
11 44600 1 Nut, Coupling 3/8”-16 x 1-3/4”
12 10151200 1 Hex Nut, Jam 3/8-16
13 50019542 1 Ball Hitch Assy.
14 50022109 1 Jackstand Assy.
15 50019877 1 Hose Holder Assy.
REF. PART QTY DESCRIPTION
NO. NO.
16 50022073 1 Warning Decal
17 50022081 1 Notice Decal
18 50022067 1 Decal, Flag
19 50022070 1 Warning Decal
20 50022066 2 Danger Decal
21 20864 1 HHCS 1/2”-13 x 3” Gr.5
22 15830 2 Flatwasher 3/8”
23 44615 2 Whiz Nut 1/2”-13
24 50022355 1 Compensator Arm
25 91091 1 Safety Tow Chain
26 50022235 2 Mounting Angle
27 50022367 2 Deflector
28 50022366 2 Clamp Bar
29 15086 18 HHCS 5/16”-18 x 1-1/4” Gr.5
30 44553 18 Hex Nut - Nylock 5/16”-18
29
30
30
1
24
23
21
23
21
4
12
9
10
11
22
8
7
6
2
17
25 27
28
26
29
5
19 18
14
7
6
15
5
3
13
Main Frame
TVM 3077
1-3

REF. PART QTY DESCRIPTION
NO. NO.
19 25H49039 4 Pin 3/8” x 1-3/4”
20 21020510 4 Cotter Pin 5/32” x 1”
21 15093 4 HHCS 1/2” x 1-1/2” Gr.5
22 15806 4 Lockwasher 1/2”
23 8151600 4 Hex Nut 1/2”
24 10151200 4 Jam Nut 3/8”
25 20035 2 HHCS 3/8” x 1/2”
26 15812 2 Lockwasher 3/8’
27 50019854 1 SMV Sign
28 50019644 8 Fender Washer 1/4” x 1”
REF. PART QTY DESCRIPTION
NO. NO.
1 50022497 1 Outer Lift Tube
2 50022500 1 Inner Lift Tube
3 50019776 4 Grease Fitting 3/16” Drive In
4 50022503 1 Pin 5/8” x 4”
5 1273 3 Presto Pin
6 50019659 2 Clevis Pin 1” x 2-1/4”
7 50022337 2 Lift Chain - Outer Front
8 50022336 2 Lift Chain - Inner Front
9 50022335 2 Lift Chain - Rear
10 50022099 3 Strap, Rubber 8.25” Long
11 20016 6 HHCS 1/4” x 1-1/2”
12 15918 12 Flatwasher 1/4”
13 44539 6 Hex Nut 3/8” Nylock
14 44181 4 HHCS 3/8”
15 15830 10 Flatwasher 3/8”
16 44601 4 Hex Nut 3/8” -Nylock
17 1161006 2 HHCS 5/16” x 3/4” Gr.5
18 15907 2 Flatwasher 5/16”
19 15808 2 Lockwasher 5/16”
20 25H49039 4 Pin 3/8” x 1-3/4”

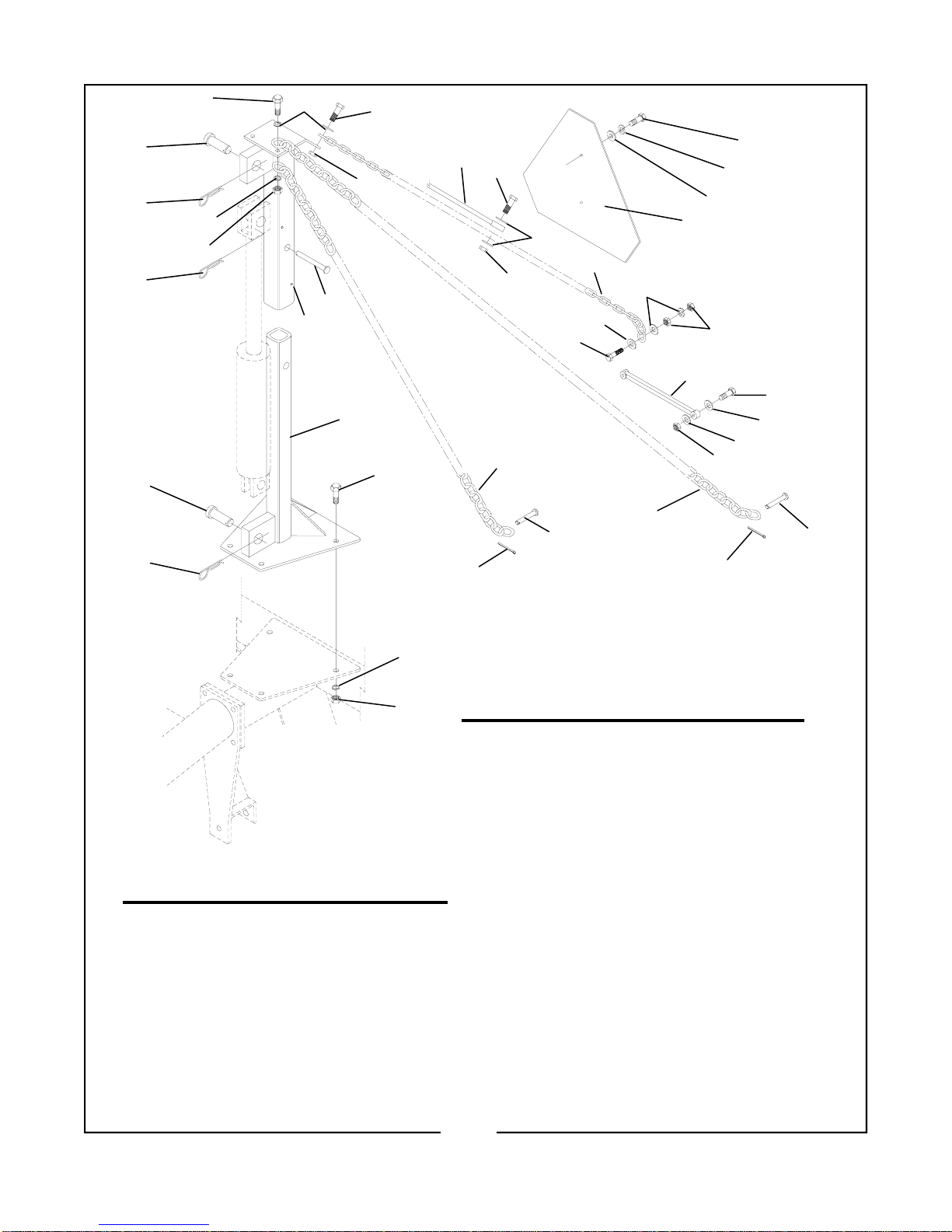

TVM 3077 Lift
1-4
16
26
1514
6
5
5
16
15
20
21
7
8
20
21
24
23
5
6 22
4
3
2
12
11
10
25
15
15
14
10 13
12
29
11
9
13
28
18
19
17

10
9732123
11
612
78
5
4
REF. PART QTY DESCRIPTION
NO. NO.
1 50019910 1 Tie Rod
2 44743 1 Hex Nut 5/8”-18 UNF RH Thd
44710 1 Hex Nut 5/8”-18 UNF LH Thd
3 50019870 1 Rod End 5/8” Bore w/Rh Thread 5/8”-18
50019868 1 Rod End 5/8” Bore w/LH Thread 5/8”-18
4 50022083 1 Compensator Spring 1/4”
5 50019940 1 Spacer 7/8” Thick
6 44168 1 HHCS 5/8”-11 x 3-3/4” Gr.5
7 19486 1 Lockwasher 5/8”
8 15563 1 Hex Nut 5/8”-11
9 20947 1 HHCS 5/8”-11 x 2” Gr.5
10 50019875 1 Tie Rod Spacer
11 50019911 1 Tie Rod Assy.
12 50019941 1 Spacer 5/8” Thick

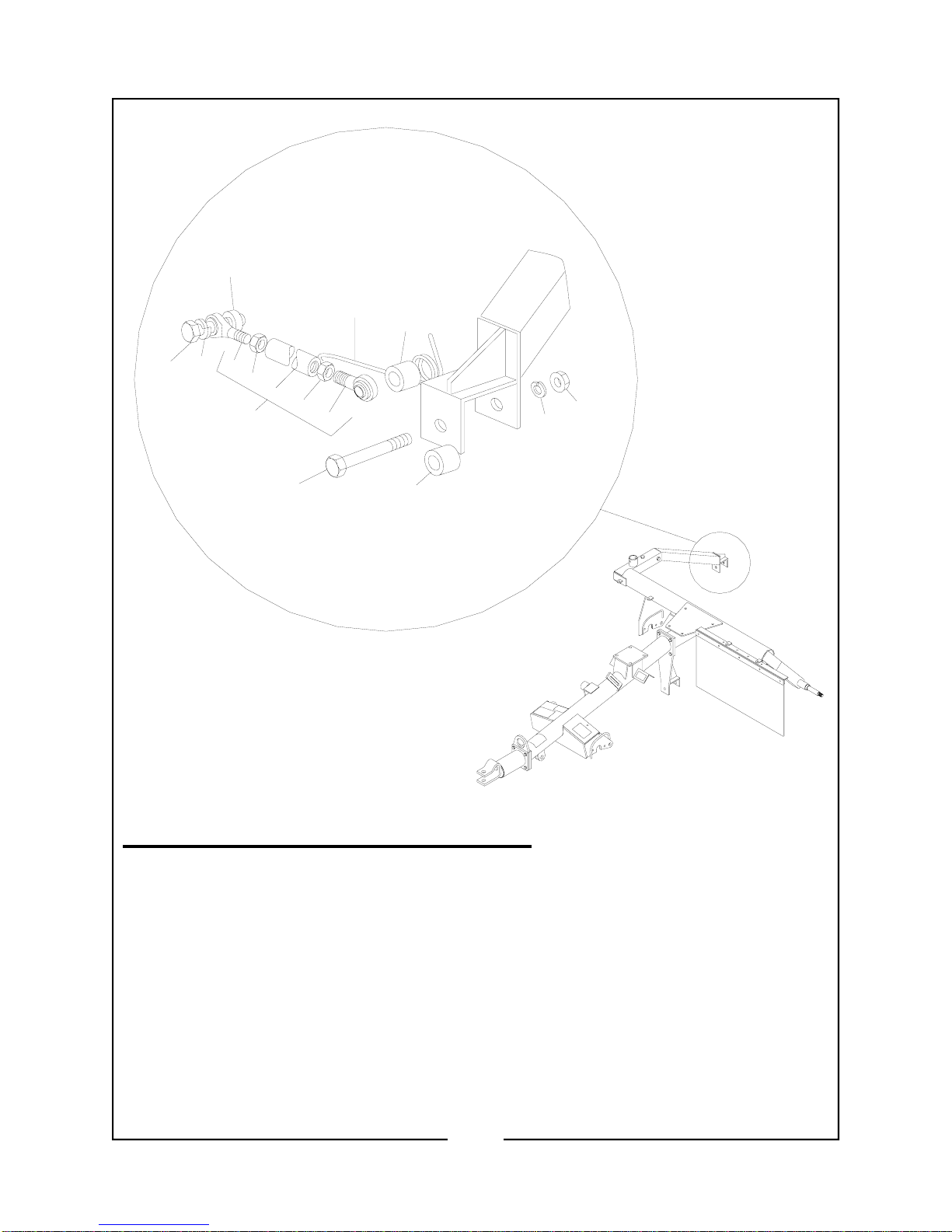

Single Compensator and Tie
Rod Assemblies
Reel Unit No. 4 (TVM-5130)
Reel Unit No. 1 (TVM-3077)
1-5

10
973
2123
45
6
4
5321
78
11
REF. PART QTY DESCRIPTION
NO. NO.
1 50019910 1 Tie Rod
2 44743 1 Hex Nut 5/8”-18 UNF RH Thd
44710 1 Hex Nut 5/8”-18 UNF LH Thd
3 50019870 1 Rod End 5/8” Bore w/Rh Thread 5/8”-18
50019868 1 Rod End 5/8” Bore w/LH Thread 5/8”-18
4 50022083 1 Compensator Spring 1/4”
5 50019940 1 Spacer 7/8” Thick
6 44625 1 HHCS 5/8”-11 x 4-3/4” Gr.5
7 19486 1 Lockwasher 5/8”
8 15563 1 Hex Nut 5/8”-11
9 20947 1 HHCS 5/8”-11 x 2” Gr.5
10 50019875 1 Tie Rod Spacer
11 50019911 1 Tie Rod Assy.
Dual Compensator and Tie Rod
Assemblies
Reel Unit No. 4 (TVM-5130)
Reel Unit No. 1 (TVM-3077)
1-6

REF. PART QTY DESCRIPTION
NO. NO.
1 50022175 1 Guard w/Decals - Driveshaft
2 50022072 1 Danger Decal
3 50022074 1 Decal - Notice to Owner
4 50022065 1 Danger Decal (Spanish)
5 50019968 1 R.H. Drive Guard
6 50019971 1 L.H. Drive Guard
7 50100034 2 Model Decal TVM-5130
50100033 2 Model Decal TVM-3077
8 15806 4 Lockwasher 1/2”
9 44588 2 HHCS 1/2”-13 x 3/4” Gr.5
10 20054 2 HHCS 1/2”-13 x 1” Gr.5
11 15829 2 Flatwasher 1/2”
12 20035 2 HHCS 3/8”-16 x 1/2”
13 15812 3 Lockwasher 3/8”
14 15830 3 Flatwasher 3/8”
15 1161006 1 HHCS 5/16”-18 x 3/4”
Primary Guards
2-1
10
13 15
11
8
10
1
2 3 4 8
9
14
13
12
14
14
13
12
7
6
5
8
11

REF. PART QTY DESCRIPTION
NO. NO.
1 50019931 1 Guard, Center Rear #1
2 50019933 2 Guard, L.H. Outside #2 & #4
3 50019934 2 Guard, R.H. Outside #3 & #5
4 1161006 5 HHCS 5/16”-18 x 3/4”
5 15801 5 Lockwasher 5/16”
6 15907 5 Flatwasher 5/16”
7 20009 5 HHCS 1/4”-20 x 1/2”
8 15905 5 Lockwasher 1/4”
9 15918 5 Flatwasher 1/4”
V-Belt Guards
TVM-5130
2-2
Left Side
Right Side
Forward
4 5 6
9
8
7
2
2
3 3
1

REF. PART QTY DESCRIPTION
NO. NO.
1 50019931 1 Guard, Center Rear #1
2 50019933 1 Guard, L.H. Outside #2 & #4
3 50019934 1 Guard, R.H. Outside #3 & #5
4 1161006 5 HHCS 5/16”-18 x 3/4”
5 15801 5 Lockwasher 5/16”
6 15907 5 Flatwasher 5/16”
7 20009 5 HHCS 1/4”-20 x 1/2”
8 15905 5 Lockwasher 1/4”
9 15918 5 Flatwasher 1/4”
V-Belt Guards
TVM-3077
2-3
Left Side
Right Side
Forward
4
3
2
9
8
7
6
5
1

REF. PART QTY DESCRIPTION
NO. NO.
1 50022102 1 Gearbox Assy. (Comer) TVM-50
2 50022324 1 Vent Plug
3 50019943 1 Spacer, Gearbox
4 15806 4 Lockwasher 1/2”
5 20864 4 HHCS 1/2”-13 x 3” Gr.5
6 50022420 1 Pulley, 3 Belt 7” Dia.
7 50022107 2 Bushing, Tapered Split SK 1-1/8”
8 50022085 3 Pulley, 2 Belt 7” Dia.
9 65485 2 Key 2”
10 50022450 3 “V”-Belt BX-78
11 50022451 2 “V”-Belt BX-70

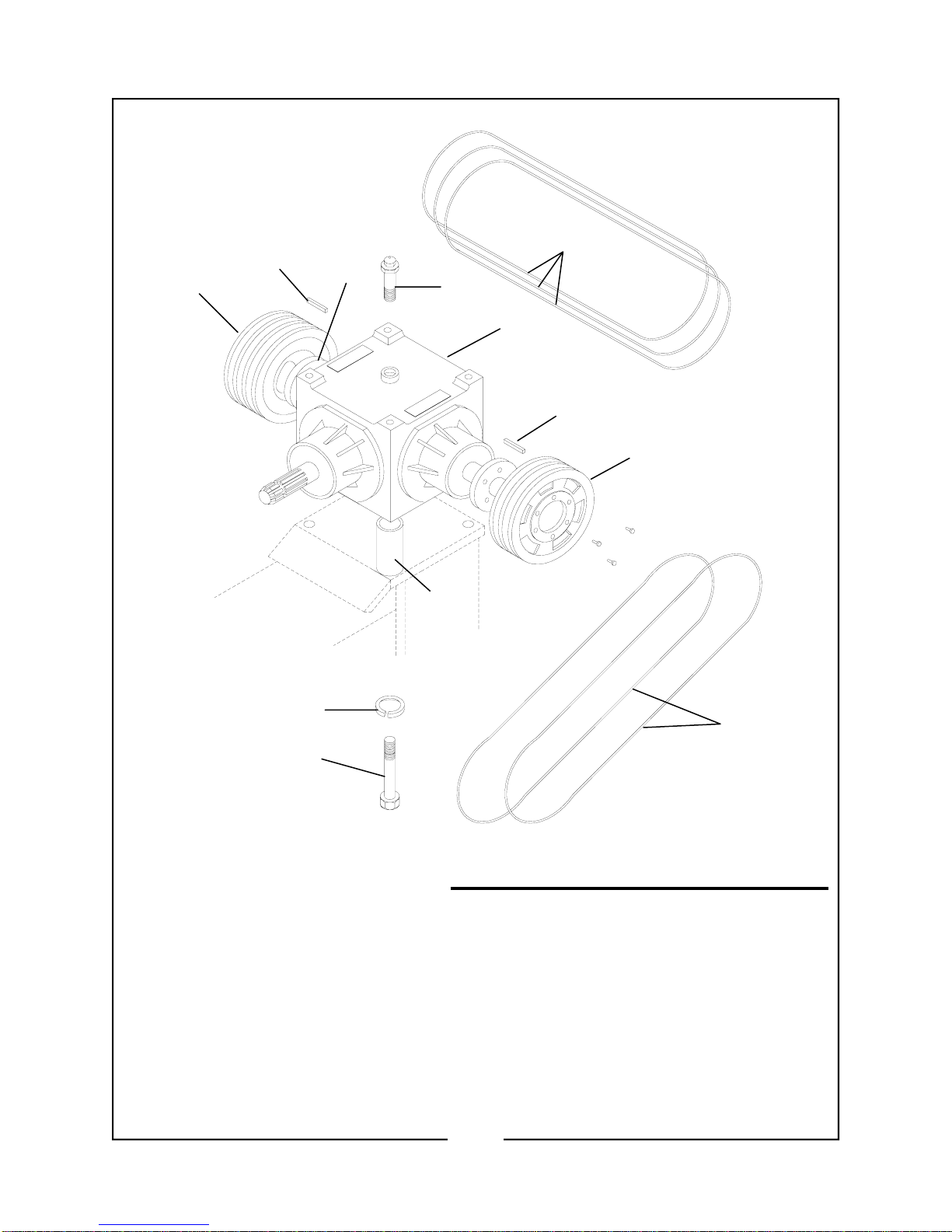

Gearbox & Sheaves
TVM-5130
3-1
5
4 11
3
2
1
9
8
10
7
9
6

REF. PART QTY DESCRIPTION
NO. NO.
1 70292 1 Oil Plug 3/8”
2 70108 3 Oil Seal 35 x 72 x 10mm
3 70133 3 Snap Ring 72 UNI7437
4 70642 2 Shim 60.3 x 71.7 x 1
5 70797 4 Bearing 30207
6 70903 4 Bolt M8 x 14 Gr.8.8
7 50022316 1 Pinion Z15 M5.7
8 50022317 1 Cover
9 70470 1 Locknut M35 x 1.5
10 50022318 1 Shaft
11 50022319 1 Spring Washer
12 50022320 1 Crown Wheel Z22 M5.7
13 70332 2 Shim 35.3 x 48 x 1.3
REF. PART QTY DESCRIPTION
NO. NO.
14 50022321 1 Spacer
15 70331 2 Shim 35.3 x 48 x .5
16 50022322 1 Shaft 1-3/8”
17 70841 1 Snap Ring 35
18 F7502880 1 Plug 1/4”
19 50022323 1 Casing
20 50022324 1 Oil Level Plug
21 70639 2 Shim 60.3 x 71.7 x .3
22 70640 2 Shim 60.3 x 71.7 x .4
23 70641 2 Shim 60.3 x 71.7 x .5
24 70329 2 Shim 35.3 x 48 x .3
25 70330 2 Shim 35.3 x 48 x .4

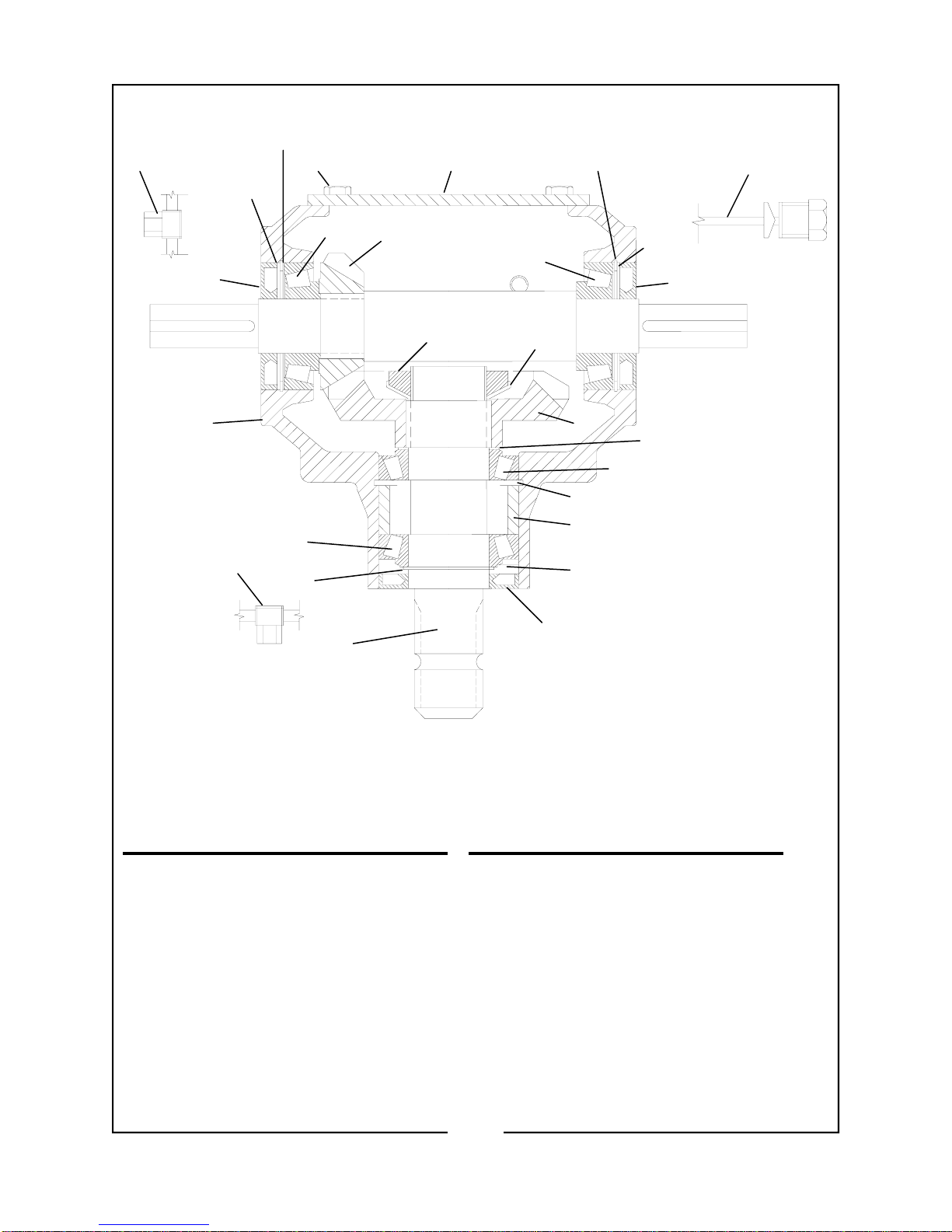

50022102 Gearbox Assembly
TVM-5130
Manufactured by Comer
3-2
1
2
14
3
5
11
2
3
4, 21, 22, 23
510
8
9
7
6
5
3
4, 21, 22, 23
12 13, 15, 24, 25
13, 15, 24, 25
12
16
17
5
18
19
20

Gearbox & Sheaves
TVM-3077
REF. PART QTY DESCRIPTION
NO. NO.
1 50019729 1 Gearbox Assy. (Omni) TVM-3077
2 50022324 1 Vent Plug
3 50019943 1 Spacer, Gearbox
4 15806 4 Lockwasher 1/2”
5 20864 4 HHCS 1/2”-13 x 3” Gr.5
6 50022086 1 Pulley, 1 Belt 7” Dia.
7 50022108 2 Bushing, Tapered Split SDS 1-1/8”
8 65485 2 Key 2”
9 50022450 3 “V”-Belt BX-78
10 50022451 2 “V”-Belt BX-70
11 50022085 1 Pulley, 2 Belt, 7” Dia.
3-3
4
5
3
6
8
2
1
7
8
11
9
10

REF. PART QTY DESCRIPTION
NO. NO.
1 50022476 1 Housing
2 50022477 1 Cap, Cantilevered
3 50022478 2 Cap, Thru
4 50022479 1 Gear, 24T
5 50022480 1 Pinion, 16T
6 50022481 1 Shaft, Output
7 50022482 1 Shaft, Input
8 70797 4 Bearing, 30207
9 50022485 2 Seal, Thru Cap
10 50022486 1 Seal, Cant. Cap
REF. PART QTY DESCRIPTION
NO. NO.
11 50022487 A/R Gasket, Cap, 0.1
12 50022488 A/R Gasket, Cap, 0.2
13 50022489 A/R Gasket, Cap, 0.3
14 50022490 2 Key, Square 10 x 25mm
15 50022491 2 Spacer
16 1161010 24 HHCS 5/16” x 1” Gr.5
17 15808 24 Lockwasher 5/16”
18 78719 2 Plug, Socket Hd. 1/2”-14
NPTF
19 50022493 4 Retaining
50019729 Gearbox Assembly
Mfg. By Omni
1:1.5
1-3/8”-6 Spline Input Shaft
TVM-3077
3-4
5
1
19
18
9
8 3 6
915
4
17
14
8
7
10
2
17
11, 12, 13
19
14

REF. PART QTY DESCRIPTION
NO. NO.
1 50022676 1 Half Shaft, Outer
2 50022677 1 CV Joint Assembly
3 50022678 1 Roll Pin 8mm x 65mm
4 50022679 1 Outer Tube
5 50022680 1 Half Shaft, Inner
6 50022681 1 Inner Tube
7 50022682 1 Roll Pin 8mm x 55mm
8 50022692 1 Yoke, Inner Tube
9 64694 1 Cross Bearing Kit
10 50022684 1 Yoke, Implement End
11 50022685 1 Wide Angle Shield
REF. PART QTY DESCRIPTION
NO. NO.
12 50022686 1 Bearing, Soft Cone
13 50022687 6 Screw, Self Tapping
14 50022688 1 Bearing, Shield Tube Outer
15 50022669 2 Lock Pin
16 50022675 1 Outer Half Shaft Shield
17 50022689 1 Bearing, Shield Tube, Inner
18 50022690 1 Inner Half Shaft Shield
19 50022691 1 Complete Shield
20 50022673 3 Safety Chain
21 78608 1 Danger Decal
22 78786 1 Danger Decal
50022104 P.T.O. Shaft and Parts
2 3 4 22 7
6
8 9 10
1 5
12 14 15 21 15 17
13 16
11 19
18
20
3-5

REF. PART QTY DESCRIPTION
NO. NO.
1 50022087 1 Pulley 2 Belt 6.6PD
2 50022106 1 Bushing Split Taper SDS 1”
3 65484 1 Key 2”
4 50022101 2 Bearing 1” 2 Hole Flange
5 44614 4 HHCS 7/16”-14 x 1-1/4” Gr.5
6 15819 4 Lockwasher 7/16”
7 2 Pulley 1 Belt 4.4 PD
8 50022105 2 Bushing Split Taper SH 1”
9 93810 2 Key 1” x 1/4”
10 50019878 1 Front Jackshaft
11 8151400 4 Hex Nut 7/16”-14 Gr.5

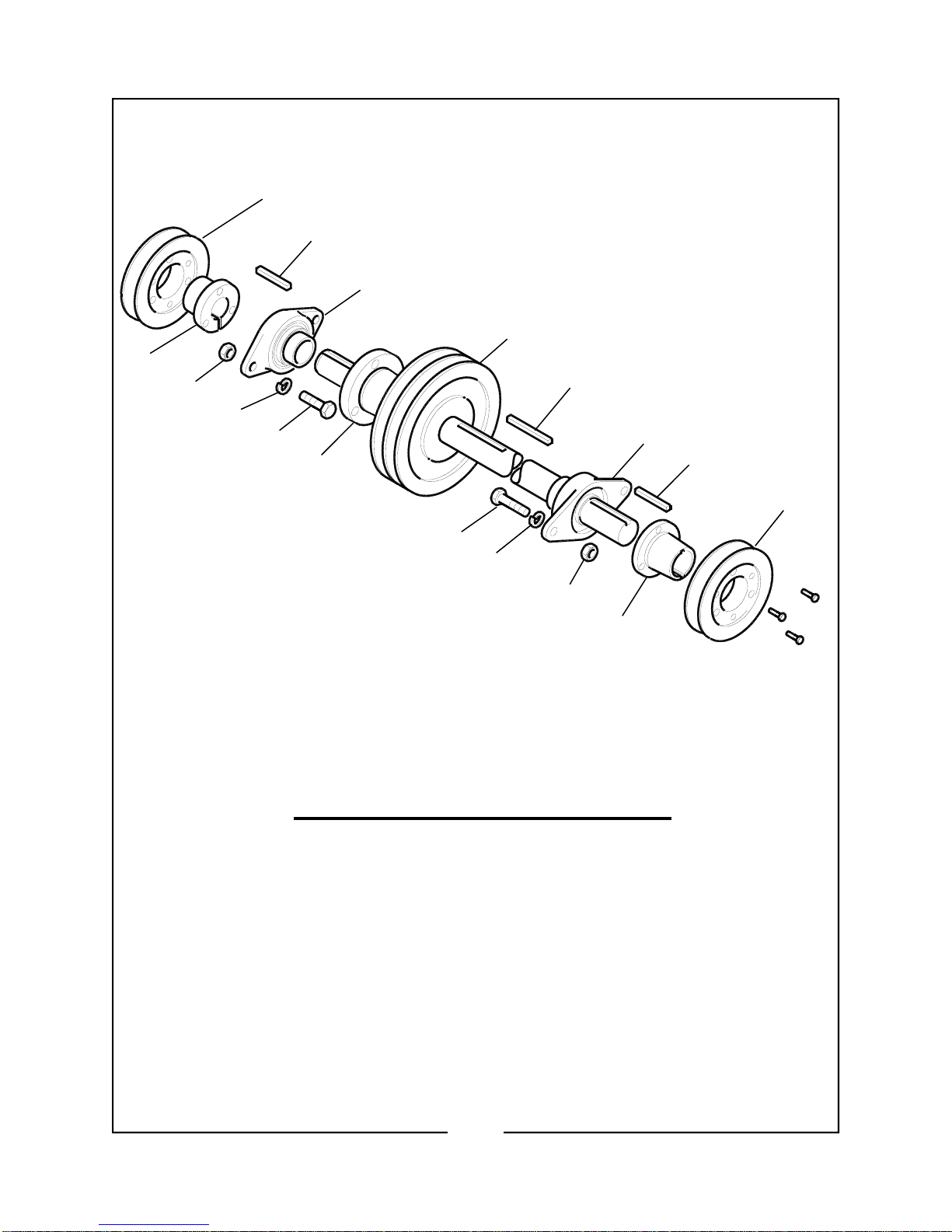

Front Jackshaft Assembly
TVM-5130 & TVM-3077
7
1
3
5 6
4
11
8
9
7
2
5
6
4
9
11
8
3-6

REF. PART QTY DESCRIPTION
NO. NO.
1 50022327 1 RH Rear Jackshaft
2 50019883 1 LH Rear Jackshaft
3 50022084 3 Pulley, 1 Belt 4.4 PD
4 50022105 1 Bushing, Split Taper SH 1”
5 93810 5 Key 1” x 1/4”
6 50022419 1 Pulley, 3 Belt 6.6 PD
7 50022428 1 Bushing, Split Taper SD 1”
8 50019884 1 3” Key
REF. PART QTY DESCRIPTION
NO. NO.
9 50019999 1 Jackshaft Coupling Assy.
10 20504 6 HHCS 5-16”-18 x 2-1/2”
11 50019885 1 Key 5”
12 44553 6 Hex Nut, Nylock 5/16”-18
13 50022101 3 Bearing 1”, 2 Bolt Flange
14 44614 6 HHCS 7/16”-14 x 1-1/4”
15 15819 6 Lockwasher 7/16”
16 8151400 6 Hex Nut 7/16”-14

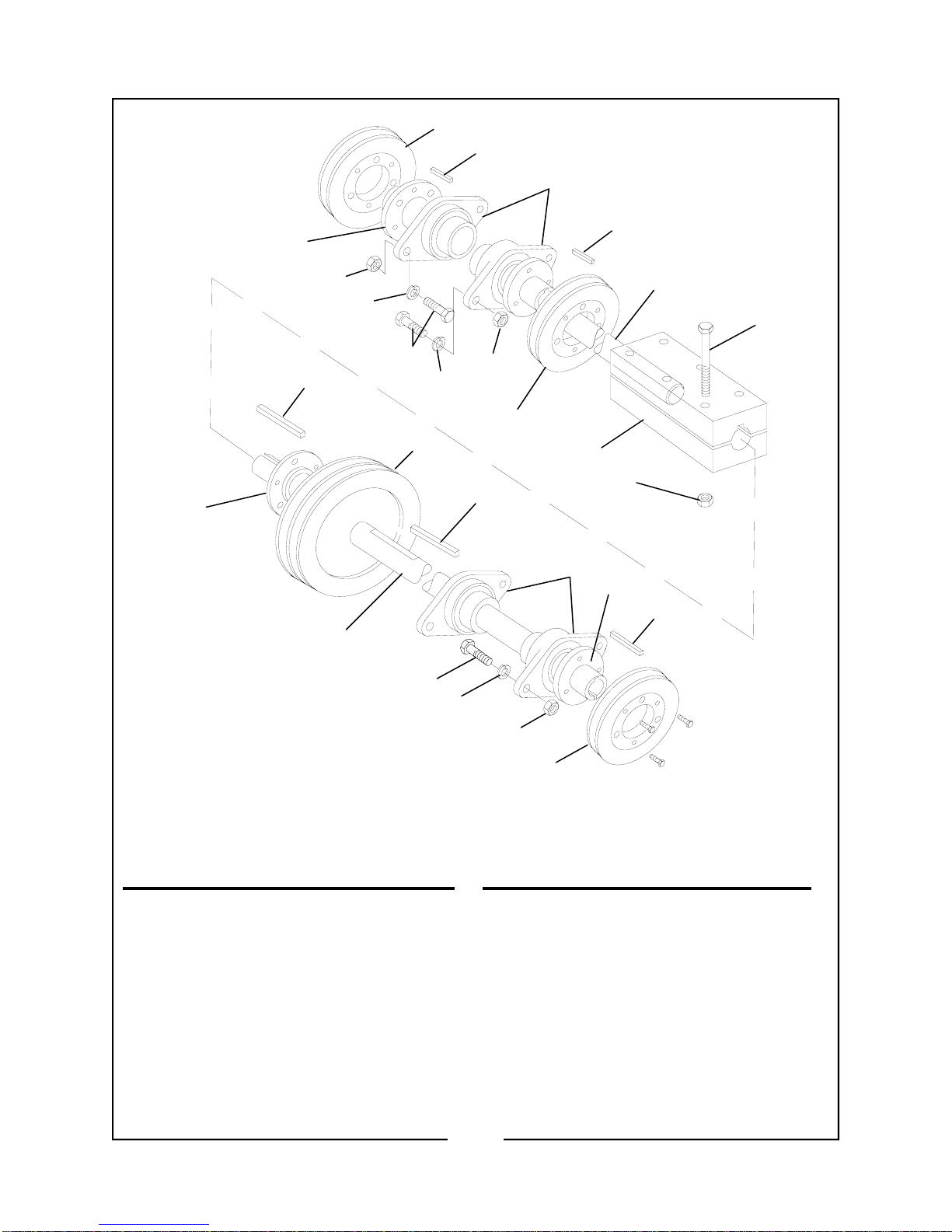

Rear Jackshaft Assembly
3-7
7
11
5
3
16
15
14
4
13
8
6
3
5
13
4
16
15
14
15 16
3
1
5
4
9
12
10
2

1
5
8
4
3
76
2
9
11 10
11
10
9
2
REF. PART QTY DESCRIPTION
NO. NO.
1 50022334 1 Jackshaft, Rear-3 Gang
2 8151400 4 Hex Nut 7/16”-14 Gr5
3 50022084 1 Pulley, 1 Belt 4.4” PD
4 50022105 1 Bushing, Split Taper SH 1”
5 93810 1 Key 1/4” x 1/4” x 1”
6 50022088 1 Pulley, 1 Belt 6.6” PD
7 50022106 1 Bushing, Split Taper SDS 1”
8 50019884 1 Key 1/4” x 1/4” x 3”
9 44618 4 Lockwasher 7/16”
10 50022101 2 Bearing, 2 Bolt Flange 1” Bore
11 15012 4 HHCS 7/16”-14 x 1-1/2”
Rear Jackshaft Assembly
3
2 9
10
11
4
5
8
1
7 6 11
9
2
10
3-8

REF. PART QTY DESCRIPTION
NO. NO.
1 50019889 1 Idler Shell 2-1/2”
50019912 1 Idler Shell 2”
2 50019890 1 Bearing, 1” ID x 52 mm OD
3 50019891 1 Bushing 1” OD x 2”
4 15829 2 Flatwasher 1/2”
5 44539 1 Nylock Hex Nut 1/2”-13
6 20864 1 HHCS 1/2”-13 x 3” Gr.5
7 50019892 1 Belt Drive Idler Assy. 2-1/2”
50019913 1 Belt Drive Idler Assy. 2”
Belt Idler Assembly
3-9
7
6
4
5
3
2
1
