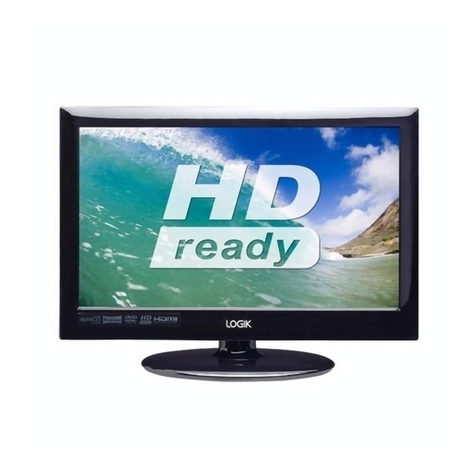

Logik L24DIGB10 User manual

24” HD Ready 1080p
Digital LCD TV
Instruction Manual
L24DIGB10

Contents
Preparation............................................................................................................................................................................... 4
Unpacking the TV ...................................................................................................................................................................................................4
Installing / Removing the Base Stand .............................................................................................................................................................5
Front / Top / Side View and Controls ...............................................................................................................................................................6
Rear View and Sockets..........................................................................................................................................................................................7
Installing Batteries in the Remote Control ....................................................................................................................................................8
Remote Control Operation Range....................................................................................................................................................................8
Remote Control .......................................................................................................................................................................................................9
Connections............................................................................................................................................................................ 11
Making Video and Audio Connections.........................................................................................................................................................11
Connecting an AV Device with HDMI Cable ...............................................................................................................................................11
Connecting a Computer with VGA Cable ................................................................................................................................................... 12
Connecting an AV Device with Component (YPbPr) Cable ................................................................................................................. 12
Connecting an AV Device with SCART Cable ............................................................................................................................................ 13
Connecting an AV Device with S-Video Cable.......................................................................................................................................... 13
Connecting an AV Device with Composite Cable.................................................................................................................................... 14
Connecting Earphones...................................................................................................................................................................................... 14
Connecting a USB Storage Device................................................................................................................................................................. 15
Connecting the Aerial ........................................................................................................................................................................................ 15
Initial Setup ............................................................................................................................................................................ 16
Turning the TV On for the First Time ............................................................................................................................................................ 16
Selecting the Input Source− ................................................................................................................................................................... 16
Channel Selection− ................................................................................................................................................................................... 17
Volume Adjustment− ................................................................................................................................................................................ 17
Using the Features ................................................................................................................................................................. 18
Customising the PICTURE Setting ................................................................................................................................................................. 18
Picture Mode− ............................................................................................................................................................................................. 18
Customising the SOUND Setting ................................................................................................................................................................... 19
Sound Mode− .............................................................................................................................................................................................. 19
Stereo / Dual Sound Reception (TV Mode)− .................................................................................................................................... 19
Speaker Sound Output Selection (DTV Mode)− ............................................................................................................................. 19
Customising the FUNCTION Setting............................................................................................................................................................. 20
Video Size− ................................................................................................................................................................................................... 20
TT Language− .............................................................................................................................................................................................. 21
Sleep Timer− ................................................................................................................................................................................................ 21
OSD Timer− ................................................................................................................................................................................................... 22
Blue Screen− ................................................................................................................................................................................................ 22
Child Lock− ................................................................................................................................................................................................... 22
Key Locked− ................................................................................................................................................................................................. 23
Reset− ............................................................................................................................................................................................................ 24
Installation− .................................................................................................................................................................................................. 24
Customising the TV Setting (TV Mode) ....................................................................................................................................................... 25
Country− ........................................................................................................................................................................................................ 25
Auto Tuning− ............................................................................................................................................................................................... 25
Manual Tuning− .......................................................................................................................................................................................... 26
Channel Edit− .............................................................................................................................................................................................. 26
Customising the TV Settings (DTV Mode) .................................................................................................................................................. 27
Auto Tuning− ............................................................................................................................................................................................... 27
Manual Tuning− .......................................................................................................................................................................................... 28
Channel Edit− .............................................................................................................................................................................................. 28
Timer− ............................................................................................................................................................................................................ 29
Rating− ........................................................................................................................................................................................................... 29
CI (Common Interface) (DTV Mode)− .................................................................................................................................................. 30

Customising the TV Settings (PC Mode) ..................................................................................................................................................... 31
Customising the TV Settings (HDMI and YPbPr Modes)........................................................................................................................ 31
Teletext (TV Mode).............................................................................................................................................................................................. 32
To Turn on Teletext Function− ............................................................................................................................................................... 32
Digital Teletext (DTV Mode)............................................................................................................................................................................. 33
Teletext within Digital Service− ............................................................................................................................................................ 33
EPG (Electronic Programme Guide) (DTV Mode) ..................................................................................................................................... 33
Switch On/O EPG− ................................................................................................................................................................................... 33
Select a Programme− ............................................................................................................................................................................... 33
Using the Features via USB Port ...........................................................................................................................................34
My Album................................................................................................................................................................................................................ 34
My Music ................................................................................................................................................................................................................. 35
My Movie................................................................................................................................................................................................................. 35
My Recorder........................................................................................................................................................................................................... 36
Recorded List− ............................................................................................................................................................................................. 36
Recording Device− ..................................................................................................................................................................................... 37
Recording Preference− ............................................................................................................................................................................. 38
DVR (Digital Video Recorder)................................................................................................................................................39
Time Shift Function............................................................................................................................................................................................. 39
Auto Time Shift Mode− ............................................................................................................................................................................ 39
Pause Time Shift Mode− .......................................................................................................................................................................... 39
Recording DTV Programme onto a USB Storage Device ...................................................................................................................... 40
Timer Programming ........................................................................................................................................................................................... 41
Maintenance...........................................................................................................................................................................42
Hints and Tips.........................................................................................................................................................................42
Display Modes ........................................................................................................................................................................44
YPbPr Mode ...........................................................................................................................................................................................................44
PC Mode..................................................................................................................................................................................................................44
HDMI Mode ...........................................................................................................................................................................................................44
Specification........................................................................................................................................................................... 45
Safety Warnings .....................................................................................................................................................................46

GB-4
Preparation Connections Initial Setup Using the Features DVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Preparation
TV with TV Base
TV Base’s part number: I.01.526302031
Remote Control / AAA Batteries x 2
part number I.14.000000586 and
E.17.101570001
AV Cable
part number E.14.113150013
Instruction Manual
part number I.08.015247703
Quick Start Guide
part number I.08.025247701
Video
Video
R
R
L
L
Congratulations on the purchase of your new Logik TV.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual in order that you
fully understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Digital TV Switchover Addendum
part number I.08.035197804

GB-5
PreparationConnectionsInitial SetupUsing the FeaturesDVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Mounting on the wall. This TV is designed to be wall-4.
mounted with a standard 200 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to the space restriction, we
recommend you to make all connections (refer to page
11-15 for details) before final mounting on the wall.
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Installing / Removing the Base Stand
Remove the base stand before mounting the TV onto the wall.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
Disconnect all cables connected to the TV.1.
Lay the TV down on a flat surface with the back side2.
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
To remove the base stand, untighten the 4 screws that3.
hold the base stand to the rear of the TV.
Keep all the spare screws should you want to use
the base stand option.
To re-install the base stand, reattach the base stand5.
with the 4 screws.
200 mm
100 mm
Four mounting holes
(size M4 screw)
Screws x 4
(P.N. I.03.MP4010001)
Screws x 4
(P.N. I.03.MP4010001)

GB-6
Preparation Connections Initial Setup Using the Features DVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Front / Top / Side View and Controls
Item Description
1IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
2POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will illuminate blue when the timer programming has started in the
standby mode.
3VOL +/- Adjust the volume.
Select and adjust a setting in the OSD menus.
4CH +/- Select a channel.
Select a sub-menu of the OSD menu.
5 MENU Displays the OSD (on screen display) menu.
6 SOURCE Select among the different input signal sources:
DTV / TV / AV / S-VIDEO / SCART / YPBPR / HDMI / PC
7 / I Switch the TV on from standby.
Switch the TV back to standby.
8 POWER ON/OFF Switch on the POWER ON/OFF switch to turn the TV to standby mode.
3 4 6 7
8
5
1 2
OFF/ON

GB-7
PreparationConnectionsInitial SetupUsing the FeaturesDVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Rear View and Sockets
Item Description
1 AC~ Connect the mains cable to the mains socket.
2 DVR USB port Allows the insertion of a USB storage device. You can view media files or record DTV
programmes through this port. (Media Mode)
3 S-VIDEO Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets.
4 HDMI
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray
player, and AV receiver.
5 VGA / PC AUDIO Connect to a computer or other devices with a VGA interface.
6 SCART Connect to a VCR, DVD Player, or other AV devices with SCART output socket.
7 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 30 for details.)
8 Y, PB, PR Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 VIDEO / AUDIO (L/R) Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
10 RF (75 Ω) Connect to the aerial socket on the wall with the RF coaxial cable.
11 Connect earphones for private listening.
2 3 7 8
41 5 6 9 10 11

GB-8
Preparation Connections Initial Setup Using the Features DVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
Press and lift the back cover up to open the battery compartment of the1.
remote control.
Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends2.
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
Handling the Batteries
Improper or incorrect use of batteries may cause•
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
Only use the battery type indicated in this manual.•
When the batteries are exhausted, the remote will•
not function. Replace both batteries at the same
time with new ones.
Do not install new batteries with used ones and•
do not mix different types of batteries.
Do not dispose of used batteries as domestic•
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
Take care of your fingernails when you press and•
hold the battery release tab.
Do not drop or cause impact to the remote•
control.
Do not spill water or any liquid on the remote•
control.
Do not place the remote control on a wet object.•
Do not place the remote control under direct•
sunlight or near sources of excessive heat.
Remove the battery from the remote control•
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire.
Close the battery compartment cover.3.
30° 30°
5M

GB-9
PreparationConnectionsInitial SetupUsing the FeaturesDVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
1 Transmission Indicator
Illuminates red when you press a button.
2
Switch the TV between on and standby mode.
3
Mute and restore your TV sound.
4 P.MODE
Selects picture mode: Personal / Standard / Movie / Mild /
Game.
S.MODE
Selects sound mode: Standard / Music / Voice / Theatre /
Personal.
5 ASPECT
Select from the following modes settings: Auto / Full / 4:3 /
14:9 / Zoom.
6SLEEP
Set the TV sleep timer.
NICAM
Switch between different audio languages (only applicable
when the TV programme has this feature).
7 FAV
Display the Favourite Channel List.
FAV +/-
Switch between your favourite channels.
8 0-9 Number Button
Select a programme.
Select numbered items in a menu.
9 -/--
Select and switch to a channel that is higher than
Channel 9. (TV mode)
10
Return to previous viewing channel.
11 MEDIA
Enter the Multimedia Setup Menu.
12 REC
One button recording function button. Press it to record the
current DTV video.
13
Press to start playback or pause. (Media mode)
Press to stop playback. (Media mode)
/
Press to skip to the beginning of the previous / next chapter
or track. (Media mode)
/
Use to advance or reverse playback rapidly. (Media mode)
Remote Control
2
4
5
9
11
12
8
3
1
6
7
10
13

GB-10
Preparation Connections Initial Setup Using the Features DVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
14 SOURCE
Select among the different input signal sources:
DTV / TV / AV / S-VIDEO / SCART / YPBPR / HDMI / PC
15 CH +/-
Select a channel.
16 VOL +/-
Adjust the volume.
17 MENU
Display the OSD (On Screen Display) menu.
18 EXIT
Exit the OSD (On Screen Display) menu.
19
Allows you to navigate the OSD menus and adjust the
system settings to your preference.
OK
Confirm the selection in the OSD menus.•
Display a list of channels saved in the TV tuner•
memory.
20 EPG
Display the EPG (Electronic Programme Guide). (DTV
mode)
21 DISPLAY
Display the present screen information such as the
current channel and the input source.
22 TEXT
Turn on and off the Teletext function. (TV / DTV mode)
23 SUBTITLE
Display the subtitle which is broadcast with the
programme. (TV / DTV mode)
24 INDEX
Press to select the page number of the Index from
teletext. (TV mode)
25 SIZE
To enlarge the picture on the TV in teletext. (TV mode)
26 REVEAL
Reveal hidden information such as the answer to a quiz
in Teletext. (TV mode)
27 CANCEL
To cancel the teletext mode completely. (TV mode)
28 SUBPAGE
Display the subpage on the teletext screen. (TV mode)
29 HOLD
Freeze a multi-page passage on screen in Teletext. (TV
mode)
30 Coloured buttons (RED / GREEN / YELLOW / BLUE)
Access the TELETEXT items or programme edit when
using Digital / Freeview TV Channels. (TV / DTV mode)
14
15
17
20
23
22
26
27
30
19
16
18
21
24
25
29
28
