Logitek Pilot User manual

Logitek Electronic Systems
Logitek Electronic Systems
Pilot Reference Manual
Revision 1.0
Oct 2010

Logitek Electronic Systems, Inc.
5622 Edgemoor Drive
Houston, Texas 081
USA
Tel [phone]
[phone] (outside U.S. and Canada)
Fax [phone]
Email [email protected]
Web www.logitekaudio.com
Contents © 2010 Logitek Electronic Systems, Inc
Notice
Every effort has been made to supply complete and accurate information. However, Logitek Electronic Systems, Inc. assumes no
responsibility for its use, nor any infringement of patents or other rights of third parties, which would result.
Worldwide rights reserved. Except for your own personal use, no part of this publication may be stored in a retrieval system,
transmitted or reproduced in any way, including but not limited to photocopy, photograph, magnetic or other record, without the
prior agreement and written permission of Logitek Electronic Systems, Inc.
Logitek, JetStream, and Pilot are trademarks of Logitek Electronic Systems, Inc.
All other trademarks acknowledged.
All specifications are subject to change without notice.

Document Revisions
Date Revision Author Notes
September 2010 0.5 Paul Dengate Preliminary release of Pilot manual
October 2010 1.0 John Davis, CBNT First release of Pilot manual
Logitek Pilot Reference Manual 4

Contents
Document Revisions................................................................................................................... 4
Contents 5
1 Introduction.............................................................................................................................. 6
2 Unpacking 10
3 P ysical Installation................................................................................................................ 11
4 Configuration...........................................................................................................................17
5 Operation 23
6 Maintenance............................................................................................................................ 26
Appendix A Release Notes......................................................................................................... 29
Appendix B Specifications.........................................................................................................30
Appendix C Pinouts....................................................................................................................32
Two Year Limited Warranty......................................................................................................33
Logitek Pilot Reference Manual 5

1 Introduction
About t is Manual
This manual describes the installation and operation of the Logitek Pilot control surface.
Intended Audience
This manual is aimed at Engineers responsible for installing, configuring and supporting a Logitek
Networked Console ystem with the Pilot surface.
In the context of a system installation, or to become familiar with the entire Logitek Networked
Console ystem, the reader should also reference:
JetStream Reference Manual
AEConfig Reference Manual
CommandBuilder Reference Manual
Manual Conventions
The following conventions are used in this manual:
This text indicates a menu choice to be made, with an arrow separating a multi-level selection,
eg Control Panel  Users & Passwords. This can be a menu choice in a Logitek application, or
within indows.
Indicates a “see-also” section in this manual, or another Logitek manual.
The exclamation symbol signifies an important note or critical information.
This text represents a command, script block example, instruction to
be typed, or directory path.
TIP: A useful tip from our knowledge base!
Logitek Pilot Reference Manual 6

About Pilot
The Pilot control surface from Logitek Electronic ystems brings you the flexibility of a router based
audio console system with the look, feel and easy handling that novice operators will understand,
and experienced console operators will appreciate.
The Pilot offers full access to the sources available on Logitek’s Jet tream routers, along with simple
bus selection and intuitive monitor controls. The Pilot is not compatible with the Logitek Audio
Engine.
The Pilot surface can be configured with 6, 12, 18 or 24 Faders. There is also a Monitor Module
containing the Monitoring and Selection functions. The module types include:
PLT-FADER 6 Fader Module
PLT-MON Monitor Control Module
In addition, a Meter Bridge (PLT-MTR) is available.
The main frame is available in a number of different sizes to accommodate the variety of fader
numbers. The frame is designed to be mounted on a desk for semi-permanent installation, but as no
cutouts are required it can easily be relocated.
The Pilot UK Console
Logitek Pilot Reference Manual 7

System Requirements
Pilot is designed to connect to a Logitek Jet tream running DSP version 4.x. Contact Logitek
Electronic ystems or your reseller if you are unsure of compatibility, or are adding a Pilot surface
to a pre-existing Logitek facility.
System Arc itecture
Put simply, the Pilot surface is just a remote control panel for the JetStream. Unlike traditional
analog consoles, no audio passes through the Pilot or its faders (with the exception of the cue
speaker audio). The Pilot talks to the JetStream using the Logitek Command Protocol, with all audio
processing occurring inside the router.
The mixing, routing and processing of audio is not dependent upon the embedded PC included
with the JetNet Audio Networking Module. However, additional functionality, such as macro
buttons, scene snapshots, intercoms, delay control and software tools interface to the system using
the JetStream Server application that is bundled with the module.
Logitek Pilot Reference Manual 8
Console Surfaces Jetstream
1 Audio
Network
Surfaces Audio Engines Ethernet Switches
Control Panels
Console Surfaces Jetstream
2
Control Panels
Business
Network
Serial Comms IP TCP/IP
Remote Support
Software vTools
Software vTools
Surfaces are remote
control panels for
Audio En ine
Audio En ines
process Audio and
GPI control events
Network switches
distribute audio,
control & sync
Client PCs
Software tools provide
remote control &
system maintenance
internet
Software vTools
Serial
TCP/IP
UDP/IP
Figure 1 - Logitek System Architecture (v4.x)

Compatibility Matrix
Pilot is designed for use ONLY with the Jet tream Router v4.x.
The Pilot retains compatibility with other surfaces for the majority of its features.
Following is the minimum software release version/date that is required for Pilot support on a
Jet tream Router v4.x system.
Component General upport Additional Features
JSM-DSP Controller v1.41
JetStream Server v4.0
CommandBuilder v3.6
AEConfig v3.6
Logitek Pilot Reference Manual 9

2 Unpacking
This section details what you should do when unpacking your newly arrived Pilot surface.
Parts List
The exact list of parts received will vary depending on your order, but should generally include:
1 x Pilot Power Supply (external brick-style)
1 x fully assembled Pilot frame, containing modules as ordered
1 x meter bridge assembly (option)
You will receive a parts list with the system that is specific to the modules on your order.
Unpacking
Carefully unpack the cartons whilst looking for any signs of shipping damage. You may wish to save
the shipping cartons until the operation of the system is verified.
Report any damage to the shipping carrier immediately. Verify that the contents of each box match
the packing list and report any discrepancies immediately to Logitek in writing.
Contacting Logitek
In the event of a shipping problem, you can contact Logitek Electronic ystems in several ways:
U. . Mail Logitek Electronic Systems, Inc.
5622 Edgemoor Drive
Houston, Texas 081
USA
Telephone [phone]
[phone] (outside U.S. and Canada)
Fax [phone]
Email [email protected]
Website www.logitekaudio.com
Logitek Pilot Reference Manual 10

3 P ysical Installation
The Pilot surface is designed to be mounted on a desk in a semi-permanent studio installation. The
Meter Bridge, if optioned, can be screwed to the back of the Pilot.
Power Supply Unit
The Power upply Unit is an external brick-style supply.
Power inlet is via a single IEC connector on the rear of the Power upply Unit. A power cable is
supplied only for US installations. International customers may contact their reseller for the supply
of power cables if required.
As the power supplies are of switch-mode type, there is no voltage selection required.
Pilot Frames
A number of Pilot frame sizes are available, depending on the total number of faders. Each module
takes up either one or two “slots” in the frame. The Monitor module occupies half the slot space of
a Fader module.
The frame will be shipped with the modules connected and fitted as ordered. These modules are
not intended to be moved, however Fader modules are interchangeable. The internal COM port
connections determine the device addressing for each modules.
Pilot-6 Frame
Houses 1x PLT-FADER & 1x PLT-MON
11.45” W x 15.4” D x 2.6” H (290mm x 391mm x 66mm)
Pilot-12 Frame
Houses 2x PLT-FADER & 1x PLT-MON
18.95” W x 15.4” D x 2.6” H (481mm x 391mm x 66mm)
Pilot-18 Frame
Houses 3x PLT-FADER & 1x PLT-MON
26.45” W x 15.4” D x 2.6” H (6 2mm x 391mm x 66mm)
Pilot-24 Frame
Houses 4x PLT-FADER & 1x PLT-MON
Logitek Pilot Reference Manual 11

33.95” W x 15.4” D x 2.6” H (862mm x 391mm x 66mm)
LED Meter (PLT-MTR)
A hardware LED Meter is available as an option. The Meter includes two high-resolution meters –
one for Program bus and one switched (follows Monitor selection).
TIP: If t e Pilot is powered on wit out being connected to t e JetStream, all meter LEDs
will illuminate. T is is normal operation; t e LEDs will turn off after being
connected to t e JetStream and t e console begins to receive meter data.
Mounting
The Meter option is supplied separately and attaches to the back of the Pilot frame with two
screws (included).
The ribbon cable from the Meter attaches to an internal header via a small ribbon cable. The
blue side of the ribbon cable should be up. Pass the ribbon cable through the frame and
push the ribbon into the connector until it comes to a stop and gently close the brown latch
on top of the ribbon cable. Take care to not use much force on this connector as it is very
fragile.
The Meter is not designed to be attached in another location.
Dimensions
8.2” W x 2” H x 0.5” D (208.28 mm x 50.8 mm x 12. mm)
The standard mounting adds 2.0 ” (52.5mm) to the height
Logitek Pilot Reference Manual 12
Figure 1: Pass the ribbon cable through the frame
Figure 2: Gently snap the latch onto the cable.

Logitek Pilot Reference Manual 1

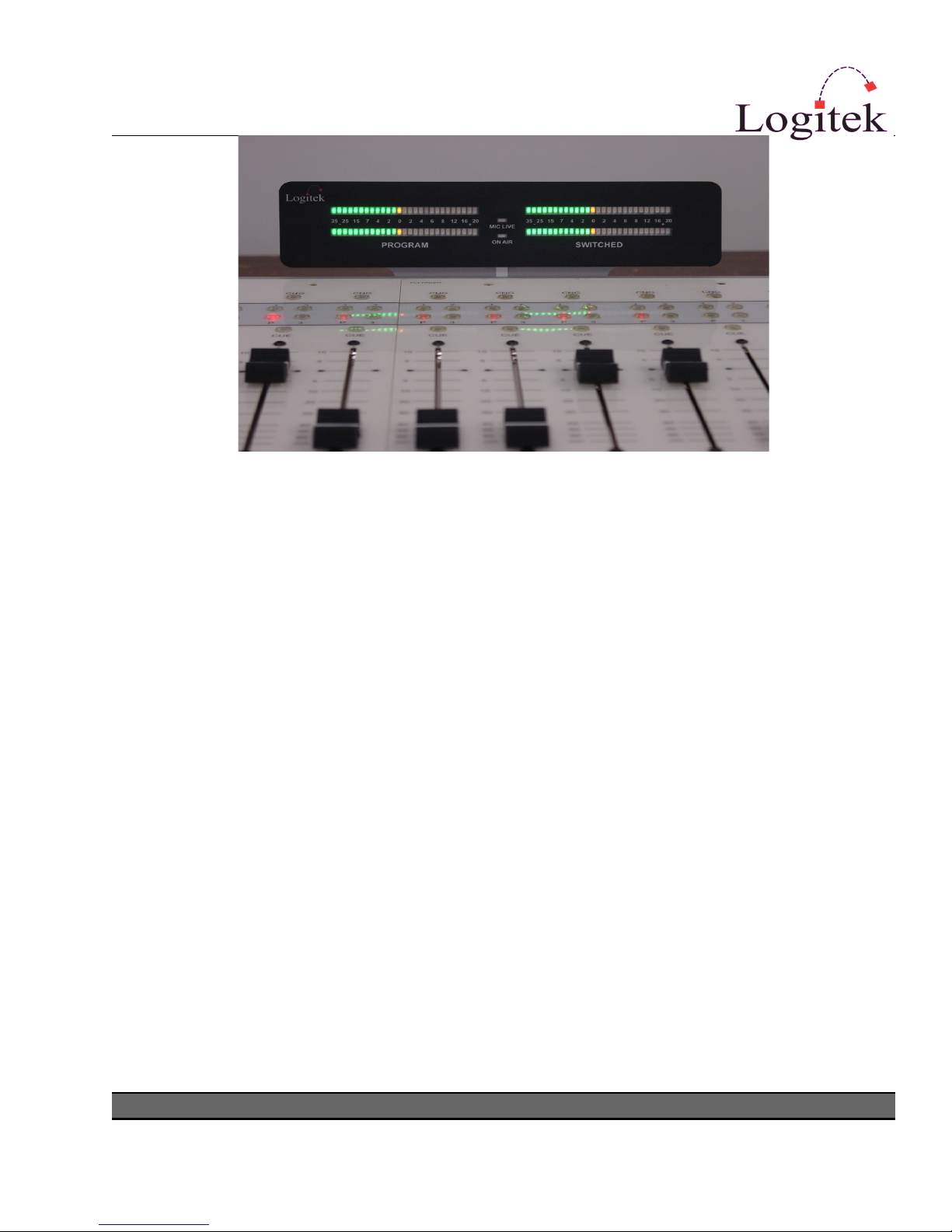

Figure 3: Pilot with Meter Bridge

Connections
The Pilot frame contains the control and GPI circuitry for the console. It connects to the Logitek
Jet tream Router via a serial link. Headphone audio pass-through connectors are also provided for
convenience.

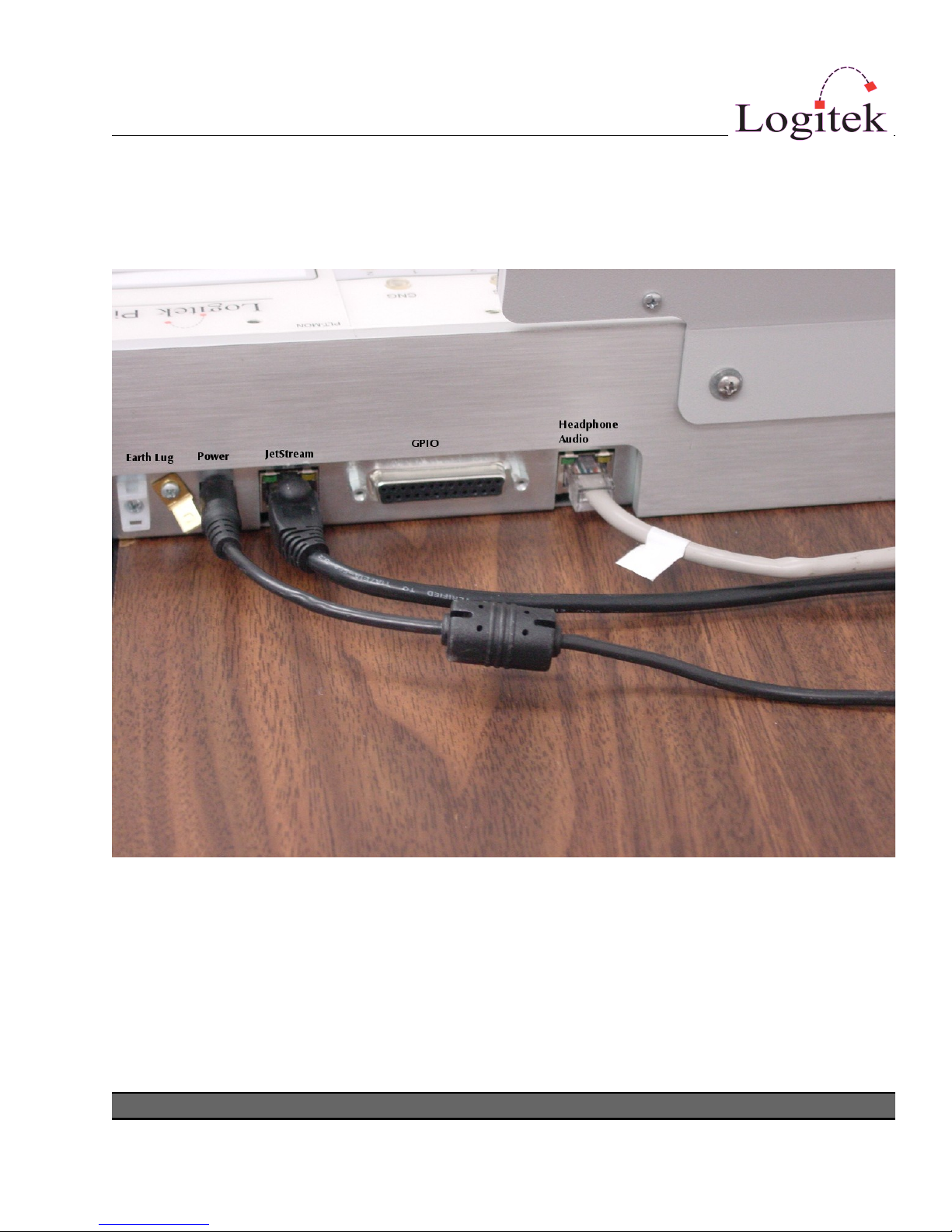

Figure 4 - Pilot Connection Diagram
PSU
The Pilot is powered by an external 12VDC 40W power supply, included with the console.
Connect the supply to mains using an IEC style inlet lead and the 12VDC to the rear of the Pilot.
The included supply can be replaced by any similar unit.
Logitek Pilot Reference Manual 14

Eart Lug
An earth lug is provided at the back of the frame for connection to station ground. The console also
is grounded through the power cord.
Frame to JetStream
The Pilot Frame connects to the Logitek Jet tream Router using a balanced serial link. Connection
from the Pilot to a Jet tream Router JSM-DSP card is via a straight-through RJ45 cable (CAT5 or
better is recommended).
You can use a dedicated CAT5 patch cable or existing structured cabling. If using structured cabling
systems, care should be exercised to ensure the serial connections are not confused with other
network outlets and that the link is not unintentionally “un-patched”.
Headp ones
The Pilot frame has a rear connection for Headphones input, which is internally wired to ¼”
(6.35mm) and 1/8” (3.5mm) headphone sockets at the front. This provides for convenient
headphone connection without the need to mount an in-desk or under-desk socket.
Connection from the Pilot to Jet tream Router is via a straight-through patch cable to a Jet tream
JSM-AOUT analog output card, which is suitable for driving headphones directly.
If you would prefer to provide a different audio connection, wiring is to the StudioHU + standard.
See Appendix C for connector pinouts.
GPIs
The Pilot urface has 6 GPI inputs and 9 GPI outputs for control of local studio devices.
GPI outputs are driven by optically-isolated, non-polarized, solid state switches, rated at 500ma to a
maximum voltage of 24V AC/DC, with surge to 2A. These solid state devices do not conduct at low
voltage, so cannot switch an audio input. However, they are suitable for most control signals, and
avoid problems with relay contacts being damaged by surges. Caution should be exercised to avoid
overloading the switches. If driving a high current device, we recommend using an external relay.
The GPI inputs are a current source to +3.3VDC that is pulled to ground to activate. This makes it
suitable for control by push-button, relay or open collector. A diode protects against static and over
voltage up to 18V. See the wiring diagram for polarity information if using non-standard activation
methods. A common ground is provided for input connection.
Logitek Pilot Reference Manual 15

GPI connections are on a single DB25 connector on the rear of the Pilot frame. As wiring schemes
vary from station to station, these cables are not supplied with the surface, but are available from
Logitek Electronic ystems. They can also be purchased from local suppliers in the required form.
See Appendix C for connector pinouts.
Internal Module Connections
Inside the frame, four RJ45 port connectors are provided for connecting to each Fader module.
These are provided as a straight-through flat cable, however any RJ45 patch will suffice.
The Monitor module connects to the internal PCB via the included flat rainbow ribbon cable. The
connectors are keyed to ensure you cannot reverse the cable.
The Meter has a short flat cable that connects directly to the Pilot frame motherboard. This is
plugged into the connector labeled JP4. The cable length is suitable to mount the Meter behind the
Pilot frame. The Meter cannot be located elsewhere due to its cable requirement.
Logitek Pilot Reference Manual 16
Figure 5: Internal Connections

4 Configuration
This chapter covers basic configuration information, relating specifically to the Pilot surface.
Jet tream setup and configuration is covered in detail in the following manuals:
Logitek JetStream Reference Manual
Logitek AEConfig Reference Manual
JetStream Configuration
Configuration of the Jet tream Router is done in AEConfig.
Currently, AEConfig does not include specific DSP table entries for the Pilot. You should use a
Mosaic surface of the appropriate size when configuring a Pilot. In the future, specific Pilot support
will be added to AEConfig, however, the two consoles are compatible in DSP allocations.
See the JetStream Reference Manual for information on configuring JetStreams.
CommandBuilder Triggers
The Pilot surface contains many programmable buttons and features. These features are scripted in
“triggers” in Command uilder, and executed by JetStream Server, w ic is included wit t e
JetNet Audio Networking Module.
See the Command uilder User’s Manual for information on writing Triggers.
The Command uilder manual includes details and examples of Pilot specific features, such as
Monitor Hotkeys, Bridge Buttons and more. The programming of these features does require a
certain level of familiarity with the system. If you need assistance, please contact Logitek Electronic
ystems or your reseller.
Logitek Pilot Reference Manual 17

Device & Bus Addressing
Each device (such as a fader input or button panel) requires its own Device Number. Within that
device, each button, lamp and feature has a Bus Number. Together, the Device and Bus Numbers
allow the Jet tream and urface to communicate.
When configuring the Pilot’s programmable buttons in Command uilder, you will require the
Device Number and Bus Number for each button or lamp. The information below will help you
determine the addressing scheme in use on your Pilot.
Modules
Module How Addressing is determined Max Modules upported
PLT-MON Uses the standard Monitor, Headphones, Guest/Studio & Cue Gain addressing 1
PLT-FADER Device Set determined by COM port allocation (pre-defined) 4 modules (24 faders)
PLT-METER Uses standard PGM Meter addressing 1
Device Numbers
In Pilot v1.x the Device Number of a module is determined by its firmware and position.
Dual Controls / Split Consoles
The Pilot does not support Dual Controls or Split Consoles. It is designed as a single self-contained
console.
Softkey Addressing
The twelve softkeys on the monitor module follow the Numix Bridge Button addressing scheme,
therefore the Bridge Button and Bridge Lamp keywords in Command Builder may be used.
The softkey buttons for a console connected to JetStream port 1 are on device 28 and the lamps are
on device 2 . For port 2, use device 50 for buttons and 4F for lamps. For port 3, use device 64 for
buttons and 63 for lamps. Bus numbers are 32-43.
For example, button #1 on a console connected to JetStream port 1 is device 28 bus 32 and
its corresponding lamp is device 27 bus 32. Alternatively, it is valid to address button #1 on
port 1 as sur 1 bridgebutton 1 and its corresponding lamp as sur 1 bridgelamp 1.
Command Builder will translate those keywords into the appropriate device and bus numbers.
Logitek Pilot Reference Manual 18

Port 1 – Button device 28/lamp device 27
Button 1 2 3 4 5 6 8 9 10 11 12
Bus 32 33 34 35 36 3 38 39 40 41 42 43
Port 2 – Button device 50/lamp device 4F
Button 1 2 3 4 5 6 8 9 10 11 12
Bus 32 33 34 35 36 3 38 39 40 41 42 43
Port 3 – Button device 64/lamp device 63
Button 1 2 3 4 5 6 8 9 10 11 12
Bus 32 33 34 35 36 3 38 39 40 41 42 43
The softkeys may be labeled by replacing the paper legend under the Lexan overlay.
Logitek Pilot Reference Manual 19
Figure 6: Pilot softkey buttons

Monitor Hotkey Addressing
There are four monitor hotkeys that may be addressed in Command Builder to route sources to the
control room monitors, headphones, and studio monitors.
Two of these hotkeys are labeled on the console: P (Program) and 1 (Aux 1). The other two may be
labeled by replacing the paper legend under the Lexan overlay.
Logitek Pilot Reference Manual 20
