GENERAL

Carefully read the contents of this leaflet since it

provides important instructions regarding safety of

installation, use and maintenance. Keep the leaet

for possible future consultation. All the operations

relating to installation/replacement (electrical connec-

tions) must be carried out by specialised personnel in

conformity with the regulations in force.

SAFETY WARNINGS

It is recommended to use at-bottom pans with a

diameter equal to or slightly larger than that of the

heated area. Do not use pans with a rough base to pre-

vent scratching the heat surface of the cooktop (Fig.2).

Before connecting the appliance to the electricity

supply:

- Check that the voltage and power values listed on

the data plate (positioned on the lower part of the

appliance) are compatible with the electricity supply

and socket. If you have any doubts, please consult a

qualied electrician for assistance.

Warning !

-Do not leave the heating

elements on with empty pots

andpansorwithoutreceptacles.

The process of cooking food

requires supervision; even

cookingjustforashortperiod of

time still requires your constant

attention

-When you have finished

cooking, switch off the relevant

heatingelementwiththecontrol

indicated below.

-Pay attention to easy to reach

device parts as they over-heat

during use.MAKE SURETO KEEP

CHILDREN AWAY FROMTHESE.

-Avoid spilling liquids like, for

example, oil or other types of

grease, as they can cause fires.

-Do not attempt to put fires out

usingwater.Turnoffthehoband

cover the flame with a lid or fire-

proof blanket.

-Do not leave objects on the

cooking surface, it may cause

fires.

-If cable is damaged, have

qualified personnel or After-

Sales Service replace it.

-Steam cleaners must not be

used.

-If the surface is cracked, switch

off the appliance to prevent

electric shock.

-This appliance can be used by

children aged from 8 years and

aboveandpersonswithreduced

physical, sensory or mental

capabilitiesorlackofexperience

andknowledgeiftheyhavebeen

givensupervision orinstruction

concerning use of the appliance

in a safe way and understand

the hazards involved. Children

shallnotplaywith theappliance.

Cleaning and user maintenance

shall not be made by children w

thout supervision.

-The appliance is not intended

to be operated by means of

external timer or separated

remote-control system.

- Using unsuitable protective

devices may cause accidents.

Please make sure to use only

protective devices which are

approved by the manufacturer

or supplied with the device.

· The principle of induction:

The system of cooking by induction is based on the

physical phenomenon of magnetic induction. The

fundamental feature of this system is direct transfer

of heat energy from the generator to the pan without

intermediate means (dierent from traditional cooker

tops).

Advantages:

If you compare your electric cooker tops, with the

induction cooker top, the result will be:

-Safer: low temperature on the glass surface.

-Quicker: brief heating times.

-More precise: the top reacts immediately to your

commands.

-More ecient: 90% of the energy absorbed is tran-

sformed into heat.

Furthermore, once the pan has been removed from

the hob, heat transmission is stopped immediately,

thereby preventing the needless dispersion of heat.

The system also automatically recognises the various

ENGLISH GB

- 26 -

diameters of all pans and uses a suitable power level

for each size. This means that we are able to use pans

of various sizes, provided that the pan diameter is

no more than 10% larger - or 40% smaller - than the

printed detail marked on the hob (Fig.2B).

Caution: if you are using a pan with a diameter which

is more than 40% smaller than the printing marked

on the glass, the cooking zone may not be activated.

Cooking vessels (Fig.2A):

Cooking by induction uses magnetism to generate

heat. The vessels must therefore contain iron.

Check if the vessel material is magnetic using a

magnet.

Important:

To prevent permanent damage to the cooker surface,

do not use:

-Pans with bases that are not perfectly at.

-Metal pans with enamelled bases.

-Do not use pans with rough bases as they may

scratch the hob’s surface.

INSTALLATION INSTRUCTIONS

These instructions address specialised installers and

serve as a guide for installation, adjustment and

maintenance in conformity with the laws and regula-

tions in force.

- If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly quali-

ed persons in order to avoid a hazard

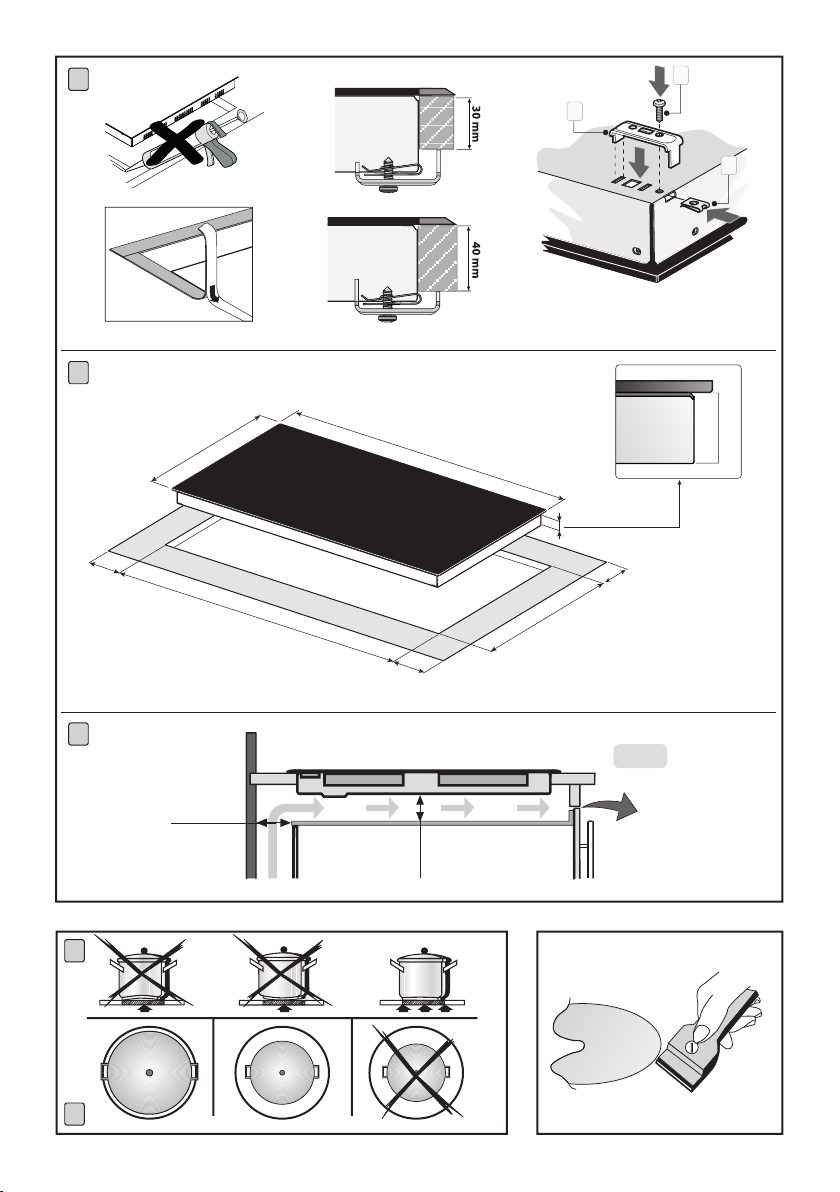

·Positioning (Fig.1)

The domestic appliance is designed to be built into

a worktop as illustrated in the specic gure. Apply

sealant around the entire perimeter (cut-out dimen-

sions Fig.1A).

Fix the domestic appliance on the worktop by means

of the 4 brackets provided, taking the thickness of

the worktop into account (Fig.1A). If the lower part

of the appliance, after installation, is accessible via

the lower part of the cabinet then it is necessary to

mount a separator panel respecting the distances

indicated (Fig.1C). After installation ensure that the

power cable remains perpendicular to the plane and

does not come into contact with adjacent metal parts.

Before connecting the model to power supply:

Check the data plate (located at the bottom of the de-

vice) to check that the voltage and power correspond

to that of the network and the connection socket is

suitable. If in doubt, consult a qualied electrician.

Electrical connections (Fig.4):

Before making the electrical connections, check that:

-The ground cable is 2 cm longer than the other cables;

-The system ratings meet the ratings indicated on

the identification plate fixed on the lower part of the

worktop;

-The system is fitted with efficient earthing compliant

to the laws and regulations in force.

If the appliance is not supplied with a cable, use a

cable of type: “H05V2V2-F”, that has a cross-section

suitable for the total power consumption of the device.

The cable should never reach a temperature which

is 50°C above the temperature of the room in which

it is installed. The appliance is to be permanently

connected to the electrical mains, therefore an

omnipolar switch must be inserted, enabling

complete disconnection under the conditions of

overvoltage category III; it must be fitted between

the appliance and the power supply, sized accord-

ing to the load and in compliance with the stand-

ards in force (the yellow/green earth wire must not

be interrupted by the switch). The omnipolar switch

must be easy to reach once the installation process

has been completed.

USE AND MAINTENANCE

·Maintenance

Remove any residues of food and drops of grease from

the cooking surface using the special scraper supplied

on request (Fig.3) Clean the heated area as thoroughly

as possible using SIDOL, STAHLFIX or similar products

and a cloth/paper, then rinse with water and dry with

a clean cloth. Using the special scraper (optional) im-

mediately remove any fragments of aluminium and

plastic material that have unintentionally melted on

the heated cooking area or residues of sugar or food

with a high sugar content (Fig.3). In this way, any

damage to the cooktop surface is prevented. Under

no circumstances use abrasive sponges or irritating

chemical detergents such as oven sprays or stain

removers.

Note: depending on the version that you have, the

unit could perform an auto setup by emitting sound

signals and activating all LEDs and Displays for a

several seconds upon initial connection to the power

supply. Do not operate any buttons or activate any

functions during this operation.

• Use (Fig.5):

A= ON/OFF key

B= Cooking zone display

B1= Cooking zone R2 display - Timer display

B2= Cooking zone R3 display - Timer display

C= Cooking zone selection key

D= “-” key / Timer “-”key

E =“+” key / Timer“+”key

I = Decimal point indicator

-To activate the hob, press the “ON/OFF” key. Some

zeros with flashing decimal points will appear for

about 20 seconds on all the displays.

If no operation is carried out within this time, the hob

will turn off.

-A cooking zone may be switched on by selecting

one of the“C” keys.

-The display will view the corresponding numbers; the

grading of the concerned zone will be intense while

the others will be weaker.

-Use “+”or“-” buttons to regulate the power level.

-By selecting the“-”key the power level goes directly

to 9.

-If after about 10 seconds no operation is carried out,

display shade goes back to the initial one.The hob will

continue its normal cooking.

-If the power level is set at zero, the cooking zone will

shut off.

- 27 -

-To turn off the cooking zone, select the

corresponding “C” key and switch the cooking level

to 0.

-The display will view the corresponding numbers; the

grading of the concerned zone will be intense while

the others will be weaker.

-All operations will be combined with a“BEEP”acoustic

signal.

-When a cooking zone “C” is brought to the OFF

position and the glass top temperature is greater than

approximately 50°, the display of the interested zone

will signal a fixed“H”.

Warning:

To prevent damage being inicted on the electronic

circuits, the hob is tted with an overheating safety

system.In situations where the appliance is used at

high power levels for a prolonged period of time, the

hob may switcho one or more of the activated zones

temporarily, until the temperatures return to the set

levels.On the display corresponding to the cooking

zone which has been temporarily switched o, the

power level will be shown in alternation with a E/2.

This will stop ashing once the cooking zone has

beenreactivated.

• Key function:

To keep children or persons needing supervision

from using the hob surface, all of the functions can

be blocked in the following way:

1- Switch to hob on (if it is off) by selecting the“ON/

OFF”key. The cooking zones must be off.

2-Press the “-” key and the R4 (Fig.5) key

simultaneously.

3- Press only the cooking zone R4 (Fig.5) key once

again.

The“L”letter indicating that the function is active will

appear on the display.

Should one or more zones still be hot, the letter “H”

and“L” will alternate on the relative displays.

-To deactivate the key function, switch the hob

off (if it is on) by selecting the“ON/OFF” key.

-Once it is off, switch the hob back on.

-Press the “-” key and the R4 (Fig.5) key

simultaneously.

-Press the“-”key a second time.

-Zeros will appear on all the displays for a few

seconds.

-If the cooker top is switched off with the KEY function

active, when subsequently activated the top will be

in the same situation, meaning with the KEY function

active.

-If the hob is switched on and the Lock function is

enabled, button ON/OFF will still work.

• Magnetic sensor:

-The hob is equipped with a pan sensor; when the

pan is removed or badly positioned, the symbol will

appear.

If, on the other hand, the surface of the glass is still

hot, the symbol will appear alternating with the .

• O.S.D. (Overow Safety Device):

The hob is equipped with a safety system which

moves all hotplates to the OFF position and activates

the safety lock when liquids or items are detected on

the control panel.

These symbols will ash on the display: .

They can be deactivated by removing the item or the

liquid. The hob will switch o automatically.

• Timer:

Note: the Timer can be activated on all the cooking

zones simultaneously.

This function allows to establish the time (from 1 to

99 minutes) or automatic switch-o of the cooking

zone selected.

Activation:

1- Select the cooking zone“C”.

2- Set the cooking level.

3-Press the “+” and “-” keys simultaneously. The

decimal point“•”will start to ash. The time on the

timer will appear on the relative displays.

4- Adjust the time within about 10 seconds by

using the “+” and “-” keys. By pressing the “-” key

directly the time will be set at 30 minutes.

-If the decimal point“•”appears on the displays, it

means that timer is active.

-During cooking the time set previously with the

timer is not displayed.

-In order to view the time remaining on the Timer

of a cooking zone, select that cooking zone and

then press the“+” and“-” keys simultaneously. On

the“B1” and“B2” displays the remaining time will

appear.

-When time is up an acoustic signal beeps and the

timer displays ash. Any key can be selected to stop

the acoustic signal. If you leave the acoustic signal

it will deactivate after about 2 minutes.

To deactivate the timer function before the set

time, select the cooking zone and then press the “+”

and “-” keys simultaneously. By selecting the “-”key a

second time the time goes to 0. After that the cooking

zone will continue its standard function.

• Minute Minder (Countdown):

This function can be used both with cooking zones

activated/deactivated and with the timer inserted.

-The Minute Minder allows to set an established

countdown that goes from 1 to 99 minutes.

On expiry of the time, the hob emits an acoustic signal

without changing the active functions.

Activation:

1- The function is activated with the hob on.

2- Press the “+” and“-”keys simultaneously.

3- Adjust the time within about 10 seconds by

using the “+” and “-” keys. By pressing the “-” key

directly the time will be set at 30 minutes.

-If no zone is activated or if the hob is deactivated

by selecting the ON/OFF key, the decimal point on

the R2 and R3 displays begins to flash.

-If the hob is turned on with the Minute Minder

function active, zeros will appear on all the displays.

By pressing the“+”and“-”keys simultaneously, the

remaining time will appear.

-In order to view the remaining time of the Minute

Minder press the“+” and “-” keys simultaneously.

On the “B1” and “B2” displays the remaining time

will appear.

-When time is up an acoustic signal beeps and the

timer displays ash. Any key can be selected to stop

- 28 -

the acoustic signal. If you leave the acoustic signal

it will deactivate after about 2 minutes.

To deactivate the Minute Minder function before

the set time, press the“+”and“-”keys simultaneously.

By selecting the “-” key a second time the time goes

to zero. After that the cooking zone will continue its

standard function.

It is possible to use the Minute Minder and the Timer

simultaneously.

• Booster:

The appliance is tted with a Booster system which

can be used to speed up cooking times through the

application of a power level which is greater than the

nominal value, within a dened period of time.

1- To activate it, switch on the concerned cooking

zone bringing the power level to 9.

2- By selecting the“+”key on the display the letter

“P”will appear.

-The Booster can be activated simultaneously on all

the enabled zones.

-The Booster function will be active for about 5

minutes, after which cooking will continue at level 9.

-In order to stop this function, select the concerned

cooking zone and the “-” key until you reach the

desired level.

-All operations will be combined with a“BEEP”acoustic

signal.

-The Booster might not turn on if the cooking zone

was activated previously with high temperature levels.

• Integrated power control (Fig.6):

Each phase (this is divided into two zones in a

horizontal line: F1 e F2) is capable of using a maximum

power of 3,700W.

If this is exceeded for example by activating the

Booster, the software automatically lowers power

of the previously selected zone until it reaches the

allowed power level.

The display of the zone with limited power will begin

to ash for about 3 seconds. During this time it is

possible to modify the power level.

• Bridge function(Fig.6):

The cooking zones can be connected in the cooking

process in the case of using large pans. To activate

the function:

- Turn on the hob and place the pan in the center of

the zones to be joined.

- Simultaneously press the two keys Con the left or

right based on the zones you want to activate.

- The symbol will appear on the display which

indicates the active function. Then adjust the power

with the Ckey at the bottom left or right.

If the pan does not cover the surface of the two

connected zones, the display will show the symbol

indicating that only one zone is active and not both.

-To deactivate the function, press the two keys Cagain

simultaneously on the left or right according to the

zones that has been activated or switch o the hob.

• Maintenance (Fig.3):

Remove any residues of food and drops of grease

from the cooking surface using the special scraper

supplied on request.

Clean the heated area as thoroughly as possible using

SIDOL, STAHLFIX or similar products and a cloth/paper,

then rinse with water and dry with a clean cloth.

Using the special scraper (optional) immediately

remove any fragments of aluminium and plastic

material that have unintentionally melted on the

heated cooking area or residues of sugar or food with

a high sugar content. In this way, any damage to the

cooktop surface is prevented.

Under no circumstances use abrasive sponges or

irritating chemical detergents such as oven sprays or

stain removers.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY FOR EVENTUAL DAMAGES

CAUSED BY BREACHING THE ABOVE WARNINGS.

- 29 -

• Error codes:

Error code: Description: Possible causes: Error recovery:

CThe cooking zone can be

congured if a static“C” is

shown.

It’s not an error, the user is in

the service menu.

A suitably pan must be placed on the

relevant cooking zone.

C/- The cooking zone will be

congured if a blinking“C”

is shown. After a successful

conguration the relevant

display shows“-”.

When the“-”is not displayed

please check the possible

causes of the E/5.

The user is in the service menu,

it’s not an error.

Wait for the sysmbol“-”or abort the

conguration activities by pressing the

selectkey and the “C” does not blink

anymore.

EA blinking “E” on each cooking

zone indicates, that all congs

will be deleted.

The user is in the service menu,

it’s not an error.

Manual conguration.

E/2 Temperature limits are

excessed.

Electronik temperature to high. System must cool down.

E/3 Unsuitable pot. Pot creates on the modul an

improper operating point

which can destroy devices,

e.g IGBT‘.

1. The error is automaticly cancelled

after 8s and the cooking zone can

be used again. In case of further

upcoming errors the pot have to be

changed.

E/4 Uncongured induction

modul.

Induction modul is not

congured.

1. Delete the hob conguration and

activate the manual conguration.

2. Start the UI service menu to

congure the induction modul.

E/5 No communication between UI

and induction modul.

No power supply of induction

modul.
