M Solutions MS-4K71-12TR User manual

User Guide
MS-4K71-12TR
Integrated UHD Tracking Camera
Revision: 1.0 - March 2022

02
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Introduction 03
Key Features 03
Connectivity Overview (Host and Device) 04
Understanding the LED’s 05
Cabling for HDBaseT 05
Audio 05
USB 06
RS-232 Control & Power 06
Specifications & Package Contents 07
Schematic 08
Contents
Notices
• This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of surge protection is highly recommended in order to protect and extend the life
of your equipment.
• The transmission distances of data over Cat cables are measured using TE CONNECTIVITY 1427071-6 EIA/
TIA-568-B termination (T568B) of cables is recommended for optimal performance. To minimise interference of
unshielded twisted pairs in the CAT5e/6 cable, do not run the Cat5e/6/6a cabling with or in close parallel proximity
to mains power cables.
• Do not substitute or use any other power supply other than the enclosed unit, or an MSolutions approved
replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the
manufacturer’s warranty.
• MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this,
physical representations or graphical elements contained within this user guide may not be accurate.

MS-4K71-12TR USER GUIDE
03
[e-mail] |www.m4sol.com
Introduction
The 4k Conference Camera from MSolutions delivers the best technical equipment available to ensure
smooth and productive video meetings. The MS-4K71-12TR tracking camera consists of two video cameras
with identical sensors: Pan-Tilt-Zoom (PTZ) for moving objects and Panorama cameras for a static object.
For example, lecturer and audience, classroom - the fixed Panorama camera targets the blackboard and the
PTZ camera tracks the lecturer.
The MS-4K71-12TR Conference Camera streams high quality image at 4K (3840x2160), allows a 71 degree
field of view, and 12x optical zoom. Even under poor light conditions, the camera will adjust automatically to
stream vivid video quality thanks to its automatic low-light correction technology. Furthermore, the camera
is designed with image recognition and tracking technology to achieve a smooth and natural tracking eect.
This camera captures both panorama and close-up HD video at the same time, a very convenient feature for
every occasion.
The built-in microphone is highly sensitive and equally picks up sounds from all directions. MS-4K71-12TR’s
noise reduction algorithm blocks out background noises, ensuring crystal clear conversations during video
meetings.
Key Features
• All-in-One Design - Integrated design, can output panoramic and close-up multi-channel HD
video at the same time.
• Intelligent Tracking- Built-in image recognition and tracking algorithms, without any prior
auxiliary camera positioning or tracking of the host, achieves a smooth and natural tracking
eect.
• Adjustable Viewing Angle - The viewing angle of the panoramic camera can adjust vertically
(15° ~ 0°), making it convenient for installation and configuration.
• 71 ° wide-angle lens + 12x optical zoom - Exclusive custom high-quality true 8 million ultra-high-
resolution 4K ultra-wide-angle lens with 12x optical zoom and horizontal field of view up to 71 °.
• H.265 encoding - H.265-encoded ultra-high-definition tracking camera, which can realize ultra-
high-definition 4K ultra-low-bandwidth transmission.
• Multiple interfaces - Supporting HDMI2.0 high-definition output, and it is also equipped with
a 3G-SDI interface. The eective transmission distance is up to 150 meters (1080p30). HDMI,
3G-SDI, USB3.0, LAN can output 4 HD digital signals at the same time.
• Built-in G-sensor - Support automatic image flip function, convenient for engineering
installation.
• 4K UHD - Using a 1 / 2.5 inch high-quality UHD CMOS sensor with a maximum size of 8.51
million pixels, it can achieve 4K (3840x2160) high-resolution high-quality images. Backwards
compatible with multiple resolutions such as 1080p, 720p.
• Built-in microphone - Built-in microphone array, omnidirectional pickup, pickup distance up to 6
meters, unique noise suppression algorithm, perfect speech presentation.

04
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Connectivity Overview

MS-4K71-12TR USER GUIDE
05
[e-mail] |www.m4sol.com
Product Installation
When the monitor thickness is >170mm or when it is required to be mounted on a wall, the wall
mounting method can be selected. The specific installation steps are shown in the following figure.

06
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Interface and Buttons
Dimensions
1 Network Interface
2 USB 2.0 Interface
3 RS232 IN Interface
4 RS232 OUT Interface
5 RS485 Interface
6 HDMI Interface
7 LINE IN Interface
8 3G-SDI Interface
9 USB 3.0 Interface
10 DC 12V Interface
11 Power Switch

MS-4K71-12TR USER GUIDE
07
[e-mail] |www.m4sol.com
Remote Control
Key Description
1. Standby Key
Press this button to enter standby mode. Press it again to enter normal
mode. Note: Power consumption in standby mode is approximately half of
the normal mode
2. Number Key
To set preset or call preset.
3. *Key
Used with other buttons.
4. Preset Key
Set preset: Store a preset position. [SET PRESET] + Numeric button (0-9):
Setting a corresponding numeric key preset position.
5. HOME Key
Confirm menu, enter the submenu or the PTZ will back to the middle
position after pressed it
6. Return Key
Return back the last level menu
7. Zoom Key
Slow Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+]
or Zoom Out [-] fast
8. Left/Right Setting Key
Press with 1 button and 2 button setting the direction of the Pan-Tilt.
• Simultaneously press L/R Set +1[STD]: set the Pan-Tilt turn the same
direction as the L/R Set.
• Simultaneously press L/R Set +2[REV]: set the Pan-Tilt turn the
opposite direction as the L/R Set.
9. Focus Key
Used for focus adjustment. Press [AUTO] adjust the focuses on the center
of the object automatically. Press [MANUAL] adjust the focus on the
center of the object manual. MANUAL button, and adjust it with [Far]
(Focus on far object) and [NEAR] (Focus on near object).
10. Selection Key
Press the button corresponding to the camera you want to operate with
the remote controller.
11. #Key
Used with other buttons.
12. IR Remote Control Key
[*]+[#]+[F1]: Address 1
[*]+[#]+[F2]: Address 2
[*]+[#]+[F3]: Address 3
[*]+[#]+[F4]: Address 4
13. Reset Key
Clear preset: Erase a preset position. [CLEAR PRESET] + Numeric button
(0-9) Or: [*]+[#]+[CLEAR PRESET]: Erase all the preset individually.
14. PTZ Control Key
Press arrow buttons to perform panning and tilting. Press [HOME] button
to face the camera back to front.
15. Menu Key
MENU: enter or exit OSD MENU.

08
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Remote Control
RS232 Interface & VISCA Network
Key Description
16. Backlight Key
BLC ON/OFF: Press this button to enable the backlight compensation.
Press it again to disable the backlight compensation.
NOTE:
• Eective only in auto exposure mode.
• If a light behind the subject, the subject will become dark. In this case,
press the backlight ON/OFF button. To cancel this function, press
backlight ON/OFF button.
17. PTZ Reset Key
Preset Pan/Tilt self-test.
18. Image Freezing Function
Manually freeze: Open the freezing function after press the remote control
[F4], display “Freeze” on the left upper corner character, after five seconds
display disappear automatically. If you want to cancel the freeze, press
[F4] key and then can return to normal, display “Unfreeze” on the left
upper corner, after five seconds display will disappear automatically.
Recalling the Preset image Freeze: By the OSD Menu “Image Freeze” to
set recalling the preset image freeze function. After the function is opened,
the screen will stay in before Recalling the Preset when Recalling the
Preset, the screen can be switched to the preset position screen until the
camera points to the preset position.
19. Shortcut Set
[*]+[#]+[1]: OSD menu default English
[*]+[#]+[3]: OSD menu default Chinese
[*]+[#]+[4]: Display current IP address
[*]+[#]+[6]: Quickly recover the default
[*]+[#]+[8]: View the camera version
[*]+[#]+[9]: Quickly set up inversion
[*]+[#]+[MANUAL]: Restore default IP address

MS-4K71-12TR USER GUIDE
09
[e-mail] |www.m4sol.com
Serial Communication Control
GUI Settings
• RS232 Communication Control
The camera is controlled via RS232. The RS232 serial port parameters are as follows:
Baud rate: 2400/4800/9600/38400;
Starting position: 1 bit
Data bit: 8 bits
Stop bit: 1 bit
Check digit: None
• RS485 Communication Control
Control camera via RS485, half duplex mode:
Baud rate: 2400/4800/9600/38400;
Starting position: 1 bit
Data bit: 8 bits
Stop bit: 1 bit
Check digit: None
After power on, the camera goes to the upper right limit and then back to the middle position. The zoom lens is pulled
to the farthest position, auto focus, and the aperture is adjusted to the default value. If the camera has preset 0 saved,
the camera will be set to position 0 after the initialization is completed. At this point, the user can use the serial port
command to control the camera.
• List of protocols (omitted)
The serial port of the camera follows the VISCA/Pelco-D/Pelco-P standard protocol. If secondary development is
required, the camera can be controlled according to the standard protocol.
MENU
Press [MENU] button to display the main menu on the normal screen, using
arrow button to move the cursor to the item to be set. Press the [HOME]
button to enter the corresponding sub-menu.
EXPOSURE
Move the main menu cursor to [EXPOSURE], and press [HOME] key enter the
exposure page, as shown in the following figure.
Mode: Exposure mode, optional items: Auto, Manual, SAE, AAE, Bright.
ExpCompMode: Exposure the compensation mode, optional items: On, O
(Eective only in Auto mode).cExpComp: Exposure the compensation value,
optional items: -7 ~ 7 (Eective only in ExpCompMode item to On).
Backlight: Set the backlight compensation, optional items: On, O (Eective
only in Auto mode). Bright: Intensity control, optional items: 0 ~ 17 (Eective
only in Bright mode). Gain Limit: Maximum gain limit, optional items: 0 ~
15 (Eective only in Auto, SAE, AAE, Bright mode). Anti-Flicker: Anti-flicker,
optional items: O, 50Hz, 60Hz (Eective only in Auto, AAE, Bright mode).
Meter: Optional items: Average, Center, Smart, Top. Iris: Aperture value,
optional items: F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, F11.0,
Close (Eective only in Manual, AAE mode). Shutter: Optional items: 1/30,
1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/6000, 1/10000 (Eective only in Manual, SAE mode). Gain:
Optional items: 0 ~ 7 (Eective only in Manual mode). DRC: DRC strength,
optional items: 0 ~ 8.

10
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
GUI Settings
COLOR
Move the main menu cursor to [COLOR], and press [HOME] key enter the
color page, as shown in the following figure.
WB-Mode: White balance mode, optional items: Auto, Indoor, Outdoor, One
Push, Manual, VAR. RG Tuning: Optional items: 0 ~ +10 (Eective only in Auto
mode); -10 ~ +10 (Eective only in One Push, VAR mode). BG Tuning: Optional
items: 0 ~ +10 (Eective only in Auto mode); -10 ~ +10 (Eective only in One
Push, VAR mode). Saturation: Optional items: 60% ~ 200%. Hue: Optional
items: 0 ~ 14. AWB Sens: The white balance sensitivity, optional items: Low,
Middle, High. RG: Red gain, optional items: 0 ~ 255 (Eective only in Manual
mode). BG: Blue gain, optional items: 0 ~ 255 (Eective only in Manual mode).
Color Temp: Optional items: 2500K ~ 8000K (Eective only in VAR mode).
Move the main menu cursor to [IMAGE], and press [HOME] key enter
the image page, as shown in the following figure. Luminance: Brightness
adjustment, optional items: 0 ~ 14. Contrast: Contrast adjustment, optional
items: 0 ~ 14. Sharpness: Sharpness adjustment, optional items: Auto, 0 ~ 15.
Flip-H: Image flipped horizontally, optional items: On, O. Flip-V: Image Flip
Vertical, optional items: On, O. B&W-Mode: Optional items: On, O. Gamma:
Optional items: EXT, PC, 0.45, 0.5, 0.56, 0.63. Style: Optional items: Default,
Outdoor, Cozy, Norm, Bright, PC. LDC: Optional items: O, -10 ~ +10.
P/T/Z
Move the main menu cursor to [P/T/Z], and press [HOME] key enter the
P/T/Z page, as shown in the following figure. SpeedByZoom: The depth of
field scale switch, optional items: On, O. AF-Zone: Interested in focusing area,
optional items: Top, Center, Bottom. AF-Sense: Automatic focusing sensitivity
options, optional items: Low, Normal, High. L/R Set: Optional items: STD, REV.
Display Info: Optional items: On, O. Image Freeze: Optional items: On, O.
Digital Zoom: Optional items: O, 2x, 4x, 8x, 16x. Call Preset Speed: Optional
items: 1 ~ 24. Pre Zoom Speed: Optional items: 0 ~ 7.
NOISE REDUCTION
Move the main menu cursor to [NOISE REDUCTION], and press [HOME] key
enter the noise reduction page, as shown in the following figure. NR2D Level:
2D noise reduction, optional items: O, 1 ~ 10. NR3D Level: 3D noise reduction,
optional items: O, Auto, 1 ~ 9.
SETUP
Move the main menu cursor to [SETUP], and press [HOME] key enter the
setup page, as shown in the following figure. Language: Optional items:
EN, Chinese, Russian. DVI Mode: Optional items: DVI, HDMI. Video Format:
Optional items: 1080P30, 4KP29.97, 4KP25, 4KP30, 1080P25,
1080P60. HDMI FRAME: Optional items: Feature, Panorama. SDI FRAME:
Optional items: Feature, Panorama, Interweave. Current Menu: Optional items:
Feature, Panorama.

MS-4K71-12TR USER GUIDE
11
[e-mail] |www.m4sol.com
GUI Settings
Network Function
COMMUNICATION SETUP
Move the main menu cursor to [COMMUNICATION SETUP], and press
[HOME] key enter the communication setup page, as shown in the following
figure. Protocol: Control protocol type, optional items: Auto, VISCA, PELCO-D,
PELCO-P. V_Address: Optional items: 1 ~ 7. (Eective only in Auto, VISCA
protocol). V_AddrFix: Optional items: On, O (When set to On, useless in 88
30 01 FF Command). P_D_Address: Optional items: 0 ~ 254. (Eective only in
Auto, PELCO-D protocol). P_P_Address: Optional items: 0 ~ 31.
(Eective only in Auto, PELCO-P protocol). Net Mode: Set the serial port
network control, optional items: Serial, Paral. Baudrate: Serial port baud rate,
optional items: 2400, 4800, 9600, 38400.
RESTORE DEFAULT
Move the main menu cursor to [RESTORE DEFAULT], and press [HOME]
key enter the restore default page, as shown in the following figure. Restore:
Confirm restore factory settings, optional items: Yes, No. Note: Press [HOME]
button to confirm, all parameter restore default, include IR Remote address
and VISICA address.
Operating Environment
Operating System: Windows 7/8/10, Mac OS X, Linux, Android
Network Protocol: TCP/IP
Client PC: P4/128M RAM/40G HDD/ support
scaled graphics card, support DirectX 8.0 or more advanced version.
Equipment Installation
1) Connect video conference camera to your internet or to your PC via network cable.
2) Turn on DC 12V power.
3) If the network connection is normal, the connection light (green) at the network interface will light up within 5
seconds, and the data indicator (orange) will flash, indicating that the physical connection of the camera has been
completed.
Internet Connection
There are two main ways to connect video conference camera.
Connect by Network Cable Connect by Switch/Router

12
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Network Function
Camera Controlled by LAN
Setup IP Address
If you don’t know camera IP, view as below:
Method 1: Press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
Method 2: Connect camera to PC with network cable, use “upgrade_En.exe” to search for IP address.
Change IP address, two methods as below:
Method 1: Login the web page, select “Network > Lan Settings”, change IP address, subnet mask and gateway. Click
“Apply” and restart the camera.
Method 2: Open “upgrade_En.exe”, change IP and click “Set”. After modified, the video conference camera will be
restart.

MS-4K71-12TR USER GUIDE
13
[e-mail] |www.m4sol.com
Network Function
Change IP Address
Step 1 Search the IP address of camera.
Step 2 Select the camera IP of you want to change.
Step 3 Select the config dialog of upgrade applets.
Step 4 Change the IP address, netmask and gateway, then click “Set”.
Step 5 Finish.
Visit/Access Camera
Input http://192.168.100.82 to IE (the teacher camera IP address: 192.168.100.82; the student camera IP address:
192.168.100.92), a login window pop up, input username: admin, password: admin, shown as below:
After login, shown as below:
If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to VLC
website http://www.videolan.org/vlc/#download and Install the 32-bit VLC (player software). After installation, login
again, will show as above.
Camera Controlled by WAN
Setup IP Controlled by Dynamic DNS
Two dynamic DNS: Dyndns.org, 3322.org.
Router Port Mapping:
Take Tenda router for example, enter the Router Home Page (interface page),
select “Advanced”- “Virtual Server”, add a new port number in “Ext Port”,
add a new port number in “Int port”, put camera IP address to
“Internal IP”, then select “Save”, shown as here:

14
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Network Function
Dynamic DNS Visit Camera
Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link: http://
hostname: port number. For example, setup host computer name: youdomain.f3322.org, the camera port number is 89,
the access link should be http://youdomain.3322.org:89.
If the camera port default is 80, then unnecessary to input port number, use host name can access camera directly.

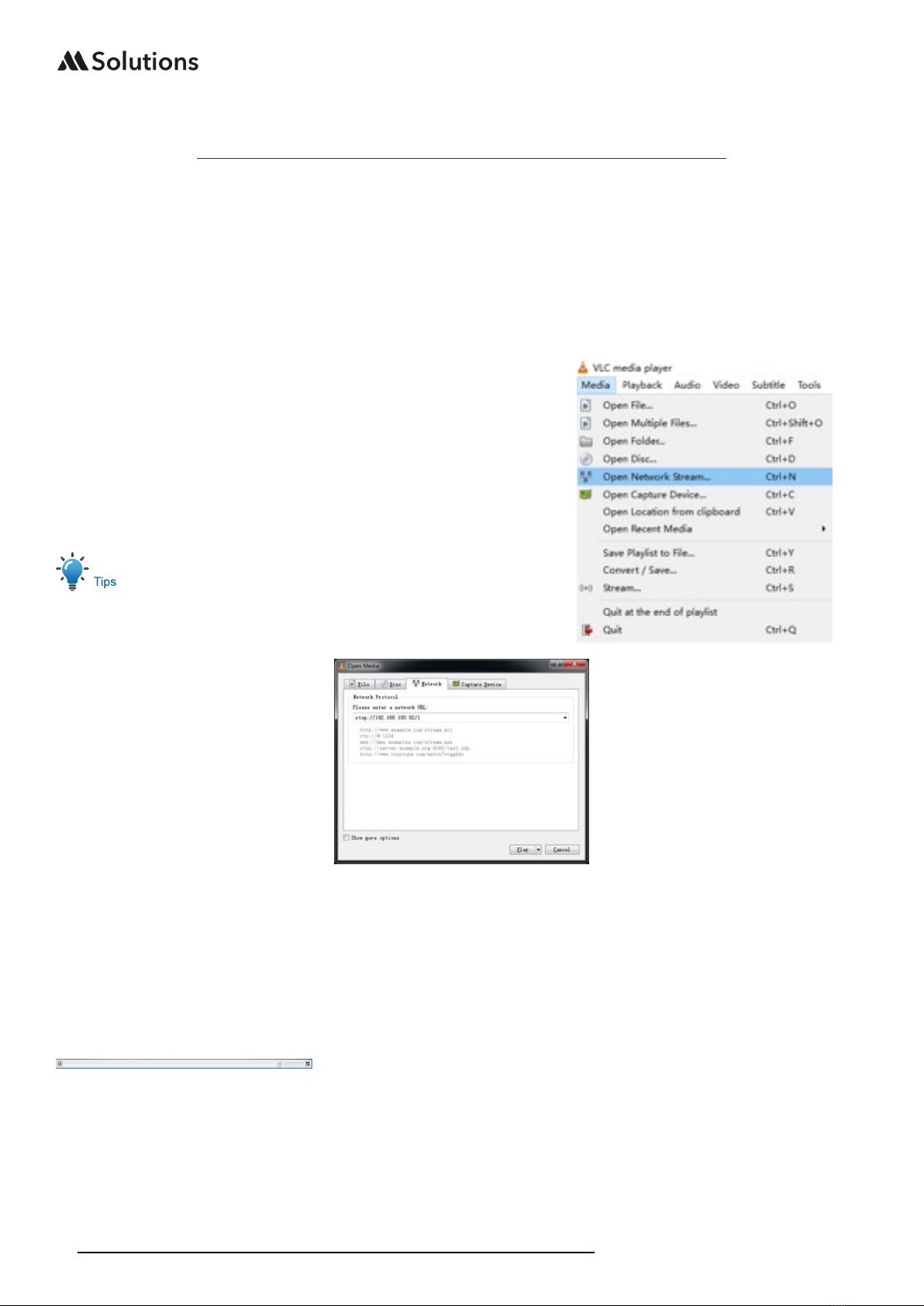

VLC Stream Media Player Monitor
Visit VLC Media Server Procedure
Step 1 Open VLC media player.
Step 2 Click “Media > Open Network Stream”, or click “Ctrl + N”; as here:
Step 3 Input URL address:
rtsp://ip: port number/1 (First stream);
rtsp://ip: port number/2 (Second stream).
Step 4 Click “Play”.
RTSP port number default 554. If the camera port default is 80,
then unnecessary to input port number of URL address.
Camera Parameter Setup
Homepage Introduction
Menu
All pages include two menu bars:
Real time monitoring: displaying video image Parameter setup: with function buttons.
Video Viewing Window
Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is.
Double click viewing window, will show full-screen, double click again, will return to initialized size.
Status bar in viewing window shown as below:
1) Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again.
2) Audio control buttons: can adjust the volume or set silent mode.
3) Full screen switch button.

MS-4K71-12TR USER GUIDE
15
[e-mail] |www.m4sol.com
Network Function
PTZ Setup
1) Pan and Tilt Control
Up, Down, Left and Right arrows and the home button allow you to
manually drive the camera to the desired position.
2) Zoom
Zoom In and Zoom Out buttons allow for wide or narrow view of the
space.
3) Focus
Focus In and Focus Out buttons allow for fine manual focus
adjustment if the camera has any problems auto focusing on the
diicult object.
4) PTZ Speeds
Pan speed can be set at any rate between
1 ~ 24, Tilt speed can be set at any rate between 1 ~ 20. Zoom and
Focus speeds can be set at any rate between 0 ~ 7.
5) PTZ Presets
After manually setting up a shot that you would like to return to
later, you can save presets for quick recall of these positions. Type a
number between 0 and 254 into the Preset box.
Click the “Set” button to save the current location with that preset number. Click the “Call” button to cause the camera
to return to that position. This enables smooth, quick and convenient control without the need to manually drive the
camera. You can set up preset that user want as below.
Method 1: Type a number into the Preset box.
Preset: Optional items: 0 ~ 254.
Method 2: Type the name into the Presets Information.
Click “Set” button, when PTZ turn to other position, click “Call”
button or click “No.” of the Presets Information, PTZ will turn back to
preset position.
PTZ / OSD Dropdown
From the dropdown menu, clicking the OSD option will open the on-
screen display menu of the camera giving you control from within the
IP interface.
Language Selection
Click either “Chinese”, “English” or “Russian” to change the language
of the webpage.

16
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Network Function
Video Settings
Set domain name to camera, setup the parameter, then dynamic DNS can
access camera. Access link: http://hostname: port number. For example,
setup host computer name: youdomain.f3322.org, the camera port number
is 89,
1) Encode Level
Support baseline, mainprofile and highprofile three levels.
2) Encode Protocol
Support H.264, H.265 and MJPEG three
protocols.
3) Resolution
First stream support 3840x2160, 1920x1080,
1280x720, 1024x576, 960x540, 640x480,
640x360. Second stream support 3840x2160,
1920x1080, 1280x720, 1024x576, 720x576,
720x408, 640x360, 480x270, 320x240,
320x180. The bigger resolution is, the clearer
the image will be, more network bandwidth will
be taken.
4) Bit Rate
The user can specify the bit rate. Generally speaking, the larger of the bit
rate, the clearer of the image. However, the configuration of the bit rate
needs to be combined with the network bandwidth. When the network
bandwidth is narrow and the bit rate is configured larger, the video stream
cannot be transmitted normally, and the visual eect is worse.
5) Frame Rate
User can specify the size of the frame rate, generally, the frame rate greater,
the image more smooth; Frame rate is smaller, the more sense of beating.
6) I Key Frame Interval
Set interval between 2 I frame, the bigger interval is the response will be
lower from viewing window.
7) Bit Rate Control
Constant Bit Rate: Video coder will be coding according to preset speed.
Variable Bit Rate: Video coder will adjust the speed based on preset speed
to gain the best image quality.
8) Fluctuate Level
Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6.
9) Slice Split Enable
Enable or disable slice split function.
10) Split Mode
Select split mode, optional item: Fixed blocks.
11) Slice Size
Set the size of slice.

MS-4K71-12TR USER GUIDE
17
[e-mail] |www.m4sol.com
Network Function
Image Settings
1) Brightness
Image bright 0 ~ 14, slider control, on the right
shows the corresponding numerical.
Default value is 7.
2) Saturation
Saturation 0 ~ 14, slider control, on the right
shows the corresponding numerical.
Default value is 5.
3) Contrast
Contrast 0 ~ 14, slider control, on the right
shows the corresponding numerical.
Default value is 7.
4) Sharpness
Sharpness 0 ~ 15, slider control, on the right
shows the corresponding numerical.
Default value is auto.
5) Hue
Hue 0 ~ 14, slider control, on the right shows the corresponding numerical.
Default value is 7.
6) Flip & Mirror
Tick Flip to realize image upside down, tick mirror to realize image around
the mirror. Default value is not tick.
Audio Settings
1) Audio Switch
Enable or disable audio switch.
2) Audio Type
Audio type AAC.
3) Sample Rate
Optional items: 44.1K, 48K.
4) Bit Rate
Optional items: 96K, 128K, 256K.
5) Input Type
Optional items: Line in, MIC.
6) Input Vol L
The volume of the left channel.
7) Input Vol R
The volume of the right channel.
8) ADTS Options
Optional items: On, O.

18
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Network Function
System Settings
1) Work Mode
The default work mode is RTSP.
Optional items: RTSP, SDK, Multicast.
2) Reboot
Click the “Reboot” button, system restart.
3) Username and password
The user can modify the password (letters and Numbers only).
Network Settings
1) Lan Settings
The teacher camera IP address:
192.168.100.82; the student camera IP
address: 192.168.100.92, the MAC address
cannot be modified.
2) Port Settings
A. HTTP Port
IP address identifies the network device, the device can run multiple web
applications, each network program using network port to transmit data, so
data transmission to be carried out between the port and port. Port setting
is to set up web server program using which port to transmit. When port
mapping, need to be consistent with the port number (default port: 80).
B. RTSP Port
The video conference camera support RTSP protocol, use the VLC tools
broadcast, default port: 554.
C. PTZ Port
Support PTZ protocol, default port: 5678.
D. UDP Port
Support UDP protocol, default port: 1259.
3) Control Protocol Settings
Setting the camera control communication protocol, include Visca address,
Pelco-D address and Pelco-P address.
4) RTMP(S) Settings
Setting the MRL of RTMP, select enable or disable video and audio. You can select control code stream of “On”, “O”,
“Video”, “Audio” between in the two streams.
5) RTSP Settings
Turn On/O RTSP auth.
6) ONVIF Settings
Turn On/O ONVIF and ONVIF auth.
7) Multicast Settings
Turn On/O multicast. Setting the multicast address (default value is 224.1.2.3) and port (default value is 6688, then
6688 is the multicast port of the first stream; 6690 is the multicast port of the second stream).
8) SDK Settings
Turn On/O active connection. Setting SDK address (default value is 192.168.100.138) and port (default value is 1234).
7.6.7 Device Information
Display the current device information, as shown below.
Download the Upgrade Program
If you need the camera upgrade program, please contact the manufacturer.

MS-4K71-12TR USER GUIDE
19
[e-mail] |www.m4sol.com
Maintenance and Troubleshooting
Camera Maintains
• If camera will not be used for a long time, please turn o the power switch, disconnect AC power cord of AC
adaptor to the outlet.
• Please use soft cloth or tissue to clean the camera cover.
• Please use soft dry cloth to clean the lens. If the camera very dirty, clean it with diluted neuter detergent. Do not use
any type of solvents, which may damage the surface.
Unqualified Application
• No shooting extreme bright object for a long period of time, such as sunlight, light sources, etc.
• No operating in unstable lighting conditions, otherwise image will be flickering.
• No operating close to powerful electromagnetic radiation, such as TV or radio transmitters, etc.
Troubleshooting
• The monitor shows no image
1) Check that the camera power supply is connected, the voltage is normal, and the power indicator light is always on.
2) Turn o the power switch to check whether the camera is self-testing.
3) Check the cable of video platform and TV whether correct connection.
• Sometimes without the image
Check the cable of video platform and TV whether correct connection.
• Image have jitter when the camera lens at max multiple
1) Check whether the camera installed position be stabled.
2) Check whether have vibrating machinery or object near the camera.
• There is no video image in IE Browser
Please visit VLC website
(http://www.videolan.org/vlc) download and install the 32-bit VLC media player, after it installed, visit video conference
camera will have normal image display.
• Unable to access video conference camera through IE Browser
1) Using PC to access the network to test whether the network access can work properly, first of all, the network fault
caused by the PC virus can be eliminated, until the PC and video conference camera can communicate with each other
Ping.
2) Disconnect the network, connect video conference camera and PC separately, and reset the IP address of PC.
3) Check IP address, subnet mask, and gateway settings for video conference camera.
4) Check whether the MAC address is conflicts.
5) Check whether the web port is occupied by another device.
• Forget the IP address or login password
Please remember the teacher camera IP
address: 192.168.100.82; the student camera
IP address: 192.168.100.92; the default user
name: admin; the default password: admin.
Control
• Remote control cannot control
1) Check and replace the new battery for the remote controller.
2) Check whether the camera working mode is correct.
3) Check whether the address of remote control can match the camera.
• Serial port cannot control
1) Check whether the camera protocol, address and baud rate such is the same.
2) Check whether the control line is connected well.

20
[e-mail] |www.m4sol.com
MS-4K71-12TR USER GUIDE
Specifications
Device
• USB-C connectivity: 1 x USB-C (female) -
peripheral
• USB control: 1 x Micro USB (female)
• RS-232 connectivity: 1 x 3-pin phoenix
connector, block included
• Power supply (PoC): 1x 12V/2A DC
• Individual unit dimensions (W x D x H): 60 x
84 x 25mm
• Individual unit weight: 0.2kg
• Operating temperature: 32°F to 104°F (0°C
to 40°C)
• Storage temperature: -4°F to 140°F (-20°C to
60°C)
• Operating humidity: 0-80% non condensing
Host
• USB-C connectivity: 1 x USB-C (female) -
host
• USB control: 1 x Micro USB (female)
• RS-232 connectivity: 1x 3-pin phoenix
connector, block included
• Power supply (PoC): 1x 12V/2A DC
• Individual unit dimensions (W x D x H): 60 x
84 x 25mm
• Individual unit weight: 0.2kg
• Operating temperature: 32°F to 104°F (0°C
to 40°C)
• Storage temperature: -4°F to 140°F (-20°C to
60°C)
• Operating humidity: 0-80% non condensing
Package Contents
• Camera x1
• AC Power Adaptor x1
• Power Cable x1
• RS232 Cable x1
• USB 3.0 Cable x1
• Remote Control x1
• 2P Phoenix Head x1
• User Manual x1
