Mahindra 16 SERIES User manual
ABOUT THIS MANUAL
This Manual has been prepared to assist you in following the correct procedure for break-in,
operation and maintenance of your new Mahindra tractor.
Your tractor has been designed and built to give maximum performance,with good fuel economy
and ease of operation under a wide variety of operating conditions.Prior to delivery,the tractor
was carefully inspected,both at the factory and by your Mahindra dealer,to ensure that it reaches
you in optimum condition.To maintain this condition and ensure trouble free performance,it is
important that the routine service,as specied in this manual,are carried out at the recommended
intervals.
Read this manual carefully and keep it in a convenient place for future reference.If at any time
you require advice concerning your tractor, do not hesitate to contact your authorised Mahindra
dealer.He has trained personnel, genuine Mahindra parts and necessary equipments to
undertake all your service requirements.
Mahindra USA Inc's.policy is one of continuous improvement, and the right to change prices,
specications or equipments at any time without notice is reserved.
All data given in this book is subject to production variations.Dimension & weight are
approximate only and the illustrations do not necessarily show tractors in standard condition.
For exact information about any particular tractor, please consult your Mahindra dealer.
INTRODUCTION
I
INTRODUCTION
This instruction manual contains information on the operation, lubrication and maintenance
of your tractor. The information contained is comprehensive and essential, and is designed to
assist you, even if unexperienced, in utilizing your tractor.
How well your tractor continues to give satisfactory performance depends greatly upon the
manner in which it is operated. It is, therefore, requested that this manual be read carefully and
kept ready for use so that the operation and maintenance service will properly be carried out in
order to keep the tractor in top mechanical condition at all times.
Should any information as to your tractor be required, consult your local dealer or distributor
stating the machine and engine serial numbers of the tractor concerned. We are sure you will
be happy with your tractor.
NOTE: Expressions such as LEFT, RIGHT, FRONT, or REAR used in this manual should be
understood in accordance with following rules:
FRONT means the front grill end while REAR means the lifting arm end of the tractor. LEFT or
RIGHT means the left or right hand side of the tractor looking forward from operator’s seat.
LEFT
REAR
RIGHT
FRONT
TURN RIGHTTURN LEFT
SERIAL NUMBERS
II
SERIAL NUMBER
Write your machine Model Name and Serial Numbers of major components on the lines
provided. If needed, give these numbers to your dealer when you need parts or information for
your machine.
1. TRACTOR MODEL NUMBER
2. TRACTOR SERIAL NUMBER
3. ENGINE SERIAL NUMBER
4. ROPS SERIAL NUMBER(Only Open Model)
5. CABIN SERIAL NUMBER(Only CABIN Model)

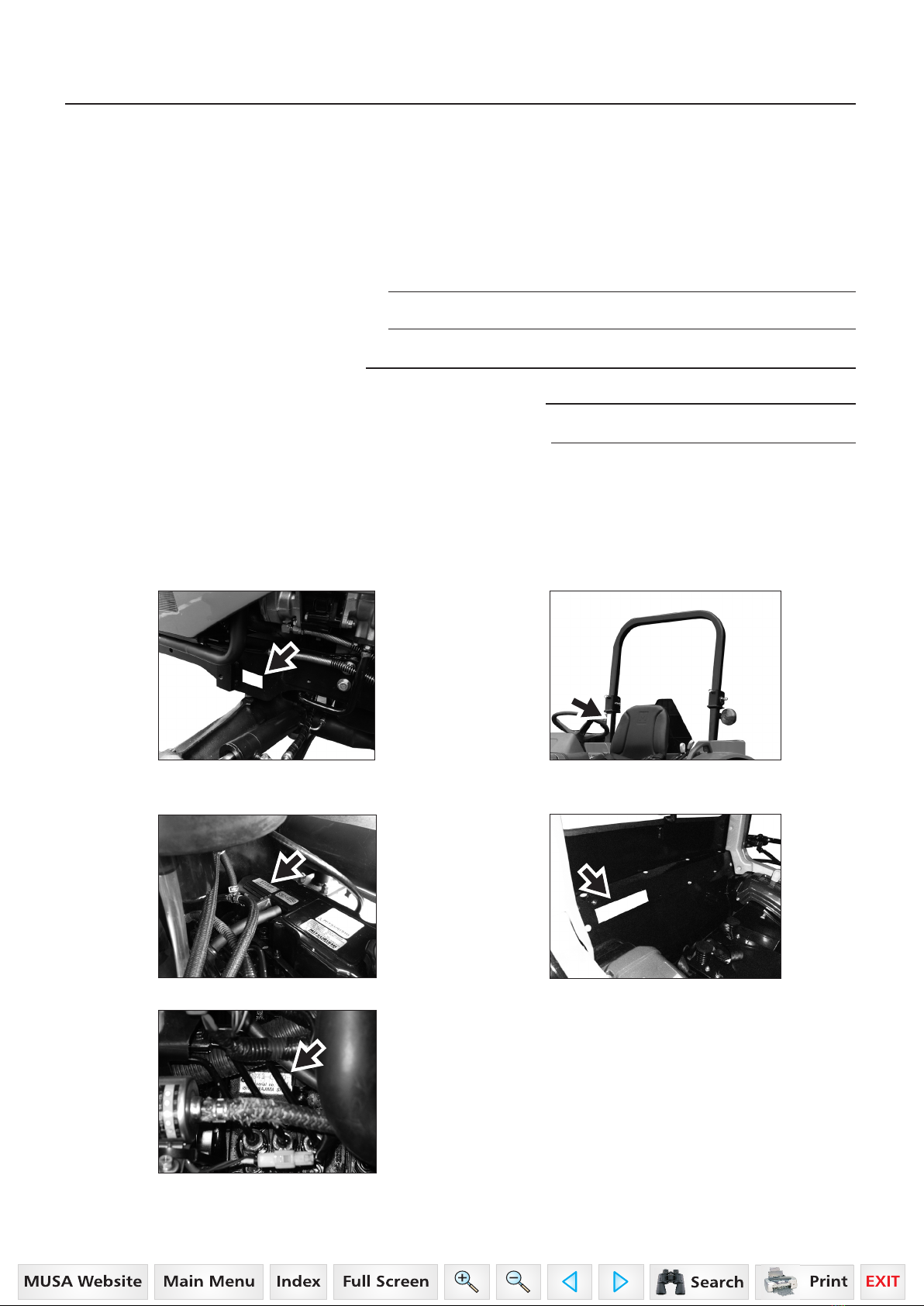

SERIAL NUMBER LOCATIONS
ROPS SERIAL NUMBER PLATETRACTOR MODEL NUMBER AND SERIAL
NUMBER PLATE
ENGINE SERIAL NUMBER
(3016)
(3616)
CABIN SERIAL NUMBER PLATE
GENERAL TABLE OF CONTENTS
Safety/Decals……….….….….….….….….….….….….….….…..….….….….….….….1-14
Specifications……….….….….….….….….….….….….….….….….….….….….….15-22
Instruments/Controls….….….….….….….….….….….….….…….….….….….….23-40
Operating Instructions….….….….….….….….….….….….….…….….….….….….41-64
Field Operation….….….….….….….….….….….….….….….….….….….…….….65-76
Tires/Wheels/Spacing/Ballast.….….….…..…….….….….….….….….….….….….77-84
Lubrication/Filters/Fluids….….….….….….….….….….….….….….….….….….….….….….85-116
Maintenance/Adjustments….….….….….….….….….….….….….….….….….….….….….117-122
Electrical System….….….….….….….…..….…….….….….….….….….….….….….….123-129
Storage….….….….….….….….….….….….….….….….….….….….….….….….….….….130-133
Cabin….….….….….….….….….….….….….….….….….….….….….….….….….….….134-147
SAFETY/DECALS
1
SAFETY PRECAUTIONS
REMEMBER: "SAFETY" IS ONLY A WORD UNTIL IT IS PUT INTO PRACTICE
Improper handling of the tractor could cause an accident. Prior to the operation of the tractor,
be sure to read this Manual carefully and have a through understanding of all of the contents.
In particular, the instructions given in this section entitled "Safety Precautions" must be strictly
followed.
A. GENERAL OPERATING SAFETY
PRECAUTION
1. Observe all the safety precautions in this
manual when operating the tractor.

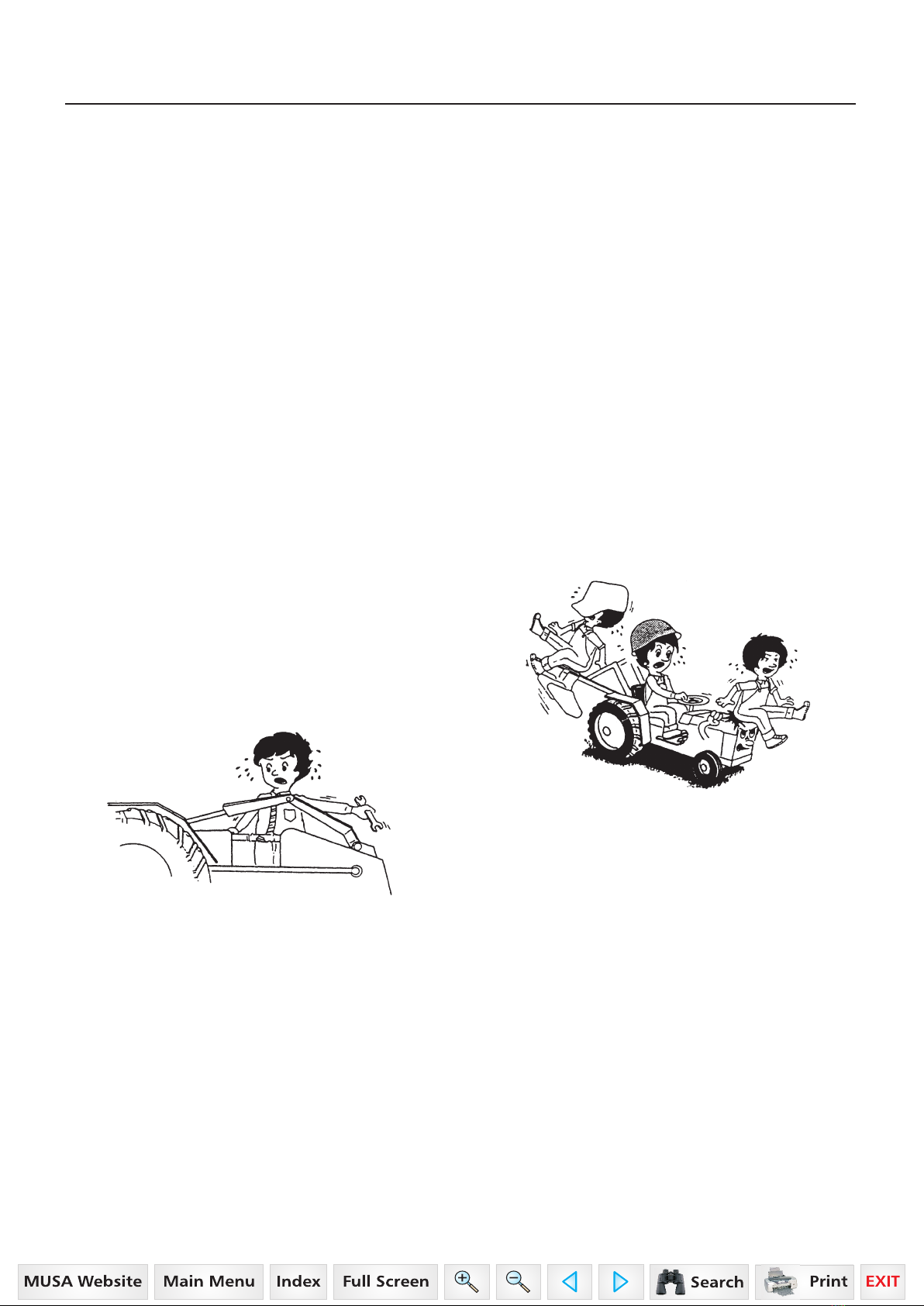

2. Operate the tractor while wearing tight
clothing that allows easy movement.
Avoid loose jackets, mufflers, ties,
scarves, or loose shirt sleeves to prevent
from being caught by moving parts.
3. Always work when you are in good
physical condition by taking sufcient rest
to avoid overwork.
4. Do not allow children or adults having
no knowledge of the tractor or tractor
operation, to operate the tractor.
5. Never allows riders on the tractor, linkage
drawbar or attachment while traveling and
operating them.
B. BASIC SAFETY REQUIREMENTS
FOR MAINTENANCE
Always follow these maintenance instructions
before operating the tractor:
1. Immediately repair the head lights and
work lamps required to conform to trafc
regulations where the tractor is operated.
2. Keep tractor steps clean to avoid
accidents due to slippage.
SAFETY/DECALS
2
3. Cover the PTO shaft with a guard when
not using.
4. Be sure to engage the brake and lower
any attachment or implement before
disassembling any part.
5. Never adjust or service the tractor when
it is in motion or while the engine is
running. Always adjust the brake or clutch
properly in accordance with the adjusting
procedure in the instruction book.

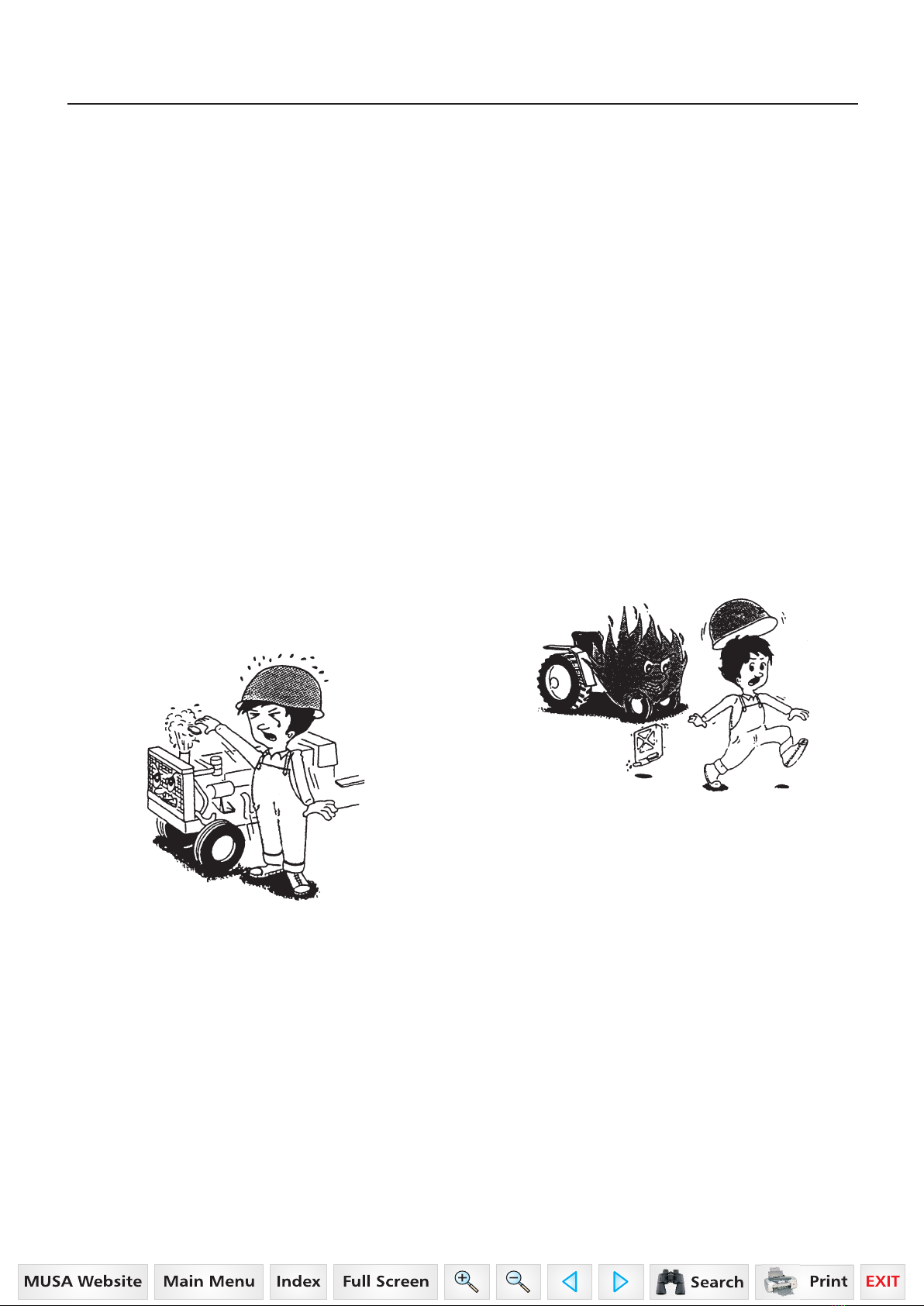

6. Do not remove the radiator cap while the
engine is running. Shut down the engine
and wait until it cools sufficiently. For
removal, turn the cap to the first stop to
relieve pressure. To replace the coolant,
use the coolant recovery tank.
7. Hydraulic oil or fuel escaping under
pressure can penetrate the skin, causing
serious injury. Before disconnecting oil or
fuel lines, be sure to relieve all pressure.
Before restoring pressure after repair,
be sure all connections are tight and
all hydraulic components are in normal
condition. If injured by leaked uid, see a
doctor immediately for proper treatment.
8. When refueling, be particularly careful rst
to stop the engine completely to prevent
the fuel from igniting. Never refuel in
the presence of an open flame or while
smoking.
SAFETY/DECALS
3
9. Before starting any work on electrical
equipment or work that may cause you
to touch the electrical parts accidentally,
rst disconnect the battery cables. Never
remove the rubber cap cover at the
positive terminal of the battery cable
end. Before connecting the battery to
the charger, make sure that the charger
switch is in "OFF" position.
Be sure to connect the charger to the
correct terminals on the battery (positive
to positive, negative to negative).
A great amount of hydrogen gas is
generated by the battery when it is being
charged. Take precautions against re: Do
not have any exposed flame in the area
where you are working.
Be sure not to cause any leakage of the
electrolyte, since it will corrode the skin or
clothing. In case of accident as described
below, immediately seek rst aid, and see
a doctor immediately for proper treatment.
a) If the diluted sulphuric acid from the
battery has gotten into the eyes:
Clean the eyes with a lot of clean running
water for more than 15 minutes, while
opening the eyes widely, and see a doctor
immediately for proper treatment.
b) If the diluted sulphuric acid from the
battery has been swallowed: Rinse the
mouth with clean water immediately,
and see a doctor immediately for proper
treatment.
c) If diluted sulphric acid has gotten on the
skin of clothing: Wash away the diluted
euphoric acid completely with a lot of
clean running water and neutralize with
soap solution. Then rinse with water.
d) If the diluted sulphric acid is spilled: Wash
away with a lot of water or neutralize with
slacked lime or bicarbonate of soda.
10. Stop the engine and make sure the PTO
shift lever is in Neutral before performing
any of the following services, including.
a) Removal of the propeller shaft between
PTO and any attachment.
b) Adjustment of PTO drive train and hitch.
c) Adjustment or cleaning of PTO driven
attachment.
11.The steering wheel always wheel always
has built-in play to some extent, which is
required for smooth meshing of sector
gear and pinion gear.
Always inspect the amount of the play. Do
not operate the tractor if there is too much
or too little play in the steering.
SAFETY/DECALS
4
C. OPERATION OF THE TRACTOR
Before driving the tractor, follow these rules:
1. Before starting and Driving the Tractor
Operate the tractor only when seated
properly in operator’s seat and keep a
rm grip on the steering wheel at all times.
Never attempt to perform any operation
of the tractor from anywhere else, on or
off the tractor. Always wear a "hard hat"
when operating the tractor.
2. Starting and Driving the Tractor
Always operate the tractor at the proper
speeds which enable you to keep the
tractor in complete control.
To start traveling, lower the engine speed
and release the clutch pedal slowly.
Before leaving the tractor, stop the
engine, remove the key, apply the parking
brake and make sure that the engine
has come to a complete stop, and any
attachment is completely touching the
ground.
SAFETY/DECALS
5
Slow down when operating the tractor on
rough round.
Never attempt to jump on or off from
moving tractor.
When starting the tractor, operating any
attachment or engaging the PTO make
sure that no one is in the way, especially
children.
When starting the engine in an enclosed
area or building, ensure proper ventilation
by opening the doors and/or windows to
prevent carbon monoxide inhalation.
Mount the extension exhaust pipe on the
tractor which has a cabin.
SAFETY/DECALS
6
3. Traveling on Roads and Streets
For traveling on roads and streets, be
sure to lock both brake pedals together
before driving to prevent either brake from
acting independently.
Never operate the differential lock while
driving at high speed or traveling on the
road. For driving the 4-WD tractor on the
road, be sure to place the 4-WD shift
lever in OFF position.
4. Steering and Turning the Tractor
Slow down your tractor and disengage
the differential lock before going into
a turn, being careful to prevent any
attachments mounted on the front or rear
from hitting anyone or anything.
5. Towing and Operating on Hills
For towing work on downward slope,
place the shift lever in low speed and use
engine brake.
Never try to reduce the speed with brake
only.
Towing a heavy object on a hill is highly
hazardous. Widen the tread of the tractor
and mount the wheel weight or chassis
weight to increase the stability and
operate with extra precaution.
SAFETY/DECALS
7
When operating the tractor on either a
steep slope or at ground, be sure not to
suddenly steer, brake, clutch or operate
attachments.
Do not operate the tractor at the edge of
cliff or slope. Be particularly careful right
after the rain when soil is soft and may
give way easily.
For towing, be sure to use the drawbar
only. Set the hitch point below the center
line of the rear axle. When using a chain,
never try to move forward abruptly.
Avoid operating the tractor on an extreme
slope that appears hazardous, when
forced to operate on such slope, use
extra care. Driving forward out of a ditch
or mired condition or up a steep slope
could cause tractor to tip over rearward.
Back out of such situation does not
permit you back out, use the front wheel
weight or the chassis weight for balancing
the tractor lengthwise. Also in case any
extra-heavy rear mounting. Attachments
is used, try to obtain better balance in this
manner.
C-6. Using Attachment
To mount or operate attachment, follow
the instruction manual for the particular
attachment for safe operation.
When using agricultural chemicals with
an attachment on the tractor, always
follow the instructions in the manual for
the attachment as well as the instructions
provided by the chemical manufacturer.
SAFETY/DECALS
9
１９４６ ８８６５
ＣＡＵＴＩＯＮ
Improper service methods may cause Injury.Air
Refrigenrat Under Pressure
conditioning system SHOULD be serviced by a
qualified personnel.See Service Manuals for
ＭＦＤ．ＢＹ ＤＥＮＳＯ ＣＯＲＰＯＲＡＳＩＯＮ ＪＡＰＡＮ．
ＨＦＣ１３４ａ
Ｒｅｆｒｉｇｅｒａｎｔ
Ｍａｘ．０．９５ｋｇ（２．０９ｌｂｓ．）
Ｍｉｎ．０．８５ｋｇ（１．８７ｌｂｓ．）
ＵＳＥ ＯＮＬＹ
ＮＤ－ＯＩＬ
ＯＲ ＥＱＵＩＶＡＬＥＮＴ
ＳＡＥ
Ｊ－６３９
８
ｏｉｌ
Details
(CABIN)
(CABIN)
This manual suits for next models
3
Table of contents
Other Mahindra Lawn Mower manuals
