Mahindra 3535 User manual

OPERATOR’S MANUAL
'35' Series 4WD
3535 / 4035 / 4535 / 5035
HST

35 Series-HST, Model - 3535, 4035, 4535 & 5035
OPERATOR’S MANUAL
'35' Series - HST
Model - 3535, 4035, 4535 & 5035
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents are
known to the State of California to cause cancer,
birth defects and other reproductive harm.
If this product contains a gasoline engine:
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer,
birth defects or other reproductive harm.
The state of California requires the above two warnings.

35 Series-HST, Model - 3535, 4035, 4535 & 5035
Contents
Emission Control Warranty for California 5
Emission Control Warranty for Federal 9
About this manual 13
Introduction 14
General Description 16
Owner Assistance 17
Owner’s Personal Data 18
ROPS 19
Safety Instructions 20
Safety Signs 24
Universal Symbols 28
LH & RH View of Engine 29
Lamps 30
Controls, Instruments & Operations 31
Instrument Cluster 32
RPM Meter 33
Hour Counter 33
Fuel Gauge 33
Coolant Temperature Gauge 33
Turn Indicators 34
High Beam Indicator 34
Heater Indicator 34
Parking Brake Indicator 34
4WD Indicator 34
Battery Charging Indicator 34
Voltmeter 34
Engine Low Oil Pressure Indicator 34
Switches 35
Hazard Switch 35
Combination Switch 36
Horn 36
Light Switch 36
Turn Signal Switch 36
Starter Key Switch 36
Work Lamp Switch 36
PTO ON/OFF Switch 37
PTO Auto / Manual / Off Switch 37
Power Take Off 38
Controls 39
Operator Seat 40
Adjusting Seat Position 40
Weight Adjustment 40
Tilt Adjustment 40
Using Seat belt 40
Release Seat belt 40
Slow Fast Valve Control Knob 40
Hand Throttle Operation 41
Increasing Engine Speed 41
Engine tachometer speed 41
Decreasing Engine Speed 41
Constant Speed Setting 41
Forward-Reverse Operation 41
Can Holder 41
Glove Box 41
Tilt Steering 42
Tilt Adjustment 42
4WD Engagement Lever 42
Brake 43
Parking brake 43
Differential Lock Pedal 44
Range Shift Lever 44
Cruise Control Lever 45
Hydraulic Remote (Auxiliary Valve) Operation 45
Loader 46
Opening the Hood 46
Closing the Hood 46
Removing Side Panels 47
Assembling the Side Panels 47
Air Cleaner Clog Indicator 47
Hydraulic System & Operation 48
Position Control-Operation 49
Quadrant Assembly 49
Position Control 49
Setting of Position Control 49
Draft Control - Operation 50
Draft Control 50
Setting the Draft Control 50
Three Point Linkage 51
Toplink 51
Draft Sensing Bracket 51
Telescopic Lower Links 51
Adjustable Lift Rod RH 52
Lateral Stabilizers 52
Lift Rod LH 52

35 Series-HST, Model - 3535, 4035, 4535 & 5035
Contents
Attachments 53
Drawbar 53
Attaching PTO Driven Implement 53
Drawbar 54
Wheel Tread Adjustment 55
Pneumatic Tires 56
Adding Liquid Weight 56
Inflation 56
Care of Tires 57
Shipping Tractors Equipped with 57
Pneumatic Tires
Tire Protection during Storage 57
Mounting Tires on the Rim 57
Operating Instructions 58
Before Starting The Tractor 58
Starting the Tractor 58
Stopping the Engine 58
Cold Starting Aid 58
Driving the Tractor 59
Tractor Storage 59
Using The Tractor After Storage 59
Precautions 60
Operating the Tractor 60
The Tractor 61
Driving the Tractor 61
Servicing the Tractor 61
Operating the PTO (Power Take Off) 62
ROPS 62
Transporting Tractor on a Trailer 62
Towing 62
Diesel Fuel 62
Do’s & Dont’s 63
Maintenance 64
Cooling System 64
Radiator 64
Radiator Cap 64
Surge Tank 64
Thermostat 64
Water Pump 65
Hose Connections 65
Fan & Fan Belts 65
Draining the System 65
Cleaning out Dirt and Sludge 65
Adding Coolant to the System 66
Cooling System Protection 66
Trashguard 67
Adjusting The Valve Clearance 67
Air Intake System 68
Air Cleaner 68
Body Air-Cleaner 68
Cyclopack or built-in Pre-Cleaner 68
Paper element filter 68
Safety Cartridge 68
Dust Collector Bowl 68
Hose and Clamps 68
Fuel System 69
Clean Diesel Fuel 69
Bleeding the Fuel Filter 69
Bleeding the Fuel Injection Pump 69
Fuel Tank and Fuel Pipes 69
Tamper Proofing 69
Fuel Filter 70
Servicing the Fuel Filter 70
Lubrication System 71
Oil Level Check 71
Oil Change 71
Engine Oil Filter 71
Changing Spin On Filter 71
Electrical System 72
Battery Maintenance Cleaning 72
Servicing 72
Effect of Low Temperatures 72
Alternator 73
Charging Circuit 73
Starter Motor Removal 73
Hydraulics & Transmission 74
Adding Hydraulic & Transmission Oil 74
Front Axle 74
Hydraulic & Transmission Suction Oil Filter 75
Hydraulic & Transmission Strainer 75
Transmission Oil Drain 75
Hydrostatic Transmission (HST) Oil Filter 76
Transmission Oil Cooler 76

35 Series-HST, Model - 3535, 4035, 4535 & 5035
Contents
Toe-in Setting 77
Front Axle - Front Wheel “Toe-in” Check 77
Brake Pedal Free Play 78
Head Lamp Adjustment 79
Lubricants 80
General 80
Lubricant Storage 80
Alternate and synthetic lubricants 80
Diesel Engine Lubricating Oil 80
Mixing of lubricants 80
Engine Oil 81
Transmission, Hydraulics & 82
Oil Immersed Brakes
Chassis Lubricant (CL) 82
Front Axle 82
Oil Specifications Chart 82
Special Bolt Torques 83
Specifications 84
Trouble Shooting 92
Engine 92
Hydraulics 96
Brakes 97
Transmission 97
Rear Wheels 97
Electricals 97
Power Steering 98
Tractor History Card 99
Service Record 100
Part Replacement Record 101
Daily Operating Log 102
Tractor Storage Precautions 104
Lubrication & Greasing Chart 105
Routine Service Schedule 106
Electrical Circuit Layout 107

5
35 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for California
Product Warranty
Product warranty is provided as part of Mahindra &
Mahindra Limited support program for customers
who operate and maintain their equipment as
described in this manual.
Engine related warranties stated in this manual refer
only to emissions-related parts and components of
your engine. The complete engine warranty, less
emission-related parts and components, is provided
separately as the Limited Warranty for New Mahindra
& Mahindra Limited Commercial & Consumer
Equipment.
Mahindra & Mahindra Limited And California
Emission Control System Warranty (heavy duty off-
road Compression ignition engines)
Your Warranty Rights and Obligations
The California Air Resources Board (CARB) and
Mahindra & Mahindra Limited are pleased to explain
the emission control system warranty on your 2010
heavy duty off-road compression ignition engine. In
California, new heavy-duty off road compression
ignition engines must be designed, built and
equipped to meet the State’s stringent anti-smog
standards. Mahindra & Mahindra Limited must
warrant the emission control system on your heavy
duty off-road compression ignition engine for the
periods of time listed below provided there has been
no abuse, neglect or improper maintenance of your
engine.
Your emission control system may include parts such
as the fuel-injection system and the air induction
system. Also included may be hoses, belts, connectors
and other emission-related assemblies.
Where a warrantable condition exists, Mahindra &
Mahindra Limited will repair your heavy duty off-road
compression ignition engine at no cost to you
including diagnosis, parts and labor.
Mahindra & Mahindra Limited Emission Control
System Warranty Coverage
In California, 2010 heavy duty off-road compression
ignition engine emissions control-related parts are
warranted by Mahindra & Mahindra Limited for five
years or 3000 hours of operation, whichever occurs
first. If any emission related part on your engine is
defective, the part will be repaired or replaced by
Mahindra & Mahindra Limited.
Owner’s Warranty Responsibilities
As the heavy duty off-road compression ignition
engine owner, you are responsible for the
performance of the required maintenance listed in
your owner’s manual. Mahindra & Mahindra Limited
recommends that you retain all receipts covering
maintenance on your heavy duty off-road engine, but
Mahindra & Mahindra Limited cannot deny warranty
solely for lack of receipts or for your failure to ensure
the performance of all scheduled maintenance.
As the heavy duty off-road engine owner, you should
however be aware that Mahindra & Mahindra Limited
may deny you warranty coverage if your heavy duty
off-road engine or a part has failed due to abuse,
neglect, improper maintenance or unapproved
modifications.
Your engine is designed to operate on Diesel fuel only.
Use of any other fuel may result in your engine no
longer operating in compliance with California’s
emissions requirements.
You are responsible for initiating the warranty
process. The CARB suggests that you present your
heavy duty off-road engine to an authorized
Mahindra & Mahindra Limited Commercial and
Consumer Equipment Dealer / Retailer as soon as a
problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to
exceed 30 days.
“If you have any question regarding your warranty
rights and responsibilities, you should contact
Mahindra, USA Inc at 1-877-449-7771.
Length of Warranty Coverage
Mahindra & Mahindra Limited warrants to the initial
owner and each subsequent purchaser that the heavy
duty off-road compression ignition engine is:
• Designed, built and equipped so as to conform
with all applicable regulations adopted by the
California Air Resources Board (CARB) for 2010
pursuant to its authority in Chapters 1 and 2, Part,
Division 26 of the Health and Safety Code; and
• Free from defects in materials and workmanship
which can cause the failure of a warranted part to
be identical in all material respects to the part as
described in the application of Mahindra &
Mahindra Limited for certification for a period of
five years or 3000 hours of operation, whichever
occurs first, after the engine is delivered to the
initial retail purchaser. Mahindra & Mahindra
Limited is liable for damages to other engine
components caused by the failure of a warranted
part during the warranty period. If any emission
related part on your engine is defective, the part
will be repaired or replaced by Mahindra &
Mahindra Limited.
Warranted Parts
Coverage under this warranty extends only to the
parts listed below (the emission control system parts)
to the extent these parts were present on the engine
purchased.

635 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for California
Fuel Metering System:
• Fuel injection system
Air Induction System:
• Air Cleaner
• Intake manifold
• Turbocharger system
• Charge Air Cooling Systems
Exhaust Gas Recirculation (EGR) System:
• EGR valve
• EGR rate feedback and control system
Positive Crankcase Ventilation (PCV) System:
• Oil Filler Cap
Miscellaneous Items Used in Above Systems:
• Vacuum sensitive EGR valve.
• Electronic Control Unit (ECU for EGR control)
• Hoses, connectors, assemblies, clamps, fittings,
tubing, sealing gaskets and mounting hardware
Since emission related parts may vary slightly from
model to model, certain models may not contain all
of these parts and certain models may contain
functionally equivalent parts.
Warranty Service and Charges
Warranty service shall be provided during customary
business hours at any authorized Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer. Repair or replacement of any
warranted part will be performed at no charge to the
owner, including diagnostic labor which leads to the
determination that a warranted part is defective, if
the diagnostic work is performed at an authorized
Mahindra & Mahindra Limited Commercial and
Consumer Equipment Retailer. Any parts replaced
under this warranty shall become the property of
Mahindra & Mahindra Limited.
Maintenance Warranty Coverage
a) Any warranted part which is not scheduled for
replacement as required maintenance shall be
warranted for the warranty period defined in
subsection “Length of Warranty Coverage.” If any
such part fails during the period of warranty
coverage, it shall be repaired or replaced by
Mahindra & Mahindra Limited. Any such part
repaired or replaced under the warranty shall be
warranted for the remaining warranty period.
b) Any warranted part which is scheduled only for
regular inspection shall be warranted for the
warranty period defined in subsection “Length of
Warranty Coverage” to the effect of “repair or
replace as necessary” shall not reduce the period
of warranty coverage. Any such part repaired or
replaced under the warranty shall be warranted
for the remaining warranty period.
c) Any warranted part which is scheduled for
replacement as required maintenance shall be
warranted for the period of time prior to the first
scheduled replacement point for that part. If the
part fails prior to the first scheduled replacement,
the part shall be repaired or replaced by Mahindra
& Mahindra Limited. Any such part repaired or
replaced under the warranty shall be warranted
for the remainder of the period prior to the first
scheduled replacement point for that part.
d) Repair or replacement of any warranted part
under the warranty provision of this statement
shall be performed at no charge to the owner at
an authorized Mahindra & Mahindra Limited
warranty station.
e) Notwithstanding the provisions of subsection “d”
above, warranty services or repairs shall be
provided at all authorized Mahindra & Mahindra
Limited Commercial and Consumer Equipment
Retailer and distribution centers that are
franchised to service the subject engines.
f) The owner shall not be charged for diagnostic
labor that leads to the determination that a
warranted part is in fact defective, provided that
such diagnostic work is performed at an
authorized Mahindra & Mahindra Limited
warranty station.
g) Mahindra & Mahindra Limited shall be liable for
damages to other engine components proximately
caused by a failure under warranty of any
warranted part.
h) Throughout the engine’s warranty period defined
in subsection “Length of Warranty Coverage”,
Mahindra & Mahindra Limited shall maintain a
supply of warranted parts sufficient to meet the
expected demand for such parts.
i) Any replacement part may be used in the
performance of any maintenance or repairs and
must be provided without charge to the owner. It
is not necessary for replacement parts to be the
same brand or by the same manufacturer as the
original part sold with the engine. Such use shall
not reduce the warranty obligations of Mahindra
& Mahindra Limited.
j) Add-on or modified parts may not be used. Such
use shall be grounds for disallowing a warranty

7
35 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for California
claim made in accordance with this warranty
statement shall not be liable under this article to
warrant failures of warranted parts caused by the
use of such an add-on or modified part.
k) The Executive Officer may request and in such
case, Mahindra & Mahindra Limited shall provide,
any documents which describe warranty
procedures or policies of Mahindra & Mahindra
Limited.
Consequential Warranty Coverage
Warranty coverage shall extend to the failure of any
engine components caused by the failure of any
warranted part still under warranty.
Limitations
This Emission Control System Warranty shall NOT
cover any of the following:
a) Repair or replacement required as a result of (i)
misuse or neglect, (ii) improper maintenance or
unapproved modifications, (iii) repairs improperly
performed or replacements improperly installed,
(iv) use of replacement parts or accessories not
conforming to Mahindra & Mahindra Limited
specifications which adversely affect performance
and/or durability, (v) alterations or modifications
not recommended or approved in writing by
Mahindra & Mahindra Limited.
b) Replacement parts, other services and
adjustments necessary for normal maintenance.
c) Transportation to and from the Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer, or service calls made by the
Retailer.
Limited Liability
a) The liability of Mahindra & Mahindra Limited
under this Emission Control System Warranty is
limited solely to the remedying of defects in
materials or workmanship. This warranty does not
cover inconvenience or loss of use of the heavy
duty off-road compression ignition engine or
transportation of the engine to or from the
Mahindra & Mahindra Limited Commercial and
Consumer Equipment Retailer. Mahindra &
Mahindra Limited SHALL NOT BE LIABLE FOR ANY
OTHER EXPENSE, LOSS, OR DAMAGE, WHETHER
DIRECT, INCIDENTAL, CONSEQUENTIAL (EXCEPT AS
LISTED ABOVE UNDER “COVERAGE”) OR
EXEMPLARY ARISING IN CONNECTION WITH THE
SALE OR USE OF OR INABILITY TO USE THE HEAVY
DUTY OFF-ROAD COMPRESSION IGNITION ENGINE
FOR ANY OTHER PURPOSE.
b) NO EXPRESS EMISSION CONTROL SYSTEM
WARRANTY IS GIVEN BY Mahindra & Mahindra
Limited WITH RESPECT TO THE ENGINE EXCEPT AS
SPECIFICALLY SET FORTH IN THIS DOCUMENT. ANY
EMISSION CONTROL SYSTEM WARRANTY IMPLIED
BY LAW, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS EXPRESSLY LIMITED TO THE
EMISSION CONTROL SYSTEM WARRANTY TERMS
SET FORTH IN THIS DOCUMENT.
c) No dealer is authorized to modify this California
and Mahindra & Mahindra Limited Emission
Control System Warranty.

35 Series-HST, Model - 3535, 4035, 4535 & 5035

9
35 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for Federal
Product Warranty
Product warranty is provided as part of Mahindra &
Mahindra Limited support program for customers
who operate and maintain their equipment as
described in this manual.
Engine related warranties stated in this manual refer
only to emissions-related parts and components of
your engine. The complete engine warranty, less
emission-related parts and components, is provided
separately as the Limited Warranty for New Mahindra
& Mahindra Limited Commercial & Consumer
Equipment.
Mahindra & Mahindra Limited, Federal Emission
Control System Warranty (Non-Road Diesel)
Your Warranty Rights and Obligations
The United States Environmental Protection Agency
(EPA) and Mahindra & Mahindra Limited are pleased
to explain the emission control system warranty on
your non-road diesel equipment engines must be
designed, built and equipped to meet the U.S. EPA
regulations for non-road diesel engines. Mahindra &
Mahindra Limited must warrant the emission control
system on your non-road diesel equipment engine for
the periods of time listed below provided there has
been no abuse, neglect or improper maintenance of
your non-road diesel equipment engine.
Your emission control system may include parts such
as the fuel-injection system and the air induction
system. Also included may be connectors and other
emission related assemblies.
Where a warrantable condition exists, Mahindra &
Mahindra Limited will repair your non-road diesel
equipment engine at no cost to you including
diagnosis, parts and labor.
Mahindra & Mahindra Limited Emission Control
System Warranty Coverage
Your non-road diesel equipment engine emissions
control-related parts are warranted by Mahindra &
Mahindra Limited for five years or 3000 hours of
operation, whichever occurs first. If any emission
related part on your engine is defective, the part will
be repaired or replaced by Mahindra & Mahindra
Limited.
Owner’s Warranty Responsibilities
As the non-road diesel equipment engine owner, you
are responsible for the performance of the required
maintenance listed in your owner’s manual. Mahindra
& Mahindra Limited recommends that you retain all
receipts covering maintenance on your non-road
diesel equipment engine, but Mahindra & Mahindra
Limited cannot deny warranty solely for lack of
receipts or for your failure to ensure all scheduled
maintenance is performed.
As the non-road diesel equipment engine owner, you
should however be aware that Mahindra & Mahindra
Limited may deny you warranty coverage if your non-
road diesel equipment engine or a part has failed due
to abuse, neglect, improper maintenance or
unapproved modifications.
You are responsible for presenting your non-road
diesel equipment engine to an authorized Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer as soon as a problem exists. The
warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
“If you have any question regarding your warranty
rights and responsibilities, you should contact
(Mahindra, USA Inc) at 1-877-449-7771.
Length of Warranty Coverage
Mahindra & Mahindra Limited warrants to the initial
owner and each subsequent purchaser that the non-
road diesel equipment engine is:
• Designed, built and equipped so as to conform
with all applicable regulations of the United
States Environmental Protection Agency (EPA) for
non-road diesel equipment engines;
• Free from defects in materials and workmanship
which can cause the failure of an emission
warranted part for a period of five years or 3000
hours of operation, whichever occurs first, after
the engine is delivered to the initial retail
purchaser. Mahindra & Mahindra Limited is liable
for damages to other engine components caused
by the failure of a warranted part during the
warranty period. If any emission related part on
your engine is defective, the part will be repaired
or replaced by Mahindra & Mahindra Limited.
Warranted Parts
Coverage under this warranty extends only to the
parts listed below (the emission control system parts)
to the extent these parts were present on the engine
purchased.
Fuel Metering System:
• Fuel injection system
Air Induction System:
• Air Cleaner
• Intake manifold
• Turbocharger system
• Charge Air Cooling Systems

10 35 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for Federal
Exhaust Gas Recirculation (EGR) System:
• EGR valve
• EGR rate feedback and control system
Positive Crankcase Ventilation (PCV) System:
• Oil Filler Cap
Miscellaneous Items Used in Above Systems:
• Vacuum sensitive EGR valve.
• Electronic Control Unit (ECU for EGR control)
• Hoses, connectors, assemblies, clamps, fittings,
tubing, sealing gaskets and mounting hardware
Since emission related parts may vary slightly from
model to model, certain models may not contain all
of these parts and certain models may contain
functionally equivalent parts.
Warranty Service and Charges
Warranty service shall be provided during customary
business hours at any authorized Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer. Repair or replacement of any
warranted part will be performed at no charge to the
owner, including diagnostic labor which leads to the
determination that a warranted part is defective, if
the diagnostic work is performed at an authorized
Mahindra & Mahindra Limited Commercial and
Consumer Equipment Retailer. Any parts replaced
under this warranty shall become the property of
Mahindra & Mahindra Limited.
Maintenance Warranty Coverage
a) Any warranted part which is not scheduled for
replacement as required maintenance shall be
warranted as to defects for the warranty period.
Any such part repaired or replaced under the
warranty shall be warranted for the remaining
warranty period.
b) Any warranted part which is scheduled only for
regular inspection to the effect of “repair or
replace as necessary” shall be warranted as to
defects for the warranty period. Any such part
repaired or replaced under the warranty shall be
warranted for the remaining warranty period.
c) Any warranted part which is scheduled for
replacement as required maintenance shall be
warranted as to defects only for the period of
time up to the first scheduled replacement for
that part. Any such part repaired or replaced
under the warranty shall be warranted for the
remainder of the period prior to the first
scheduled replacement point for that part.
d) Normal maintenance, replacement or repair of
emission control devices and systems, which are
being done at the customer’s expense, may be
performed by any repair establishment or
individual; however, warranty repairs must be
performed by an authorized Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer.
e) Any replacement part that is equivalent in
performance and durability may be used in the
performance of any non-warranty maintenance or
repairs, and shall not reduce the warranty
obligations of Mahindra & Mahindra Limited.
f) The owner shall not be charged for diagnostic
labor that leads to the determination that a
warranted part is in fact defective, provided that
such diagnostic work is performed at an
authorized Mahindra & Mahindra Limited
warranty station.
g) Mahindra & Mahindra Limited shall be liable for
damages to other engine components proximately
caused by a failure under warranty of any
warranted part.
h) Throughout the engine’s warranty period defined
in subsection “Length of Warranty Coverage”,
Mahindra & Mahindra Limited shall maintain a
supply of warranted parts sufficient to meet the
expected demand for such parts.
Consequential Warranty Coverage
Warranty coverage shall extend to the failure of any
engine components caused by the failure of any
warranted part still under warranty.
Limitations
This Emission Control System Warranty shall NOT
cover any of the following:
a) Repair or replacement required as a result of (i)
misuse or neglect, (ii) improper maintenance or
unapproved modifications, (iii) repairs improperly
performed or replacements improperly installed,
(iv) use of replacement parts or accessories not
conforming to Mahindra & Mahindra Limited
specifications which adversely affect performance
and/or durability, (v) alterations or modifications
not recommended or approved in writing by
Mahindra & Mahindra Limited.
b) Replacement parts, other services and
adjustments necessary for normal maintenance.
c) Transportation to and from the Mahindra &
Mahindra Limited Commercial and Consumer
Equipment Retailer, or service calls made by the
Retailer.

11
35 Series-HST, Model - 3535, 4035, 4535 & 5035
Emission Control Warranty for Federal
Limited Liability
a) The liability of Mahindra & Mahindra Limited
under this Emission Control System Warranty is
limited solely to the remedying of defects in
materials or workmanship. This warranty does not
cover inconvenience or loss of use of the non-road
diesel equipment engine or transportation of the
engine to or from the Mahindra & Mahindra
Limited Commercial and Consumer Equipment
Retailer. Mahindra & Mahindra Limited SHALL NOT
BE LIABLE FOR ANY OTHER EXPENSE, LOSS, OR
DAMAGE, WHETHER DIRECT, INCIDENTAL,
CONSEQUENTIAL (EXCEPT AS LISTED ABOVE
UNDER “COVERAGE”) OR EXEMPLARY ARISING IN
CONNECTION WITH THE SALE OR USE OF OR
INABILITY TO USE THE NON-ROAD DIESEL ENGINE
FOR ANY OTHER PURPOSE.
b) NO EXPRESS EMISSION CONTROL SYSTEM
WARRANTY IS GIVEN BY Mahindra & Mahindra
Limited WITH RESPECT TO THE ENGINE EXCEPT AS
SPECIFICALLY SET FORTH IN THIS DOCUMENT. ANY
EMISSION CONTROL SYSTEM WARRANTY IMPLIED
BY LAW, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS EXPRESSLY LIMITED TO THE
EMISSION CONTROL SYSTEM WARRANTY TERMS
SET FORTH IN THIS DOCUMENT.
c) No dealer is authorized to modify this Federal and
Mahindra & Mahindra Limited Emission Control
System Warranty.

35 Series-HST, Model - 3535, 4035, 4535 & 5035

35 Series-HST, Model - 3535, 4035, 4535 & 5035 13
About This Manual
This Manual has been prepared to assist you in
following the correct procedure for break-in,
operation and maintenance of your new Mahindra
tractor.
Your tractor has been designed and built to give
maximum performance, with good fuel economy and
ease of operation under a wide variety of operating
conditions. Prior to delivery, the tractor was carefully
inspected, both at the factory and by your Mahindra
dealer, to ensure that it reaches you in optimum
condition. To maintain this condition and ensure
trouble free performance, it is important that the
routine services, as specified in this manual, are
carried out at the recommended intervals.
We have enclosed a page on new tractor inspection
sheets. The first sheet is the dealer’s copy and should
be removed by the dealer after the inspection has
been carried out. The second sheet is your copy of the
service performed. Ensure that you & the dealer sign
both copies.
Read this manual carefully and keep it in a convenient
place for future reference. If at any time you require
advice concerning your tractor, do not hesitate to
contact your authorised Mahindra dealer. He has
trained personnel, genuine Mahindra parts and
necessary equipments to undertake all your service
requirements.
Mahindra USA Inc’s. policy is one of continuous
improvement, and the right to change prices,
specifications or equipments at any time without
notice is reserved.
All data given in this book is subject to production
variations. Dimensions & weight are approximate only
and the illustrations do not necessarily show tractors
in standard condition. For exact information about
any particular tractor, please consult your Mahindra
dealer.

35 Series-HST, Model - 3535, 4035, 4535 & 5035
14
Tractor
The word, ‘Tractor’ has been derived from ‘traction’ which
means pulling. A tractor is required to pull or haul an
equipment, implement or trolley, which are coupled to the
tractor chassis through suitable linkage. A tractor can also
be used as a prime mover as it has a power outlet source
which is also called Power Take Off or PTO shaft.
In this book the operation and maintenance instructions for
35 Series HST models of Mahindra diesel tractors have been
compiled. This material has been prepared in detail to help
you in better understanding of maintenance and efficient
operation of the machine.
If you need any information not given in this manual, or
require the services of a trained mechanic, please get in
touch with the Mahindra dealer in your locality. Dealers are
kept informed of the latest methods of servicing tractors.
They stock genuine repair parts and are backed by the
company’s full support.
Throughout this manual, the use of the terms LEFT, RIGHT,
FRONT and REAR must be understood, to avoid any
confusion when following the instructions. The LEFT and
RIGHT means left and right sides of the tractor when facing
forward in the driver’s seat. Reference to the FRONT
indicates the radiator end of the tractor, while the REAR,
indicates the drawbar end.
Introduction
FRONT
REAR
LEFT RIGHT

35 Series-HST, Model - 3535, 4035, 4535 & 5035 15

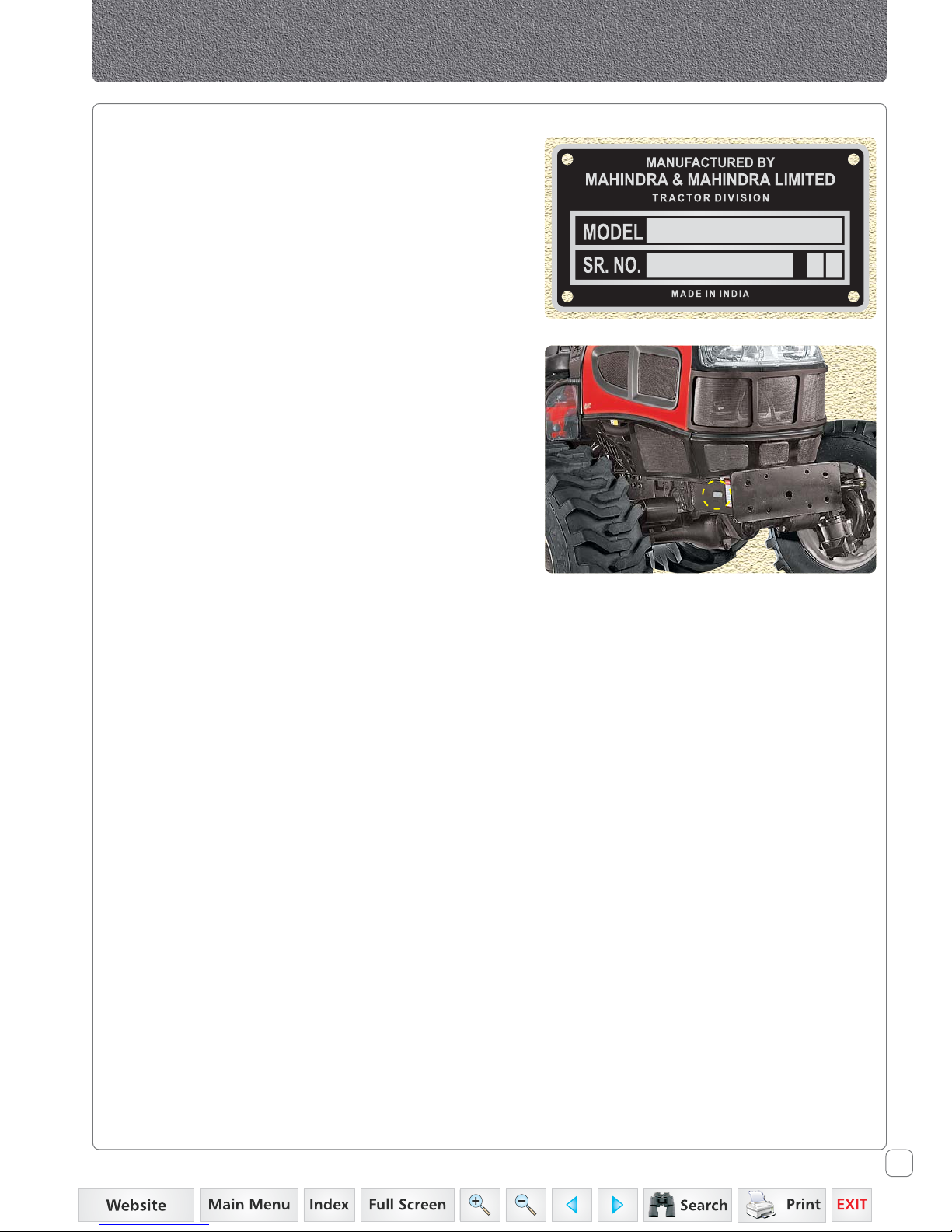

Tractor Serial Number
The Tractor Serial Number can be identified from below
mentioned locations :
1. A plate rivetted below the Operator’s seat.
2. Number punched on the RH side of semi chassis.
For easy reference, we suggest you to write this number in
the space provided in the owner’s personal data.
When spare parts are required, always specify the tractor
model and tractor serial number. This will facilitate faster
delivery and help ensure that the correct part for your
particular tractor is received.
Introduction

16 35 Series-HST, Model - 3535, 4035, 4535 & 5035
General Construction
The Engine, Front housing, Transmission housing
and semi chassis are bolted together to form a rigid
unit.
Engine
The 35 Series Tractors are fitted with fuel efficient US
EPA (Comply with US Tier-IV emission norms) certified
Mahindra CE series Engines. These are 3/4 cylinder,
Naturally aspirated, Water cooled, Direct Injection
type, comprising rotary fuel injection pump.
Front Axle & Wheels
Front Axle is offset type live front axle with bevel gear
reduction. The front wheels are directly mounted on
wheel hub of front axle. Front track is adjustable with
adjustment provided on rims. Turning angles are all
preset.
Power Steering
The Power Steering system consists of a Hydrostatic
Steering unit (HSU), Hydraulic cylinder. A separate
pump is mounted on the engine front which supplies
oil to this system. Oil for Steering system is common
with Transmission-Hydraulic oil.
Transmission
The transmission is a combination of a hydrostatic
unit (HST) and mechanical gear box. Forward-Reverse
and speed selection is provided by the HST unit and
high-low-medium selection provided by range
section.
Rear Axle & Wheels
The rear axle is mounted on bearings and is enclosed
in a removable housing which is bolted to the
transmission case. The rear wheels are bolted to the
outer flange of the rear axle. The rear track
adjustment is provided on the rear wheel rim.
General Description
Oil immersed Disc Brakes
The tractor is fitted with Oil immersed disc brakes
with 4 discs on each side of the tractor.
Hydraulic System
The tractor is fitted with fully “live” Hydraulic System
using a pump driven directly from the Engine. It is
able to operate the three-point linkage or auxiliary
valve and also operating the power take-off. The Oil
reservoir is common with that of transmission.
Three Point Linkage
Three Point Linkage is suitable for category - I
implements. For ease of implement attachment, a slip
end is provided which can be extended while
implement hitching. For implement with Cat - I
configuration having Cat - II size pin, top link has
both Cat - I & Cat - II holes. For Cat - II on lower link,
slip ends with Cat - II balls are available as spares.
Electrical System
A 12 Volt lead acid battery is used to crank the engine
with the starter motor. The electrical system
comprises of head lamps, plow lamp, brake lights,
parking lamps, instrument cluster, alternator, fuse
box, relays and wiring harness.
Safety
Neutral switch is provided on the Forward / Reverse
pedal linkage system.
Sheet Metal
Hood, side panels, front grille & panel, fenders,
platform and bracketaries are constructed from sheet
metal. Steering top covers, Scuttle bottom and scuttle
top cover are made from plastic.

17
35 Series-HST, Model - 3535, 4035, 4535 & 5035
We at Mahindra USA Inc. and your Mahindra Dealer want you to be
completely satisfied with your investment. Normally any problems with
your equipment will be handled by your Dealer’s service department.
Sometimes, however, misunderstanding can occur. If you feel that your
problem has not been handled to your satisfaction, we suggest the
following:
Contact the Owner or General Manager of the dealership, explain the
problem, and request assistance. Your Dealer has direct access to the
Mahindra office. If you cannot obtain satisfaction through your Dealer,
contact the Mahindra USA Inc. office (1-877-449-7771) and provide the
following:
Your Name, Address and Telephone number
Model and Tractor Serial number
Dealer Name and Address
Tractor Purchase Date and Hours used
Nature of Problem
Before contacting Mahindra USA Inc. office, be aware that your
problem is likely to be resolved at your retail Mahindra dealership by
Dealer personnel. So it is important that your initial contact be with
your retail Mahindra Dealer.
Owner Assistance

35 Series-HST, Model - 3535, 4035, 4535 & 5035
18
Owner’s Personal Data
A metal plate having important Engine information is fitted
on LH Side of Engine.
Name :
Address :
Tractor Details
Model :
Tractor serial number :
Date of purchase :
Expiration of warranty :
Nearest authorised Dealer
Name :
Address :
Telephone No. :
Fax No. :
Keep this operators manual safely for regular reference. Ensure that all operators have access to it and
that they understand its contents.

35 Series-HST, Model - 3535, 4035, 4535 & 5035 19
R O P S
Roll Over Protective Structure (ROPS)
Mahindra USA Inc. tractors are fitted with a frame for the
protection of tractor operator to minimize serious operator
injury resulting from accidental roll over. These frames,
known as ROPS, form a safety zone within which the
operator is offered some protection in the event that the
tractor turns over. It is necessary that the tractor operator
fasten the seat belt around him/her to be protected by the
ROPS.
The mounting structure and fasteners forming the
mounting connection with the tractor are part of the ROPS.
(ROPS) Maintenance and Inspection
The ROPS has been certified to industry and/or government
standards. Any damage or alteration to the ROPS, mounting
hardware or seat belt voids the certification and will reduce
or eliminate protection for the operator, in the event of a
roll-over.
The ROPS, mounting hardware and seat belt should be
checked after the first 100 hrs. of machine operation and
every 500 hours thereafter for any evidence of damage,
wear or cracks. In the event of damage or alteration the
ROPS must be replaced prior to further operation of the
machine. The seat belt must be worn during machine
operation when it is equipped with a certified ROPS. Failure
to do so will reduce or eliminate protection of the operator
in the event of a roll-over.
Substitution of mounting hardware, seat belt etc. with
components not equal to or superior to the original
certified components will void the certification and will
reduce or eliminate protection for the operator in the event
of a roll-over.
Damage of the ROPS
If the Tractor has rolled over or the ROPS has been
damaged (such as striking an overhead object during
transport), it must be replaced to provide the original
protection. After an accident, check for damages to the
1. ROPS 2. Seat 3. Seat belt & seat mountings. Before you
operate a Tractor, replace all damaged parts.
When improperly operated, a tractor can roll
over. For low clearance storage only, the roll bar
may be folded. No protection is provided when
the tractor is operated with the roll bar in the
folded position. Always raise the roll bar
immediately after low clearance storage. Always
use the seat belt when the roll bar is raised.
Seat belts save lives when they are used. Do not
use the seat belt when the roll bar is lowered.
Never attach chains or ropes to the ROPS for
pulling purposes; this will cause the tractor to
tip backwards. Always pull from the tractor
drawbar. Be careful when driving through door
openings or under low overhead objects. Make
sure there is sufficient overhead clearance for
the ROPS.
If the ROPS is removed or replaced, make
certain that the proper hardware is used to
replace the ROPS and the recommended torque
values are applied to the attaching bolts.
Always wear your seat belt if the tractor is
equipped with a ROPS.
