Major Verge Installation and operation manual

MAJOR
Verge Mowers
Verge Major 1400
Verge Major 2000
Verge Major 2650
Operator Manual
& Parts List
REV. 00 612

Head Office
Major Equipment Intl. Ltd.,
Ballyhaunis,
Co. Mayo,
Ireland.
Tel.: [phone]
Fax: [phone]
Email: [email protected]
UK Office
Major Equipment Ltd.
Major Industrial Estate,
Middleton Rd.,
Heysham,
Lancs.
LA3 3JJ
Tel.: [phone]
Fax: [phone]
Email: [email protected]
NL & GERMANY OFFICE
Major Equipment Intl. Ltd.,
Postbus 29,
NL-7700 AA,
Dedemsvaart,
Nederland.
Tel: [phone]
Email: [email protected]
Web: www.major-equipment.com
Find us on Facebook
Search for “Major Machinery”
Visit our channel MAJOREQUIPMENT on www.youtube.com
Disclaimer
While every effort has been made in the production of this manual to ensure that the information
contained herein is full and correct, Major assumes no responsibility for errors or omissions.
Major reserves the right to modify the machinery and the technical data contained within the
manual without prior notice.
Further to this, Major assumes no liability for any damages which may result from the use of the
information contained within this manual.

Contents
Introduction
Thank you 1
Using Your Operator’s Manual 1
Safety Issues 1
Product Identification
Machine Serial Numbers 1
Register Your Product and Warranty Online 1
Product Specifications 1
Safety
Machine Safety Labels 2
Hazards associated with operating Grass Cutting Machinery 3
Safe Operation 4
Workstation 4
Regulations for use of the transmission 4
PTO Shaft Safety 5
Driving Safely on Public Roads 5
Operating the Machine
Inspections before Use 6
Key to Main Parts 7
Hitching to the Tractor 7
Machine Set up 8
Adjusting the Rollers 9
Flow Restricor Tap 9
Blade rotation 9
Operating the machine 10
Machine Maintenance 11
P.T.O. Maintenance 11
Shearbolt Replacement 11
Troubleshooting 12
Spare Parts
Verge Major 1400 14
Verge Major 2000 16
Verge Major 2650 18
A-Frame and Carry Arms 20
Hydraulics Layout 21
Verge Major Blades 22

EEC certificate of conformity for machines
(conforming to Directive 98/37/EEC)
Company: Major Equipment Ltd.
Address: Coolnaha,
Ballyhaunis,
Co. Mayo,
Ireland.
Tel. [phone]
Fax [phone]
declares in sole responsibility that the product:
VERGE MAJOR
When properly installed, maintained and used only for it’s intended purpose, complies with
all the essential Health & Safety requirements of:
• THE SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008.
• S.I. No. 299 of 2007, Safety, Health and Welfare at Work (General Application)
Regulations 2007 (Ireland).
• Health & Safety at Work, etc. Act 1974 (c.37) (UK).
• EN ISO 14121-1: 2007 ‘Safety of machinery. Principles for risk assessment’.
• EN 745 - Agricultural Machinery - Rotary Mowers and Flail Mowers - Safety.
• EN ISO 13857 - Safety of machinery: Safety distances to prevent hazard zones
being reached by upper and lower limbs.
I certify on behalf of Major Equipment Int. Ltd., that this machine when properly installed
and operated correctly, complies with all the essential Health & Safety requirements of
all legislation referred to above.
Signature : ______________ Date 12/01/2012
Managing Director

www.major-equipment.com 1
Introduction
Thank you
We appreciate having you as a customer and wish you many years of safe and satisfied use of your machine.
Using Your Operator’s Manual
This manual is an important part of your machine and should remain with the machine when you buy it. Reading your
operator’s manual will help you and others avoid personal injury or damage to the machine. Information given in this
manual will provide the operator with the safest and most effective use of the machine.
Sections in your operator’s manual are placed in a specific order to help you understand all the safety messages so you
can operate this machine safely. You can also use this manual to answer any specific operating or servicing questions.
Safety Issues
Your manual contains special messages to bring attention to potential safety concerns, machine damage as well as
helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage.
Product Identification
Machine Serial Numbers
If you need to contact MAJOR or your MAJOR dealer for information on servicing or spare parts, always provide the
product model and serial numbers.
We suggest that you record your machine details below:
Model No: ____________________________________
Serial No: ____________________________________
Date of Purchase: ____________________________________
Dealer Name: ____________________________________
Dealer Telephone: ____________________________________
Register Your Product and Warranty Online
To register your product through the Internet, simply go to the Support section on www.major-equipment.com. Completing
the information, either online or with the product warranty card, will ensure the customer that their product receives all
post sales service and important product information.
Product Specifications
MODEL OSM-1400 OSM-2000 OSM-2650
Cutting width 1.35m (4’ 5”) 1.975m (6’ 5”) 2.65 (8’ 8”)
Number of Rotors 23 4
Number of Blades 4 / 8 6 / 12 8 / 16
Sliding Offset 1564mm 1564mm 1564mm
RPM 540 rpm/min 540 rpm/min 540 rpm/min
Power Requirements 40 HP 60 HP 80 HP

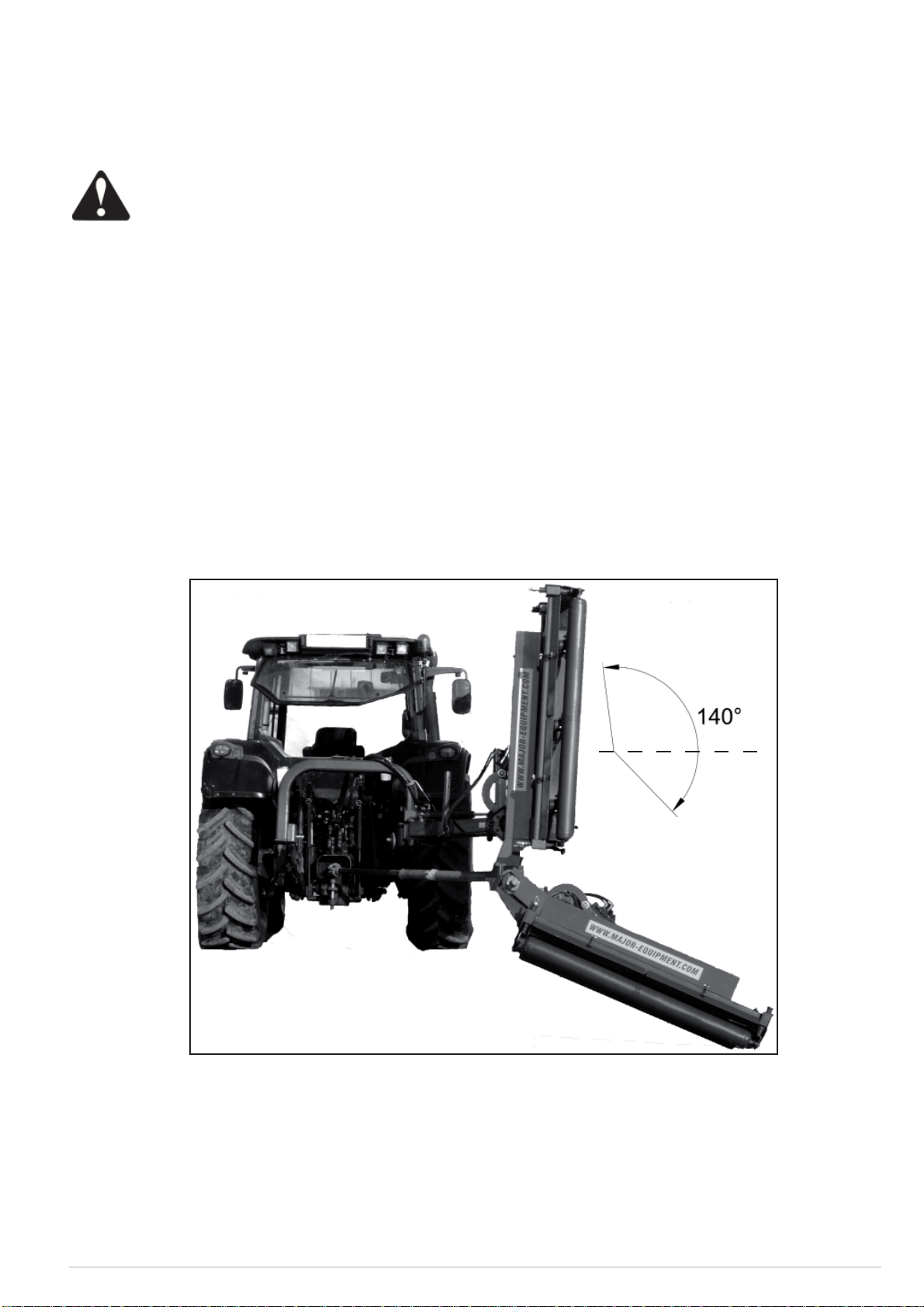

Hedge cutting 0÷96° 0÷96° 0÷96°
Mowing of road sides 0÷45° 0÷45° 0÷45°
Tractor class II II II
Weight 685kg 800kg 905kg

www.major-equipment.com
2
Safety
Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to
potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol.
DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety hazards whenever necessary in special safety
messages that are identified with the word, CAUTION, and the safety-alert symbol.
To avoid injury, read the manual Rotating blade hazard
Moving parts
hazard
High oil
pressure hazard
PTO entanglement
hazard - keep clear
of PTO drives.
Max PTO input is
540 RPM
Crush hazard

www.major-equipment.com 3
Hazards associated with operating Grass Cutting Machinery
Shear Hazard
Shear hazards are created when the edges of two objects move toward or next to each other closely enough to cut
relatively soft material. This can include the parts of the machine under hydraulic control when operating from transport
to mowing position. Note the wing units are designed to float independently of the centre deck & are free to move within
operating limits.
Crush Hazard
Bystanders can be injured when machine is lowered into mowing position. Winged Mowers have crush points around
the hinge areas & between the wing & main body. Always use transport locking pins when not in use. Hinges on carry
arms represent a hazard and care should be taken when operating machine.
Rotating Blade Hazard
All persons are at risk if they place their hands or feet under the machine when it is raised from the ground when the
blades are in motion.
Pinch Hazard
Pinch points are created when two objects move together, with at least one of them moving in a circle. This hazard is
common in power transmission devices such as Belt Drives, Gear Drives & Rollers. Ensure all guarding is present.
Wrap Hazard
Any exposed, rotating machine component is a potential wrap point. Injuries usually occur when loose clothing or long
hair catch on and wrap around rotating parts such as PTO shafts or Drive shafts on the machine. Ensure all guarding
is present.
Free-wheeling parts Hazard
The heavier a revolving part is, the longer it will continue to rotate after power is shut off. This characteristic is called
‘free-wheeling. Rotary mower blades, and various other components, drive shafts etc., will continue to move after power
is shut off--often for several minutes. Injuries occur
• When operators shut off equipment, and attempt to clean or adjust a machine before components
have completely stopped moving
• When shear bolt protection device in PTO shaft shears & the rotors are still spinning but the primary
PTO shaft is stationary. Operator awareness is the key to safety around freewheeling parts. Never
raise the machine while the blades are still rotating.
Thrown objects Hazard
Machine throws material as a natural part of doing its job. Foreign objects, such as stones, sticks and other debris, may
be taken into this equipment and expelled at tremendous speed. These objects are contained by the rear roller & the
sides of the machine.
Bystanders or animals in the path of thrown objects could be seriously injured.. Never operate machine with decks
raised from the ground as this makes the rear roller deflector redundant.
Hydraulic Hazard
Hydraulic systems store considerable energy,. Careless servicing, adjustment, or replacement of parts can result in
serious injury. High pressure blasts of hydraulic oil can injure eyes or other body parts. The following precautions are
crucial:
• Make certain the hydraulic pump is turned off.
• Lower attached equipment to the ground.
• Confirm that load pressure is off the system.
A pinhole leak in an hydraulic hose is a serious hazard. A leak may not be visible, and the only sign may be a few drops
of fluid. Never inspect hydraulic hoses with your hands, because a fine jet of hydraulic fluid can pierce the skin.
Slips trips and falls Hazard
Slips and falls often result from:
1. Slippery footing on the ground
2. Cluttered steps and work platforms.
The potential for slips and falls can be greatly reduced by using good judgement and practicing good housekeeping on
and around equipment.

www.major-equipment.com
4
Safe Operation
The machine is designed to operate at 540 RPM. Ensure tractor PTO output is set at 540 RPM. The machine must only
be used for cutting grass. Moreover, it must only be used with a suitable tractor (see product specifications) and driven
by an adequate drive-line by the tractor PTO. All other use is strictly prohibited.
Users should become thoroughly familiar with the contents of this manual before using, servicing and mounting the
implement to the tractor and all other pertinent operations. Never wear jewellery, loose clothing such as ties, scarves,
belts, unbuttoned jackets or dungarees with open zips which could become caught up in moving parts.
Always wear approved garments complying with accident prevention provisions such as non-slip shoes, ear muffs,
goggles and gauntlets. Wear a jacket with reflecting stickers if the implement is used near public highways.
Consult your retailer, the Labour Health Service or your nearest equivalent authority for the information about the current
safety provisions and specific regulations with in order to ensure personal safety.
ALWAYS DISENGAGE PTO, SWITCH OFF THE TRACTOR ENGINE AND ENGAGE THE PARKING BRAKE
BEFORE MAKING ADJUSTMENT TO THE MACHINE.
NEVER PLACE LIMBS UNDER THE MACHINE WHILE ROTORS ARE TURNING. ROTORS CAN REMAIN
TURNING FOR UP TO 1 MINUTE AFTER DISENGAGING PTO.
Workstation
The operator must remain seated while working the machine. When the wings need to be raised and lowered the
operator must leave the tractor. Always ensure the PTO has been turned off and the parking brake applied before
leaving the tractor cab. The operator must always apply the parking brake, and turn off the engine before leaving
machine or carrying out maintenance.
NEVER OPERATE THE HYDRAULICS WITH THE TRACTOR SWITCHED OFF
Regulations for use of the transmission
The transmission to the gearboxes is protected throughout the machine by both PTO shafts and bolt down covers. All
guarding should be kept efficient and in good condition. If the condition is poor, the guarding should be renewed before
the implement is used.
UNLESS IT IS CORRECTLY PROTECTED THE TRANSMISSION COULD CAUSE DEATH SINCE IT CAN
CATCH ON PARTS OF THE BODY OR CLOTHING
Ensure retaining chains are correctly anchored on all PTO shafts, preventing them form turning. Ensure drive line can
turn easily within the shield. Keep spline grooves clean and greased so that PTO shaft can connect easily. Besides
being described in this manual, the method by which the PTO shaft is connected to the tractor must be checked out with
the instructions in the tractor manufacturer’s manual.
Noise Hazard
Please note that the machine is normally used outdoors and that the position of the operator is seated in the driving seat
of the tractor. It is advisable to consult the prescriptions listed in tractor operator and maintenance manuals.
The acoustic pressure was measured at a distance of 2.6m from the centre of the machine and at a height of 2.0m, with
the implement operating in a no load condition - 90 dBA. In a loaded condition & a PTO rate of 540 rpm the obtained
value was 97dBA.

www.major-equipment.com 5
Driving Safely on Public Roads
Check the local Highway Code regulations before driving the tractor on public highways with a towed implement. Check
the reflectors, hazard flashers and/or projecting load indicators are installed when required and efficient. These indica-
tors must be installed correctly and easily seen by the drivers of other vehicles.
Bystanders must not be allowed to lean against or climb onto the machine during transport or while working. Do not al-
low bystanders to ride on the machine.
MAXIMUM TRANSPORT SPEED MUST NOT EXCEED 30 km/hr (18 MPH)

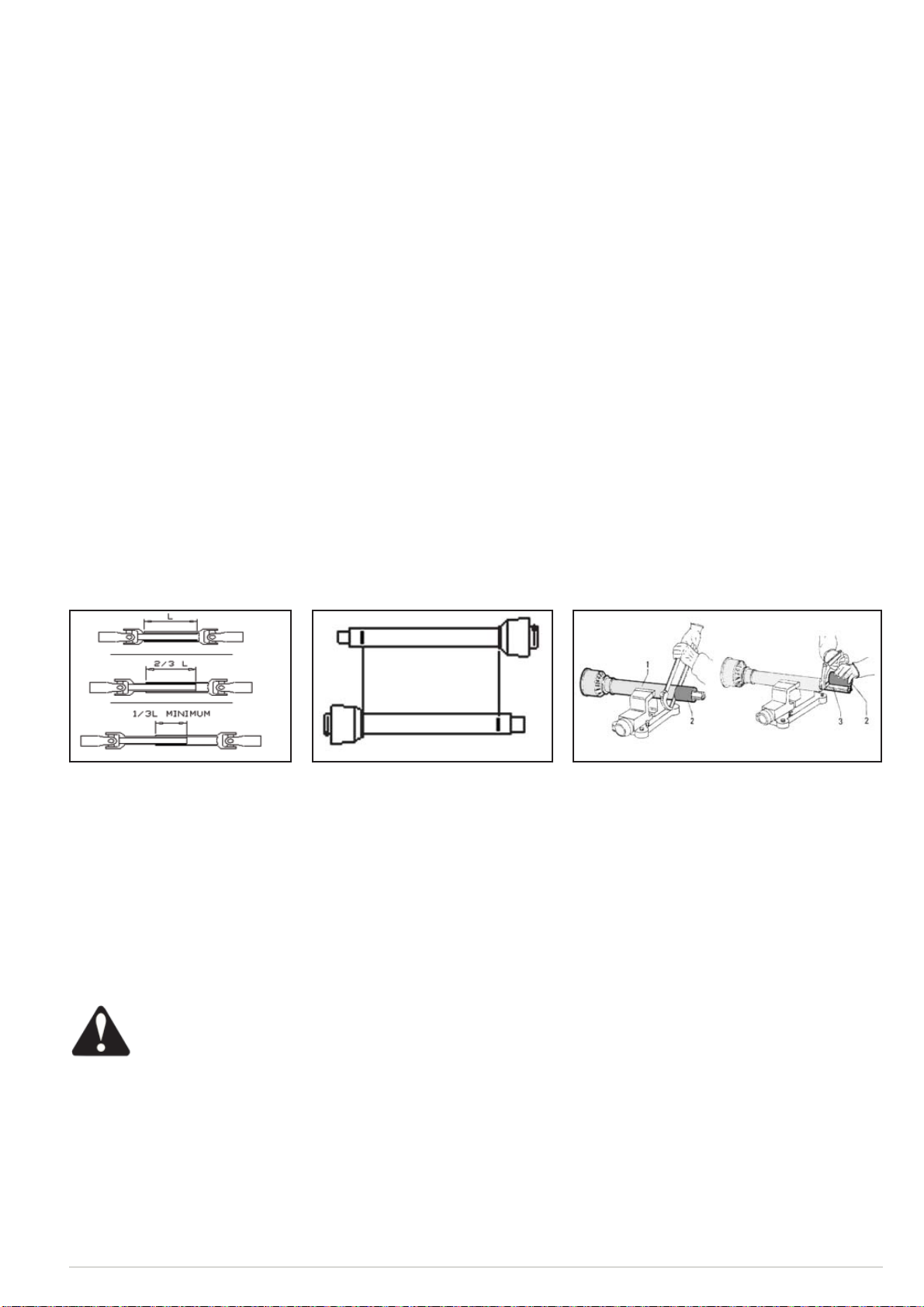

PTO Shaft Safety
MAX PTO INPUT 540 R.P.M. Contact your nearest dealer or a specialised retail outlet if the PTO must be replaced with
a longer one, since this must belong to the same power category and possess the same characteristics. An unsuitable
PTO could easily break.
The tractor PTO shaft length may be altered to suit the individual tractor model. When the machine is in operation, the
PTO shaft should have a minimum 1/3 engagement as shown in the diagrams. After the topper has been hitched to the
tractor, it should be checked in various positions that the drive line is the correct length. If the PTO is too short and tends
to slip out of place, it must be replaced with a longer one.
If the PTO shaft is too long, it should be shortened in the following way:
• Set the machine at a minimum distance from the tractor, then brake the tractor and switch off the engine.
• Separate the two halves of the PTO. Insert the female part into the tractor PTO and the male part into the topper
PTO, checking that the position is correct by means of the fixing pins.
• Line up the two halves of the PTO together, keeping them parallel.
• Using a felt tip pen, match mark the place where the two halves must be shortened as shown.
• First cut shield “1” and use part “2” as a reference to cut the splined shaft.
• Proceed in the same way for the second half.
• Trim and chamfer the two cut ends of the PTO and clean off all swarf and shavings.
• Grease the two profiles and join the two halves of the PTO together.
• Mount the PTO shaft and check that its length is correct as before.
The shaft must not reach the end of the tube or project from this. Ensure the PTO does not bottom when turning.

www.major-equipment.com
6
Operating the Machine
Inspections before Use
Always disengage PTO, Switch off tractor engine and engage the parking brake before making adjustment
to the machine.
1. With the whole machine as level as possible, check the oil level in the Primary Gearbox, top up as required with
SAE EP90 gear oil through the oil filler plug indicated. The correct level is at the oil level plug indicated. Check the
oil level in the Rotor Gearboxes and top up as required with SAE EP 90 gear oil through the oil filler plugs
indicated. The correct level is at the oil level plug indicated.
Oil level
plug
Oil filler
plug
Rotor
Gearbox
Oil level
plug
Oil filler
plug
Primary Gearbox
2. Grease the PTO shaft universal joints, drive shaft bearing and carrying arm pivots.
3. Re-sharpen old blades with a grindstone if necessary. Replace bent blades with new ones.
4. Check the blade mounting bolts are tight
5. Ensure the gearbox shaft nuts are tight and retained in place by split pin.
6. Check tightness of all nuts, bolts and retaining screws after the first and second hours of work.
7. Ensure safety guards and flaps are in place at all times where fitted.
8. Due to the corrosive nature of grass when cut, wash down the machine when finished mowing, especially when
the machine is being stored for a long period of time.
Overlap blade
Undersole skid Blade
mounting bolts
Spacer
bushings
Cranked blade
Blade pivot
bush
Gearbox
output shaft
Blade pivot
bolt
Always ensure the PTO shaft yoke ends are locked onto the splined shafts on both the tractor and the implement. An
unlocked shaft could slip out of position, causing notable mechanical damage and serious injury to both operator and
bystanders.

www.major-equipment.com 7
Key to Main Parts
Hitching to the Tractor
ALWAYS OPERATE ON LEVEL GROUND WHEN HITCHING/UNHITCHING THE IMPLEMENT. THIS WILL
PREVENT DANGEROUS MOVEMENT. NEVER ALLOW ANYONE TO STAND BETWEEN THE TRACTOR
AND THE MACHINE.
1. Reverse the tractor,
2. Ensure the tractor parking brake is applied.
3. Connect the machine to the tractor.
4. Before connecting the PTO shaft to the tractor, check for length as previously described in this manual.
5. Ensure shear-bolt safety device is fitted on the machine PTO shaft & not the tractor PTO, as shown on the PTO
shaft guarding.
6. Ensure PTO check chains are anchored to prevent PTO guarding from rotating.
7. Connect the hydraulic hoses to the appropriate connection.
1
1 A-Frame
2 Front roller height adjuster
3 Rear roller height adjuster
4 Front roller
5 Rear roller
6 PTO cover
7 Main gearbox cover
8 Rotor gerabox cover
9 Rear guard
10 PTO shaft hanger
11 PTO shaft
12 Body hydraulic ram
13 Carry arm hydraulic ram
14 Parking stand
15 Hydraulic hose hanger
2
35
4
6
7
8
9
3
7
10
11
15
12
13
14

www.major-equipment.com
8
Machine Set up

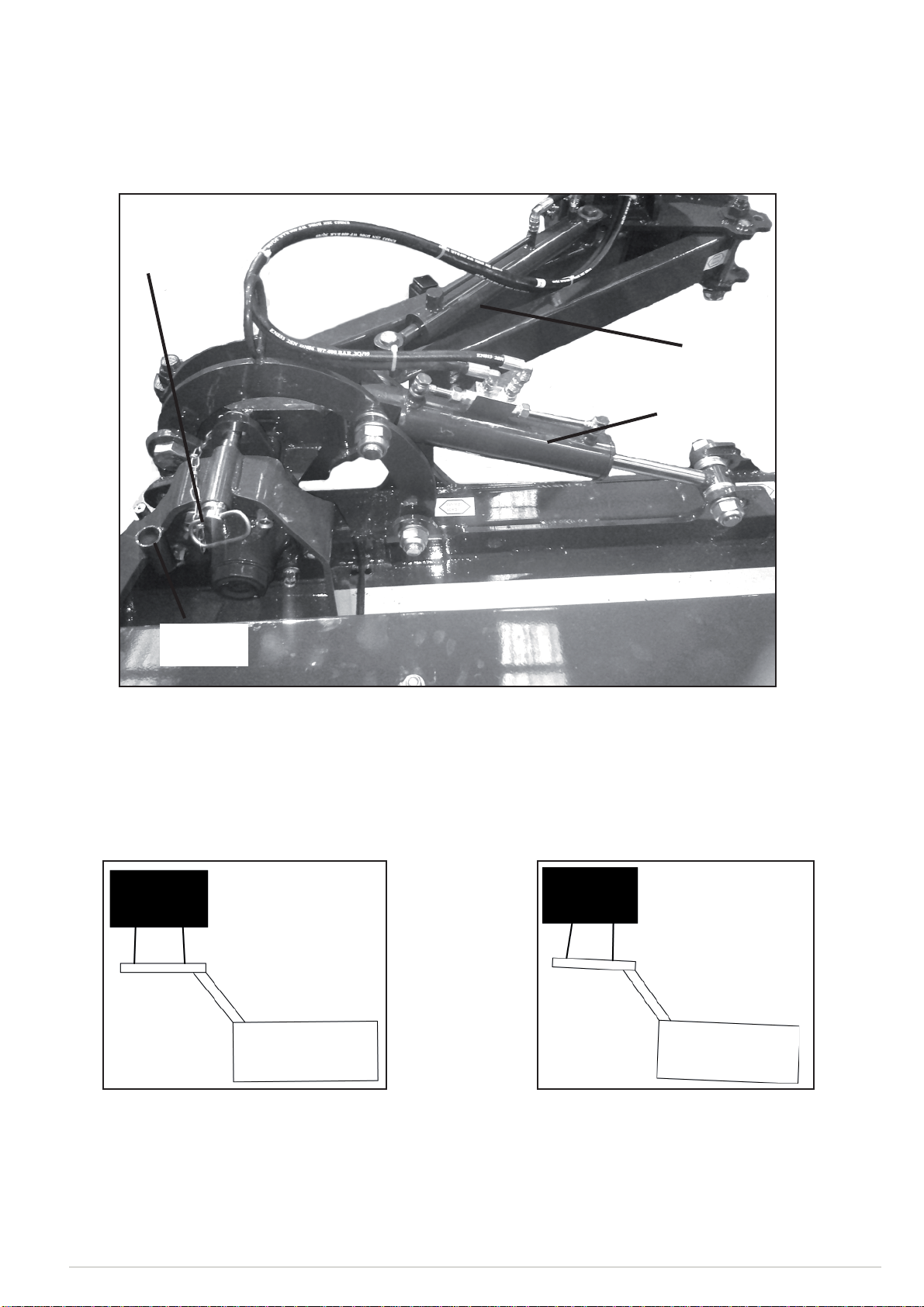

Hydraulic Ram Set Up Instructions
1. Fit hydraulic quick fits to Tractor Spool.
2. Remove the Transport Locking Pin.
In order to operate the Body Ram remove the Locking Pin
Body Ram
Transport
Position
Locking Pin
Carry Arm
Ram
3. Lift machine & power hydraulics to move body into mowing position.
4. Place spool in neutral position.
5. Tighten lower link stabilizer bars to ensure machine is tight on linkage & ensure that linkage bars are positioned to
have machine slightly forward when in mowing position.
Mowing
Position
6. When operating, the machine should be perpendicular or slightly forward to the direction of travel.
Correctly set up with stabilisers tightened up Incorrectly set up with loose stabilisers

www.major-equipment.com 9
Adjusting the Rollers
• Slacken the Height adjuster stop lock nuts Band
• Adjust the roller adjuster Ato obtain the desired cutting height.
• Tightly close the lock nut Bagain to keep the rollers in this position.
NOTE: IT IS IMPORTANT TO HAVE
ROLLERS LEVEL AFTER ADJUSTMENT.
B
A
Blade rotation
1400 Verge Major
2000 Verge Major
2650 Verge Major
Blades must always be timed at 90 degrees to each
other as shown in diagram above. Failure to do so
can cause the blades to foul and in turn may damage
the transmission.
Flow Restricor Tap
The speed of lowering and raising the machine is controlled by a Flow
Restrictor Tap which is located on the hydraulic hose connected to the Body
Ram. The adjustment should be carried out by a competent and qualified
person.
In order to adjust the flow:
• Slacken grub screw A,
• Turn the knob Buntil desired speed lowering/raising is reached,
• Lock the position of knob Bby tightening grub screw A.
B
A

www.major-equipment.com
10
Operating the machine
The machine is designed to operate at 540 RPM. Ensure tractor PTO output is set at 540 RPM.
1. Hitch the machine as outlined. Ensure bystanders are clear from the machine & cannot be hit with debris
expelled from the machine.
2. Raise the Parking Stand and lock it in the upper position.
3. Attach PTO shaft to the machine.
4. Check PTO shaft is fully engaged on tractor PTO splines.
5. Remove the Transport Locking Pin as previously described.
7. Set the machine to a desired position by hydraulic control or use tractor linkage controls.
8. After clearing the vicinity of bystanders, begin mowing.
The operational range of the machine is 140 degrees.
Horizontal
Position
Starting Regulations
Always check that any imminently dangerous conditions have been eliminated before using the machine. Ensure all
guarding is present & the operator is fully aware of the operations of the machine
Always ensure the pins lock the PTO shaft yoke ends onto the spline shafts on both the tractor and the
implement. An unlocked shaft could slip out of position, causing notable mechanical damage and serious
injury to both operator and bystanders.

www.major-equipment.com 11
P.T.O. Maintenance
The machine must always be disconnected form the tractor before any cleaning, lubricating and servicing operations
can be carried out. Maintenance must be carried out by qualified personnel
If emergency operations are required whilst the machine is connected to the tractor, switch off the engine, engage the
parking brake and disengage the PTO.
Good, regular maintenance and correct use are if the topper is to remain safe and long lasting.
PTO Shaft Maintenance
Guard Removal and Yoke End Greasing
1. Prise back locking tabs
2. Pull back PTO Guard
3. Grease points as shown
4. Push Guard into position
5. Click into place
6. Tie check chain
PTO Guard Greasing Intervals
INITIALLY 8 HOURS 16 HOURS
PTO Shafts ●●
Hydraulic Ram Pivot Points ●●
Roller Height Adjusters ●●
Carry Arm Pivot Points ●●
A-Frame Linkage ●●
Machine Maintenance
Shearbolt Replacement
1. Slide yoke shield back.
2. Drive out sheared bolt with hammer and punch.
3. Align holes and install new shear bolt.
4. Slide yoke shield securely in place
IMPORTANT
Fit PTO shaft with the shearbolt end connected to the machine as directed
on the PTO guarding
Use only genuine MAJOR replacement shear bolts.
Grease the follwoing at the shown intervals
Check tightness of the nuts on the Pivot connection daily.

www.major-equipment.com
12
Troubleshooting
Fault Cause Remedy
Leaves a streak of
uncut or partially cut
grass
Blades dull or bent Replace blades
Carrier RPM too low Use correct PTO speed
Field conditions are so wet that the tractor
tire is pushing grass into mud
Too wet to mow. Stop operation and wait until it
is drier
Ground speed too fast Reduce ground speed by shifting to a lower gear
Grass is down from previous weather
conditions Mow in only one direction
Possible build-up materials under mower Clean mower
Blades mounted incorrectly (cutting edge
against direction rotation)
Change blades so that cutting edge is facing
correct rotation.
Material discharges
from mower unevenly;
bunches of material
along with swath
Material too high and too much material
Reduce ground speed but maintain 540rpm at
tractor PTO or make two passes over material.
Raise mower for the first pass and lower to
desired height for the second and cut a 90
degree angle to first pass
Grass wet
Allow grass to dry before mowing. Slow ground
speed of tractor but keep engine running at full
PTO rpm. Cutting lower will help
Gearbox overheating
Low on lubricant Fill to proper level
Improper type lubricant Replace with proper lubricant
Excessive grass / debris build-up around
gearbox. PTO running too fast.
Remove grass, etc from machine. Lower the
RPM rate
Blade is scalping
ground
Mower too low Raise mower
Field is ridged Cut field at a different angle
Field is too wet Stop and wait until it is dried
Mower will not cut Shear bolt sheared Install new shear bolt
Blades wear too fast Cutting in sandy conditions Increase cutting height
Cutting in rocky conditions Increase cutting height
Blades hitting the ground Increase cutting height
Mower seems to
require excessive
power
Advancing into grass too rapidly Reduce forward travel speed
Hitting ground Raise mower and reset wheels
Worn or dull blades Sharpen or replace blades
Tractor not large enough Use larger horsepower tractor
Excessive vibration
Check gearbox bolts Tighten if loose
Check for loose nuts on blades Tighten if loose
Blade broken Replace blades, in set
New blade or bolts matched with worn blade
or bolts Replace blades or bolts in sets
Drivelines not phased correctly. Implement
and tractor yokes must be in line Phase the driveline. Replace if necessary
Noisy machine
Worn bearing Replace bearings
Low oil in gearbox Check level and add oil
Loose Parts Check all bolts are fully tightened
Wrong PTO rpm rate Check PTO rate & adjust as necessary
Bent PTO shaft Check PTO shafts are aligned correctly
Check output shaft on gearboxes are not bent
Check driveline between gearboxes is aligned.

www.major-equipment.com 13
Gearbox leaking
Damaged oil seal Replace seal
Bent shaft Replace oil seal and shaft
Shaft rough in oil seal area Replace or repair shaft
Oil seal installed incorrectly Replace seal
Oil seal not sealing in the housing Replace seal or use a sealant on outside
diameter of seal
Oil level too high Drain oil to proper level
Hole in gearbox Replace the gearbox
Gasket damaged Replace gasket
Bolts loose Tighten bolts

www.major-equipment.com
14

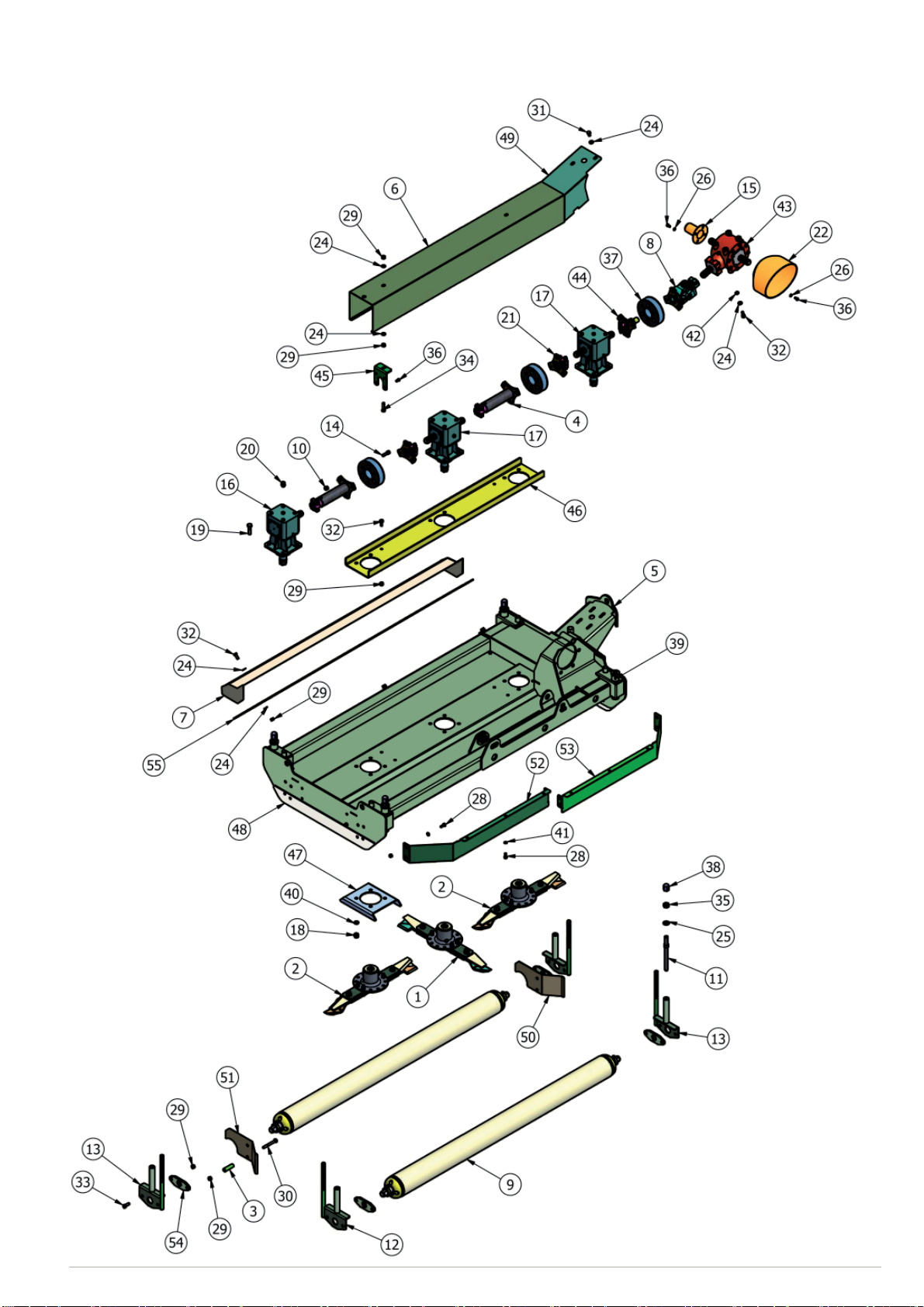

Verge Major 1400
Spare Parts

www.major-equipment.com 15
Verge Major 1400
ITEM PART NUMBER DESCRIPTION QTY
1 725-SBLOL 725 SWING BLADE (An_Clk) 1
2 725-SBROL 725 SWING BLADE (Clk) 1
3 84RM-RDT DEFLECTOR TUBE 4
4 9GTD DRIVE TUBE (292mm) 1
5 OSM-1400BD-01H 1400 STANDARD BODY 1
6 OSM-1400CV GEARBOX COVER (1400) 1
7 OSM-1400FLP-10 REAR GUARD (1400) 1
8 OSM-DRV-01 UV JOINT 1
9 TDW-ROL 16TDR ROLLER 2
10 1/2F 1/2” FINE NYLOC NUT 12
11 12F-THRA THREADED HEIGHT ADJUSTER 4
12 12GMRA2L HEIGHT ADJUSTER (LH) 2
13 12GMRA2R HEIGHT ADJUSTER (RH) 2
14 12x112FSKS 1/2”x1 1/2” FINE SOCKET HEAD 12.9 12
15 190592 PTO HAT 2
16 LF205T 6 SPLINE ‘T’ BOX RATIO 1.47 2
16 MJ40T 6 SPLINE ‘T’ BOX RATIO 1.47 2
17 5/8F 5/8” FINE NYLOC NUT 8
18 58x214FBZP 5/8”x2 1/4” FINE BOLT 8
19 8-6-7-00161 3/8” VALVE BREATHER 2
20 8SM-18 6 SPLINE STAR DRIVE 1
21 8SM11-2 PTO GUARD (OVAL) 1
22 FWM10 M10 FLAT WASHER 4
23 FWM12 M12 FLAT WASHER 14
24 FWM20 M20 FLAT WASHER 4
25 FWM8 M8 FLAT WASHER 12
26 M10 M10 NYLOC NUT 6
ITEM PART NUMBER DESCRIPTION QTY
27 M10x25SZP M10x25 SET BOLT 10
28 M12 M12 NYLOC NUT 22
29 M12x100BZP M12x100 BOLT 4
30 M12x20SZP M12x20 SET BOLT 2
31 M12x30SZP M12x30 SET BOLT 10
32 M12x35BZP M12x35 BOLT 8
33 M12x50SZP M12x50 SET BOLT 2
34 M20HEX M20 PLAIN NUT 4
35 M8x16SZP M8x16 SET BOLT 16
36 MJRC-113 113 PCD RUBBER COUPLING 2
37 RM-M20C ROLLER ADJUSTER CAP NUT 4
38 S849 GREASE NIPPLE M6 STR 4
39 SW58 5/8” SPRING WASHER 8
40 SWM10 M10 SPRING WASHER 4
41 SWM12 M12 SPRING WASHER 4
42 T304 6 SPLINE ‘T’ BOX RATIO 1:2.5 1
43 DRV-6S-135 WING STAR DRIVE 6 SPL 1
44 9TGT-CB GEARBOX COVER BRKT 2
45 OSM-1400BD-31 GEARBOX TROUGH (1400) 1
46 OSM-2000BD-32 GEARBOX REINF’ 2
47 OSM-2000CV-04 MAIN BOX COVER 1
48 OSM-ARF-10 REAR DEFLECTOR 1
49 OSM-ARF-10H REAR DEFLECTOR 1
50 OSM-ARF-14 FRONT AERO-FOIL (1400) 1
51 OSM-ARF-14H FRONT AEROFOIL (1400) 1
52 RM-RSN2 ROLLER MOUNT 4
53 OSM-1400SKR OSM-1400 SKIRT 1

www.major-equipment.com
16
Verge Major 2000
