Marathon MUF144W User manual

Deluxe 14.4 cu.ft.
Upright Freezer
MUF144W
Congratulations on the purchase of your new Marathon Freezer!
To activate your Warranty, please register your appliance at www.stirlingmarathon.com
or by completing and mailing the enclosed Warranty Registration Card. We are confident
you will have years of hassle-free enjoyment and ask that you please retain the Use &
Care Guide for future reference and your safety.
Before installing please, read your Use & Care Guide carefully and pay special attention
to the Safety & Warning information outlined in the following pages.
For immediate assistance: 1-844-309-9777
www.stirlingmarathon.com

2
Important Safety Information
Before installing please read your Use & Care Guide carefully and pay special attention to the Safety and Warning
information outlined in the following pages.
MUF144W
1) WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2) WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
3) WARNING----Do not use electrical appliances inside the appliance
4) WARNING----DANGER: Never allow children to play with, operate, or crawl inside the appliance. Risk of child
entrapment.
•Completely remove the doors or lids
•Leaves the shelves in place so that children not may easily climb inside
5) WARNING----GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This
appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
6) DO NOT USE AN EXTENSION CORD
7) Use an exclusive 115V wall outlet. Do not connect your refrigerator to extension cords or together with any other
appliance in the same wall outlet. Do not splice the cord.
8) Always unplug before any maintenance or service on the appliance.
9) If the component part is damaged, it must be re placed by the manufacturer, its service agent or similar qualified
persons in order to avoid a hazard.
10) Follow local regulations regarding disposal of the appliance due to flammable refrigerant and blowing gas. All
refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal.
It is the consumer’s responsibility to comply with federal and local regulations when disposing of this product.
11) This appliance is intended to be used in household and similar environment such as:
•staff kitchen, work shop, office and other working environments;
•farm houses and by clients in hotels, motels and other residential type environments;
•bed and breakfast type environments;
•catering and similar non retail applications.
12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity of refrigerator.
13) Do not use an extension cord with t his appliance. If the power cord is too short, have a qualified electrician install an
outlet near the appliance. Use of an extension can negatively affect the appliance’s performance.
To reduce the risk of fire, electrical shock, or injury follow these basic
precautions when using your appliance.
Before you discard or recycle your old refrigerator

MUF144W
1. Thermostat/Temperature
adjustment and Light switch
2. Interior LED Light
3. Fixed Quick Freeze Shelves (3)
4. Door Storage Bins
5. Removable Freezer basket
6. Defrost Drain
7. Green LED power on light
8. Adjustable feet
9. Optional Removable Shelf positions
(shelves sold separately)
Model Description
3

MUF144W
Installing Your Unit
•Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
•Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct
sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Do not use where
the room temperature is below -15°C, or in high heat/humidity locations.
•This freezer is not designed or approved for outdoor use.
•The appliance must be installed with all electrical and drain connections in accordance with state and local
codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National
Electrical Code and local codes and ordinances is required.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work properly. You may need to make several
adjustments to level it.
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an
extension cord.
•We recommend that your unit be on its own circuit. Please make sure to use a receptacle not controlled by a
light switch
•Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To level your unit,
adjust the leveling legs at the bottom of the unit.
•Allow 5 inches of space between the back and sides of the unit, which allows the proper air
circulation to cool the compressor and condenser.
•Avoid locating the unit in moist areas.
•Before connecting the unit to the power source, let it stand upright for approximately 2 hours. This will reduce
the possibility of a malfunction in the cooling system from handling during transportation.
Installation
Installing the handle
4
1. Take out the 4 screws from the manual
bag, and take the handle out of the basket.
2. If you want the door to open from the left
side, please remove the plugs on the left
side of the door and attach the handle
using the 4 screws from the manual bag. If
you want the door to open from the right
side please remove the plugs from the
right side of the door. Make sure you line
the holes on the door up with the holes of
the handle.
RIGHT LEFT

5

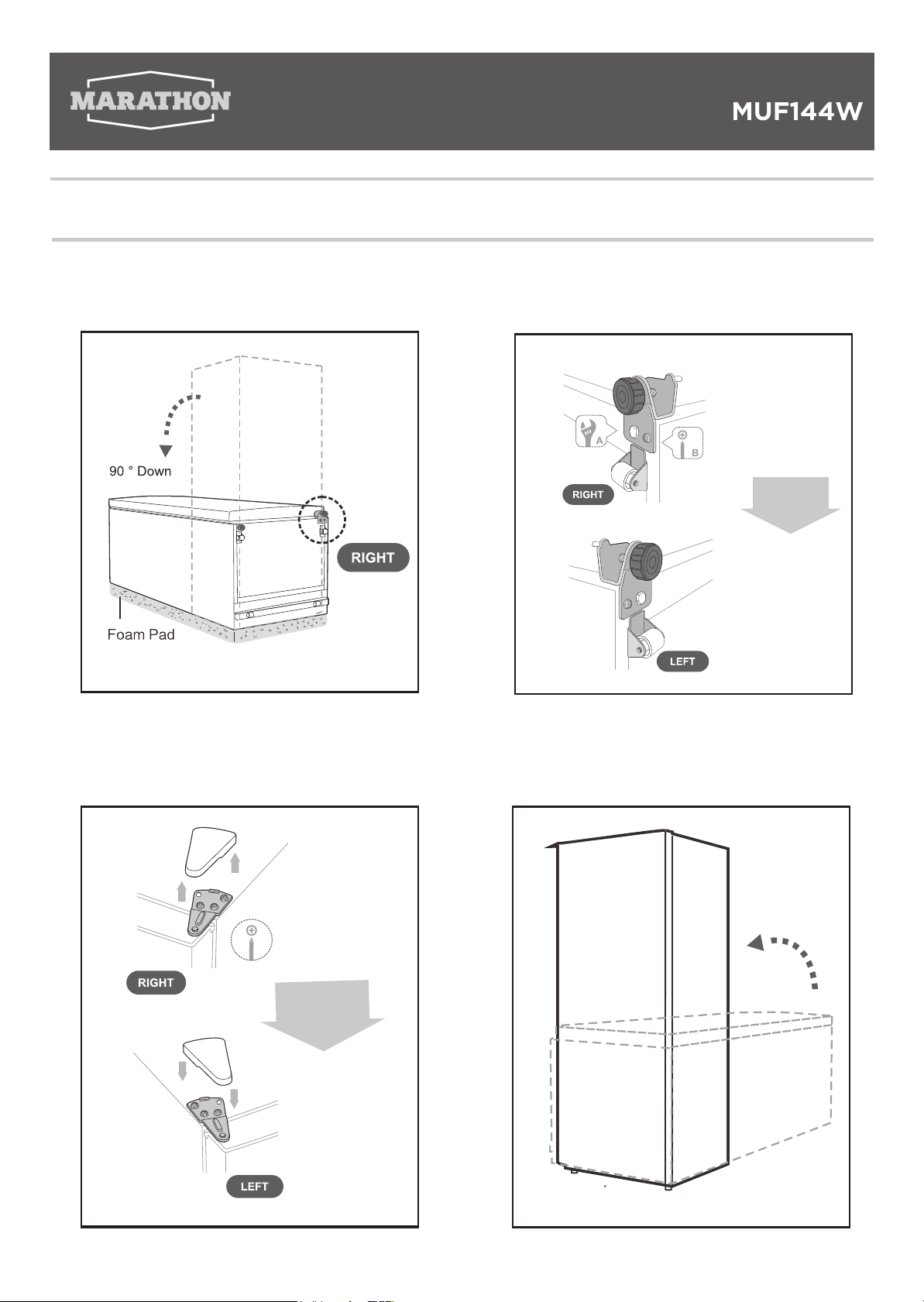

How to reverse your freezer door
MUF144W
1. Put your unit with the backside facing down, put
foam or towels down to protect the back.
1. Put your unit with the backside facing down, put foam or towels down to protect the back.
Then unload the down hinge, the support plate
and the door limit block and fix to the left side with
adjustable wrench and a cross screwdriver, as
shown in the picture
Remove the top hinge cover using a flat head
screwdriver and then remove the screws using a
Philips screwdriver. Move the top hinge to the
opposite side and re-attach it to the cabinet.
2.
3.4.Once both hinges have been moved to the new
side, stand your unit up. Please do not plug your
unit in for at least 4 hour

Use and Care
MUF144W
Setting the Temperature Control
MAX Coldest setting (Quick Freeze)
MIN Cold Setting
Consumers can adjust the thermostat knob according to their specific needs.
The recommended temperature point is in betweeni the MIN and MAX for best efficiency and daily use
Caution: The “MAX” setting is applicable to quick freeze or preserve large amount of food, switch to the
medium setting after quick freezing. (Normally time for quick freezing shall not exceed 4 hours).
Caution: It is not recommended to use the MAX setting for everyday use as this will use more energy.
•Remove the exterior and interior packing.
•Clean the interior surface with lukewarm water using a soft cloth. Do not use solvent-based cleaning agents or
abrasives on the interior. These cleaners may damage or discolor the interior.
•After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the
refrigerator compartment.
·
Before first use
•When? For the most efficient operation and minimum energy consumption,
defrost the unit compartment when the frost on the fixed quick freeze shelves
reaches 1/4" or more.
•How? To start defrosting, unplug the unit, remove the food and place in a
portable cooler with ice or other freezer.
•Place a shallow pan or the Divider/Drain Pan (if equipped) beneath the drain
outlet. Insert the outside drain plug (see figure 1) (see figure 1). A ½ inch
garden hose adapter can be used to drain the freezer directly into a floor drain
(see figure 2). If your model is not equipped with an adapter, one can be
purchased at most hardware stores.
•Pull out the drain plug inside the freezer (see figure3). Defrost water will drain
out. Check pan occasionally so water does not overflow.
•Re-insert the drain plug after defrosting and cleaning is complete. Set the
desired temperature and plug the freezer back in.
Defrosting your freezer
Do not use boiling water because it may damage the plastic parts.
NEVER use a sharp or metallic instrument to remove frost as
it may damage the cooling system and will void the
warranty.
6

7
Care and Maintenance
MUF144W
Cleaning Your Unit
•After defrosting, gently wash & wipe the interior with a mild detergent in warm water
•Wash & Wipe the freezer basket and door railings with a mild detergent
•The outside of the unit should be cleaned with mild detergent and warm water.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
unit if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your food.
•The unit should be located in the coolest area of the room, away from heat producing appliances
or heating ducts, and out of the direct sunlight.
•Do not use outdoors or on wet surfaces. Use only as described in this manual.
•Use only manufacturer’s recommended attachments.
•Let hot foods cool to room temperature before placing in the unit.
•Overloading the unit forces the compressor to run longer.
•Foods that freeze too slowly may lose quality, or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer.
This cuts down on frost build-up.
Energy Saving Tips

8
Important Warning
MUF144W
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not change or damage the refrigerant circuit.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
During transportation and installation of the appliance, be certain that none of the components of the
refrigerant circuit become damaged.
It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord
may cause a short circuit, fire and/or electric shock.
This appliance is intended to be used in residential household, office or light commercial applications
such as Hotels and College Dorms.
All electrical components (plug, power cord, compressor and etc.) must be replaced by a certified
service agent or qualified service personnel.
The refrigerant contained within the compressor of the appliance is isobutene (R600a) which is
environmentally friendly but flammable.
Make sure that the power cord is not crushed or damaged at the back of the appliance. A crushed or
damaged power cord may overheat and cause a fire.
Power cord must not be lengthened.
Make sure that you can come to the power cord of the appliance Do not pull the mains cable.
If the electrical outlet is loose, do not insert the power plug. There is a risk of electric shock or fire. You
must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it..
Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Do not use where the room temperature is below -15°C, or in high heat/humidity
locations. This freezer is not designed or approved for outdoor use.

You can solve many common refrigerator problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling for service.
Troubleshooting
MUF144W
9

V.12/2020
2 Years Limited Warranty
When operated and maintained according to the instructions in the Use & Care Guide, Marathon, a registered trademark of Stirling
Marathon Limited, agrees to repair or replace this product for 2 years from the date of original purchase and/or agrees to pay for parts
and service/labour required to correct defects in materials or workmanship. Any Service must be approved and provided by an
Authorized Stirling Marathon Service provider. YOUR EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR OR REPLACEMENT AT THE SOLE DISCRETION OF STIRLING MARATHON LIMITED AS PROVIDED
HEREIN. This limited warranty is valid only in Canada and the Continental United States with proof of original purchase and
conrmed warranty registration.
Carry-In: The original purchaser must deliver or ship the defective product to an authorized Stirling Marathon Service present a copy of
the original bill of sale or Warranty Registration Conrmation.
In-Home: Contact Authorized Service Center and provide a copy of the Original bill of sale or Warranty Registration Card. If you are in a
remote area or the closest Autho-rized Service Center is further than 100 km (60 miles), you will be required to deliver the appliance to
the closest Service Center at your expense.
Stirling Marathon is not responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any
defect of the appliance, or its use, whether proper or improper.
Items Excluded from Warranty
•Damages due to shipping or improper installation.
•Damages due to misuse or abuse.
•Content losses due to failure of the unit.
•Commercial or Rental Use Limited to 90 days Parts & Labour.
•Plastic parts such as door bins, panels, door shelves, racks, light bulbs, etc.
•Punctures to the evaporator system due to improper defrosting of the unit.
•Service or Repair by unauthorized service technicians.
•Service calls that do not involve defects in material and workmanship such as instruction on proper use of the product, door reversal or improper installation.
•Replacement or resetting of house fuses or circuit breakers.
•Delivery costs incurred as the result of a unit that fails.
•Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an unauthorized service technician is not available.
•The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
•Liability under this warranty is limited to repair, replacement or refund. If a replacement unit is not available or the unit cannot be repaired, liability is limited to the actual.
•Purchase price paid by the consumer.
•This warranty applies only to the original purchaser and does not extend to any subsequent owner(s) and is non-transferable.
•No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or anormal operating conditions (extremely high or low room temperature).
•Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence). Fire, water damage, theft, war, riot, hostility, acts of God such as
hurricanes, floods etc.
•Service calls resulting in customer education.
•lmproper installation (ie. Building-in of a free-standing appliance or using an appliance outdoors that is not approved for outdoor application).
For Service or Assistance please contact us at:
[email protected] or visit us at www.stirlingmarathon.com
How to Obtain Service
MUF144W
10
