True GDM-43F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
GDM-43F
GDM-43F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-43F 2 40.6
1150
847
1/8
1197
297/8
759
785/8
1998
1115/208-230/1 12.6 14-20P 9
2.74
585
266
†Depth does not include 11/8" (29 mm) for door handle.
Note: Requires 115/208-230/60 HZ, single phase, 3 pole, 4 wire circuit.
9/07
The world’s #1 manufacturer of
glass door merchandisers.
Designed using the highest quality
materials and components to
provide the user with an attractive,
point of purchase merchandiser
that brilliantly displays frozen food
and ice cream resulting in high
impulse sales.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C). Ideal for ice cream and
frozen food products.
Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Self closing doors. Positive seal,
torsion type closure system.
Triple pane thermal glass door
assemblies with extruded aluminum
frames.
Patented integrated door light
(IDL) system for brighter, shadow
free illumination.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
Glass Door Merchandiser:
Swing Door Freezer
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

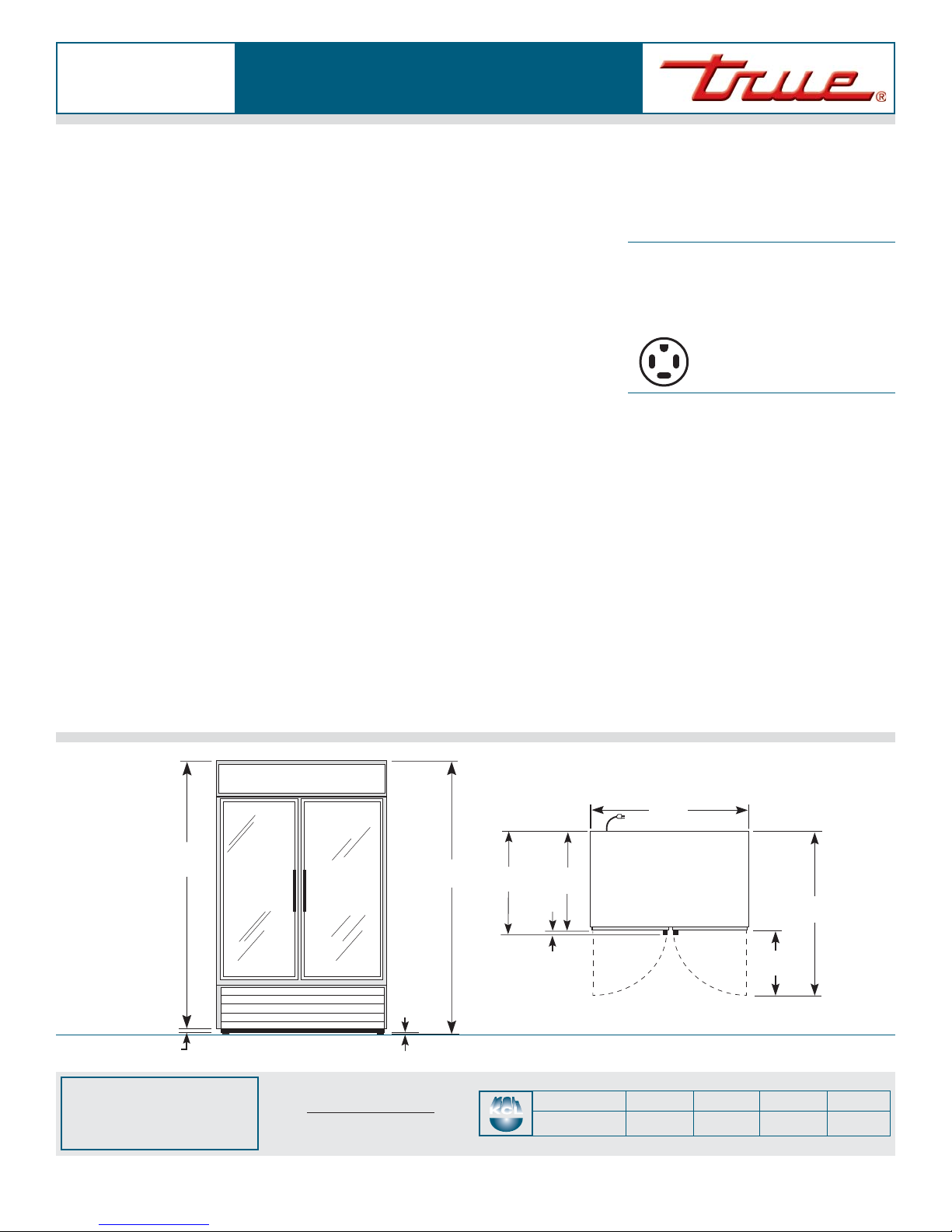

Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDM-43F TFD030E TFD030S TFD030P TFD0303
GDM-43F
DESIGN
• True’s glass door freezers are designed with
enduring quality that protects your long
term investment.
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in
an attractive merchandiser that brilliantly
displays frozen food and ice cream.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
merchandisers a more efficient low velocity,
high volume airflow design. This unique
design ensures colder standard temperatures
and faster recovery in high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop”
lower shelf maximizes visibility by raising
merchandised product to higher level.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum liner with 300 series stainless steel
floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOORS
• Triple pane thermal glass door assemblies
with extruded aluminum frames.
• Each door fitted with 12" (305 mm) long
extruded handle.
• Self closing doors. Positive seal, torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Eight (8) adjustable, heavy duty PVC coated
wire shelves 207/8"L x 203/4"D (531 mm x
528 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior
lighting. Doors utilize full-length, patented,
integrated door light (IDL) system.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer
bulb life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Backguard and floor rack ensure optimum
airflow.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/208-
230/60Hz single phase, 3 pole, 4 wire - 20
amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ Black exterior
❒ Rosewood exterior
❒ Stainless exterior
❒ Black aluminum interior liner with black
shelving.
❒ Stainless interior liner.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 2
1/2" (64 mm) diameter castors.
❒ 4"(102 mm) diameter castors.
❒ Padlock.
❒ Novelty baskets.
❒ Additional shelves.
❒ 1
1/4"(32 mm) pricing strips.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/208-230/1
NEMA-14-20R
Glass Door Merchandisers:
Swing Door Freezer
ELEVATION RIGHT VIEW
7615/16"
(1955 mm)
13/8"
(35 mm)
785/8"
(1998 mm)
5/16"
(8 mm)
3029/32"
(786 mm) 2913/16"
(758 mm)
471/8"
(1197 mm)
511/4"
(1302 mm)
217/16"
(545 mm)
13/32"
(28 mm)
