MasterForce 270-3282 User manual

OPERATOR’S MANUAL
80V BRUSHLESS SNOW
THROWER
270-3282
SNB403
To Reduce The Risk Of Injury, User Must Read
CAUTION
And Understand Operator’s Manual. Save These Instructions For
Future Reference.
2600294ME

TABLE OF CONTENTS
Safety Symbols........................................................................................................... Page 2
Safety Instructions ...................................................................................................... Page 3
Overview..................................................................................................................... Page 7
Assembly .................................................................................................................... Page 9
Operation.................................................................................................................. Page 11
Maintenance ............................................................................................................ Page 13
Troubleshooting ........................................................................................................ Page 16
Exploded view........................................................................................................... Page 17
Notes ........................................................................................................................ Page 18
Warranty ................................................................................................................... Page 22

Page 2
SAFETY SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better
and safer.
Symbol Name Designation / Explanation
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual
To reduce the risk of injury user must read and
understand operator’s manual before using
this product.
Safety Alert Precautions that involve your safety.
Eye and Hearing Protection Wear eye and hearing protection when
operating this equipment.
Ricochet Thrown objects can ricochet and result in
personal injury or property damage.
Safe Distance Keep bystanders a safe distance from the
machine.
Moving Parts Stay away from moving parts. Keep all guards
and shields in place.
Hand Keep hands away from the discharge area.
Hand and feet Keep hands and feet away from rotating
auger.
Stop the Machine Stop the motor and remove the battery before
leaving the machine.
Hand and Feet Keep hands and feet away.
Class II Construction Double-insulated construction

Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract our attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understanding.
The symbol warnings do not by themselves eliminate any danger. The instructions and
warnings they give are no substitutes for propper accident prevention measures.
Failure to obey this safety warning CAN result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk of
re, electric shock and personal injury.
WARNING
Failure to obey this safety warning MAY result in personal injury
to yourself or others or property damage. Always follow the safety precautions to
reduce the risk of re, electric shock and personal injury.
CAUTION
Failure to obey this warning WILL result in death or serious injury
to yourself or to others. Always follow the safety precautions to reduce the risk of fire,
electric shock and personal injury.
DANGER
Be sure to read and understand all safety insructions in this
manual, including all safety alert symbols such as “DANGER”, “WARNING” and
“CAUTION”, before using this power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious personal injury.
WARNING
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May be used
in conjuntion with other symbols or pictographs

Page 4
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING (THIS POWER
TOOL)
WARNING Read and
understand all instructions before using
this product. Failure to follow all
instructions listed below may result in
electric shock, re, and/or serious
personal injury. When using an electrical
appliance, basic precautions should
always be followed, including the
following:
TRAINING
• Do not allow children under the age of
14 to operate this tool. Children who are
14 years of age or older must read and
understand the operating instructions and
safety rules in this manual and must be
trained and supervised by a parent.
• Read the operating and service instruction
manual carefully. Be thoroughly familiar
with the controls and the proper use of the
power tool. Know how to stop the unit and
disengage the controls quickly.
• Never allow children to operate the power
tool. Never allow adults to operate the
power tool without proper instruction.
• Keep the area of operation clear of all
persons, particularly small children, and
pets.
• Exercise caution to avoid slipping or falling,
especially when operating in reverse.
• Do not use on graveled surface unless
the snow thrower is adjusted for such a
surface in accordance with the operator’s
manual.
• Dress Properly – Do not wear loose
clothing or jewelry. They can be caught in
moving parts.
• Wear appropriate boots when operating
the snow thrower.
• Operation of the snow thrower in the
hand-held position is unsafe, except in
accordance with the special instructions
for such use provided in the operator’s
manual.
• Avoid Accidental Starting – Don't carry the
snow thrower with fingers on the switch
while the battery is inserted. Be sure the
switch is off when inserting the battery
pack.
PREPARATION
• Thoroughly inspect the area where the
power tool is to be used and remove all
doormats, sleds, boards, wires, and other
foreign objects.
• Replacement Parts – When servicing use
only identical replacement parts. Replace
or repair damaged cords.
• Do not operate the power tool without
wearing adequate winter garments. Wear
footwear, which will improve footing on
slippery surfaces.
• Keep guards in place and in working order.
• Never attempt to make any adjustments
while the machine is running (except
where specifically recommended by
manufacturer).
• Always wear safety glasses or eye shields
during operation or while performing an
adjustment or repair to protect eyes from
foreign objects that may be thrown from
the machine.
• Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to battery pack, picking up
or carrying the appliance. Carrying the
appliance with your nger on the switch or
energizing appliance that have the switch
on invites accidents.
• For use only with 2900294ME (BAB727)
and other BAB battery.
• For use only with 2900094ME (CAB809)
and other CAB charger.
• Disconnect the battery pack from
the appliance before making any
adjustments, changing accessories, or
storing appliance. Such preventive safety
measures reduce the risk of starting the
appliance accidentally.
• When battery pack is not in use,keep it
away from other metal objects, like paper
clips, coins, keys, nails, screw or other
small metal objects,that can make a
connection from one terminal to another.
Shorting the battery terminals together
may cause burns or a re.
OPERATION
• Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.
• Exercise extreme caution when operating
on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or

Page 5
trafc.
• After striking a foreign object, turn the
machine off and remove the battery pack,
and then inspect it for damage. Repair any
damage before restarting and using the
machine.
• Adjust the collector housing height to clear
gravel or crushed rock surface.
• If the power tool should start to vibrate
abnormally, stop the machine and check
immediately for the cause. Vibration is
generally a warning of trouble.
• Stop the machine whenever you leave
the operating position, before unclogging
the collector/auger housing or discharge
guide, and when making any repairs,
adjustments, or inspections.
• When cleaning, repairing, or inspecting,
make certain the collector/auger and all
moving parts have stopped.
• Exercise extreme caution when operating
on slopes.
• Never operate the snow thrower without
proper guards, keep other safety protective
devices in place and working.
• Never direct the discharge toward people
or areas where property damage can
occur. Keep children and others away.
• Don’t Overreach – Keep proper footing and
balance at all times.
• Do not overload the machine capacity by
attempting to clear snow at too fast a rate.
• Don’t Force Snow Thrower – It will perform
better and safer at the rate for which it was
designed.
• Never operate the power tool at high
transport speeds on slippery surfaces. Use
care when reversing.
• Never direct discharge at bystanders or
allow anyone in front of the power tool.
• Disengage power to the collector/auger
when the power tool is transported or not
in use.
• Use only attachments and accessories
approved by the manufacturer of the
snow thrower (such as wheel weights,
counterweights, or cabs).
• Never operate the power tool without
good visibility or light. Always be sure of
your footing, and keep a firm hold on the
handles.
• Walk, never run.
• Clearing a Clogged Discharge Chute.
• Hand contact with the rotating auger
inside the discharge chute is the most
SAFETY INSTRUCTIONS
common cause of injury associated with
snow throwers. Never use your hand to
clean out the discharge chute. To clear the
chute:
• SHUT THE ENGINE (Motor) OFF!
• Wait 10 seconds to be sure the auger
blades have stopped rotating.
• Always use a clean-out tool, not your
hands.
• If the snow thrower strikes a foreign object
follow these steps:
• Stop snow thrower. Release the switch.
• Remove the battery pack.
• Inspect for damage.
• Repair any damage before restarting and
operating the snow thrower.
MAINTENANCE
• Check shear bolts, engine-mounted
bolt, etc., at frequent intervals for proper
tightness to be sure the power tool is in
safe working condition.
• Always refer to owner’s guide instructions
for important details if the power tool is to
be stored for an extended period.
• Store Idle Snow throwers Indoors – When
not in use, snow throwers should be stored
indoors in a dry, locked-up place – out of
reach of children.
• Run the power tool a few minutes after
throwing snow to prevent freeze-up of the
collector/auger.
• Do not use a battery pack or appliance
that is damaged or modified. Damaged
or modified batteries may exhibit
unpredictable behavior resulting in fire
explosion or risk of injury.
• Do not expose a battery pack or appliance
to fire or excessive temperature space.
Exposure to fire or temperature above
265°F (130°C) may cause explosion.
• Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specied
in the instructions. Charging improperly or
at temperatures outside of the specified
range may damage the battery and
increase the risk of re.
• Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the product is maintained.
• Do not modify or attempt to repair
the appliance or the battery pack (as

Page 6
applicable) except as indicated in the
instructions for use and care.
• Maintain or replace safety and instructions
labels, as necessary.
• Maintain Snow Thrower With Care – Follow
instructions for lubricating and changing
accessories.
PROPOSITION 65
This product contains a chemical known to
the state of California to cause cancer, birth
defects or other reproductive harm. Some dust
created by power sanding, sawing, grinding,
drilling, and other construction activities
contains chemicals known to cause cancer,
birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement
and other masonry products;
• Arsenic and chromium from chemically
treated lumber.
Your risk of exposure to these chemicals
varies depending on how often you do this
type of work. To reduce your exposure to these
chemicals, work in a well-ventilated area, and
work with approved safety equipment, such as
dust masks that are specially designed to lter
out microscopic particles.
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Page 7
OVERVIEW
Type Cordless, battery operated
Motor 80V Brushless
No-load Speed 1800 RPM
Clearing Width 22 in. (55.9 cm)
Clearing Depth 12 in. (30.5 cm)
Impeller Size 18 in. (45.7 cm)
Weight (Without Battery) 56.9 lbs (25.8 kg)
Double-insulated construction
SPECIFICATIONS
Bail switch
Chute control
rod
LED lights
Upper handle
Middle handl
e
Lower handle
Impeller
Discharge
chute
Chute
deflector
Safety switch
button
Scra
p
er
Wheel
Battery
compartment

Page 8
SPECIFICATIONS
The recommended ambient temperature range:
Item Temperature
Snow Thrower storage temperature range 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C)
Snow Thrower operation temperature
range
1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C)
Battery charging temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Charger operation temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Battery discharging temperature range 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C)
Battery storage temperature range 32 °F (0 °C) ~ 113 °F (45 °C)

Page 9
ASSEMBLY
UNPACKING
This product requires assembly.
• Carefully remove the product and any
accessories from the box. Make sure that
all items listed in the package contents
section are included.
• Inspect the product carefully to make sure
no breakage or damage occurred during
shipping.
• Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the product.
• If any parts are damaged or missing, please
call 1-844-MSTR4CE (844-678-7423) for
assistance.

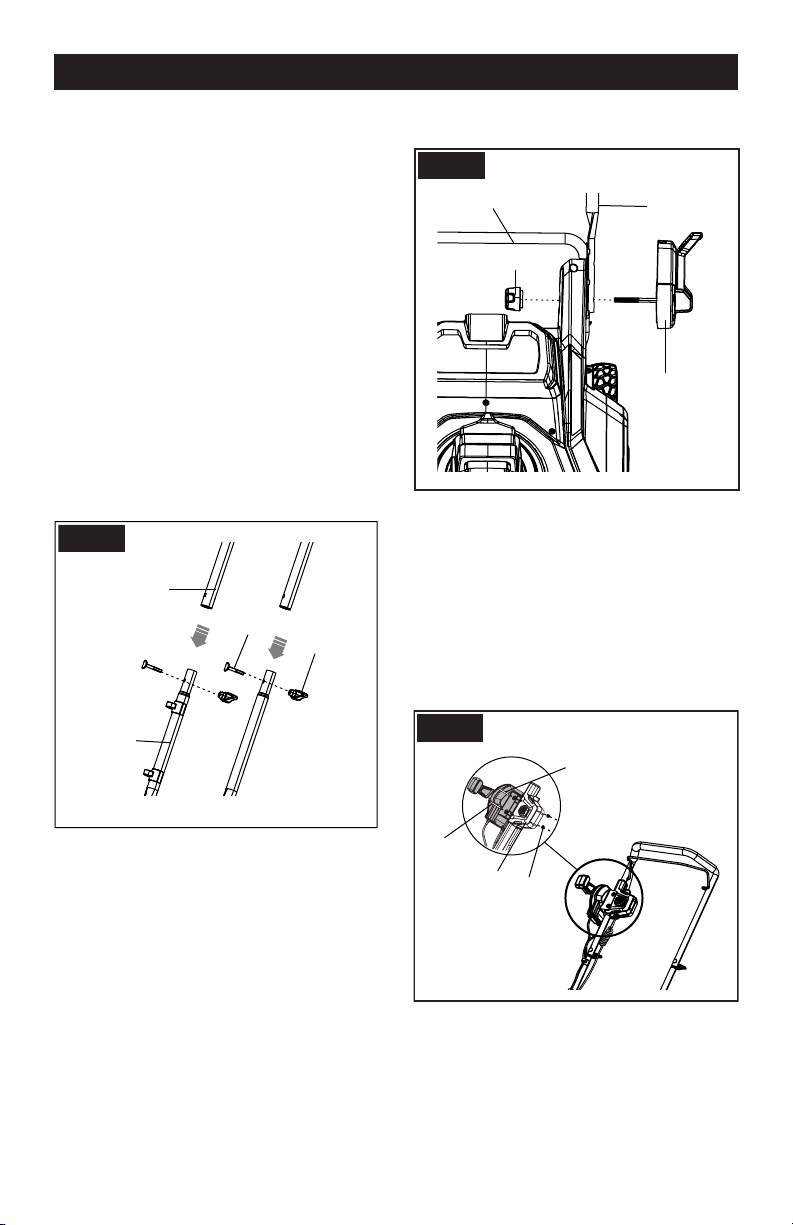

INSTALL THE UPPER HANDLE
Upper
handle
Knob
Bolt
FIG. 1
Middle
handle
1. Align the holes in the middle handle and
the upper handle.
2. Insert the bolt through the middle handle
and upper handle.
3. Tighten the handle knob onto the bolt.
4. Repeat for left/right side.
INSTALL THE MIDDLE HANDLE
FIG. 2
Bolt
Knob
Lower
handle
Middle
handle
1. Align the holes in the middle handle and
the lower handle.
2. Put the bolts through the middle handle
and the lower handle.
3. Tighten the handle knob onto the bolt.
4. Repeat for left/right side.
INSTALL THE CHUTE-ROTATION
BOX
1. Align the holes in the panel of the chute-
rotation box and the switch box.
2. Put the chute-rotation box screws through
the holes.
3. Tighten the chute-rotation box screw nuts
with a wrench (not included).
FIG. 3
Chute-
rotation
box Switch
box
Screw
Nut

Page 10
WARNING
• If the battery pack or charger is
damaged, replace the battery pack or the
charger.
• Stop the machine and wait until the
engine stops before you install or remove
the battery pack.
• Read, know, and do the instructions in
the battery and charger manual.
1. Open the battery door.
2. Align the lift ribs on the battery pack with
the grooves in the battery compartment.
3. Push the battery pack into the battery
compartment until the battery pack locks into
place.
4. When you hear a click, the battery pack is
installed.
5. Close the battery door.
REMOVE THE BATTERY PACK
1. Open the battery door.
2. Push and hold the battery release button.
3. Remove the battery pack from the ma-
chine.
INSTALL THE CHUTE DEFLECTOR
FIG. 4
Groove
Discharge
chute
Slot
Screw
1. Align the grooves of the discharge chute
with the slot on the chute housing.
2. Push the discharge chute into position.
3. Tighten the discharge chute screws with
a Phillips head screw driver to lock the dis-
charge chute.
INSTALL THE BATTERY PACK
ASSEMBLY
FIG. 5
Battery
pack
Battery
door
FIG. 6
Battery
pack
Battery
door

Page 11
WARNING Examine the work
area. Remove all stones, sticks, wire,
bones, and other debris that can ricochet
because of the rotating impeller.
STOP THE MACHINE
FIG. 8
Bail
switch
1. Release the bail switch to stop the ma-
chine.
WARNING Wait until the
impeller fully stops before you start the
machine again. Do not quickly turn the
machine off and on.
WARNING Remove the safety
key and battery pack after you complete
the work.
WARNING Wear eye
protection during operation.
COLD WEATHER OPERATION
The safe battery operation temperature rang-
es from 1°F(-17°C) to 113°F (45°C).
WARNING Do not store or
charge battery outside.
Battery must be charged and stored indoors
prior to use of the machine.
If the machine does not start :
• remove the battery pack from the machine,
• charge the battery pack for 15 minutes in
warm area, or until the charging light turns
green.
• Install the battery pack back in the unit.
START THE MACHINE
FIG. 7
Safey
switch
button
Bail
switch
1. While holding the safety switch button. pull
the bail lever (2) to start the machine.
NOTE Lower the scraper to the
ground to remove the snow.
WARNING Keep bystanders a
safe distance from the machine.
OPERATION

Page 12
WARNING Release the bail
switch before you adjust the chute
deector.
WARNING Do not push the
trigger so far forward that a gap shows
between the deector and the chute.
1. Push and hold the trigger on the chute de-
ector.
2. Move the chute deector up to increase the
snow distance.
3. Move the chute deector down to decrease
the snow distance.

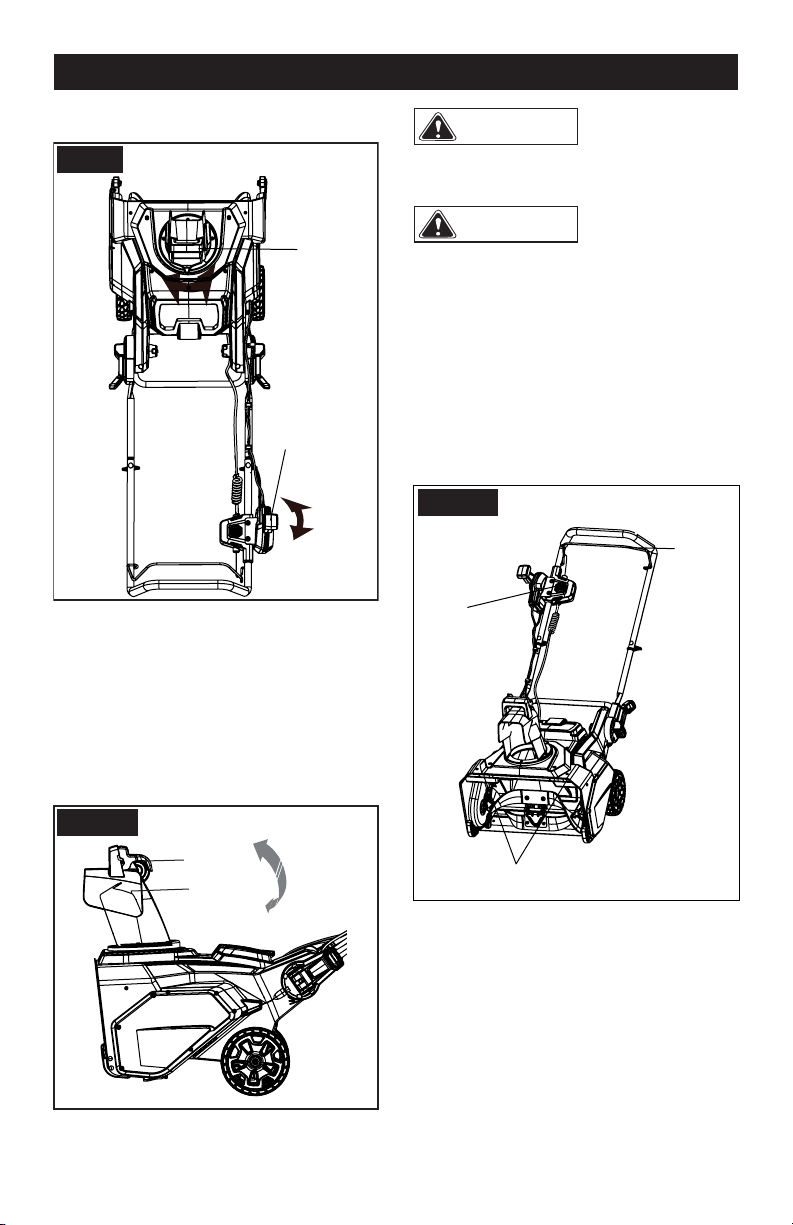

HEADLIGHTS
Turning the headlights on :
1. Push and hold the safety switch button.
2. Pull the bail lever in the direction of the
handle bar to turn the headlights on.
Turning the headlights off :
3. Release the bail lever.
ADJUST THE DISCHARGE CHUTE
FIG. 9
Discharge
chute
Chute
control rod
You can adjust the discharge chute 180° to
change the snow direction.
1. Turn the grip handle forward to move the
discharge chute to the left.
2. Turn the grip handle rearward to move the
discharge chute to the right.
ADJUST THE CHUTE DEFLECTOR
FIG. 10
Trigger
Chute
deflector
You can adjust the chute deflector up and
down to change the throwing distance of the
snow.
OPERATION
Bail
switch
LED lights
Safety
switch
button
FIG. 11

Page 13
OPERATION TIPS
If it is possible, clear the snow with the
direction of the wind.
• In strong winds, lower the chute deector to
direct the snow to the ground.
• When you complete the work, let the
machine operate for a while to prevent ice
formation in the discharge chute.
• If the snow is deeper than 8", decrease the
speed and let the machine work at its own
rhythm.
• Do not use the machine to remove compact
snow and ice.
WARNING Remove the
safety key and battery pack from the
machine before maintenance.
WARNING Wear correct
clothing, gloves and safety glasses
before maintenance.
CAUTION Use only
approved replacement parts.
CAUTION Do not let brake
uids, gasoline, petroleum-based
materials touch the plastic parts.
Chemicals can cause damage to
the plastic, and make the plastic
unserviceable.
CAUTION Do not use
strong solvents or detergents on the
plastic housing or components.
GENERAL MAINTENANCE
• Before each use, examine the machine for
damaged, missing, or loose parts such as
screws, nuts, bolts and caps.
• Tighten correctly all the fasteners and
caps.
• Clean the remaining snow on the machine
with a brush.
REPLACE THE SCRAPER
WARNING Use only
approved replacement scrapers.
WARNING Wear heavy
gloves or wind cloth around the impeller
when you touch the impeller.
WARNING The scraper is
located at the bottom of the impeller
housing. Ensure that the battery is not
installed in the tool.
1. Turn the machine to its side.
2. Remove the 5 bolts below the deck that
attach the scraper to the machine.
3. Remove the worn scraper from the
machine.
4. Install the new scraper.
5. Install and tighten the bolts that you
removed.
OPERATION
MAINTENANCE
Bolt
FIG. 12
Scraper

Page 14
WARNING Make sure to
turn off the bail lever and remove the
battery pack(s) before performing any
maintenance task on your snow thrower.
1. Remove the 4 sets of nuts and bolts on
the middle steel plate.
2. Remove the 4 sets of nuts and bolts on
each side.
3. Remove the impellers.
4. Install the new impellers.
5. Tigthen the 8 sets of nuts and bolts that
you removed.
REPLACE THE SKID PLATES
NOTE The range of
adjustable height for skid plates is
1.5mm, when putting the bolts through
the U-hole on the skid plates.
1. Loosen the 2 sets of bolts , spacers and
nuts that attach the skid plates to the snow
thrower housing.
2. Remove the skid plates.
3. Install the new skid plates.
4. Do the same operation on the other side.
MAINTENANCE
REPLACE THE BELT
WARNING Make sure to
turn off the bail lever and remove the
battery pack(s) before performing any
maintenance task on your snow thrower.
1. Remove the screws on the side wear pad.
2. Turn the large pulley counterclockwise
while you remove the remaining belt.
3. Turn the new belt onto the pulleys.
4. Install and tighten the screws that you
removed.
REPLACE THE IMPELLER
FIG. 14
Impellers
FIG. 15
Bolt Skid
plate
Spacer Nut
Screw
Side
wear
pad
FIG. 13
Large
pulley
Belt

Page 15
STORE THE MACHINE
• Clean the machine before storage.
• Make sure the motor is not hot when you
store the machine.
• Make sure that the machine does not have
loose or damaged parts. If it is necessary,
do these steps/instructions:
• Replace the damaged parts. Replacement
parts can be purchased on menards.
com or by calling 844-678-7423.
• Tighten the bolts if they loosen.
• Speak to a person of an approved
service center or call 844-678-7423.
• Store the machine in a dry area.
• Make sure that children cannot come near
the machine.
MAINTENANCE

Page 16
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The handle is not in
position.
The bolts are not
engaged correctly.
Adjust the height of the handle and make sure
that the knobs and bolts are aligned correctly.
The machine does not
start.
The battery is not
charged.
Charge the battery by following the procedures
in the battery and charger manual.
The switch is
defective.
Have the switch replaced by an authorized
service center or call 844-678-7423 for more
direction.
Battery is too cold. Remove battery from snow thrower. Place
battery on charger and allow to charge for 10
minutes or until the changing light turns green.
Remove from charger and install in snow
thrower for use.
Battery may
require service or
replacement.
Call toll free helpline to determine battery issue
and to see if a replacement battery is needed.
The engine is on, but
the impeller does not
turn.
The belt is damaged. Replace the belt.
A thin layer of snow
stays behind.
The scraper is
damaged.
Replace the scraper.

Page 17
EXPLODED VIEW
ITEM NO. PART NO. DESCRIPTION QTY
1R0201592-00 Impeller assembly 1
2 R0200650-00 Scraper Kit 1
3 R0201593-00 Wheel Assembly 1
4R0201594-00 Chute Deector Assembly 1
5 R0200908-00 Quick-Release Lever Assembly 1
6 R0201595-00 Knob 1
7 R0200654-00 PCB board 1
8R0200655-00 Skid plates 1

Page 18
NOTES

Page 19
NOTES
