Maytag MAH6500AWW - Front-Load Washer Manual

Repair
Parts
List
MODEL NUMBER
MAH6500AWW
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
WASHER
©2005 Maytag Services

Section: CONTROL PANEL & TOP
LW11-136
Model: MAH6500AWW
1

CONTROL PANEL & TOP
No. Part No. Description
Section:
Series Qty
1 22004440 LED CONSOLE ASSY-WHT - AS PACK 37 1
- 22003806 MEDALLION, CONSOLE (WHT) 10 1
1 22003910 CONSOLE W/MEMBRANE SWITCH-WHT 10 1
- 22003807 MEDALLION, CONSOLE (BSQ) 10 1
2 22003581 BACK, CONSOLE PANEL 10 1
- 22002061 SCREW Note: SCREW, CONTROL BOARD 10 4
- Y22002339 SCREW 10 4
3 22004180 COVER, TOP (WHT-AS PK) 10 1
4 22003276 COVER, CONSOLE PLUG (WHT) 10 1
5 22003274 LID, DISPENSER (WHT) 10 1
6 22003848 SIPHON CUP 10 1
7 22003681 SCREW, DISPENSER LID 10 4
8 22003273 BEZEL, DISPENSER (WHT) 10 1
- 202515 HOSE CLAMP - 1-1/16 INCH 10 2
9 22003844 DISPENSER BOTTOM 10 1
10 22003832 FILL HOSE, DISPENSER 10 1
11 22003321 GRID, DISPENSER 10 1
- 22003832 FILL HOSE, DISPENSER 10 1
- 22003833 HOSE, TUB SHOWER 10 1
12 22001984 CLAMP, DRAIN HOSE 10 1
- 205161 CLAMP - 15/16" 10 3
- 22001640 CLAMP, HOSE 10 1
13 22003845 DISPENSER COVER (FLUME) 10 1
14 22003846 DISPENSER VALVE 10 1
- 12001930 DISPENSER VALVE ASY KIT Note: VALVE SEAL KIT SHOULD BE USED WHEN REPLACING ITEM 6 10 1
15 912365 SCREW 10 1
16 22002551 HOSE, BLEACH 10 1
17 22003927 CONTROL BOARD (AS PACK) 10 1
17 22004447 CONTROL BOARD, AS PACKED SUB 37 1
17 22004257 CONTROL BOARD LED AS PK 24 1
17 22004447 CONTROL BOARD, AS PACKED SUB 35 1
18 22003849 SIPHON CAP 10 1
- 22004082 SEAL INSERTION TOOL 10 1
2
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

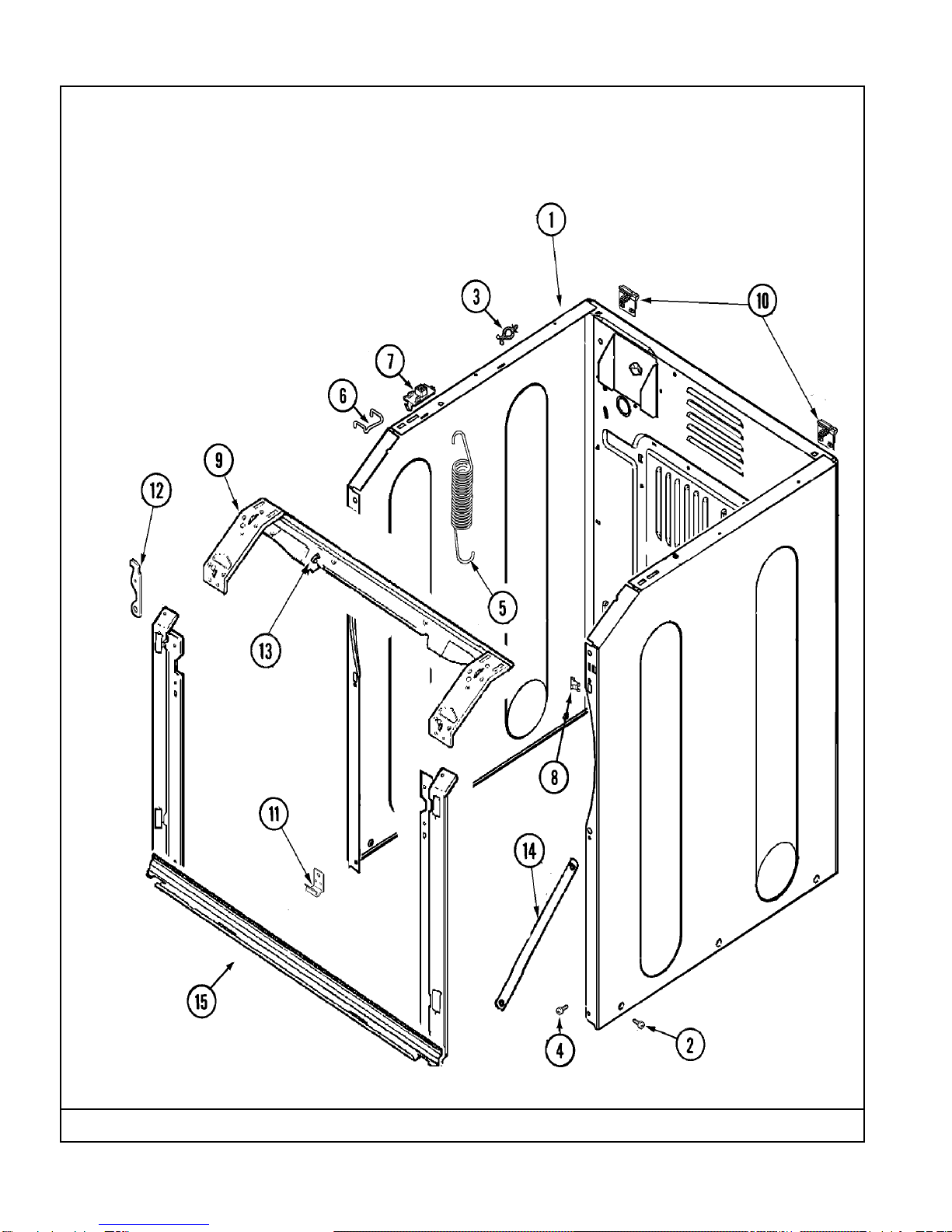

Section: CABINET-FRONT
LW12-95
Model: MAH6500AWW
3

CABINET-FRONT
No. Part No. Description
Section:
Series Qty
1 22003639 CABINET ASSY. (WHT AS PK) 10 1
2 213007 SCREW, CABINET 10 6
- 22002013 STOP, SHIPPING 10 2
3 22003298 RETAINER, WIRE 10 4
4 22001995 SCREW 10 2
5 22003254 SPRING, CABINET 10 2
6 22002297 SUPPORT, SPRING 10 2
7 22001997 SPACER, TOP COVER 10 2
8 22002049 CLIP 10 2
9 22003637 BRACE ASSEMBLY, TOP CROSS 69 1
9 22001995 SCREW 10 6
- 22001995 SCREW Note: SCREW, HINGE 10 2
10 22003367 HINGE, PLASTIC 10 2
11 22002239 CLIP, LOWER FRONT PANEL 10 2
12 33002597 HOOK, SECURITY 10 2
- 22001995 SCREW 10 2
13 22002014 CLIP 10 1
- 22001995 SCREW 10 2
14 22002259 BRACE, CROSS 10 2
15 22003652 SHROUD SUPPORT ASSEMBLY 69 1
4
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET-REAR
LW12-115
Model: MAH6500AWW
5

CABINET-REAR
No. Part No. Description
Section:
Series Qty
1 22001995 SCREW Note: FOR CABINET SEE CABINET FRONT 10 1
2 22003834 WATER VALVE W' THERMISTOR 10 1
- 205161 CLAMP - 15/16" Note: (BLEACH HOSE) (FABRIC SOFTNER HOSE) (DETERGENT
HOSE) 10 3
3 22002436 SCREW 10 2
4 22002054 CLAMP, STEPLESS 10 1
5 22002027 WIRE TIE, TWIST LOCK 10 2
6 22002083 HOSE, INJECTOR 10 1
- 35-2890 CABLE TIE 10 1
7 216169 CLAMP,HOSE-INJEC.HOSE TO VALVE 10 1
- 22003263 SCREW 10 1
8 33002212 BRACKET, WATER VALVE 10 1
9 22002925 SCREW 10 2
10 22002892 RETAINER, DRAIN HOSE 10 1
11 22003319 HOSE, DRAIN (CORR)(80 1/2") 10 1
- 22002932 CLIP, DRAIN HOSE 10 1
- 35-2890 CABLE TIE 10 1
12 22002022 SPACER, ACCESS PANEL 10 1
12 W10124350 NOT REQUIRED PART OR SEE NOTE 11 1
13 22002092 PANEL, ACCESS 10 1
13 22004355 REAR ACCESS PANEL 11 1
14 22002295 SCREW 10 2
14 22002925 SCREW 11 2
15 22002925 SCREW 10 2
16 35-0874 HOSE, INLET 10 1
16 33-7891 HOSE, 4' INLET 10 1
17 Y013783 GASKET, INLET HOSE 10 4
18 22002704 COVER, DRAIN HOSE 10 1
19 22001995 SCREW 10 1
20 22001984 CLAMP, DRAIN HOSE 10 1
6
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR & FRONT PANEL
LW18-11
Model: MAH6500AWW
7

DOOR & FRONT PANEL
No. Part No. Description
Section:
Series Qty
1 22003242 DOOR, OUTER W/MEDALLION (WHT) 10 1
2 22002990 VENT TUBE ASSEMBLY 10 1
3 22003269 DOOR, LOCK HOOP ASSEMBLY 10 1
4 22003275 DOOR, INNER (WHT) 10 1
5 22002038 CLIP, DOOR (DOUBLE) 10 4
6 22002039 CLIP, DOOR (SINGLE) 10 2
7 22002104 WIREFRAME Note: REMOVED AT SERIES 47 PER ECN EL43377 10 1
8 22002356 SPRING, PLATE Note: REMOVED AT SERIES 47 PER ECN EL43377 10 4
9 22002094 PLATE Note: REMOVED AT SERIES 47 PER ECN EL43377 10 1
10 22002007 SCREW Note: REMOVED AT SERIES 47 PER ECN EL43377 10 2
11 22003075 GROMMET, VENT TUBE 10 1
12 22002798 HINGE, DOOR 10 2
- 22002095 COVER, HINGE (WHT) 10 1
13 22002062 SCREW 10 4
- 22003512 INSULATION, CABINET 10 1
- 22003511 INSULATION 10 2
- 22002239 CLIP, LOWER FRONT PANEL 10 2
- 22001995 SCREW 10 2
15 22002836 PANEL, FRONT (WHT) 10 1
- 22004428 SEAL, EXPORT 10 1
16 22002012 SCREW, HINGE Note: SCREW, HINGE 10 4
- 22002244 CLIP, GROUNDING 10 1
8
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

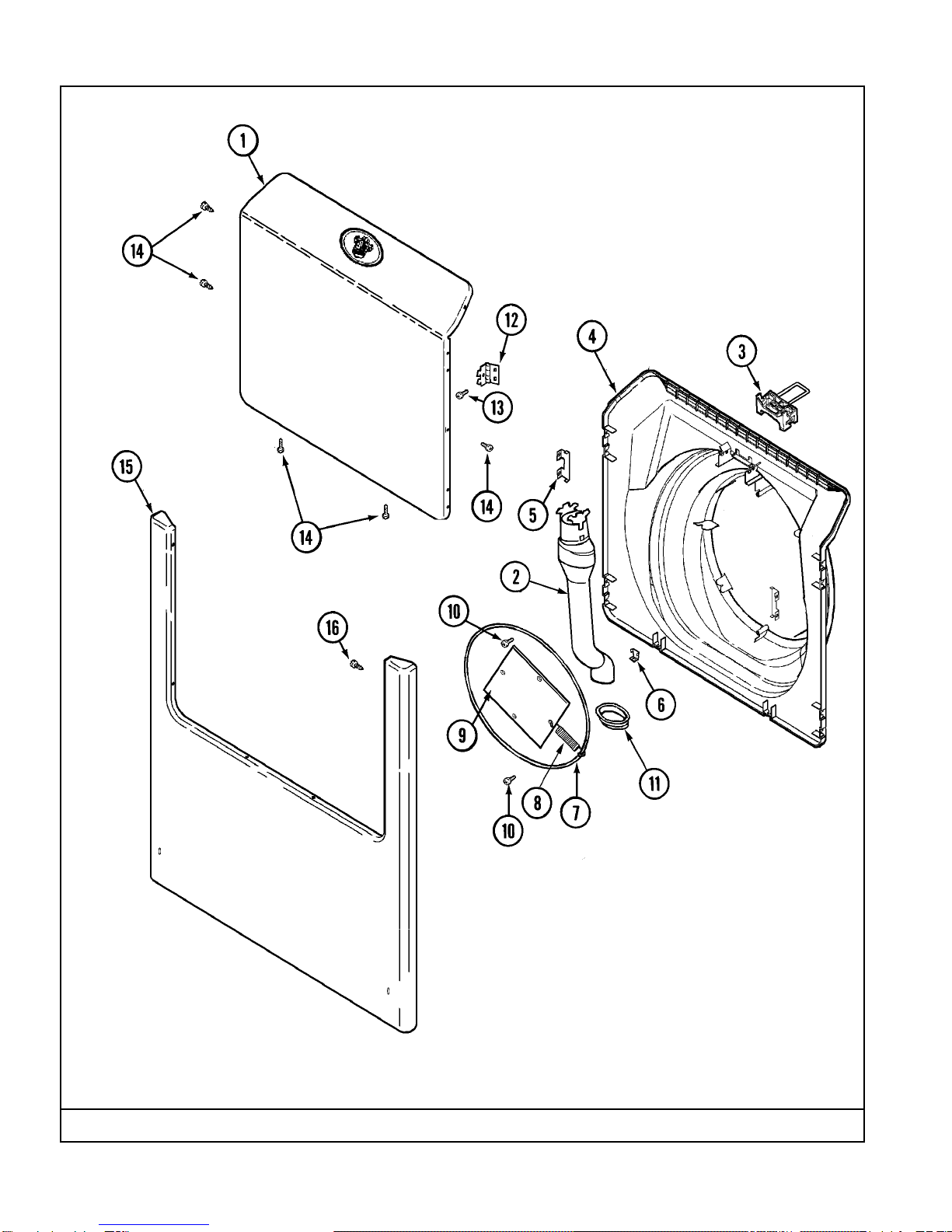

Section: DOOR SHROUD & DOOR LATCH ASSEMBLY
CW10-52
Model: MAH6500AWW
9

DOOR SHROUD & DOOR LATCH ASSEMBLY
No. Part No. Description
Section:
Series Qty
1 22003593 ASSY., DOOR LATCH 10 1
2 22002015 SUPPORT, DOOR LOCK 10 1
3 22001995 SCREW 10 6
4 22002014 CLIP 10 1
- 33001787 SCREW, HINGE 75 2
- 33001764 COVER, HINGE HOLE (WHT) 75 2
6 22002234 SHROUD, PLASTIC (WHT) 10 1
7 22002263 LAMP (10 WATT) 10 1
8 22002433 BULB HOLDER ASSEMBLY 10 1
10
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

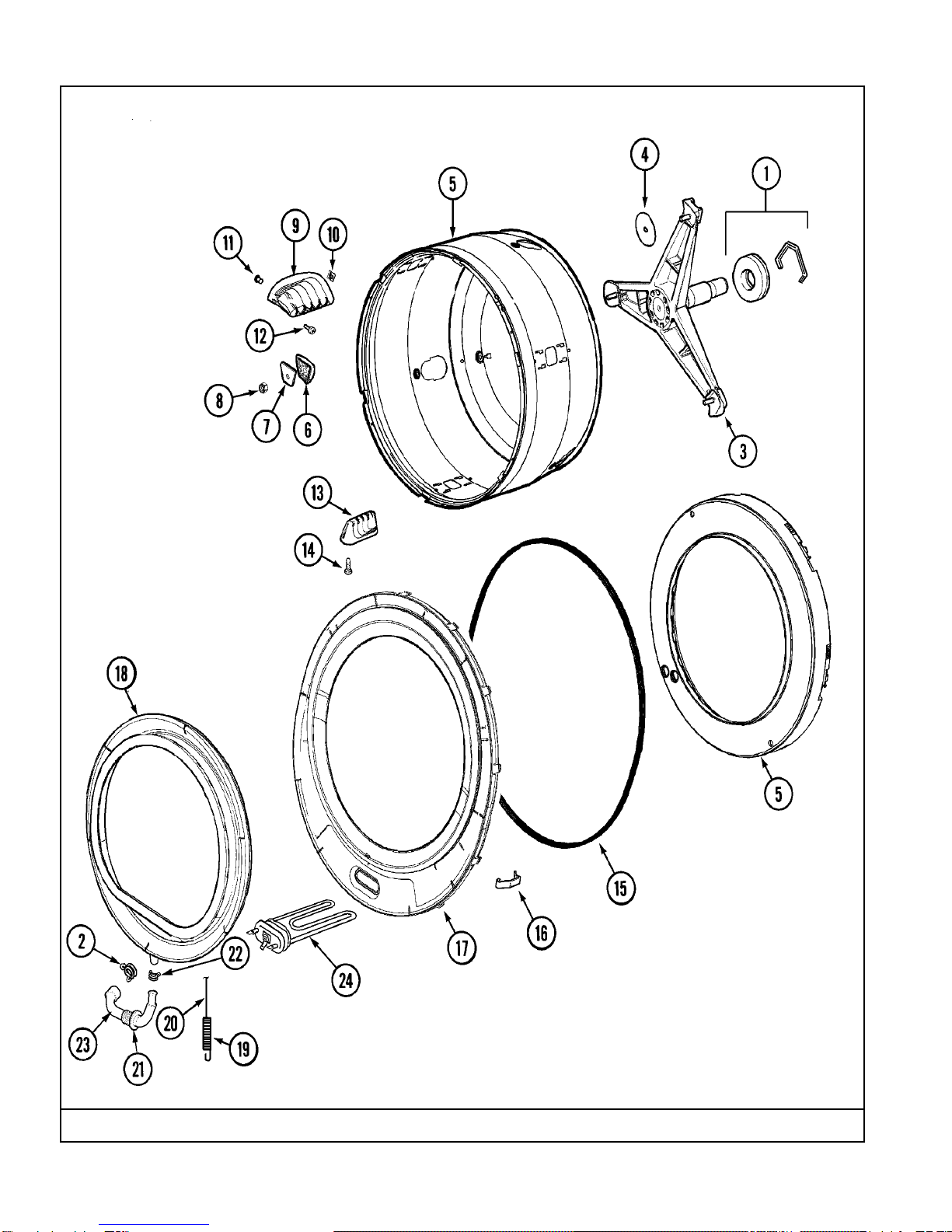

Section: OUTER TUB
LW13-74
Model: MAH6500AWW
11

OUTER TUB
No. Part No. Description
Section:
Series Qty
- 22003327 CLAMP, LCD HARNESS TO COVER 10 3
1 22003413 OUTER TUB ASSY.(NC AS PACKED) Note: (SPACER & BEARINGS AVAILABLE ONLY WITH
OUTER TUB ASSY.) 10 1
1 22004464 OUTER TUB COVER KIT 38 1
1 22004079 OUTER TUB/TUB COVER KIT 22 1
2 22003302 SWITCH, INTERNAL UNBALANCE 19 1
2 22003302 SWITCH, INTERNAL UNBALANCE 10 1
3 22002300 SCREW 10 2
3 22002061 SCREW 19 1
4 22003710 SUMP CAP W/ LABYRINTH FEATURE 10 1
- 22003263 SCREW Note: SCREW (SUMP CAP) 10 2
5 N 22001981 RING, RETAINING 10 1
6 33002973 SCREW, #9-15 X 1.00 HX WS 39 2
6 22003828 PLATED BOLT, DOUBLE SEMS SU 85 1
7 22003827 CUSHION 85 1
8 33002973 SCREW, #9-15 X 1.00 HX WS 39 2
8 22003828 PLATED BOLT, DOUBLE SEMS SU 85 1
9 22002102 WEIGHT, COUNTER BALANCE 10 1
10 22002083 HOSE, INJECTOR 10 1
- 22003295 CLAMP, HOSE DOUBLE WIRE 10 1
11 22003833 HOSE, TUB SHOWER 10 1
12 22002103 CLIP, U 10 2
13 22002959 DEFLECTOR, WATER 10 1
14 22002006 CLIP Note: CLIP, WIRE HARNESS & OUTER TUB 10 3
15 22002065 NUT, COUNTER BALANCE 10 2
16 22002044 SWITCH, TUB DISPLACEMENT 10 2
16 22002044 SWITCH, TUB DISPLACEMENT 19 1
17 22002061 SCREW 10 1
18 22002797 CLIP, HOSE (SADDLE HORN) 10 1
- 22002061 SCREW Note: SCREW, SADDLE HORN CLIP 10 1
19 22002313 BELT, DRIVE 10 1
20 205161 CLAMP - 15/16" 10 2
21 22003262 HOSE, TUB TO PUMP 10 1
22 22002053 CLAMP, SUMP HOSE 10 1
23 22003826 LOWER BRACKET Note: SERIES 78 AND LATER SEE # 78 10 1
23 22004472 BRACKET, LOWER 38 1
24 22002014 CLIP Note: CLIP, WIRE HARNESS 10 1
25 22002057 SCREW, SPINNER 10 1
26 22003936 WASHER (1 1/4") 17 1
26 22002055 WASHER, SPINNER SHAFT 10 1
27 22001998 PULLEY, SPINNER 10 1
12
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: SPINNER ASSEMBLY & OUTER TUB COVER
LW13-35
Model: MAH6500AWW
13

SPINNER ASSEMBLY & OUTER TUB COVER
No. Part No. Description
Section:
Series Qty
- 12002022 LIP SEAL KIT 22 1
1 12001478 LIP SEAL SVC ASSY. 10 1
2 22003073 CLAMP, HOSE DOUBLE WIRE 10 1
- 22003925 SPINNER SUPPORT ASSY AS PACK 17 1
- 22004108 O RING 22 1
- 22004081 SPINNER SUPPORT ASSY AS-PK KIT 22 1
- 22002123 TUBE, MOLYKOTE 10 1
3 22002897 SUPPORT ASSY., SPINNER 10 1
4 22002023 WASHER, PLASTIC 10 3
5 22002115 SPINNER ASSY. (W/BALANCE RING) Note: (BALANCE RING NOT AVAILABLE AS A SEPERATE
PART) 10 1
6 22002482 WASHER, PROFILE 10 3
7 22002020 WASHER, SPINNER SUPPORT 10 3
8 22002122 NUT, SPINNER ATTACHMENT 10 3
9 22001985 BAFFLE, DRIP (REAR) 10 3
10 22002009 GROMMET, BAFFLE (REAR) 10 3
11 22001999 GROMMET, BAFFLE (FRT) 10 3
12 22003556 SCREW Note: SCREW, BAFFLE (REAR) 10 6
13 22001986 BAFFLE, DRIP (FRONT) 10 3
14 22002059 SCREW Note: SCREW, BAFFLE (FRONT) 10 6
15 22002077 SEAL, TUB COVER 10 1
16 22002050 CLIP, TUB TO COVER 10 13
- 22003326 CLIP, HEATER HARNESS TO TUB 10 1
17 22003414 TUB COVER ASPK (W/HEATER HOLE) 10 1
- 22004475 TUB COVER ASSEMBLELY W'HEATER 30 1
- 22003081 PLUG 10 1
18 22003070 DOOR BOOT W/DRAIN (GRAY) 10 1
19 22002099 SPRING, TUB 10 1
20 22002327 BOOT CABLE CLAMP 10 1
21 22003074 GUARD, HOSE 10 1
22 22003072 CLAMP, HOSE DOUBLE WIRE 10 1
23 22003071 DOOR BOOT DRAIN HOSE Note: HOSE, DOOR BOOT DRAIN 10 1
24 22003252 HEATER ASSEMBLY 10 1
25 22003311 THERMISTOR, HEATER Note: USE WITH ITEM 24 10 1
14
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BASE, MOTOR & MOTOR CONTROL
LW14-29
Model: MAH6500AWW
15

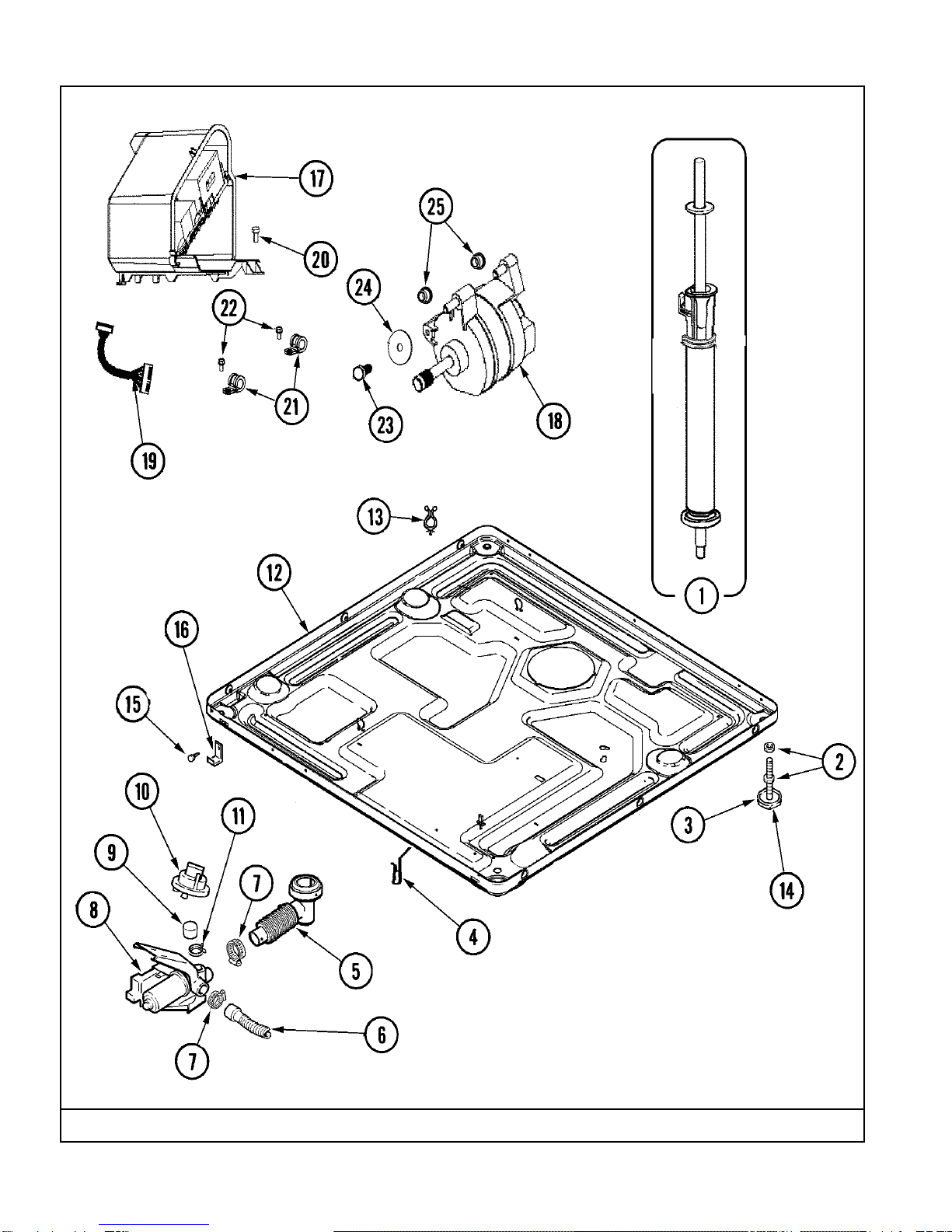

BASE, MOTOR & MOTOR CONTROL
No. Part No. Description
Section:
Series Qty
1 22001988 STRUT ASSY-REAR 10 1
2 Y052740 NUT 10 4
3 22001915 ADJUSTABLE LEG & NUT 10 4
4 22002244 CLIP, GROUNDING 10 1
5 22003262 HOSE, TUB TO PUMP 10 1
6 22003319 HOSE, DRAIN (CORR)(80 1/2") 10 1
7 202515 HOSE CLAMP - 1-1/16 INCH 10 2
8 25001012 PUMP ISOLATOR BRACKET Note: NOT SHOWN ON GRAPHICS 10 1
8 22003244 PUMP 10 1
9 22003268 CAP, RUBBER 10 1
10 22003250 SWITCH, PRESSURE 10 1
10 22004500 SWITCH, PRESSURE-2 LEVEL 45 1
- N 22003265 BAG, PLASTIC W/DRAWSTRING 10 1
11 22002853 CLAMP, HOSE 10 1
- 212276 SCREW 10 1
12 22003605 BASE WELD ASSEMBLY 10 1
13 22003298 RETAINER, WIRE 10 3
14 210684 FOOT, RUBBER 10 4
15 22001995 SCREW Note: SCREW, PANEL CLIP 10 2
16 22002239 CLIP, LOWER FRONT PANEL 10 2
17 22001995 SCREW 42 2
17 22004046 CONTROL ASSY., MOTOR 10 1
17 22001995 SCREW 44 2
17 22001995 SCREW Note: NOT SHOWN ON ART 41 2
17 22004473 MOTOR CONTROL ASSEMBLY 41 1
17 22004473 MOTOR CONTROL ASSEMBLY 42 1
17 22004473 MOTOR CONTROL ASSEMBLY 44 1
18 22003856 MOTOR, VARIABLE SPEED 10 1
19 22004047 HARNESS, MOTOR/MOTOR CONTROL 10 1
19 Y2205141 HARNESS, WIRE 44 1
19 2205140 HARNESS, WIRE 41 1
20 22002300 SCREW 10 1
21 22004102 P CLIPS 10 2
22 22004047 HARNESS, MOTOR/MOTOR CONTROL 10 2
23 22003686 BOLT, MOTOR 10 1
24 22002320 WASHER, STRUT 10 1
25 22003329 ISOLATOR, MOTOR 10 2
16
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

SUPPLEMENTAL INFORMATION
No. Part No. Description
Section:
Series Qty
1 22003894 WIRE HARNESS 10 1
1 22004499 HARNESS, WIRE 46 1
1 22004314 WIRE HARNESS 33 1
1 22004431 HARNESS, MAIN LED Note: HARNESS, MAIN LED SUB TO 2205083 SERIES 21 37 1
1 2205140 HARNESS, WIRE 42 1
2 22003855 HARNESS, MOTOR/MOTOR CONTROL 10 1
2 22004047 HARNESS, MOTOR/MOTOR CONTROL 21 1
3 22003853 POWER CORD AS WRAPPED 10 1
3 22003830 #8-32X3/8 HEX/WASH HEAD SCREW 10 1
3 22002782 PAD, FOAM (SOUND DAMPENER) 10 1
3 22003858 EMI SUPPRESSION FILTER, 16A 10 1
4 211881 GROMMET, CORD 10 1
5 22003895 USE & CARE MANUAL 10 1
5 2201907 MANUAL, USE & CARE 36 1
5 2206687 MANUAL, USE & CARE LED WASHER 43 1
6 22003896 ENERGY GUIDE 10 1
7 N 15002976 WIRING INFORMATION 10 1
8 22002445 LABEL, SAFETY 10 1
10 22002443 LABEL, SAFETY 10 1
11 22004433 HARNESS, UPPER SUB 37 1
11 22003829 HARNESS, UPPER SUB ASSY 19 1
11 22004187 HARNESS, UPPER UNBALANCE 19 1
12 N 20001057 MOVER, APPLIANCE 10 1
12 N 038183 ELECTRICAL TEST CORD 10 1
13 20001069 MULTI-WRENCH, FLAT 10 1
14 20001120 PLIERS, QB PRODUCTS HOSE 10 1
17
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

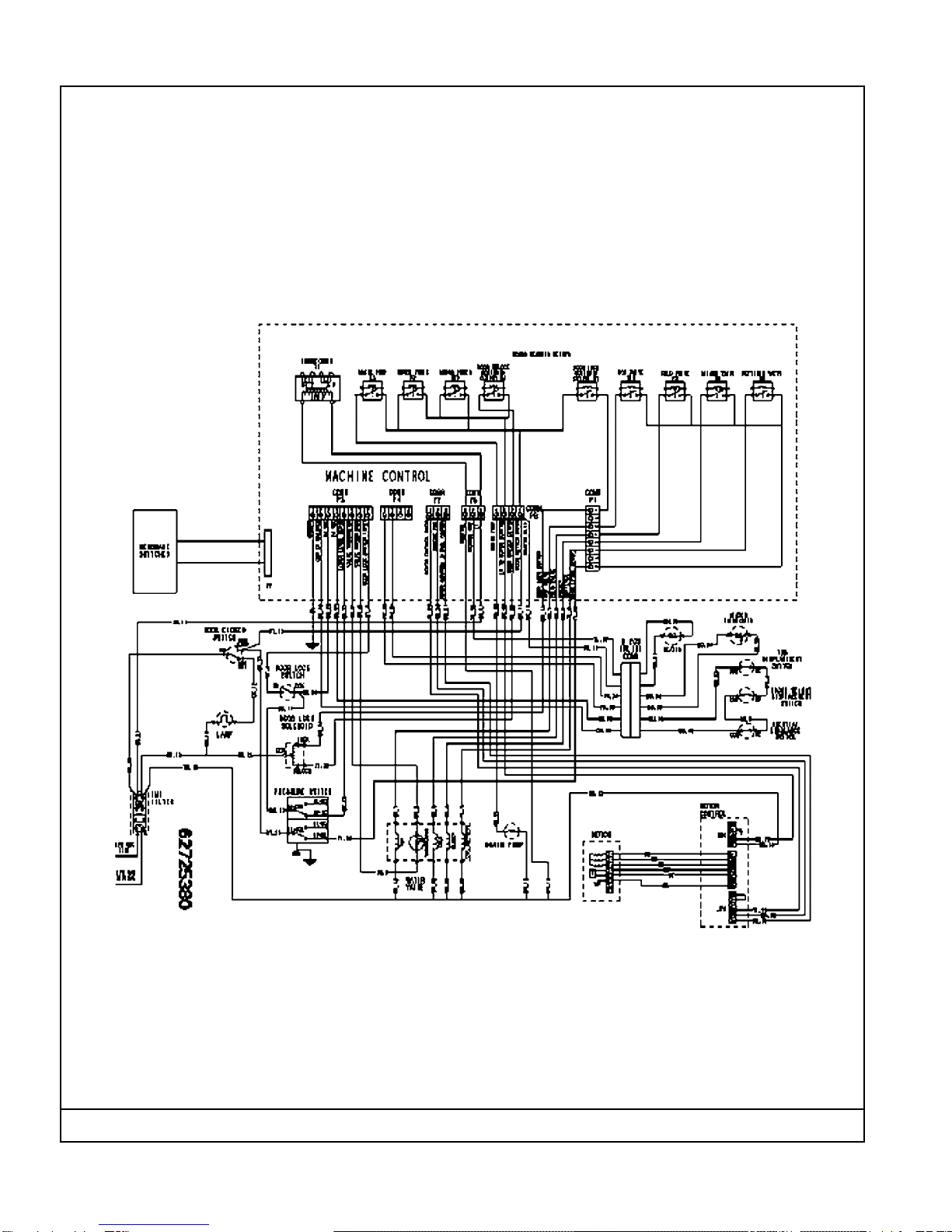

Section: WIRING INFORMATION
15002976
Model: MAH6500AWW
18

Section: WIRING HARNESS
15003437
Model: MAH6500AWW
19
