Contents

3

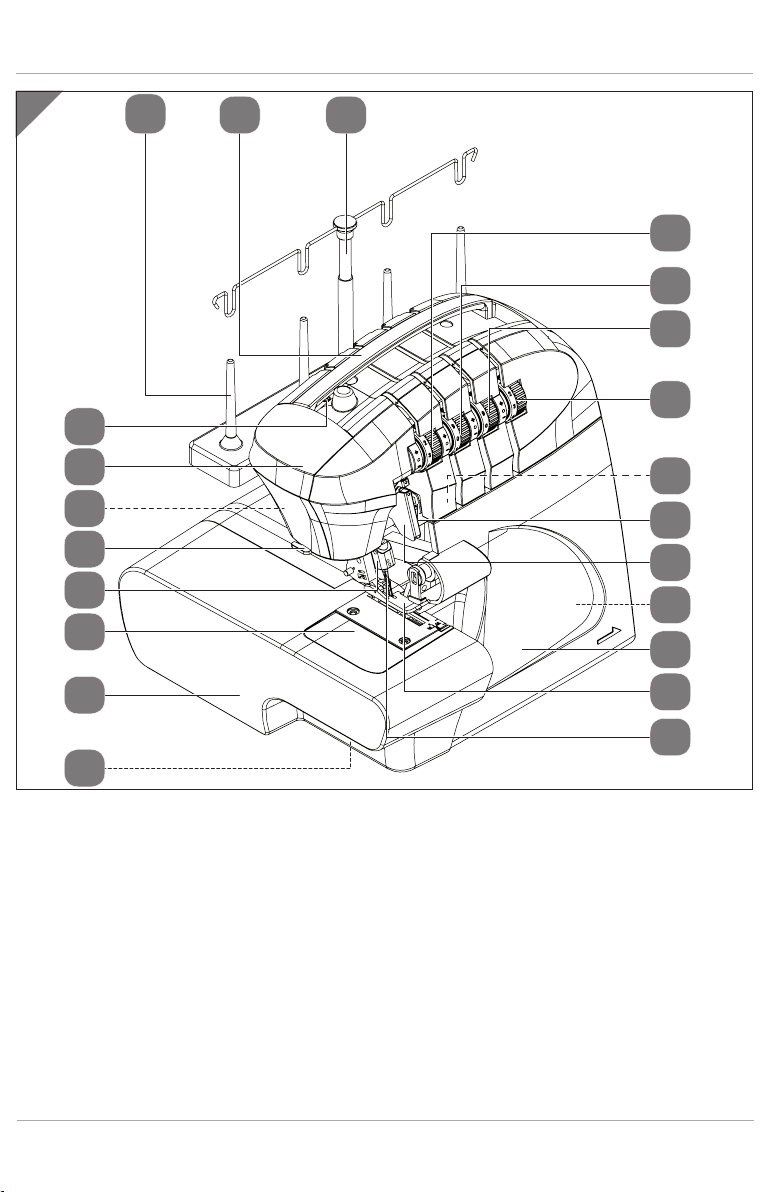

Overview
A
6
2 3
1
7
17
18
19
20
16
21
5
4
13
14
9
10
12
11
8
22
15

4
B23
25
24
26
28
27
Overview

5
C
32
29 30 31
37
35 33
34
36
Overview

6

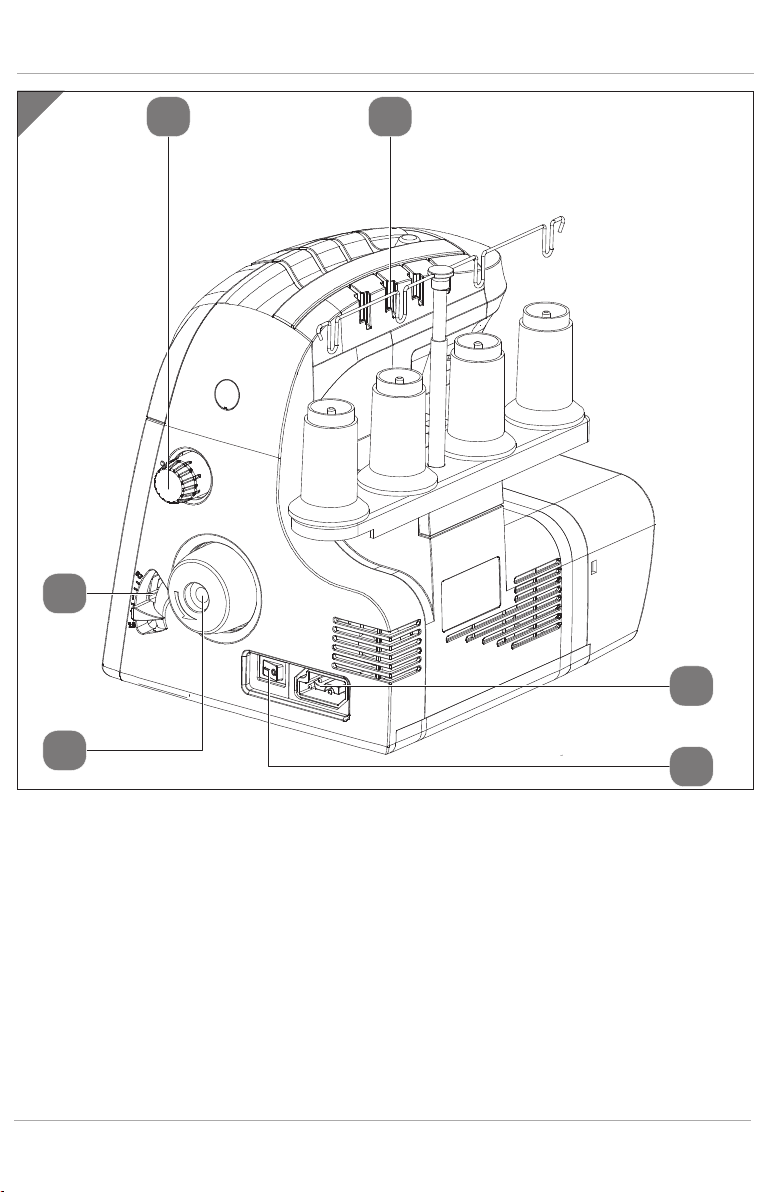

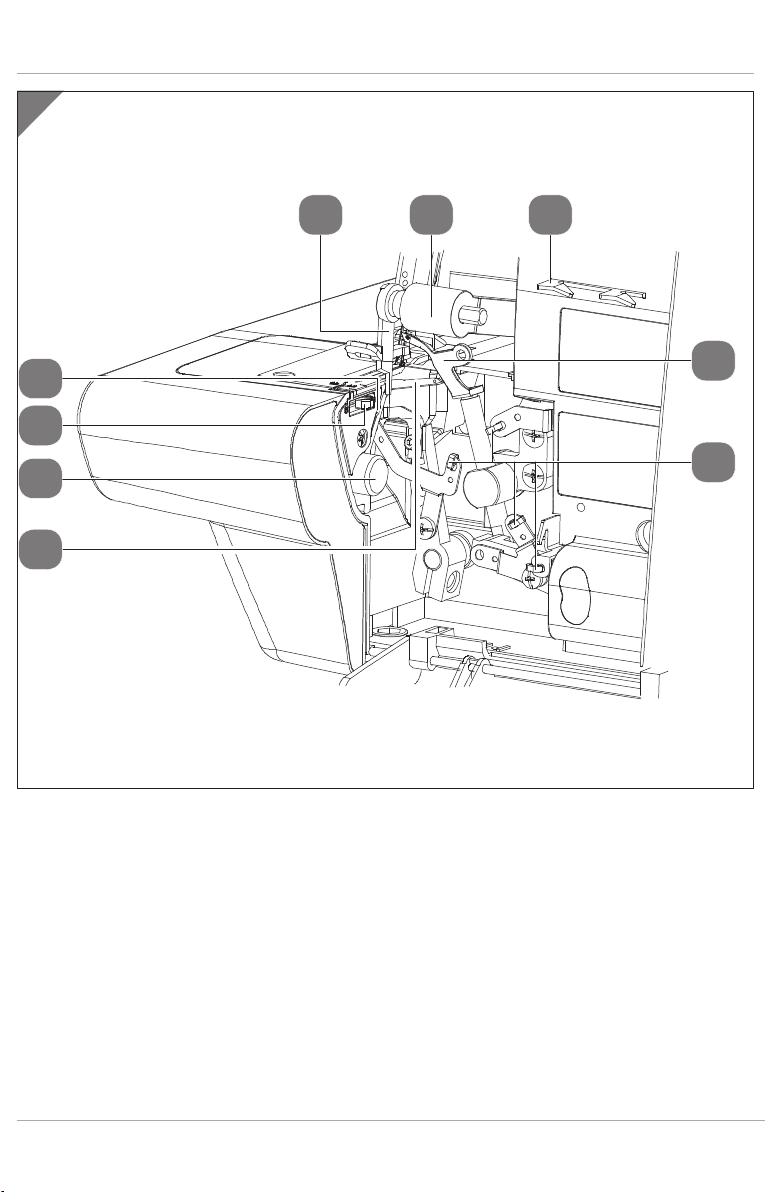

Appliance parts
Appliance parts
1Yarn needles 20 Lever for raising the presser foot (on
the back of the appliance)
2Handle 21 Sewing light cover
3Telescopic thread guide 22 Setting screw for the presser foot
pressure
4Thread tension selector for the left
needle 23 Stitch length control
5Thread tension selector for the right
needle 24 Rear thread guide
6Thread tension selector for the upper
looper 25 Connector housing for foot control
7Thread tension selector for the lower
looper 26 Mains switch
8Thread guide for the right needle
thread 27 Handwheel
9Thread guide for both needle threads 28 Differential feed control
10 Thread guide for needle threads 29 Upper knife
11 Holder for the two-thread converter
(behind the front flap) 30 Knife fitting
12 Front flap 31 Front thread guide
13 Presser foot 32 Upper looper
14 Needles 33 Thread guides for looper threads
15 Catch for opening the free arm (under-
neath the work table) 34 Lower looper
16 Work table with accessory
compartment 35
Cutting width setting control
The markings for the cutting widths
(3.5; R, 4.5) are on the throat plate.
17 Free arm with throat plate 36 Stitch finger control
18 Needle bar with thread guide 37 Lower knife
19 Thread cutter

Contents
Overview ......................................................................................................... 4
Device parts..................................................................................................... 6
About this user manual..................................................................................10
Explanation of symbols .................................................................................... 10
Proper use ........................................................................................................... 11
Declaration of Conformity .................................................................................12
Safety information ......................................................................................... 13
Keep children away from electrical appliances .............................................13
Mains cable and power supply ........................................................................13
Never carry out repairs yourself.......................................................................14
General information ..........................................................................................14
Handle the appliance with care.......................................................................15
Cleaning and storage ........................................................................................15
Package contents ...........................................................................................16
Before use....................................................................................................... 17
Accessories..........................................................................................................17
Setting the telescopic thread guide ............................................................... 18
Spool holder....................................................................................................... 18
Spool caps .......................................................................................................... 18
Spool net............................................................................................................. 19
Connecting the foot control.............................................................................20
Controlling the sewing speed .........................................................................20
Safety switch .......................................................................................................21
Operation........................................................................................................ 21
Handwheel..........................................................................................................21
Raising and lowering the presser foot............................................................21
Front flap............................................................................................................. 22
Thread cutter ..................................................................................................... 23
Work table and accessory compartment ....................................................... 23
Threading the loopers and needles ............................................................. 24
General information on threading ................................................................. 24
Threading the upper looper............................................................................ 25
Threading the lower looper.............................................................................26
Contents
7

Threading the right needle ............................................................................. 27
Threading the left needle ................................................................................28
Test run .......................................................................................................... 30
Cutting threads.............................................................................................. 30
Adjusting the thread tension.........................................................................31
Adjusting the thread tension for needle threads......................................... 32
Adjusting the thread tension for looper threads.......................................... 32
Overview of machine settings .......................................................................33
Overview of yarn and needles...................................................................... 39
Changing the thread..................................................................................... 40
Handle ........................................................................................................... 40
Setting the stitch length ................................................................................ 41
Setting the stitch length....................................................................................41
Setting the cutting width............................................................................... 41
The ideal cutting width ....................................................................................42
The cutting width is too narrow......................................................................43
The cutting width is too wide ..........................................................................43
Disengaging the upper knife........................................................................ 44
Converting to two-thread operation............................................................ 45
Tight and loose chaining with three threads............................................... 47
Stitch finger control....................................................................................... 49
Differential feed .............................................................................................51
Functionality .......................................................................................................51
Positive differential feed ..................................................................................52
Negative differential feed................................................................................52
Setting the differential feed ............................................................................53
Setting the presser foot pressure ................................................................. 54
Replacing needles......................................................................................... 55
Replacing the knife ....................................................................................... 56
Replacing the lower knife................................................................................56
Replacing the upper knife ...............................................................................56
Troubleshooting............................................................................................ 58
Storage .......................................................................................................... 59
Cleaning and lubrication............................................................................... 60
Contents
8

Disposal ..........................................................................................................61
Technical specifications................................................................................. 62
Service information....................................................................................... 63
Legal notice ................................................................................................... 64
Privacy statement ......................................................................................... 65
Contents
9

About this user manual
Thank you for choosing our product. We hope you enjoy using this
appliance.
Read the safety instructions carefully before using the appliance for the
first time. Note the warnings on the appliance and in the user manual.
Always keep the user manual close to hand. If you sell the appliance or give it away,
please ensure that you also pass on this user manual. It is an essential component of
the product.
Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard
described in that text must be avoided to prevent the potential consequences
described there from occurring.
DANGER!
This keyword denotes a high-risk hazard situation which will result in death or serious
injury if it is not avoided.
WARNING!
This keyword denotes a medium-risk hazard situation which can result in death or a
serious injury if it is not avoided.
CAUTION!
This keyword denotes a low-risk hazard situation which can result in moderate or
minor injuries if it is not avoided.
NOTICE!
This keyword serves as a warning for possible damage to property.
This symbol provides useful additional information for assembling or
operating the appliance.
10

Follow the instructions in the user manual!
SEWING TIP
Sewing tips to make work easier
Declaration of conformity (see "Declaration of conformity" section):
Products that feature this symbol meet the requirements of the EC
directives.
Protection class II
Electrical appliances in protection class II are appliances that have
double and/or reinforced insulation throughout, and do not have an
option for connecting a protective earth. The housing of an electrical
appliance in protection class II, with surrounding insulating material,
might either form all of the additional or reinforced insulation, or part
of it.
Indoor use
Appliances with this symbol are intended solely for indoor use.
Proper use
Your appliance can be used in a range of ways:
The overlock sewing machine can be used to sew together and neatening the seams
on light to medium-weight material.
The material can be made of textile fibres, composite materials or lightweight leather.
• The appliance is only intended for private use and not for industrial/commercial
use.
Please note that we shall not be liable in cases of improper use:
• Do not modify the appliance without our consent and do not use any auxiliary
equipment that we have not approved or supplied.
• Only use replacement parts or accessories that we have supplied or approved.
• Comply with all the information in this user manual, especially the safety
information. Any other use is considered improper and can cause personal
injury or property damage.
• Do not use the appliance in extreme environmental conditions.
About this user manual
11

Declaration of Conformity
Medion AG hereby declares that the product conforms to the following European
requirements:
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU.
About this user manual
12

Safety information
Keep children away from electrical appliances
− This appliance can be used by children aged 8years and
above, by people with reduced physical, sensory or mental
capabilities, or people who lack experience and/or knowledge,
if proper supervision is provided or if these people have
been instructed in how to use the appliance safely and have
fully understood the possible dangers. Children must not be
allowed to play with the appliance. Do not allow children to
clean the appliance or perform maintenance tasks on it unless
they are aged 8years or older and properly supervised.
− Do not allow children younger than 8 years old near the
appliance and its power cable.
DANGER!
Risk of choking and suffocation!
Packaging film can be swallowed or used improperly, creating a
risk of choking and suffocation.
− Keep packaging material such as plastic film or plastic bags
away from children.
Mains cable and power supply
− Only connect the appliance to an easily accessible mains socket
(220–240V ~ 50Hz) that is close to where you have set up
the appliance. The mains socket must be easily accessible so
that you can unplug the appliance from the mains quickly if
necessary.
− When unplugging, always hold the plug itself and never pull
on the cable.
− Fully unwind the cable during use.
− The cable may not touch any hot surfaces.
Safety information
13

− Switch off the sewing machine and unplug the mains plug
for the following tasks: threading the needle, replacing the
needle, setting the presser foot, cleaning and maintenance
work, at the end of sewing work and when work is interrupted.
Never carry out repairs yourself
− If the appliance or power cable is damaged, remove the mains
plug from the socket immediately.
− If there is visible damage to the sewing machine, or mains
cable, the appliance may not be used. This is to avoid hazards.
WARNING!
Risk of electric shock!
There is a risk of electric shock if repairs are not carried out by
qualified personnel!
− Never attempt to open or repair the appliance yourself.
− In the event of a fault or damage to the power cable, contact
our Service Centre or another suitable professional repair
workshop to prevent hazards.
General information
− The sewing machine must not get wet – there is a risk of electric
shock!
− Never leave the sewing machine unattended when switched
on.
− Do not use the machine outdoors.
− The appliance may only be operated with the supplied type
HKT72C foot control.
Safety information
14

Handle the appliance with care
− The sewing machine has suction feet for stability. Nevertheless,
ensure that the machine is placed on a stable, level work
surface and that all four feet are touching the work surface.
− When the appliance is in use, the air vents must remain free: do
not allow any foreign objects (e.g. dust, pieces of thread etc.) to
get into the openings.
− Never place anything onto the foot pedal.
− Use only the supplied accessories. Needles are available from
specialist retailers.
− Only use specialist sewing machine oil to lubricate the
machine. Do not use any other liquids.
− When sewing, ensure that you do not place your fingers under
the needle holder.
− Take care when operating the moving parts of the machine,
particularly the needle and knife. There is also risk of injury
when the machine is not connected to the power supply.
− Do not use bent or blunt needles.
− When sewing, do not hold the fabric tight and do not pull on
the fabric. This could cause the needle to break.
− Always place the needle in the highest position at the end of
sewing work.
− When leaving the machine and before maintenance work,
always switch off the machine and pull the mains plug from the
socket.
Cleaning and storage
− Before cleaning, pull the plug out of the mains socket. Use a
soft, dry cloth to clean the appliance. Avoid the use of chemical
solutions and cleaning products because these may damage
the appliance surface and/or the labels on it.
− When storing the sewing machine, always cover it with the
supplied cover to protect the machine from dust.
Safety information
15

Package contents
Please check your purchase to ensure that all items are included. If anything is
missing, please contact us within 14 days of purchase.
• Overlock sewing machine
• Foot control, type HKT72C
• User manual
• Accessories (overview of contents on next page)
DANGER!
Risk of choking and suffocation!
Packaging film can be swallowed or used improperly, creating a
risk of choking and suffocation.
− Keep packaging material such as plastic film or plastic bags
away from children.
Package contents
16

Before use
Accessories
The following accessories can be found in the work table accessory compartment. For
accessibility, see “Work table and accessory compartment” on page 23.

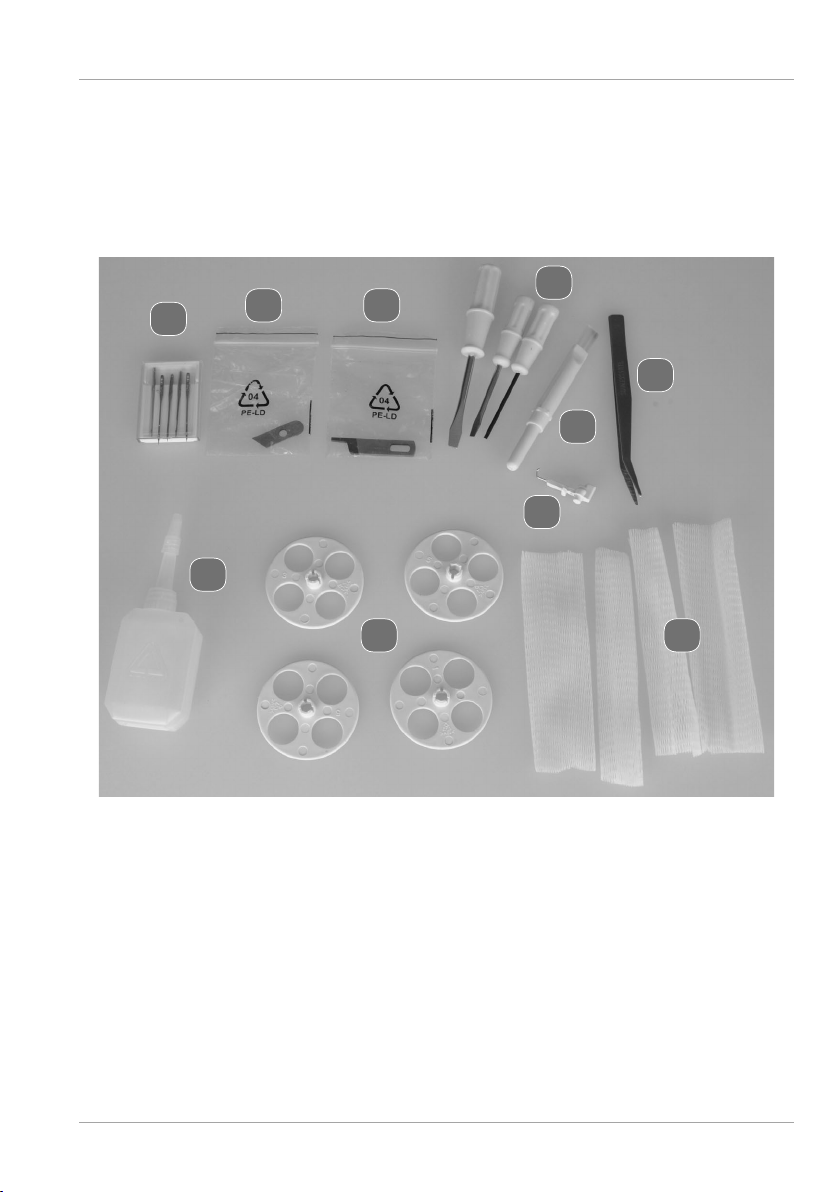

38 39 40 41
42
43
44
45
46
47
38 Needle set 43 Tweezers
39 Replacement for upper knife 44 Oil can (without contents)
40 Replacement for lower knife 45 Spool caps (4x)
41 Screwdrivers (small, medium
and large) 46 Two-thread converter
42 Lint brush 47 Spool net (4x)
Accessories not shown
• Thread spool (4x pre-mounted)
• Cover
Before use
17

Setting the telescopic thread
guide
− Pull the telescopic thread guide (3) all the way
out before threading.
− Turn the telescopic thread guide until you hear
it click into place and in such a way that the
thread guides are directly above the spool pin
(1).
Spool holder
Both industrial and domestic spools can be used
with this machine.
When using industrial spools with a large diameter,
place the spool holder with the wide end upwards.
When using spools with smaller diameters, place
the spool holder on the spool pin with the narrow
end upwards.
Spool caps
When using non-industrial spools, remove the
spool holder. Place the domestic spool onto the
spool pin and place the supplied spool cap onto the
spool to guarantee the stability of the spool.
Before use
18

Spool net
Polyester or coarse nylon threads work loose when
unwinding from the bobbin. Therefore, use the
supplied spool net for such yarns to ensure the
thread feeds uniformly.
− When the yarn has not yet been threaded, pull
the net from above over the spool.
− Pull the net over the spool up to the end and
turn up the excess part.
If the yarn has already been threaded,
the thread spool can be removed from
the yarn needle and the net pulled up
over the spool from below.
Before use
19

Connecting the foot control
Connect the coupling connector for the supplied
foot control to the connector housing (25) on the
machine and then plug the mains plug into the
socket.
The mains switch (26) switches on both the
machine and the sewing light.
Use only the supplied foot control.
After finishing work or before maintenance work,
always switch off the machine and pull the mains
plug from the socket.
Foot pedal
Power switch
Plug housing
Coupling
plug
Controlling the sewing speed
The sewing speed is controlled using the foot
control. This means that the sewing speed can be
changed by exerting more or less pressure on the
foot control.
Foot pedal
Before use
20
