Memorex MT-1091 User manual

MT1091
9” Color Television
Owner’s Manual
MultiFunctionRemote
OnScreenDisplay
VOLUME CHANNEL POWER
R
As an ENERGY STAR ®Partner, MEMCORP has
determined that this product meets the ENERGY STAR ®
guidelines for energy efficiency.

– 1 –
BEFORE YOU OPERATE YOUR NEW TELEVISION
To get the most from your new color television, read and follow this Owner’s Manual
carefully.
INSTALLATION GUIDELINES
• Place your TV in a room with adequate ventilation.
• Keep your TV set away from sources of direct heat, such as heat registers or direct
sunlight.
• Do not place your TV on soft surfaces, such as rugs or blankets.
• Leave enough room for air to circulate around the bottom, top and back of the set.
ANTENNA CONNECTIONS
• For best picture quality, we recommend that you use an outdoor antenna. Follow in-
structions on page 6 for proper antenna hookup.
POWER CONNECTION
• Your TV works on normal household current (120 volts, 60 Hz).
For safety purposes, your TV’s electrical plug has one blade wider than the other. If
you cannot insert the plug fully into the socket, try reversing it.
In the space provided, record the serial and model numbers, located on the rear of the
unit.
Serial No. Model No.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with the arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage”within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to someone.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance. 

–2 –
FEATURES
•On-screen graphics guide you through setup features and operations
•Automatic programming of channels allows easy selection of stations available in your
viewing area
•Sleep timer programs the TV to turn itself off at a preset time
•One day timer programs the TV to come on once at a preset time
•Weekly timer programs the TV to come on at a preset time every day
•24-button infrared remote control allows remote operation
•VHF/UHF/CATV tuning allows reception of standard broadcasts or cable TV channels
SPECIFICATIONS
Power Input: AC: 120V, 60Hz
DC: 12V
Power Consumption: AC: 55Watts
DC: 36Watts
Chassis Construction: IC Solid State
Picture Tube: 9”(measured diagonally)
Speaker: 2.8 x 1.6 in. (70 x 40 mm) Oval, 8 ohms
Tuner: 181 Channel, Freq. Synthesized
Remote Control: Infrared, Direct Access
24 Key, 2 “AA”batteries
Receiving Channels:
VHF 2–13
UHF 14–69
CATV
Mid Band 14–22
Super Band 23–36
Hyper Band 37–65
Ultra Band 66–94, 100–125
Sub Mid Band 1, 95–99
Cabinet: Monitor Style
Antenna Input Impedance: 75 ohm (VHF/UHF) Coaxial Input
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT AND FULLY INSERT.

–3 –

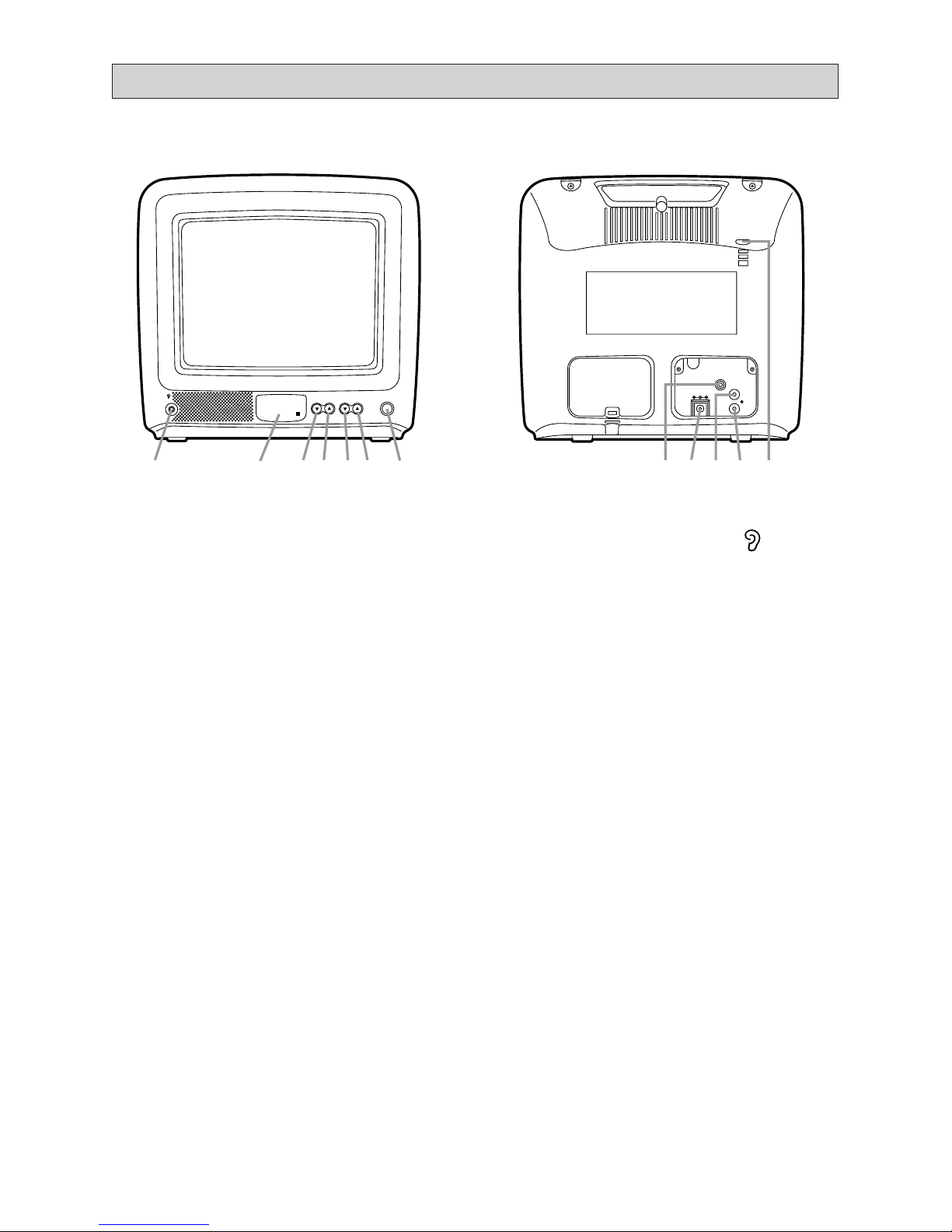

LOCATION OF CONTROLS
IN
VIDEO
EXT.ANT.
UHF/VHF
AUDIO
DC−12V
MultiFunctionRemote
OnScreenDisplay
VOLUME CHANNEL POWER
R
7 6 5432 1 @!098
7 EARPHONE JACK ( )
8 ANTENNA HOLDER
9 AUDIO IN (put) JACK
10 VIDEO IN (put) JACK
11 DC INPUT JACK
12 VHF/UHF EXT. ANT. JACK
1 POWER SWITCH
2 CHANNEL ▲(UP) BUTTON
3 CHANNEL ▼(DOWN) BUTTON
4 VOLUME ▲(UP) BUTTON
5 VOLUME ▼(DOWN) BUTTON
6 REMOTE CONTROL SENSOR

–4 –
The REMOTE CONTROL unit requires two 1.5 volt “AA”size batteries. The BATTERY
COMPARTMENT is located on the back of the unit. To open, press down of the lid and
slide toward the bottom of the unit. Install the batteries exactly as shown by the diagram in
the compartment.
NOTE: If one or both of the batteries are reversed, the REMOTE CONTROL will not
operate and the unit may be damaged.

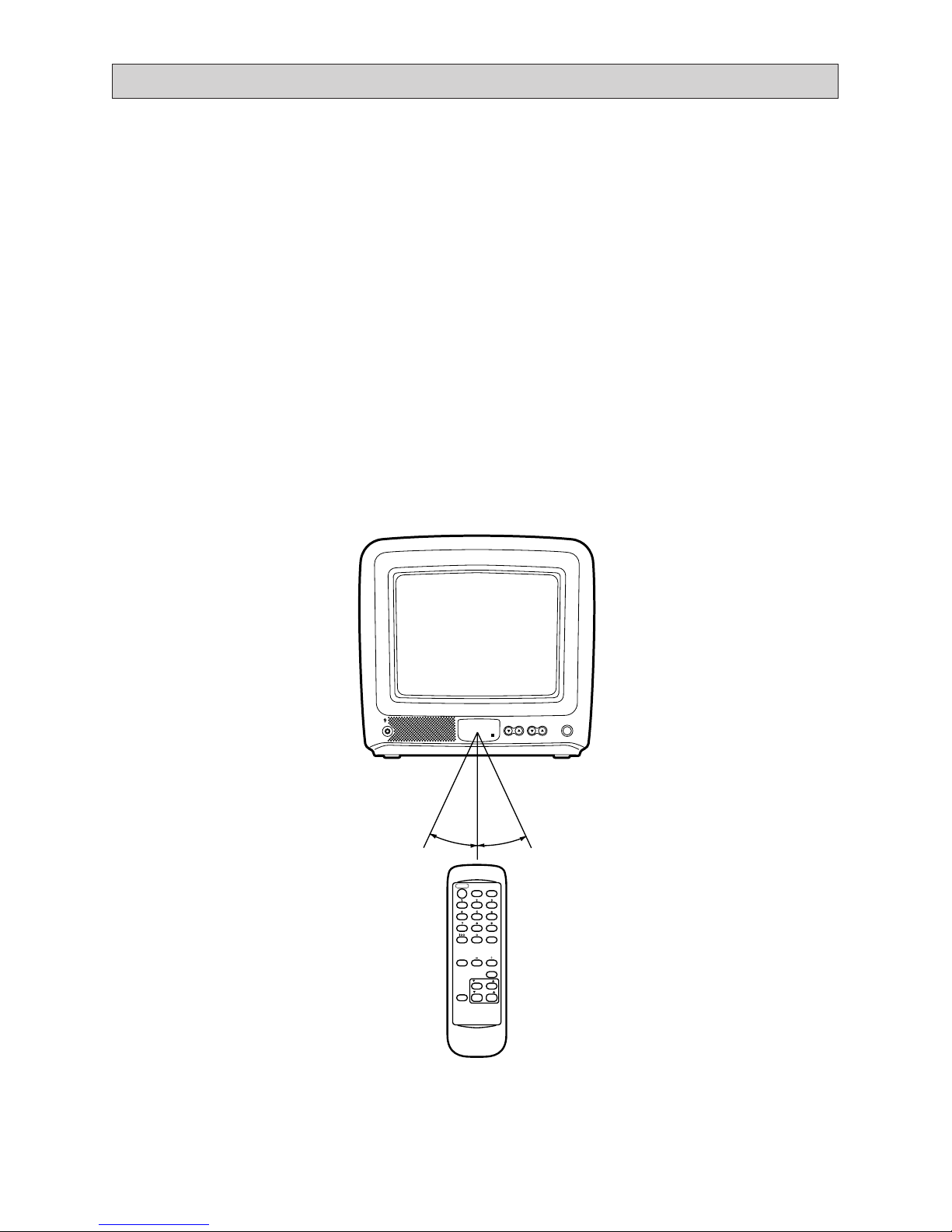

This REMOTE CONTROL unit uses an INFRARED WIRELESS CONTROL SYSTEM.
This means that the remote commands are sent out as invisible light. For best operation,
aim the REMOTE CONTROL unit directly at the REMOTE CONTROL SENSOR window
on the lower center front of the TV. Please note that furniture or other solid objects can
block the path of the infrared light. Dark walls might absorb the light.
Do not allow strong sunshine to fall on the TV set front panel as this may affect the opera-
tion of the remote control. In this case, tune the TV away from the light or darken the room
slightly.
REMOTE CONTROL
Multi Function Remote
On Screen Display
VOLUME CHANNEL POWER
R
24 Feet
15˚15˚
CHANNEL
VOLUME
MUTE
MENU
RECALL
SLEEPTV/VIDEO
POWER
Q.REV.

–5 –
CHANNEL
VOLUME
MUTE
MENU
RECALL
SLEEPTV/VIDEO
POWER
Q.REV.

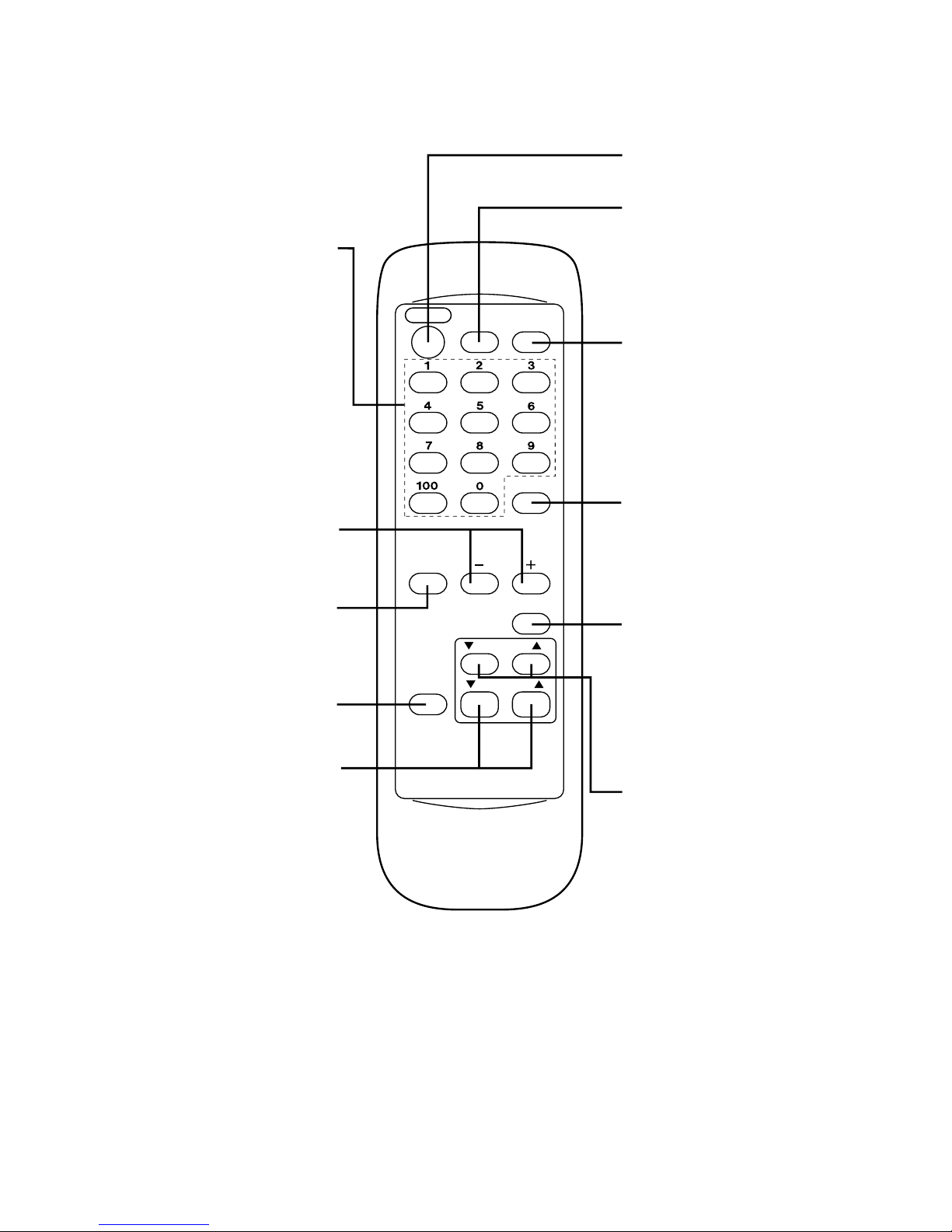

Remote Control
Number Buttons
Press to select a channel. For
channels 1-9, press 0, then the
channel you want to watch. For
example, for channel 6, press 0,
6. For channels 100-125, press
the 100 button, then press the
last two digits of the channel
you want to watch .For
example, for channel 116, press
100, 1, 6. Note:Make sure you
press the second or third digit
of a channel within a few
seconds of pressing the first
digit. If you don't, you'll have to
start over.
– and + Buttons
Press to adjust or select
functions listed in on-screen
displays.
MENU Button
Press to call up the main menu
screen. Also, press to enter data
when going to the next step of
an operation.
MUTE Button
Press once to eliminate sound.
Press again to hear sound.
POWER Button
Press to turn the TV on or off.
RECALL Button
Press to display the channel
being viewed. Press again to
display the time. Press again
to remove the
on-screen display.
SLEEP Button
Press to start the sleep time or
to display the time left in a
sleep timer. See page 15 for
details.
TV/VIDEO Button
Pressing this button permits
the TV to be used as a
monitor to view program
sources such as a VCR,Video
Disc, ect. press again to
resume normal TV function.
Q.REV. (Quick Review)
Button
Press to return to the previous
channel. For example, if you
were watching channel 2, then
use the Number buttons to
switch to channel 6, pressing
the Q.REV button will return
the TV to channel 2.
CHANNEL (Up/Down)
Buttons
Press to scroll up or down
through the channels.
VOLUME (Up/Down) Buttons
Press to raise or lower the
sound.

–6 –
ANTENNA CONNECTIONS
If you are using an indoor antenna (included) or an outdoor antenna (not included) follow
the instructions below that correspond to your antenna system. If you are using a cable
television service (CATV), refer to CATV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead
wire)
Connect the 75 ohm cable from combina-
tion VHF/UHF antenna to the antenna jack.
OR
If your combination antenna has a 300 ohm
twin-lead wire, use the 300-75 ohm match-
ing transformer (included)
Transformer
(included)
300 ohm
OR
75 ohm
ANT
CATV CONNECTIONS
For subscribers to basic cable service.
For basic cable service without a converter/
descrambler box, connect the CATV 75
ohm coaxial cable directly to the antenna
jack on back of the unit.
ANT
Connecting an Internal Antenna
Your TV comes with an internal antenna.
Use it if you want to place the TV where
there is no outdoor connection.
1 Place the rod antenna (included) into the
antenna holder on the back of the TV
cabinet. Push it down until it locks in
place.
2 Connect the antenna leads (flat prongs)
to the two screws on the transformer (in-
cluded).
3 Push the round terminal on the back of
the transformer into the EXT. ANT. jack
on the back of the TV.
4 Extend and adjust the antenna.
IN
VIDEO
EXT.ANT.
UHF/VHF
AUDIO
DC−12V
Antenna Holder
Rod Antenna
(included)
Antenna
Leads
Transformer
(included)

–7 –
A—Allows viewing of scrambled channels through converter/descrambler box.
B—Allows full use of TV tuner and Remote Control.
NOTE: For other cable connections, consult your cable company.
Some cable companies offer “premium pay”channels in which the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device
which is generally provided by the cable company.
The illustrations below show how to connect these types of converter/descrambler de-
vices with the TV’s VHF antenna jack.
You may need a two-set signal splitter (sometime called a “two-set coupler”) and an A/B
switch box from the cable installer or an electronic supply store. With the A/B switch in the
“B”position, you can then tune directly to any non-scrambled channels using your TV’s
tuning system or remote control. In the “A”position, you can tune your TV to the output
channel of the decoder (generally Channel 3/4) and use the cable company’s equipment
to tune scrambled channels. Since cable systems vary, you may wish to consult your local
cable company.
For subscribers to scrambled pay cable service
To allow viewing of all channels through converter/descrambler. TV must be set to the
output channel of the converter/ descrambler (usually ch 3 or 4).
NOTE: If you subscribe to a cable service which requires you to use a converter/descrambler
box, follow the connections shown above.
If your basic cable channels are unscrambled and are using a converter/descrambler for
premium channels, follow the connections shown below.
For subscribers of unscrambled basic cable with a converter/descrambler box for viewing
premium channels.
Converter/Descrambler
INCOMING
COAXIAL CABLE
To 75 ohm Coaxial
Jack On TV
MultiFunctionRemote
OnScreenDisplay
VOLUME CHANNEL POWER
R
Converter/Descrambler
INCOMING
COAXIAL
CABLE
To 75 ohm
Coaxial
Jack On TV
A
B
A/B SwitchSPLITTER
MultiFunctionRemote
OnScreenDisplay
VOLUME CHANNEL POWER
R

–8 –

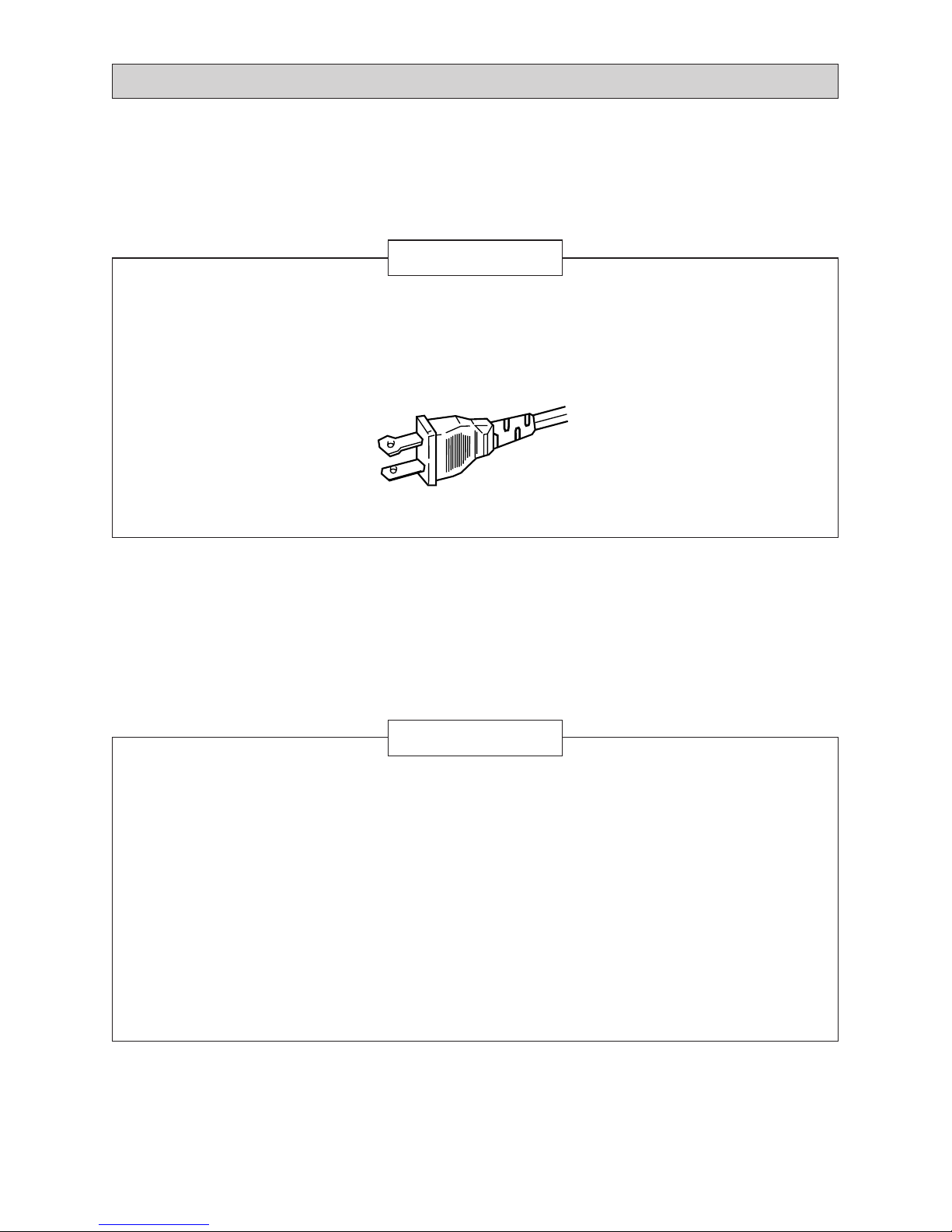

You can connect the TV to a household outlet or to the cigarette lighter of your car.
AC Power
Connect the polarized AC cord plug to a 120V AC 60Hz household outlet.
NOTES
1. NEVER CONNECT THE AC LINE CORD PLUG TO OTHER THAN THE SPECIFIED
VOLTAGE.
USE THE ATTACHED POWER CORD ONLY.
2. IF THE POLARIZED AC CORD DOES NOT FIT INTO A NON-POLARIZED AC
OUTLET, DO NOT ATTEMPT TO FILE OR CUT THE WIDE BLADE.
POWER SOURCE
Polarized AC Cord
Cigarette Lighter Power
1 Insert one end of the DC car cord (included) into the DC input jack on the back of the
TV.
2 Insert the other end of the DC car cord into the cigarette lighter in your car.
NOTES
The polarity of the DC Input jack is not like most others. Attaching a DC power cord of reverse
polarity will make the four-amp fuse blow. Therefore, use only the DC car cord included with
your TV for connection to the cigarette lighter of your car.
When using an external power source:
• It may be difficult to obtain good reception while the car is moving.
• It is recommended that you operate the TV with your car engine idling when very low
outside temperatures cause difficulty in starting the engine.
• Do not operate the TV when starting your car engine. Doing so may overload the engine.
• When you are finished watching TV, turn the power off and disconnect the DC car cord
from the cigarette lighter. If you don’t do this, you may run down your car’s battery.
• Do not operate your TV with a dirty cigarette lighter. Cigarette ash may cause the DC car
cord plug to become overheated.

–9 –
SELECTING A LANGUAGE
QUICK USE GUIDE
If you’re already familiar with TV hookup and operation, just follow the quick steps below to
make some basic connections and adjustments before using your new TV.
aPlace batteries in the remote control.
(See page 4).
sConnect the TV to an antenna or cable.
(See page 6).
dConnect a power supply.
fPress the POWER button to turn the TV on.
gPress the MENU button to bring up the
main menu screen. Press the + or –
button to highlight LANGUAGE, then
press the MENU button until the on-
screen menu is in the language you want
it to be in. (See page 9).
hUse the + or –button to highlight CH
PROGRAM, then press the MENU but-
ton to select it. Press the + or –button
to highlight AIR/CABLE, then press the
MENU button until the input you have
connected to your TV (AIR for antenna
or CABLE for cable) appears to the right
of AIR/CABLE. Then use the + or –but-
ton to highlight EXIT, and press the
MENU button to exit. (See page 11 for
details).
jGo to page 11 and program channels.
kUse the CHANNEL (Up/Down) or Number
buttons to select a channel for viewing.
Use the VOLUME (Up/Down) buttons to
adjust the sound level.
The menu screen that appears when you press the MENU button can be programmed to
appear in English, French, or Spanish. Follow the directions below to program the menu
screen to appear in a language other than the one that is now on-screen when you press
the MENU button.
MENU SUN ––: ––AM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight LAN-
GUAGE.
MENU SUN ––: ––AM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
aPress the MENU button to bring up the
menu-screen.
dPress the MENU button until the menu
screen is in the language you want to
select.
fUse the + or –button to highlight EXIT.
MENU SUN ––: ––AM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : EXIT
gPress the MENU button to exit.

–10 –
SETTING THE CLOCK
aPress the MENU button twice to bring
up the menu screen and select CLOCK
SET.
CLOCK SET
SUN ––: ––AM
EXIT
[MENU] : MOVE
[+] / [–] : ADJUST
sUse the + or –button to select the cor-
rect day of the week.
CLOCK SET
TUE ––: ––AM
EXIT
[MENU] : MOVE
[+] / [–] : ADJUST
dPress the MENU button to go to the next
step.
fUse the + or –button to select the cor-
rect hour(s).
CLOCK SET
TUE 1 : ––AM
EXIT
[MENU] : MOVE
[+] / [–] : ADJUST
gPress the MENU button to go to the next
step.
hUse the + or –button to select the cor-
rect minute(s).
CLOCK SET
TUE 1 : 3 5 AM
EXIT
[MENU] : MOVE
[+] / [–] : ADJUST
jPress the MENU button to go to the next
step.
kUse the + or –button to select AM or
PM.
CLOCK SET
TUE 1 : 3 5 PM
EXIT
[MENU] : MOVE
[+] / [–] : ADJUST
lPress the MENU button. EXIT will flash.
;Press the + or –button to exit.
NOTES
•To display the day and time at any time.
Press the RECALL button twice. To
remove the display, press the RECALL
button again.
•To correct the day or time, follow step 1
to bring up the clock set menu. Then
press the MENU button until the section
of the display you want to correct is
flashing. Use the + or –button to cor-
rect the day or time. Finally, press the
MENU button until EXIT is flashing,
then press the + or –button to exit.
•You may have to reset the clock if there
is a power outage or if you unplug the
TV.

–11 –
PROGRAMMING CHANNELS
With automatic programming, the TV automatically places every channel you receive in its
memory, allowing you to scan through those channels when you press the CHANNEL
(Up/Down) buttons. With manual programming, you tell the TV what channels you want to
scan through when you press the CHANNEL (Up/Down) buttons.
Automatic Programming
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight CH
PROGRAM, then press the MENU but-
ton to select it.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : AIR/CABLE
dIf you have a cable connected to the TV,
press the MENU button until CABLE
appears to the right of AIR/CABLE. If
you have an antenna connected to the
TV, press the MENU button until AIR
appears to the right of AIR/CABLE.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : AIR/CABLE
fUse the + or –button to highlight AUTO
SEARCH.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : START
gPress the MENU button to select AUTO
SEARCH. The TV will flip through all of
its 125 channels, placing the ones you
receive in its memory. When it is fin-
ished, the channel program screen will
appear on-screen again.
hUse the + or –button to highlight EXIT.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : EXIT
jPress the MENU button to exit.
NOTES
To stop automatic programing while it is
in progress, press the MENU button.

–12 –
ADDING/DELETING CHANNELS
Manual Programming
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight CH
PROGRAM, then press the MENU but-
ton to select it.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : AIR/CABLE
dUse the + or –button to highlight CH
MEMORY.
CH PROGRAM
AIR/CABLE CABLE
AUTO SEARCH
CH MEMORY
EXIT
[+] / [–] : SELECT
[MENU] : ENTER
fPress the MENU button to select CH
MEMORY.
CH MEMORY
CABLE 10
[+] : ADD
[–] : DELETE
[MENU] : EXIT
gPress the CHANNEL (Up or Down) but-
ton or Number buttons to select the
channel you want to add to or delete
from the TV’s memory.
hPress the + button to add the channel
(it will turn white). Or, press the –button
to delete the channel (it will turn red).
jFollow steps 5 and 6 to add or delete
other channels.
kPress the MENU button to return to the
channel program screen.
lPress the MENU button to exit while
EXIT is highlighted.
NOTES
•If you don't program channels, you will
still receive channels when you press the
CHANNEL (Up) and (Down) buttons or
Number buttons. But you will also have
to scan through channel that have no
reception or very poor reception when
you press the CHANNEL (Up) and
(Down) buttons.
•You may have to reprogram channels if
there is a power outage or if the TV is
unplugged.

–13 –
SETTING THE TIMERS
You can program your TV to turn on a specific channel at a preset time once (one day
timer) or at the same time every day or every week (weekly timer). You also can program
your TV to turn itself off after a specified amount of time (sleep timer).
One Day Timer
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight PRO-
GRAM TIMER, then press the MENU
button.
PROGRAM TIMER
ONE DAY OFF
WEEKLY OFF
EXIT
[+] / [–] : SELECT
[MENU] : ENTER
dWhile ONE DAY is highlighted, press the
MENU button. The OFF (or ON) to the
right of ONE DAY will flash.
fPress the + or –button until ON appears
beside ONE DAY.
PROGRAM TIMER
ONE DAY ON
WEEKLY OFF
EXIT
[+] / [–] : ON/OFF
[MENU] : ENTER
gPress the MENU button to bring up the
one day timer screen.
ONE DAY TIMER
ON TIME OFF TIME CH
––:––AM ––:––AM 10
[MENU] : MOVE
[+] / [–] : ADJUST
EXIT
hUse the + or –button to select the hour
you want the timer to come on, then
press the MENU button. Use the + or –
button to select the minute(s) you want
the timer to come on, then press the
MENU button. Use the + or –button to
select AM or PM, then press the MENU
button. The OFF TIME changes to ex-
actly three hours after the ON TIME. To
change the OFF TIME follow the same
steps you did to set the ON TIME.
jUse the CHANNEL (Up or Down) buttons,
+ or –buttons, or Number buttons to se-
lect the channel you want the TV to come
on, then press the MENU button.
ONE DAY TIMER
ON TIME OFF TIME CH
1 : 00 PM 2 : 00 PM 22
[MENU] : MOVE
[CH / ] : ADJUST
EXIT
kWhile EXIT is blinking, press the + or –
button to exit.
NOTES
•To cancel a timer, follow steps 1
through 3. At step 4, use the + or –
button to turn the ON to OFF.
•The one day timer has priority when the
same time value is set for the ON TIME
field of both the one day timer and the
weekly timer.

–14 –
Weekly Timer
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight PRO-
GRAM TIMER, then press the MENU
button.
PROGRAM TIMER
ONE DAY OFF
WEEKLY OFF
EXIT
[+] / [–] : SELECT
[MENU] : ENTER
dPress the + or –button to select
WEEKLY, then press the MENU button.
The word OFF (or ON) to the right of
WEEKLY will flash.
fPress the + or –button until ON appears
beside WEEKLY.
PROGRAM TIMER
ONE DAY OFF
WEEKLY ON
EXIT
[+] / [–] : ON / OFF
[MENU] : ENTER
gPress the MENU button to bring up the
weekly timer screen.
WEEKLY TIMER
ON TIME OFF TIME CH
––:––AM ––:––AM 10
[MENU] : MOVE
[+] / [–] : ADJUST
EXIT
SUN MON TUE WED THU FRI SAT
hUse the + or –button to select the hour
you want the timer to come on, then
press the MENU button. Use the + or –
button to select the minute(s) you want
the timer to come on, then press the
MENU button. Use the + or –button to
select AM or PM, then press the MENU
button. Follow the same steps to set the
time off.
jUse the CHANNEL (Up or Down) but-
tons, + or –buttons, or Number buttons
to select the channel you want the TV
to come on, then press the MENU but-
ton.
kPress the MENU button to select the
day(s) of the week you do not want the
TV to come on. Once that day is flash-
ing, use the + or –button to unselect
that day of the week (the TV will not
come on) signified in red or reselect that
day of the week (the TV will come on)
signified in white.
WEEKLY TIMER
ON TIME OFF TIME CH
1 : 00 PM 2 : 00 PM 22
[MENU] : MOVE
[+] / [–] : ADJUST
EXIT
SUN MON TUE WED THU FRI SAT
lWhile EXIT is blinking, press the + or –
button to exit.
NOTES
•To cancel a timer, follow steps 1through
3. Then use the + or –button to turn
the ON to OFF.
•The timer will come on only on the days
that appear in white on the weekly timer
screen.

–15 –
Sleep Timer
aPress the SLEEP button to bring up the
sleep timer screen.
SLEEP 00
sPress the SLEEP button until the desired
sleep time (10, 20, 30, 40, 50, 60, 70,
80 or 90 minutes) appears on-screen.
The timer will begin counting down to
zero, and the on-screen display will dis-
appear. When the timer reaches zero,
the TV will turn itself off.
SLEEP 60
NOTES
•To check the time remaining for a sleep timer, press the SLEEP button. The
time remaining will appear on-screen.
•To cancel a sleep timer, follow step 1 to bring up the sleep timer screen.
Then press the SLEEP button until 00 appears on-screen.
•You must select a sleep time within three seconds of bringing up the sleep
timer screen. Otherwise, the screen will disappear and you will have to
start over.

–16 –
ADJUSTING THE PICTURE
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
sUse the + or –button to highlight PIC-
TURE ADJUST, then press the MENU
button.
PICTURE ADJUST
ADJUST
RESET
EXIT
[+] / [–] : SELECT
[MENU] : ENTER
dPress the MENU button while ADJUST
is highlighted.
CONTRAST 63
fPress the MENU button until the adjust-
ment you want to make (CONTRAST,
BRIGHTNESS, COLOR, TINT or
SHARPNESS –see chart at right for
details) appears at the bottom of the
screen.
gUse the + or –button to adjust the pic-
ture. The bar scale at the bottom of the
screen shows the level of adjustment.
hPress the MENU button until the picture
adjust screen appears.
jUse the + or –button to highlight EXIT,
then press the MENU button to exit.
PICTURE ADJUST
ADJUST
RESET
EXIT
[+] / [–] : SELECT
[MENU] : EXIT
NOTES
To reset the picture adjustments to their
original state, follow steps 1 and 2 above.
Use the + or –button to highlight RESET,
then press the MENU button. To exit,
press the MENU button while EXIT is
highlighted.
FUNCTION
CONTRAST
BRIGHT(ness)
COLOR
TINT
SHARPNESS
–Button
Weaker
Darker
Paler
Skin tones
to purple
Softer
+ Button
Stronger
Lighter
Deeper
Skin tones
to green
Sharper
Picture Adjustments

–17 –
USING THE AUDIO, VIDEO AND EARPHONE JACKS
Audio/Video Input
The AUDIO and VIDEO IN (put) jacks on
the back of the TV allow you to receive au-
dio (sound) and video (picture) from exter-
nal sources, such as VCR, Video Disc, etc.
Follow the instructions below to play video
from an external source.
1 Use audio/video cables (not included) to
connect the AUDIO and VIDEO IN (put)
jacks on the back of the TV to audio and
video output jacks on an external source.
2 Press the TV/VIDEO button to select the
VIDEO mode and the VIDEO indication
will appear on the screen.
3 Operate the VCR, Video Disc or etc. as
described in its owner’s manual. The TV
will monitor playback.
s
Use the + or –button to select DEMONSTRA-
TION, then press the MENU button. A demon-
stration of the TV’s features will begin.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
dPress the MENU button to stop.
DEMONSTRATION MODE
When placed in demonstration mode, your TV will display some of its features on-screen. Follow the
directions below to enter demonstration mode. To exit at any time, simply press the MENU button.
aPress the MENU button to bring up the
menu screen.
MENU TUE 1:35PM
CLOCK SET
PROGRAM TIMER
PICTURE ADJUST
CH PROGRAM
LANGUAGE
DEMONSTRATION
EXIT
[+] / [–] : MENU SELECT
[MENU] : ENTER
IN
VIDEO
EXT.ANT.
UHF/VHF
AUDIO
DC−12V
VCR
AUDIO OUT VIDEO OUT
Earphone Jack Operation
Insert an earphone (not included) into the Earphone jack for private listening. When the
earphone is in use, the TV’s speaker is automatically shut off.
NOTES
•You must return the TV to TV mode for regular TV viewing.
•
If the TV does not receive a signal from an external source, the VIDEO display will appear on-screen.

–18 –
CABLE TV OPERATION
aPress the MENU button to bring up the main menu screen.
sUse the + or –button to highlight CH PROGRAM, then press the MENU button to
select it.
dPress the MENU button until CABLE appears to the right of AIR/CABLE.
On CATV (Cable Television) systems, programs are brought into the home on VHF chan-
nels 2–13, mid-band channels A–I, super band channels J–W, hyper band channels AA–
CCC, ultra band channels W+30–W+84 and sub midband channels (5A, A5–A1). When
CATV is selected, the numbers will change color from yellow to green to indicate the TV is
in the cable mode. Channels 2 through 13 are selected directly. Channel A can be tuned in
by selecting number 14 on this TV, channel B by selecting number 15, and so on as
follows:
NOTE: The actual number of channels received depends upon channel reception in your
area or your cable system.
Most CATV systems use letters to designate channels but others use numbers. To tune in
a numbered channel, select the same number on the TV. Consult your local Cable TV
company to find out which of these channels are receivable and which type of Cable
system is used in your area. (Some cable TV systems use scrambled or encoded signals
and require special converters to receive these channels.)
Channel number on TV
Corresponding CATV Channel
14 15 16 17 18 19 20 21 22 23
A B C D E F G H I J
24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
K L M N O P Q R S T U V W AA BB CC
W+1 W+2 W+3
40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55
DD EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS
W+4 W+5 W+6 W+7 W+8 W+9 W+10 W+11 W+12 W+13 W+14 W+15 W+16 W+17 W+18 W+19
56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
TT UU VV WW XX YY ZZ AAA BBB CCC
W+20 W+21 W+22 W+23 W+24 W+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32 W+33 W+34 W+35
72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87
W+36 W+37 W+38 W+39 W+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47 W+48 W+49 W+50 W+51
88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103
W+52 W+53 W+54 W+55 W+56 W+57 W+58 W+59 W+60 W+61 W+62
104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119
W+63 W+64 W+65 W+66 W+67 W+68 W+69 W+70 W+71 W+72 W+73 W+74 W+75 W+76 W+77 W+78
120 121 122 123 124 125 1
W+79 W+80 W+81 W+82 W+ 83 W+ 84
5A
A5 A4 A3 A2 A1

–19 –
PROBLEM SOLUTION
•Make sure the unit is plugged in.
•Unplug the unit from the electrical outlet for 60 seconds.
Then plug it in and turn it on again.
No Power
•Make sure the antenna is properly connected at the back
of the TV.
•Make sure the antenna is not broken.
•Adjust the brightness and contrast controls.
No picture
No Color
No Sound •Use the VOLUME (Up/Down) buttons to turn up the vol-
ume.
•Make sure the sound is not muted by pressing the MUTE
button.
•Make sure the show is being transmitted in color by check-
ing to see if another channel is in color.
•Adjust the color control.
Wrong Color •Adjust the color and tint controls.
Picture Too
Light/Dark •Adjust the brightness and contrast controls.
Picture Interference •Check the antenna for shorted or broken wires.
•Reposition the antenna.
•Try another channel to make sure there is not station trouble
or local interference (such as electric motors). If possible,
minimize by adjusting the antenna.
Remote control
Doesn’t Work
•Make sure batteries are inserted in the remote control.
•Make sure the remote control is aimed directly at the re-
mote sensor on the TV.
PRINTED IN MALAYSIA
1111-2742M178 G0001-1
BEFORE REQUESTING SERVICE
Before requesting service, check the following list of problems and solutions. You may be
able to solve the problem yourself.
If you are still in need of assistance,
please call customer service at
1-800-919-3647
