MEN BC50R User manual

BC50R – IP65 Box PC for
In-Vehicle Applications
20BC50R00 E1 – 2015-09-07
User Manual
Configuration example

BC50R - IP65 Box PC for In-Vehicle Applications (AMD)
MEN Mikro Elektronik GmbH 2
20BC50R00 E1 – 2015-09-07
BC50R - IP65 Box PC for In-Vehicle Applications (AMD)
The BC50R is a maintenance-free box computer that has been designed, e.g., for
data acquisition applications in rugged environments in vehicles, e.g. in trains,
commercial vehicles, mobile machines or ships.
All interfaces are implemented on rugged M12 connectors (USB, digital input and
output, Gigabit Ethernet, CAN and legacy serial I/O). The housing is compliant to
the IP65 protection class.
On the inside, the system offers two PCI Express® Mini card slots with two SIM
card slots for WLAN, GNSS or 3G/4G functionality. The necessary antenna
connectors can be made available at the front panel.
It is powered by an AMD Embedded G-Series APU (Accelerated Processing Unit),
the T48N, running at 1.4 GHz. The use of the Embedded G-Series makes for high
scalability in CPU (single/dual core) performance.
The BC50R is equipped with 2 GB of DDR3 SDRAM and offers SD card and
mSATA slots. The system is designed for fanless operation at temperatures from -40
to +70°C (+85°C for up to 10 minutes), its special aluminum housing with cooling
fins serves as a heat sink for the internal electronics and in this way provides
conduction cooling.
The BC50R supports a 24 VDC and 36 VDC nom. (10 to 50.4 V) class S2 power
supply in compliance with EN 50155 or power supplies which comply with ISO
7637-2 (E-mark for automotive) (nominal input voltage 24 V) or with EN 60945
(ship). The power can be switched on and off using an ignition signal on the power
connector, and a shutdown-delay time after switching off the power can be adjusted
by software.
The combination of the various CPU/GPU options with the available selection of
external interfaces (realized via separate graphics and I/O interface boards within
the system) makes for an extremely flexible system design that can quickly be
tailored to a vast number of applications.

Diagram
MEN Mikro Elektronik GmbH 3
20BC50R00 E1 – 2015-09-07

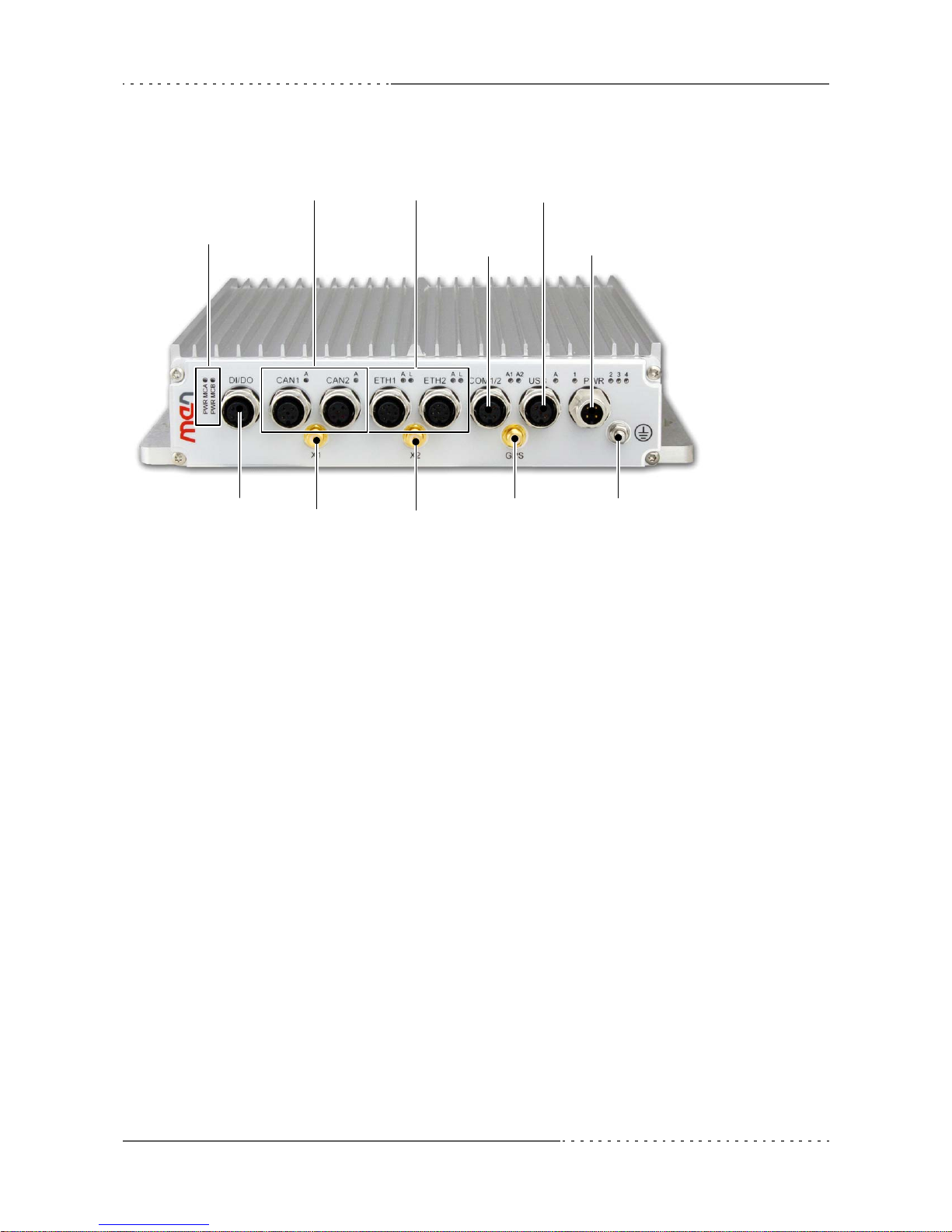

Diagram
CAN1and2
withstatusLEDs USB2.0
withstatusLED
Powerinput
PCIeMiniCard
SMAantennaconn.
Earthingstud
Serialinterface1/2
withstatusLEDs
Ethernet1and2
withstatusLEDs
Digitalinputsand
outputs
SMAantenna
conn. forGPS
PCIeMiniCard
powerLEDs

Technical Data
MEN Mikro Elektronik GmbH 4
20BC50R00 E1 – 2015-09-07
Technical Data
CPU
• AMD Embedded G-Series T48N
-Dual-Core
- 1.4 GHz processor core frequency
- Accelerated Processing Unit (APU), also includes GPU (see Graphics)
Controller Hub
•AMDA55E
Memory
• 64 KB L1 and 512 KB L2 cache
• 2 GB DDR3 SDRAM system memory
-Soldered
- 1066 MT/s
Mass Storage
• One SD card slot
-ViaUSB
•OnemSATAslot
- SATA Revision 2.x support
- Transfer rates up to 300 MB/s (3 Gbit/s)
Front I/O
• Positioning: GPS, GLONASS
- Via one SMA antenna connector at the front
- 1 status LED on front
•Ethernet
- Two 10/100/1000Base-T Ethernet channels
- Two M12 connectors at front panel
- Four onboard LEDs to signal LAN link, activity status and connection speed
•USB
- One USB 2.0 client port
- M12 connector at front panel
- EHCI implementation
- One status LED at front panel
• CAN bus
- Two CAN bus channels
- Two M12 connectors at front panel
- 1 LED at front panel for each CAN port

Technical Data
MEN Mikro Elektronik GmbH 5
20BC50R00 E1 – 2015-09-07
• Two RS232 UART (COM1/2)
- One M12 connector at front panel
- Data rates up to 115 200 bit/s
- Handshake lines: none
- 1 LED at front panel for each COM port
•GPIO
- 2 digital inputs (GPI)
- 2 digital outputs (GPO)
- Optically isolated
- One M12 connector at front panel
- 1 status LED
2 PCI Express® Mini Card slots
• For functions such as
- Mobile service standards: GSM (2G), UMTS (3G), LTE (4G) and derivates
- Wireless communication: WLAN / WiFi IEEE 802.11 and derivates
• 2 SIM card slots
• PCI Express® and USB interface
Real-Time Clock
• Buffered by Gold Cap for up to 72 h
Electrical Specifications
• Supply voltage:
- 24V and 36V nominal input voltage according to EN50155
- 24V nominal input voltage according to ISO 7637-2 (E-mark) requirements
- 10 to 50.4 V input voltage range
- EN 50155 power interruption class S2
• Power consumption: up to 30 W
Mechanical Specifications
• Dimensions: approx. 250 mm x 220 mm x 48.1 mm
• Weight: 1.8 kg
• Front protected according to IP65
Environmental Specifications
• Temperature range (operation):
- Depends on system configuration (CPU, PCIeMiniCards, Ethernet, USB, ...)
- Maximum: +70°C (+85°C for 10 minutes) according to EN50155 Tx
- Minimum: -40°C (all processors)
- Conditions: typical power dissipation: 14.4 W (with 18W CPU T48N) with
Windows® 7 operating system and 1 Gb Ethernet connection
- Fanless operation
• Temperature range (storage): -40..+85°C
• Relative humidity (operation): max. 95% non-condensing
• Relative humidity (storage): max. 95% non-condensing

Technical Data
MEN Mikro Elektronik GmbH 6
20BC50R00 E1 – 2015-09-07
• Altitude: -300 m to +3,000 m
• Shock: 50 m/s², 30 ms
• Vibration (function): 1 m/s², 5 Hz – 150 Hz
• Vibration (lifetime): 7.9 m/s², 5 Hz – 150 Hz
• Conformal coating of internal components
MTBF
• 262,804 h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
• Flammability
-UL94V-0
• Fire Protection
- EN 45545-2
• Electrical Safety
- EN 50153
- EN 50155
EMC Compliance (Automotive)
• ECE R10 (E-mark)
EMC Compliance (Railway)
• EN 50121-3-2
EMC Compliance (Ship)
• EN 60945
BIOS
• InsydeH2O™ UEFI Framework
Software Support
•Windows®7
• Windows® Embedded Standard 7
•Linux
For more information on supported operating system versions and
drivers, please see the online data sheet.

Configuration Options
MEN Mikro Elektronik GmbH 7
20BC50R00 E1 – 2015-09-07
Configuration Options
APU
• AMD T56N, 1.65 GHz Dual Core, 18W, AMD Radeon™ HD 6320
• AMD T56E, 1.65 GHz Dual Core, 18W, AMD RadeonT HD 6250
• AMD T48N, 1.4 GHz Dual Core, 18W, AMD Radeon™ HD 6310
• AMD T48E, 1.4 GHz Dual Core, 18W, AMD RadeonT HD 6250
• AMD T40N, 1.0 GHz Dual Core, 9W, AMD Radeon™ HD 6290
• AMD T40E, 1.0 GHz Dual Core, 6.4W, AMD Radeon™ HD 6250
• AMD T52R, 1.5 GHz Single Core, 18W, AMD Radeon™ HD 6310
• AMD T44R, 1.2 GHz Single Core, 9W, AMD Radeon™ HD 6250
• AMD T40R, 1.0 GHz Single Core, 5.5W, AMD Radeon™ HD 6250
• AMD T16R, 615 MHz Single Core, 4.5W, AMD Radeon™ HD 6250
• AMD T48L, 1.4 GHz Dual Core, 18W
• AMD T30L, 1.4 GHz Single Core, 18W
• AMD T24L, 1000 MHz Single Core, 5W
Memory
• Up to 4 GB DDR3 SDRAM system memory
Other Options
• The product concept is very flexible, there are many other configuration
possibilities.
• Please contact our sales team if you do not find your required function in the
options.
• Some of these options may only be available for large volumes.
For available standard configurations see the online data sheet.

Product Safety
MEN Mikro Elektronik GmbH 8
20BC50R00 E1 – 2015-09-07
Product Safety
Electrostatic Discharge (ESD)
Computer boards and components contain electrostatic sensitive
devices. Electrostatic discharge (ESD) can damage components. To
protect the board and other components against damage from static
electricity, you should follow some precautions whenever you work on
your computer.
• Power down and unplug your computer system when working on the
inside.
• Hold components by the edges and try not to touch the IC chips,
leads, or circuitry.
• Use a grounded wrist strap before handling computer components.
• Place components on a grounded antistatic pad or on the bag that
came with the component whenever the components are separated
from the system.
• Only store the board in its original ESD-protected packaging. Retain
the original packaging in case you need to return the board to MEN
for repair.

About this Document
MEN Mikro Elektronik GmbH 9
20BC50R00 E1 – 2015-09-07
About this Document
This user manual is intended only for system developers and integrators, it is not
intended for end users.
It describes the hardware functions of the system and connection of peripheral
devices. It also provides additional information for special applications and
configurations of the system.
The manual does not include detailed information on individual components (data
sheets etc.). A list of literature is given in the appendix.
History
Issue Comments Date
E1 First issue 2015-09-07

About this Document
MEN Mikro Elektronik GmbH 10
20BC50R00 E1 – 2015-09-07
Conventions
Indicates important information or warnings concerning the use of
voltages that could lead to a hazardous situation which could result in
personal injury, or damage or destruction of the component.
Indicates important information or warnings concerning proper
functionality of the product described in this document.
The globe icon indicates a hyperlink that links directly to the Internet,
where the latest updated information is available.
When no globe icon is present, the hyperlink links to specific elements
and information within this document.
italics Folder, file and function names are printed in italics.
bold Bold type is used for emphasis.
mono Amonospaced font type is used for hexadecimal numbers, listings, C
function descriptions or wherever appropriate. Hexadecimal numbers
are preceded by "0x".
comment
Comments embedded into coding examples are shown in green text.
IRQ#
/IRQ Signal names followed by a hashtag "#" or preceded by a forward
slash "/" indicate that this signal is either active low or that it becomes
active at a falling edge.
in/out Signal directions in signal mnemonics tables generally refer to the
corresponding board or component, "in" meaning "to the board or
component", "out" meaning "from the board or component".
!

About this Document
MEN Mikro Elektronik GmbH 11
20BC50R00 E1 – 2015-09-07
Legal Information
Changes
MEN Mikro Elektronik GmbH ("MEN") reserves the right to make changes without further notice to any products herein.
Warranty, Guarantee, Liability
MEN makes no warranty, representation or guarantee of any kind regarding the suitability of its products for any particular
purpose, nor does MEN assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including, without limitation, consequential or incidental damages. TO THE EXTENT
APPLICABLE, SPECIFICALLY EXCLUDED ARE ANY IMPLIED WARRANTIES ARISING BY OPERATION OF LAW,
CUSTOM OR USAGE, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for
more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing
warranty period, MEN shall have no liability or obligation to buyer hereunder.
The publication is provided on the terms and understanding that:
1. MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in
or omission from the publication; and
2. MEN is not engaged in rendering technical or other advice or services.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in
respect of anything, and of the consequences of anything, done or omitted to be done by any such person in reliance, whether
wholly or partially, on the whole or any part of the contents of the publication.
Conditions for Use, Field of Application
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental
specification given for each product in the technical user manual. The correct function of MEN products under extended
environmental conditions is limited to the individual requirement specification and subsequent validation documents for each
product for the applicable use case and has to be agreed upon in writing by MEN and the customer. Should the customer
purchase or use MEN products for any unintended or unauthorized application, the customer shall indemnify and hold MEN
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses,
and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the
part. In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
Trademarks
All products or services mentioned in this publication are identified by the trademarks, service marks, or product names as
designated by the companies which market those products. The trademarks and registered trademarks are held by the
companies producing them. Inquiries concerning such trademarks should be made directly to those companies.
Conformity
MEN products are no ready-made products for end users. They are tested according to the standards given in the Technical
Data and thus enable you to achieve certification of the product according to the standards applicable in your field of
application.

About this Document
MEN Mikro Elektronik GmbH 12
20BC50R00 E1 – 2015-09-07
RoHS
Since July 1, 2006 all MEN standard products comply with RoHS legislation.
Since January 2005 the SMD and manual soldering processes at MEN have already been completely lead-free. Between June
2004 and June 30, 2006 MEN’s selected component suppliers have changed delivery to RoHS-compliant parts. During this
period any change and status was traceable through the MEN ERP system and the boards gradually became RoHS-compliant.
WEEE Application
The WEEE directive does not apply to fixed industrial plants and tools. The compliance is the responsibility of the company
which puts the product on the market, as defined in the directive; components and sub-assemblies are not subject to product
compliance.
In other words: Since MEN does not deliver ready-made products to end users, the WEEE directive is not applicable for MEN.
Users are nevertheless recommended to properly recycle all electronic boards which have passed their life cycle.
Nevertheless, MEN is registered as a manufacturer in Germany. The registration number can be provided on request.
Copyright © 2015 MEN Mikro Elektronik GmbH. All rights reserved.
Germany
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone [phone]
Fax [phone]
E-mail [email protected]
www.men.de
France
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone [phone]
Fax [phone]
E-mail [e-mail]
www.men-france.fr
USA
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone [phone]
Fax [phone]
E-mail [email protected]
www.menmicro.com

Contents
MEN Mikro Elektronik GmbH 13
20BC50R00 E1 – 2015-09-07
Contents
1 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.1.1 External Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.2 Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.3 Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.1 Unpacking the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2 Mounting the BC50R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.3 Connecting an Earthing Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.5 Starting up the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.6 Installing Operating System Software. . . . . . . . . . . . . . . . . . . . . . . . . 24
2.7 Installing Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1.1 Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2 Real-Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3 Processor Core. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.1 Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.4 Memory and Mass Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.1 DRAM System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.2 Boot Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.3 SD Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.4 mSATA Slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4.5 SATA Hard Disk (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.5 USB Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.6 Ethernet Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.6.1 Ethernet Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.7 Status and User LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.7.1 Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.8 Serial Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.8.1 RS232 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.9 PCI Express Mini Card Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.10 Binary Inputs and Outputs (DI/DO) . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.10.1 Binary Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.10.2 Photocouplers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.11 CAN Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.12 GNSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4 Organization of the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.1 SMBus Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Contents
MEN Mikro Elektronik GmbH 14
20BC50R00 E1 – 2015-09-07
4.2 SMBus Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.3 SMBus Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.1 Cleaning the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.2 Fuse Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.3 Literature and Web Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.1 GNSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.2 CAN Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.3 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.4 PCI Express Mini Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.5 USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.4 Dimensions of the BC50R Box PC . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

MEN Mikro Elektronik GmbH 15
20BC50R00 E1 – 2015-09-07
Figures
Figure 1. The BC50R - overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 2. The BC50R - front interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 3. Block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 4. Label giving the product’s article number, revision and serial number 20
Figure 5. Mounting distances required for the box PC . . . . . . . . . . . . . . . . . . . . 22
Figure 6. PSU connector at BC50R front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 7. Connection of power pins from PSU . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 8. Ignition behavior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 9. Ignition and watchdog state diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 10. Photocouplers (shutters) - 2 lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

MEN Mikro Elektronik GmbH 16
20BC50R00 E1 – 2015-09-07
Tables
Table 1. Pin assignment of PSU connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 2. Processor core options on BC50R . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 3. Pin assignment of USB front-panel connectors . . . . . . . . . . . . . . . . . . 31
Table 4. Signal mnemonics of USB front-panel connectors . . . . . . . . . . . . . . . 31
Table 5. Pin assignment of Ethernet front-panel connectors . . . . . . . . . . . . . . . 32
Table 6. Signal mnemonics of Ethernet front-panel connectors. . . . . . . . . . . . . 33
Table 7. Ethernet status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 8. Status and user LEDs on the BC50R . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 9. Error codes signaled by Status LED flashes. . . . . . . . . . . . . . . . . . . . . 35
Table 10. Pin assignment of RS232 front-panel connectors. . . . . . . . . . . . . . . . . 36
Table 11. Signal mnemonics of RS232 connector . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 12. Pin assignment of DI/DO front-panel connectors . . . . . . . . . . . . . . . . 37
Table 13. Photocoupler ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Table 14. Pin assignment of CAN front-panel connectors. . . . . . . . . . . . . . . . . . 39
Table 15. SMBus address of EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 16. SMBus devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 17. SMB address space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table 18. SMB 0x40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table 19. SMB 0x42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Product Description
MEN Mikro Elektronik GmbH 17
20BC50R00 E1 – 2015-09-07
1 Product Description
1. 1 Ov e r v i e w
This chapter gives an overview of the box PC.
Figure 1. The BC50R - overview

Product Description
MEN Mikro Elektronik GmbH 18
20BC50R00 E1 – 2015-09-07
1.1.1 External Interfaces
The following picture shows the BC50R front without antennas.
Figure 2. The BC50R - front interfaces
CAN1and2
withstatusLEDs USB2.0
withstatusLED
Powerinput
PCIeMiniCard
SMAantennaconn.
Earthingstud
Serialinterface1/2
withstatusLEDs
Ethernet1and2
withstatusLEDs
Digitalinputsand
outputs
SMAantenna
conn. forGPS
PCIeMiniCard
powerLEDs

Product Description
MEN Mikro Elektronik GmbH 19
20BC50R00 E1 – 2015-09-07
1.2 Block Diagram
Figure 3. Block diagram
GbEthernet
FPGA
CAN
CAN
UART
USB
UART
UART
UART
SGPIO
A55E
AMDG‐Series
ControllerHub
T48N
AMDG‐Series
CPU
2GBDDR3SDRAM
F Front RearRB Onboard SA SA‐Adapter™ Options
USB2.0
F
PCIe
F
GbEthernet PCIe
F
mSATA B
SATA
SATA B
SATA
SDCard B
USB
PCIe PCIExpressMini
CardSlotA
B
PCIExpressMini
CardSlotB
B
F
USB
PCIe
F
2microSIM
CardSlots
B
1AntennaSlot
1AntennaSlot
F
F
F
2microSIM
CardSlots
B
1GPS1AntennaSlot F

Product Description
MEN Mikro Elektronik GmbH 20
20BC50R00 E1 – 2015-09-07
1.3 Product Identification
MEN user documentation may describe several different models and/or design
revisions of the BC50R. You can find information on the article number, the design
revision and the serial number on a label attached to the chassis.
•Article number: Gives the product’s family and model. This is also MEN’s
ordering number. To be complete it must have 9 characters.
•Revision number: Gives the design revision of the product.
•Serial number: Unique identification assigned during production.
If you need support, you should communicate these numbers to MEN.

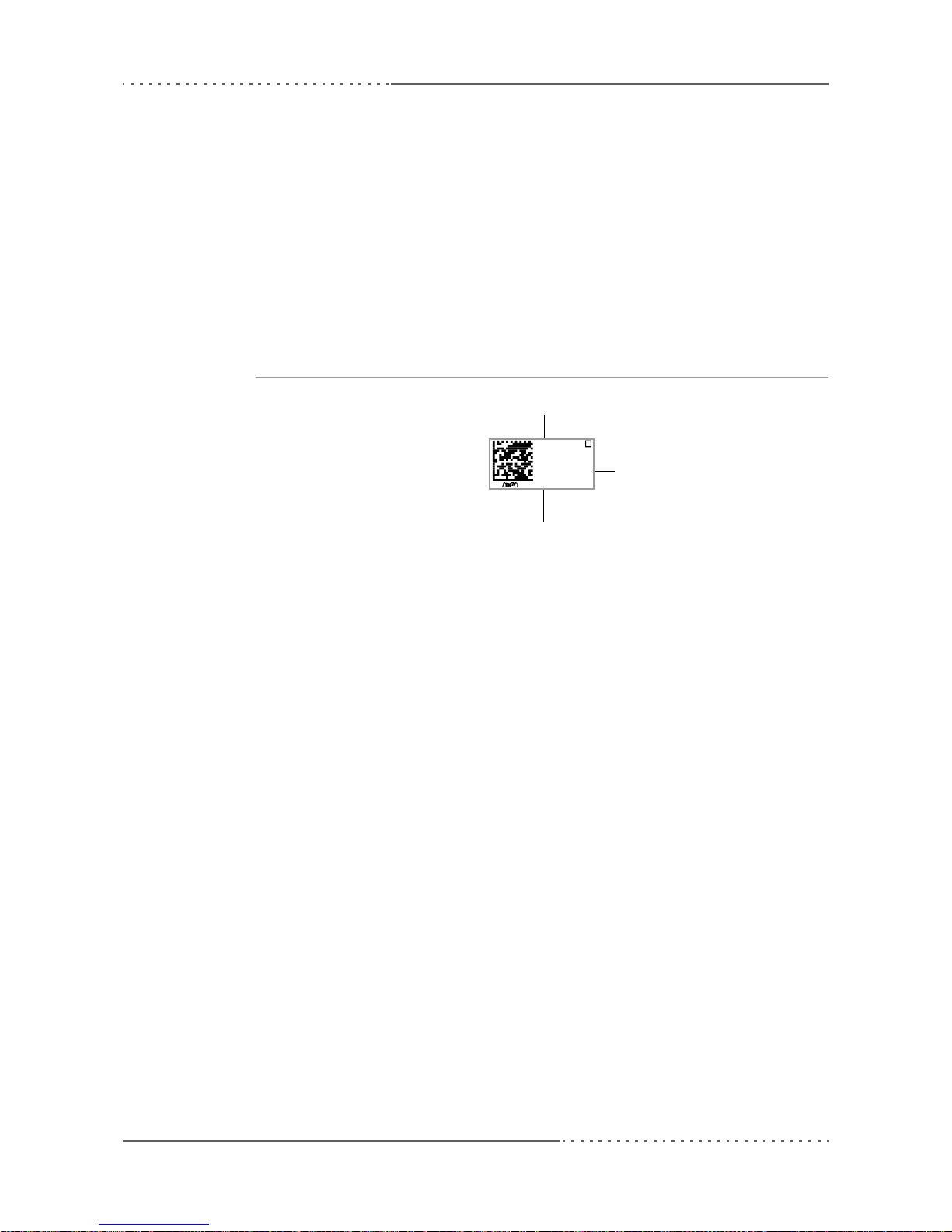

Figure 4. Label giving the product’s article number, revision and serial number
Revision number
Serial number
Complete article number
Serial No.:
00.00.00
Article No.:
Rev.
09BC500
000001
