Merra CFN-1013 User manual

Model:CFN-1013

Unpack your fan and check the contents. You
should have the following items:
h
l
i
k
a
j
MED
HILOW
STOP
2H
4H
1H
R/F
LI
d
e
b
c
f
m
g
nnnnnnn
n
n. Part bag contents
1) Mounting hardware :
wood screws (4), flat washers (4),
b. Ceiling mounting bracket
c. Canopy
d. Canopy cover
e. Ball/downrod assembly
f. Coupling cover
h. Fan motor assembly
i. Li ight plate
j. led light kit
k. glass shade
l. hand held remote control system
m. receiver with 7 wire nuts
a. Fan blades (5)
wire nuts ( 6 ),
screws (2), star washers(2).
g. Fan housing
2) Blade attachment hardware:
screws (7)
3) Balance Kit

6. FAN HOUSING INSTALLASION
Step 1. Remove set of screws(8) from the top of the
motor assembly, and remove the reinforcing plate
and save its for later use as shown in Fig 6
Fig 6
Step 2. Install the fan housing onto the coupling
and align the holes with holes in the coupling.
Step 3. Install the reiforcing plate onto the fan
housing and align the holes with the holes in the
fan housing.
See Fig 7
See Fig 7
Step 4. rei-install the set of crews(6) which
were just removed,Tighten all screws securely.
See Fig 7
Fig 7
screw
reiforcing plate
5. ATTACHING THE GSN BLADES
Fig 5
Step 1. Attach the blade to the flywheel
using the screws with spring washer in
the bag as shown in figure 5.
Star screw into flywheel.Repeat for the
two remaining screws.
Step 2. Repeat for the remaining blades.
Step 3. Make sure the blade is straight and
tighten each screws. Blades
Screw
Screw
Fan housing
Noted: Be sure must install the blades
before installing the fan housing.

Fig 8
Fig 9
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining
clip
Coupling cover
7.HANGING THE FAN
Fig 10
bracket as shown in fig 8.
through the ball/downrod.(Fig 9)
the motor housing (fig.9).Carefully insert the
position, as noted in the circle inset of Fig.9.
fan motor firmly.(Fig.9)
bracket socket.(Fig.10)
5

Receiver
Ceiling
mounting
bracket
WARNING:To avoid possible electrical
shock, be sure you have turned off the power
at the main circuit panel. Follow the steps
below to connect the fan to your household
wiring. Use the wire connecting nuts suppled
with your fan. Secure the connectors with
electrical tape. Make sure there are no loose
wire strands or connections.

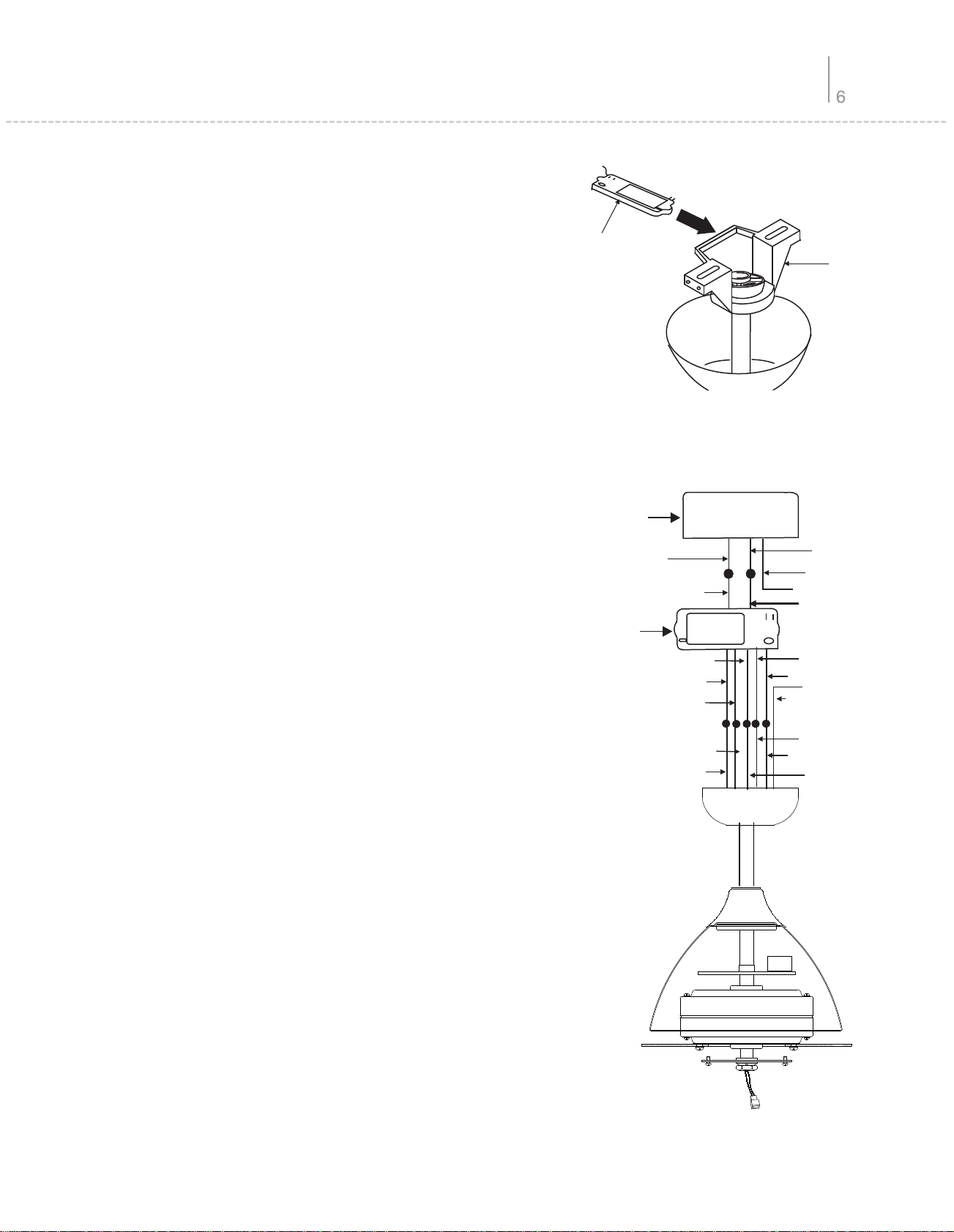

Step 1.Insert the receiver into the ceiling
mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 11) For best
performance, make sure the Black Antenna,
on the end of the receiver, remains extended
and not tangled with any of the electrical
wires.
Step 2.Motor to Receiver Electrical
Connections: (Fig. 12) Connect the black wire
from the fan to the black wire marked "TO
MOTOR L" on the receiver.
8.ELECTRIC CONNECTIONS
Fig 11
Fig 12
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Orange
Red (for forward and reverse L)
Orange (for forward and reverse N)
Red (for forward and reverse L)
(for forward and reverse N)
Connect the white wire from the fan to the white
wire marked "TO MOTOR N" on the receiver.
Connect the blue wire from the fan to the blue
wire marked "FOR LIGHT" on the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
Step 3.Receiver to Supply Wires Electrical
Connections: (Fig. 12) Connect the black (load)
wire from the ceiling outlet box to the black wire
marked "AC in L" on the receiver. Connect the
white (neutral) wire from the ceiling outlet box to
the white wire marked "AC in N" on the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
Step 4.Connect the ground wire (green or bare
copper) from the outlet box to the ground wire on
the ceiling mounting bracket and the ground wire
from the ceiling fan.
After making all connections, separate the white
and green wire connections to one side and the
black wire connections to the other side of the
outlet box.
NOTE:Fan must be installed at a maximum
distance of 30 feet from the Hand Held Remote
Transmitter for optimal signal transmission
between the transmitter and the fan's receiving
unit.
Connect the red wire from the fan to the red
wire marked "For forward and reverse L".
Connect the orange wire from the fan to the
orange wire marked "For forward and reverse N".

Fig 13
9. FINISHING THE INSTRUCTION
7
10. INSTALLING THE LED LIGHT KIT
AND LAMP SHADE
Fig 14
NOTE:Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Loosen the three screws on
the round plate and "remove" and save
it for later use.(Fig.14)
Step 2. Place the light pan onto the
round plate and aligning the hole slots.
then re-install the screws which were
just removed. Tighten all screws securely.
(Fig.14)
Step 3 .While holding the LED light kit
under the fan motor, make the wire
connections:(Fig. 14)
Blue to Blue. White to White.
Step 4 . Raise the glass shade against
the LED light kit and turn clockwise
until snug(fig.14).
Then place the LED light kit onto the light
plate by magnet (Fig. 14)
DO
NOT OVER TIGHTEN.
Canopy cover
Fig 13
Glass shade
Wire connectors
LED light kit
Screws
Light plate

11. Operation for remote
MED
HILOW
STOP
2H
4H
1H
R/F
LI
Installation of transmitter wall
Mount holder with two screws.
1. speed control button of fan: HI. MED AND LOW
are speed button.
2. LI :ON/OFF the lamp
3. STOP :Turn off the ceiling fan.
4. Fan timing button: 1H.2H and 4H.
5. F/R : Controls the direction of the fan
"Forward and Reverse".
6. Battery for RF emitter: 12V 23A
Bettery foremitter:UM-44 AAARo3 DC 1.5Vx2.
7. RF emitter:Renote control distance at 25-30 meters.
emitter:Remote control distance within 10 meters.
KINDLY REMINDERS:
Learning code maching mode is useed between emitter and receiver,Turn "ON" the supply power
within 30 seconds and press the emitter's "LI" and "Hi"button for 3 seconds, it can load normally
after hearing the "BEE" which means learning successfully and it can works normally.(PS:Learing
mode is not acepted after turn "ON" the supply power for 30 seconds)
RED TO FAN REVERSE L
TO FAN REVERSE N
ORANGE
8

12.TROUBLESHOOTING
