MIKIKI XQB45-1108 User manual

MIKIKI
MODEL:XQB45-1108
XQB55-1108

Outlet Hose
Bottom Plate
Frame
Power Cord
Pulsator
Water Inlet Hose
Upper Lid
Lint Collector
Spin Tub
Bady
Control Panel
Adjustable Leg
Base
Contents
Description of the parts
Attachment
Notice items
Installation
Packing list
Product features
Control panel instructions
Laundry preparation
Washing operation
Heavy clothes washing
Dispose after washing
Abnormal phenomena
Fault detection guide
Fault information table

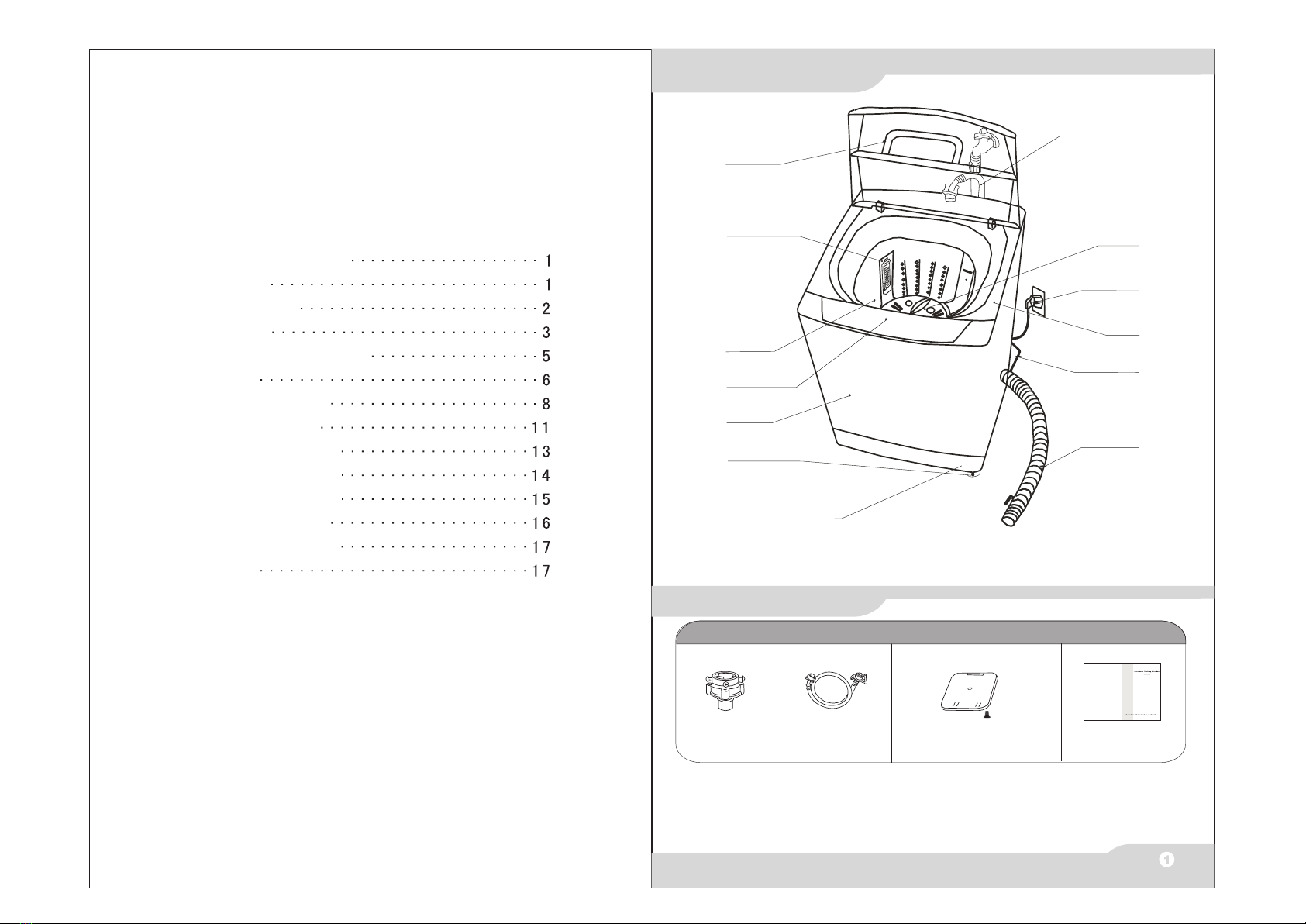

Description of the parts
Note: If the above drawing dose not conform to the actual machine,the latter shall prevail.
Note: 1.Always use the NEW Water Inlet hose and Water Drain Hose Assembly in the Accessories Bag attached.
2.Do not reuse any OLD Water Inlet Hose and Water Drain Hose Assembly.
3.If the washing machine be replaced,that a new water hose be used and the old one disoised of.
Connector Normal(1PCS) Water Inlet Hose(1PCS) Bottom covering plate and screw(1PCS) Instruction manual(1PCS)
Accessories
Attachment

Automatic power-off, intelligent fault judgment
The machine will automatically power off after the power is turned on but no program
started or the laundry is not over, effectively preventing accidental occurrence; when
failure occurs, the machine automatically corrects and alarms to prevent machine damage.
Reservation washing
Within 24 hours, can reserve any washing time, suitable for timing washing.
Soaking program
The program uses dynamic soaking, make full use of detergent chemical washing process,
reducing mechanical washing time and wear.
Multiple wash flow
According to the user's choice of washing procedures and water level can automatically
set the best washing water and washing methods.
Instruction of sign meaning
Electricity safety sign:
Warning sign:
Disabled sign:
The product with this logo belongs to class I electric appliance ,
please pay attention to the electricity safety when using.
The content with this logo, related to product safety and user's
personal safety, must be strictly in accordance with the requirements
of operation, or may cause damage to the washing machine or the
safety of the user's personal safety.
Anything with this sign is absolutely prohibited,or may cause damage
to the washing machine or the safety of the user's personal safety.

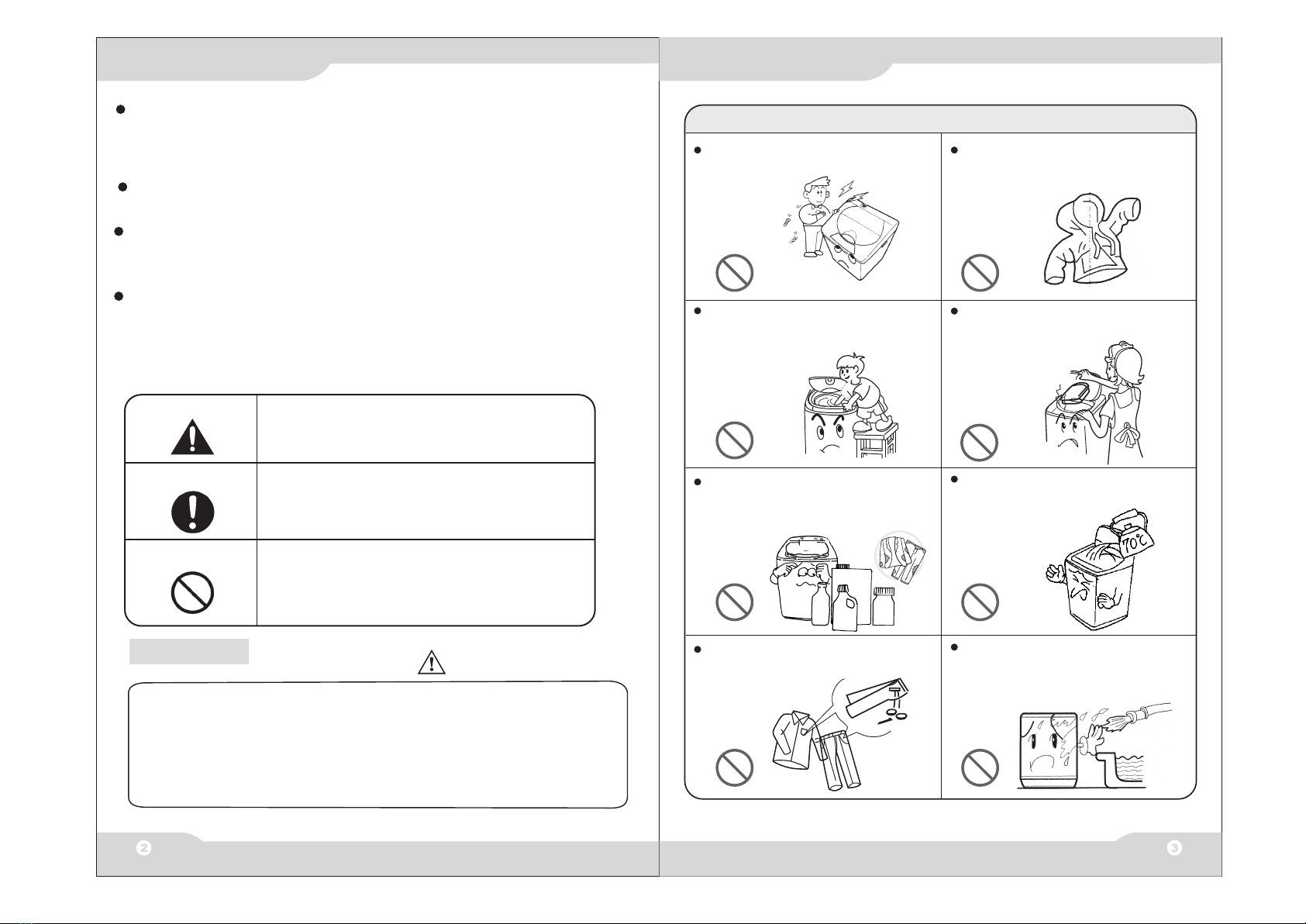

Safety and durability guidelines
No self-decomposition, self-repairation or
self-installation.
Do not put hand into the drumwhile operating,
do not let the children near the washing
machine: The drum runs very fast and is
dangerous for hands,
unattended children
should not use this
machine.
Clothes that cannot be washed: Do not wash
or spin clothes with gasoline, kerosene,
alcohol or solvents (Because of the danger
of causing a fire).
Please take out all the contents of the pocket
before washing, especially the things like nails
or needles will damage
the washing machine
or clothes.
Do not wash raincoats, bike covers,feather
products and other waterproof clothing, to
avoid abnormal vibration when spinning.
Please put the clothes into the washing
machine evenly: Uneven clothes can
cause noise or vibration,
do not place any hot,
heavy items (such
as jugs containing
hot water) on
the washing
machine.
Do not wash with hot water (more than 50℃
water): Plastic and rubber parts will be
damaged or deformed, clothes
will be deformed, shrink
or faded.
Do not install the washing machine in wet
places such as bathrooms, never rinse with
water, or place the wet clotheson the surface
paste. Do not touch the control panel with
sharp objects, the carpet should not
block the
vents.
Notice items
Product features
This product belongs to I category home appliance, please be caution of the electric when use it !
Safety Warning
1.It must be used with reliable grounding power, and the ground wire of the power supply shall be
buried under the ground, and not connected with the water pipe and other public facilities .Do not
connect the two wires together.
2.It must use a dedicated socket.
3.the washing machine is installed on the carpeted floor, should not make carpet to block air vents at
the bottom of the washing machine, in order to you and your family's safety, if you have do not
meet above requirement of electricity in the home, would you please improve as soon as possible

Do not use broken plug or socket to avoid electric shock or fire.

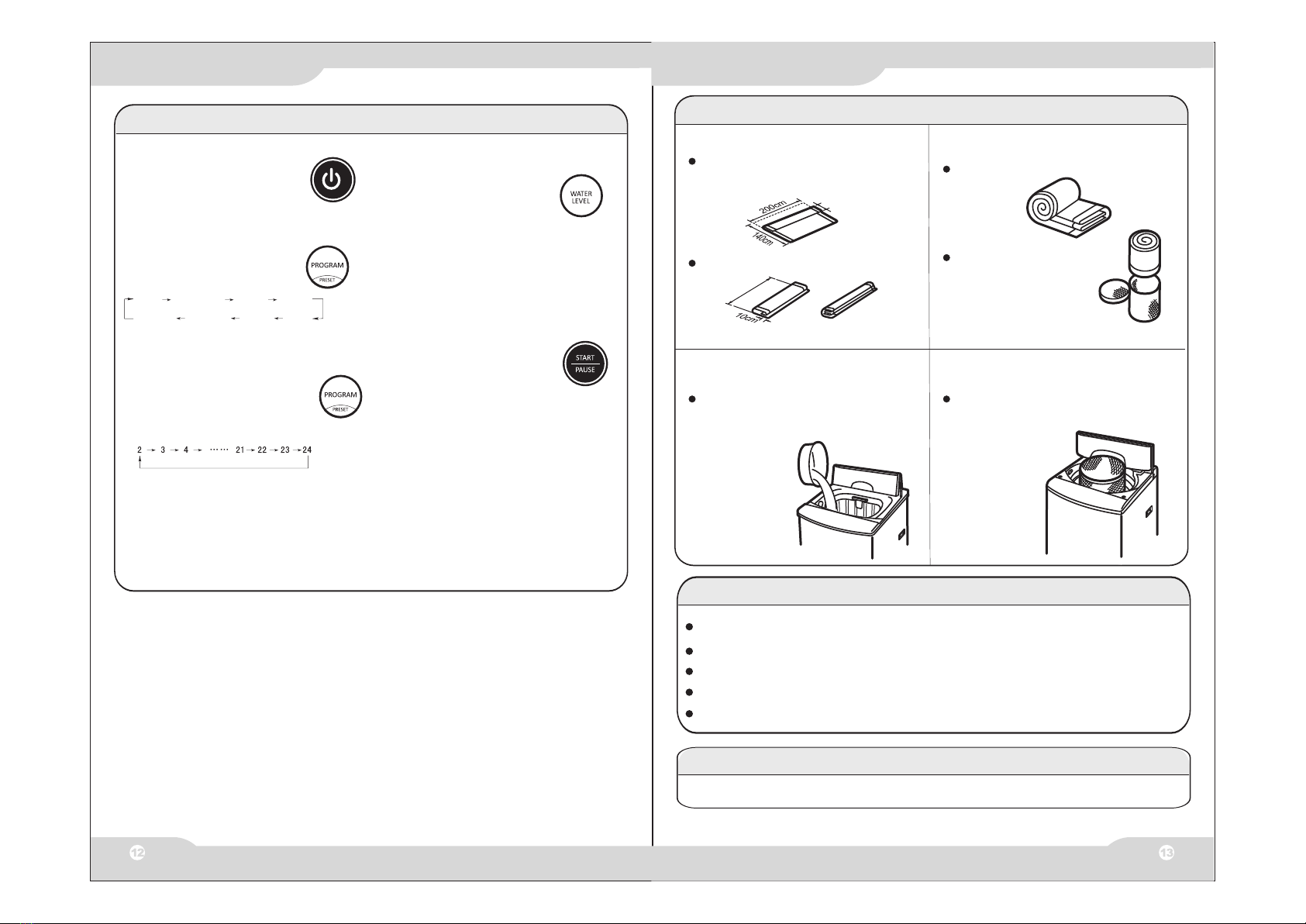

Press to start or off thepower
After procedure finished or
pause, no operation over than
10mins, automatically cut off
the power
Power
Press the key after power
on to start program
Press the key if If need
pause the program or
change program. Press
again to recover normal
program.
Start/Pause
After the procedure is set
and the machine is started,
hold simultaneously the
WATER LEVER and PROGRAMS
keys for 2 seconds to start
Child Lock,in this way users can
prevent children from pressing
the buttons to change the
original procedure.To unlock
the keys, repeat above started
action.
Child Lock
Adjust the water level
from 1-8 based on
clothes
Water level and Detergent
Remain time: During program
running, the remaining time
and process code flash alternately
Reservation: When the
reservation process is selected,
the end time is displayed
Error: An error message is
displayed when an error occurs,
such as E3 indicating that the
cover is not closed
Water level: press the water
level key to show the water level
Display Window
Program/ Reservation
User can select 01-08 different program
as need
Press key 2 seconds for reservation,
when the window show “2” press again
to select delay time. Original time is 2
hours late and 1 hour addedper pressure,
the range is 2-24 hours.
Power cord safety
When unplugging the plug, be sure to hold the plug and do not pull on the power cord.
Do not place heavy objects on the power cord, do not let the power
cord be squeeze.
If the power cord is damaged, to avoid danger, it must be replaced by
the manufacturer or its service department or a similar dedicated staff.
Do not plug the power plug with damp hands to avoid electric shock.
Do not plug the power plug in the place where gas leaks.
Please use a standard, reliable AC ground socket (three-pin socket).
Please unplug the power plug from the socket when not using the washing machine.
Washing machine ground wire installed in the power plug, do
not tamper with the plug, the power socket must have a reliable
ground wire.
Users without grounding socket, please ask a professional to install
grounding socket.
The power socket must have 5A fuseinstalled.
Connect the power and ground
Warning
Never connect the ground wire to the ground wire
of gas tank, water pipe, telephone line or
lightning rod。
If the power cord or its plug have a wound,
it is absolutely forbidden to use to prevent
leakage and fire.
If the power cord is damaged, in order to
avoid danger, it must be replaced by the
manufacturer or its service department or a
similar dedicated staff, otherwise, responsibility
on user's side.
The machine should not be used
by the following groups (including
children): People have defects in
physical, sensual or mental, and
people lack of experience and
knowledge. Unless they receive
custody and guidance from people
responsible for their safety about
this machine's usage.
Children should be supervised to
ensure that they do not play with
the machine.
Control panel instructions
Notice items

Installation Installation

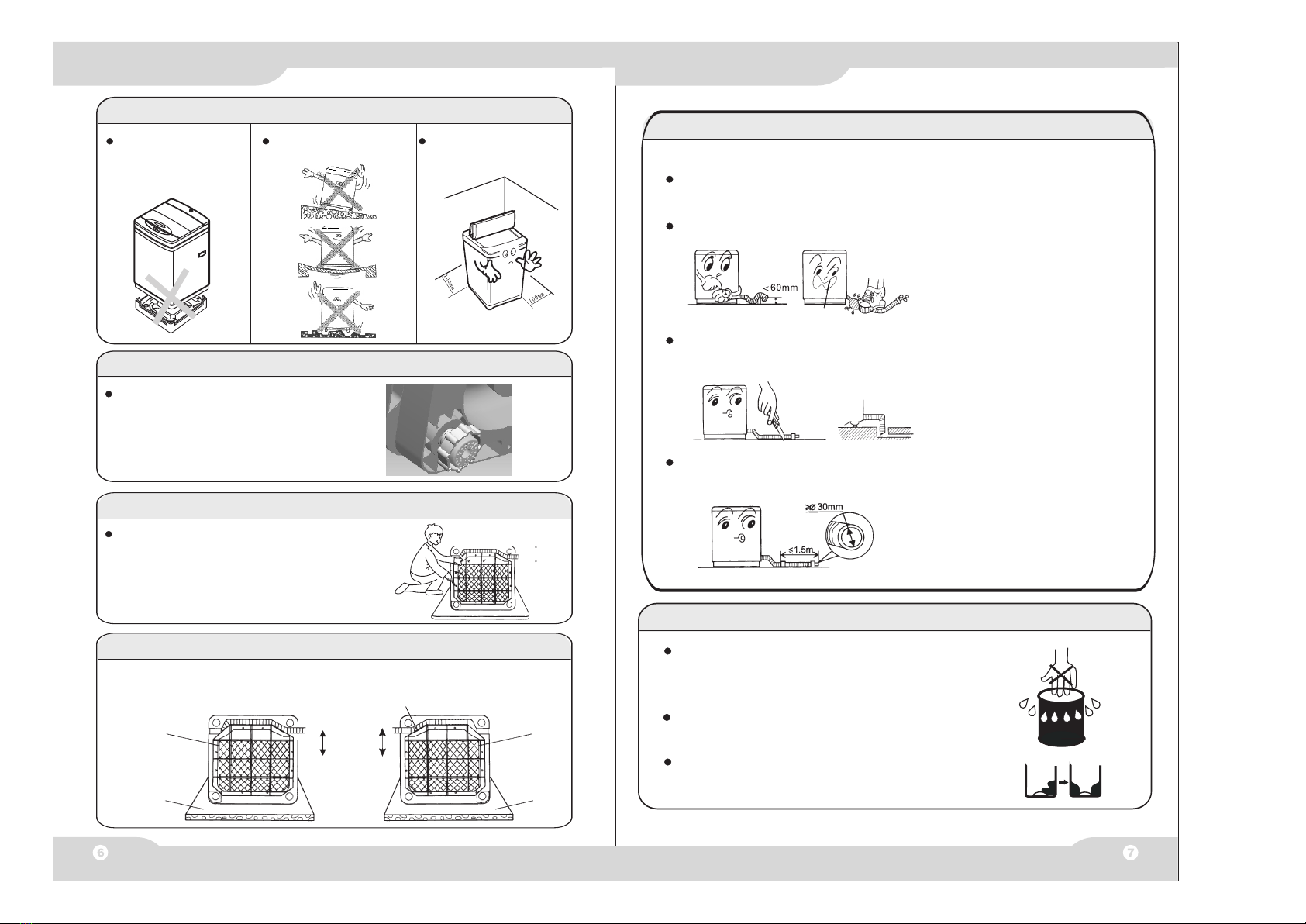

Install the machine on flat ground
Don't remain the bottom
package foam, it will bring
noisy and damaged the
machine
Must install the machine on
stable and flat ground
Keep away more than 100mm
from wall in order for better
cooling and lower noisy
Make sure the base ventilation
and not jammed by carpet
The right front foot is adjustable, when the machine is
imbalance, adjust that foot to level.
Level adjustment
Bottom plate installation
After unpacked the machine, tilt it down on a soft carpet.
Insert the plate from back to front till end, fasten two
screws in its tear center, then hold up the machine.
Change the drain hose directin
Front
back back
Front
Front
back
Take out the water drain hose from
the right side hole of the base
Thrust the water drain hose from the
left side, place it on a suitable location
bottom plate
carpet
bottom plate
carpet
The usage of drain hose
Note
The hose shall drainage smoothly
Drainage pipe height can not be higher than the ground 60mm, or it will lead to poor drainage,
longer time than normal drainage even pause during procedure.
Do not stampede or squeeze the pipe
If the pipe too long, cut it off in suitable place and it would be better drain if in bevel cut
Please buy another hose if you need extend the drain hose, the inner diameter shall not less
than 30MM and the length shall not over than 1.5m
Don't put any clothes or hand during spin basket running; don't let child
touch the machine when it work.
The big and light clothes will floating on the water, press it into water
before wash
The clothes will come to one side and lead imbalance during spinning,
thus please re-load the clothes.

Installation
Install the inlet hose
1.Press and hold the slider to press down, unplug
the water hose connector
2.Use cross driver unloosen four screws, turn part
B to arrow direction till 5mm to part A
hose connector
sliderr
lock rod
inlet hose
cross driver
3.Put the connect on the tap, lock by screw, turn
part B again till to part A
4.Hold the slider C, put the pipe and connector
together, both parts will joint automatically
when you loosen the slider
5.Tighten the other end of the inlet pipe clockwise
to the machine
Note:
Test if leakage after installation. It it is please
repeat the steps and install the hose again
The connector for normal used tap
If the tap is square or oversize, take out the
interval ring, repeat above steps for installation.
Checking the clothes
Check if the clothes have special requirements
Check if the clothes can wash by machines
Take out all coins, keys and other hard object
Put the thin and vulnerable clothing into
laundry net bag
Check Separate wash for easy fade clothes
Check Long tie knotted, buttons fasten well, zip
pull well
Check The surface of the pilling or easy to pull the
clothes upside down
Check Clothes shall not over rated capacity, shake it
before put into tub
Do not use machine for clothing contaminated with
chemicals
Check if power connected Check if tap opened
Check if the drain pipe put down and connect the floor drain
Water level Water volume Detergent(suggest)
7-8
5-6
3-4
1-2
25L/28L
22L/24L
19L/21L
16L/18L
32G
28G
24G
22G
Preparation for washing
Instruction of detergent
Melt directly in the washing machine
Melt the detergent quickly
The wash power will remain on clothes
heavy than detergent, please use it
moderately
Suggest not use bubble detergent
Please read the detergent instruction before
use as different kind detergent will have
different suggest amount
1.inject water to low level
2.Put detergent in and running for 30
seconds till melt
3.Put clothes in tub and select suitable
water level
1.Prepare 30℃æ container
2.Put detergent while stirring till melt
Laundry preparation
Laundry preparation
The suggestion amount of detergent and water

Laundry preparation Washing operation
The wash and spin capacity of washing machine refer to the maximum
weight of washing once washable, dry state (washing must according
to the standard GB / T 4288 appendix specified ) .
If the clothes 's thickness, size,type are different, it will affect the actual
wash capacity. The reasonable washing for once time is put the suitable
cloth and flip normally.
Reference for the weight of clothes
Work overall (cotton)
app.1120g Jeans (cotton)
app.800g
Coat (blended)
app.800g
Jacket (cotton)
app.800g
Single bed sheet (cotton)
app.600g
Socks(blended)
app.50g
Underpants(cotton)
app.70g
Short-sleeve shirt (cotton)
app.180g
Long-sleeve shirt (cotton)
app.300g
Pajamas (cotton)
app.200g
Blanket(cotton)
app.900g
1.Press the power switch on it
Before use please check: put clothes and detergent into the spin basket
2.Press the program/reservation switch on it
3.Press the water level switch on it
4.Press the start/suspend switch on it
5.Close the lid
User can freely set the water level
according to the clothes weight
Automatic program washing (suit for difference clothes' washing)
User can select such fully automatic
procedures as Standard, Spin, Quick
wash, Heavy, Gentle, Soak, Air dry,
Clean tub according to the clothes
01 Standard
02 Spin 03 Quick wash 04 Heavy 05 Gentle
06 Soak 07 Air dry 08 Clean tub
The buzzer has been sounded after washing completely,
the machine will be automatically switched.
After a procedure is selected, press this key
to run it. The procedure and the rest of the
time will flash alternately. Press press this key
again to suspend the running, you can adjust
the laundry program.

Washing operation Heavy clothes washing
Reservation washing (suit for regular washing) Large laundry washing method
1. Folding of blankets 2.Put into the laundry net bag
3. Put the detergent into spin basket 4.Press the start/suspend switch on it
Fold the long edge of the blanket into 4 fold, at
this time remove the debris and thread which
attached to the blanket
Leave the edge of the blanket for about 10 cm
Roll up the blanket
Place the edge of the blanket on
the bottom of the washing
machine and pull the zip
over the laundry net
Make the detergent which suit for high water
level fully dissolved in the basin ( around 5 L)
with warm water ( around 30℃), then pour
into spin basket
Make the laundry net zapper up and put it
into spin basket
The using method of bleach
After pouring water to the specified water level, dissolve the bleach and pour it into the spin basket
Please avoid the bleach if there are colorful or easy to fade clothes
Bleach can't touch the clothes directly
The using method and usage amount should be according to the manual
Melt the powder bleach before using
The using method of softener
Before machine running, please dissolve the softener with water pour it into the spin basket
1.Press the power switch on it
2.Press the program/reservation switch on it
User can select such fully automatic
procedures as Standard, Spin, Quick
wash, Heavy, Gentle, Soak, Air dry,
Clean tub according to the clothes
01 Standard
02 Spin 03 Quick wash 04 Heavy 05 Gentle
06 Soak 07 Air dry 08 Clean tub
4.Press the water level switch on it
User can freely set the water level
according to the clothes weight
3.Press the program/reservation switch on it
5.Close the lid
6.Press the start/suspend switch on it
Press this key for two seconds and will enter
reservation setting mold. Please press this key
again to choose the reservation time when
display screen shows “--”.The initial value is
2 hours. Each time you press the button, the
time increases by 1 hour
Press this key to run it and the reservation
time will flash. The machine will running
until the reservation time get to reservation
setting time.
Reservation cancel, adjust Shut down the
power start/stop switch (or pluck the plug
power and power failure), the reservation
will be canceled at once. Please reconnect
the power to reserve if you need adjust.
Please close the lid before reservation
running or will appear accident information
E3 after running.
Reservation cancel, adjust
Shut down the power start/stop switch (or pluck the plug power and power failure), the reservation will be canceled
at once. Please reconnect the power to reserve if you need adjust.

Abnormal phenomena
Trouble and Checking points
The washing machine
does work
No water supply
No Drainage
No Spin
The power
cannot turn off
Overflow
Have you turn on the tap ?
Check the power cord socket to
see if it fixs good ?
Check the power ?
Check the fuse under the good
condition or not ?
Water in the right level ?
Have you turn on the tap ?
Water supply has been cut off ?
The water inlet hose connected
or blocked ?
The tap freeze ?
Drain hose already put down ?
Drain hose freeze ?
Drain hose has been blocked ?
Check the clothes put in the wash
tub in a balance condition?
Check the washing machine stable
or not ?
Check the washing machine top lid
close or not ?
If the error symbol still has, please
call the agent or service center
Spin it again ?
If the error symbol still has, please
call the agent or service center
The

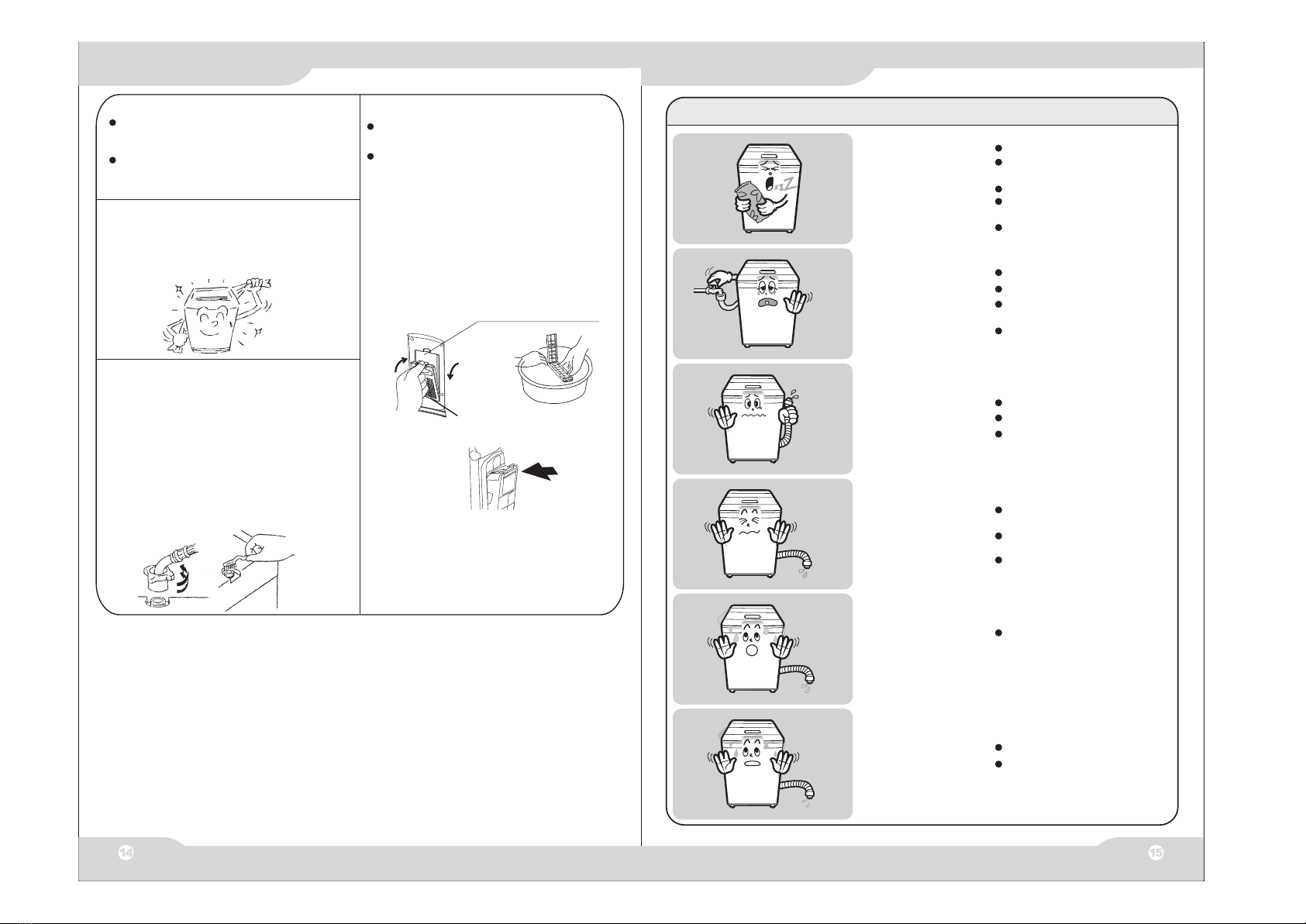

After the program terminates
The washing machine will automatically beep to
prompt you to take out the clothes or continue
to use it.
Drain If the washing machine will not be used for
a long period, turn off the tap and cut off power
supply so as to avoid accidents.
If there is any possibility when the water freeze:
1.In winter, if has water left , it will freeze, when it starts working, may has the trouble. After use , please take
out the drain hose and drain the water out
2.If any freeze, please do not operate the washing machine, you have to pour the 40℃ hot water into the
wash tub until it overwhelms the pulsator, wait a while and use your hand to rotate the pulsator then can
use the washing machine.
The good maintence can ensure the washing machine performace and prolong the lifetime . Before maintence ,
you have to take out the plug from the socket.
1.After wash, turn off the tap (remove the water inlet if necessary)
2.Please do not left water into the wash tub , each time after use, please drain water
3.Hang on the power line and drain hose
4.Each time you stop using the washing machine, use a soft cloth to wipe off the water drops and stains on
the surface. Open the top cover for a while (around 1 hour) then close it.
Clean the lint filter
During the wash , it must use the lint collector
Everytime after use, it has to clean in time.
Please follow the steps below:
Washing machine cabinet maintenance
Each time you stop using the washing machine, use
a soft cloth to wipe off the water drops and stains
on the surface. Use non-corrosive detergent to clean
the cabinet and control panel in order not to damage
the plastic parts.
Clean the water inlet hole
After the washing machine has been used for a quite
long period, the water inlet filter may be blocked,
please take the following steps to clean :
1.Turn off the tap and switch on the power
2.Start the washing machine for 5seconds, (let the
water in the water inlet hose flow into the spin
basket)then cut off the power
3.Remove the water inlet hose, take out the
removable water inlet filer of the water inlet valve
and clean it. Then put the filter back into the water
inlet valve, and reinstall the hose.
lint collector clean:
1.Pull out the lint collector
2.Separate the lint collector and wash it clean
3.Put the lint collector back to the original position
Press here and pull out to
remove the lint filter.
Figure three
Figure two
Figure one
Up side
Bottom side
Remove
put on
Dispose after washing
(If no water surply within 20mins,
buzzer will alarm )
(If water cannot drainage within
5mins, buzzer will alarm )

No sensor signal or sensor failure
No water, over time, inlet valve jammed, inlet valve failure
Drain pipe jammed or not put down
Lid open when spinning
Imbalance is detected during spinning
The lid is opened when select preset
The lid is opened when at CHILD LOCK state
When water level overflowed, it will drain extra water automatic.
Digital Failure Display Cause
E0
E1
E2
E3
E4
E5
E6
E8
Water level sensor alarm
Water inlet alarm
Water drainage alarm
Open lid alarm
Unbalance alarm
Preset start alarm
Child lock alarm
Overflow alarm
Failure alarm
Note: 1.Open/Close lid or press Start/Pause may clear the alarm, if user cannot solve the problem
it will happen in next procedure.
2.If the voltage is too low washing machine cannot running normally, please wait after voltage
getting normal.
3.The water inlet pressure range is 0.3Mpa-0.85Mpa.
Fault detection guide Fault information table
Troubleshooting removal
The situations below are not trouble
No electricity
Press the Power key
Check the power supply
socket
Check if the electricity is
ON /OFF
With heavy vibration and noise when spinning
Inlet hose connection water leakageCannot run normally
Check if the clothes put in a
unbalance situation
Check if the washing machine
put in a stable position
Check the anti-noise board
Remove the objects around
the washing machine
Press the start / pause
button
Check the washing tub
water
Check the tap turn on or
not
The inlet hose connection
position with the tap loose
Check the inlet hose rubber
ring assemble right or not
When with a high water
pressure , it will cause water l
eakage too, can turn down
the tap
Check the tap water leakage
Situations Press the Power key
During the spin cycle, it
changed into rines suddenly
At the begging of the spin,
spin tub will rotate as on
and off
Comes water during the
wash program
Before drain water, the
pulsator will light, continue,
repeat rotate
The control board part and
light heating
When the clothes under a unbalance condition, in order to adjust the
unbalance , it will change into rinse program, then back to spin
If the situation above repeated 3times and did not back to normal, it
would be the unbalance trouble, need people to open the top cover
and put the clothes under balance situation
At the begging of the spin, spin tub will start slowly then speed up,
which is the interval process in order to avoid the residue of the soap
The PCB will check the water level during the wash and rinse program,
when the water level is too low it will comes water directly
In order to avoid the clothes into one direction during the spin program
(during spin if the clothes move into one direction, it will cause the noise )
If the power cord always in the socket, the control board will has the
phenomenon as light heating, which is normal. Once take off the power
cord, it will disappear directly.
Non-user maintenance issues
Users should not replace the power cord, for replacement, please go to the professional repair
department.
Users should not arbitrarily change the computer board, for replacement, please go to our company's
professional repair department.
Users should not change the electronic water level sensor arbitrarily, for replacement, please go to
our company's professional repair department.
Packing list
Washing machine
1 PC
Water inlet hose
1 PC
User manual
1 PC
bottom board 1 PC
(put in the top foam)
Self-tapping screw
2 PCS
