Grizzly G4013 User manual
Specifications
MODEL G4013
20 GALLON PARTS
WASHER
INSTRUCTIONS
Damage to your eyes, lungs, and skin could
result from using this item without proper
protective gear, such as face shield, a respi-
rator, and rubber gloves.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
Power Supply Circuit Requirements
If you are unsure about
the wiring codes in your area or you plan to
connect your machine to a shared circuit, con-
sult a qualified electrician.
Inventory (Figure 1) Qty
Figure 1.
Safety
SAFE STORAGE.
PLUG MODIFICATION HAZARD.
PREVENTING ELECTRICAL SHOCK.
PREVENTING FIRE.
SAFE USAGE.
PERSONAL PROTECTION.
LOCATION.
MAINTENANCE.
Assembly
1. Figure 1
2.
3.
4.

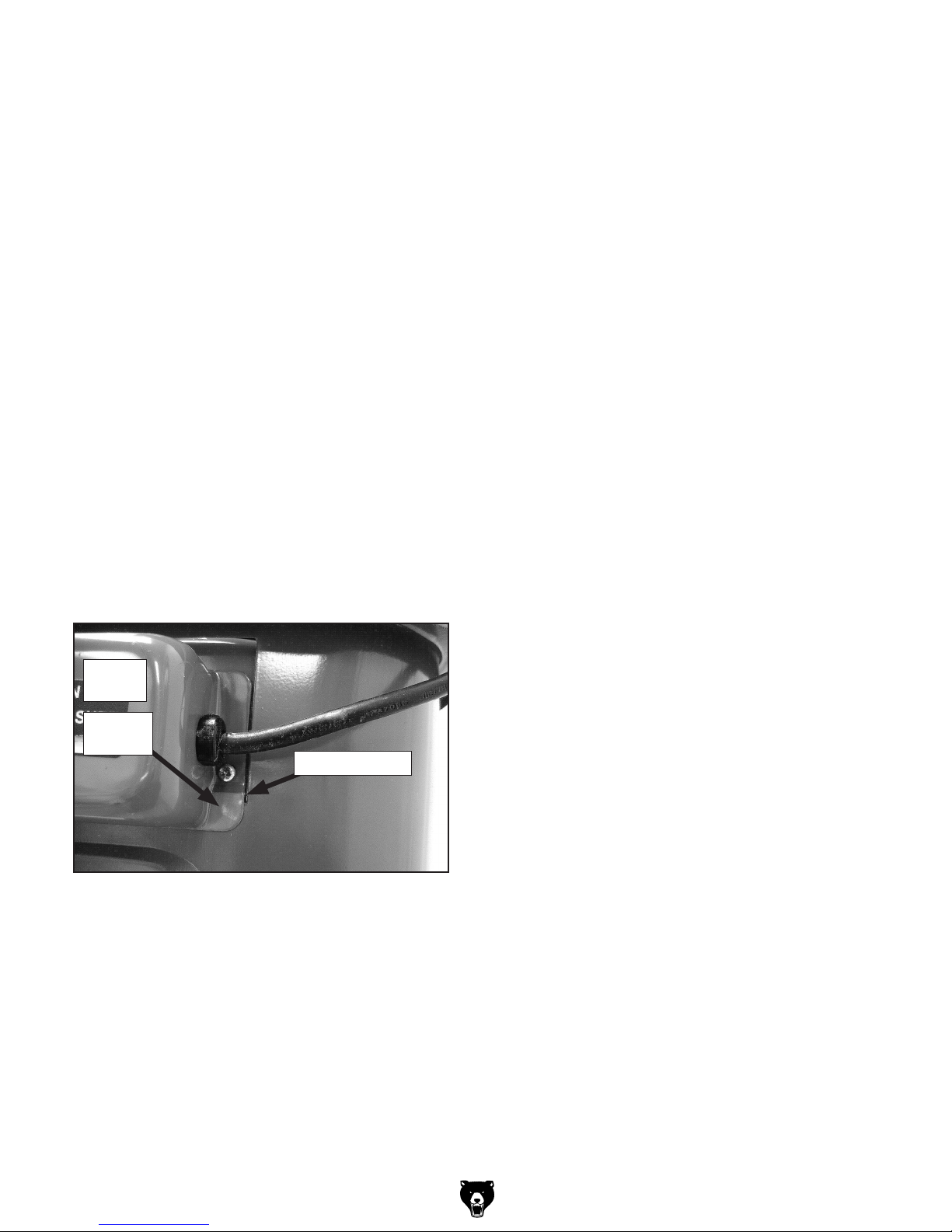

Figure 1
5.
6.
Figure 2
Figure 2
7.
8.
9.

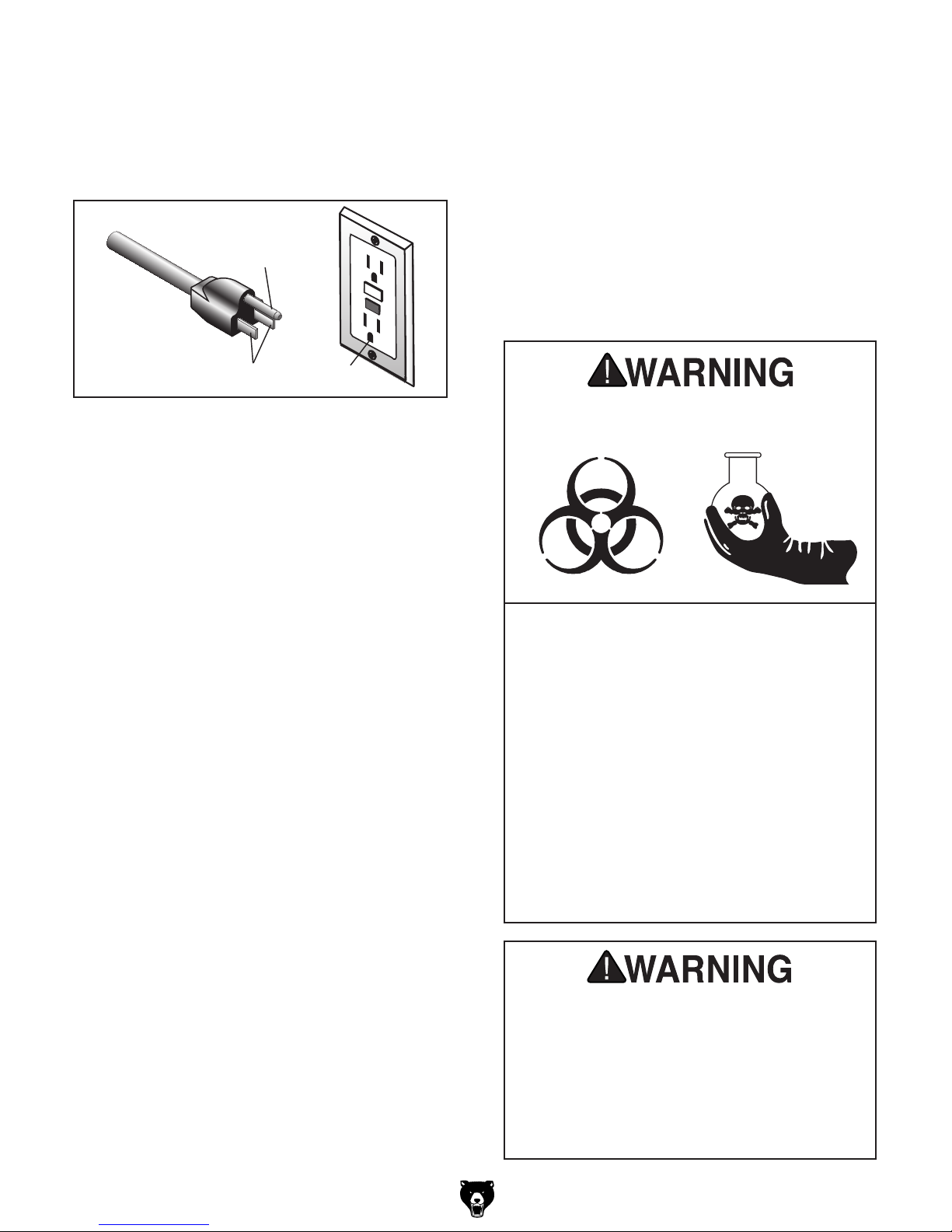

Figure 3.
Grounding Prong is
Longest of the Three
Prongs
Current
Carrying Prongs Grounded
GFCI Outlet
Power Connection Device
Figure 3
Selecting a Solvent
Extension Cords
USE this parts washer with caution and
respect. Always consider safety first, as it
applies to your individual working condi-
tions. No list of safety guidelines can be
complete—every shop environment is dif-
ferent. Failure to follow safety guidelines
could result in serious personal injury or
death.
This parts washer is designed to store
cleaning solutions. During storage, some
liquids can grow dangerous microbes, or
due to the collection of toxic metal and
contaminants from the items being washed,
the fluid can become a very poisonous
solution to humans and animals.
USE the correct personal protection
equipment when handling sharp workpieces
to prevent cuts, infections, and poisoning.
FOLLOW OSHA, EPA, and the fluid
manufacturer's requirements to properly
dispose of cleaning liquids when it becomes
time to change the liquid.
BIOLOGICAL and POISON
HAZARD!
Operation
Wiring Safety
SHOCK HAZARD.
QUALIFIED ELECTRICIAN.
WIRE CONNECTIONS.
WIRE/COMPONENT DAMAGE.
MODIFICATIONS.
MOTOR WIRING.
CAPACITORS/INVERTERS.
CIRCUIT REQUIREMENTS.
EXPERIENCING DIFFICULTIES.
Only connect this parts washer to a
properly grounded GFCI (Ground Fault
Circuit Interrupt) receptacle. Test the
GFCI receptacle operation according to
switch at the manufacturers
recommended intervals.
110V
Pump Motor
SWITCH
(viewed from behind)
Ground
Neutral
Hot
Ground 110 VAC
5-15 Plug
GFCI
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

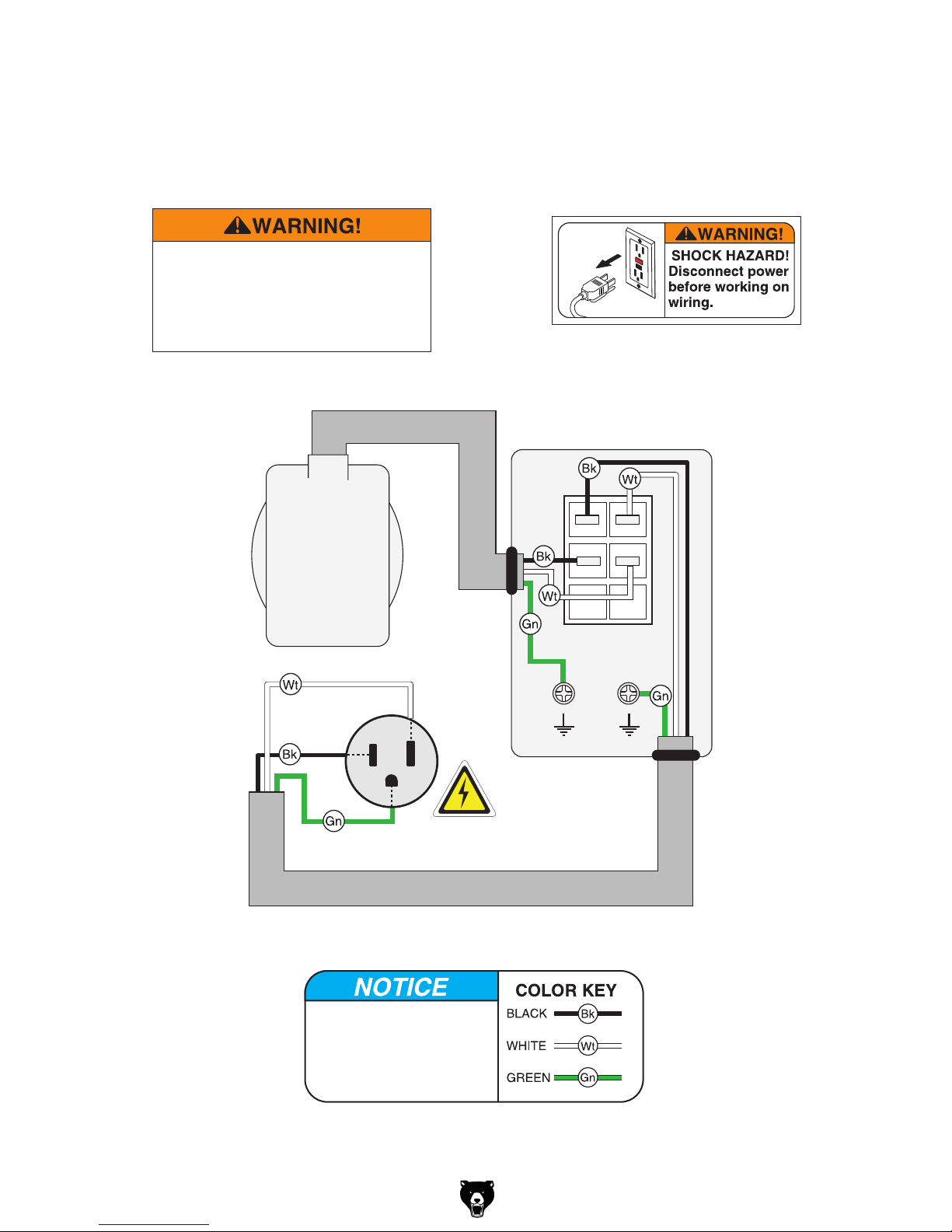

Wiring Diagram
2
3
40 4
3
4
1
7
24
6
1012
9
8
14
13
11
49
49
20V2
23
15
18
19
21
25
15
16
17
17
48 32 31
30
17
16
28
29
26A
15
18
Parts
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P4013001 COVER 19 P4013019 POWER CORD W/PLUG
2 P4013002 WORK BASKET 20V2 P4013020V2 PUMP HOUSING V2.04.04
3 P4013003 COTTER PIN 1.5 X 16 20A P4013020A COMPLETE PUMP BOX W/ELECTRICAL
4 P4013004 CLEVIS PIN 5 X 30 21 P4013021 SCREEN
6 P4013006 WORK SHELF 23 P4013023 SWITCH BOX W/SWITCH
7 P4013007 TUB 24 P4013024 FLEX HOSE W/NOZZLE
8 PLW03M LOCK WASHER 6MM 25 P4013025 MOUNTING PLATE
9 PN01M HEX NUT M6-1 26A P4013026A PUMP ASSEMBLY V2.07.04
10 P4013010 RUBBER WASHER 28 P4013028 FILTER COVER
11 P4013011 DRAIN PLUG 29 P4013029 PUMP BOX COVER
12 P4013012 SHELF 30 P4013030 ELBOW
13 P4013013 LEG 31 PORP015 O-RING 14.8 X 2.4 P15
14 PS14M PHLP HD SCR M6-1 X 12 32 P4013032 SPIGOT
15 PN04M HEX NUT M4-.7 40 P4013040 FIRE FUSE LINK LEVER
16 PW05M FLAT WASHER 4MM 48 PORP021 O-RING 20.8 X 2.4 P21
17 PS38M PHLP HD SCR M4-.7 X 10 49 PW02M FLAT WASHER 5MM
18 P4013018 STRAIN RELIEF
Label Placement
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P4013101 NO SMOKING LABEL 105 P4013105 GFCI WARNING LABEL
102 P4013102 SOLVENT TYPE WARNING LABEL 106 PLABEL-12B READ MANUAL LABEL
103 P4013103 FACE SHIELD WARNING LABEL 107 P4013107 DATA LABEL
104 PLABEL-14B ELECTRICITY WARNING LABEL 108 P4013108 RUBBER GLOVES WARNING LABEL
