MILLEN MDW 451 User manual
2
Table Of Contents | Содержание
English ............................................................................................................................... 3
Русский ...........................................................................................................................46
3
Table Of Contents
Safety information........................................................................................................... 4
Product overview ............................................................................................................. 5
Using your dishwasher................................................................................................... 6
Maintenance and cleaning...........................................................................................10
Installation instruction .................................................................................................14
Troubleshooting tips .....................................................................................................21
Loading the baskets......................................................................................................24
Control panel ..................................................................................................................27
Cleaning agents .............................................................................................................30
Programming the dishwasher ....................................................................................34
Error codes ......................................................................................................................41
Technical information....................................................................................................42
4
Safety information
Safety information
Installation and repair can only be carried out by a qualied technician. This appli-
ance is intended to be used in households and not for commercial purposes.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall
not be done by children without supervision. (For EN60335-1). This appliance is
not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety. (For IEC60335-1). Do not tamper with controls.
Please unplug before cleaning and maintening the appliance. If the supply
cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualied person in order to avoid a hazard.
Do not modify the plug provided with the appliance if it does not t the outlet.
Have a proper outlet installed by a qualied electrician.
Do not sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out. Do not place any heavy objects on or stand on the door when it is
open. The appliance could tip forward.
Earthing Instructions
This appliance must be earthed. In the event of a malfunction or breakdown, ear-
thing will reduce the risk of an electric shock by providing a path of least resistance
of electric current. This appliance is equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet that is installed and earthed
in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of
an electric shock. Check with a qualied electrician or service representative if you
are in doubt whether the appliance is properly grounded.
Disposal
Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
5

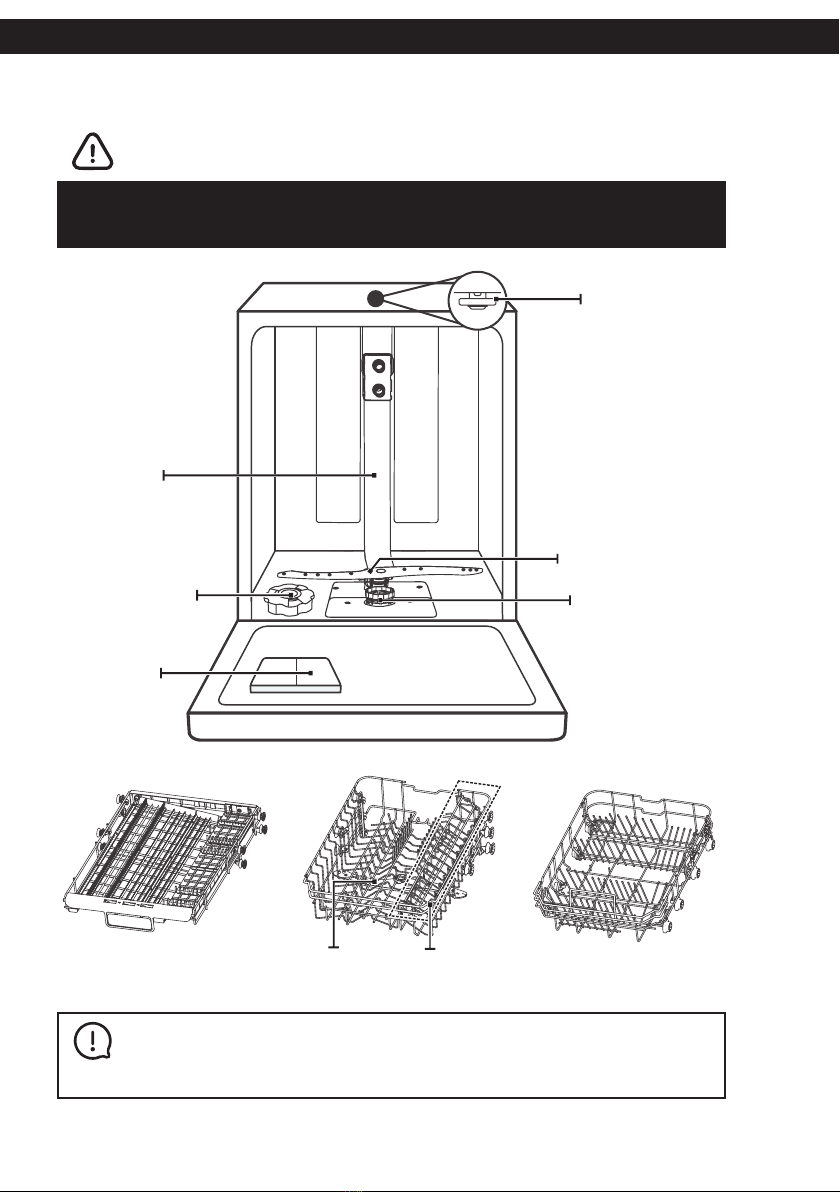

Product overview
Product overview
Attention
To get the best performance from your dishwasher, read all operating instructions
before using it for the rst time.
Inner pipe
Top spray arm
Lower spray arm
Filter assembly
Salt container
Dispenser
Cutlery rack Upper spray arm Lower basket
Upper basket
Cup rack
Note
Pictures are only for reference, different models may be different.
6
Using your dishwasher
Using your dishwasher

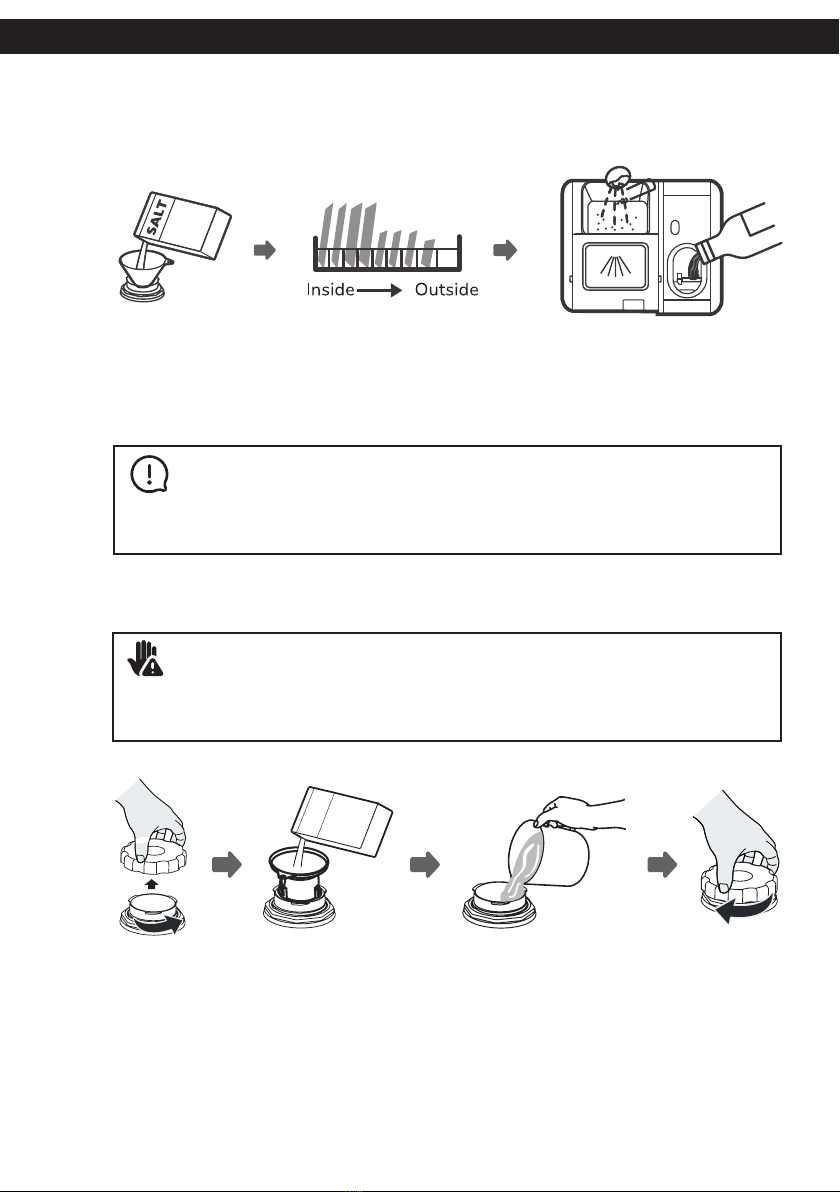

Before using your dishwasher:
1. Set the water softener.
2. Loading the salt Into the softener.
3. Loading the basket.
4. Fill the detergent dispenser.
Please follow the steps below for adding dishwasher salt:
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg
of dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small
amount of water to come out of the salt container.
4. After lling the container, screw back the cap tightly.
Loading The Salt Into The Softener
Note
Please check the section «Water Softener» on page 30, if you need to set the water
softener.
Warning
Only use salt specically designed for dishwashers use! Only ll with salt right before
running a cycle.
7
Using your dishwasher
Note
The salt container must only be relled when the salt warning light ( ) in the control
panel comes on. Depending on how well the salt dissolves, the salt warning light may
still be on even though the salt container is lled. If there is no salt warning light in the
control panel (for some models), you can estimate when to ll the salt into the softener
by the cycles that the dishwasher has run.
If salt has spilled, run a soak or quick program to remove it.
5. The salt warning light will turn off after the salt container has been lled with
salt.
6. Immediately after lling the salt into the salt container, a washing program
should be started (We suggest to use a short program). Otherwise the lter system,
pump or other important parts of the machine may be damaged by salty water. This
is out of warranty.

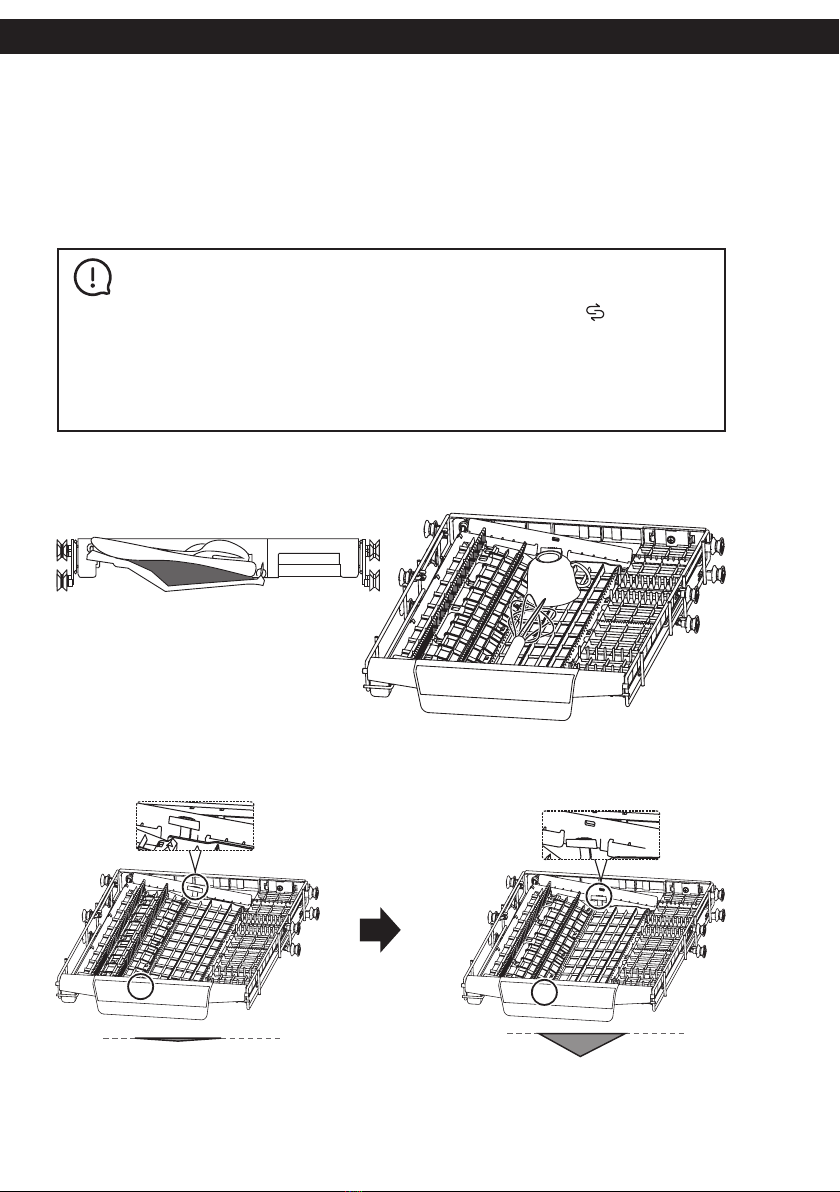

Basket Loading Tips
Easy removal of cutlery
Using the principle of crank slider mechanism, the cutlery are suspended.
Adjust the height of the rack
Loosen the four buttons on the tray and press down gently.
8
Adjusting the upper basket
Type 1
The height of the upper basket can be easily adjusted to accommodate taller
dishes in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
Pull out the upper basket
Re-attach the upper basket to
upper or lower rollers
To raise the upper basket, just lift
the upper basket at the center of
each side until the basket locks
into place in the upper position.
It is not necessary to lift the
adjuster handle
Remove the upper basket
Push in the upper basket
To lower the upper basket, lift the
adjust handles on each side to
release the basket and lower it to
the lower position
lower position
upper position
Using your dishwasher
Type 2
9

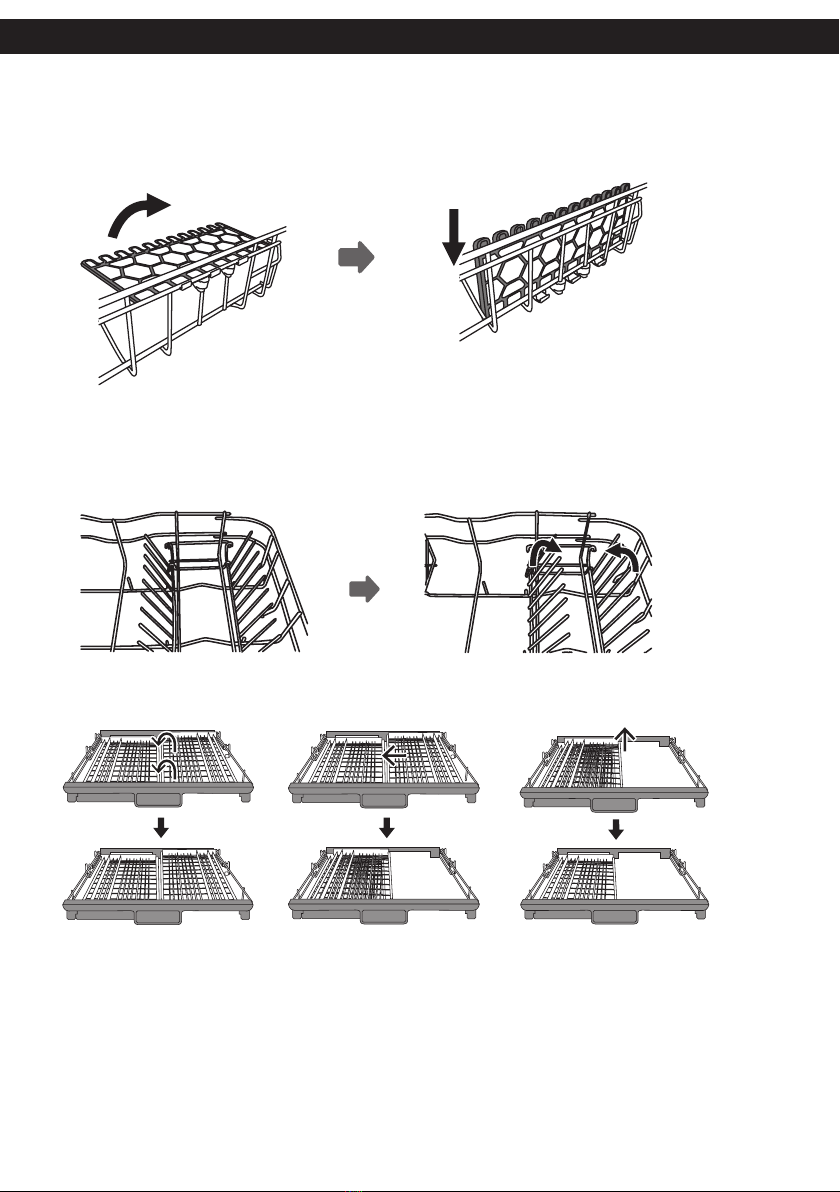

Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter. They can
be lowered to make more room for large items.
Cutlery Rack Tips for MDW 601/602/603
Lift the right basket up,
both left and right
baskets are at
Move the right basket
from right to left, two
baskett are overlapping
Remove the right basket
from the tray, only the left
basket is left
raise upwards fold backwards
Using your dishwasher
10
Maintenance and cleaning
Maintenance and cleaning
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door. These surfaces are outside the wash cabinet and are
not accessed by water from the spray arms. Any deposits should be wiped off before
the door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth
only.
Filtering system
The ltering system in the base of the wash cabinet retains coarse debris from
the washing cycle, including foreign objects such as tooth picks or shards. The
collected coarse debris may cause the lters to clog. Check the condition of the lters
regularly, carefully remove foreign objects and clean the parts of the ltering system
if necessary with water. Follow the steps below to clean the lter.
Warning
To avoid penetration of water into the door lock and electrical components, do not use
a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because they may
scratch the nish. Some paper towels may also scratch or leave marks on the surface.
Note
Pictures are only for reference, different models of the ltering system and spray arms
may be different.
Hold the coarse lter and
rotate it anticlockwise to
unlock the lter. Lift the lter
upwards and out of the
dishwasher
11
Maintenance and cleaning
Warning
Do not over tighten the lters. Put the lters back in sequence securely, otherwise coar-
se debris could get into the system and cause a blockage.
Never use the dishwasher without lters in place. Improper replacement of the lter
may reduce the performance level of the appliance and damage dishes and utensils.
Coarse lter
Main lter
Fine lter
The ne lter can be pulled off the
bottom of the lter assembly. The
coarse lter can be detached from the
main lter by gently squeezing the
tabs at the top and pulling it away
Larger food remnants can be
cleaned by rinsing the lter under
running water. For a more thorough
clean, use a soft cleaning brush
Reassemble the lters in the reverse
order of the disassembly, replace the
lter insert, and rotate clockwise to
the close arrow
12
Maintenance and cleaning
Spray arms
It is necessary to clean the spray arms regularly for hard water chemicals will clog
the spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
To remove the upper spray
arm, hold the nut in the center
still and rotate the spray arm
counterclockwise
to remove it
To remove the lower spray
arm, pull out the spray arm
upward
Wash the arms in soapy and
warm water and use a soft
brush to clean the jets
13
Maintenance and cleaning
Caring For The Dishwasher
Frost precaution
Please take frost protection measures on the dishwasher in winter. Every time
after washing cycles, please operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water
valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the
water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the lter at the bottom of the tub and use a sponge to soak up water
in the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door
slightly open for a while so that moisture and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the
socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water. To remove
spots or stains from the surface of the interior, use a cloth dampened with water an
a little vinegar, or a cleaning product made specically for dishwashers.
When not in use for a long time
It is recommend that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door seals to last longer and prevent
odors from forming within the appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that
remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this
from occurring.
14
Installation instruction
Warning
Warning
Electrical Shock Hazard:
Disconnect electrical power before installing dishwasher. Failure to do so could result in
death or electrical shock. During installation, the power supply must not be excessively
or dangerously bent or attened.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance. Do not, under any
circumstances, cut or remove the earthing connection from the power cord.
Installation instruction
About Power Connection
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dish-
washer to the appropriate power supply. Use the required fuse 10A/13A/16A,
time delay fuse or circuit breaker recommended and provide separate circuit ser-
ving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on
the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug, replace the socket, rather than using a adaptors or the
like as they could cause overheating and burns.
Ensure that proper earthing exists before use.
Water Supply And Drain
The appliance needs to be connected to the main water valve using new hose
sets. Old sets should not be reused. Connect the cold water supply hose to
a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of
time, let the water run to make sure that the water is clear. This precaution
is needed to avoid the risk of the water inlet to be blocked and damage the
appliance.
Attention
To get the best performance from your dishwasher, read all operating instructions
before using it for the rst time.
15
Installation instruction
Warning
A hose that attaches to a tap can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and
the hole plugged.
About the safety supply hose
The safety supply hose consists of the double walls. The system guarantees
its intervention by blocking the ow of water in case of the supply hose breaking
and when the air space between the supply hose itself and the outer corrugated
hose is full of water.

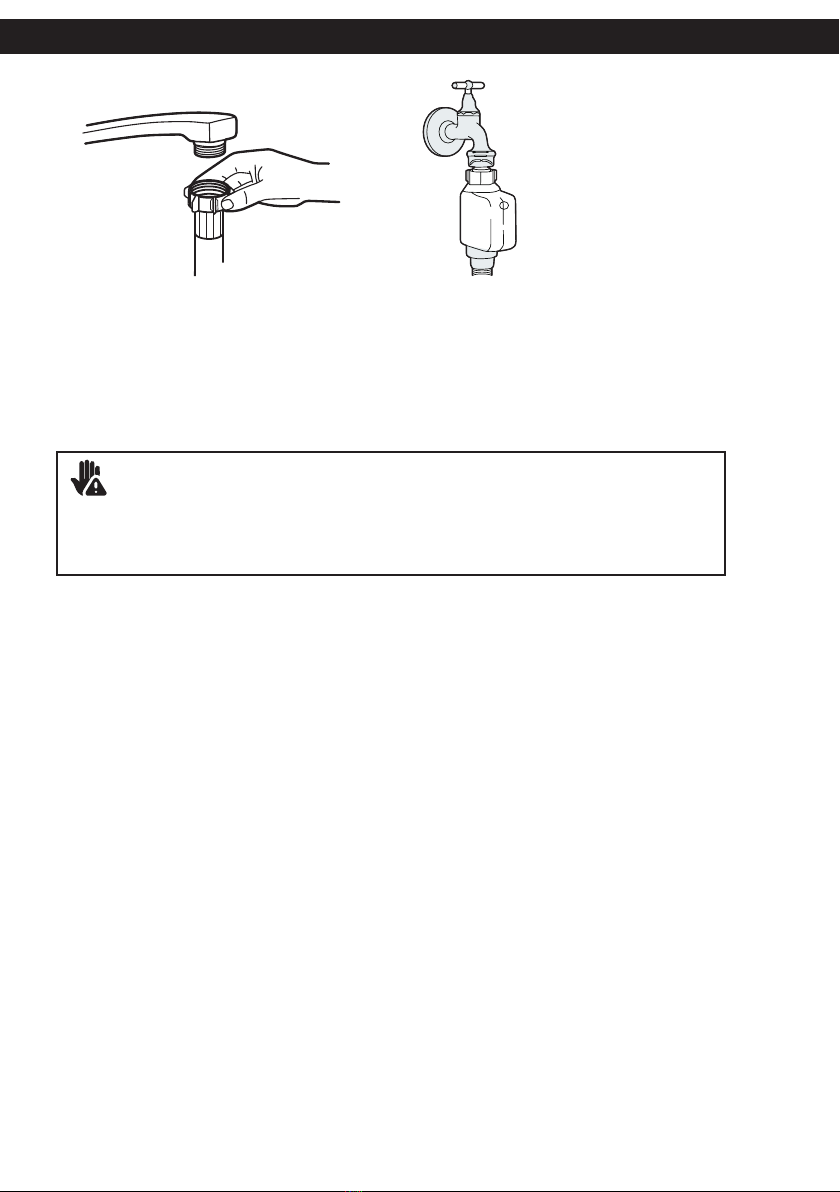

ordinary supply hose safety supply hose
How to connect the safety supply hose
1. Pull the safety supply hoses out from storage compartment located at rear
of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread
3/4 inch.
3. Turn the water fully on before starting the dishwasher.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
Connection Of Drain Hoses
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it
run into the sink, making sure to avoid bending or crimping it. The height of drain
pipe must be less than 1000 mm. The free end of the hose must not be immersed
in water to avoid the back ow of it.
16
Installation instruction
Please securely x the drain hose in either position Aor position B.
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than 1000 mm, excess
water may remain in the drain hose. It will be necessary to drain excess water
from the hose into a bowl or suitable container that is held outside and lower
than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly tted to avoid
water leaks. Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must not be longer than 4 meters, otherwise the cleaning effect of the dish-
washer could be reduced.
Syphon connection
The waste connection must be at a height less than 1000 mm (maximum) from
the bottom of the dishwash.
Back of dishwasher
Mains Cable
Water Inlet
Drain Pipe
⌀ 40 мм
Counter
МAX.
1000 mm
Drain hose
17
Installation instruction
Positioning The Appliance
Position the appliance in the desired location. The back should rest against
the wall behind it, and the sides, along the adjacent cabinets or walls. The dish-
washer is equipped with water supply and drain hoses that can be positioned
either to the right or the left sides to facilitate proper installation.
Built-In Installation (for the integrated model)
Step 1. Selecting the best location for the dishwasher
The installation position of the dishwasher should be near the existing inlet and
drain hose and power socket. Illustrations of cabinet dimensions and installation
position of the dishwasher.

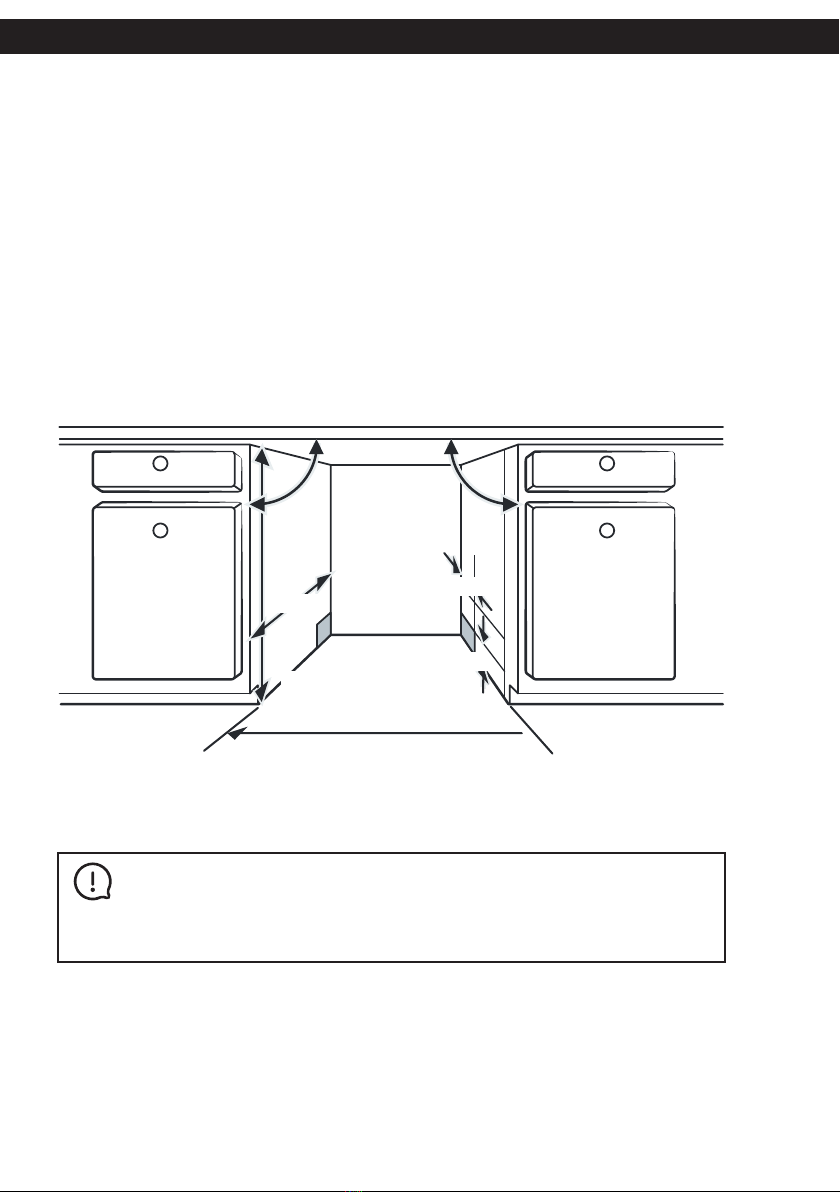

1. Less than 5 mm between the top of dishwasher and cabinet and the outer
door aligned to cabinet.
2. If dishwasher is installed at the corner of the cabinet, there should be some
space when the door is opened.
МAX.
1000 mm
90 ° 90 °
820 mm
580 mm
Space between cabinet
bottom and oor
600 mm (MDW 601, 602, 603)
450 mm (MDW 451, 452, 453)
Electrical, drain
and water supply
line connection
100 mm
80 mm
Note
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
18
Dishwasher
Door of
dishwasher
Minimum space
of 50 mm
Cabinet
550 mm
600 mm
Installation instruction
Step 2. Aesthetic panel‘s dimensions and installation
Semi-integrated model
Seperate velcro stripe A and velcro stripe B and attach velcro stripe A on the
inner side of the aesthetic panel. Attach the felted velcro stripe B on the outer
door of dishwasher (see gure A). After positioning of the panel, x the panel
onto the outer door by screws and bolts (See gure B).
Note
Follow the specic installation instruction for attaching the aesthetical door panel.
Velcro stripe
Velcro stripe
1. Take away the four short screws
2. Pin up the four long screws
19
Installation instruction
Fully-integrated model
Install the hook on the aesthetic panel and put the hook into the slot of the
outer door of dishwasher (see gure A). After positioning of the panel, x the
panel onto the outer door by screws and bolts (See gure B).
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If aesthetic
panel are installed, you will have to adjust the
door spring tension. Rotate the adjusting screw
to drive the adjustor to strain or relax the steel
cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened po-
sition, yet rises to a close with the slight lift of
a nger.
Step 4. Dishwasher installation steps
1. Afx the condensation strip under the work surface of cabinet. Please ensure
the condensation strip is ush with edge of work surface.
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into the cabinet.
Note
Please refer to the specic installation steps in the installation drawings.
1.Take away the four short screws
2. Pin up the four long screws
2.Pin up the four long screws
20
6. Level the dishwasher. The rear foot can be adjusted from the front of the
dishwasher by turning the Philips screw in the middle of the base of dishwasher
use a Philips screw driver. To adjust the front feet, use a at screw driver and turn
the front feet until the dishwasher is level.
7. Install the furniture door to the outer door of the dishwasher.
8. Adjust the tension of the door springs by using a Philips screw driver turning
in a clockwise motion to tighten the left and right door springs. Failure to do this
could cause damage to your dishwasher.

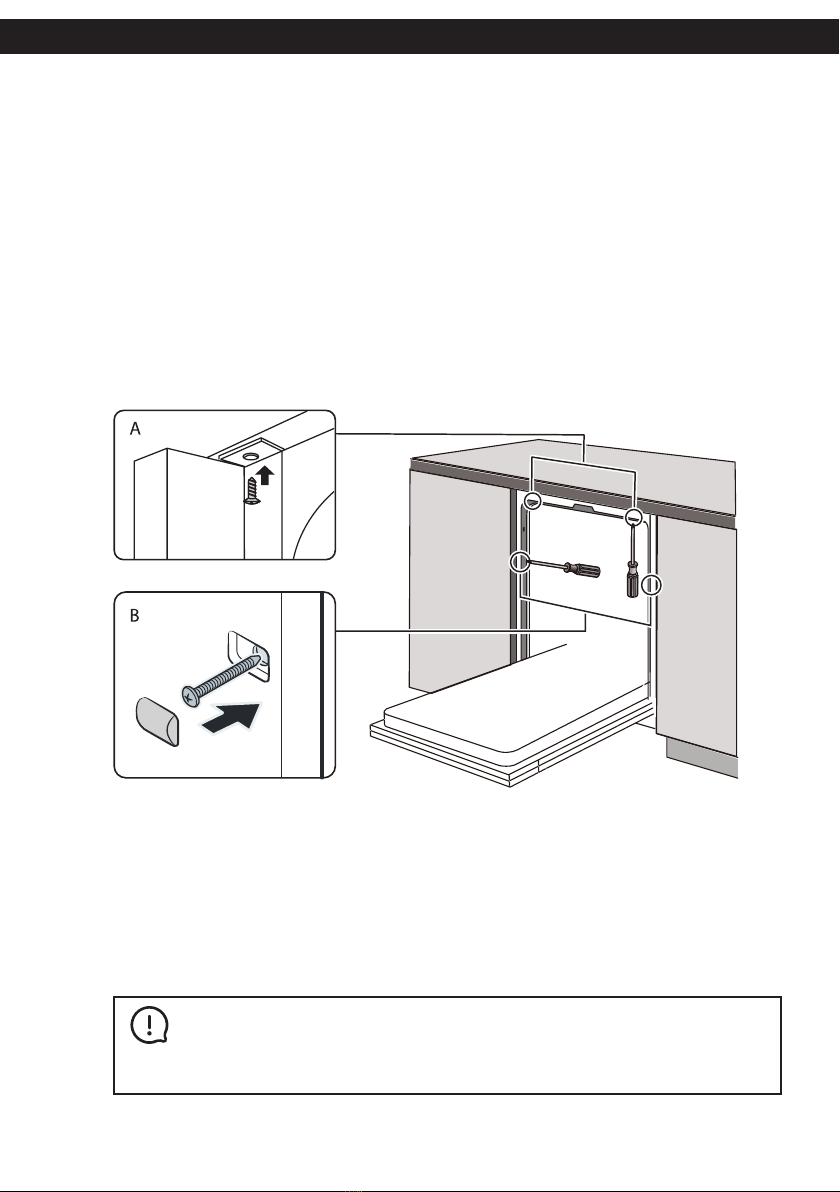

9. The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane
and secure it to the work surface with the screws.
B. Marble or granite work top: Fix the side with screws.
Step 5. Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on door and rack track inside the tub as shown to check
that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling feet individually.
3. When level the dishwasher, please pay attention not to let the dishwasher
tip over.
Installation instruction
Note
The maximum adjustment height of the feet is 50 mm.
This manual suits for next models
5
Table of contents
Languages:
