Metos Master LUX 40 EL User manual

GLASSWASHER
ELECTRONICAL SWITCHES
LOWER AND UPPER WASHING
INSULATED MODEL
TYPE:MetosMaster LUX 40 EL
Accessories
BREAK TANK
BOOSTER PUMP
DVGW
COLD RINSE
DETERGENT DISPENSER
DRAIN PUMP
Installation and Operation Manual
S/N: Rev.: 1.0

Thank you for choosing our appliance.
Theinstallation,useandmaintenanceinstructionsgiveninthismanualhavebeenprepared
to ensure the long life and correct operation of your appliance.
Follow these instructions carefully.
Wehave designedand manufacturedthis applianceaccording tothe latesttechnological
developments. Now, it is in your care.
Your satisfaction is our greatest reward.

page 29
UK
SUMMARY Page
INSTRUCTIONS 32
INSTALLER SECTION
1. MACHINE INSTALLATION 33
1.1 Receiving the product 33
1.2 Water connection 33
1.3 Electrical connection 33
1.4 RINSE AID dispenser operation 34
1.5 Detersive dispenser installation 36

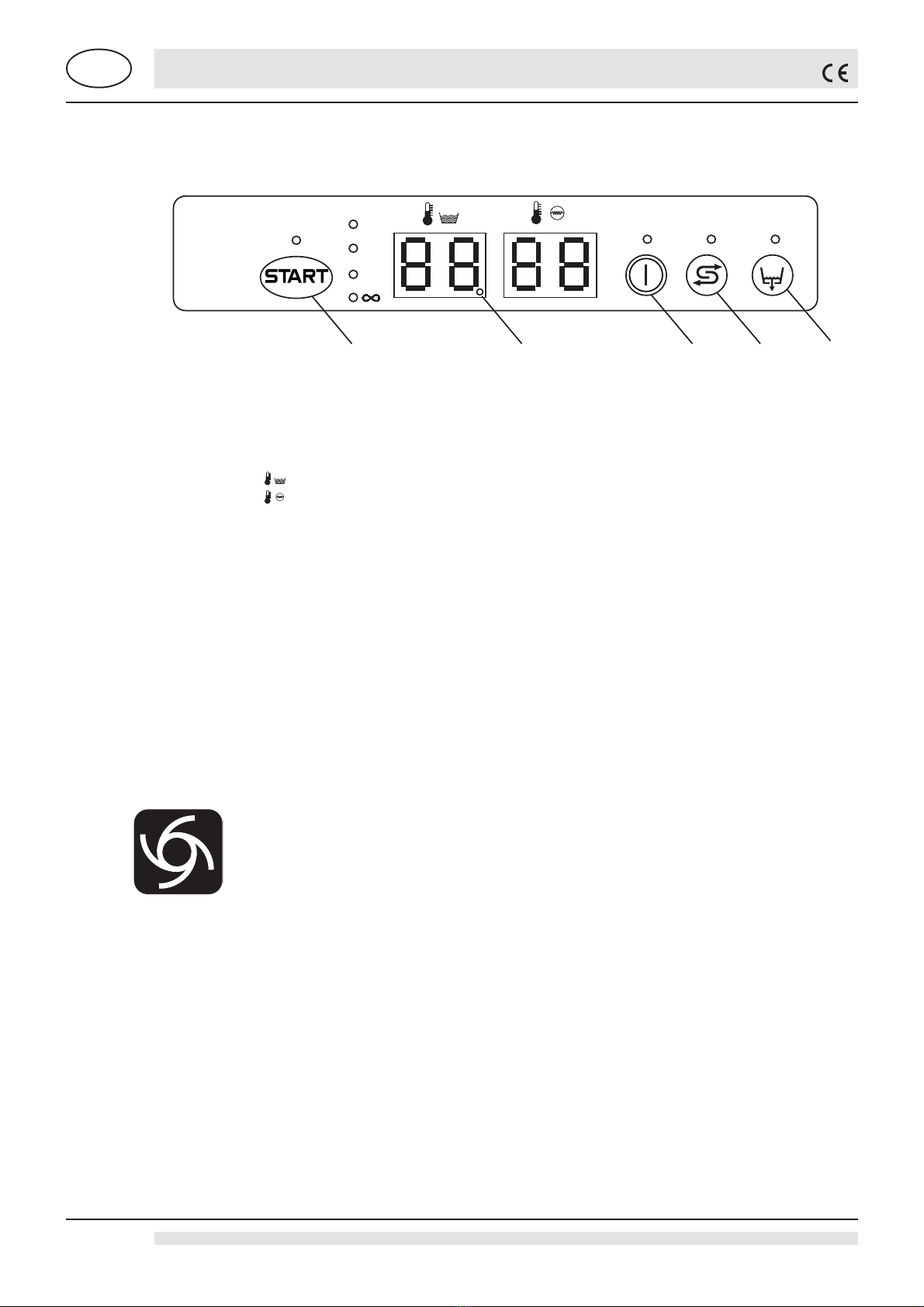

2. CONTROL PANEL AND RELATIVE SYMBOLS 37
2.1 Functions of keys during normal operation: 37
2.2 Functions of keys during programming. 37
3. CHARACTERISTICS 37
3.1 General characteristics 37
4. MACHINE PROGRAMMING 38
4.1 Parameter choice 38
4.2 Parameter programming 38
5. TEMPERATURE ADJUSTMENT 40
6. ENERGY-SAVING FUNCTION 40
7. THERMO-STOP FUNCTION 40
8. WATER FILLING 40
8.1 Conditions preventing water filling. 40
9. BOILER FILLING (Atmospheric pressure boiler version only) 40
9.1 Conditions that zero-set boiler filling. 40
10.WATER HARDNESS SETTING ON DISHWASHERS WITH
OPTIONAL REGENERATION 41
11. DRAIN PUMP OPERATION (optional on standard machines) 41
10.1 Manual draining 41
10.2 Automatic draining 41
12.PRESSURE INCREASE PUMP (optional) 42
USER SECTION
13.WASH CYCLE SELECTION 44
14. GENERAL OPERATION CYCLE 44
14.1 Clean water function cycle 44
14.2 Standard function cycle 45
14.3 Conditions that zero-set the wash 45
14.4 Conditions preventing the start of washing 45
14.5 Conditions that block the wash cycle 45
15.OPERATION 46
15.1 Detersive use 46
15.2 Rinse aid use 46
15.3 Compliance with the H.A.C.C.P. and hygiene standards. 47
15.4 Drain pump (optional only on standard version machines - standard on CLEAN
WATER) 47
15.5 Pressure increase pump (optional) 47
15.6 Regeneration function (optional) 48
15.7 Cold rinse (optional) 48
15.8 Energy-Saving function 48
15.9 Thermostop function 48
16. MAINTENANCE 49
16.1 Routine maintenance 49
16.2 Extraordinary maintenance 49

page 30
UK
SUMMARY Page
17.THE ENVIRONMENT 50
17.1 Packing 50
17.2 Disposal 50
18.ECOLOGY 50
18.1 Instructions for optimal use of energy, water and additives 50
19. ALARM AND FAULT DETECTION AND DISPLAY 51
19.1 Detection 51
19.2 Signalling 51
19.3 Cancelling alarms or faults 51
19.4 Boiler overtemperature alarm 51
20.TROUBLESHOOTING 53
WARNING: FAILURE TO COMPLY (EVEN PARTIALLY) WITH THE
RULES GIVEN IN THIS MANUAL WILL INVALIDATE THE PRODUCT
WARRANTY AND RELIEVES THE MANUFACTURER OF ANY
RESPONSIBILITY.
READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE
MACHINE.

page 32
UK
INSTRUCTIONS
This instruction booklet must be kept with the dishwasher for future consultation. If the
dishwasher is sold or transferred to another user, make sure the booklet always goes with
the appliance so that the new owner can have the necessary information on its operation
and the relative instructions.
The instruction booklet must be carefully read before installation and first use of the
dishwasher.
These instructions are supplied to safeguard the user in compliance with Directive 73/23
as amended and the “harmonized product Technical Standard” EN 60335-1 and EN 60335-
2-58.
· ADAPTATION OF THE ELECTRICAL AND WATER SYSTEMS FOR DISHWASHER
INSTALLATION MUST ONLY BE CARRIED OUT BY QUALIFIED OPERATORS.
· This dishwasher must only be used by adults. This is a professional machine to be used by
qualified personnel, and installed and repaired exclusively by a qualified technical assistance
service.The Manufacturer declinesany responsibility forimproper use, maintenance or repair.
· Accompany the door in opening and closing.
· Make sure the dishwasher is not resting on the power cord or the filling and drain hoses. Level
the machine by adjusting the support feet.
· Do not use the appliance or any part of it as a step or support, since it is only designed to take
the weight of the basket of dishes to be washed.
·The dishwasher is designed for washing dishes, glasses and various crockery with
residuals of food. Any other use is deemed improper. DO NOT washarticles different from
those specified or polluted by petrol, paint, bits of steel or iron, fragile objects or items not
resistant to the washing process. Do not use chemical, corrosive, acid or alkaline products,
solvents or chlorine-based detersives.
· Donot open the dishwasher door when it is working. In any case, thedishwasher has aspecial
safety device which immediately stops it if the door is accidentally opened, thus preventing
water spillage. Remember to always switch the dishwasher off and empty the tank before
accessing the inside for cleaning or any other purpose.
·After use, at the end of the day and for any kind of maintenance, it is advisable to
disconnect the dishwasher from the power supply by means of the service switch and
the main wall switch. Close the water supply cock.
· The user must not carry out any repair and/or maintenance operations. If necessary, contact
qualified and/or enabled personnel.
· Servicing of this dishwasher must be performed by authorized personnel.
N.B.: Only use original replacement parts. Otherwise the product warranty is invalidated
and the manufacturer is no longer responsible.
· Some important rules must be followed for using this appliance:
1) never touch the appliance with wet hands or feet,
2) never use the appliance when barefoot,
3) do not install the appliance in places exposed to water sprays.
· Thisappliance is designed to work at room temperatures up to a max. 35°C, in a suitable place
with temperature not below 5°C.
N.B. :The manufacturer declines any responsibility for accidents to persons or damage to
things caused by non-compliance with the above rules.
IMPORTANT: WAIT AT LEAST 10 MINUTES AFTER THE MACHINE HAS BEEN SWITCHED
OFF BEFORE CLEANING INSIDE IT.
WARNING: DO NOT INSERT HANDS AND/OR TOUCH THE PARTS AT THE BOTTOM OF
THE TANK DURING AND/OR AT THE END OF THE WASH CYCLE.

page 33
UK
ATTENTION:
At the end of installation make sure to remove the parts of this booklet relevant to the
installer, for future consultation.
1. MACHINE INSTALLATION
1.1 Receiving the product
After unpacking, make sure the appliance has not been damaged due to transport.
Otherwise, report the anomaly to the dealer. For disposal of the packing, see chap. 17.
1.2 Water connection
Connect the machine water supply to an on/off valve that can rapidly and completely
shut off the water inflow.
Make sure the water supply pressure is within the values given in table 1.
Ifitisbelow 200 kPadynamicpressure,for optimalmachineoperationa pressure increase
pump must be installed (the machine can be supplied with such a pump by request).
If the supply pressure is higher than 4 bar (400 KPa), installation of a pressure reducer
is recommended.
A water softener must be installed for waters with average hardness above 10 °f.
Toensure optimum performance,the water supply temperature range must come within
the values given in table 1.
Thiswillensure cleaner dishes/articlesandlonger machinelife.Every machine issupplied
with a rubber hose for water filling with 3/4"F threaded connection.
It is advisable to connect the hose to a water supply not above 55° C, if connected to the
hot water.
Connect the drain hose, supplied with the machine, to the drain union in such a way that
waterflowsfreely (therefore ensuringaminimum slope). Ifthewater cannot bedischarged
to a level below the machine drain, it is advisable to install a drain pump suppliable on
request.
The drain hose must always be connected to a trap to prevent the return of odours from
the system.
1.3 Electrical connection
Electrical connection must be carried out in compliance with current standards.
Make sure the line voltage matches that given on the machine dataplate. An omnipolar
thermal magnetic switch with contact breaking distance of at least 3 mm and adequate
for the absorption must be installed (the machine must be turned off with this switch).
The switch must be used only and exclusively for this use and installed in the
immediate vicinity.
Ensure that the system has an efficient earth.
On the back of the machine there is also a terminal marked by a symbol (see fig.1) used
for the equipotential connection between different appliances. The special dataplate
gives the max. power value in watts (W) and amperes (A), for dimensioning of the line,
cable and switches.
fig. 1
INSTALLER SECTION
Machine by request Machine in catalogue
Static P. Cold H
2
OHotH
2
O
Dynamic P.
Tab. 1 Hardness
200
kPa
400
350
Pressure
Table
5°Ct
<35°C 50°Ct ≤60°C
Min
2°f
Max
10°f
kPa
250
Supply H 2 O temperature table

page 34
UK
C
D
B
A
fig. 2
N.B.: for machines with 400Vac3N, H05RN-F or H07RN-F type cables
must be used, or replace them with others conforming to the standards
in the country where the dishwasher is installed. The dealer/importer/
installer must adapt the power cable insulation class according to the
work environment, in conformity with current Technical Standards.
In machines with three-phase pump, pay attention to correct pump rotation.
Start up the dishwasher and carry out any calibration of the detersive dispenser in the
following way:
1) Turn the wall switch on and open the water cock.
2) Switch the dishwasher on, pressing the key (B) (see chap. 2). The reletive green LED
lights up.
3) The machine starts to fill with water (important: do not open the door).
4) At the end of boiler filling, rinsing starts, to complete the tank filling. After filling, the
dishwasher starts heating the boiler and tank.
5) The machine is ready for washing.
N.B.: If the cock is closed or the filling time is too long, the dishwasher may go on tank
filling time-out (programming parameter (B)) indicating fault code (3).
1.4 Rinse aid dispenser operation
Operation:it utilizes thecombined difference inpressure resultingfrom the start/stopof
the wash pump and the rinse pressure.
Water connection:
1) connect the dispenser by its hose holder fitting (A) to the pump, by means of the
rubber hose installed in the machine (pump pressure).
2) Connect the black rubber tube by its delivery connection (B) to the union located near
the boiler (injector).
3) Ensure insertion of the green product-suction tube in the special connection (C) and
the filter and ballast in the rinse aid tank.
Priming: to carry out priming, start the machine and do a few complete wash cycles or
press the adjustment screw D during the wash cycle and open and close the door
combined with the pressure of pin D. This system speeds up reinstatement.
Adjustment: with every rinse the dispenser draws a quantity of rinse aid adjustable
from 0 to 4 cm3equivalent to a length of 0 to 30 cm drawn in the tube.
Min. delivery is obtained by screwing the adjustment screw D (clockwise) all the way,
whereasmax. delivery is obtained by unscrewing the adjustmentscrew approx. 20 turns
(anticlockwise).
For the right amount of product see the paragraph “Rinse aid use” (chap. 15.2).
N.B.: for every turn of the screw the amount of rinse aid drawn in the tube varies by 1.6
cm, equal to 0.2 cm³/turn (approx. 0.21g/turn with rinse aid density of 1.05 g/cm³).
The rinse aid dispenser cannot work correctly if the difference in level between the
bottom of the machine and the tank is more than 80 cm.
INSTALLER SECTION

page 35
UK

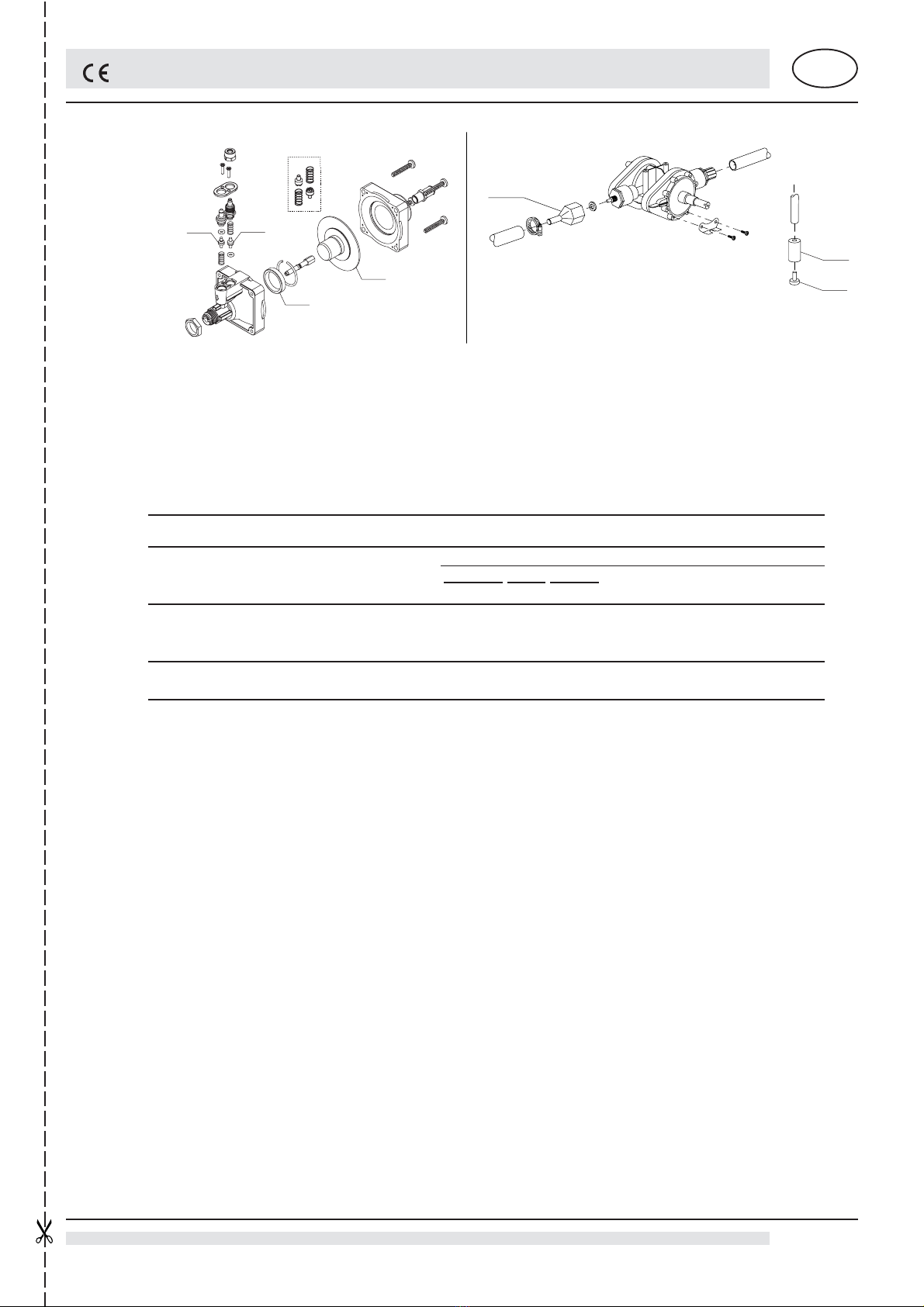

10798/B
15058
12525
Cod. 10798
10805
Cod. 10799
10807
10806
10805 10805
fig. 3
THE DISPENSERS ARE FACTORY-SET FOR DRAWING 5 CM, FOLLOWING A
FUNCTIONALCHECK DURINGTHE TESTING PHASE. THIS VALUEMUST ALWAYS
BE MODIFIED ACCORDING TO THE TYPE OF RINSE AID AND THE HARDNESS OF
THE WATER.
INSTALLER SECTION
TYPE OF PROBLEM POSSIBLE CAUSE AND CURE
Check the silicone valves code 10805.
Silicone valve check: Rinse them under a jet of water
and replace them if deformed.
The dispenser does not draw rinse aid.
As above, check the valves and make sure the water
supply pressure is not below 200 kPa. If necessary
increase the amount by operating the middle screw.
Check the integrity of the membrane code 10807 and
sliding of the piston on the seal code 10806
Return of water in rinse aid container
during rinse.

page 36
UK
1.5 Detersive dispenser installation
Electrical connection:
See the wiring diagram attached to the dishwasher and follow the instructions on the
diagram.
Water connection:
a) A Ø 12 hole must be made in the back of the dishwasher. In some dishwashers the
hole is already available, and closed with a plastic plug. Remove the plug from the hole
and fit the delivery connection.
b) Otherwise, make a hole of the same diameter as your injector in
therear part ofthe tank (see fig. 4); this operation must be carried out
by Technical Assistance.
The hole must be made above the water level.
Important: make the hole in a place away from the overflow, in order
to avoid the immediate spilling of detersive, and fix the dispenser
upright with the hose holders turned downwards, taking care not to
position the injector over live parts or where it interferes with filters.
c) Correctly install the injector (C), using the appropriate seals.
d) Connect the suction tube to the dispenser suction connection (see
fig. 4 - point A).
e) Connect the delivery tube to the other connection of the dispenser
and the delivery union (see fig. 4 - point B).
f) Insert the tube with filter in the detersive tank.
g) Prime the detersive and proceed with the dosage phase.
Dosage:
Thedetersive dispenser deliverycan beadjusted bydirectly operating
with a screwdriver as shown in fig. 5.
Every 2 cm of product drawn corresponds to 0.25 cm3, equal to 0.3 g (with density 1.2 g/
cm3). Also see chap. 15.1.
A
B
C
MAX 1 mt
fig. 4
15185 15985/A15108/E
Ø 10
PLAS CONTGERMACSEKO
Ø 8Ø 10
fig. 5
IMPORTANT: DO NOT INVERT THE TUBES IN THE PRODUCTS: IF THIS OCCURS,
THEDOSINGPUMPS WOULD BERUINEDAND DISHWASHEROPERATIONWOULD
BE COMPROMISED.
INSTALLER SECTION

page 37
UK
2
3
1
ABC
D
Cold Rinse
2. CONTROL PANEL AND RELATIVE SYMBOLS
The purpose of these specifications is to describe card operation.
To simplify the description of the various functions, the layout of the control panel and
the various functions assumed by the keys according to the function mode is given
below.
2.1 Functions of keys during normal operation:
A: Cycle Start - Cycle Stop - Cycle Selection 1-2-3 ∞∞
∞∞
∞ - Self-cleaning;
B: On/Off (Stand-By) - Cycle Stop - Alarm Reset;
C: Regeneration (optional) - Cold rinse selection (when provided for);
D: Drain (when provided for).
2.2 Functions of keys during programming.
A: Programming;
B: Increase;
C: Decrease;
D: Exit programming
3. CHARACTERISTICS
3.1 General characteristics
The microprocessor-managed control unit controls the following:
• boiler temperature adjustment;
• tank temperature adjustment;
• wash and rinse function cycles;
• purifying function cycles (when provided for);
• tank emptying cycle (when provided for);
• water filling cycle;
• volumetric meter for controlling water supply flowrate (when provided for);
• displays and programming;
• fault detection and display.
2
3
1
ABCD
PROG ESC
fig. 7
fig. 6
INSTALLER SECTION

page 38
UK
4. MACHINE PROGRAMMING
This section applies to the electronic version with conventional cycle standard and the
total water change (CLEAN WATER) electronic version.
N.B.: the conventional cycle version is fitted standard with a flowswitch that controls the
presenceof supply waterand withwhich, entering programming,a constantconsumption
of water in the rinse phase can be defined regardless of the supply pressure.
To enter programming:
• press the keys (A) and (B) at the same time, making sure to lightly press the key (B)
first, for about 5 seconds, after which the message (Key) will be displayed;
• set the value of the password to (15) with the keys (B) (C);
• confirm the password pressing the key (A); if the password is correct the parameter
choice will be accessed, otherwise the message (Err) will be displayed for about 4
seconds.
N.B.: to enter programming the machine must not be washing; if you try to enter
programmingduring washing, the message (noPr) will be displayed andthe dishwasher
will continue the cycle.
Themachinewillautomaticallyexit programming ifnokeyispressedfor about 20seconds.
4.1 Parameter choice
On entering parameter choice the message (P) will be displayed; press the key (A)
repeatedly to define the parameter number (P) (P1, P2, ... PJ).
At this point it will be possible to:
• select the number of the parameter to be modified by pressing the keys (B) (C);
• enter programming of the parameter selected pressing the key (A);
• exit programming pressing the key (D).
4.2 Parameter programming
Onenteringparameterprogramming the message(P)andtheparameter number followed
by the parameter value are displayed.
At this point it will be possible to:
• change the parameter value with the keys (B) (C);
• confirm the value and go to programming of the next parameter, by pressing the key
(A);
• return to the parameter selected without changing the data by pressing the key (D).
The following parameters can be changed (see table 2 on the next page):
INSTALLER SECTION

page 39
UK
Number Parameter Min. Max. Unit of Measure Clean
Water Cycle standard Notes
0 Wash time cycle 1 25 300 s 60s 60s step 5s
1 Wash time cycle 2 25 300 s 120s 120s step 5s
2 Wash time cycle 3 25 300 s 180s 180s step 5s
3 Wash time cycle 4 25 300 s 300s 300s step 5s
4 Boiler temperature setting (§) 65 90 °C 85°C 85°C step 1/2°C
5 Tank temperature setting 50 65 °C 55°C 55°C step 1/2°C
6 Energy-saving threshold cycle 1 10 40 °C 10°C 10°C
7 Energy-saving threshold cycle 2 10 40 °C 15°C 15°C
8 Energy-saving threshold cycle 3 10 40 °C 20°C 20°C
9 Energy-saving threshold cycle 4 10 40 °C 20°C 20°C
A Tank draining time 10 99 s 30s 30s step 5s
model 40: 120s
other models: 300s
step 5s
0=cut out
30=default
**
***
****
E Drain pump enabling 0 1 0 0 only if cycle standard
F Clean water enabling ***** 0 1 1 0 1=clean water
G Flowswitch enabling 0 1 0 1 1=enabled
H Start enabling with door 0 1 0 0 1=enabled
I Cold rinse enabling 0 1 0 0 1=enabled
J Regeneration cycle enabling 0 1 0 0 1=enabled
* The water volume for rinse in Clean Water machines is regulated by pressure switch and not flowswitch.
** The "Rinse water volume" parameter setting of 2,0 litres is recommended for models 35/37
*** The "Rinse water volume" parameter setting of 2,4 litres is recommended for models 40
**** The "Rinse water volume" parameter setting of 3,0 litres is recommended for models 45/50
***** If the machine is not manufactured for this function, do not enable the parameters
(§) Machine with extra power max. boiler temperature setting 80°C
Number Parameter Min. Max. Unit of Measure Cycle
standard Notes
0 Wash time cycle 1 25 300 s 60s step 5s
1 Wash time cycle 2 25 300 s 120s step 5s
2 Wash time cycle 3 25 300 s 180s step 5s
3 Wash time cycle 4 25 300 s 300s step 5s
4 Boiler temperature setting (§) 65 90 °C 85°C step 1/2°C
5 Tank temperature setting 50 65 °C 55°C step 1/2°C
6 Energy-saving threshold cycle 1 10 40 °C 10°C
7 Energy-saving threshold cycle 2 10 40 °C 15°C
8 Energy-saving threshold cycle 3 10 40 °C 20°C
9 Energy-saving threshold cycle 4 10 40 °C 20°C
A Tank draining time 10 99 s 30s
B Water filling time-out 60 600 s 120s step 5s
step 5s
0=cut out
5=760 lt
10=380 lt
15=300 lt
20= 240 lt
25=200 lt
30=160 lt
35=120 lt
40=100 lt
D Hot rinse time 10 30 s 15 step 1m
E Drain pump enabling***** 0 1 0 1=enabled
FAtmospheric pressure boiler filling
time out 60 600 s 120s step 5s
G Flowswitch enabling***** 0 1 0 1=enabled
H Start enabling with door 0 1 0 1=enabled
I Optionale parameter 0 1 0 1=enabled
J Regeneration cycle enabling***** 0 1 0 1=enabled
***** If the machine is not manufactured for this function, do not enable the parameters
(§) Machine with extra power max. boiler temperature setting 80°C
°f 0C Supply water hardness***** 0 40
s 100s 300sWater filling time-outB60600
C Supply water hardness 0 40
DRinsewatervolume 0 99
°f 30 30
dl *
tab. 2
INSTALLER SECTION
Parameter programming - pushbutton panel code 50580
Parameter programming for atmospheric pressure boiler version - pushbutton panel
code 50590 - only for baskets 500x500
tab. 2a

page 40
UK
5. TEMPERATURE ADJUSTMENT
Boilertemperature adjustment alwayshas priority overthat of the tank, and the tank and
boiler cannot be switched on at the same time.
Toreducethe electrical stressofthe loadsandoutput relay contacts,delaysand minimum
activation times are entered.
The temperature adjustment outputs are kept off in the following cases:
• if the temperatures measured are below 5°C;
• if there is a fault;
• if there is no water.
During wash pump operation the tank heating element does not work.
6. ENERGY-SAVING FUNCTION
This function is activated by a jumper (see fig. 8).
The energy-saving function only acts on the boiler temperature adjustment and when
the machine is not in operating cycle.
If activated, the temperature setting is decreased, with respect to that entered, by the
programmed amount.
During operation the temperature setting returns to that entered.
7. THERMO-STOP FUNCTION
This function is activated by a jumper (see fig. 9).
During the cycle, at the end of wash time, the next phases are carried out after the boiler
has reached the set temperature.
If this function is deactivated the machine goes to the subsequent wash cycle phases,
whatever the boiler te
8. WATER FILLING
Water filling is controlled by a pressure switch.
Filling occurs by means of the solenoid valve used for the rinse and when the pressure
switch contact is open.
Thereis a maximumwater filling time, settable in programming, after which the machine
stops if the level is not reached, displaying the message (Er) followed by the relevant
fault code.
8.1 Conditions preventing water filling
Water filling is not carried out if the Atmospheric pressure boiler version is being used
and boiler filling is under way.
9. BOILER FILLING (Atmospheric pressure boiler version only)
Boiler water filling is controlled by a pressure switch.
There is a maximum boiler water filling time, settable in programming, after which the
machine stops if the level is not reached, displaying the message (All) followed by the
relative fault code.
9.1 Conditions that zero-set boiler filling.
The boiler filling cycle is cancelled in the following cases:
• if the card is switched off.
• during the hot rinse; boiler filling will resume at the end of the hot rinse.
10. WATER HARDNESS SETTING ON DISHWASHERS WITH
OPTIONAL REGENERATION
See table 2 - parameter (C).
Access the parameter (C) and set the hardness value in °f of the water introduced in the
dishwasher.
The dishwasher automatically signals when it is time to carry out regeneration.
It's advisable to install an external water softener if the hardness is more than 35°f.
fig. 9
fig. 8
ON
OFF
ES
TSTOP
ON
OFF
ES
TSTOP
INSTALLER SECTION

page 41
UK
11. DRAIN PUMP OPERATION (optional on standard version
machines)
Draining is activated manually or automatically.
For standard version machines the presence of the drain pump is selectable from
programming, whereas in (CLEAN WATER) machines the pump is always present.
The maximum height of the drain must not be above 0.80m (see fig. 10). The drain must
be ahead of a trap.
11.1 Manual draining
Press the key (D) after removing the overflow and the pump operates for the time set in
programming.
The drain pump is activated in the following way:
• activation of a 5sec delay at start;
• activation of the drain pump for the time set in programming, up to the level indicated
by the pressure switch.
Note: afterthe set timeand if thelevel of thepressure switch isat minimum the machine
goes on Stand-By, otherwise after about 3min. it goes on water drain alarm (alarms 8 -
table 3 - chap. 19.2).
The card must not be activate during manual draining in standard version and clean
water.
11.2 Automatic draining
Draining is activated automatically in the following situations:
• at the end of the wash cycle (only if in clean water function mode);
• after 5sec from activation of hot rinse;
• when a cooling cycle in boiler temperature alarm is activated.
Activation of the drain pump always occurs in the following way:
For function mode with standard version:
• activation of a 5sec delay at start;
If the cold rinse is enabled:
• output switch-off after 10sec from the end of cold rinse.
If the cold rinse is not enabled:
• output switch-off after 10sec from the end of hot rinse.
For the function mode with (CLEAN WATER):
• drain pump activation
• wait for reaching of min. level (level pressure switch opening);
• pump activation for a time equal to:
(“min. level reaching time” + “programmed drain time”).
Drain pump operation occurs even if the door is opened or an alarm is present.
MAX 0,8m
fig. 10
ATTENTION: INCORRECT POSITIONING OF
DRAIN PIPE.
ATTENTION: CORRECT POSITIONING OF
DRAIN PIPE.
INSTALLER SECTION

page 42
UK
12. PRESSURE INCREASE PUMP (optional)
Following repeated alarms (flowrate alarm 9 - chap. 19.2) or after periods of dishwasher
inactivity, make sure the supplementary pressure increase pump rotates freely. To do
this,operate byinserting ascrewdriver inthe specialnotch on the motor shaft, ventilation
side (see fig. 11).
In case of blocking, move the motor shaft, inserting the screwdriver in the notch, turning
it clockwise and anticlockwise.
fig. 11
INSTALLER SECTION

page 43
UK
NOTES

page 44
UK
13. WASH CYCLE SELECTION
A: Cycle Start - Cycle Stop - Cycle Selection 1-2-3 ∞∞
∞∞
∞, Self-cleaning;
B: On/Off (Stand-By) - Cycle Stop - Alarm Reset;
C: Regeneration (optional) - Cold rinse selection (when provided for);
D: Drain (when provided for);
: Tank temperature;
: Boiler temperature.
The wash cycle can be selected by pressing the key (START) for more than 5sec.
The cycle selected is signalled by lighting of the relevant LED (see front panel).
4 selections can be made:
• cycle 1: the wash time of this cycle is factory-set to 60sec;
• cycle 2: the wash time of this cycle is factory-set to 120sec;
• cycle 3: the wash time of this cycle is factory-set to 180sec;
• cycle 4: the wash time of this cycle is factory-set to 300sec.
Note: the other times, which cannot be changed, relevant to the cycle are given below:
• pause time after wash: 3sec
• if the parameter (Flowswitch) is not enabled, hot rinse time: 15sec
• cold rinse time (at system temperature): 10sec (when provided for)
14. GENERAL OPERATION CYCLE
With the machine activated (green LED on), press the (Start) button for less than 1
second and release it to activate wash cycle start.
Keep the button pressed for more than 5sec to select the required wash cycle.
After the type of cycle has been selected, the relevant LED stays on.
14.1 Clean water function cycle
This working cycle is only for machines clean water version.
The cycle sequence is as follows:
• lighting of selected cycle LED;
• activation of wash pump for the time set in programming;
Note: the wash time can increased if the thermostop function is activated, which waits
for the boiler temperature to reach the set temperature before the cycle goes to the next
phases.
• at the end of wash time the pump is switched off and tank emptying is activated;
• after emptying the tank it is filled (rinse);
• at the end of rinse the cycle is finished, signalled by the message (End).
2
3
1
ABC
D
Cold Rinse
fig. 6
INSTALLER SECTION AND USER INFORMATIONS

page 45
UK
14.2 Standard function cycle
The cycle sequence is as follows:
• lighting of selected cycle LED;
• activation of wash pump for the time set in programming;
Note: the wash time can be increased if the thermostop function is activated, which
waits for the boiler temperature to reach the set temperature before the cycle goes to
the next phases.
• at the end of wash the cycle the pump is switched off and a 3sec. pause is
activated.
If the parameter (Flowswitch) is enabled:
• at the end of the pause the hot rinse for the quantity of water delivered useful for the
rinse set in programming, is activated.
If the parameter (Flowswitch) is not enabled:
• at the end of the pause the hot rinse is activated for 15sec.
If the cold rinse is enabled:
• at the end of hot rinse the cold rinse is activated for 10sec.
• after5sec from the start of hot rinsethe drain pumpis activated and then deactivated
10sec after the end of cold rinse, even if the door is opened (only if the parameter (Drain
Pump) is enabled).
If the cold rinse is not enabled:
• after5sec from the start of hot rinsethe drain pumpis activated and then deactivated
10sec after the end of hot rinse, even if the door is opened (only if the programming
parameter (Drain Pump) is enabled).
• atthe end of hot or cold rinse(if enabled)the cycle finishes, signalled bythe message
(End).
N.B: Another cycle cannot be restarted:
• if the door is not opened.
• if the (Stop) button is not pressed.
• if the (Off) button is not pressed.
14.3 Conditions that zero-set the wash
The cycle is cancelled, going to stop conditions, in the following cases:
• in case of a fault.
• if the (Stop) button is pressed for more than 2sec.
• if the (Off) button is pressed.
14.4 Conditions preventing the start of washing
The cycle is inhibited in the following cases:
• if the door is open; in this situation the message (Door) is displayed for 4sec:
• if there is no water; in this situation the message (H2O) will be displayed for 4sec (in
version with flowswitch):
• on alarm;
• during tank filling.
14.5 Conditions that block the wash cycle
The cycle times are blocked in the following cases:
• if the door is opened;
• if there is no water (in version with flowswitch).
INSTALLER SECTION AND USER INFORMATIONS

page 46
UK
DETERSIVE
15.OPERATION
• Insert the overflow pipe in the special seat inside the tank (standard version only).
Make sure all the filters are properly fitted in their seats. The filters must be cleaned
every 30-40 wash cycles and whenever necessary.
•Do not operate the machine without filters and in particular the pump suction
filters).
• Close the door.
Openthe water cock, turn the main wall switch on and start the machinepressing the
key (B) (see fig. 6). The green LED lights up. After a few seconds the tank filling phase
starts.
• After filling, the machine automatically starts the heating phase.
• The machine will be ready for washing only when the boiler and tank thermometers
indicatethat the required temperatures havebeen reached, whichare 80-85°C for boiler
and 50-55°C for the tank.
• Insert the special green rinse aid dispenser tube in the liquid rinse aid container (the
transparent tube must only be inserted in the detergent container) and check that the
quantity is sufficient for the daily requirement.
• Insert the basket with dishes or various articles to be washed and close the door.
• For cycle choice, select the wash cycle (1, 2, 3, ∞)∞)
∞)∞)
∞) with the key (A) (see fig. 6)
keeping it pressed for more than 5 seconds and release when the LED of the required
cycle lights up. The green LED of the selected cycle lights up (1, 2, 3, ∞∞
∞∞
∞).
• Start the cycle by pressing the key (A) for not more than 1sec (see fig. 6). Starting of
the cycle is signalled by the indicator of the selected cycle flashing. At the end of the
cycle the indicator stops flashing and the message (END) appears on the display.
• The machine is ready for a new wash.
It is advisable to change the tank water, by means of another filling, at least every 40-50
washes or twice a day.
N.B.: the machine does not accept other cycles until the door is opened or the key (A) is
pressed twice (see fig. 6).
The cycles (1, 2, 3, ∞∞
∞∞
∞) are factory-set with times of 60 - 120 - 180 - 300 seconds and can
be changed with programming by the installer.
Clean the machine at the end of the day (see chap. 16 Maintenance).
Switch the machine off and close the water cock.
15.1 Detersive use
It must be of the NON-FOAMING type and suitable for industrial dishwashers.
The use of liquid detergents is recommended.
The detersive must be introduced in the tank.
Theamount is recommendedby the manufacturersaccording to the water hardness. By
request the dishwasher can be equipped with an electric detersive dispenser (always
recommended).
1cm of product drawn in the transparent tube corresponds to approx. 0.15g. A correct
amount of detergent is very important for efficient washing.
15.2 Rinse aid use
Themachine comesstandard witha rinseaid dispenser.The machinedraws theproduct
on its own. The amount can be varied by operating the dispenser micrometrical screw.
Turn clockwise to increase the amount and anticlockwise to decrease it.
An amount of 2-5cm of product measurable on the suction tube is recommended. 1cm
of product drawn in the green tube corresponds to approx. 0.13g. A correct amount of
rinse aid is very important for quick drying and sparkling dishes.
N.B.: too much product, or foam, reduces the efficiency of the wash pump.
USER SECTION
RINSE AID
