MILLEN MBW 381 BL User manual

USER MANUAL
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
MBW 381 BL/WH/IX
MICROWAVE
OVEN
МИКРОВОЛНОВАЯ
ПЕЧЬ

2
Table Of Contents | Содержание
English ............................................................................................................................... 3
Русский ...........................................................................................................................20

3
Table Of Contents
Important safety instructions ....................................................................................... 4
Cleaning ............................................................................................................................. 7
Utensils .............................................................................................................................. 8
Setting up your oven.....................................................................................................10
Installation and connection.........................................................................................11
Installation Instruction .................................................................................................11
Operation instruction....................................................................................................14
Trouble shooting ............................................................................................................19

4
Important safety instructions
Important safety instructions
Save these instructions carefully.
Precautions to avoid possible exposure to excessive microwave energy
(a) Do not attempt to operate this oven with the door open since this can result
in harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Addendum
If the apparatus is not maintained in a good state of cleanliness, its surface
could be degraded and affect the lifespan of the apparatus and lead to a dange-
rous situation.
Specications
To reduce the risk of re, electric shock, injury to persons or exposure to exces-
sive microwave oven energy when using your appliance, follow basic precautions,
including the following:
1. Read and follow the specic: "Precautions to avoid possible exposure to
excessive microwave energy".
Model MBW 381 BL/WH/IX
Rated Voltage 230 V ~ 50 Hz
Microwave Input 1270 W
Microwave Output 800 W
Grill 1000 W
Warning
If the door or door seals are damaged, the oven must not be operated until it has been
repaired by a competent person.
Attention
Read these instructions carefully before using your microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with many years of good service.

5
Important safety instructions
2. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of experien-
ce and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be
made by children unless they are older than 8 and supervised. Children less than
8 years of age shall be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard (for appli-
ance with type Y attachment).
5. When heating food in plastic or paper containers, keep an eye on the oven
due to the possibility of ignition.
6. Only use utensils that are suitable for use in microwave ovens.
7. If smoke is emitted, switch off or unplug the appliance and keep the door
closed in order to stie any ames.
8. Microwave heating of beverages can result in delayed eruptive boiling, the-
refore care must be taken when handling the container.
9. The contents of feeding bottles and baby food jars shall be stirred or shaken
and the temperature checked before consumption, in order to avoid burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated in mi-
crowave ovens since they may explode, even after microwave heating has ended.
11. The oven should be cleaned regularly and any food deposits removed.
12. Failure to maintain the oven in a clean condition could lead to deterioration
of the surface that could adversely affect the life of the appliance and possibly
result in a hazardous situation.
Warning
Warning
Warning
Ensure that the appliance is switched off before replacing the lamp to avoid the possi-
bility of electric shock.
Liquids and other foods must not be heated in sealed containers since they are liable
to explode.
It is hazardous for anyone other than a competent person to carry out any service or
repair operation that involves the removal of a cover which gives protection against
exposure to microwave energy.

6
Important safety instructions
13. Only use the temperature probe recommended for this oven (for ovens pro-
vided with a facility to use a temperature-sensing probe).
14. The microwave oven must be operated with the decorative door open (for
ovens with a decorative door).
15. This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, ofces and other working environments;
– by clients in hotels, motels and other residential type environments;
– farm houses;
– bed and breakfast type environments.
16. The microwave oven is intended for heating food and beverages. Drying of
food or clothing and heating of warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or re.
17. Metallic containers for food and beverages are not allowed during micro-
wave cooking.
18. The appliance shall not be cleaned with a steam cleaner.
19. Care should be taken not to displace the turntable when removing contai-
ners from the appliance (for xed appliances and built-in appliances being used
equal or higher than 900 mm above the oor and having detachable turntables.
But this is not applicable for appliances with horizontal bottom hinged door).
20. The microwave oven is intended to be used built-in.
21. Steam cleaner is not to be used.
22. Surface of a storage drawer can get hot.
23. During use the appliance becomes hot. Care should be taken to avoid tou-
ching heating elements inside the oven.
24. The appliance must not be installed behind a decorative door in order to
avoid overheating (this is not applicable for appliances with decorative door).
25. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they can scratch the surface, which may result in shattering of the glass.
Read carefully and keep for future reference.
Warning
Warning
Warning
The appliance and its accessible parts become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
Accessible parts may become hot during use. Young children should be kept away.
When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.

7
Cleaning
To Reduce the Risk of Injury to Persons Grounding Installation
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualied electrician or serviceman if the grounding instructions are
not completely understood or if doubt exists as to whether the appliance is pro-
perly grounded.
If it is necessary to use an extension cord, use only a 3-wire extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter
top or tabletop where it can be pulled on by children or tripped over unintentio-
nally.
Cleaning
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully
with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of
the glass.
5. Cleaning Tip-For easier cleaning of the cavity walls that the food cooked can
touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100 %
microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
Warning
Electric Shock Hazard: Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
Electric Shock Hazard: Improper use of the grounding can result in electric shock. Do not
plug into an outlet until appliance is properly installed and grounded.

8
Utensils
Utensils
See the instructions on "Materials you can use in microwave oven or to be avoi-
ded in microwave oven."
There may be certain non-metallic utensils that are not safe to use for micro-
waving. If in doubt, you can test the utensil in question following the procedure
below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with
the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for micro-
wave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Warning
Personal Injury Hazard. It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin
parts of meat or poultry to prevent overcooking. Arcing can
occur if foil is too close to oven walls. The foil should be at
least 1 inch (2.5 cm) away from oven walls
Browning dish Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5 mm) above the turntable.
Incorrect usage may cause the turntable to break
Dinnerware Microwave-safe only. Follow manufacturer's instructions.
Do not use cracked or chipped dishes
Glass jars Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break
Glassware Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal
tie. Make slits to allow steam to escape
Paper plates and cups Use for short-term cooking / warming only. Do not leave oven
unattended while cooking

9
Utensils
Materials to be avoided in microwave oven
Utensils Remarks
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only
Parchment paper Use as a cover to prevent splattering or a wrap for steaming
Plastic Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic contai-
ners soften, as the food inside gets hot. "Boiling bags" and
tightly closed plastic bags should be slit, pierced or vented
as directed by package
Plastic wrap Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food
Thermometers Microwave-safe only (meat and candy thermometers)
Wax paper Use as a cover to prevent splattering and retain moisture
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe dish
Metal or metal-trimmed
utensils
Metal shields the food from microwave energy. Metal trim
may cause arcing
Metal twist ties May cause arcing and could cause a re in the oven
Paper bags May cause a re in the oven
Plastic foam Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature
Wood Wood will dry out when used in the microwave oven and
may split or crack

10
Setting up your oven
Setting up your oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray – 1
Turntable ring assembly – 1
Instruction Manual – 1
А – Control panel
B – Turntable shaft
C – Turntable ring assembly
D – Glass tray
E – Observation window
F – Door assembly
G – Safety interlock system
A
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
Grill Rack (Can not be used in
microwave function and must
be placed on the glass tray)
Turntable Installation
1. Never place the glass tray upside down. The glass tray should never be restricted.
2. Both glass tray and turntable ring assembly must always be used during cooking.
3. All food and containers of food are always placed on the glass tray for cooking.
4. If glass tray or turntable ring assembly cracks or breaks, contact your
nearest authorized service center.
F
G
ED
C B

11
Installation and connection
Installation and connection
1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top
use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60 cm wide wallmounted cupboard.
5. The appliance is tted with a plug and must only be connected to a properly
installed earthed socket.
6. The mains voltage must correspond to the voltage specied on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by
a qualied electrician. If the plug is no longer to accessible following installation,
an all-pole disconnecting device must be present on the installation side with a
contact gap of at least 3 mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloa-
ding can result in a risk of re.
Installation Instruction
Electrical connection
The appliance is tted with a plug and must only be connected to a properly
installed earthed socket. Only a qualied electrician who takes the appropriate
regulations into account may install the socket or replace the connecting cable.
If the plug is no longer accessible following installation, an all-pole isolating
switch must be present on the installation side with a contact gap of at least
3mm. Contact protection must be ensured by the installation.
Fitted units
The installation cabinet must not have a back panel behind the appliance.
Minimum installation height: 850 mm.
Ventilation slots and intakes must not be covered.

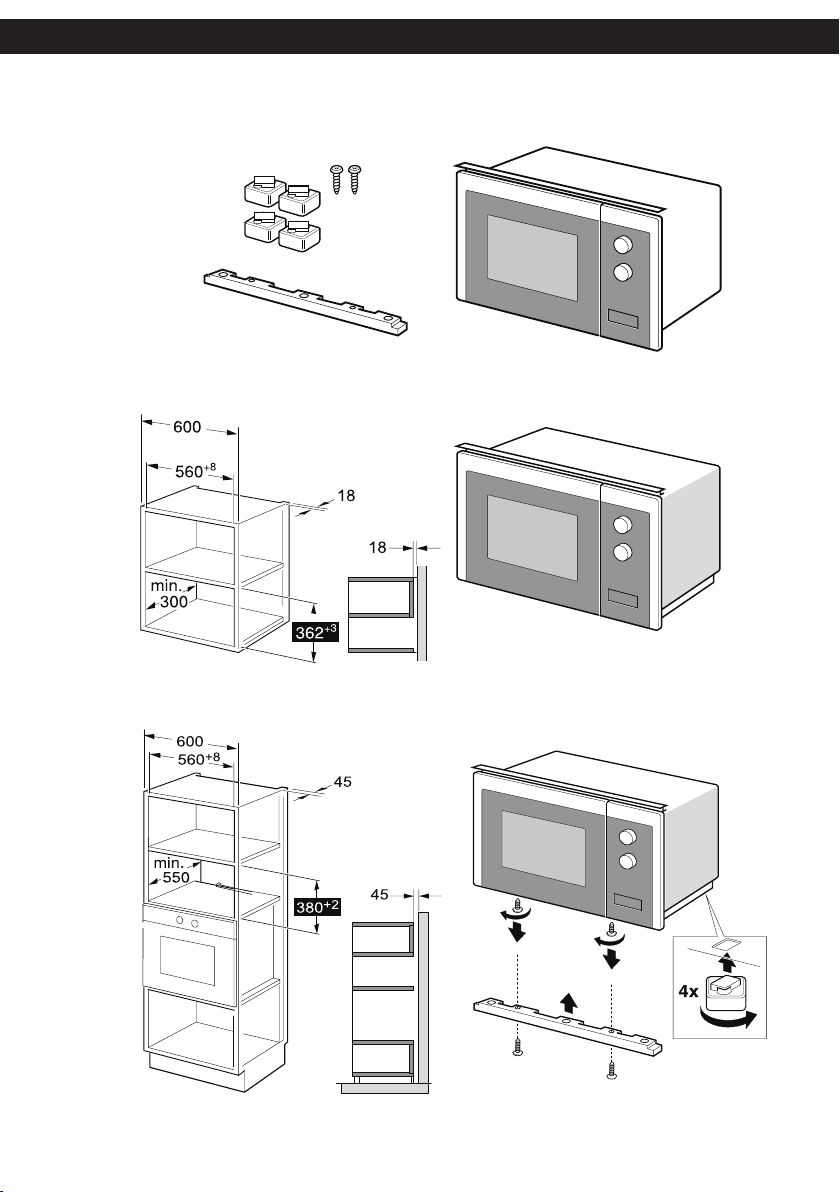

Appliance in a wall-hanging unit — Figure 1A
Appliance in a tall unit — Figure 1B

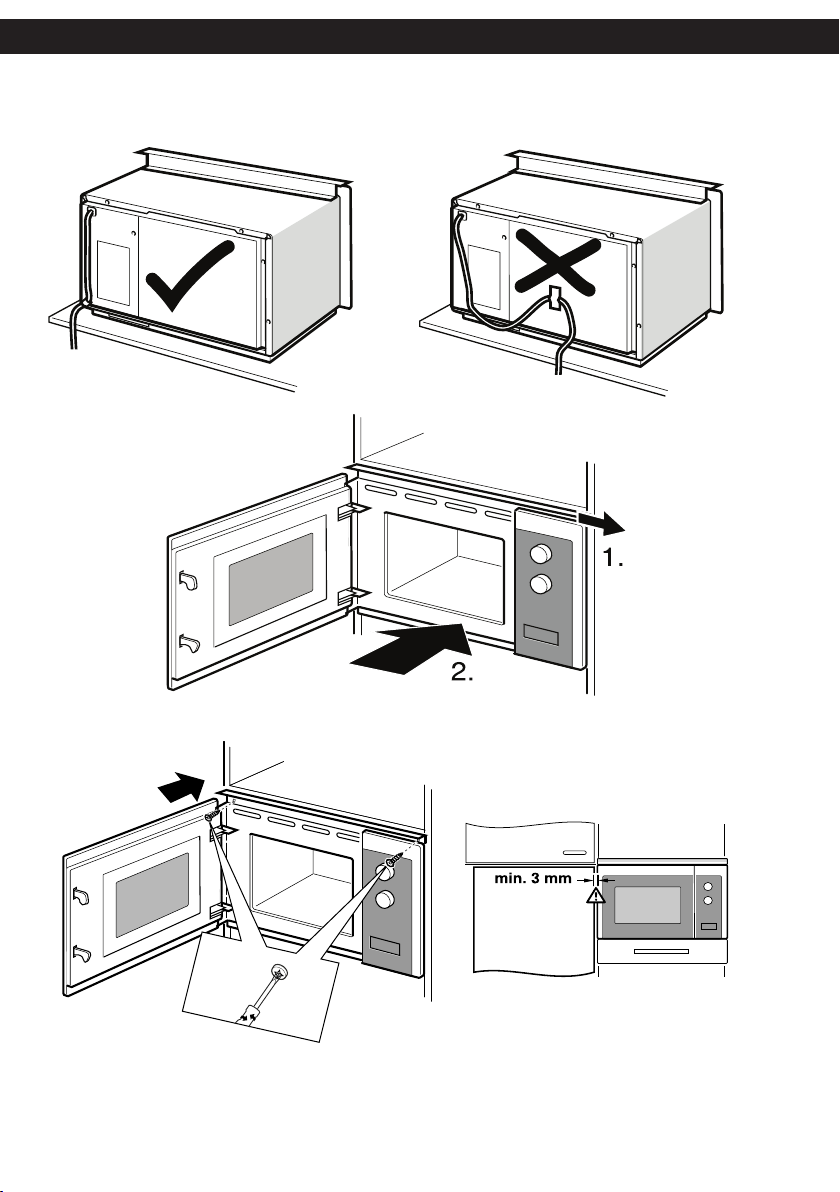

Installing the oven — Figure 2
Note
Do not trap or kink the mains lead.
Warning
The accessible surface may be hot during operation.

12
Installation Instruction
А
В
Figure 1

13
Installation Instruction
Figure 2

14
Operation instruction
Operation instruction
This microwave oven uses modern electronic control to adjust cooking para-
meters to meet your needs better for cooking.
Clock Setting
When the microwave oven is electried, the oven will display "0:00", buzzer
will ring once. The oven will enter to waiting state.
1. Press "Kitchen Timer / Clock" twice, the hour gures will ash.
2. Turn the knob to adjust the hour gures, the input time should be within 0-23.
3. Press "Kitchen Timer / Clock" to conrm, the minute gures will ash.
4. Turn the knob to adjust the minute gures, the input time should be within
0-59.
5. Press "Kitchen Timer / Clock" to nish clock setting. ":" will ash. The cur-
rent time will display.
Microwave Cooking
1. Press the "Microwave" key once, and "P100" will display.
2. Press "Microwave" repeatedly or turn the knob to select the microwave power.
"P100", "P80", "P50", "P30", "P10" will display in order.
3. Press "Start / +30 Sec. / Conrm" to conrm setting.
4. Turn the knob to adjust the cooking time (the maximum cooking time is 95 minutes).
5. Press "Start / +30 Sec. / Conrm" to start cooking.
Microwave Power Chart
Note
If the clock is not set, it would not function when powered.
Note
The step quantities for the adjustment time of the coding switch are as follow
0-1 min 5 seconds
1-5 min 10 seconds
5 -10 min 30 seconds
10-30 min 1 minute
30-95 min 5 minutes
Microwave Power High Medium High Medium Medium Low Low
Display P100 P80 P50 P30 P10

15
Operation instruction
Grill or Combi. Cooking
1. Press "Grill / Combi." once, the screen will display "G", and press "Grill /
Combi." repeatedly or turn the knob to choose the power you want, and "G","C-1"
or "C-2" will display.
2. Press "Start / +30 Sec. / Conrm" to conrm the power.
3. Turn the knob to set cooking time (the maximum cooking time is 95 minutes).
4. Press "Start / +30 Sec. / Conrm" again to start cooking.
Example: If you want to use 55 % microwave power and 45 % grill power (C-1)
to cook for 10 minutes, you can operate the oven as the following steps.
1. Press "Grill / Combi." once, the screen displays "G".
2. Continue to press "Grill / Combi." until the screen displays "C-1".
3. Press "Start / +30 Sec. / Conrm" to conrm.
4. Turn the knob to adjust the cooking time until the oven displays "10:00".
5. Press "Start / +30 Sec. / Conrm" to start cooking.
Combination Power instructions
Defrost By Weight
1. Press "Weight Defrost" once, the screen will display "dEF1".
2. Turn the knob to select the food weight. The range of weight is 100-2000 g.
3. Press "Start / +30 Sec. / Conrm" key to start defrosting.
Program Display Power Power
Grill G0 % 100 %
Combi. 1 C-1 55 % 45 %
Combi. 2 C-2 36 % 64 %
Note
If half the grill time passes, the oven sounds twice, and this is normal. In order to have
a better effect of grilling food, you should turn the food over, close the door, and then
press "Start / +30 Sec. / Conrm" to continue cooking.
If no operation, the oven will continue working.
Note
If half the defrost time passes, the oven sounds twice, and this is normal. In order to
have a better effect of defrosting, you should turn the food over, close the door, and
then press "Start / +30 Sec. / Conrm" to continue cooking. If no operation, the oven
will continue working.

16
Operation instruction
Defrost By Time
1. Press "Time Defrost" once, the screen will display "dEF2".
2. Turn the knob to select the cooking time. The maximum time is 95 minutes.
3. Press "Start / +30 Sec. / Conrm" key to start defrosting.
Multi-Stage Cooking
2 stages can be maximumly set. If one stages is defrosting, it should be put in
the rst stage automatically. The buzzer will ring once after each stage and the
next stage will begin.
Example: if you want to defrost the food for 5 minutes, then to cook with 80 %
microwave power for 7 minutes.
The steps are as following:
1. Press "Time Defrost" once, the screen will display "dEF2".
2. Turn the knob to adjust the defrost time of 5 minutes.
3. Press "Microwave" once, the screen will display "P100".
4. Press "Microwave" repeatedly to choose microwave power till "P80"
displays.
5. Press "Start / +30 Sec. / Conrm" to conrm.
6. Turn the knob to adjust the cooking time of 7 minutes.
7. Press "Start / +30 Sec. / Conrm" to start cooking.
Kitchen Timer
1. Press "Kitchen Timer / Clock" once, the screen will display "00:00".
2. Turn the knob to enter the correct timer (the maximum cooking time is 95
minutes).
3. Press "Start / +30 Sec. / Conrm" to conrm setting.
Note
If half the defrost time passes, the oven sounds twice, and this is normal. In order to
have a better effect of defrosting, you should turn the food over, close the door, and
then press "Start / +30 Sec. / Conrm" to continue cooking. If no operation, the oven
will continue working.
Note
Auto menu and speedy cooking cannot be set as one of the multi-stage.

17
Operation instruction
4. When the kitchen time is reached, the buzzer will ring 5 times.
If the clock has been set (24-hour system), the screen will display the current
time.
Auto Menu
1. In waiting state, turn the knob right to choose the menu.
2. Press "Start / +30 Sec. / Conrm" to conrm the menu you choose.
3. Turn the knob to choose the the weight of food.
4. Press "Start / +30 Sec. / Conrm" to start cooking.
Note
The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.
The menu chart
Menu Weight Power
Pizza 200 g 100 % Мic.
400 g
Meat 250 g 100 % Мic.
350 g
450 g
Vegetable 200 g 100 % Мic.
300 g
400 g
Pasta 50 g (with 450 g cold water) 80 % Мic.
100 g (with 800 g cold water)
Potato 200 g 100 % Мic.
400 g
600 g
Fish 250 g 80 % Мic.
350 g
450 g
Beverage 1 cup (about 120 ml) 100 % Мic.
2 cups (about 240 ml)
3 cups (about 360 ml)
Popcorn 50 g 100 % Мic.
100 g

18
Operation instruction
Speedy Cooking
1. In waiting state, press "Start / +30 Sec. / Conrm" key to cook with 100 %
power level for 30 seconds. Each press on the same key can increase 30 seconds.
The maximum cooking time is 95 minutes.
2. During the microwave, grill, combination cooking and the defrost by time
process, press "Start / +30 Sec. / Conrm" to increase the cooking time.
3. Under the states of auto menu and defrost by weight, cooking time cannot be
increased by pressing "Start / +30 Sec. / Conrm".
4. In waiting state, turn the knob left to choose the cooking time. After adjusting
the cooking time, press "Start / +30 Sec. / Conrm" to start microwave cooking
with 100 % power lever.
Lock Function for Children
Lock: In waiting state, press "STOP / Clear" for 3 seconds to enter the children-
lock state and the current time will display if the time has been set, otherwise,
the screen will display .
Lock quitting: In locked state, press "STOP / Clear" for 3 seconds, the lock is
released.
Inquiring Function
1. In cooking states of microwave or grill and combination. Press "Microwave"
or "Grill / Combi.", the current power will be displayed for 3 seconds.
2. If the clock has been set, during cooking state, press "Kitchen Timer / Clock"
to check the current time. It will be displayed for 3 seconds.
Specication
1. If the door is opened in the process of cooking, close the door and then press
"Start / +30 Sec. / Conrm" to continue cooking.
2. Once the cooking programme has been set, "Start / +30 Sec. / Conrm" is
not pressed in 1 minutes. The current time will be displayed. The setting will be
cancelled.
3. The buzzer sounds once by efcient press, inefcient press will be no re-
sponce.

19
Trouble shooting
Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and trea-
ted. If at any time in future you need to dispose of this product plea-
se do NOT dispose of this product with household waste. Please
send this product to WEEE collecting points where available.
Normal
Microwave oven interfe-
ring TV reception
Radio and TV reception may be interfered when micro-
wave oven operating. It is similar to the interference of
small electrical appliances, like mixer, vacuum cleaner,
and electric fan. It is normal
Dim oven light In low power microwave cooking, oven light may beco-
me dim. It is normal
Steam accumulating on
door, hot air out of vents
In cooking, steam may come out of food. Most will
get out from vents. But some may accumulate on cool
place like oven door. It is normal
Oven started accidental-
ly with no food in
It is forbidden to run the unit without any food inside. It
is very dangerous
Trouble Possible Cause Remedy
Oven cannot be started
(1) Power cord is not
plugged in tightly
Unplug. Then plug again
after 10 seconds
(2) Fuse blowing or cir-
cuit breaker works
Replace fuse or reset cir-
cuit breaker (repaired by
professional personnel of
our company)
(3) Trouble with outlet Test outlet with other
electrical appliances
Oven does not heat (4) Door is not closed
well
Close door well

20
Микроволновая печь
