Monacor AXOC-2812BV User manual

Full HD 1080P
AHD Bullet Camera
AXOC-2812BV
Thanks for purchasing our product. Before operating the unit, please read the
instructions carefully and keep this manual for future reference.

i
Safety Warning
1. Read this manual carefully before installing the unit
Please read this manual first for correct installation and operation.
2. Never install the camera on a ceiling that cannot hold its weight
The product may fall down and cause damages.
3. Never install the camera near electric or magnetic fields
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio
speakers since the magnetic fields generate from above devices would distort the video image.
4. Never install or use the camera in areas exposed to water, oil or gas
The water, oil or gas may result in operation failure, electric shock or fire. Do not use this unit
near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor installation, or any area which is
classified as a wet location.
5. Never face the camera toward the sun
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
6. Power Cord Protection
Touching the wet power cord with hands or touching the power cord with wet hands may result in
electric shock. Power supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, playing particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the appliance.
7. Attachments
Do not use attachment not recommended by the product manufacturer as they may cause
hazards.
8. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind onto the product.
9. Do not operate the camera in environments where the temperature,
humidity or power source is beyond the specified ones
Use the camera in suitable environments where the temperature is within -10°C~50°C and
humidity below 80%. Use the input power source as this instruction indicated.

ii
10. Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
11. Never disassemble the camera nor put impurities in it
Disassembly or impurities may result in trouble or fire.
12. Stop using when the product emits smoke or abnormal heat
13. Servicing
Do not attempt to repair this unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
14. Retain Instructions
THE SAFETY AND OPERATING INSTRUCTIONS SHOULD BE RETAINED FOR FUTURE
REFERENCE.
NOTE:
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without notice.

iii
Table of Contents
1. CAMERA......................................................................................................1
1.1 FEATURE...................................................................................................1
1.2 LIST OF CONTENTS ...................................................................................1
1.3 DIMENSIONS .............................................................................................1
1.4 SPECIFICATION..........................................................................................2
1.5 CAMERA PARTS &CONNECTION TO POWER UNIT.....................................3
2. CAMERA OSD.............................................................................................4
2.1 MENU...........................................................................................................6
2.2 LENS...........................................................................................................7
2.3 EXPOSURE....................................................................................................8
2.4 WDR/BLC ................................................................................................10
2.5 WHITE BAL.............................................................................................11
2.6 DNR ..........................................................................................................12
2.7 DAY/NIGHT.............................................................................................13
2.8 IMAGE ........................................................................................................15
2.9 EFFECT.......................................................................................................16
2.10 MOTION..................................................................................................17
2.11 PRIVACY .................................................................................................19
2.12 DEFOG ....................................................................................................20
2.13 SYSTEM ..................................................................................................21

1
1.CAMERA
1.1 Feature
Full HD 1920x1080P@25/30fps (AHD)
1/3”Sony 2.4M Exmor CMOS Sensor
Color: 0.1 Lux, B/W: 0.06 Lux, IR On: 0 Lux @F1.6
Video Output: AHD / Composite BNC
OSD Control / CoC (Disabled in PoC models)
Fog Reduction & Noise Reduction & Sense Up Functions
Shutter Mode (AUTO / MANUAL)
Mechanical IR Cut Filter (ICR)
PoC (Power over Coaxial Cable) function supported
1.2 List of Contents
Camera Unit
User manual
1.3 Dimensions
(Unit: mm)

2
1.4 Specification
Image Sensor
1/3”Sony 2.4M Exmor CMOS Sensor
Video Frame Rate
1920x1080p@25/30fps, 1280x720p@30fps
Minimum Illumination
Color: 0.1 Lux, B/W: 0.06 Lux, IR On: 0 Lux @F1.6
Wide Dynamic Range
90dB
Video Output
BNC connector (AHD) & Composite Simultaneous (Option) ;
Composite is disabled when WDR ON
Mechanical IR Cut Filter (ICR)
Yes
IR LED ; Working Distance
30 units (30pcs High Bright); 15~20m
Audio
---
OSD Menu
OSD / CoC (Disabled in PoC models)
Day&Night Mode
COLOR / B&W / AUTO / IR Sync
Auto Electronic Shutter
1/25(30)~1/30,000 sec.
Manual Electronic Shutter
1/25(30), 1/50(60), 1/100(120), 1/240, 1/500, 1/1,000, 1/2,000, 1/4,000,
1/8,000, 1/16,000 , 1/30,000 sec.
Automatic Gain Control
0~20
White Balance
AWB / ATW / PWB(PUSH LOCK) / MANUAL
WDR;BLC;HLC
HIGH (Max 120dB) / MIDDLE / LOW / OFF ; Program ; ON/OFF
Fog Reduction
Auto/Manual/Off ; Level: High / Middle / Low
Dynamic Noise Reduction
HIGH / MIDDLE / LOW / OFF
Sense Up
ON (x2~x32) / OFF
Language
ENGLISH, JAPANESE, TRADITIONAL CHINESE, SIMPLIFIED CHINESE
E-Zoom
x1~x8 / OFF
Image Effects
SHARPNESS / SATURATION / GAMMA / MIRROR / FLIP / BLACK LEVEL
Privacy Zone Masks
16 Zones Programmable
Motion Detection
ON: Sensitivity, Area Program/Off
Lens Shading Compensation
ON/OFF
Automatic IRIS ; Connector
DC
Lens Adapter
Built-in Varifocal lens
Lens
f2.8~12mm
Lens Option
---
Water Resistance
IP66
Max Breaking Strength
---
Power Supply; Consumption
12Vdc: 7.8W, PoC: 8.2W (Option)
Operation ; Storage Temperature
-10°C~50°C ; -20°C~60°C
Operation ; Storage Humidity
Maximum: RH80% ; RH90%
Dimensions
101.4 x 87.3 x 280.3mm
Net weight
640g
Accessories
---
Subject to change without notice.

3
1.5 Camera Parts & Connection to Power Unit
①OSD Control Buttons (depends on model)
ENTER button
UP & DOWN buttons
LEFT & RIGHT buttons
②AHD Cable
For AHD signal output, it supports Power over Coaxial cable (Option) technology.
③Video Out (BNC Connector)
For analog composite video TV signal output.
Note: Please DO NOT connect POWER UNIT to this port as it will cause the output
function DAMAGE.
④Power Input: DC
Connect to the power supply of 12Vdc.
⑤Camera Input Terminal
Receive color or B/W composite video signals from the camera and supply DC power to
the camera.
⑥Video Output Terminal
Connect to the video monitor or other video output devices.
Note: Connectors may vary depending on model.

4
2.Camera OSD
To operate the camera OSD setting, use the control key pad to control it. For some models, you
might need to open the control panel case to access the control key panel. Press the Enter button
which in the center of the control panel to bring up the "MENU" on the TV/Monitor screen as below.
Please check the OSD content tables to find out the function you need.
*Note: Function Names and Default Values may vary depending on models.
■Menu
MENU
Default Value
Alternative Options
LENS
AUTO IRIS<┘
MANUAL<┘
EXPOSURE
<┘
See Exposure Table
WDR/BLC
D-WDR<┘
OFF, HLC<┘, BLC<┘
WHITE BAL
AWB or ATW
PUSHLOCK<┘, MANUAL<┘, ATW or AWB
DNR
<┘
See DNR Table
DAY/NIGHT
AUTO <┘ orIR SYNC<┘
B/W<┘, COLOR
<┘
See Image Table
EFFECT
<┘
See Effect Table
SYSTEM
<┘
See System Table
EXIT
<┘
■Exposure
EXPOSURE
Default Value
MODE
INDOOR
BRIGHTNESS
8
FLICKER
ON
SHUTTER
---<┘
AGC MAX
18
SENS-UP
OFF
RETURN
<┘

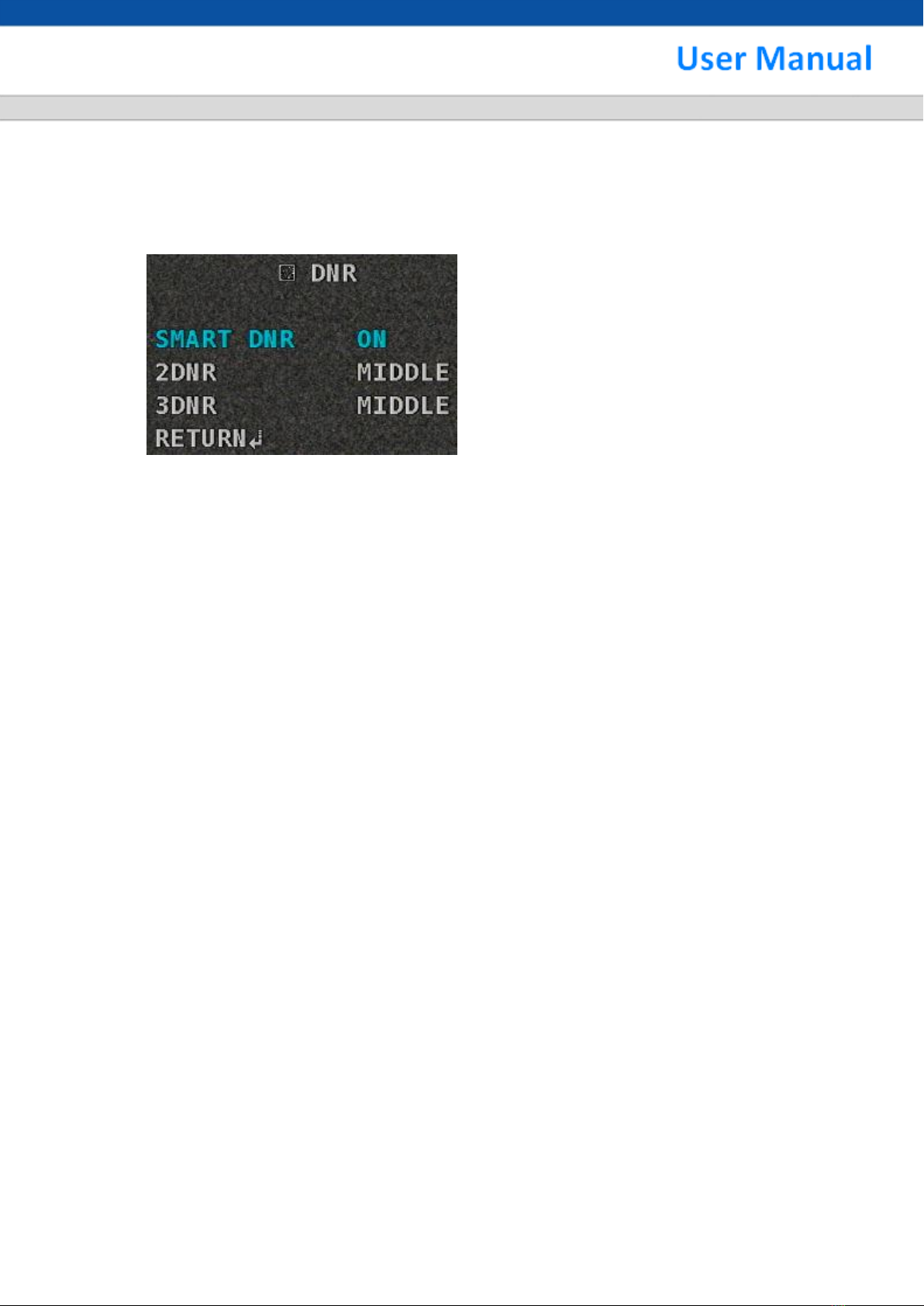

■DNR
DNR
Default Value
SMART DNR
ON
2DNR
MIDDLE
3DNR
MIDDLE
RETURN
<┘
■Image
Default Value
SHARPNESS
3
SATURATION
10

5
GAMMA
0.5
MIRROR
OFF
FLIP
OFF
BLACK LEVEL
15
RETURN
<┘
■Effect
EFFECT
Default Value
MOTION
ON
PRIVACY
OFF
D-ZOOM
1.0X
DEFOG
OFF
RETURN
<┘
■System
SYSTEM
Default Value
DIGITAL OUT
1080P
FRAME RATE
30 FPS
ANALOG OUT
NTSC
DVR
<┘
CABLE LENGTH
0-200M
COLORBAR
OFF
LANGUAGE
ENGLISH
FW 4.0 AH120
160907107NBXJC04
RESTORE
NO
RETURN
<┘

6
2.1 Menu
In the "MENU" of camera OSD, there are several sub-menus and items can be selected to modify
the settings.
■LENS:
To select the lens is on AUTO IRIS or on MANUAL. Models with Motorized lens have IR
Calibration function enabled.
■EXPOSURE:
This is a sub-menu for exposure setting. Please check the details in its section.

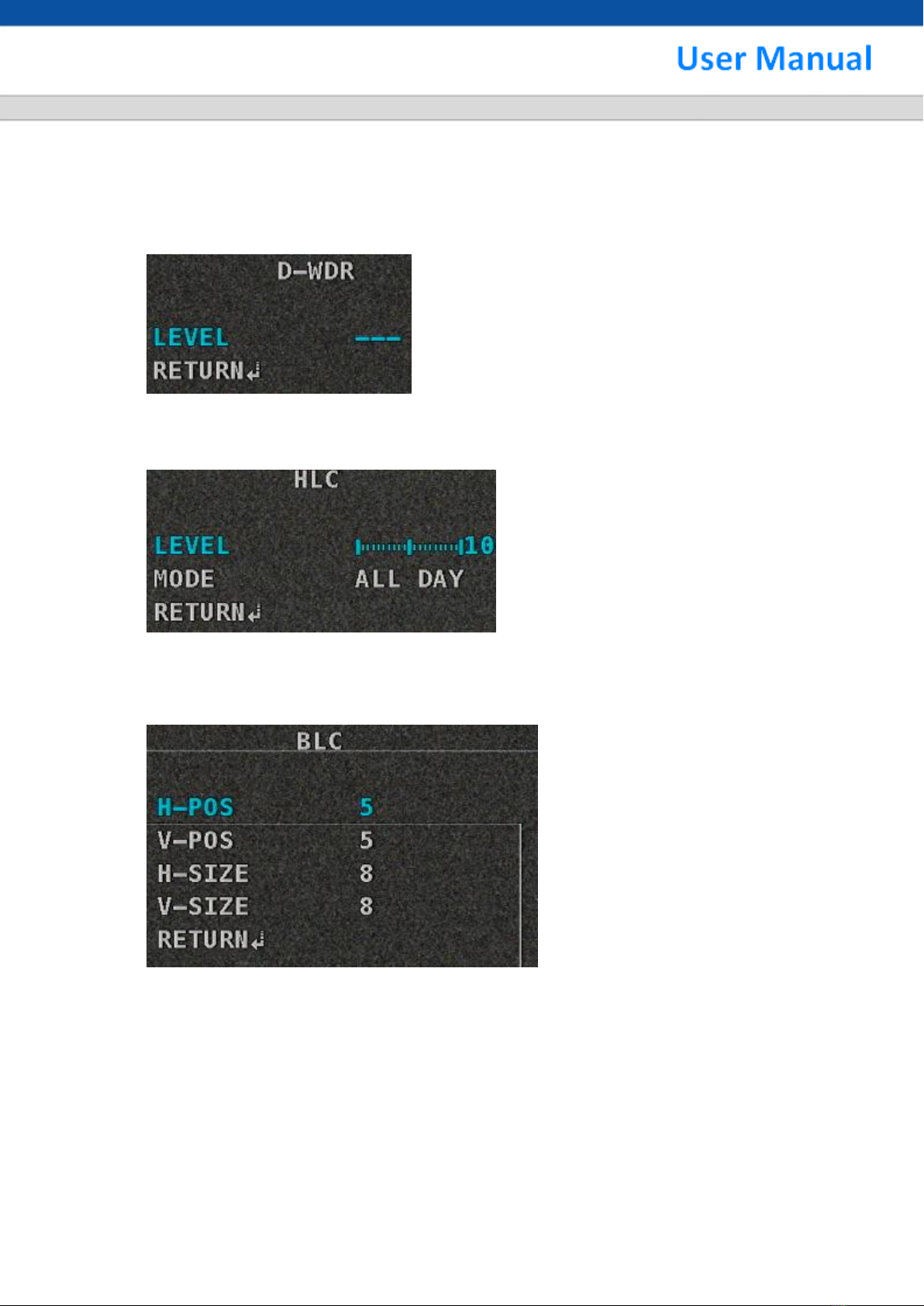

■WDR/BLC:
To select the mode of WDR/BLC. Models with PoC function have no WDR option.
■WHITE BAL:
To select the mode of white balance.
■DNR:
To adjust the mode of DNR. 2DNR/3DNR can be set among OFF/LOW/MIDDLE/HIGH options
and the default is MIDDLE.
■DAY/NIGHT:
To select the mode of day/night. Keep camera display in color, monochromic (B/W), or
synchronized with IR.
■IMAGE:
This is a sub-menu for image setting. Please check the details in its section.
■EFFECT:
This is a sub-menu for effect setting. Please check the details in its section.
■SYSTEM:
This is a sub-menu for system setting. Please check the details in its section.
■EXIT:
After you finished all the settings, to exit the OSD, please select the "EXIT" on the "MENU". Just
push the "Enter" button, and then it will quit the setting menu.

7

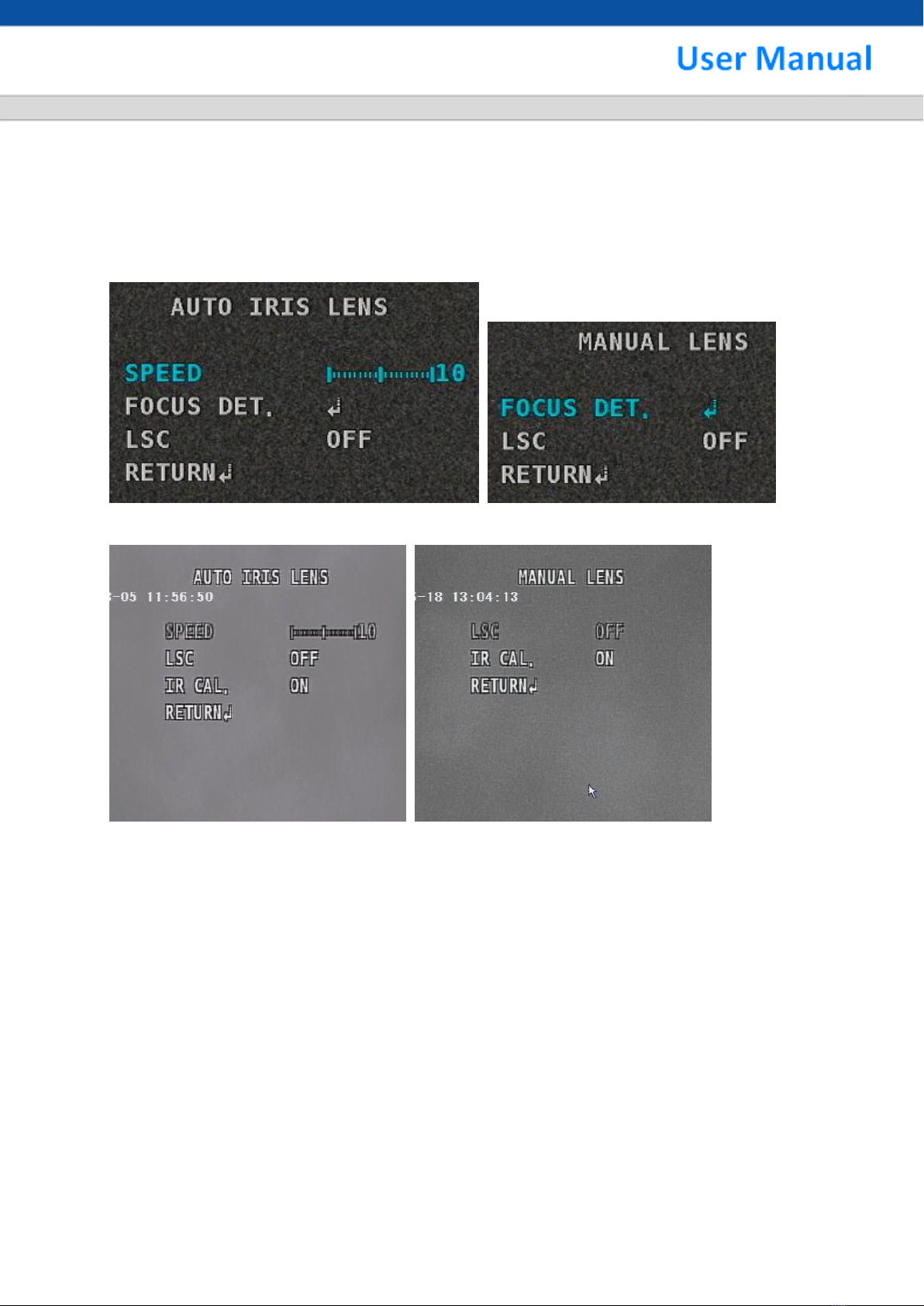

2.2 LENS
In the "LENS" of camera OSD, there are some items can be selected to modify the settings. Users
can switch lens mode between AUTO IRIS and MANUAL and adjust the optical settings
accordingly.
For non-motorized lens models
For motorized lens models
■SPEED:
To modify the value of lens speed accordingly.
■FOCUS DET. Or IR CAL.:
To enter the advanced setting for assisting the Focus Detection. Optimal focus adjustment can
be achieved easily with built-in Focus Detection.
Models with Motorized Lens have IR CAL. (Calibration) function enabled (ON) instead.
■LSC:
To enable or disable the function of Lens Shading Compensation.
■RETURN:
Return to upper level of OSD menu.

8
2.3 Exposure
In the "EXPOSURE" of camera OSD, there are some items can be selected to modify the settings.
The main function of this page is about the optical settings.
AUTO IRIS LENS
MANUAL LENS
■MODE:
INDOOR is recommended for BOX type models. OUTDOOR is recommended for other models
with either AUTO IRIS or AUTO IRIS plus IR function.
■BRIGHTNESS:
To modify the value of brightness.
■FLICKER:
To enable or disable FLICKER function. The default is OFF.
■SHUTTER: (AUTO IRIS LENS)
AUTO, MANUAL, 2 options available. The value of SHUTTER MIN/MAX speed for AUTO and
MANUAL modes can be further adjusted as shown in the screenshots below.
The defaults of SHTTER MIN/MAX are 1/30 and 1/120 under INDOOR mode; while they are
1/30 and 1/500 under OUTDOOR mode. There is no default SPEED difference between the
two modes if MANUAL SHUTTER is chosen. Please refer to the screenshots below.

9
AUTO SHUTTER (INDOOR) AUTO SHUTTER (OUTDOOR)
MANUAL SHUTTER
■SHUTTER: (MANUAL LENS)
AUTO, MANUAL, 2 options available. The value of SHUTTER MIN/MAX speed for AUTO and
MANUAL modes can be further adjusted as shown in the screenshots below.
The defaults of SHTTER MIN/MAX are 1/30 and 1/30000 for AUTO SHUTTER; while the
default MANUAL SHUTTER SPEED has no change (1/30). Please refer to the screenshots
below.
AUTO SHUTTER MANUAL SHUTTER
■SENSE-UP:
To modify the "sense up" speed setting from 2 to 32x.
■AGC MAX:
To modify the value of AGC (Automatic Gain Control). The bigger the number, the brighter the
screen can be. Note that the noise will increase as well.
■RETURN:
Return to upper level of OSD menu.

10
2.4 WDR/BLC
In the "WDR/BLC" of camera OSD, total 4 options are available and 3 of which have advanced
settings menu for adjustment. Please see details below.
■D-WDR:
LEVEL can be adjusted, but it’s disabled under Factory Default (Restore setting).
■HLC:
LEVEL: To adjust the value from 0 to 10. Default is 10.
MODE: To select the mode between ALL DAY and NIGHT ONLY.
■BLC:
To adjust the Horizontal/Vertical value for BLC (inner frame in the screenshot) position and size
separately.
■OFF:
To disable WDR/BLC function.
■RETURN:
Return to upper level of OSD menu.

11
2.5 WHITE BAL
In the "WHITE BAL" of camera OSD, total 4 options are available and 2 of which have advanced
settings menu for adjustment. Please see details below.
■MANUAL:
KELVIN: To adjust the KELVIN (Color temperature) value among LOW/MIDDLE/HIGH.
R-GAIN: To adjust the R-GAIN (RED GAIN) value from 0 to 20.
B-GAIN: To adjust the B-GAIN (BLUE GAIN) value from 0 to 20
■PUSH LOCK:
Press ENTER to lock white balance according to the current display (e.g. point the camera
towards a sheet of white paper). The camera will start processing as shown in the screenshot
above.
■AWB:
Auto White Balance.
■ATW:
Auto Tracking White balance.
■RETURN:
Return to upper level of OSD menu.

12
2.6 DNR
In the "DNR" of camera OSD, there are some items can be selected to modify the settings. The
main function of this page is to adjust the digital noise reduction.
■SMART DNR:
To enable or disable SMART DNR mode. Default setting is ON as of recommended use.
■2DNR:
To modify the value among OFF/LOW/MIDDLE/HIGH. Default setting is MIDDLE for enhancing
image quality under low light.
■3DNR:
To modify the value among OFF/LOW/MIDDLE/HIGH. Default setting is MIDDLE for enhancing
image quality under low light.
■RETURN:
Return to upper level of OSD menu.

13
2.7 DAY/NIGHT
In the "DAY/NIGHT" of camera OSD, AUTO, IR SYNC, and B/W, can be selected to modify the
settings. Selecting COLOR will keep the camera in color display and B/W is on the contrary. IR
SYNC makes the camera view synchronize with IR LED to switch COLOR or B/W based on the
brightness of the environment.
■LIVE LEVEL:
The camera will automatically detect the lighting condition of the current environment and show
the number. Bigger number means brighter environment.
■DAY->NIGHT :
In collaboration with LIVE LEVEL function, set the value for the camera to switch from DAY to
NIGHT display.
■NIGHT->DAY:
In collaboration with LIVE LEVEL function, set the value for the camera to switch from NIGHT to
DAY display.
■AGC MAX:
To modify the value of AGC (Automatic Gain Control). The bigger the number, the brighter the
screen can be. Note that the noise will increase as well.
■DELAY (S):
To modify the delay time value from 0-255.
■IR OPTIMIZER:
To adjust the IR Optimizer value to improve the image exposure issue when IR is turned on.
The dark side of the image will also be optimized in terms of even brightness to enhance the
effect as a whole.
■NIGHT OUTPUT:
To adjust the setting value between HIGH and LOW under NIGHT OUTPUT. This option will not
be shown for models with FIXED IRIS plus IR or AUTO IRIS plus IR to avoid IR switching
errors.

14
■IR OPTIMIZER:
To adjust the IR Optimizer value to improve the image exposure issue when IR is turned on.
The dark side of the image will also be optimized in terms of even brightness to enhance the
effect as a whole.
■NIGHT INPUT:
To adjust the setting value between HIGH and LOW under NIGHT INPUT. Camera display in
COLOR or B/W depends on the HIGH/LOW input on the DNI port of the rear panel. This
function works only for box models when syncing with IR illuminators. No adjustment is needed
for DOME and BULLET models.
■DELAY:
To modify the delay time value from 0-255.
■IR OPTIMIZER:
To adjust the IR Optimizer value to improve the image exposure issue when IR is turned on.
The dark side of the image will also be optimized in terms of even brightness to enhance the
effect as a whole.
■RETURN:
Return to upper level of OSD menu.

15
2.8 Image
In the "IMAGE" of camera OSD, there are some items can be selected to modify the settings. The
main function of this page is about the image settings.
■SHARPNESS:
To modify the value of sharpness.
■SATURATION:
To modify the value of saturation.
■GAMMA:
To modify the value of gamma.
■MIRROR:
To enable or disable the mode of image mirror.
■FLIP:
To enable or disable the mode of image flip.
■BLACK LEVEL:
To adjust the value of black level.
■RETURN:
Return to upper level of OSD menu.

16
2.9 Effect
In the "EFFECT" of camera OSD, there are some items can be selected to modify the settings.
The main function of this page is about the camera effects.
■MOTION:
To enable the "motion" effect or not. Enable this will go its sub-menu for motion setting. Please
check the details in its section.
■PRIVACY:
To enable the "privacy" effect or not. Enable this will go its sub-menu for privacy setting. Please
check the details in its section.
■D-ZOOM:
To modify the value of Digital-zoom.
■DEFOG:
To enable the "defog" effect or not. Enable this will go its sub-menu for defog setting. Please
check the details in its section.
■RETURN:
Return to upper level of OSD menu.
