montpellier MIFF502 User manual

Integrated Fridge Freezer
MIFF502/MIFF702 - Static
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

&RQWHQWV 
2
4
5
6
7
8
9
12
13
14
16
20
21
23
24
26
Important information
Important safety and usage Instructions
Before first use
General use of the fridge
General use of the freezer
Storage
Control panel
Care and cleaning
Defrosting the Fridge & Freezer
Troubleshooting
Installation Preparation
Ventilation
Installation into the cabinet
Mounting the fascia doors
Reversing the appliance doors
Electrical Information
Climate range
Practical tips
Energy Efficiency Information
Warranty and service
27
28
30
19
,03257$173OHDVHUHDGWKHXVHULQVWUXFWLRQVFDUHIXOO\EHIRUH
XVLQJ WKH DSSOLDQFH IRU WKH ILUVW WLPH DQG EHIRUH LQVWDOOLQJLW 
)DLOXUHWRLQVWDOOWKHappliance,or tohave itinstalled,as per the
user manual could invalidate the warranty. Any service calls
relating tomisuse or incorrect installation could incur a service
charge.

2
Important Information
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that we reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or who
lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety. Under no circumstances should
any external covers be removed for servicing or maintenance except
by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (Low
voltage) and requirements of EU Directive 2014/30/EU (EMC).
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety
(LVD) and Electromagnetic interference compatibility (EMC). Parts
intended to come into contact with food conform to 1935/2004/EC.
This refrigeration appliance is intended for use as a built-in
appliance.
Appliance Model
Serial Number

3
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of as
urban waste. The refrigeration system contains insulating gases and
refrigerants, which require specialised waste disposal. The valuable
materials contained in this appliance can be recycle. It must be taken
to a special local authority differentiated waste collection centre or to
a dealer providing this service.
Before disposing of an old appliance, remove the door seals, latch or
bolt lock to avoid the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

4
Important Safety and Usage
Instructions
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This is a household appliance, which is produced in accordance with
the national standard. It is intended for food storage only, not for
storage of blood, medicine and biological products.
To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
To prevent risk of electromagnetic interference or other accidents,
do not place a microwave oven on top of the refrigerator or use any
electric appliance inside the refrigerator.
Do not allow children to play with or near the appliance.
The internal surface of freezer compartment is very cold when the
appliance is running. Do not touch the surface especially when hands
are wet.
Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
This appliance is designed to be used in ambient temperatures
between 18-38˚C. Use outside of this range may cause the
appliance to fail.

5
Before First Use
You must allow the fridge to settle for at least twenty four hours prior to
switching the power on.
It is recommended that you clean the interior of the appliance prior to first
use, using a solution of bicarbonate of soda and warm water and then
thoroughly drying the interior.
The fridge may have an odour to it at first use. This will disappear as the appliance
cools.
When first switching the appliance on the fridge will default to 5°C and the freezer
to -18°C. The figure in the digital display for freezer temperature will flash until the
temperature drops below 0°C.
Please note:
The appliance will work continuously until it comes down to the correct
temperature.
If the appliance is switched off, you should allow five minutes before switching it
on again to prevent unnecessary damage to the compressor.
Never store inflammable or explosive items and strong corrosive acids or alkalis in
the appliance.

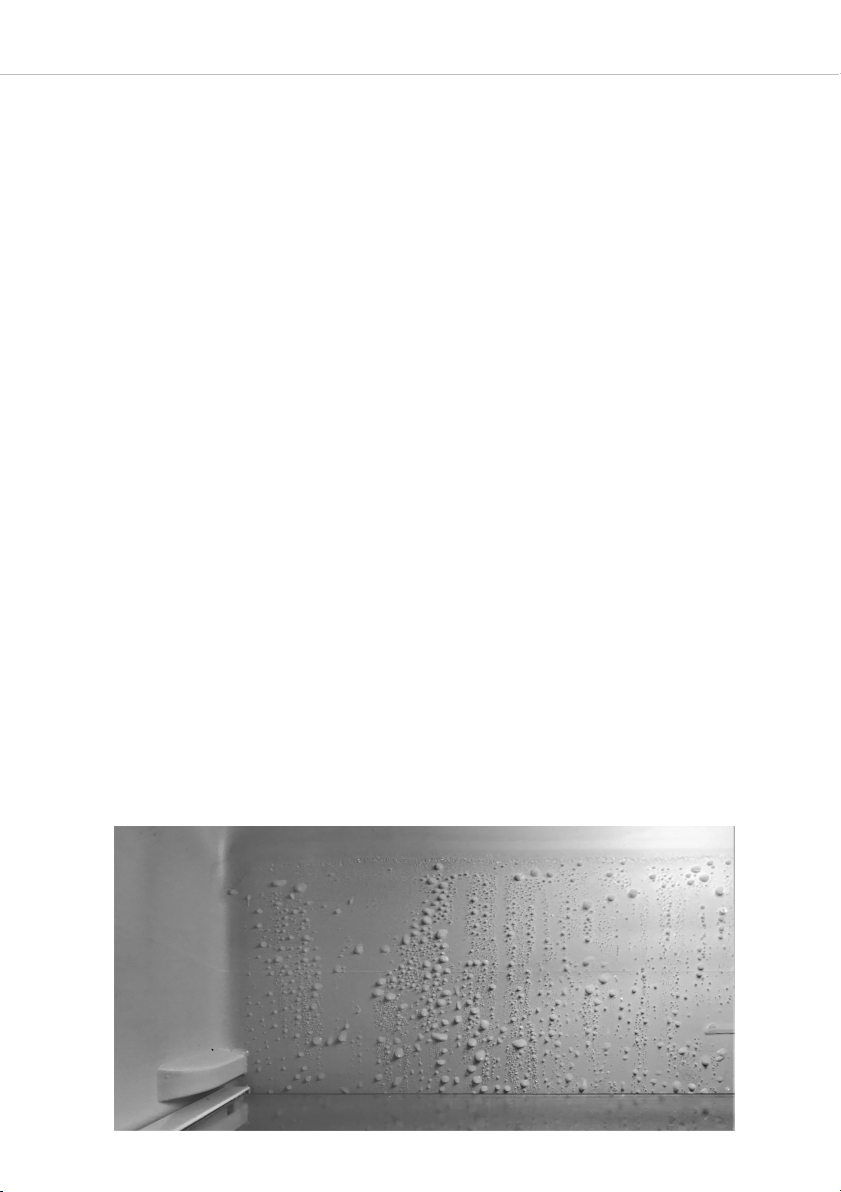

This fridge cools your food by making the inside back wall of the cavity cold. It is
normal for frost to build up on this surface(see below image) as it is a wet wall
fridge, it then dissipates and drains through a small drain hole at the bottom
where it evaporates harmlessly. The presence of frosting at the back is not a
malfunction of the fridge.

6
General use of the Fridge
• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should
be allowed to cool to room temperature before being put
into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator as this is
a wet wall appliance which during normal usage will form droplets
of ice on the rear wall(ref to image Page 5). This will cause items to
freeze to the back wall.
• Make sure food is clean and any extra water is wiped away before
putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help
prevent the loss of moisture, keep food fresh and avoid unpleasant
odours.
• Sort foods prior to storing. Any foods to be used soon should be
stored at the front of the shelf to prevent deterioration caused by
the door being open for prolonged periods.
• Do not overfill the fridge. There should be sufficient space between
the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to
keep the temperature low and save energy.

7
• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool
fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen
food. If no information is provided, foods should not be stored
for more than three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This reduces
the freezing time and improves the quality of the food after thawing.
• Wrap food before putting into the freezer. To stop the
wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type
of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been
completely cooked. Only defrost as much food as is required, to
prevent wastage.
• Bottled or canned drinks should not be stored in the freezer
compartments as they could explode.
• Check the rating plate to confirm the maximum amount of fresh
food that can be frozen within a 24 hour period.
• Do not attempt to freeze more than the maximum amount.
• To freeze fresh food more quickly, switch on the super freeze
function a few hours prior to placing the food in the freezer.
• Do not use the super freeze function for more than 24 hours. Use
over the recommended time will place unnecessary strain on the
refrigeration system.
)it is
Note: If the appliance does not have a freezer compartment (
not suitable for freezing foodstuffs.
General use of the Freezer

8
Storage
The fridge section is for short term food storage. Although the
temperature can be maintained between 0- 10˚C, extended
periods of food storage is not recommended.
As the cold air circulates within the fridge, the temperature can
vary between the different sections. As such, foods should be
stored in different sections according to type. Section 6 is the
coldest part of the fridge.
1. Butter
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts and cheese
6. Fresh meat and fish
7. Wine Rack
8. Fruit and vegetables
The fridge shelves can be moved
according to the storage requirements
within the fridge section. To move the
shelf, lift up the front section and then
pull it outwards. To replace, slide the
shelf back into the slot, and the lower
the front section. (see Fig.2)
If storing wine (75cl Bordeaux bottles)
on the bottle rack, the bottles should
be placed with the bottle neck facing
the rear wall of the appliance.
Fig. 1
Fig. 2
1
4
5
6
2
8
3
7

9

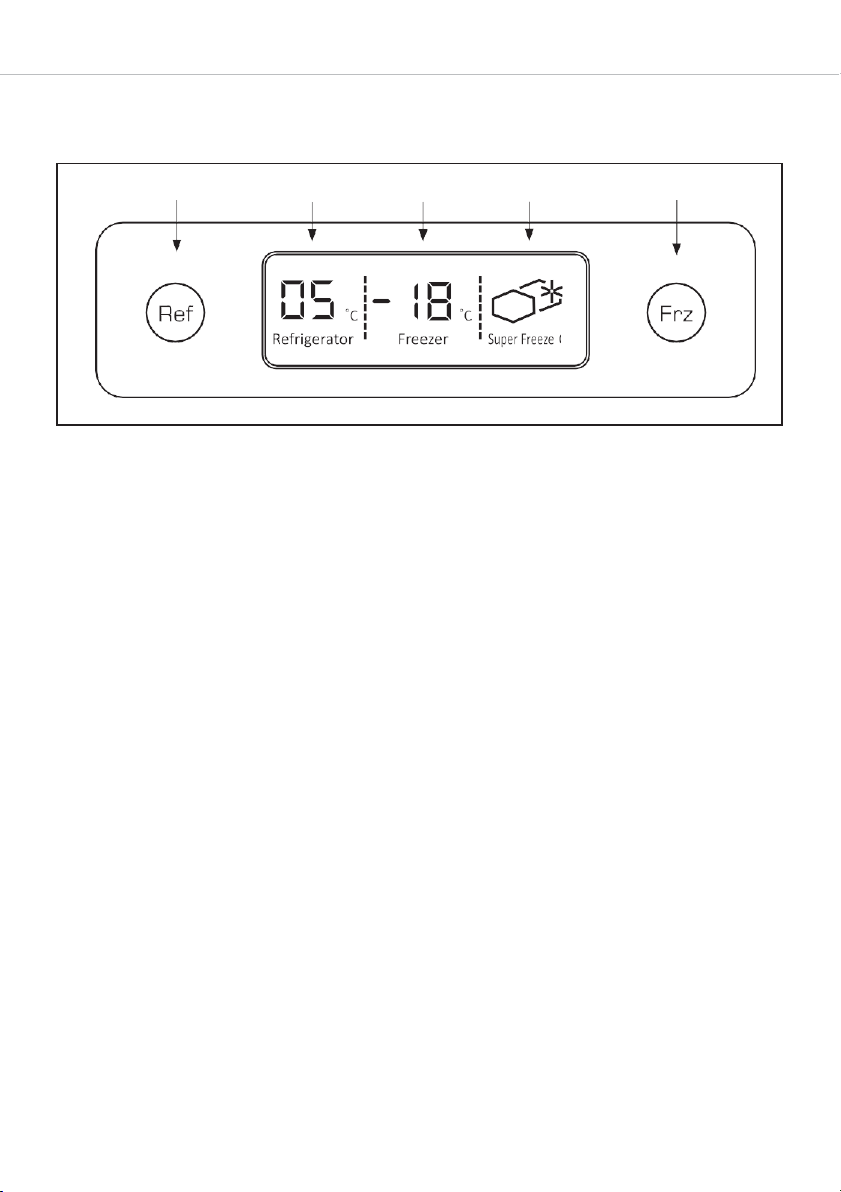

Control Panel
A. Refrigerator Button
This button is used to adjust the fridge temperature between 2°C and
10°C in 1°C increments.
To change the temperature setting, press this button once so the
display shows the set temperature and flashes. While it is still flashing,
press this button several times until the required temperature is shown
on the display. Approximately 5 seconds after your last press of this
button the new temperature is set and the display changes back to
showing the actual temperature inside.
After changing the temperature setting the time taken to achieve
the new temperature will depend on how big the change is from the
previous setting.
B. Refrigerator TemperatureDisplay
In normal running this shows the actual temperature in the refrigerator
compartment. See above for how this is used in setting the
refrigerator temperature.
Fig. 3
E
D
C B
A

10
C. Freezer TemperatureDisplay
In normal running this shows the actual temperature in the freezer
compartment. If the temperature in the freezer is higher than 0°C this
will flash, otherwise it will be static.
See below for how this display is used in setting the freezer
temperature.
D. Super Freeze Display
The super freeze function can be used to freeze large quantities of
fresh food as quickly as possible. Fig 3 shows how this display looks
when the super freeze is switched on.
To switch on the super freeze function, push and hold the freezer
button (E) for three seconds.
Once the food is frozen, push and hold the freezer button (E) for three
seconds again to switch off the super freeze function.
IMPORTANT Do not use the super freeze function for more than 24
hours at a time.
E. Freezer Button
The freezer temperature is regulated by this button between -25°C
and -15°C in 1°C increments.
To change the temperature setting, press this button once so the
display shows the set temperature and flashes. While it is still flashing,
press this button several times until the required temperature is shown
on the display. Approximately 5 seconds after your last press of this
button the new temperature is set and the display changes back to
showing the actual temperature inside: it will continue to flash if the
actual temperature in the freezer is above 0°C, and until the actual
temperature falls below zero. After changing the temperature
setting,the time taken to achieve the new temperature will depend
on how large the change form the previous setting.

11
Switching On andOff
When the fridge freezer is connected to a power supply it will
automatically switch on. It may be switched off without disconnecting
the power supply by pressing and holding the refrigerator button (A)
and the freezer button (E) at the same time for approx. five seconds.
Pressing these two buttons together again for a further five seconds
will switch the fridge freezer back on. Note that when doing this
there may be a delay before the motor starts, this is not a fault with
the appliance.
Twin Thermostat Control.
This appliance works on a twin thermostat system that gives you
control over your fridge or freezer independently allowing you to
turn the fridge off and leave the freezer on, for example if you are
going away on holiday but wish to keep your frozen food frozen, or
you can turn the freezer off when de-frosting without having to turn
off your fridge.
To turn either section off refer back to the relevant section above on
how to adjust the temperature and set the fridge or freezer to zero.
When you are ready to turn back on simply set the temperature
back to your required temperature setting.

12
Care and cleaning
Always disconnect the appliance
from the power supply before any
cleaning or maintenance.
The fridge and crisper sections
should be cleaned using a solution
of bicarbonate of soda and lukewarm
water. Do not use abrasive products or
detergents. After washing, rinse and
dry thoroughly.
Clean the shelves, drawers and
balconies separately by hand with a
mild solution of washing up liquid and water. Do not put them
in the dishwasher.
The water drain hole at the back of the fridge compartment and
the evaporating tray should be cleaned periodically to prevent the
defrosted water from collecting inside the fridge compartment. The
cleaning rod can be used to clean the drain hole. Always ensure
that the drainage channel, visible at the rear of the appliance,
is kept clear of debris. If you notice that the drain hole/ channel
is iced over, use warm (not boiling) water to remove the ice
blockage.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours.
Cleaning Rod
Water Outlet
Fig. 3
Drain Hole

13
Defrosting the Fridge
The fridge is self-defrosting. Any water created will run out of the fridge
through the channel at the back of the fridge.
It is important to keep the channel clear at all times using the cleaning tool
supplied.
The defrosted water is collected in the evaporating tray at the back of the
appliance and dissipated by evaporation.
Defrosting the Freezer
Once the ice in the freezer is more than 5mm thick the freezer should be
defrosted.
24 hours before defrosting the freezer turn on the super freeze function
to ensure all the food is thoroughly frozen.
Before switching off the freezer to perform the defrost make sure all the
food is securely wrapped in sheets of paper or towels and placed in a cool
place.
When performing the defrost do not use any heaters, hair dryers or
solvents as these may damage to appliance and will invalidate any
warranty.
Turn the appliance off at the control panel and remove all of the freezer
drawers.
Never use any metallic or sharp objects such as knives or forks to remove
the ice as this could damage the lining.
To speed up the defrosting process, place a bowl of warm water in the
base of the freezer compartment.
The freezer should be cleaned using a solution of bicarbonate of soda
and lukewarm water. Do not use abrasive products or detergents. After
washing out, rinse and dry thoroughly.
Once defrosted and all cleaning is complete replace baskets,food and
turn on the appliance.
The freezer compartment should be defrosted regularly to ensure
the most efficient running of the appliance.

14
Troubleshooting
If you have any problems with your appliance, you should check
the troubleshooting guide prior to calling the Customer Care to
prevent unnecessary service calls and potential cost.
Contact details are in the back of this manual
If the appliance is not working, check the following:
• There is power to the appliance
• The house fuses are intact and the fuse in the plug has not.
blown
• The on/off switch is not set to off
• The plug socket is functioning correctly. To check this, plug
anotherelectrical appliance in to see if the socket is faulty
If the appliance is working, but not very well, check the
following:
• The appliance is not overloaded
• The thermostat is set to an appropriate temperature
• The doors are closing properly
• The cooling system at the rear of the appliance is clean and free
of dust, and not touching the rear wall
• There is enough ventilation at the side,rear walls and
underneath
• The lower vents are neither blocked nor dirty
If the applianceis noisy, check the following:
• The appliance is level and stable
• The side and rear walls are clear, and there is nothing resting on
the appliance
• Note: The cooling gas in the refrigerator may make a slight
bubbling or gurgling noise, even when the compressor is not
running

15
There is water in the lower part of the refrigerator compartment
• Check the drain hole in the channel at the back of the refrigerator is
clear. If this is blocked refer back to Care and Cleaning (page12)
• Make sure no food or items are touching the back wall of the
fridge as this may cause items to freeze to the back wall and
during the automatic de-frost function water may run on to the
shelves as well as in to the lower part of the fridge.
Ice has formed on the back wall of the fridge
• It is normal for some ice droplets to form on the back wall of the
fridge(see below image)as this is a wet wall fridge. This does not
constitute a fault with the appliance.
• Ensure that no items inside the fridge are in contact with the back
wall.
If excessive ice has formed in the freezer:
• Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the door
seal needs to be replaced or the appliance is incorrectly fitted and
this can be due to the decor door(s) not being properly fitted. If
you are at all unsure, ask your fitter to check the decor doors.
• Check the door seal for any kinks, debris or damage. If you notice
any, and are unable to resolve the issue yourself, contact the
Customer Care so that the seal can be replaced.

16
Installation Preparation
This appliance must never be installedclosetoheatsources,
e.g. heating elements, cookers or in damp places.
• To ensure the appliance is level, you should use the height
adjustable feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the
rear wall.
• The appliance must be installed with adequate ventilation. Ensure
that there is clearance above the appliance to allow air to escape and
that there is space between the rear of the appliance and the wall.
• Adequate ventilation should be provided in the base of the unit to

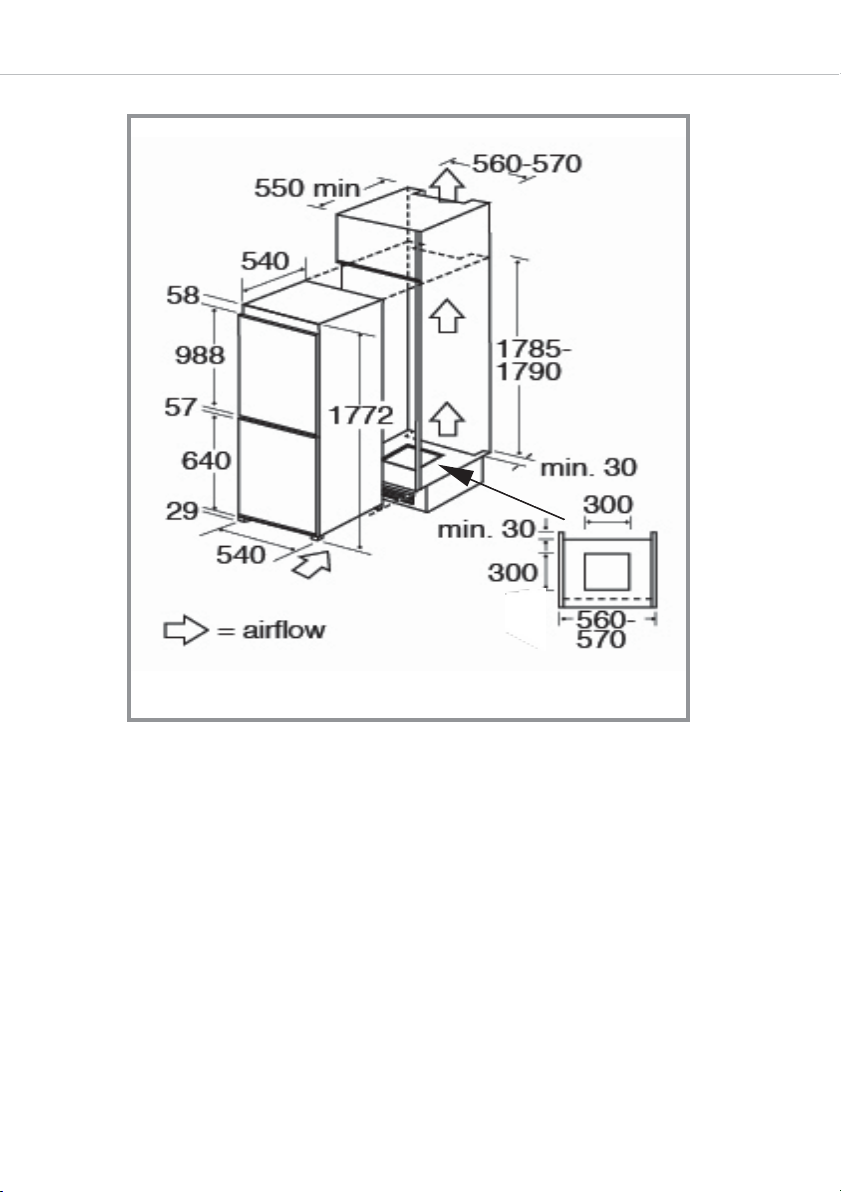

aid airflow (Fig.5/6 (A))Recommended cut out of 300mm x 300mm.
MIFF502
Fig. 5
(A)

17
Important
Please follow the instructions to install this unit.

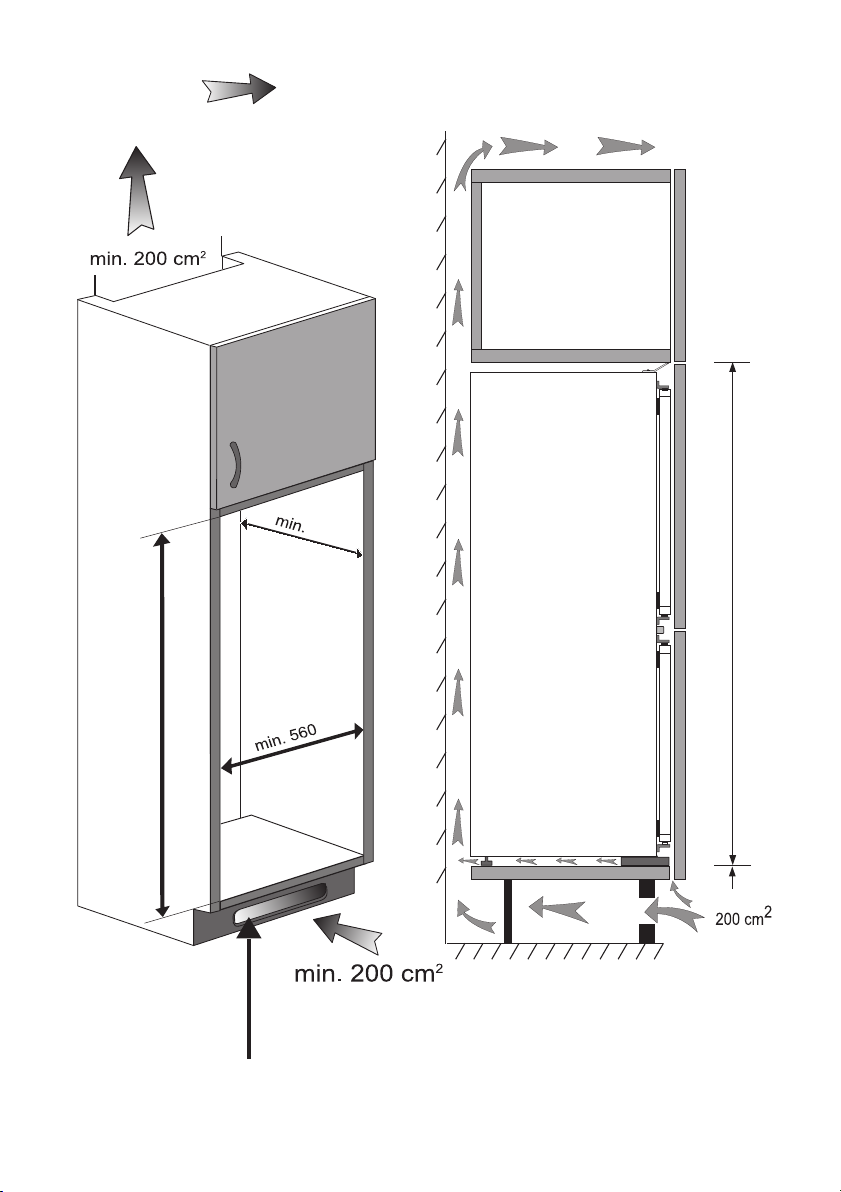

The diagrams show the ventilation requirements for your appliance.
Failure to provide adequate ventilation can lead to increased running
costs and premature failure and may invalidate The warranty
provided with the appliance.
Fig. 6
MIFF702
(A)

1785-1790
550
1785-17 90
Indicates required AirFlow
Ventilation Hole
Fig. 7
18
