Mopar Navus User manual

Owner’s Manual

© Copyright 2005 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street,
Olathe, Kansas 66062, U.S.A.
Tel. [phone] or 800/800.1020
Fax [phone]
Garmin (Europe) Ltd.
Unit 5, The Quadrangle, Abbey Park Industrial
Estate, Romsey, SO51 9DL, U.K.
Tel. [phone]
Fax [phone]
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County,
Taiwan
Tel. [phone]
Fax [phone]
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or
stored in any storage medium, for any purpose without the express prior written consent of DaimlerChrysler Motors Company, LLC and Garmin.
Information in this document is subject to change without notice. DaimlerChrysler Corporation reserves the right to change or improve its products and
to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site at
www.garmin.com/products/navus for current updates and supplemental information concerning the use and operation of this unit.
Garmin® and AutoLocate® are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin.
Navus™ is a trademark of DaimlerChrysler Corporation.
March 2005 Part Number 190-00539-00 Rev. A Printed in Taiwan

i
INTRODUCTION > PREFACE
INTRODUCTION
Congratulations on purchasing the Navus™! To get the most out of
your new navigation system, take the time to go through this Owner’s
Manual and learn the operating procedures for your unit.
Your Navus Uses Safe Mode Technology
The Navus is equipped with a Safe Mode feature to improve driver
safety. When your vehicle is moving, Safe Mode disables all
functions that require significant operator attention and could become
a distraction while driving.
Quick Tips
• To find an address, page 26.
• To understand information on the Map page, pages 9–17.
• To use the Navus in “practice” (simulator) mode, page 8.
• To learn more about GPS, page 56.
• To learn safety information, pages 1–2.
Contact Garmin
If you should encounter any difficulty while using your Navus, or
if you have any questions, in the U.S.A. contact Garmin Product
Support at 913/397.8200 or 800/800.1020, Monday–Friday, 8 AM–5
PM Central Time; or by e-mail at [email protected]. In Europe,
contact Garmin (Europe) Ltd. at 44/0870.8501241.
For replacement parts or accessories, visit www.garmin.com
/products/navus.
Keep Your Navus’s Serial Number
Record the serial number in case your unit is lost, stolen, or needs
service. This 8-digit number is located below the Compact Flash (CF)
card on the passenger’s side of the unit. Open the CF door to view the
number. See page 61 for more information.
Serial Number: ___ ___ ___ ___ ___ ___ ___ ___

ii
INTRODUCTION > TABLE OF CONTENTS
Introduction ........................................................................................... i
Your Navus Uses Safe Mode Technology ...................................................................i
Quick Tips ...................................................................................................................i
Contact Garmin ...........................................................................................................i
Keep Your Navus’s Serial Number ..............................................................................i
Caring for Your Navus ...................................................................................................4
Cleaning the Touchscreen ..........................................................................................4
Cleaning the Casing ...................................................................................................4
Safety Guidelines ..........................................................................................................1
Getting Started ..................................................................................... 3
Introducing the Navus ....................................................................................................3
Navigation at a Glance ..................................................................................................4
Navus Basics .................................................................................................................6
Turning the Navus On and Off ...................................................................................6
Using the Keys ...........................................................................................................6
Using the Touchscreen ...............................................................................................7
Adjusting the Speaker Volume ...................................................................................7
Using the On-screen Keyboard ..................................................................................8
Practice Using the Navus in Simulator Mode .............................................................8
Navus Operation .................................................................................. 9
Learning How to Use the Map Page ..............................................................................9
Viewing the Map Page for the First Time ...................................................................9
Map Page Features .................................................................................................10
Driving and Routing Modes ......................................................................................16
Changing the Map View While Driving .....................................................................17
Looking Ahead on the Map Page .............................................................................17
Next Turn Page ............................................................................................................18
Current Route Page .....................................................................................................19
Trip Information Page ..................................................................................................20
Data Displayed on the Trip Information Page ..........................................................22
Finding Places and Routing to Them .............................................. 23
Finding Places to Visit .................................................................................................23
Route Preference Window .......................................................................................24
Other Ways to Find Places ......................................................................................24
Filtering Results .......................................................................................................25
Finding Addresses or Intersections .............................................................................26
Refining Your Search ...............................................................................................27
Finding Cities ...............................................................................................................28
Finding Exits ................................................................................................................28
Other Ways to Find Exits .........................................................................................29
Finding Waypoints .......................................................................................................29
Finding “Recent Finds” ................................................................................................30
Other Ways to find “Recent Finds” ...........................................................................30
Deleting Recent Finds ..............................................................................................30

iii
INTRODUCTION > TABLE OF CONTENTS
Planning a Trip Using Find Features ...........................................................................31
Planning and Modifying Routes ....................................................... 32
Planning a Route .........................................................................................................32
Saving a Route ........................................................................................................33
Deleting or Renaming a Saved Route .....................................................................34
Modifying a Route ........................................................................................................35
Recalculating a Route ..............................................................................................35
Adding a Detour .......................................................................................................35
Adding Extra Stops (Trip Itinerary) ...........................................................................36
Adding Avoidances ...................................................................................................38
Setting a HOME Waypoint ...........................................................................................40
Changing Your HOME Waypoint ..............................................................................41
Customizing Your Navus .................................................................. 42
Customizing the Map Page .........................................................................................42
Map Tab ...................................................................................................................43
Line, Point, City, and Area Tabs ...............................................................................43
Resetting Map Setup Default Settings .....................................................................44
Changing the Data Tabs ..............................................................................................45
Customizing the Overall Setup ....................................................................................48
Restoring your Navus’s Original Settings .................................................................48
General Tab ..............................................................................................................49
Guidance Tab ...........................................................................................................50
Routing Tab ..............................................................................................................50
Time Tab ..................................................................................................................53
Language Tab ..........................................................................................................54
Display Tab ...............................................................................................................54
Customizing the Trail Logs ..........................................................................................55
Appendix ............................................................................................ 56
What is GPS? ..............................................................................................................56
The GPS Information Page ......................................................................................56
Satellite Status .........................................................................................................58
“Poor Satellite Reception” Menu ..............................................................................59
GPS Information Page Options ................................................................................59
Driving with Dead Reckoning ...................................................................................60
Installing the CF Card ..................................................................................................61
Viewing Map Information .............................................................................................62
Purchasing Additional Map Data .............................................................................63
Viewing Software Information ......................................................................................63
FCC Compliance ........................................................................................................64
Software License Agreement .......................................................................................65
The Mopar Warranty Difference ..................................................................................66

iv
INTRODUCTION > CARING FOR YOUR NAVUS
Caring for Your Navus
The Navus is constructed of high quality materials and does not
require user maintenance other than cleaning.
Cleaning the Touchscreen
The Navus touchscreen is intended primarily for finger operation.
Although a PDA stylus may also be used to operate the touchscreen,
never attempt this while operating a vehicle. Never use a hard or
sharp object to operate the touchscreen or damage may result. Use a
clean, dry lens cloth to remove dust from the touchscreen. Carefully
wipe the display to prevent scratches. Water, isopropyl alcohol, or
eyeglass cleaner can be used if needed. If they are used, apply the
liquid to the cloth and then gently wipe the touchscreen with the
moistened cloth.
Cleaning the Casing
The outer casing of your Navus is constructed of high quality
materials and does not require user maintenance other than cleaning.
Clean the outer casing using a cloth dampened with a mild detergent
solution and then wipe dry. Avoid chemical cleaners and solvents that
may damage plastic components.

1
INTRODUCTION > SAFETY GUIDELINES
Safety Guidelines
Ensure that all persons read this manual carefully before using the
navigation system. It contains instructions on how to use the system
in a safe and effective manner.
WARNING: Please read and obey the following safety
precautions. Failure to do so may result in an accident
involving injury or property damage.
• Consider practicing the unit’s operation by using the “simulator
mode” prior to actual use. See page 8 for instructions.
• When in actual use, carefully compare indications from the Navus
to all available navigation sources, including the information from
other street signs, visual sightings, and maps. For safety, always
resolve any discrepancies before continuing navigation.
• Do not input destinations, change settings, or access any functions
that require prolonged use of the unit’s controls or remote control
while you are driving. Pull over in a safe and legal manner and
location before you attempt such operations.
• Do not use the navigation system to route you to emergency
services such as police and fire stations or hospitals and clinics.
Not all emergency service locations are contained in the database.
Please use your judgment and ask for directions in such situations.
• When driving, minimize the amount of time you spend viewing
the screen. Glance at the screen only when necessary and safe to
do so. If prolonged viewing of the screen is necessary, pull over at
a safe location.
• Road conditions and regulations take precedence over information
contained on the map display. Observe actual traffic restrictions
and circumstances while driving.
• Situations may occur where the navigation system erroneously
displays the vehicle’s location. Use your own driving judgment
in this situation, taking into account current driving conditions.
Please be aware that in this situation, the navigation system
should automatically correct the vehicle’s position within a few
minutes.

2
INTRODUCTION > SAFETY GUIDELINES
• Stop use immediately if a problem occurs. Failure to do so
may cause injury or damage to the product. Return it to your
authorized DaimlerChrysler dealer for service.
• Make certain the volume level of the monitor is set to a level that
still allows you to hear outside traffic and emergency vehicles.
• The map database is designed to provide you with route
suggestions and does not take into account the relative safety of
a suggested route or factors that may affect the time required to
reach your destination. The system does not reflect road closures
or construction, road characteristics (such as type of road surface,
slope or grade, weight or height restrictions), traffic congestion,
weather conditions, or any other factors that may affect the safety
or timing of your driving experience. Use your own personal
judgment if the navigation system is unable to provide you with
an alternate route.
• The map database supplied with the product contains the most
recent map data that was available to us at the time of production.
We use Navteq data sources. Some communities may contain
inaccurate or incomplete data to some degree. Because the map
data may not be perfect, consider verifying the unit’s map with
your actual surroundings to confirm that you are arriving at the
exact destination.
• The Global Positioning System (GPS) is operated by the United
States government, which is solely responsible for its accuracy
and maintenance. The system is subject to changes which could
affect the accuracy and performance of all GPS equipment. The
Navus is a precision navigation system; any navigation system
can be misused or misinterpreted and, therefore, become unsafe.
• This product is intended to be used only as a navigational aid and
must not be used for any purpose requiring precise measurement
of direction, distance, location, or topography.
If you have any questions about the operation of the navigation
system, please contact a local DaimlerChrysler dealer or call 1-800-
800-1020.

3
GETTING STARTED > INTRODUCING THE NAVUS
GETTING STARTED

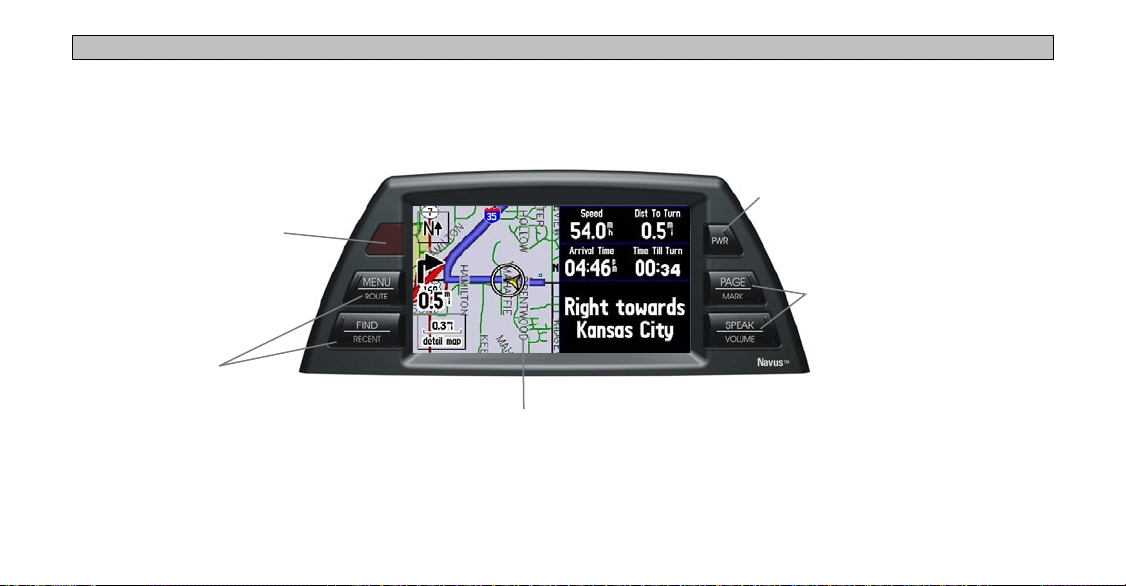

Introducing the Navus
Infrared Window
Receives signals from the
optional remote control.
Do not block if you are
using a remote.
Feature Keys
Used to perform specific tasks
such as opening the Menu
page and finding places. See
page 6 for more information.
Power Key
Press to turn the Navus
on or off.
Feature Keys
Used to perform specific
tasks such as opening a
page or activating the voice
announcement. See page 6
for more information.
TFT Color LCD Touchscreen Display
Provides detailed, on-screen mapping
information.

4
GETTING STARTED > NAVIGATION AT A GLANCE
Navigation at a Glance
The tutorial below guides you through the steps for finding a
restaurant in your area and then creating a route to it. If you have
never used the Navus or a navigation unit before, try this simple task.
You will see that using your Navus is fast and easy!
Step 1: Start up your vehicle or turn the key to the Accessory
position so that your Navus will turn on automatically. Once on,
the Navus looks for satellites. Make certain your Navus has an
unobstructed view of the sky as it looks for satellites. For example,
it cannot establish a fix if your vehicle is parked in a garage. When
your Navus has established a satellite fix, it displays a “Ready to
Navigate” message, as shown below.
Step 2: Press the FIND key. The Find menu appears.
Step 3: Touch Food & Drink, shown above. A list of eating
establishments near your current location appears on a page similar to
the one shown below:
Scroll bar

5
GETTING STARTED > NAVIGATION AT A GLANCE
Step 4: Move down the list of restaurants by tapping the down arrow
on the scroll bar. When you see a restaurant you like, touch its name.
Information about the restaurant appears on a Food/Drink page
similar to the one shown below:
Step 5: To create a route to this restaurant, touch Go To, which is
located at the bottom of the Food/Drink page. A Route Preference
window appears. Touch Faster Time.
Step 6: View your route to the restaurant.
What’s Next?
The following pages introduce you to the many features available
on your Navus. In addition, this manual shows you how find a
destination, add detours or extra stops to your route, and customize
your Navus.

6
GETTING STARTED > NAVUS BASICS
Navus Basics
Turning the Navus On and Off
Your Navus turns on as soon as you start your vehicle or turn the key
to the ACC position. The Navus displays various screens briefly and
then the Safe Driving Warning. Read the warning and touch OK to
display the Map Information page appears. Touch OK once more or
wait until the Map page appears.
Using the Keys
Use the keys on the Navus to perform specific tasks such as finding
places and creating routes. Each key’s primary function appears in
larger text above the secondary function. Always press and release a
key to perform its primary function. Press and hold a key to activate
its secondary function (if available). For example, if you press the
MENU/ROUTE key, a Menu page appears. If you press and hold
the MENU/ROUTE key for more than two seconds, a Route page
appears.
PAGE/MARK Key: PAGE switches between a variety of pages that
you can view on your Navus. It also returns you to a main page if you
have previously selected an option page or window. If you want to
exit out of a current page option, press PAGE. MARK captures your
present position and saves it as a waypoint. See page 15.
MENU/ROUTE Key: MENU displays a menu of options for your
current page. It also displays sub-menu options. ROUTE displays a
menu of available route navigation features.
FIND/RECENT Key: FIND allows you to search for cities, hotels,
restaurants, addresses, and a variety of other places. RECENT allows
you to view a list of places you have recently found.
SPEAK/VOLUME Key: SPEAK triggers your Navus’s “voice” to
repeat the next turn or current destination while you are navigating a
route. VOLUME displays an adjustment slider on the page to change
the speaker volume.

7
GETTING STARTED > NAVUS BASICS
Using the Touchscreen
The touchscreen on the Navus allows you to make menu selections,
position the map pointer, scroll through menu selections, and enter
data with the touch of your finger.
To use the touchscreen, touch the desired object on the screen with
your finger, applying just enough pressure to activate the function. It
is not necessary to apply excessive pressure to the touchscreen.
If you sense that the touchscreen is not responding properly, it may
need to be calibrated.
To calibrate the touchscreen:
1. Press the unit’s MENU key. Select Options.
2. Touch the Display tab.
3. Press the unit’s FIND key to begin calibration. Follow the on-
screen instructions.
Adjusting the Speaker Volume
To adjust the speaker volume:
1. Press and hold the SPEAK/VOLUME
key. A speaker volume adjustment page
appears.

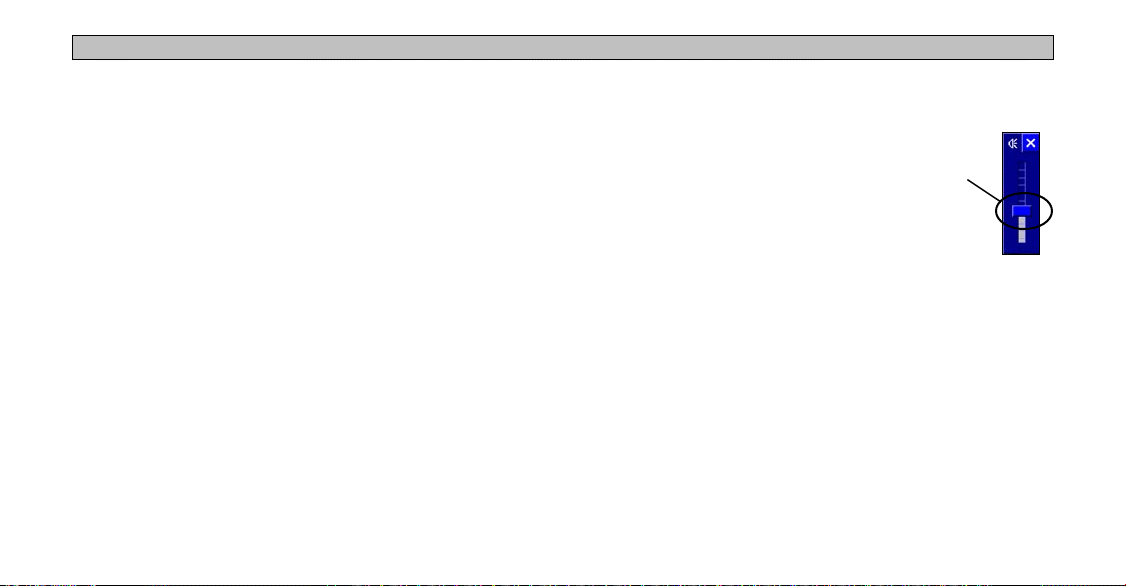

2. Adjust the speaker volume by moving
the slider up or down with your finger (on
the touchscreen). The loudest setting is
ten; the softest setting is one. Pushing
the slider all the way down turns off the speaker. (Alternatively,
volume can be cycled between three settings by repeatedly
pressing the SPEAK/VOLUME key from this screen. The three
settings are volume off, user setting, and maximum volume.)
3. When finished, touch the X on the touchscreen.
Slider

8
GETTING STARTED > NAVUS BASICS

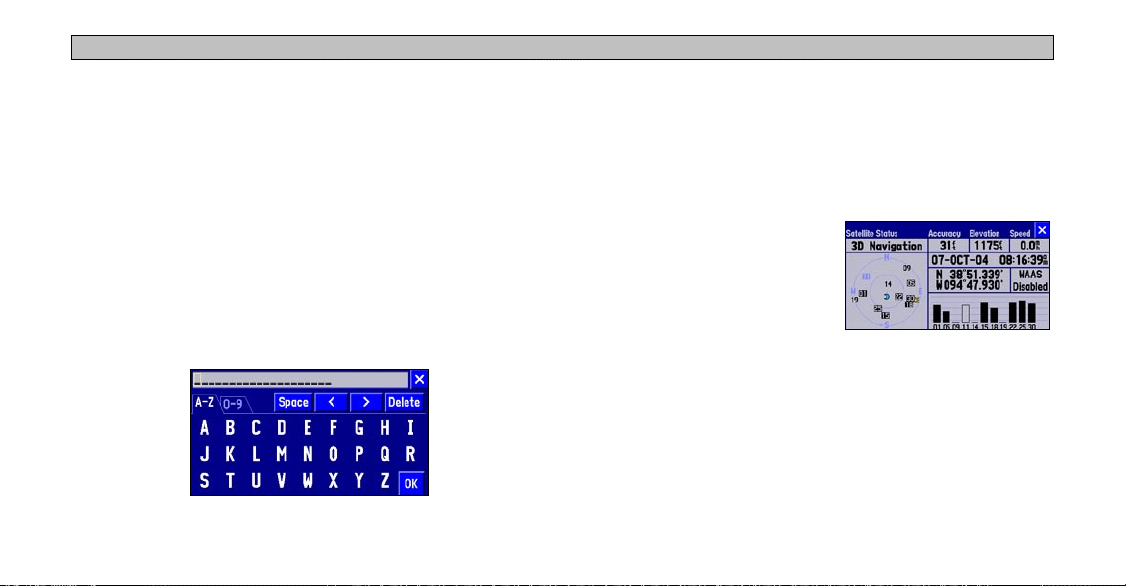

Using the On-screen Keyboard
The on-screen keyboard appears when you need to enter text for such
items as street names, locations, and waypoints. When the keyboard
appears, touch the letters to spell out a name. To use numbers, touch
the 0-9 tab and a number pad appears. The Space, <, >, and Delete
buttons function like standard word processing keys. When you have
entered all text, touch OK.
The on-screen keyboard is used in a variety of places. Its appearance
may alter, depending on your purpose for using it. On some on-screen
keyboards, letters or numbers that are not needed do not appear on
the keyboard.
Practice Using the Navus in Simulator Mode
Consider practicing the unit’s operation by using the simulator mode
prior to actual use.
To turn on Simulator Mode:
1. Make certain the unit is turned on. Press the MENU key.
2. Select the Information icon from
the Main Menu page.
3. Select the GPS Information icon
from the Information page.
4. Press the MENU key from the
GPS Information page.
5. Select Use Indoors.
When you create a route, the Navus asks if you want to simulate
driving the route. Select Yes, and the Navus provides driving
instructions for the entire route. To turn on GPS navigation, repeat
the above steps and select Use Outdoors in Step 5.
GPS Information page

9
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
NAVUS OPERATION
Learning How to Use the Map Page
The Map page is one of your Navus’s main operating pages. This is
the first page to appear after the startup pages, and it provides street
detail as you navigate to a destination. The Map page contains many
features, and most are available whether you are navigating a route
or simply driving with your Navus turned on. Practice using these
features before navigating an actual route so that you can quickly
understand what you are seeing on the Map page and reduce the time
spent looking away from the road while driving.
Viewing the Map Page for the First Time
When you turn on your Navus, you see a map image and a tab that
shows the Navus is attempting to locate satellites. Once your Navus
locates the satellites, it establishes a “fix” on your location, and you
are ready to navigate.
The images to the left
show the sequence of
messages that appear
on the data tabs as the
Navus locates satellites.
The Navus might take
a little longer to locate
satellites when you turn
it on for the first time.

10
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
Map Page Features
The Map page contains many useful features to help you view items
on the map and navigate routes. If you are a new Navus owner,
practice using these features while your vehicle is stationary.

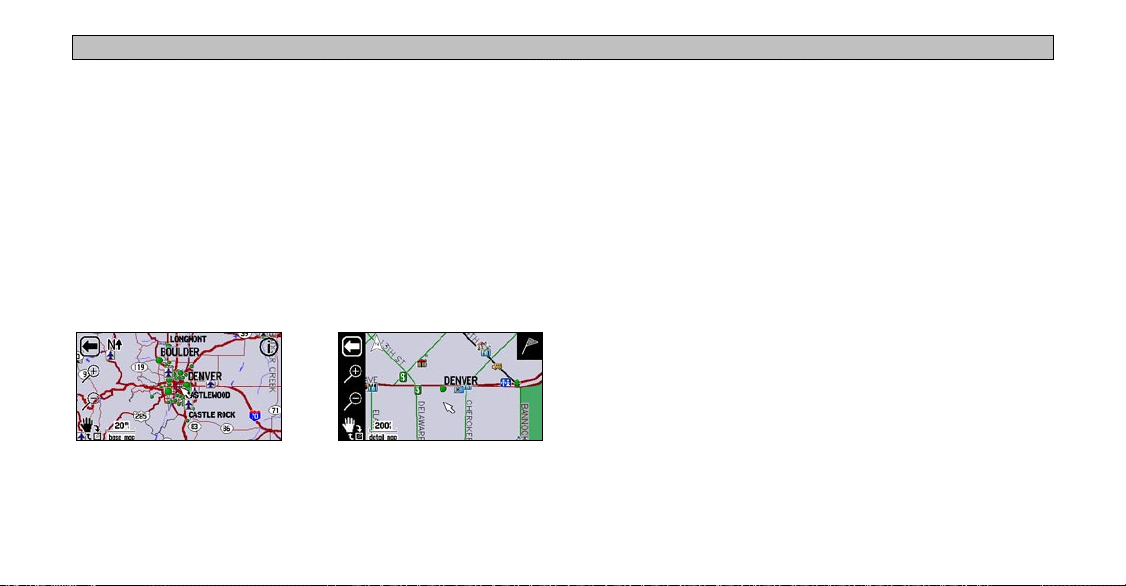

Map Toolbar
You can display a map toolbar on the left side of the map. The tools
(icons) enable you to zoom in and out of the map. To view the map
toolbar, simply touch any part of the map and the toolbar appears.
See the next page for a description of the tools.
Map Toolbar
Map Scale Map Pointer
Position Icon; shows
your current location
Information
Icon
Show/Hide Toolbar
Panning Hand/“Box” Zoom
Zoom Out
Zoom In

11
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
Press the white arrow to toggle between showing and
hiding the map toolbar.
Press the “+” magnifying glass to zoom in to an area and
view it with greater detail.
Press the “-” magnifying glass to zoom out of an area and
view more area of the map.
Press panning hand and then user your finger to “move”
the viewing area on the map and view areas not currently
visible. This action is called “panning.” While in panning
mode, the data tabs on the right of the screen are hidden.
Press the box zoom to activate it and then draw a “box” on
the touchscreen. When you lift your finger from the screen,
the map will zoom into the selected area. Refer to the
image to the right.
Touch the screen to move the “map pointer,” which serves
as a target marker.
The “position” icon shows your current physical location
on the map.
Use your finger to draw a box on the Map page. The Navus
zooms in on the boxed-in area to show greater detail.

12
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
North Up Track Up
North Up and Track Up
Map orientation icons appear at the top
left side of the Map page. They show how
roads appear on your Map page. “North Up”
shows your Map page with North always at the top, as if you were
reading a paper map. As you are driving, the position icon on your
Map page moves to the left if you are going West or right if you are
going East.
With “Track Up,” your Map page shifts so that your direction of
travel always appears at the top of the Map page. If you are headed
South, the Map page shifts so that South appears at the top of the
Map page. Change the orientation from North Up to Track Up (or
vice versa) by touching the orientation icon. The map toolbar must be
hidden before you can change these icons.
The presence of the
arrow shown at right
indicates that the map
toolbar is activated.
Touch the arrow, and the
map toolbar disappears.
An orientation icon
appears.
The middle image shows
an N with an arrow
pointing upwards, or
“North Up.” Touch the N
and the direction changes
to “Track Up.”
Map page showing “North Up”
Map page showing “Track Up”
Map page showing map toolbar

13
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
Map Scale
A map scale appears in the lower left corner of the map. It shows the
current zoom level of the map (such as 500 miles, 0.8 miles, or 200
feet) as well as what map your Navus is using. Your Navus includes a
“base map” and a “detail map.” The base map provides only general
information such as city names and highway exits. The detail map
includes specific details such as businesses, parks, and other points
of interest. If you are viewing the map at a scale of 20 miles, your
Navus displays information from the base map. The map scale
switches from “base map” to “detail map” as you zoom in.
Detail map at 200-foot zoomBase map at 20-mile zoom
Data Tabs
The right side of the Map page displays data tabs, which display a
variety of information about your trip, such as your speed and the
next turn or street ahead. You can quickly collapse the data tabs to
have a larger view of the map.
To show/hide all data tabs:
1. From the Map page, touch the individual tab to hide it. The tab is
replaced by a blue placeholder on the right side of the display.
2. Touch the placeholder to show the tab again. A tab turns red
when it is selected.
3. To show/hide multiple tabs, touch and hold on the left side of the
topmost group of tabs you want to hide, hold and slide your finger
in an “L” shape down and right to the side of the display. Repeat
the process in reverse to redisplay the tabs.

14
NAVUS OPERATION > LEARNING HOW TO USE THE MAP PAGE
Information Icon “i”
As was discussed earlier in this section, you can pan across the Map
page by touching the screen with your finger. As you pan, the map
pointer appears, which serves as a target marker. If you change the
scale, the map is redrawn with the pointer at the center. When you
place the pointer on a map object, the name of that object is displayed
and an “i” (Information) icon appears in the upper right corner.
The panning arrow (circled) is highlighting a
point of interest.
When the i
icon appears,
touch it to view
information
about the
selected object
or location.
In the example on the right, the
University of North Carolina at
Greensboro has been highlighted.
Touch the i icon, and a tab of
available points of interest at this
location appears. Select UNC-
Greensboro from the list, and the
information page appears.
Select the green flag icon (lower
left) if you wish to save this
location as a waypoint (see page
15 for more information).
Select Show Map to view a map,
which also displays coordinates
and the university’s distance
and bearing from your current
physical location.
