MST FUSION Voice User manual

FUSION Voice
User Guide
v1.0 – 24th October, 2017

FUSION Voice User Guide
2
Revision History
Revision
Change
Date
1.0
Initial release
24 October, 2017

FUSION Voice User Guide
3
Contact Details
Australia
Sydney
L 5, 113 Wicks
Road North Ryde, NSW 2113 AUSTRALIA
Tel: [phone]
United States
Denver
13301 W 43rd Drive
Golden Colorado 80403 USA
Tel: [phone]
Canada
Sudbury
1085 Kelly Lake Road
Sudbury, Ontario, P3E 5P5 CANADA
Tel: [phone]
China
Hangzhou
Building 5
1413 Moganshan Road Hangzhou
CHINA 310011
Tel: [phone]x206

FUSION Voice User Guide
4
Copyright and Disclaimer
Copyright
Published in Sydney by: Mine Site Technologies Pty Ltd
ABN: 93 002 961 953 ACN: 002 961 953
Global Head Office: Level 5, 113 Wicks Road, North Ryde, NSW 2141 Australia
Telephone: [phone]
This publication is Copyright. Other than for the purposes of and subject to the conditions
prescribed under the Copyright Act 1968 (as amended), no part of it may in any form or by any
means be reproduced, stored in a retrieval system or transmitted without prior written permission of
the copyright owner. Enquiries should be addressed to Mine Site Technologies Pty Ltd.
Warning
Unauthorised reproduction of, alteration of contents, or distribution to third parties, in whole or in
part is an infringement of copyright. Mine Site Technologies Pty Ltd will actively pursue any breach
of its copyright.
Disclaimer
Information contained in this document has been developed by Mine Site Technologies Pty Ltd
(MST). Every care has been taken by the staff of MST to ensure the content of this manual is
relevant and up to date at the time of publication. Content is subject to change without notice.
Technical updates as associated with this manual will be supplied to the customer at MST’s
earliest convenience.
This manual is published and distributed on the basis that the publisher is not responsible for the
results of any actions taken by users of the information contained in this manual. MST does not
accept responsibility for errors or damages resulting from misrepresentation, misinterpretation or
deviation from instructions by any person regarding the information contained in this manual. The
information is supplied on the condition that the recipient will make their own determination as to
the suitability of the information for their purposes prior to use.

FUSION Voice User Guide
5
Safety and Compliance
Warning: No tampering
No user replaceable parts. Only to be opened by an authorised service representative. Attempting
to open the unit without the proper tools will damage the IP66 protective seal.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Please take attention that changes or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.

FUSION Voice User Guide
6
Contents
Introduction ........................................................................................................................................ 8
Hardware ........................................................................................................................................... 9
What’s in the Box ........................................................................................................................... 9
Tait UnifyVehicle .......................................................................................................................... 10
Physical Installation ..................................................................................................................... 10
Tools......................................................................................................................................... 10
Installation procedure ............................................................................................................... 10
Using FUSION Voice ....................................................................................................................... 12
Powering on ................................................................................................................................. 12
User Interface .............................................................................................................................. 12
Channel Selection ........................................................................................................................ 13
Radio Channel ......................................................................................................................... 13
Broadcast PTT ......................................................................................................................... 14
Custom PTT ............................................................................................................................. 14
Emergency PTT ....................................................................................................................... 14
Transmit on Selected Channel .................................................................................................... 14
Configuration ................................................................................................................................... 15
Overview ...................................................................................................................................... 15
Tait Communications Radio ......................................................................................................... 15
MST PTT Application ................................................................................................................... 15
Managing using ICA ................................................................................................................. 15
Firmware Updates using ICA ................................................................................................... 15
Service and Maintenance ................................................................................................................ 16
Troubleshooting ........................................................................................................................... 16
Device won’t turn on ................................................................................................................. 16
Retrieve hardware version ....................................................................................................... 16
Maintenance ................................................................................................................................ 16

FUSION Voice User Guide
7

FUSION Voice User Guide
8
Introduction
FUSION Voice brings together Wi-Fi based VoIP communications with traditional UHF or VHF
radio systems onto a single, vehicle mounted device.
Built on proven Tait hardware, FUSION Voice can operate on any 2.4 GHz Wi-Fi network, and is
optimized for roaming on the MST IMPACT.
FUSION Voice is a powerful platform that will extend existing systems, or help enable mixed
communication solutions. It offers the following features:
• IP54 vehicle mounted enclosure
• 802.11b/g/n wireless radio
• MST Push-To-Talk including 30 custom, 1 Broadcast, 1 Emergency Channel
• Choice of UHF or VHF, Trunked or Conventional LMR

FUSION Voice User Guide
9
Hardware

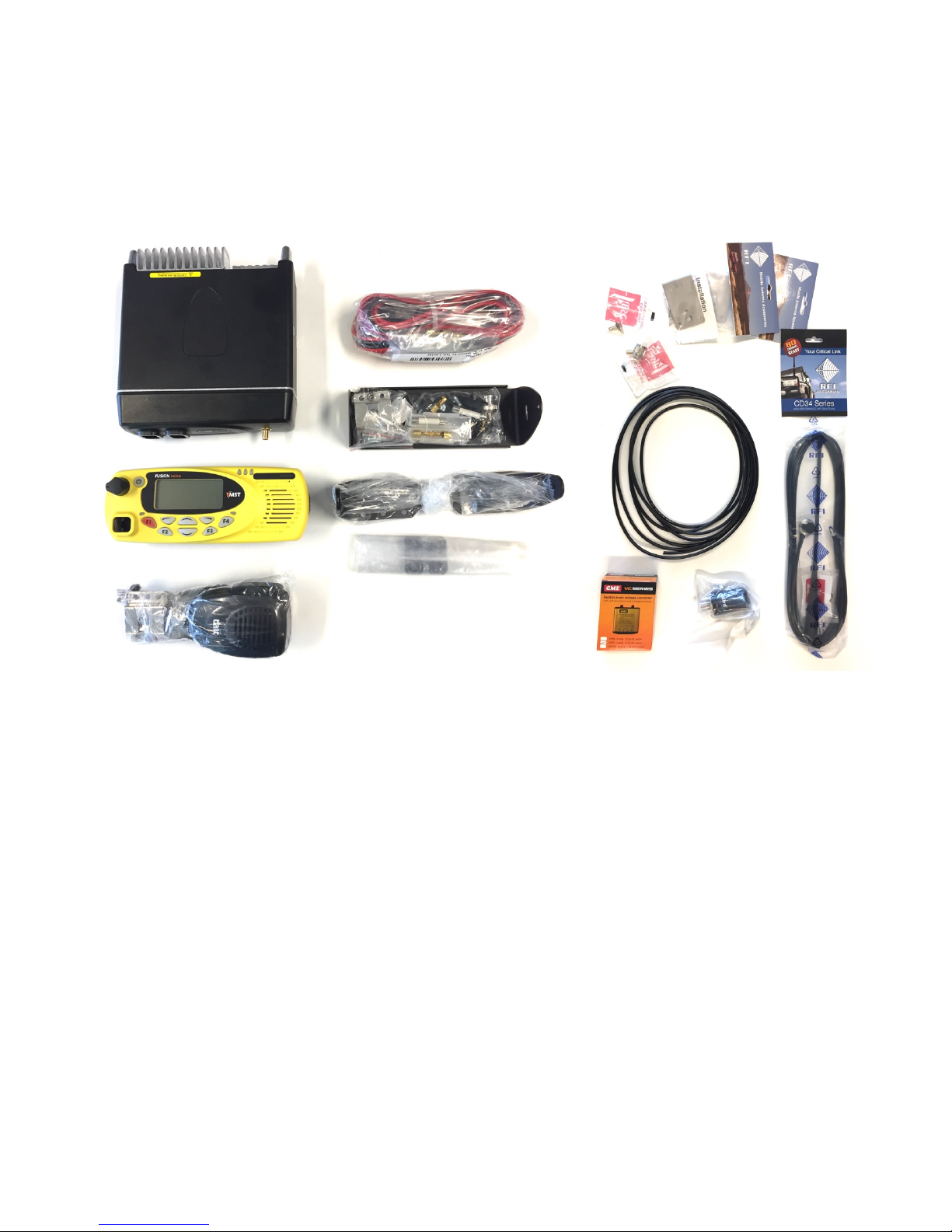

What’s in the Box
1. Tait UnifyVehicle 25W (UHF or VHF, and Wi-Fi radio), included:
• MST branded remote head with display
• Standard Microphone
• U-cradle installation kit
2. 7 AMP Switch mode voltage
3. Impact - Antenna, 2.4Ghz
4. N-88 RG58 Crimp N Plug
5. SMA Plug RG58 Crimp
6. Surface Comm. - Fender mount (x2)
7. UHF CB (477 MHz) Mopole
8. Surface Comm. - Cellfoam Cable (5m)

FUSION Voice User Guide
10
Tait UnifyVehicle
FUSION Voice is built in collaboration with Tait Communications, and their UnifyVehicle product
which integrates an edge computing device to Tait TM9355 mobiles with remote control head.
On this platform MST delivers a proven PTT VoIP solution compatible with MST MinePhones.
FUSION Voice showing Tait Radio, MST Control Head, and remote Speaker Microphone

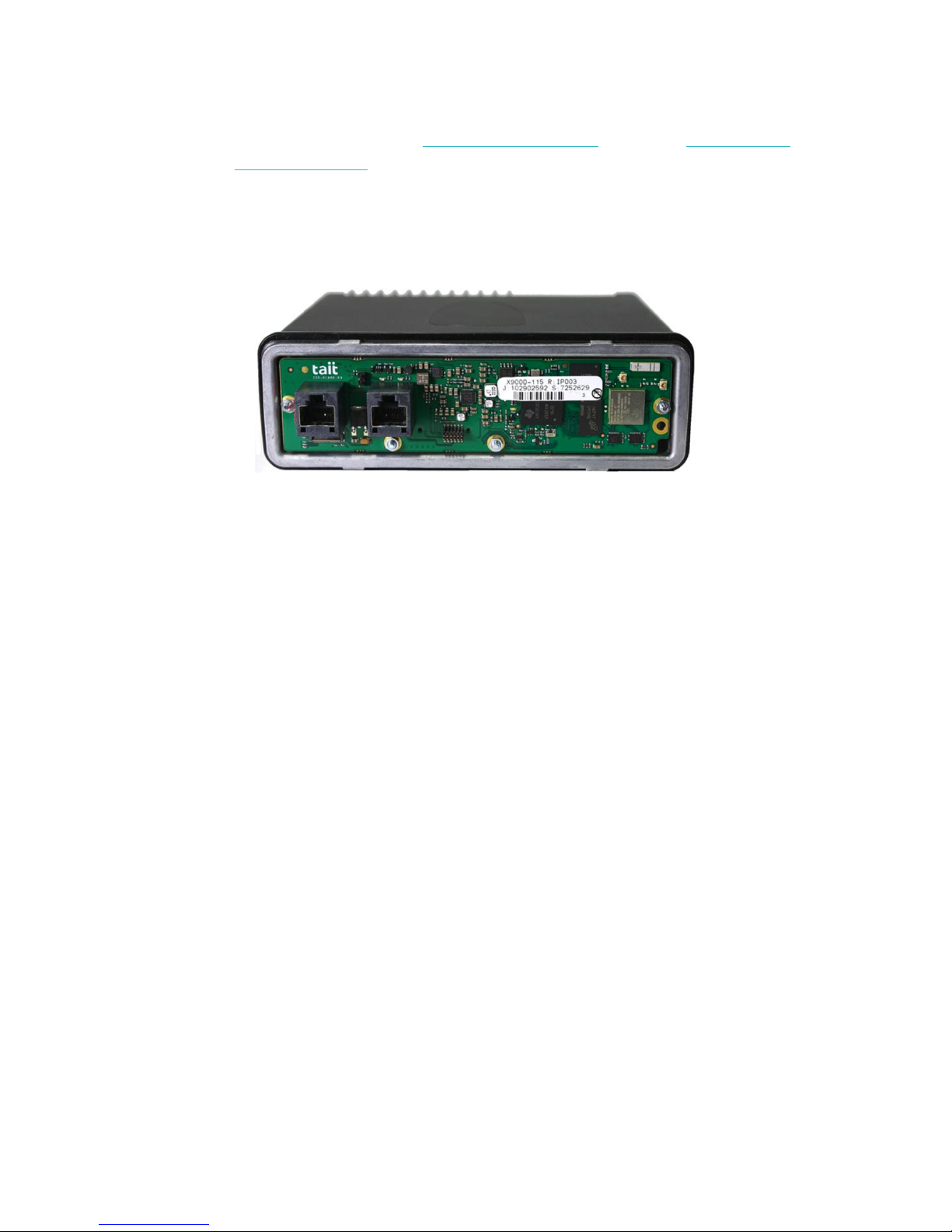

FUSION Voice built using UnifyVehicle fitted to a TM9355 chassis
Physical Installation
Tools
The following tools are required to install the radio:
• drill and drill bits
• Pozidriv screwdriver
• 5/16 inch (8 mm) socket
• RF connector crimp tool
• fuse crimp tool
• in-line RF power meter capable of measuring forward and reflected power at the operating
frequency of the radio
Installation procedure
The FUSION Voice physical installation follows the guidelines for installing Tait TM9355 with
remote control head, with the addition of an external Wi-Fi antenna.

FUSION Voice User Guide
11

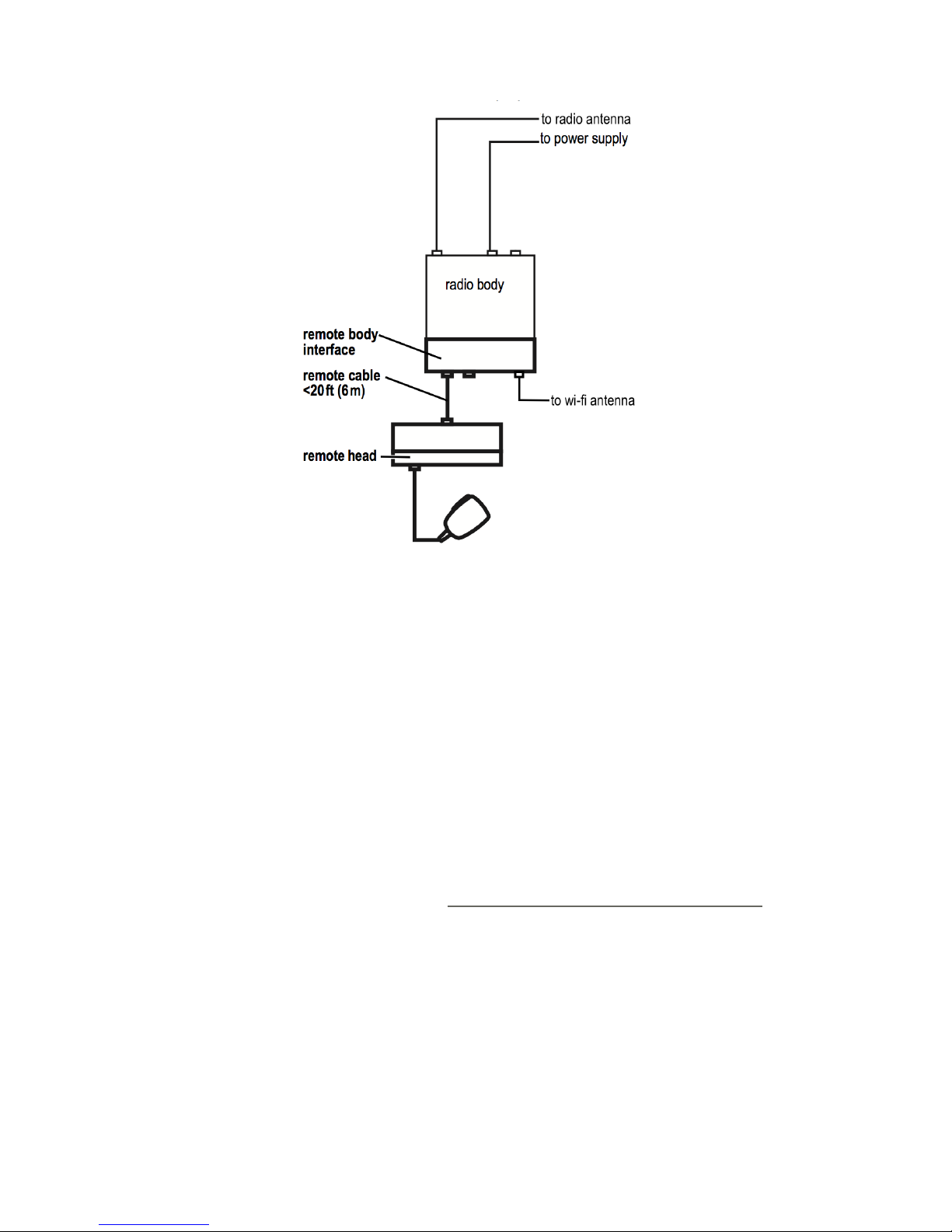

FUSION Voice component connections
Steps for installation are:
1. Select the mounting position
2. Mount the U-Cradle
3. Install Antennas
4. Connect Power Cable to Power Source
5. Install Radio
6. Install Microphone
7. Check Installation
8. Check Vehicle
Please refer to the associated documentation FUSION Voice - Installation Guide.pdf for complete
details of each step.

FUSION Voice User Guide
12
Using FUSION Voice
Powering on
When FUSION Voice is connected to the vehicle power or accessories line, it will power up when
the ignition is turned to On/Accessories.
The FUSION Voice will startup in approximately 10 seconds, however it will take another 60
seconds before the Wi-Fi becomes available.
To cycle power to FUSION Voice, simply turn the ignition to Off and back to On/Accessories.
User Interface
The Control Head of the FUSION Voice includes four UI elements:
1. volume control
2. three audio state LEDs
3. a graphical display
4. channel select buttons
The standard microphone included with FUSION Voice includes a single talk button.

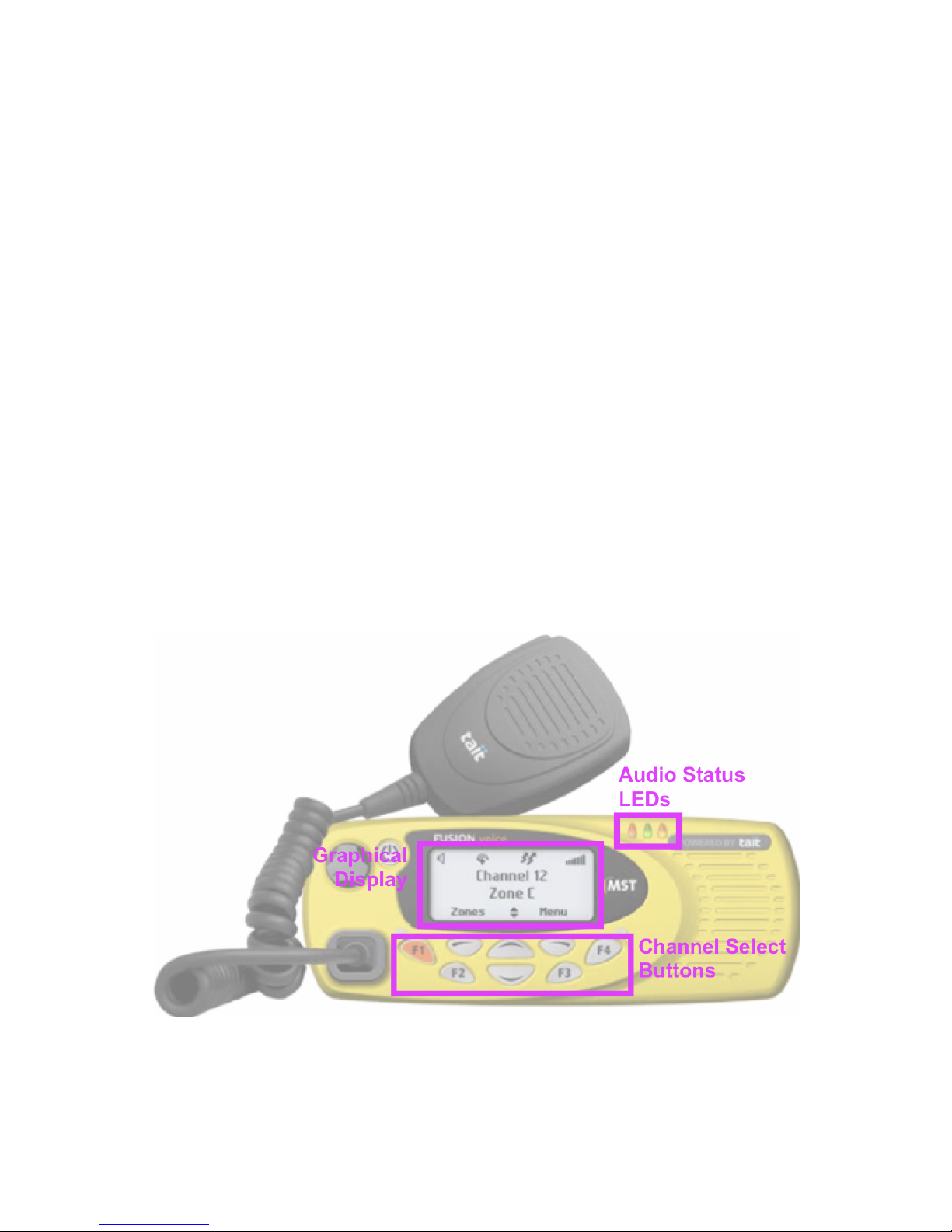

Control Head user interface elements

FUSION Voice User Guide
13
Rotate the volume control clockwise to increase the speaker volume and counterclockwise to
decrease the volume. The raised dot indicates the current volume setting.
The Audio State LEDs are colour coded and indicate state of:
• Orange: Device is powered
• Green: Device is transmitting audio
• Yellow: Device is playing received audio
The graphic display clearly indicates to users the following information:
1. State of device connectivity, including Wi-Fi Connection, and Radio signal strength
2. Selected Talk Channel
The Up/Down channel select buttons on the control head allow a user to change the active
channel.
Holding the (red) F1 function key for 5 seconds initiates an Emergency Broadcast. The remaining
function keys are reserved for future use.
Channel Selection
Commissioning a FUSION Voice unit for site includes configuring talk channels. Each talk channel
can be either standard LMR channel, or MST PTT. A device is not required to include both types
of channels in its configuration.
Radio channels use the UHF or VHF radio to communicate over traditional LMR infrastructure.
MST PTT Channels use the Wi-Fi to communicate over custom MST talk protocol.
Channel naming convention should ensure that it is clear to users which connectivity technology is
used. The selected channel is clearly displayed on the graphical display.
A user changes the selected channel using the push buttons on the control head. If the FUSION
Voice is fitted with an (optional) keypad RSM, the channel change buttons on the RSM may
alternatively be used.
Radio Channel
Radio channels act according to the supporting infrastructure and configuration as per the installed
Tait radio.

FUSION Voice User Guide
14
Broadcast PTT
One of the PTT channels may be designated as the Broadcast Channel.
When this channel is selected, all other FUSION Voice and MinePhone’s on the network that are
currently not sending or receiving on any other channel or SIP call will output the audio.
A device does not need to select the Broadcast Channel as the active channel to output this audio.
Custom PTT
Up to 30 PTT channels can be configured at Custom PTT channels.
Communication with a custom PTT channel is received by all other FUSION Voice an MinePhones
with the same active channel selected.
Emergency PTT
If the FUSION Voice is configured with any PTT channels, it MUST include one Emergency PTT
Broadcast channel.
Pressing and holding the F1 key for 5 seconds sets the device to broadcast on the Emergency
PTT channel.
If a device is broadcasting on the Emergency PTT channel, all other FUSION Voice and
MinePhones on the network will drop and existing audio capture/output and play the emergency
audio.
Transmit on Selected Channel
Pressing and holding the microphone talk button will attempt to key the currently selected channel.
If the FUSION Voice has connectivity and the channel is clear, the device will transmit audio on the
selected channel.
Release the talk button to stop transmitting audio.

FUSION Voice User Guide
15
Configuration
Overview
FUSION Voice configuration consists of managing two discrete systems:
1. Tait Communications radio
2. MST Push-to-Talk application
Each of these systems has its own configuration and update procedures as detailed below.
Tait Communications Radio
Direct configuration of the FUSION Voice radio requires a USB configuration cable (sold
separately) and Tait TM9355 Radio Programming software.
Please refer to the user documentation available from the Tait support portal for further details on
how to use this software and manage fleet of units.
MST PTT Application
The FUSION Voice uses the same PTT channel configuration files as the MST MinePhone - a
deployment already managing MinePhones will not need to make additional changes to pick up
configured PTT channels.
Managing using ICA
Deployments using an ICA Version 2.14.0 or later are capable of discovering FUSION Voice units
on the same network. These devices can be configured and managed using configuration
templates setup in the ICA Admin Console.
Firmware Updates using ICA
The ICA can push updated PTT firmware to the FUSION Voice. MST regularly releases firmware
updates to add new features and capabilities to their system, the latest version of the FUSION
Voice firmware can be downloaded from:
https://support.mstglobal.com/releases/firmware/
To push a firmware update to FUSION Voice, use the Admin Console to upload a file to the ICA
and select type VMP_FIRMWARE.

FUSION Voice User Guide
16
Service and Maintenance
Troubleshooting
Device won’t turn on
If the red, green and orange LEDs on the control head do not light up when the radio is turned on,
it is probable that power is not reaching the radio. Check the following:
• Is the power connector firmly plugged into the rear of the radio?
• Are the in-line fuses in good condition?
• Is the power cable securely connected to the vehicle battery or power supply?
If all appears to be in order, but your radio still fails to operate properly, contact your radio provider
for further assistance.
Retrieve hardware version
To check the version of your radio using the PTT key (not with hand-held control head)
1. Turn off the radio.
2. Hold down the PTT key and turn on the radio.
The firmware and hardware versions, and your radio’s frequency band is briefly displayed.
Maintenance
It is recommended that FUSION Voice hardware, cables, and connectors be inspected at regular
intervals for wear and damage to ensure safe and reliable operation. A maintenance checklist
should include checks that cover:
Component
Check
Structural
• Inspect outer case for any structural damage
• No excessive marking or wear to case
Antennas
• Check the antennas for any damage.
• Check the antennas' connections to the coaxial cable for any
damage to the insulation or connection.
• Check the antennas' physical positioning allows for adequate
reception without compromising physical protection.
Connectors
• All cable plugs are secure
• All unused plugs are capped
Please contact MST for all maintenance and repair enquiries.
