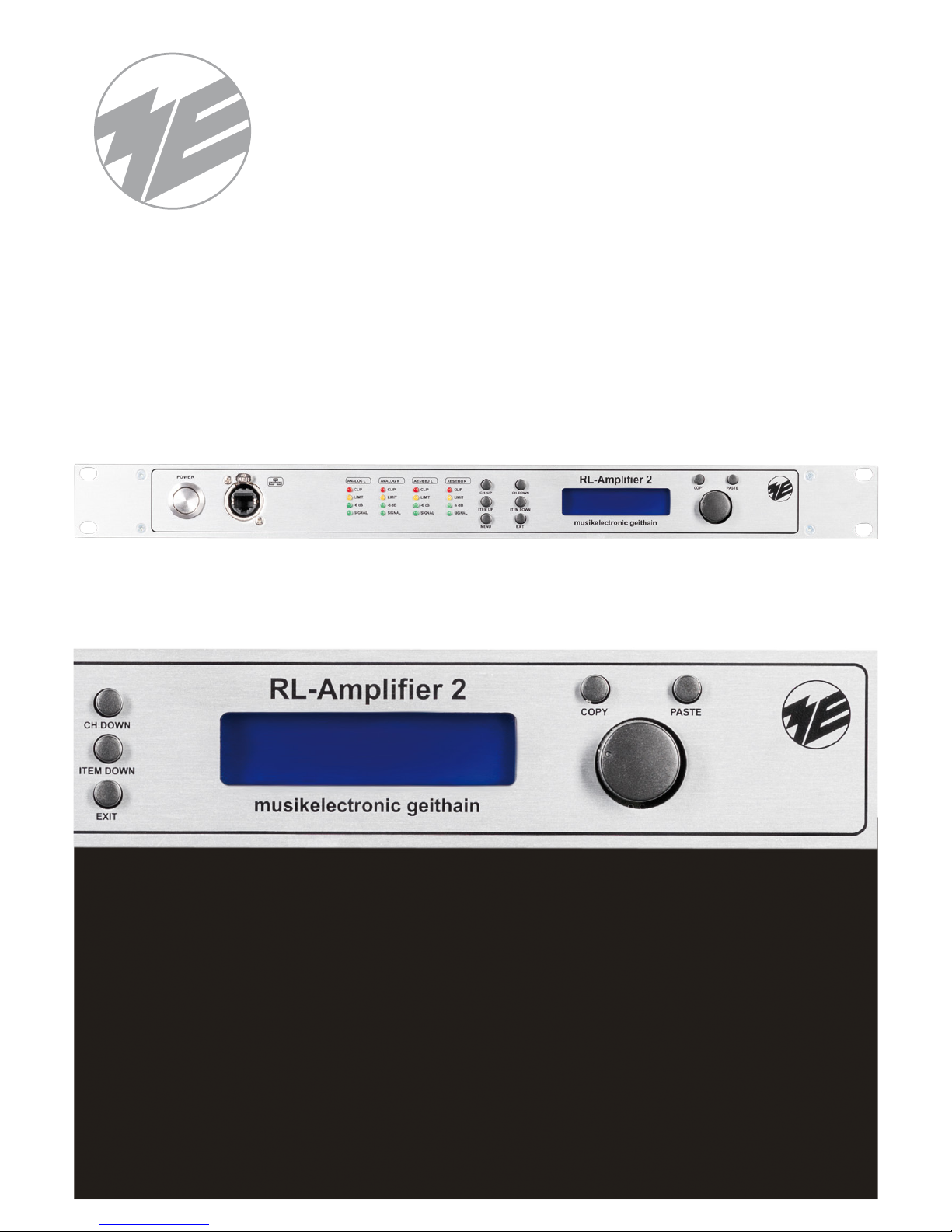

musikelectronic geithain RL-Amplifier 2 User manual
musikelectronic geithain
RL-Amplier 2
Instructions for installation and use
2
musikelectronic geithain GmbH RL-Amplier 2
INHALTSVERZEICHNIS
Inhaltsverzeichnis
1 Introduction 3
2 Disclaimer 4
3 System description 5
4 Technical data 6
5 Basic information 7
5.1 Guidelines 7
5.2 Safety instructions 7
5.3 Unboxing 10
5.4 Delivery contents 10
5.5 Guarantee acknowledgements 10
6 Controls and connections 11
6.1 Front 11
6.2 Back 11
7 Installation and operation 12

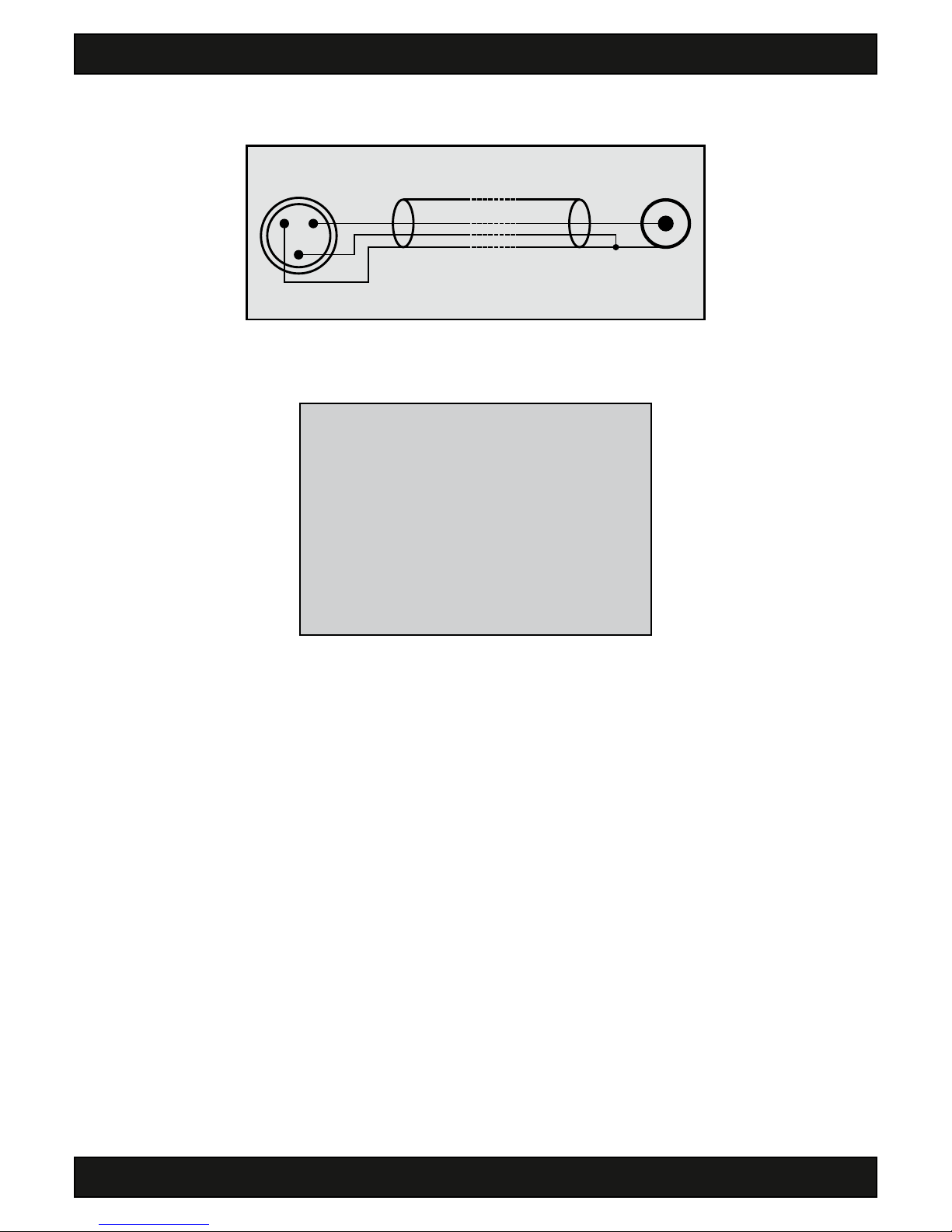

7.1 Cable connections 12
8 Operationandcongurationoftheamplier 14
8.1 Desktop-Software ME Geithain DSP Control 14

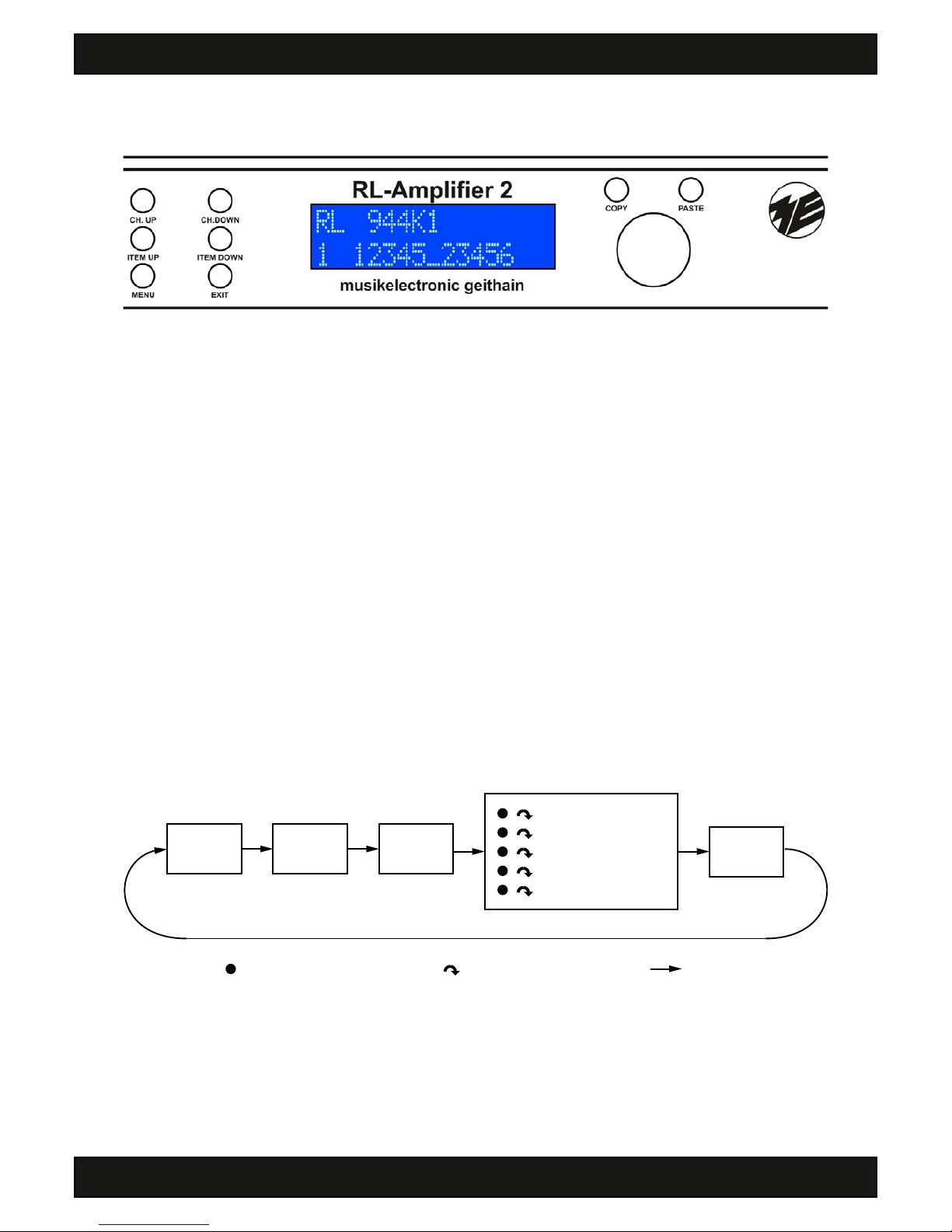

8.2 Menu structure 14
8.3 Home screen 15
8.4 Preset menu 15
8.5 Channel menu 16
8.6 Entering names and passwords 18

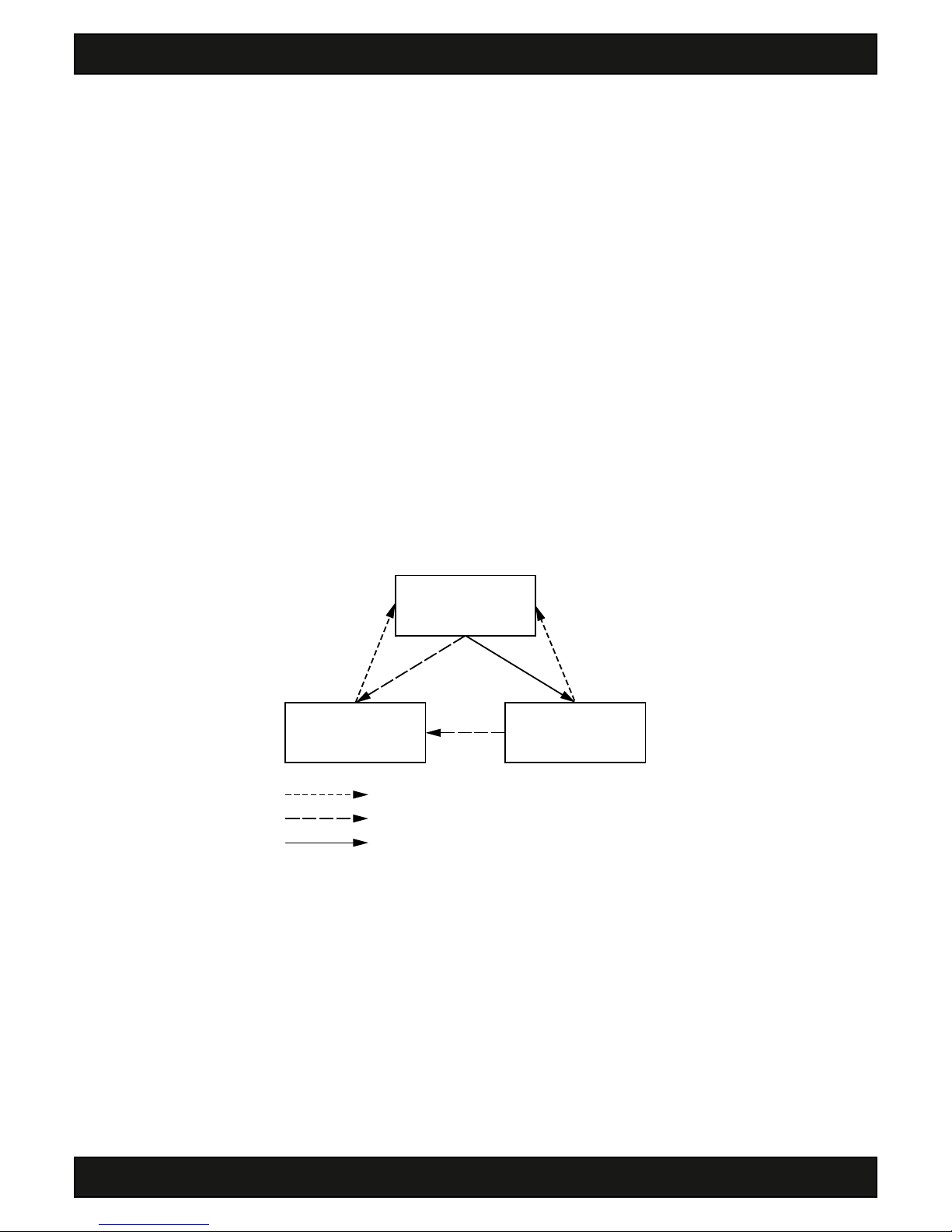

9 User rights 19
10 Troubleshooting 20
11 Notes 21
INTRODUCTION 3
musikelectronic geithain GmbH RL-Amplier 2
1 Introduction
Dear customer,
Thank you for your trust you have put in us by buying these speakers. You decided upon a quality
product that in regard to tonal and technical characteristics complies with the utmost expectations.
Please read the technical description and manual to take advantage of the capabilities
of these speakers and ensure safe operation.
DISCLAIMER 4
musikelectronic geithain GmbH RL-Amplier 2
2 Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions
excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered
by any person who relies either wholly or in part upon any description, photograph or statement
contained herein. Musikelectronic Geithain GmbH products are sold through authorised fulllers
and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and
have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied
undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying and
recording, or by any information storage or retrieval system without the prior written permission of
Musikelectronic Geithain GmbH.
All rights reserved.
Copyright © 2015 Musikelectronic Geithain GmbH
SYSTEM DESCRIPTION 5
musikelectronic geithain GmbH RL-Amplier 2
3 System description
The RL-Amplier2 is a device especially designed as a separate 19inch rack amplier for 3
channel studio monitors from Musikelectronic Geithain GmbH. The device has PWM power
ampliers to allow operation with convection cooling in a compact 19-inch housing. It
offers technical protective measures to ensure safe operation of the attached loudspeaker.
It is designed for users searching for a device with minimum space requirements. The use of a
digitalsignalprocessorallowsforexibleadjustmentofthefrequencyresponsetotheacoustical
environment. Integration into digital production work chains is easily possible due to the AES/EBU
input.
TECHNICAL DATA 6
musikelectronic geithain GmbH RL-Amplier 2
4 Technical data
nominal input level + 6 dBu
maximum input level + 22 dBu
output power limited to
LF
MF
HF
160 W
80 W
80 W
inherent noise sound level with attached
loudspeaker P < 10 dB(A) / r = 1 m (3.3 ft)
statusindicationatRLAmplier display blue
level indicator LEDchainatamplier
operating voltage 85 - 265 V 50 / 60 Hz
power consumption max. 400 VA / max. 4 A
mains connector IEC connector
protection class protection class 1
input connector
analogue
digital
2x XLR3-F
XLR3-F AES/EBU
output connector 2x Neutrik Speakon NL8 MPR
dimensions (w x d x h) 44.5cm (faceplate 48.5cm) x 27 cm x 4.5 cm (1 RU)
17.5in (faceplate 19.1in) x 10.6 in x 1.8 in (1 RU)
weight 4.2 kg (9.3 lbs)
environmentalspecications
operating temperature range
storage temperature range
Humidity
+ 15 °C ... + 35 °C
- 25 °C ... + 45 °C
45 % ... 75 %
EMV conformity EN55103-1 Emission Class A
EN55103-2 Immunity
additional accessories (optional) NL8Speakonconnectioncablebetweenamplierand
loudspeaker
BASIC INFORMATION 7
musikelectronic geithain GmbH RL-Amplier 2
5 Basic information
5.1 Guidelines
This product complies with requirements of current European and national guidelines
(Elektromagnetische Verträglichkeit 89/336/EWG). The conformity is ascertained, corresponding
declarations and records are deposited with the manufacturer.
Products built by us belong to B2C-class of the WEEE guidelines and must not
be disposed with domestic waste.
5.2 Safety instructions
Like using any other electrical device you should observe the following operation guidelines, safety
instructions and warning signs to ensure optimum functionality and safety of operation!
;Read these instructions carefully.
;Keep these instructions during the life cycle at a safe place. The instructions are an important
part of the product.
;Heed all warnings.
;Follow all instructions.
;Clean only with dry or slightly moistened cloth.
;The heat sink must not be blocked or covered. This product should not be installed unless
proper ventilation is provided or manufacturer‘s instructions have been adhered to.
;Do not install the device near any heat sources.
;Protect the power cord from being walked on, pinched or damaged in any other way. Pay
particularattentiontoplugsandthepointwheretheyexitfromtheamplierunit.
;The product may only be used in accordance with the information provided in the user manual.
Beforeandduringtheusageoftheamplierpleaseensurethatallrecommendations,especially
the safety recommendations in the user manual, are adhered to.
;Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury, and serious damage to the product.
;Referallservicingtoqualiedservicepersonnel.
BASIC INFORMATION 8
musikelectronic geithain GmbH RL-Amplier 2
Water, rain, humidity and dust
The device is not protected against water, rain or excessive humidity and
mustn‘t be exposed to these environmental conditions or operated next to them.
Employ appropriate safety measures to prevent dust and dirt to get into the device.
Dust and humidity are often the main reason for high voltage creepage paths and serious electrical
dangers.
Maintenance
Unplug the device from the mains supply and refer to your authorised retailer or authorised repair
and maintenance shop or the manufacturer. Maintenance is only allowed by one of the stated
groups, because opening or removing the cover could expose you to dangerous voltages or other
dangers. Maintenance is required when …
… liquid has been spilled or objects have fallen into the device,
… the device has been exposed to rain or moisture,
… the device has been dropped or suffered damage in any other way,
… the device exhibits a distinct change from its normal function or performance.
Repair and replacement parts
All service and repair work must be carried out by an authorised retailer or an authorised repair and
maintenance shop or the manufacturer. When replacement parts are required, please ensure that
onlyreplacementpartsspeciedbythemanufacturerareused.Theuseofunauthorisedreplacement
partsmayresultininjuryand/ordamagethroughreorelectricshockorotherelectricity-related
hazards.
Safety check
Upon completion of any service or repairs to this product ask the retailer or the authorised repair
and maintenance shop or the manufacturer to perform safety checks to determine that the device
is in proper operating condition.
Transport
To ship this device, always use the original shipping carton and packaging materials. For best
protection pack it the same way as the manufacturer.
Environments
Use this product only in E1, E2, E3 or E4 environments according to EN55103-2 “Electromagnetic
compatibility – Product family standard for audio, video and audio-visual and entertainment lighting
control apparatus for professional use – Part 2: Immunity”.
Ventilation and heat sink
The heat sink is provided to ensure reliable operation of the amplier and to protect it from
BASIC INFORMATION 9
musikelectronic geithain GmbH RL-Amplier 2
overheating. The heat sink must not be blocked or covered. This product should not be installed
unless proper ventilation is provided or manufacturer‘s instructions have been adhered to.
Cleaning
Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners.
Power-cord protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon them or against them, paying particular attention to cords and plugs, and the point
where they exit from the device.
Lightning
For added protection of the product during lightning storms, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due
to lightning and power-line surges.
Interference of external objects and/or liquids with the appliance
Never push objects of any kind into this product through openings as they may touch dangerous
voltagepointsorshortoutpartsthatcouldresultinareorelectricshock.Neverspillliquidofany
kindontheamplier.
Connecting
When you connect the device to other equipment, turn off the power and unplug all of the equipment
from the supply source. Failure to do so may cause an electric shock and serious personal injury.
Read the user‘s manual of the other equipment carefully and follow the instructions when making
the connections.
Sound level
Reducethevolumetominimumbeforeyoutuneontheampliertopreventsuddenhighlevelsof
noise which may cause hearing or speaker damage.
Power failure
Incaseofpowerfailurewhiletheamplierispoweredup,itwillautomaticallyrestartassoonasthe
mains supply is restored. All settings made before the power failure are restored.
Speakon connectors and Speakon cords
WARNING: Speakon connectors marked with a lightning bolt, indicate high voltages that might be
life threatening.
Refercustomwiringwiththeseconnectorstoqualiedpersonnelanduseoff-the-shelfcords.
To prevent electric shock, do not operate the product with any of the conductor portion of the
speaker wire exposed.
BASIC INFORMATION 10
musikelectronic geithain GmbH RL-Amplier 2
Employ appropriate safety measures when connecting the mains cable.
When installing or connecting the product, disconnect it from mains supply. The product mustn‘t be
connected to other alternating voltages and sockets than demanded on the back of the device.
IMPORTANT: Only off-the-shelf cables are allowed to be used to connect the product to mains.
IMPORTANT:Todisconnecttheproductfrommains,rstdisconnectthemainscablefromthesocket,
and then remove the cable from the product.
THE MAINS CONNECTION MUSTN‘T BE DISCONNECTED FROM PROTECTIVE EARTH. THAT‘S
ILLEGAL AND DANGEROUS.
5.3 Unboxing
Unpack the speaker carefully and check for visible damages by inappropriate transport. In case of
damages report them to your retailer. Keep the packaging, in case the speaker has to be transported
in the future.
5.4 Delivery contents
;RL-Amplier2
;Power cord
;Technical description and user manual
Attention: The speaker cables with 8 poles are not included in the delivery contents and have to be
ordered in the right length.
5.5 Guarantee acknowledgements
Opening the device by unauthorised personnel leads to all claims under guarantee expire. In case
of destruction by overloading, inappropriate use or extraneous circumstances there are no claims
under guarantee.
CONTROLS AND CONNECTIONS 11
musikelectronic geithain GmbH RL-Amplier 2

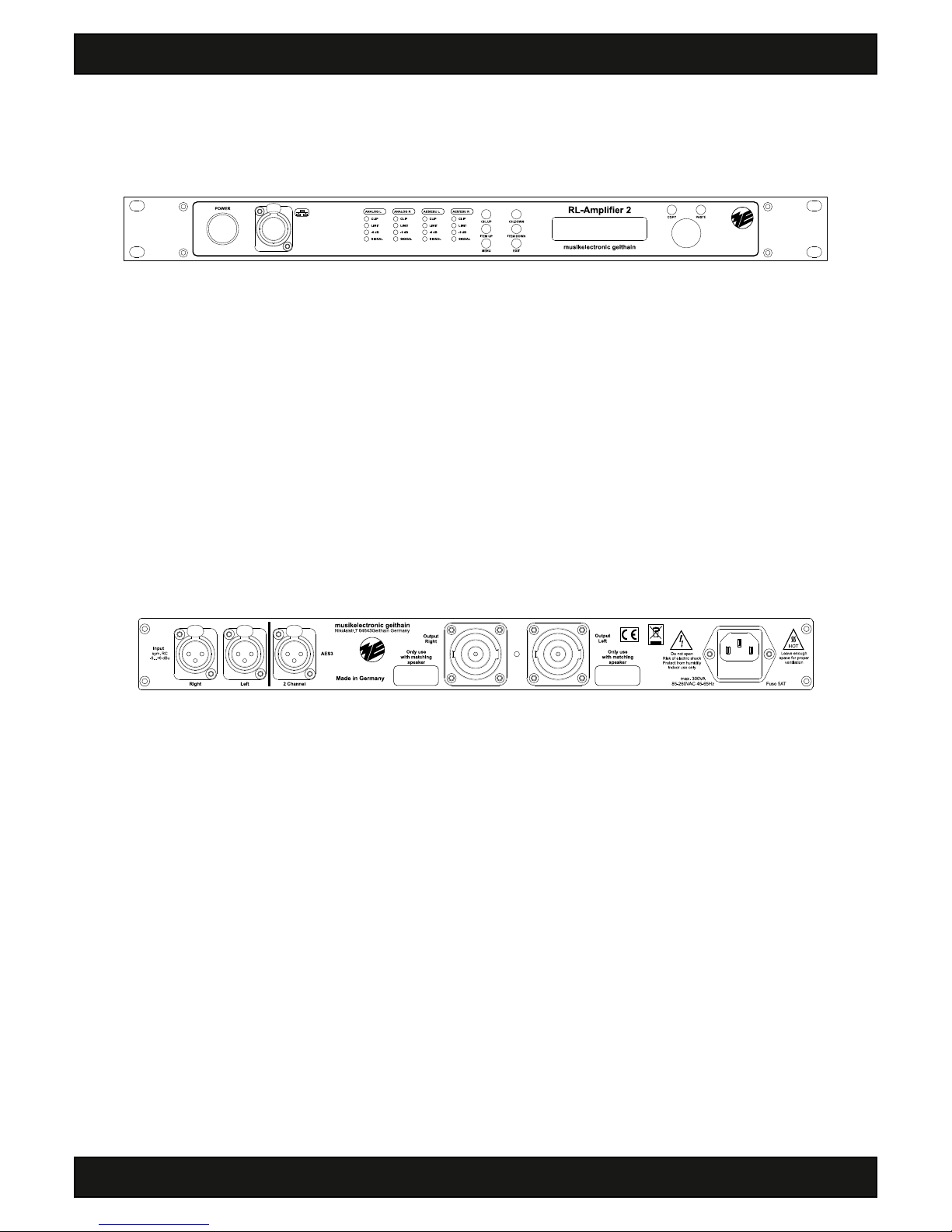

6 Controls and connections
6.1 Front
;Power button for switching the device on and off (1)
;RJ-4510/100Baste-Tportformaintenanceandconguration (2)
;LED level meter (3)
;Six buttons for navigation and controlling the device (4)
;LCD display with two rows (5)
;Two buttons for navigation and controlling the device with copy and paste functionality (6)
;Rotary control for navigation and controlling the device (7)
;Mounting holes for installation into a rack with four screws (8)
6.2 Back
;2x XLR3-F connectors for the input signal (left and right channel) (8)
;XLR3-F AES/EBU connector for digital input (9)
;2x eight-pole Speakon connector for connection to the speakers (10)
;IEC connector with fuse carrier (250V 5AT) for powering up the device (11)
(8) (10)
(9) (11)
(7)(4) (5)(2) (3)(1)
(6)
(8) (8)
INSTALLATION AND OPERATION 12
musikelectronic geithain GmbH RL-Amplier 2
7 Installation and operation
Everyamplieroutputispairedtoexactlyonespeakerbythesameserialnumber.Theaccording
serial number is located next to the output. Ensure installation in pairs.
Duringinstallationensuresufcientconvectionattheheatsink.Theampliershouldnotbeinstalled
below devices that tower above it.
Incaseofrackinstallationtheamplierisonlyscrewedtotherackthroughthefaceplate.Therefore
ensure secure mounting.
Before start-up check the mains voltage stated on the backside of the device. If your local mains
voltage does not match the specication of the speaker, please refer to your retailer or direct
distribution. When the stated and your local mains voltage comply connect the mains connector
(11) to the socket with the included mains cable.
For further connections, ensure the amplier is turned off (display unlit). In case the display is
blue, turn of the device by pressing the power button at the front of the device (1). Now connect
thespeakerswithSpeakoncablestotheamplier(10). To minimise EMI distortion that could be
produced by the device we advise the usage of the Speakon cables sold separately by Musikelectronic
GeithainGmbH.ConnectthesignalsourcetotheamplierthroughtheanalogueXLRconnectors
(8). For digital signal sources use the digital AES/EBU input (9).
7.1 Cable connections
Theinputoftheintegratedamplieriselectricallybalanced.Whenyoursignalsourcealsoutilizes
balanced connectors, please use a cable wired as stated in the table:
Balanced
connector(Amplier)
Balanced
connector (Signal source)
Unbalanced
connector (Signal source)
XLR XLR RCA
Earth Pin 1 Pin 1 Ring
Signal + Pin 2 Pin 2 Tip
Signal - Pin 3 Pin 3 Ring
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting
cables.Thisavoidshumandothernoiseinterferences.Thetableandthefollowinggureshowthe
wiring.
INSTALLATION AND OPERATION 13
musikelectronic geithain GmbH RL-Amplier 2
Unbalanced RCA to balanced XLR Connections
Loudspeaker (XLR-3M) Cable Source (RCA)
1 2
3
ToconnecttheRLAmplier2tothecorrespondingspeakersyouneedaNL8Speakoncable,wired
according to the following table:
Power signal
(Amplier)
Power signal
(Speaker)
Speakon NL8 Speakon NL8
PIN 1 PIN 1
PIN 2 PIN 2
PIN 3 PIN 3
PIN 4 PIN 4
PIN 5 PIN 5
PIN 6 PIN 6
PIN 7 PIN 7
PIN 8 PIN 8
OPERATION AND CONFIGURATION OF THE AMPLIFIER 14
musikelectronic geithain GmbH RL-Amplier 2
8 Operation and conguration of the amplier
TheRL-Amplier2canbecongureddirectlyatthedeviceorcomfortablywithapersonalcomputer
and ME Geithain DSP Control.
8.1 Desktop-Software ME Geithain DSP Control
ForRL-Amplier2congurationandmonitoringispossibleviatheintegratedRJ45ports(2) with
a personal computer (IBM-PC or Macintosh). The according software as well as a user manual is
available for download from the Musikelectronic Geithain GmbH website.
8.2 Menu structure
WhentheRL-Amplier2isswitchedonthedisplay(5) shows the Home screen with device name
and currently loaded preset. Underneath is the Preset menu, used to load and save presets, show
the serial number of the DSP module and switch to the LOCKED status. The signal processing
parametersofthecurrentlyloadedpresetareconguredintheChannelmenu.Ifthereisnoinput
inthelowerlevelstheamplierreturnstotheHomescreen.
Home screen
Preset menu Channel menu
EXIT
MENU
CH. UP / CH. DOWN / ITEM UP / ITEM DOWN
Navigation between the menus
OPERATION AND CONFIGURATION OF THE AMPLIFIER 15
musikelectronic geithain GmbH RL-Amplier 2
8.3 Home screen
IntherstrowtheHomescreenshowsthetypeofthespeakerconnectedtotheRLAmplier2.The
second row shows the number of the current preset, then the name of the preset. A “*” at the end
ofthelineindicatesthattheamplieriscurrentlyoccupied(loadingpresets,synchronisingwiththe
PC software, etc.). Meanwhile controlling the device is not possible.
A“!”atthebeginningoftherstlineindicatesunsavedchangesinthecurrentconguration.
8.4 Preset menu
ThepresetmenuisatanytimeaccessiblebypressingMENU.TherstmenuitemisLOADtoload
a saved preset. Press MENU again to go on through the preset menu. Turning the rotary control
changes between presets and pressing it down loads the shown preset. Another menu item asks to
conrmthedecision.ChooseNo,pressMENUorEXITtoaborttheactionandreturntotheHome
screen. The preset number one in the device holds the factory settings. For easy assignment the
name of this preset consists of the serial numbers of the according speakers. This preset cannot be
overwritten so that it is always possible to restore the factory settings.
Handling the menu item SAVE works in the same way. After choosing a save location, insert a name
for the preset. Chapter „8.6 Entering names and passwords“ on page 18 describes the procedure.
Save:Load: Access
Level:
Version Info - SN
Version Info - SW
Version Info - HW
IP Address
MAC Address
Routing:
Push ENCODER Turn ENCODER MENU
Menu items of the preset menu
After menu item SAVE follows the access level. To choose the LOCKED status, insert a password
according to the user level. In chapter „8.6 Entering names and passwords“ on page 18 is a
description of the procedure.
OPERATION AND CONFIGURATION OF THE AMPLIFIER 16
musikelectronic geithain GmbH RL-Amplier 2
The last menu item is the information panel. Turn the rotary control to browse through items
showing the current hardware version, serial number of the DSP module, software version and the
IP and MAC address of the device.
8.5 Channel menu
The channel menu is used to browse between the inputs and changing the parameters of the signal
processing chain of the according channel. Enter the channel menu by pressing the rotary control or
thebuttonsCh.UPorCh.DOWN.Therstrowshowsthecurrentinputandthecurrentitem.The
Ch. UP and Ch. DOWN buttons are used to choose an input. To choose an item, use the ITEM UP
and ITEM DOWN buttons similarly to selecting an input. The parameters are adjustable through the
rotary control. All changes take effect immediately and remain stored until a new preset is loaded.
Pressing down the rotary control browses through the parameters of the items if more parameters
are available to this item.
OPERATION AND CONFIGURATION OF THE AMPLIFIER 17
musikelectronic geithain GmbH RL-Amplier 2
The input channels are:
;InA: analogue left
;InB: analogue right
;InC: digital left
;InD: digital right
Gain Delay Lowpass Highpass PEQ1 PEQ10 Compr.: Limiter Link
ITEM UPITEM DOWN
Signal processing chain in a channel
Gain Adjust the gain of the channel, e. g. to adjust the balance or volume between
analogue and AES signals.
;Mute: - 48 dB ... + 12 dB
Delay: Delay every input signal, e. g. for compensation of different distances in a 5.1 setup.
;0 … 2000 ms
;0 ... 2252 ft
;0 … 686.52 m
LowPass: Uselowpasslteringonthe inputsignalwith differentslopes,ltercharacteristics
and variable frequencies.
;Freq: 50 Hz … 20,000 Hz
;Type: BUT 6, 12, 18, 24 dB; BES 6, 12, 18, 24dB; LR 12, 24dB
;Enabled: Off … On
HighPass: Usehighpasslteringontheinputsignalwiththesameparametersasthelowpass
lter,e.g.lteringthelowfrequenciesofthesatellitesina5.1set-up.
;Freq: 20 Hz … 20,000 Hz
;Type: BUT 6, 12, 18, 24 dB; BES 6, 12, 18, 24dB; LR 12, 24dB
;Enabled: Off … On
OPERATION AND CONFIGURATION OF THE AMPLIFIER 18
musikelectronic geithain GmbH RL-Amplier 2
PEQ1 … 10: Parametricltersforadjustmenttotheroomacoustics.
;Gain: - 12 ... 12 dB
;Freq: 20 Hz … 20 kHz
;Type: Bell, Notch, High Shelf, Low Shelf, Allpass, Band Pass, High
Pass, Low Pass
;Enabled: Off … On
;Q: 0.1 … 25
Compressor: Compressor for the according channel.
;Thr.: - 48 dBu … 24 dBu
;Att: 1 … 10,000 ms
;Hold: 0 … 10,000 ms
;Rel.: 1 … 10,000 ms
;Ratio: 1.20:1 … inf:1
;Gain: - 12 dB … 12 dB
Limiter: Limiter for the input signal.
;Thr.: - 48 dBu … 24 dBu
;Rel.: 10 ... 100 dB/s
Link: Use this option to group analogue and digital input signals so that the settings of the
left channel are automatically copied to the right channel.
;Off … On
8.6 Entering names and passwords
To insert strings like names and passwords through the panel, choose a digit with the rotary control
andconrmbypressingtherotarycontroldown.Thecursorwillthenjumprighttothenextposition.
Press ITEM DOWN and the cursor jumps back to the position to the left.
Toconrmaname,presstheMENUbutton.Toaccessapasswordprotectedfunctionitissufcient
to enter the right password.
USER RIGHTS 19
musikelectronic geithain GmbH RL-Amplier 2
9 User rights
The device is divided into three user levels with different permissions: LOCKED, USER and
ADMINISTRATOR. The levels USER and ADMINISTRATOR are password protected. The LOCKED
levelpreventschangestothecongurationof thedevice byunauthorisedpersonnel.Thedevice
could be started up in the LOCKED mode or USER mode.
Firmware actualisation
Equalising of the input channels
Enter LOCKED mode
Adjust settings through the display
Rename the device
Save presets
Load presets
ADMINISTRATOR rights
USER rights
LOCKED rights
Standard passwords
ADMINISTRATOR: TsAmAD7
USER: tSAmPUr4
TROUBLESHOOTING 20
musikelectronic geithain GmbH RL-Amplier 2
10 Troubleshooting
Description of error Possible causes Corrective measures
Screen dark Device in stand-by Press any key
Device is switched off Ensure the device is switched on
No sound Speakers are not connected
correctly
Examine the Speakon
connections to the speakers
In-/outputs are muted Deactivate muting at the device
or in the software
No input signal available Connect an analogue or digital
input signal
Network does not recognise the
device
Network cable defect Exchange the network cable
No DHCP in the network Connect the PC directly to the
amplierwithanetworkcable
and check the network settings
of the device
LED under the tweeter glows red Amplierisgettingtoohot Remove the input signal and let
the device cool down
Ensure the device is installed
according to the instructions and
proper ventilation is provided
LED under the tweeter blinks red Outputcurrentoftheamplieris
too high
Examine the speaker or the cable
for defects (Shorts)
Table of contents
