PMX SERIES

OWNER’S MANUAL

POWERED MIXERS

PMX-600 — 6 Channel Powered Mixer w/DSP Effects

PMX-1600 —16 Channel Powered Mixer w/DSP Effects

PMX SERIES

Powered Mixer with DSP Effects

Congratulations on your choice of the NADY AUDIO PMX

Series powered console mixer — you have purchased one

of the finest powered mixing units on the market today.

This unit was developed using the expertise of

professional sound engineers and working musicians. You

will find that your new PMX Series powered mixer has

superior performance and greater flexibility than any other

powered mixer in its price range. Please read this manual

carefully to get the most out of your new unit. Thanks for

selecting NADY AUDIO as your choice in powered mixers

Date of Purchase

Dealer’s Name

City

State

Zip

Model #

Serial #

CONTENTS

FEATURES

FEATURES ................................................................................2

WARNING ..................................................................................3

INSTALLATION ..........................................................................4

1. Inspection ..............................................................................4

2. Setup and Operation ............................................................4

CONTROLS AND CONNECTIONS............................................5

1. Channel Section ....................................................................5

2. Master Echo Effects Section ................................................7

3. Master Control and EQ Section..............................................7

4. Master Input / Output Section ................................................8

5. Rear Panel..............................................................................9

6. Connection Example ............................................................10

SPECIFICATIONS ....................................................................11

1. Input Section ........................................................................11

2. Mixer Section ......................................................................11

3. Output Section ......................................................................11

4. General ................................................................................11

•16 Mono channels (6 channels for the PMX-600) plus 2 Aux

Returns and a stereo Tape In for a combined total of 20 inputs

(10 inputs for PMX-600) with full complement of input controls,

connections and indicators

•Power Output —2 x 200W RMS @ 4 ohms (1% THD) with

both channels driven. Advanced amplifier design features

include fan cooling, short circuit protection, current limiting,

speaker DC protection circuits, clip indicators for utmost safety

and reliability and power ON/OFF anti-thump circuit for quietest

operation

•Excellent audio with warm analog tone perfect for live or

recording applications

•Stereo L-R Master Mix and G1-2 Group Submix buses, with 4

master faders and submix to main enable switch

•Built-in 32-bit DSP Echo Effects emulates plate, gate, room,

hall, stadium reverbs and delays

•60 mm faders on all Channels, Groups 1-2, Main L-R, and

Effects

•Dual Master 7-band Graphic EQ

•Each channel with balanced XLR Mic and 1/4”TRS line inputs,

Trim controls, Peak LED’s, Selectable Low Cut filters; Channel

High EQ, frequency sweepable Mid EQ, and Low EQ; Channel

Aux 1 and Aux 2-EFF Send controls, Pan controls, assignable

L-R and G1-2 switches, and channel faders

•Switchable global +48V phantom power; 2 Aux Sends and 2

Aux Returns; Tape/CD In and Record Out stereo RCA jacks

with Tape level control; 10-segment LED display bargraph

meters with Power Amp peak indicator

•Outputs include balanced 1/4”TRS and XLR Main Stereo

outputs; balanced 1/4 “Group 1 and 2 outputs; adjustable

Control Room left and right 1/4”outputs; and stereo

headphone output with separate volume adjust and L-R or G1-

2 selector; Left and Right dual 1/4”amplifier outputs for easy

speaker daisy-chaining

•Internal shielded AC supply with 115V(60Hz)/230V(50Hz) select

switch

•Dimensions & Weights:

PMX-1600: (HWD) 6.4”x 28.7”x 17.2”(163 x 729 x 437mm);

35.25 lbs. (16 Kg)

PMX-600: (HWD) 6.4”x 16.9”x 17.2”(163 x 430 x 437mm);

24.5 lbs. (11.1 Kg)

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using this electronic device, basic precautions should always be taken, including the following:

1. Read all instructions before using the product.

2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a

swimming pool, etc.).

3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.

4. This product, in combination with headphones or speakers, may be capable of producing sound levels that

could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a

level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an

audiologist.

5. The product should be positioned so that proper ventilation is maintained.

6. The product should be located away from heat sources such as radiators, heat vents, or other devices

(including amplifiers) that produce heat.

7. The product should be connected to a power supply only of the type described in the operating instructions or

as marked on the product. Replace the fuse only with one of the specified type, size, and correct rating.

8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other

devices so that the outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into

the outlet when not being used for a long period of time.

9. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s

openings.

10. The product should be serviced by qualified service personnel if:

A. The power supply cord or the plug has been damaged.

B. Objects have fallen into, or liquid has been spilled onto the product.

C. The product has been exposed to rain.

D. The product does not appear to operate normally or exhibits a marked change in performance.

E. The product has been dropped, or the enclosure damaged.

11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All

other servicing should be referred to qualified service personnel.

ATTENTION

: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

An equilateral triangle enclosing a lightening flash/arrowhead symbol is

intended to alert the user to the presence of uninsulated “dangerous

voltage”within the product’s enclosure which may be of sufficient

magnitude to constitute a risk of electric shock.

An equilateral triangle enclosing an exclamation point is intended to alert

the user to the presence of important operating and service instructions in

the literature enclosed with this unit.

INSTALLATION

To ensure years of enjoyment from your NADY AUDIO PMX Series, please read and understand this manual thoroughly

before using the unit.

INSPECTION

Your NADY AUDIO PMX Series powered mixer was carefully packed at the factory in packaging designed to protect the

units in shipment. Before installing and using your unit, carefully examine the packaging and all contents for any signs of

physical damage that may have occurred in transit.

[Please note: Nady Systems is not responsible for shipping damage. If your unit is damaged, do not return to Nady, but

notify your dealer and the shipping company (if shipped to you) immediately to make a claim. Such claims must be made

by the consignee in a timely manner.]

SETUP AND OPERATOIN

Parts of the unit can become very warm during use. This is normal during operation. Care should be taken to ensure that

there is enough space around the unit for cooling. Also, do not place the PMX Series powered mixer on high temperature

devices such as power amplifiers, etc., or the unit may overheat in operation.

Although the unit’s chassis is shielded against radio frequency (RF) and electromagnetic interference (EMI), extremely

high fields of RF and EMI should be avoided.

Please make sure that the power unit supplied is marked for the correct voltage in your area (120VAC/60 Hz or

230VAC/50 Hz). Power requirements for electrical equipment differ from area to area. In new installations and portable

sound systems, or any situation in which the AC power is in question, it is wise to confirm the voltage and use the

appropriate power supply unit before connecting it to power sources.

Europe (except UK): 230V, 50Hz

UK and Australia: 240V, 50Hz

USA and Canada: 120V, 60 Hz

For other areas, please check with local authorities.

When ready to operate, plug the AC cord into the power source. Make sure that the unit is turned off before connecting to

the AC power source to avoid possible loud transients which can damage your speakers or your ears. Set the Channel

(13), Group (22), and Master Stereo Volume Faders (24) to minimum to further reduce the chance of undesired noise

when first powering up. Turn on your PMX Series powered mixer by pressing on the rear panel Power On/Off Switch

(38).

For other areas, please check with local authorities.

CONTROLS AND CONNECTIONS

(1)

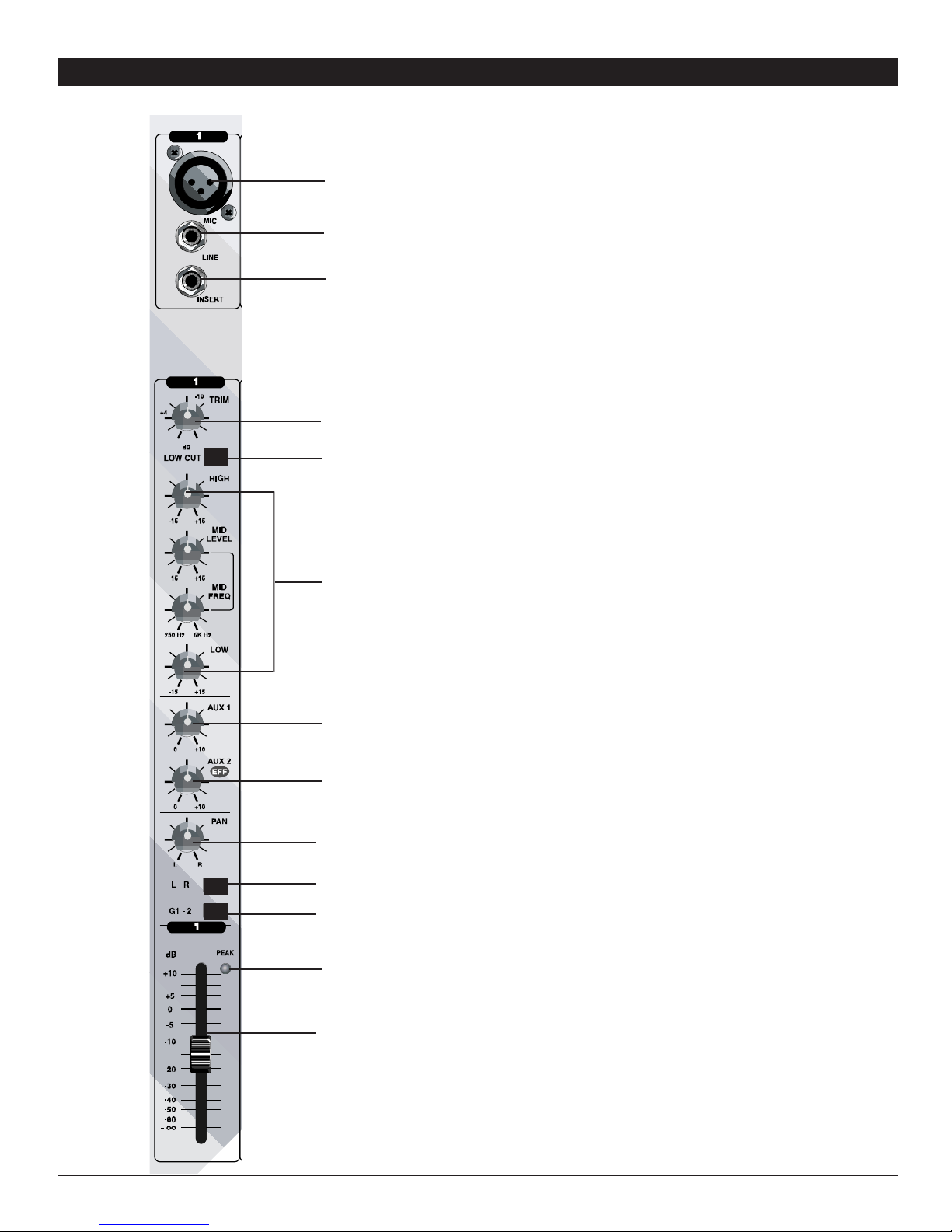

1. CHANNEL SECTION

(1) MIC INPUT

This electronically balanced XLR input is designed to accept signals from any

balanced or unbalanced low impedance (Low Z) microphone. To accommodate

condenser microphones, this input is also equipped with +48VDC phantom

power globally switchable to all XLR input jacks with the Phantom Power

Switch (27). Dynamic or ribbon-type microphones do not require phantom

power. The XLR jack is configured for: Pin1 = ground, Pin2 = positive (+), Pin3

= negative (-). The Mic inputs are more sensitive than the Line inputs. It will

be necessary to adjust the channel gain with the input Trim Control (4) to

achieve a nominal operating level.

[Note: Do not connect mics when phantom power is already switched on, as

indicated by the Phantom Power LED (27) in the Master Section of the top

panel. Never use unbalanced mic cables with the Phantom Power switched on.

Never short the +48VDC to ground, as that can cause serious damage to your

mixer. Also, turn down the Master Stereo Volume Faders (24) to prevent

possible sharp transient noise from damaging the speakers when turning the

phantom power on or off.]

(2) LINE INPUT

This 1/4”input is designed to accept balanced or unbalanced line-level signals

such as those from keyboards, drum machines, or samplers. There is enough

gain available on the line input to accept even lower level signals, such as

those from an unbalanced microphone or guitar output. If a balanced signal is

to be connected to the line input, then a 1/4”TRS (stereo) phone plug should

be wired for: Tip = positive (+), Ring = negative (-), Sleeve = ground.

[Note: Only the Mic or the Line input of a given channel should be connected at

one time. Do not connect both at the same time.]

(3) INSERT

All channels are equipped with insert jacks to connect external signal

processors such as compressors, noise reduction systems, or effects devices

to the individual input channels. Insert points are useful for adding dynamic

processing or equalization to a channel or the mix. Unlike reverbs, etc., which

are usually added to the dry signal, dynamic processing is normally applied

across an entire signal. Here an Aux Send would be inappropriate. Instead, the

signal is intercepted somewhere along the channel, fed through the dynamics

processor and/or EQ, and then returned to the console at the same point where

it left. The insert point is normalized, i.e., the signal is only interrupted when a

plug is plugged into it. To use Inserts as a Send/Return, an insert cable is

required which will split the 1/4”TRS insert connection to two plugs, one for

Send and one for Return. The insert jack is pre EQ in the channel and is

configured as: Tip = send, Ring = return, Sleeve = ground.

The Insert can also be used as a channel direct output by sending the signal

from the ring. To use the Insert as a direct output, insert a 1/4”phone plug

halfway into the Insert jack so the tip of the plug connects with the ring of the

insert jack. The jack will click into place when the connection to the ring is

made.

(4) TRIM CONTROL

The Trim control adjusts the input sensitivity (channel gain) of the Mic and Line

inputs on the channels. This control can be adjusted to accommodate input

signals from a wide variety of sources, from the high outputs from keyboards or

drum machines to the small signal outputs of microphones. The trim control

adjusts the input sensitivity with 30dB of range. The best balance of S/N and

dynamic range will be achieved if you adjust the TRIM control on each channel

separately so that the Channel Peak LED (5) for that channel almost lights.

(2)

(3)

(4)

(5)

(8)

(9)

(10)

(11)

(12)

(13)

(6)

(7)

CONTROLS AND CONNECTIONS

(5) CHANNEL PEAK LED

The Peak LED illuminates when a channel input is overloading.

It detects the peak level after the Equalizer Controls (7) and will

light just before clipping to warn that the signal is approaching

overload. You do not want the Peak LED to light except very

intermittently. If it lights persistently, reduce the Trim Control (4).

(6) LOW CUT FILTER

Use this Low-Cut (high-pass) filter (18 dB/octave, -3 dB at 75Hz)

for reducing floor rumble, popping, breathing noises, woolly

bottom end, and to tighten up channels in a mix, etc. It is most

effective when used carefully in conjunction with the Equalizer

Controls (7).

(7) EQUALIZER CONTROLS

All channels are fitted with a three-band EQ —High, Mid and

Low controls. The Mid control has a parametric Mid Freq control

with a 250Hz-6KHz range. All three bands have up to 15 dB of

cut and boost, with a center detent for OFF. The frequency

response is flat when all three EQ knobs are in the center detent

position. The High and Low shelving controls have their

frequencies fixed at 12 KHz and 80Hz respectively. The Mid

control has a parametric Frequency Control. This control can be

used to locate the frequency of the midrange tones that you want

to accentuate or cut. The channel EQ is a valuable feature of

the mixer as it allows the user to control the tonal characteristics

of each channel separately. For example, boosting the Low can

fatten the sound, add bass to vocals, or extra punch to bass,

drums and synths. The Mid control, with the Mid Freq set to

higher frequencies, can be used to define percussive instruments

or bring out the edge of vocals; when set to lower frequencies

the Mid can boost low midrange frequencies to fatten up guitars,

toms, or bring warmth to vocals. Adjusting the High control can

provide a crisp sounding high end. Another very important, yet

often overlooked technique is to use the EQ to subtract from the

mix. Cutting the High control can reduce unwanted sibilance,

hiss, cymbals, or high frequency feedback, while attenuating the

Mid or Low can also eliminate feedback or clear up a muddy

sounding mix. The Mid Freq control can also be used to reduce

any feedback from 250Hz to 6Khz. Cutting the High and Low,

then pushing up the Channel Fader (13) is equivalent to mid

range boost!

[Note: Always reset a channel’s input Trim Control (4) (or

external device’s output level) after altering the amount of

equalization.]

The key to successful equalization is to avoid excess. Too much

equalization on the input channels will result in a mix that is

smeared together with nothing specifically defined. During

rehearsals, experiment with the equalizer controls on various

instruments, vocals and combinations of these mixed together to

become familiar with various equalizer settings.

(8) AUX 1 CONTROL (PRE-FADER)

The channel Aux 1 control is mono, post-EQ, and pre-fader

meaning the signal level sent to the Aux Send 1 bus will be

unaffected by the channel fader setting. This configuration is

ideal for almost all monitoring purposes: for example, for a

separate stage monitor mix in live performances or a studio room

monitor in recording applications, such as for a headphone cue

system.

(9) AUX 2 / EFFECT CONTROL (POST-FADER)

This control adjusts the level of signal sent to the Aux Send 2 or

the internal DSP Echo Effects.

The channel Aux 2 control is mono, post-EQ, and post-fader

meaning the signal level sent to the Aux 2 bus will be affected by

the channel fader setting. For almost all effects send purposes,

you will want to use the post-fader Aux 2, so that when a fader

level is adjusted, any reverb send from that channel follows the

fader. Otherwise, when the fader is pulled down, the reverb from

that channel would still be audible. You can also use this Aux 2

send to feed inputs of a multi-track recorder or any other

unbalanced line level application. On the other hand, for cueing

purposes and monitor amplifiers, use the pre-fader Aux 1 (i.e.

independent of the channel fader).

The Aux 2 Effect Send controls also adjust the level sent by each

channel to the internal DSP (Digital Sound Processor) Echo

Effects. Either the Aux Send 2 or internal Echo Effects can be

selected with the Aux 2 / Eff Enable Button (15).

(10) PAN

The channel Pan positions the output of the channel in the

left/right stereo field of the Master mix and also pans between 1

and 2 in the Group mix. Its constant-power design ensures there

are no level discrepancies whether a signal is hard-panned,

center-stage, or somewhere in-between.

(11) L-R SELECT SWITCH

When the L-R switch is selected (button depressed), the post

fader channel signal is fed to the Master Stereo Volume Faders

(24).

(12) GROUP SELECT SWITCH

When the G1-2 switch is selected (button depressed), the

channel signal is fed to the G1-2 bus, controlled by the Group 1-

2 Volume Faders (22). This signal is post channel fader and the

stereo placement is adjusted by the Pan control. The Group bus

offers you a second stereo submix with its own stereo G1-2

submaster faders. This submix can be sent to the Master Stereo

Volume Faders (24) by enabling the Group To Main Switch

(23). The Group Mix can be used as a convenient mixing aid

both live and in the studio; for example, to combine the outputs

of all drum channels onto just 1 or 2 submaster faders, or to mix

together a vocal quartet and then control their combined level in

the Master Mix, or to route separately to multi-track recorders.

The Group Select Switch can also be used to monitor the

channel signal in the headphones, without sending the signal to

the main outputs, with the L-R Select Switch (11) off.

(13) CHANNEL FADER

The channel faders determine the output signal level to the

Master Mix or Group 1-2 buses. They offer a smooth logarithmic

taper more often associated with much more expensive consoles

for optimum control of the signal.

CONTROLS AND CONNECTIONS

2. AUX EFFECTS SECTION

(14) AUX SEND 1 & 2 LEVEL CONTROLS

These controls adjust the final mixed level of the channel

Aux 1 and Aux 2 auxiliary signals separately. These

signals are then sent to the Aux Send 1 & 2 Outputs (30)

respectively. These signals can be sent to the input of an

effects processor, multi-track recorder, or used for any

other line-level auxiliary purpose, such as monitor feeds. If

the signal is going to be used for an external reverb/delay

device, preferred instead of the internal Echo Effects, Aux

Send 2 should be used and the Aux 2 / Effects Enable

Switch (15) should be set to Aux 2 (button out). This will

disable the internal Echo Effects. When the switch is

depressed, the Aux 2 level control and output are disabled.

(15) AUX 2 / EFFECTS ENABLE SWITCH

This push button switch determines if the Channel Aux 2

Eff Send signals are sent to Aux Send 2 (button out) or to

the internal Echo Effects section (button depressed). The

Aux 2 Level Control (16) and output are disabled when

this button is set to enable the internal Echo Effects. Note

the Aux Return 2 is operational regardless of this switch

setting.

(16) AUX RETURN 1 & 2 LEVEL CONTROLS

These controls adjust the signal level from the Aux Return

1 & 2 Inputs, which are then mixed into the Left and Right

Master bus. These can be used to return effected signals

into the PMX Series powered mixer or they can be used

as auxiliary inputs from line level devices such as

keyboards or Tape Returns of multi-track recorders. The

internal Echo Effects cannot be applied to these auxiliary

returns. Note, Aux Return 2 is operational regardless of

the Aux 2 / Effects Enable Switch (15) setting.

(17) ECHO EFFECTS TIME DELAY

This control sets the time interval, in milliseconds, of the

built-in Echo Effects DSP (Digital Sound Processor). Lower

settings select the shortest echo time to emulate plate

effects whereas higher settings enable the longest echo time for

stadium reverbs and delay sounds with up to 200mS delays.

Settings around 100mS emulate medium room and hall reverbs

by adjusting the channel Effect Control (9) and Echo Depth

(19) to nine o’clock, Echo Input Level (18) to 12 o’clock, and

Effect Volume Fader (20) to approximately -10dB.

(18) ECHO EFFECTS INPUT LEVEL

This adjusts the level of signal input into the Echo Effects DSP.

(19) ECHO EFFECTS DEPTH

This control adjusts the number of repeats and feedback/depth of

the echo effect. Turning the control clockwise sets the repeats to

maximum for lengthy echoes or plate effects. Turning the control

counter-clockwise sets less repeats.

(20) EFFECT VOLUME FADERS

These faders adjust the final level of the effected tone applied to

the Master bus.

3. MASTER CONTROL AND EQ SECTION

(21) DUAL CHANNEL GRAPHIC EQUALIZER

The 7-band graphic equalizers allow you to adjust the frequency

response of the Master L and R mix providing a maximum of +/-

12dB of cut and boost for each frequency band from the center

détente flat position. The top EQ is for the Left channel and the

bottom EQ is for the Right channel. This EQ can be used to

shape and mold the tone of your audio and easily eliminate

feedback at notch frequencies without overly affecting your

sound.

(22) GROUP 1 & 2 VOLUME FADERS

These faders adjust the level of the Group 1 & 2 submix signals

that are sent to the Group Outputs (35) and can also be

selected for the Headphone (33) and Control Room (34)

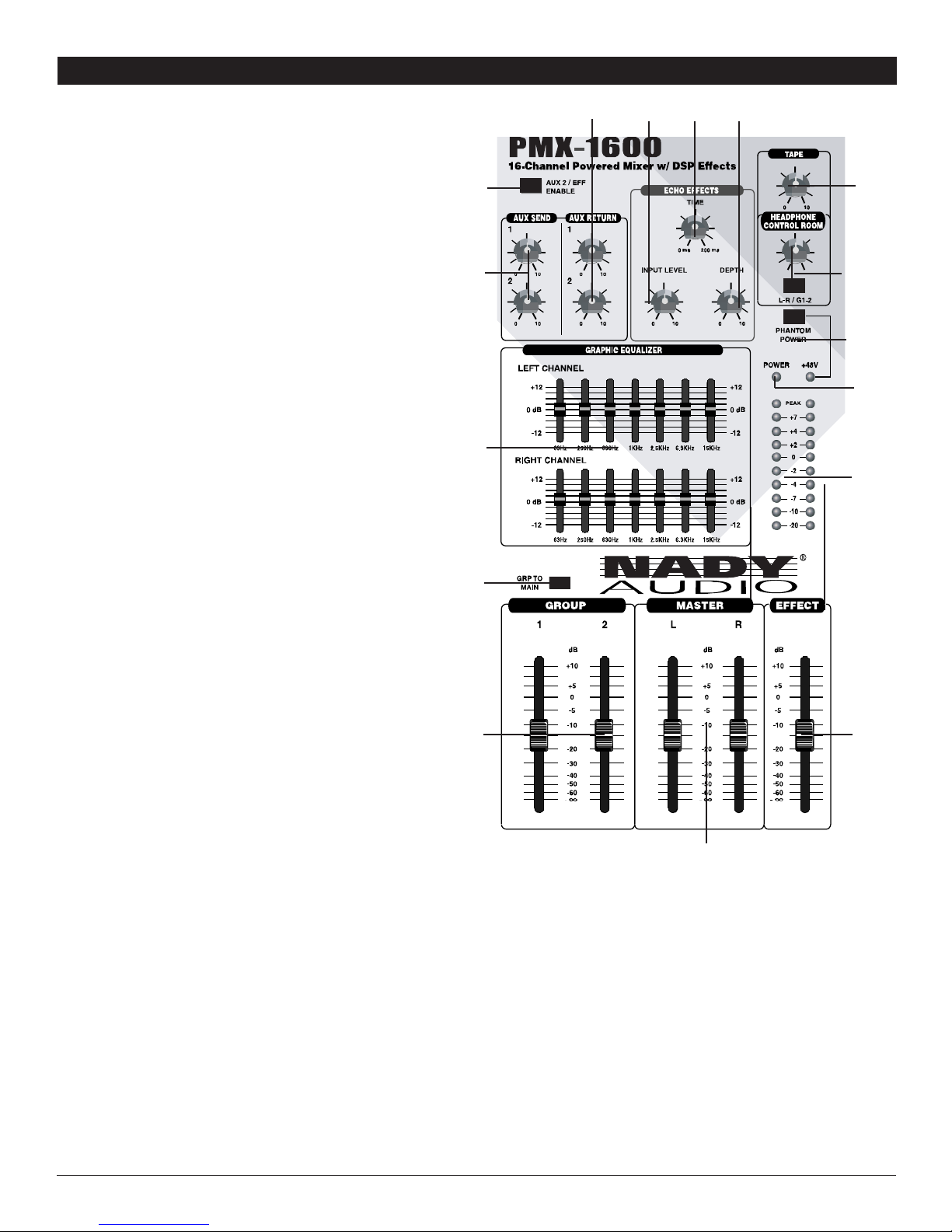

(17)

(21)

(22)

(24)

(23)

(25)

(26)

(27)

(29)

(28)

(14)

(15)

(16)

(20)

(19)

(18)

CONTROLS AND CONNECTIONS

4. MASTER INPUT / OUTPUT SECTION

(30) AUX SEND 1 & 2 OUTPUTS

These mono unbalanced 1/4”jacks output the auxiliary signals

which can be adjusted by the Aux Send 1 & 2 Level Controls

(14).

(31) AUX RETURN 1 & 2 INPUTS

These mono unbalanced 1/4”jacks enable convenient inputs to

the Master/Main busses. If you connect a signal to the return

jacks, the signal will be routed to the Aux Return 1 or 2 Level

Controls (16) and then mixed into the left and right Master/Main

bus.

(32) TAPE INPUT / RECORD OUTPUT

The Left and Right Tape Input RCA jacks allow cassette

recorders, CD players, or MP3 players to be added to the

Master/Main mix outputs. The input signals can be adjusted by

the Tape Level Control (29). The Record Output RCA jacks

provide a stereo signal output to recording devices, home audio

equipment, or external amplifiers. These outputs are post Master

Stereo Volume Faders (24).

(33) HEADPHONE OUTPUT

The Headphone 1/4”stereo output can be used to monitor either

the Master or Group mix. It will power headphones with

impedances of 8Ωor greater.

(34) CONTROL ROOM L-R OUTPUTS

These separate Left and Right 1/4”jacks output the line level

signals from the Headphone/Control Room (28).

(35) GROUP 1 & 2 OUTPUTS

These 1/4”jacks output the Group 1 and 2 line level signals.

(36) MAIN OUTPUTS

These balanced XLR and unbalanced 1/4”jacks output the final

Master/Main Mix line level signals.

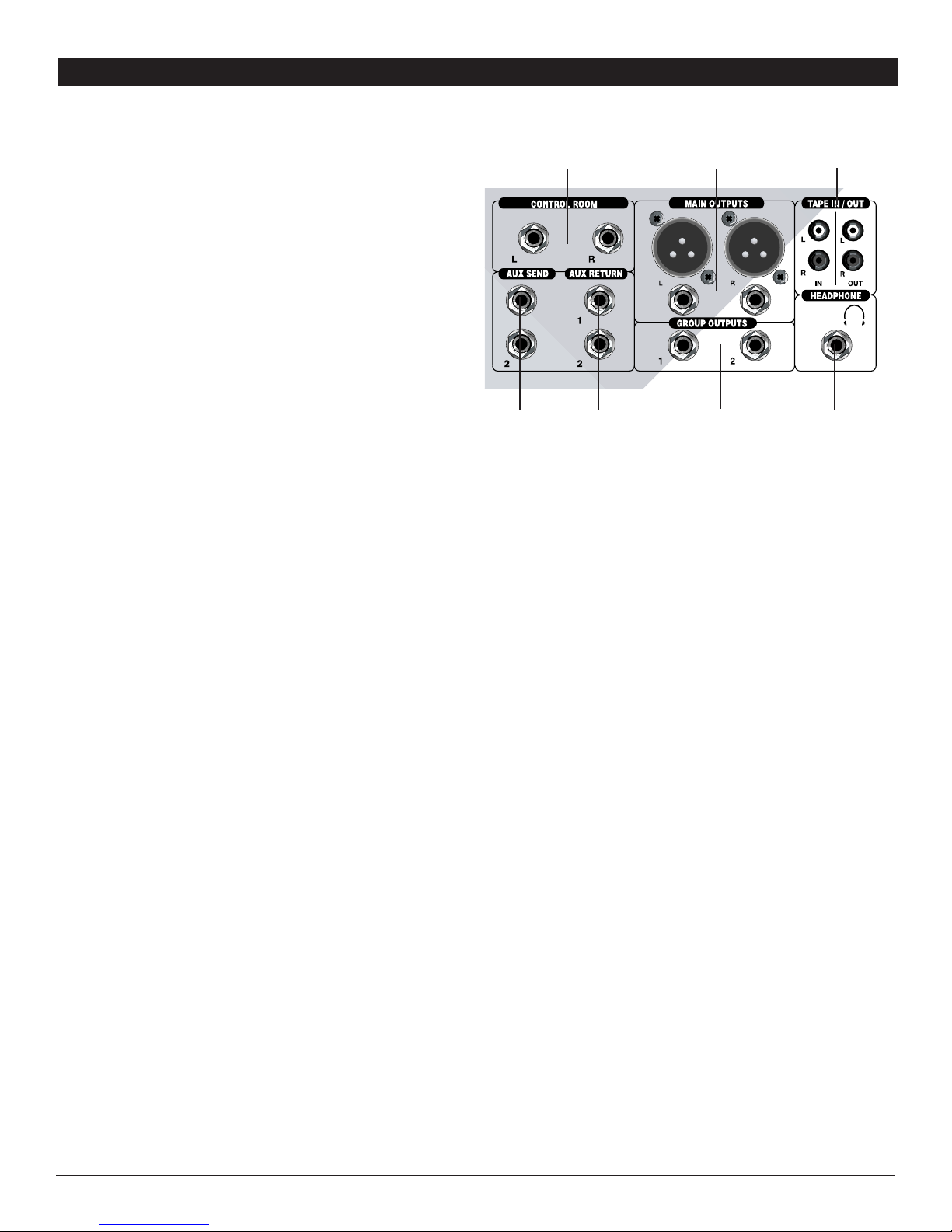

(30) (31)

(32)

(33)

(34)

(35)

(36)

outputs for easy monitoring. The Group can be a very useful

feature if used effectively. For stage applications the Group mix

can be sent to a monitor amplifier so the performers will only

hear the audio that is not already loud enough on stage.

Subgroups are commonly used as a mixing aid both live and in

the studio. For example, you can combine the outputs from all

drum channels onto just the two Group faders. This submix can

also be added to the Main/Master mix by depressing the Group

to Main Switch (23).

(23) GROUP TO MAIN SWITCH

When this push-button switch is depressed, the Group submix is

added to the Main/Master bus. This allows controlling the

combined volume of multiple channels with only two faders,

which can be useful when mixing a vocal quartet or multiple mics

for grouped instruments like percussion or drum kits.

(24) MASTER STEREO VOLUME FADERS

This adjusts the final level of the Master Left & Right signals, that

are sent to the Main (36), Headphone (33), and Control Room

(34) Outputs and also to the Speaker Stereo Outputs (37).

(25) DUAL CHANNEL LED VU METER

These 10-stage stereo output LED meter displays will display the

relative output level of the Left and Right Main (36) and

Speaker Outputs (37). They can be used to maintain proper

levels in the master mix. The top red Peak LED will light when

the powered output signal is just below clipping. It is acceptable

if the red LED lights occasionally. If the red LED lights more than

occasionally, you should turn down the Master Stereo Volume

Faders (24) to avoid audible distortion and clipping, which can

cause damage to your speakers and even the internal amplifier.

(26) POWER LED

This LED will illuminate when the unit is switched on.

(27) PHANTOM POWER

When this switch is depressed, +48V of phantom power will be

supplied to the mic channels. The yellow LED will illuminate

when the switch is depressed to ON.

[Note: When turning on the Phantom Power switch, turn the

Master Volumes to minimum.]

(28) HEADPHONE / CONTROL ROOM

The volume control adjusts the level of the Headphone and

Control Room Outputs. The push-button selector switch will

determine which signal is sent to these outputs - depressed for

Group 1 & 2, out for Master Stereo.

(29) TAPE LEVEL CONTROL

This control adjusts the level of the Tape Input signal applied to

Master/Main bus.

CONTROLS AND CONNECTIONS

5. REAR PANEL

(37) SPEAKER OUTPUTS

•RIGHT - These two 1/4”speaker output jacks are paralleled together for the Master Right output signal and can deliver up to 200W

RMS to a 4Ωload.

•LEFT - These two 1/4”speaker output jacks are paralleled together for the Left output and can deliver up to 200W RMS to a 4Ω

load.

[Caution: Never use less than 4ΩTotal impedance for either channel as this can cause the amplifier to overheat and create thermal

runaway.]

(38) POWER ON/OFF SWITCH

To turn the unit on, press the side of the rocker switch closest to the side of the mixer. To turn the unit off, press the rocker switch

towards the middle of the mixer.

(39) POWER CONNECTOR

The IEC jack is used to connect the power cord to the AC Power Source.

[Caution: Never remove the center grounding pin as this can cause a serious safety hazard and will immediately void your warranty.]

(40) FUSE COMPARTMENT

Replace with only the same type fuse. If the fuse blows continuously, have the unit serviced by qualified personnel. The PMX Series

powered mixer uses 20mm glass tube Fast Blow fuses: 8A 250V for 115VAC, 4A 250V for 230VAC.

(41) AC VOLTAGE SELECTOR SWITCH

Before plugging in the power cord, check to see that the unit is set for the proper voltage for your area: ~115V (60Hz) or ~230V

(50Hz).

(39) (41) (37)

(38)

(40)

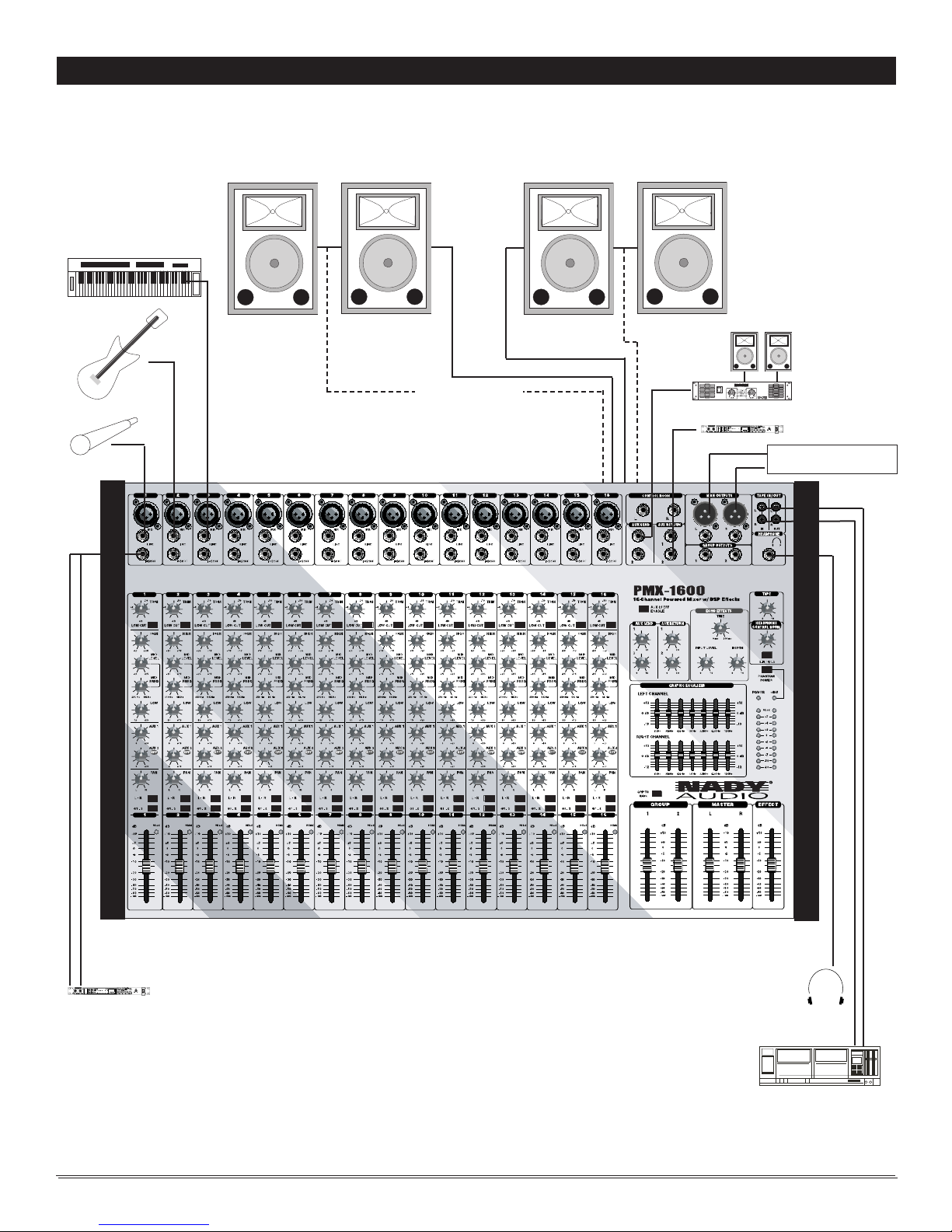

CONNECTIONS

EFX

TAPE/DISK

RECORDER

OR USE

SEPARATE CABLE

8Ω8Ω8Ω8Ω

MONITOR

SPEAKERS &

POWER AMP

REVERB

PA or RECORDING

DEVICE

SPECIFICATIONS

The specifications above are correct at the time of printing of this manual. For improvement purposes, all specifications for this unit, including design

and appearance, are subject to change without prior notice.

1. INPUT SECTION

Input Connector Input Impedance Max Level

MONO CH MIC XLR BALANCED 2.8KΩ+13dBu, 3.6V RMS*

MONO CHANNEL LINE 1/4”UNBALANCED 10KΩ+17dBu, 5.5V RMS

1/4”TRS BALANCED 20KΩ+23dBu, 11V RMS

AUX RETURN 1/4”UNBALANCED 10KΩ+11dBu, 2.8V RMS

TAPE IN STEREO RCA JACKS 10KΩ+18dBu, 6V RMS

INSERT INPUT 1/4”UNBALANCED 10KΩ+22dBu, 10V RMS

With Trim, Tape In, and Aux Return Level controls set to Mid (50%)

*With Trim set to Min (0%)

Phantom Power on XLR inputs ....................................................................................................................................................48VDC, globally selected

2. MIXER SECTION

Trim ....................................................................................................................................................................................................................Range 28dB

Channel High EQ +/-15dB ..................................................................................................................................................................12KHz, Rotary control

Channel Mid EQ +/-15dB ................................................................................................................................Variable 250Hz - 6KHz, Two Rotary controls

Channel Low EQ +/-15dB ....................................................................................................................................................................80Hz, Rotary control

Channel Aux 1, Aux 2 Eff, Pan ......................................................................................................................................................................Rotary controls

Low Cut, L-R Select, G1-2 Select........................................................................................................................................................Push-button switches

Channel faders............................................................................................................................................................................-∞to +10dB, 60mm sliders

Echo Effect Time Delay ......................................................................................................................................................................................0 to 200mS

Dual 7-Band EQ +/-12dB............................................................................................63Hz, 250Hz, 630Hz, 1KHz, 2.5KHz, 6.3KHz, 15KHz 20mm sliders

Master and Group dual faders, Effect single fader ....................................................................................................................-∞to +10dB, 60mm sliders

3. MASTER OUTPUT SECTION

Channel Input to Main Output

Frequency Response ..................................................................................................................................................................20Hz~25KHz (+/- 3dB)

THD + Noise ..........................................................................................................................................................................................................0.04%

S/N Ratio ............................................................................................................................ -85dB (gain controls @ unity), -94dB (gain controls down)

Noise Floor ........................................................................................................................350uV (gain controls @ unity), 150uV (gain controls down)

Output Connector Output Impedance Max Level

AUX SEND 1 & 2 1/4”UNBALANCED 200Ω+21dBu, 9V RMS

GROUP 1 & 2 1/4”UNBALANCED 200Ω+18dBu, 6V RMS

CONTROL ROOM L-R 1/4”UNBALANCED 200Ω+8dBu, 1.9V RMS

RECORD OUT STEREO RCA JACKS 1.4KΩ+21dBu, 8.5V RMS

MAIN L-R 1/4”UNBALANCED 200Ω+21dBu, 8.5V RMS

XLR BALANCED 400Ω+27dBu, 17V RMS

HEADPHONE 1/4”STEREO 12Ω2 x 50mW, 1.75V RMS**

**When connected to 32Ωoutput

4. POWER OUTPUT SECTION

Power Output

8ΩBoth Channels Driven (1% THD) ....................................................................................................................................................150W RMS per side

4ΩBoth Channels Driven (1% THD) ....................................................................................................................................................200W RMS per side

Channel Input to Speaker Output

THD........................................................................................................................................................................................................................0.09%

S/N Ratio ............................................................................................................................-72dB (gain controls @ unity), -85dB (gain controls down)

Noise Floor ..............................................................................................................................9mV (gain controls @ unity), 2mV (gain controls down)

Amplifier Protection ..................................................Fan cooling, short circuit protection, current limiting, Speaker DC protection circuits, clip indicators,

Power ON/OFF relays for anti-thump circuit

5. GENERAL

Power Requirements ..........................................................................................................................Voltage selectable, 115VAC/60Hz or 230VAC /50Hz

Fuse Requirements ......................................................................................................................................5x20mm glass tube F.B. 8A 250V @ 115VAC

4A 250V @ 230VAC

PMX-1600

Weight ...................................................................................................................................................................................................... 35.25 lbs. (16 Kg)

Dimensions (HWD) ............................................................................................................................................6.4”x 28.7”x 17.2”(163 x 729 x 437mm)

PMX-600
