NAiS ES2023 User manual

ORDER NO. SD0303G32C2
Epilator
ES2023
ES2024
ES2027
SPECIFICATIONS
Power source AC220-240V, 50-60Hz
Power consumption Approx. 6W
Motor voltage 12V DC
Charging time 8 hours
Weight 135g (unit with the big epilation head)
130g (unit with the small epilation head / unit with the shaver head)
Supplied accessories Soft case
Cleaning brush
CONTENTS
Page Page
1 SCHEMATIC DIAGRAM ...................................................2 4 TROUBLESHOOTING GUIDE...........................................7
2 DISASSEMBLY INSTRUCTIONS ...................................3-4 5 EXPLODED VIEW & REPLACEMENT PARTS LIST ....8-11
3 ASSEMBLY INSTRUCTIONS .........................................5-6
©2003 Matsushita Electric Works, Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.

ES2023/2024/ES2027
2
1 SCHEMATIC DIAGRAM

ES2023/2024/ES2027
3
2 DISASSEMBLY INSTRUCTIONS
2.1 MAIN UNIT
Follow the procedure below to disassemble the main body.
1. Remove the cap and the epilation head.
Loosen two screws on top.
2. Take out the bottom cover with pushing a head release
button.
3. Separate the housing A and housing B with care to
prevent breakage of hooks.
NOTE: Make sure that there are two hooks on both side
of housing A. If open the unit with all one’s strength, it
may damage the hooks.

ES2023/2024/ES2027
4
2.2 SHAVER HEAD（
（（
（only for ES2027）
））
）
1. Remove the foil frame, inner blade and trimmer driving
bar.
NOTE: Lift the trimmer driving bar up by using
something like a slotted head screwdriver as shown in
figure with care of breakage.
2. Loosen two screws and remove the retaining plate and
dust-proof rubber.
3. Remove the blade-mounting base and take out the
driving head from the blade holder.

ES2023/2024/ES2027
5
3 ASSEMBLY INSTRUCTIONS
3.1 MAIN UNIT
For assembly, reverse the order of disassembly.

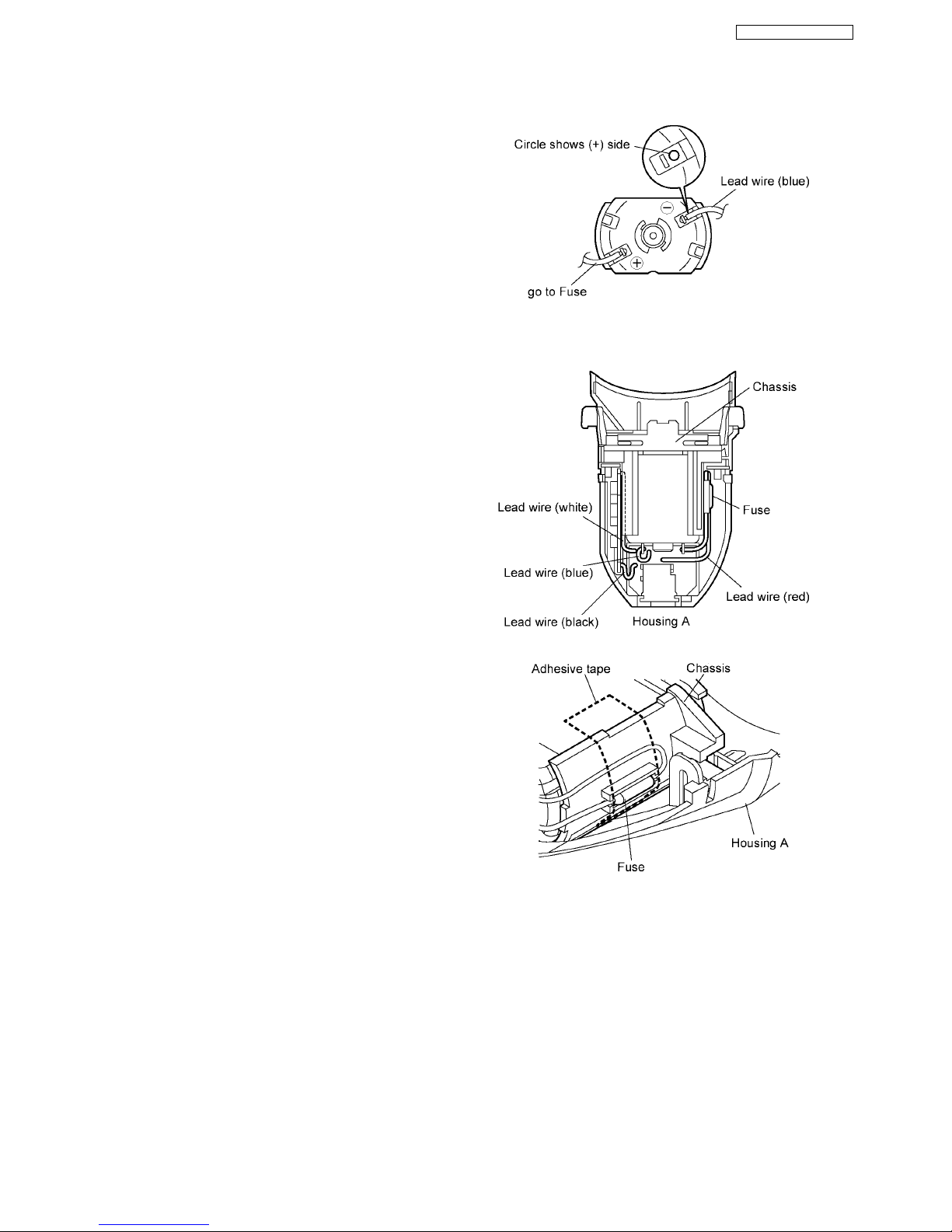

1. Confirm the colors of each lead wire when soldering
with motor.
2. Press fit the lead wires into housing neatly.
3. Put fuse into frame located side of chassis and fixed it
with an adhesive tape.
4. Close the housing A and B and tighten two screws after
assembling housings with the bottom cover.

ES2023/2024/ES2027
6
3.2 SHAVER HEAD(only for ES2027)
1. Confirm the direction of driving head and install a
driving head in the blade holder after inserting the motor
tip pin into an elliptic hole of the motor camshaft.
2. Install the blade mounting base, dust-proof rubber,
retaining plate and tighten two screws.
3. Confirm the direction of trimmer driving bar.

ES2023/2024/ES2027
7
4 TROUBLESHOOTING GUIDE (Refer to WIRING CONNECTION DIAGRAM)
<TROUBLE> <REMEDY>
Motor does not operate. NO Replace charging
→Connect to rated voltage with the charging adaptor. →adaptor.
OK if it is approximately DC11.5V.
↓OK
NO Replace epilation head.
Check if there is any deformation with skin protector. →
↓OK
NO Repair connection of
Check continuities between (+) terminal of plug chassis and (+) terminal of motor, →soldering part.
or (-) terminal of plug chassis and (-) terminal of motor.
OK if there is continuities with switching ON without connecting charging adaptor.
NO
NO
→Repair connection of
Check conditions of soldering part at motor terminals, plug chassis and printed soldering part.
circuit boards. →Replace switch terminal
OK plate.
↓OK
NO Replace the motor.
The motor should turn when 12V DC is applied to terminals. →
<CHECK.>
<CHECK CHARGING ADAPTOR.>
<CHECK DRIVING BLOCK.>
<CHECK MOTOR.>
<CHECK EPILATION HEAD.>
<CHECK CONNECTING POINTS>

ES2023/2024/ES2027
8
5 EXPLODED VIEW & REPLACEMENT PARTS LIST
5.1. EXPLODED VIEW for ES2023/ES2024

ES2023/2024/ES2027
9
5.2. REPLACEMENT PARTS LIST for ES2023/ES2024
NOTE : *A・・・ available as an optional accessory
*B
・・・ only available as set
*C
・・・ available individually
Ref.
No. Part No. Part Name & Descriptions Remarks Per
Unit
1 WES2027A7157 PROTECTIVE CAP *C ES2023 BULE (BG) 2
1 WES2027V7157 PROTECTIVE CAP *C ES2024 VIOLET 2
2 WES2027A3107 BIG EPILATION HEAD FRAME ES2023 BULE (BG) 1
2 WES2027V3107 BIG EPILATION HEAD FRAME ES2024 VIOLET 1
3 WES2027A1067 BIG EPILATION HEAD FOR LEGS/ARMS ES2023 BULE (BG) 1
3 WES2027V1067 BIG EPILATION HEAD FOR LEGS/ARMS ES2024 VIOLET 1
4 WES331B9257 TAPPING SCREW *C K2-8 4
5 WES2027S3207 SWITCH HANDLE 1
6 WES2024W3057 HOUSING A ES2023 BULE (BG) 1
6 WES2027W3057 HOUSING A ES2024 VIOLET 1
7 WES2027L2447 SWITCH PLATE 1
8 WES2027L1007 MOTOR 1
9 WES2027W3277 HEAD RELEASE BUTTON W/SPRING *B (2PCS/PK) (BG) 2
10 WES2027L2607 THERMAL FUSE 1
11 WES2027L2967 LEAD WIRE 1
12 WES2027L2147 DIODE WITH P-PLATE 1
13 WES2027K2167 JACK WITH SWITCH P-PLATE 1
14 WES2024W3068 HOUSING B ES2023 BULE (BG) 1
14 WES2027W3068 HOUSING B ES2024 VIOLET 1
15 WES2024A3111 BOTTOM COVER ES2023 BULE (BG) 1
15 WES2024V3118 BOTTOM COVER ES2024 VIOLET (BG) 1
16 WES2027A1077 SMALL EPILATION HEAD FOR UNDERARMS/BIKINI-LINE ES2023 BULE (BG) 1
16 WES2027V1077 SMALL EPILATION HEAD FOR UNDERARMS/BIKINI-LINE ES2024 VIOLET 1
17 WES2027A3127 SMALL EPILATION HEAD FRAME ES2023 BULE (BG) 1
17 WES2027V3127 SMALL EPILATION HEAD FRAME ES2024 VIOLET 1
18 WES2027W7664 POWER ADAPTOR C-2 PLUG 1
19 WES76806761 CLEANING BRUSH 1
20 WES2004W7007 SOFT CASE (BG) 1
- WES2023A8008 INDIVIDUAL BOX ES2023 BULE (BG) 1
- WES2024V8008 INDIVIDUAL BOX ES2024 VIOLET (BG) 1
- WES2024V8108 OPERATING INSTRUCTIONS (BG) 1

ES2023/2024/ES2027
10
5.3. EXPLODED VIEW for ES2027

ES2023/2024/ES2027
11
5.4. REPLACEMENT PARTS LIST for ES2027
NOTE : *A・・・ available as an optional accessory
*B
・・・ only available as set
*C
・・・ available individually
Ref.No. Part No. Part Name & Descriptions Remarks Per Unit
1 WES2027D7157 PROTECTIVE CAP *C (BG) 2
2 WES2027D3107 BIG EPILATION HEAD FRAME (BG) 1
3 WES2027D1067 BIG EPILATION HEAD FOR LEGS/ARMS (BG) 1
4 WES331B9257 TAPPING SCREW *C K2-8 4
5 WES2027S3207 SWITCH HANDLE (BG) 1
6 WES2027W3057 HOUSING A (BG) 1
7 WES2027L2447 SWITCH PLATE (BG) 1
8 WES2027L1007 MOTOR (BG) 1
9 WES2027W3277 HEAD RELEASE BUTTON W/SPRING *B (2PCS/PK) (BG) 1
10 WES2027L2607 THERMAL FUSE (BG) 1
11 WES2027L2967 LEAD WIRE (BG) 1
12 WES2027L2147 DIODE WITH P-PLATE (BG) 1
13 WES2027K2167 JACK WITH SWITCH P-PLATE (BG) 1
14 WES2027W3068 HOUSING B (BG) 1
15 WES2027D3118 BOTTOM COVER (BG) 1
16 WES2027D4037 SHAVER HEAD (BG) 1
17 WES2027D3557 SMALL EPILATION COMB (BG) 1
18 WES2027D0087 FOIL FRAME (BG) 1
19 WES9753E OUTER FOIL 1
20 WES9752E INNER BLADE 1
21 WES204W1257 TRIMMER DRIVING BAR (BG) 1
22 WES2027L0207 RETAINING PLATE (BG) 1
23 WES2005L0327 DUST-PROOF RUBBER (BG) 1
24 WES2027D3097 BLADE MOUNTING BASE (BG) 1
25 WES2005L1247 DRIVING HEAD (BG) 1
26 WES2027L0787 BLADE HOLDER (BG) 1
27 WES2027D1077 SMALL EPILATION HEAD FOR UNDERARMS/BIKINI-LINE (BG) 1
28 WES2027D3127 SMALL EPILATION HEAD FRAME (BG) 1
29 WES2027W7664 POWER ADAPTOR (BG) 1
30 WES76806761 CLEANING BRUSH 1
31 WES2004W7007 SOFT CASE (BG) 1
- WES2027D8008 INDIVIDUAL BOX (BG) 1
- WES2024V8108 OPERATING INSTRUCTIONS (BG) 1
