Neilsen CT4444 User manual

CT4444
4
CAUTION:
Before using this cordless drill or any of its accessories, read this manual
and follow all its Safety Rules and Operating Instructions.
ORIGINAL INSTRUCTIONS
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM
18V LITHIUM IMPACT WRENCH
WITH BRUSHLESS MOTOR

EC DECLARATION OFCONFORMITY
We, CANNON TOOLS LTD
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K
Declare that the following machine complies with the appropriate basic
safety and health requirements of the EC Directive based on its design and
type, as brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration
will lose its validity.
Product description: 18V LITHIUM IMPACT WRENCH
Model: CT4444
Appropriate EC directives:
EC - Directive of Electromagnetic Compatibility 2014/30/EU
EC - Machinery Directive 2006/42/EC
Harmonized Standards:
EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3,
EN 60745-1, EN 60745-2-2
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2017.01.03
1

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection
against injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage,wear and
ageing.Replace the extension lead if damaged or defective.When using an extension lead on a reel, always unwind the lead completely.Use of an
extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructiong may result in electric shock,
.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.Keep cord away from heat,oil, sharp
edges or moving parts.Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use power tool while you are tired or
under the ibfluence of drugs, alcohol or medication. Amoment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power
tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of thepower tool in unexpected situations.
GENERAL POWER TOOL SAFETY WARNINGS
up or carrying the tool.
2

1
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments,
changing accessories, or storing power tools.Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate
the power tool.Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect
the power tool’s operation. If damaged, have the power tool repaired before use.Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and
the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. A charger that is suitable for one
used with another batery pack.
b. Use of any other battery packs may
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coinskeys, nails, screws or other small metal objecs,,
that can make a connection from one terminal to another.
d. Under abusive conditions, liquid may be ejected from the battery; aviod contact. If contact
Liquid
ejected from the battery may cause irritationor burns.
6. Service
a. This will ensure that the safety of the
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
BATTERY AND CHARGER SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack.
1. This charger is not intended for any uses other than charging rechargeable batteries. Any other use
2. Do not place any object on top of the charger or place the charger on a soft surface that may result in excessive internal heat. Place the charger in a
3. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the charge
r.
4. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
5. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
n.
6. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way.Have it checked by an electrician or power
r.
7. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is
8. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning. Removing the battery pack will not reduce this risk.
9. Never attempt to connect 2 chargers together.
10. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed 40ºC (such as inside sheds or metal buildings
11. The charger is designed to operate on standard household electrical power (240 volts). Do not at-tempt to use it on any other voltage!
12. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging notes and procedures.
13. The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 - 24ºC. Do not charge
the battery pack in an air temperature below 10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
for which it was designed.
n
power tool is maintained.
position away from any heat source.
tool repaire
in summer).
3

14. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery can explode in a fire.
15. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pac k breaks or cracks, immediately discontinue
use and do not recharge .
16. During charging, the battery must be placed in a well ventilated area.
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of with household waste but in an
environmentally friendly way.Please recycle where facilities exist. Check with your local council
authority for recycling advice.
Recycling packaging redeces the need for landfill and raw materials.Reuse of recycled material decreases
pollution in the environment.Please recycle packaging where facilities exist.Check with your local
council authority for recycling advice.
LED lights do not illuminate on charger
Check the charger is securely plugged into the wall out let.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles before the battery reaches
optimum charge and run time. On the initial charge, the battery requires 1 hours of charging.
Subsequent charging only requires 0.5-1 hours.

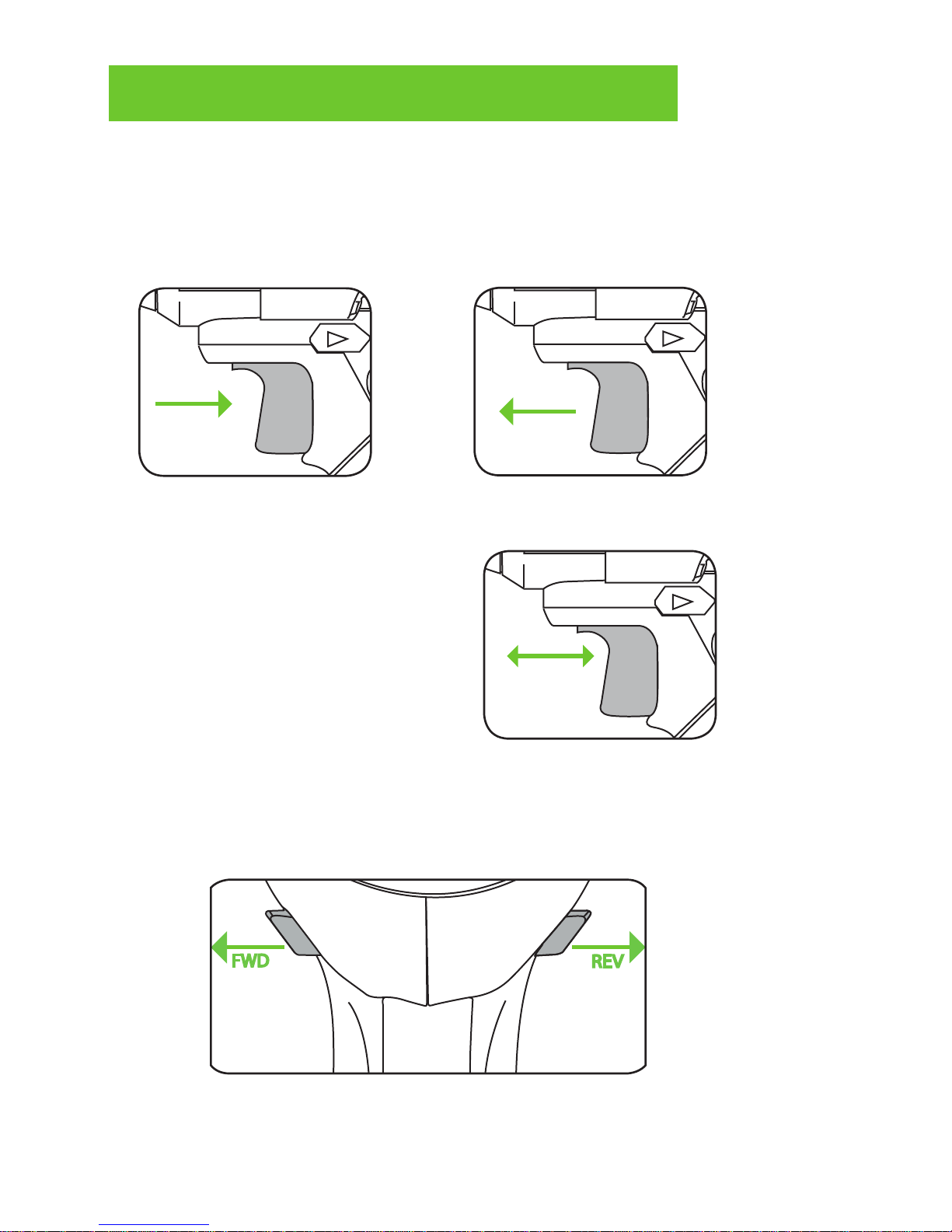

Variable speed trigger is locked
Ensure that the forward / reverse lever is in the correct position; pressed left for forwards direction,pressed
right for backwards direction. If it is in between the two settings the variable speed trigger will be locked.
The Impact Wrench is stripping the screw head
Ensure you are not applying to much force to the wrench. Decrease the force by using a slower trigger speed.
Impact Wrench has cut out during use
Use the battery indicator button to check if the battery has gone flat. If the indicator does not work or
indicates that the battery still has charge, it is likely that the battery’s themal voltage protection has been
activated.This can happen when the wrench has been used for extended periods or worked hard with
large wrench bits or accessories.
Place the battery on the charging cradle for 0.5-1 hours. It will need this time to cool down and for the
protection circuits to be reset.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
charger
4

WARNING! Wear ear protectors when impact wrench Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory
may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal
parts of the power tool “live” and could give the operator an electric shock. Before drilling into walls, ceilings etc, ensure
that there are no concealed power cables or pipes in the cavity.
WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contain chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
•Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you do this type of work.To reduce your
exposure to these chemicals: work in a well ventilated area and work with approved ventilated area and work with
approved safety equipment, such as dust masks that
electric wrench SAFETY WARNINGS
MAINTENANCE
1. When not in use, the impact wrench should be stored in a dry,
frost free location, keep out of children’s reach.
2. Keep ventilation slots of the electric wrench clean at all times and
prevent anything from entering.
3. If the housing of the impact wrench requires cleaning, do not use
solvents. Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically .
Note:Our company will not be responsible for any damage or
injuries caused by repair of the electric wrench by an unauthorised
person or by mishandling.
5

6
DESCRIPTION OF SYMBOLS
Spare parts can be ordered from the Special Orders Desk at your local Bunnings
Warehouse.
SPARE PARTS
Warning Read instruction manual
Diameter
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Transformer Energy
Rating (MEPS)
Double insulated
/min Revolutions or reciprocation per minute
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50 ℃
Electrical Emissions
Conformity (EMC)
Nm Newton Meters no No load speed
V Volts Hz Hertz
ac/~ Alternating current W Watts
Direct
dc/
18V Li-ion Battery Pack
Charger
ø
No-load speed: 0-2600RPM
Impact frequency:0-3200BPM
Torque force: 250N.m
Drive Size: 1/2”square drive
Battery: 2.0Ah SAMSUNG Li-ion
SPECIFICATIONS

7
KNOW YOUR PRODUCT
1 Anvil
2 LED Worklight
3 Battery Release Button
4 Variable Speed Trigger
5 Forward/ Reverse Lever
6 Battery 18V
IMPACT WRENCH
7 8
Fast charger

SETUP & PREPARA

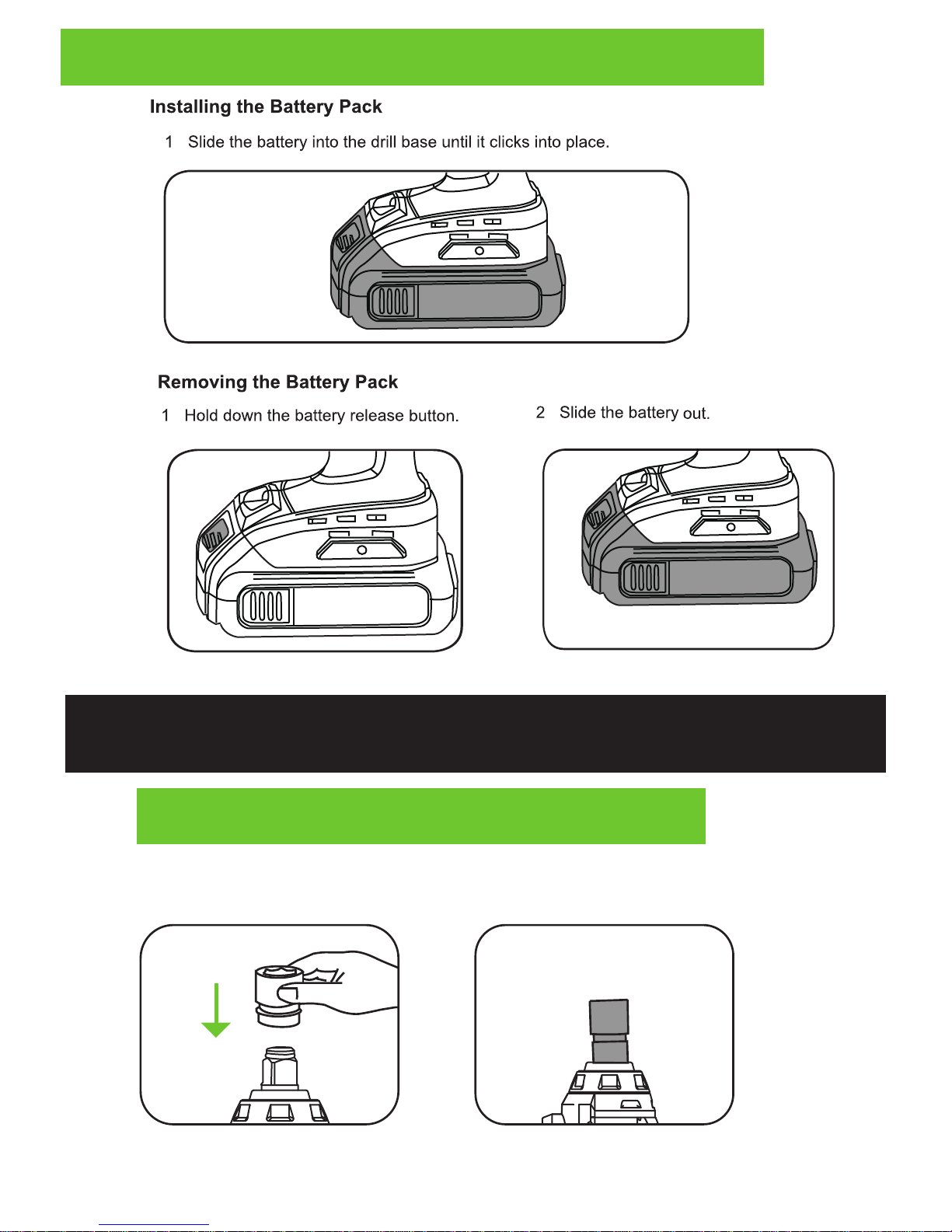

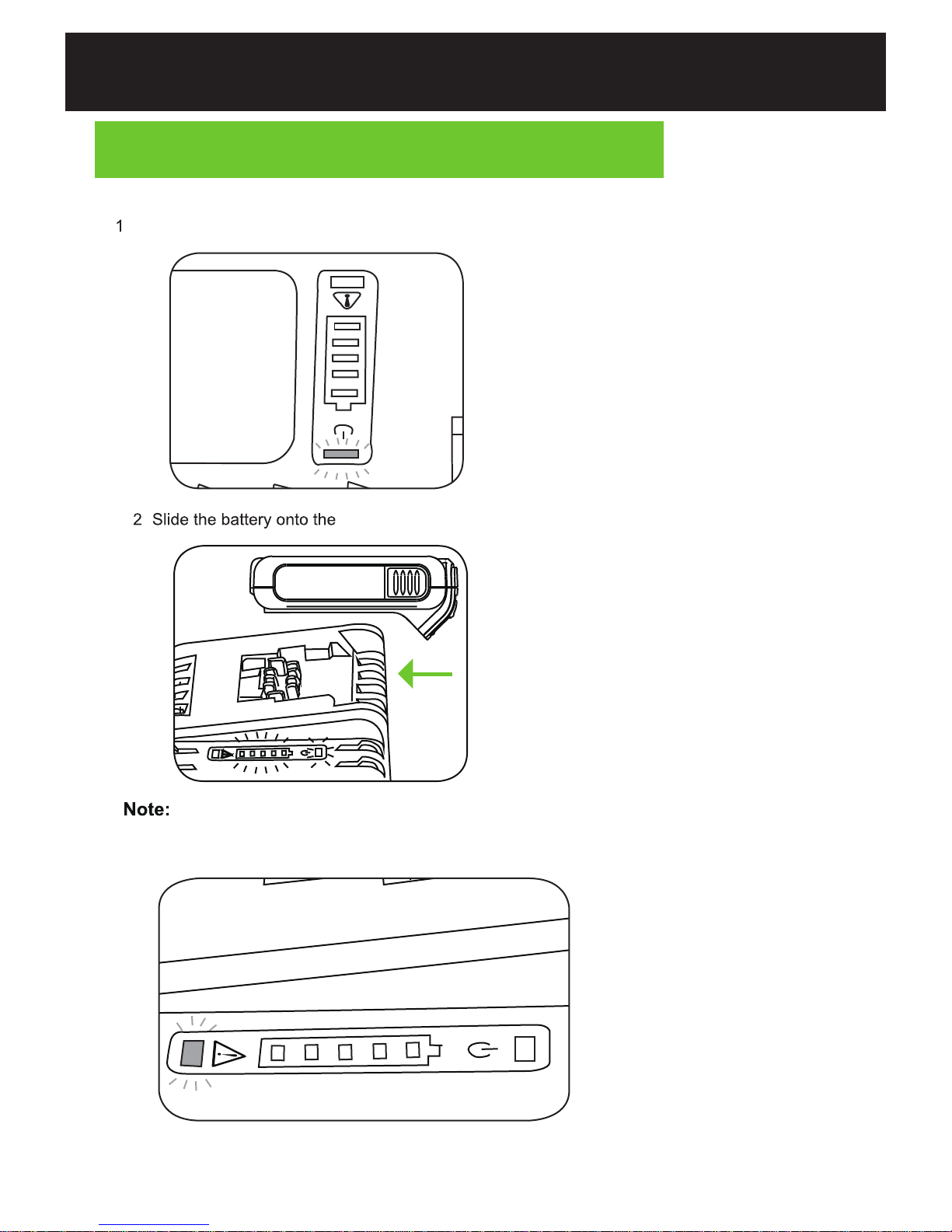

1. BATTERY
Plug charger jack into socketh. The green light will illuminate when connected.
charger. Both lights will illuminate when properly connected.
When the warning lights come on, It has the following two conditions:
1: The damage of battery pack
2: The fast charge temperature is too high
CHARGER
8

2. KEYLESS CHUCK
9
1. KEYLESS CHUCK CONT.
Installing a Socket (Not Supplied)
1.Push the socket onto the tool
OPERATION

2. CONTROLS
1. Squeeze the variable speed
trigger to start the driver.
2. To stop the driver release
the trigger.
Variable Speed Trigger
3. Control the speed by
adjusting the amount of
pressure applied to the
trigger.
Slower Faster
FWD
REV
Forward/ Reverse Lever
1.
For forward rotation, push the fwd/rev lever hard left. For
reverse rotation, push fwd/rev lever hard right.
10

11
4. DRIVING
1. Depress and release the
variable speed trigger to
ensure it is not locked on.
2. Check the forward/reverse
lever is on desired setting.
3. Push the socket onto the nut 4. Lightly depress the variable
speed trigger to start the
impact wrench
5. Slowly increase pressure on trigger to appropriate torque for
circumstances until screw or bolt is tightened.

29
30
31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25 27
28
26
12
ASSEMBLY DIAGRAM

No.
Fast charger
Rubber cover
Front cover
Shaft sleeve
Spacer
Spacer
Head shaft
Impact block
Steel ball
Spacer
Spring
Steel ball
Output shaft
Spacer
Gear
Pin
Bearing
Inner gear
Screws and spring
washer
Gearbox
Motor gear
Motor+Switch+PCB+
Batteryconnection
Reversing switch lever
Left enclosure
Pothook
Screws
Screws
Right enclosure
Belt
Back cover
Screws
Batterypackage
Qty.
13
PARTS LIST
Description

CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
