network SDI0106Q User manual

SDI0106Q
SERIAL DIGITAL VIDEO DISTRIBUTOR - 1X6 QUAD
Product Manual
Rev. 2

SDI0106Q Rev. 2
Network Electronics ASA
Thorøya
P.O. Box 1020
Sandefjord, Norway
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.network-electronics.com
Service Phone: [phone]
Revision history
Current revision of this document is the uppermost in the table below.
Revision Replaces Date Change description
2 1 23/11/04
Removed reference to discontinued product
SDI0106D.
1 0 01/04/04
Updated warranty description, and combined D and
Q.
0 - 10/10/00 Initial Revision.
2

SDI0106Q Rev. 2
Contents
Revision history............................................................................... 2
1 Product overview......................................................................... 4
2 Specifications .............................................................................. 5
2.1 Technical specifications ...............................................................................5
2.2 Rear view.....................................................................................................5
2.3 Power connection........................................................................................5
3 Connections ................................................................................ 7
3.1 Termination of video signals ........................................................................7
General environmental requirements for Network Electronics
equipment ..................................................................................... 8
Certificate of Conformity ................................................................ 9
Product Warranty ......................................................................... 10
3

SDI0106Q Rev. 2
1 Product overview
The SDI0106Q provides four separate 1 to 6 serial digital video distribution
amplifiers in a single rack space ultra low profile enclosure. Looped inputs
allow forming of different configurations. This high performance amplifier in
SMD technology allows the digital transparent distribution of D1 and D2
signals. The signal passes the amplifier without any signal processing. The
SDI0106Q is designed for all distribution purposes in studio, duplication and
broadcast applications.
4

SDI0106Q Rev. 2
2 Specifications
2.1 Technical specifications
Data rate: 143Mbps – 270Mbps
Min. signal level: 0.25 nom. 0.8V
Max. Signal level: 4.5V
Number of inputs: 4, looped
Number of outputs: 4x6
Impedance: 75Ohms
Signal processing: None
Connector: BNC
AC power: External power supply 100 – 260 VAC
DC power: ±5V, connector DB9 male
Dimensions: 483 x 44 x 40 mm (19”, 1RU)

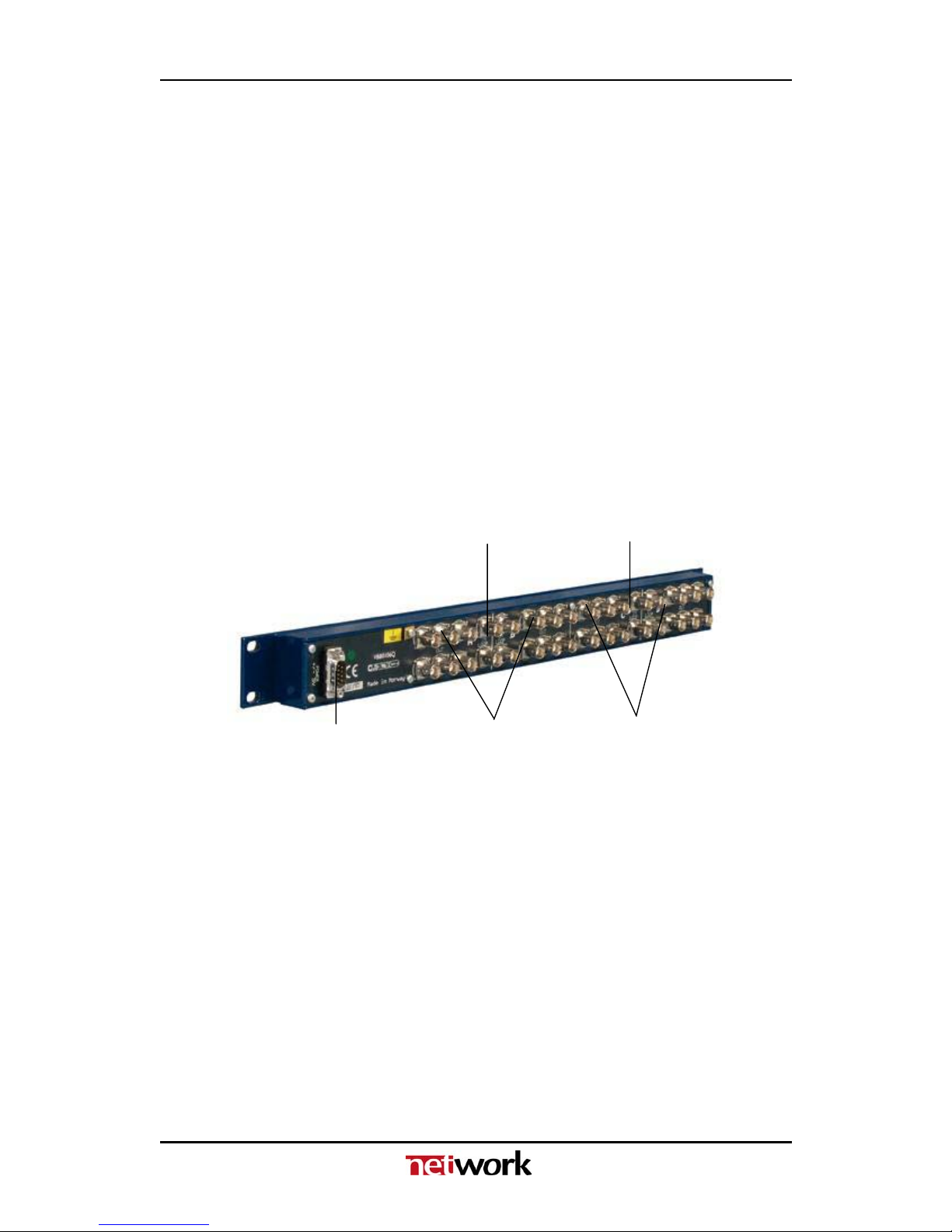

2.2 Rear view
Video inputs A/B Video inputs C/D
Power connector Video outputs A/B Video outputs C/D
2.3 Power connection
Do not connect mains to the desktop power supply before connecting
the power supply to the distributor.
Connect the DB9 female connector from the desktop power supply to the
main unit. Tighten the screws to assure a proper contact. To connect mains to
the desktop power supply you need a mains cord with IEC 320 connector.
SDI0106Q is normally delivered with the desktop power model AC ±5V /
10W. Upon customer request, SDI0106Q can also be delivered with DC ±5V /
30W, which may be fed by a 36 - 72 VDC mains power source. A Frame
mounted power supply solution is also available.
Please refer to the latest Network Product Catalogue for power supply types,
or call the Network Electronics ASA for this information.
5

SDI0106Q Rev. 2
SDI0106Q requires ±5V DC with a minimum current of 300mA. The following
pin-out is used on the DB9 male power connector:
Pin #1 0V
Pin #2 +5V
Pin #6 -5V
6

SDI0106Q Rev. 2
3 Connections
3.1 Termination of video signals
It is not necessary to terminate unused distribution outputs.
The looped outputs on the input section of the SDI0106Q must always be
terminated. A 75 ohms termination plug is used direct on the SDI0106Q.
To assure correct signal shape a precision termination plug with 0,1%
tolerance must be used.
If the video signal is routed from the looped outputs to other devices, the end
of the loop chain have to have an internally terminated device or a
termination plug.
7

SDI0106Q Rev. 2
General environmental requirements for Network Electronics
equipment
1. The equipment will meet the guaranteed performance specification under the
following environmental conditions:
- Operating room temperature range: 0°C to 45°C
- Operating relative humidity range: < 95% (non-condensing)
2. The equipment will operate without damage under the following environmental
conditions:
- Temperature range: -10°C to 55°C
- Relative humidity range: < 95% (non-condensing)
3. Electromagnetic compatibility conditions:
- Emissions: EN 55103-1 (Directive 89/336/EEC)
- Immunity: EN 55103-2 (Directive 89/336/EEC)
- Electrical safety: EN 60 950
With reference to the declaration of conformity provided with the external power
supply.
8

SDI0106Q Rev. 2
Certificate of Conformity
Network Electronics ASA
N-3204 Sandefjord
Norway
Company Registration Number:
NO 976 584 201 MVA
Declares under sole responsibility that the product:
Product Name: SDI0106Q
Product Description: Serial Digital Video Distributor - 1x6
Quad
To which this declaration relates are of Norwegian origin and are in conformity with
the following standards:
EN 55103-1: 1996 Generic Emissions Standard
EN 55103-2: 1996 Generic Immunity Standard
IEC 60950, 2nd Ed, 1991 + Amd. 1, 1992 +
Amd. 2, 1993 + Amd. 3, 1995 + Amd. 4, 1996
Safety Standard
9

SDI0106Q Rev. 2
10
Product Warranty
The warranty terms and conditions for the SDI0106Q follow the General Sales
Conditions by Network Electronics ASA. These conditions are available on the
company web site of Network Electronics ASA:
www.network-electronics.com
