Norco PPC-3315E User manual

PPC-3315E
USER' Manual V1.0

SZ HQ: 0755-27331166
Beijing Office: 010-82671166
Shanghai Office: 021-61212081
Chengdu Office: 028-85259319
Shenyang Office: 024-23960846
Xi’an Office: 029-88338386
Nanjing Office: 025-58015489
Wuhan Office: 027-87858983
Tianjin Office: 022-23727100
Singapore: 65-68530809
For more information, please visit：www.norco.com.cn
PPC-3315E
USER' Manual V1.0

Disclaimer
Except for the accessories attached to the product as specified herein,
what is contained in this user manual does not represent the commitments
of NORCO Company. NORCO Company reserves the right to revise this
User Manual, without prior notice, and will not be held liable for any direct,
indirect, intended or unintended losses and/or hidden dangers due to
installation or improper operation.
Before ordering products, please learn about the product performance
from the distributors to see if it is in line with your needs. NORCO is a
registered trademark of Shenzhen NORCO Intelligent Technology CO., LTD.
The ownership of other trademarks involved in this manual is owned by its
respective owners.
The contents of this manual are protected by copyright law. All rights
are strictly reserved. Any form of unauthorized reproduction including but
not limited to carbon copy, facsimile transmission and electronic copy or
email is prohibited.

Safety Instructions
1. Please read the product manual carefully before using this product.
2．Put all the unused or uninstalled boards or electronic components in a static dissipative
surface or static shielding bag.
3．Always ground yourself to remove any static discharge before touching the board, to place
your hands on grounding metal object for a while or wear an anti-static wrist strap at all times.
4．When taking or fetching the boards or cards, please wear anti-static gloves and have the
habit of holding the boards by its edges.
5．Make sure that your power supply is set to the correct voltage in your area. Incorrect voltage
may cause personal injuries and damage the system.
6．To prevent electronic shock hazard or any damage to the product, please ensure that all
power cables for the devices are unplugged when adding or removing any devices or
reconfiguring the system.
7．To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
8．When adding or removing devices to or from the system, ensure that all the power cables for
the devices are unplugged in advance.
9．To prevent any unnecessary damage to the products due to frequent power on/off, please
wait at least 30 seconds to restart the unit after the shutdown.
10．If system goes wrong during the operation, do not try to fix it by yourself. Contact a qualified
service technician or your retailer.
11．This product is classified as Class A product, which may cause radio interference in our
living environment. On this occasion, users need to take measures to handle the interference.

Content
Chapter One Product Introduction....................................................................................................1
1.1 Hardware Specificattion........................................................................................................... 1
Chapter Two Hardware Function...................................................................................................... 3
2.1 External interface indication diagram.....................................................................................3
Chapter Three Hardware Installation............................................................................................... 6
3.1 Jumper Setting...........................................................................................................................6
3.1.1 Jumper Setting（JP1，J12, J13, J14）...............................................................6
3.2 Interface Specification.............................................................................................................. 8
3.2.1 Serial Ports（COM1_3，COM4_5，COM485）......................................................8
3.2.2 SATA Port（SATA）...................................................................................................... 9
3.2.3 USB Port（USB1-3，USB4-6，J6，J7，J8）......................................................10
3.2.4 Ethernet Interface（LAN）.........................................................................................11
3.2.5 Audio Port（AUDIO, J18）........................................................................................ 12
3.2.6 Display Port（LVDS, HDMI，VGA）....................................................................... 12
3.2.7 Power Interface（PWR、PWR1）........................................................................... 15
3.2.8 Power Supply and System Indicator (LED）：.........................................................15
3.2.9 Four Wire Touch Screen Interface（J4）:............................................................... 16
3.2.10 GPIO Expansion Port（J9）：..................................................................................17
3.2.11 Front Panel Interface (JFP、RSTSW):.................................................................. 17
3.2.12 Fan Interface（SYS_FAN）.................................................................................... 18
3.2.13 MINI PCIe Port...........................................................................................................19
Chapter Four Software Function.....................................................................................................20
4.1 Android System....................................................................................................................... 20
4.1.1 Display........................................................................................................................... 20
4.1.2 USB................................................................................................................................20
4.1.3 COM...............................................................................................................................20
4.1.4 CAN................................................................................................................................20
4.1.5 SD Card.........................................................................................................................20
4.1.6 SATA HDD.....................................................................................................................20
4.1.7 WIFI Card......................................................................................................................20
4.1.8 3G Card.........................................................................................................................20

4.1.9 Ethernet.........................................................................................................................21
4.1.10 Sound Card................................................................................................................ 21
4.1.11 Camera........................................................................................................................21
4.1.12 GPIO............................................................................................................................21
Appendix................................................................................................................................................22
Appendix 1：Glossary.................................................................................................................. 22

Packing List
Thanks for purchasing NORCO products. Please check the
accessories as per the packing list when you open its package. If you find
any components/parts defected, damaged or lost, please contact your
vendor ASAP.
■ PPC-3315E
1pc

Chapter
One
Product
Introdu
ction

PPC-3315E
1
Chapter One Product Introduction
1.1 Hardware Specification
Size
●Size: 200mmX140mm
Processor
●CPU：On-board, support i.MX6 series (single core, dual core and quad core)
System Memory
●On-board memory：Default 1GB，support DDRⅢ
Display
●Display port：LVDS，HDMI，VGA（optional）
●LVDS：dual channel LVDS port，24Bit Maximum resolution : 1920×1200@60Hz
●HDMI：Maximum resolution: 1920x1080@60Hz
Ethernet
●Support on-board Gigabit wired network controller, speed: 10/100/1000MBps
●Support on-board Wi-Fi
●Provide 1x MINI PCIE slot，1x SIM slot, support 3G network
Storage
●Provide 1x 7Pin SATA port
●SD: Support SD standard card
●FLASH: on-board 8GB INAND
AUDIO
●Adopt SGTL5000-XNAA3 audio control chip+ TI power amplifier chip
●Provide 1xMIC-in port，2x 6W power amplifier output port
●Provide 1x Line-in socket，1x Headphone jack

PPC-3315E
2
I/O
●Serial port：Provide 5x serial port，COM2 support RS485 model（with isolation）; COM1、
COM3、COM4、COM5 support RS232
●Provide 5x standard USB2.0 port，1x USB2.0 OTG standard port.
●Support 2x CAN BUS（optional）
Expansion Port
●Support 16x GPIO port，3x isolated GPO and 3x isolated GPI
●Support four wire resistance touch（optional）
Power Supply
●+12V single power supply
Watchdog
●Support hardware reset
Operating Environment
●Operating Temperature：0℃~60℃
●Operating Humidity：5%~95%，non-condensing

Chapter
Two
Hardware
Function

PPC-3315E
3
Chapter Two Hardware Function
2.1 External interface indicator diagram
2.1.1 PPC-3315E front view
2.1.2PPC-3315E port
LAN port
USB1-6 port
COM1-4 port
HDMI port
Power interface

PPC-3315E
4

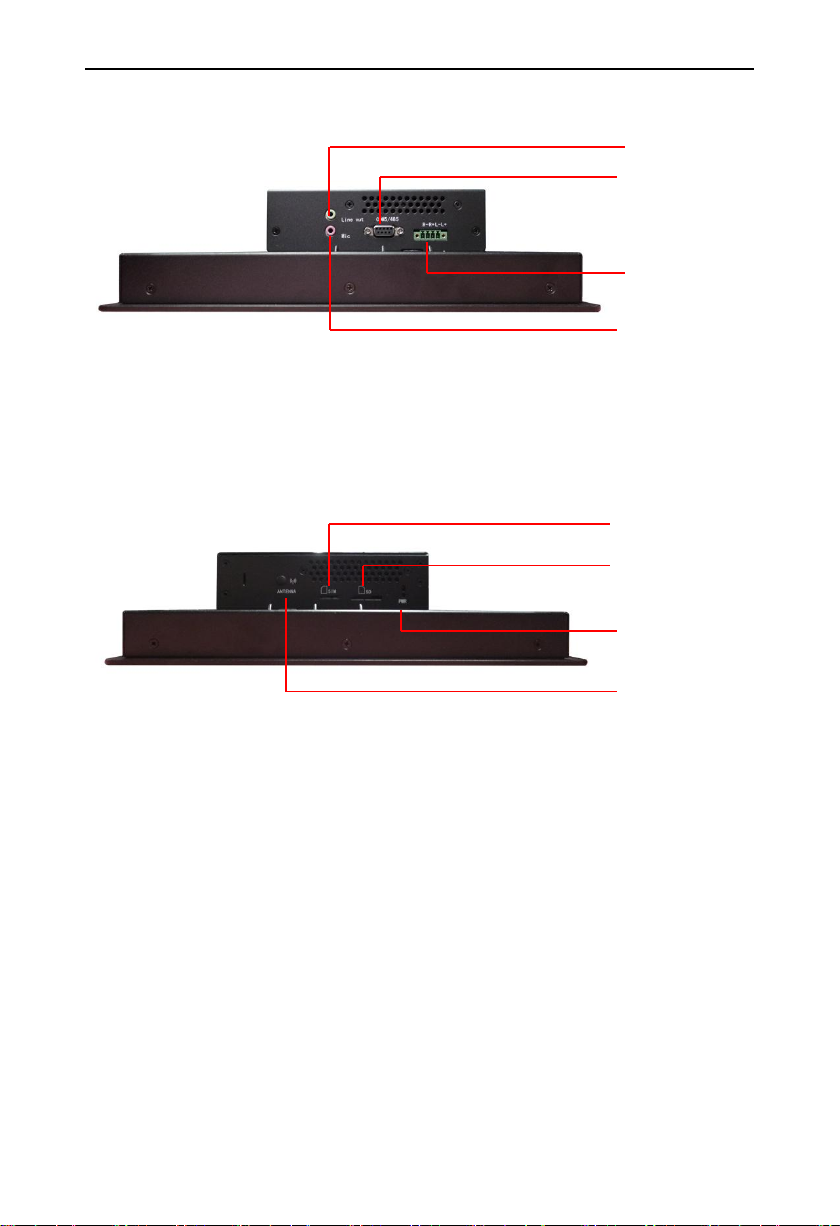

Line-out port
MIC port
COM5/485 port
Power amplifier port
SD card slot
SIM card slot
3G antenna
PWR port

Chapter
Three
Hardware
Installa
tion

PPC-3315E
6
Chapter Three Hardware Installation
Before installing the computer accessories
Following the instructions below will help to prevent your computer from being damaged,
and also ensuring your personal safety.
1：Please make sure your computer is disconnected from the power supply.
2：Please always wear anti-static strap or gloves to operate the board in case that you may
touch the integrated circuit components, such as RAM.
3.1 Jumper Settings
Please refer to following instructions to do jumper settings before installing your hardware
devices.
Remark: How to identify the PIN1 of all jumpers and interfaces: Please observe the word
mark on the side of the plug socket, which will be a “1” or bold line or triangular symbol; And
please look at the back of PCB, each with a square shape will be the PIN 1; and all the jumpers’
PIN1 have a white arrow on the side.
3.1.1 Jumper Settings（JP1，J12, J13, J14）
JP1 is used to set the start-up mode of the motherboard, insert the jump cap to download
mode, and unplug it to normal start-up mode;J12 is used to set the power supply of LVDS
screen, which can be set according to different screens, and J13 is used to set the output +12V
power supply.

PPC-3315E
7
JP1：
JP1 (download setting)
Close
download
Open
normal
J12：
J12(LVDS POWER Selection)
+3.3V
1-3,2-4
+5V
3-5,4-6
J13：
J13 (+12V power output and motherboard ground output selection)
J14. Pin A4 connect to +12V power
1-3
J14. Pin A3 connect to motherboard
ground
2-4
Note：Avoid connecting pin1 and pin 2 of J13, which will cause short circuit of power
supply！
J14：
Signal Names
Pin
Signal Names
+3.3V
1
2
+3.3V
RI_UD
3
4
SELLVDS
GND
5
6
GND
J12
JP1
J13
J14

PPC-3315E
8
3.2 Interface Specification
Please read this manual carefully before installing any external connectors, in case
of any damage to the motherboard!

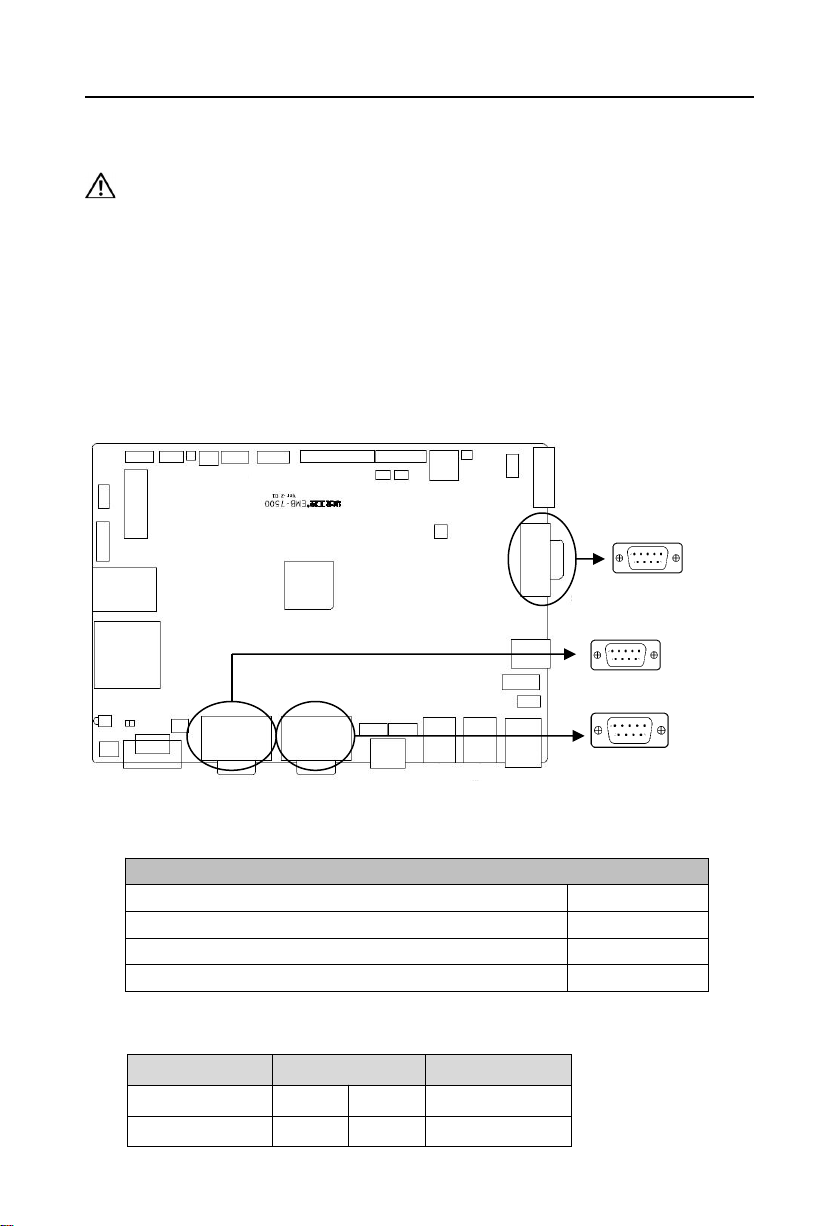

3.2.1 Serial Port（COM1_3，COM4_5，COM485）
Provide 4x standard RS232 serial port COM1_3（corresponding to the screen printing on
the complete machine COM1&COM2），COM4_5 (corresponding to the screen printing on the
complete machine COM3&COM4), in which COM1_3 port has RTS, CTS function，COM4_5
do not has RTS,CTS function.
The mapping relationship of serial port RS232 is as follows：
Corresponding relationship of serial port RS232
COM1（screen printing mark of complete machine）
/dev/ttymxc0
COM2（screen printing mark of complete machine）
/dev/ttymxc2
COM3（screen printing mark of complete machine）
/dev/ttymxc3
COM4（screen printing mark of complete machine）
/dev/ttymxc4
COM485：
Signal Names
Pin
Signal Names
GND
1
2
NC
NC
3
4
485_B
COM1_COM3
COM4_COM5
COM485

PPC-3315E
9
485_A
5
6
NC
NC
7
8
NC
+12V
9
10
NC
The mapping relationship of serial port 485 is as follows：
Corresponding relationship of serial port 485
485 serial port
/dev/ttymxc1

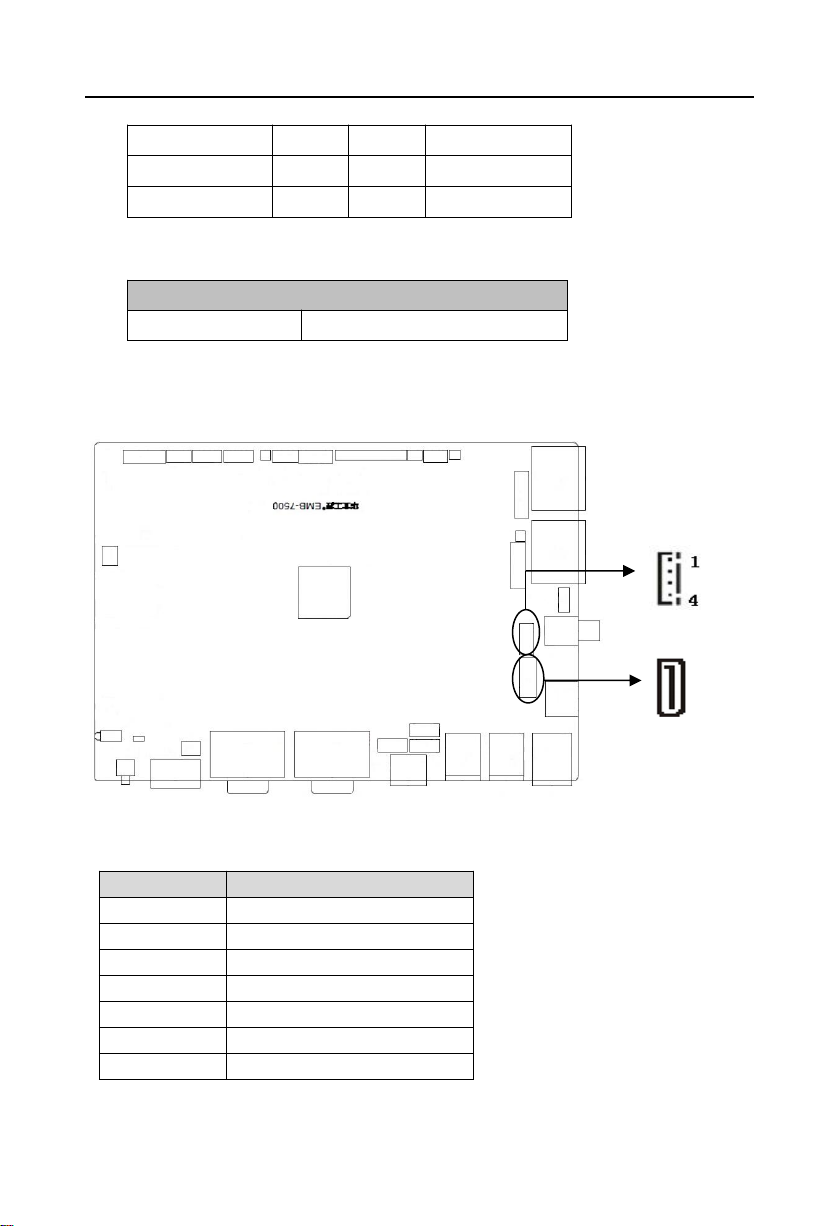

3.2.2 SATA Port（SATA）
Provide 1x 7Pin SATA signal port and 4Pin SATA power interface
SATA signal port SATA：
Pin
Signal Names
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
SATA
J16

PPC-3315E
10
SATA power interface J16:
Pin
Signal Names
1
+3.3V
2
GND
3
+5V
4
GND

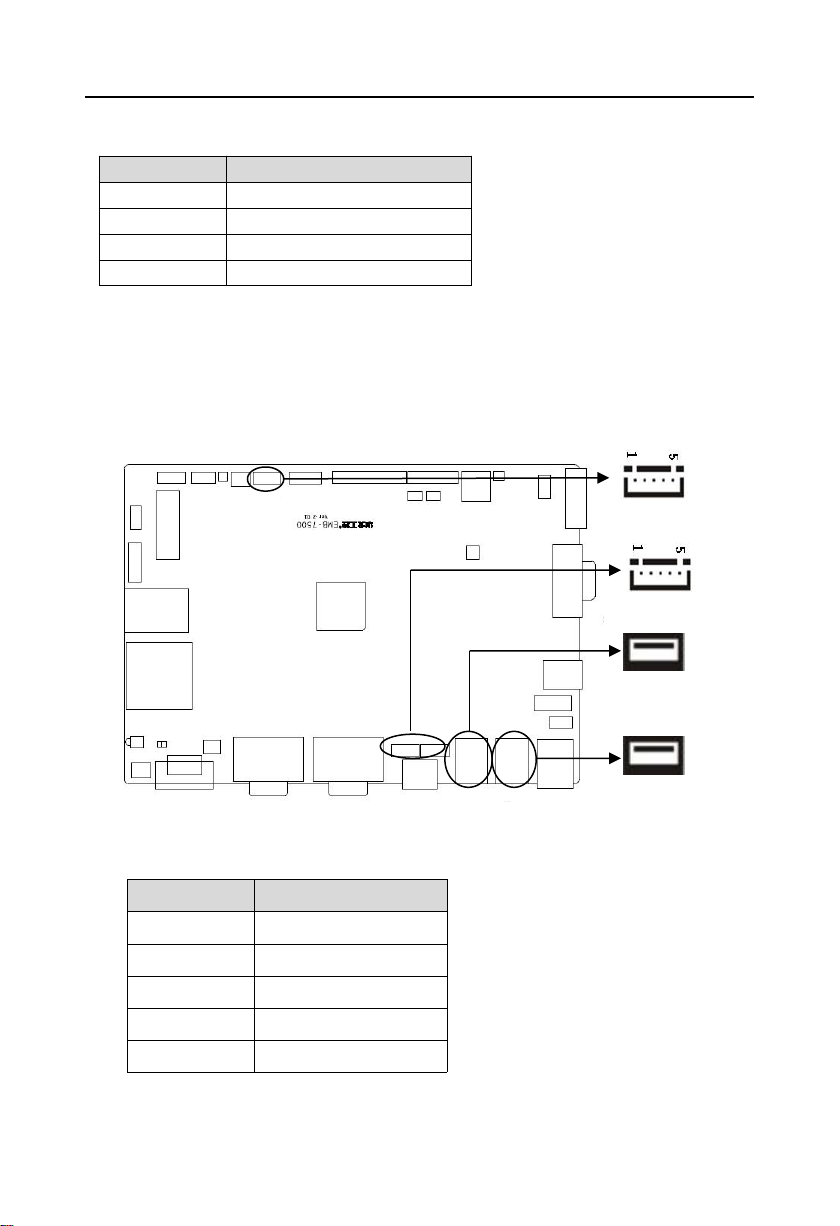

3.2.3 USB Port（USB1-3，USB4-6，J6，J7，J8）
Provide 8x USB 2.0 port，5x standard USB2.0 port（USB4 can choose J8，USB5 can be
used as WIFI）,1x OTG function USB2.0 standard port（can choose J6），1x USB2.0 socket J7，
MINI PCIE slot has 1x USB port
J6 (optional)
Pin
Signal Names
1
VCC
2
OTG DATA+
3
OTG DATA-
4
GND
5
GND
USB1-3
USB4-6
J6、J8
J7

PPC-3315E
11
J7
Pin
Signal Names
1
VCC
2
USB DATA+
3
USB DATA-
4
GND
5
GND
J8 (optional)
Pin
Signal Names
1
VCC
2
USB DATA-
3
USB DATA+
4
GND
5
GND
3.2.4 Ethernet Port（LAN）
Provide 1xPHY port chip，model:AR8033，Yellow for data transmission，Green for network
connection status.
LAN
