Nordyne TA-060C-08A User manual

Gas Furnaces
Installation Instructions
*TA Full Size Series High Efficiency (Upflow/Horizontal) Two-Stage Furnace
with Fixed Speed Blower
*TK Full Size Series High Efficiency (Downflow) Two-Stage Furnace
with Fixed Speed Blower
WHAT TO DO IF YOU
SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’sphone. Follow the gassupplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
• Extinguish any open flame.
*TA 80+ Upflow/Horizontal *TK 80+ Downflow
These instructions are primarily intended to assist qualified individuals experienced in the proper installation of
this appliance. Some local codes require licensed installation/service personnel for this type of equipment. Read
all instructions carefully before starting the installation.
!
!
WARNING:
Improper installation, adjustment, al-
teration, service, or maintenance can
cause injury or property damage. Refer
to this manual. For assistance or
additional information consult a quali-
fied installer, service agency, or the
gas supplier.
FOR YOUR SAFETY:
Do not store or use gasoline or other
flammable vapors and liquids in the vi-
cinity of this or any other appliance.

2

Table of Contents
Furnace Specifications ................................................................................................................. 4-5
Upflow/Horizontal Models ....................................................................................................... 4
Downflow Models .................................................................................................................... 5
Capacities-Furnace Airflow Data ........................................................................................... 7
Safety Information ............................................................................................................................. 8
Installation Requirements ............................................................................................................ 6-8
Supply Air Plenum Installation .................................................................................................. 8-10
Installation on a Concrete Slab ........................................................................................... 10
Installation on a Combustible Floor .................................................................................... 10
Venting and Combustion Air Requirements ................................................................................ 12
General ................................................................................................................................. 12
Installation in an Unconfined Space ................................................................................... 12
Installation in a Confined Space ......................................................................................... 13
Horizontal Furnace Installation ................................................................................... 13
Air From Inside ............................................................................................................. 14
Outdoor Air Using Vertical Ducts ................................................................................ 14
Air Directly Through an Exterior Wall .......................................................................... 15
Outdoor Air Using A Crawl Space and Ventilated Attic ............................................ 15
Outdoor Air Through Horizontal Ducts ....................................................................... 15
Venting Requirements .................................................................................................................... 15
General ................................................................................................................................. 15
Category I - Common Venting ............................................................................................. 16
Category III - Horizontal Venting ......................................................................................... 17
Horizontal Venting for *TK Models ............................................................................. 18
Horizontal Power Venting .................................................................................................... 19
Vent Termination Clearance ................................................................................................ 20
Location of Outdoor Terminations ....................................................................................... 20
Horizontal Installation .................................................................................................. 20
Flexible Vent Systems .......................................................................................................... 21
Circulating Air Supply .................................................................................................................... 21
General ................................................................................................................................. 21
Return Air .............................................................................................................................. 21
Gas Supply and Piping .................................................................................................................. 23
General ................................................................................................................................. 23
Leak Check ........................................................................................................................... 23
High-Altitude Application ...................................................................................................... 24
Conversion ............................................................................................................................ 25
Natural Gas High Altitude Conversion ................................................................................ 25
LP/Propane Gas Sea Level and High Altitude Conversion .............................................. 25
Electrical Wiring ............................................................................................................................. 26
General ................................................................................................................................. 26
Line Voltage Wiring .............................................................................................................. 27
Low Voltage Wiring ............................................................................................................... 28
Start-up & Adjustments .................................................................................................................. 29
General ................................................................................................................................. 29
Start-Up Procedures .............................................................................................................29
Verifying and Adjusting Firing Rate .................................................................................... 29
Verifying and Adjusting Temperature Rise .................................................................... 29-30
Verifying Burner Operation .................................................................................................. 31
Verifying Operation of Supply Air Limit Switch ................................................................... 32
Wiring Diagram ................................................................................................................................ 34
Description of Components ........................................................................................................... 34
Maintenance..................................................................................................................................... 35
Vent System .......................................................................................................................... 36
Air Filter(s) .............................................................................................................................. 36
Lubrication ............................................................................................................................ 37
Blower Compartment ............................................................................................................ 37
Heat Exchanger and Burner Maintenance ......................................................................... 37
Cleaning of Flue Passages ................................................................................................. 37
Cleaning of Burners .............................................................................................................38
System Operation Information ...................................................................................................... 38
General ................................................................................................................................. 38
Sequence of Operation ....................................................................................................... 38
Heating Mode ............................................................................................................... 38
Cooling Mode ............................................................................................................... 38
Fan Mode ..................................................................................................................... 39
Furnace Fails to Operate ..................................................................................................... 39
Installation/Performance Checklist ............................................................................................. 40

4
FURNACE SPECIFICATIONS - Upflow/Horizontal Models
Figure 1A. Upflow Unit Dimensions
Table 1A. Upflow Furnace Dimensions and Shipping Weights
Unit Shown in Upflow
Position Rotate 90˚
Clockwise or Counter
Clockwise for Horizontal
Application
23 3/4
19 3/4
3/4
43
25 1/8
25 1/425 5/8
23
27 5/8
15 20 1/2
251/4
33
301/4
A
B
C
FLUE
OUTLET
11/2 X 31/2 Cut-out for
Gas Connection
3/4 3/4
1
1/4
3/4
7/8 Cut-out for Electric
Connection
11/2 X 31/2 Cut-out for
Gas Connection
7/8 Cut-out for
Electric Connection
Return
Air Opening
(Side)
1 1/4 1 1/4D23
Return Air Opening
(Bottom)
7/8
Note: (*) Can be C or N
High Low Dimensions Shipping
Model Input Input A B C Flue Outlet Weight D
*TA (Btuh) (Btuh) (in.) (in.) (in.) (in.) (lbs) (IN.)
060(*)-08A 60,000 42,000 14 1/4 12 3/4 3 1/4 4 120 11 3/4
060(*)-12A 60,000 42,000 14 1/4 12 3/4 3 1/4 4 132 11 3/4
072(*)-12 72,000 50,400 19 3/4 18 1/4 3 3/4 4 135 11 3/4
072(*)-16 72,000 50,400 19 3/4 18 1/4 3 3/4 4 152 11 3/4
096(*)-12 96,000 67,000 19 3/4 18 1/4 3 3/4 4 135 11 3/4
096(*)-16 96,000 67,000 19 3/4 18 1/4 3 3/4 4 152 11 3/4
096(*)-20 96,000 67,000 19 3/4 18 1/4 3 3/4 4 174 11 3/4
120(*)-16C 120,000 84,000 22 1/2 21 3 3/4 4 174 20
120(*)-20C 120,000 84,000 22 1/2 21 3 3/4 4 182 20
FURNACE DIMENSIONS AND
SHIPPING WEIGHTS

5
FURNACE SPECIFICATIONS - Downflow Models
Figure 1B. Downflow Unit Dimensions
Cut-out for Electric
Connection
Both sides
Cut-out for Gas Connection
1-1/2 x 3-1/2 (both sides)
27 7/8"
3/4"
235/8"
19 3/4" 3/4"
C
C
L
3/4"
3/4"
43"
4" Dia. Vent
Cut - out for
Gas Connection
A
B
B
25"
15 1/2"
27 1/8"
25"
3/4"
C
L
(Bottom Opening)
(Bottom Opening)
10 1/4"
24 1/2"
19 3/4"
Table 1B. Downflow Furnace Dimensions and Shipping Weights
Note: (*) Can be C or N
Model High Low Shipping
Number Input Input A B C Weights
*TK (Btuh) (Btuh) inches inches inches (lbs)
060(*)-08 60,000 42,000 14 1/4 12 3/4 5 1/2 134
060(*)-12 60,000 42,000 14 1/4 12 3/4 5 1/2 134
072(*)-12 72,000 50,400 19 3/4 18 1/4 11 135
072(*)-16 72,000 50,400 19 3/4 18 1/4 11 147
096(*)-12 96,000 67,000 19 3/4 18 1/4 11 180
096(*)-16 96,000 67,000 19 3/4 18 1/4 11 180
096(*)-20 96,000 67,000 19 3/4 18 1/4 11 182
120(*)-16 120,000 84,000 19 3/4 18 1/4 11 180
120(*)-20 120,000 84,000 19 3/4 18 1/4 11 182
DOWNFLOW FURNACE MODELS
FURNACE DIMENSIONS AND
SHIPPING WEIGHTS
D ime nsions

6
CAPACITIES —Furnace Airflow Data
Table 2A. Furnace Airflow Data
80+ UPFLOW/HORIZONTAL FURNACE MODELS
‡ = FACTORY SET COOLING
NOTES: 1. AIRFLOW RATES OF 1800 CFM OR MORE REQUIRE TWO RETURN AIR CONNECTIONS. DATA IS FOR OPERATION WITH FILTERS(S
)
* = FACTORY SET HIGH FIRE
2. TEMPERATURE RISES IN THE TABLE ARE APPROXIMATE. ACTUAL TEMPERATURE RISES MAY VARY
** = FACTORY SET LOW FIRE
3. TEMPERATURE RISES AND AIRFLOWS FOR EXTERNAL STATIC PRESSURES GREATER THAN 0.5 ARE FOR RFERENCE ONLY. THESE CONDITIONS ARE NOT RECOMMENDED. 4. TEMPERATURE RISES ARE DISPLAYED AS HIGH FIRE / LOW FIRE
Model Heating
Number Input Motor Motor
*TA (Btuh) Speed HP
High‡
060-08A 60,000 Med* 1/3
Low** High‡
060-12A 60,000 Med* 1/3
Low** High‡
072-12B 72,000 Med* 1/3
Low**
High‡
072-16B 72,000 Med-High 1/2
Med-Low*
Low** High‡
096-12B 96,000 Med* 1/3
Low**
High‡
096-16B 96,000 Med-High 1/2
Med-Low*
Low** High‡
096-20B 96,000 Med-High 3/4
Med-Low*
Low** High‡
120-16C 120,000 Med-High 1/2
Med-Low*
Low** High‡
120-20C 120,000 Med-High 3/4
Med-Low*
Low**
External Static Pressure (Inches Water Column)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise 1360 34 / 21 1345 33 / 22 1310 32 / 22 1260 35 / 23 1205 37 / 24 1155 39 / 25 1095 40 / 27 1030 43 / 28 1165 37 / 24 1155 38 / 25 1135 39 / 26 1095 40 / 27 1045 43 / 28 1010 44 / 29 955 46 / 31 880 51 / 33
790 55 / 37 785 56 / 38 760 58 / 39 750 59 / 40 720 61 / 41 685 65 / 43 655 68 /45 610 73 / 48
1360 34 / 21 1345 33 / 22 1310 32 / 22 1260 35 / 23 1205 37 / 24 1155 39 / 25 1095 40 / 27 1030 43 / 28 1165 37 / 24 1155 38 / 25 1135 39 / 26 1095 40 / 27 1045 43 / 28 1010 44 / 29 955 46 / 31 880 51 / 33
790 55 / 37 785 56 / 38 760 58 / 39 750 59 / 40 720 61 / 41 685 65 / 43 655 68 /45 610 73 / 48
1645 32 / 21 1575 34 / 22 1490 36 / 24 1395 40 / 23 1305 41 / 27 1230 43 / 30 1030 52 / 35 815 64 / 43 1410 38 / 25 1350 39 / 26 1280 42 / 28 1215 44 / 29 1130 47 / 32 1010 53 / 35 845 63 / 42 680 78 / 52 1140 47 / 31 1105 48 / 32 1055 51 / 34 980 54 / 36 910 58 / 40 795 67 / 44 640 83 / 55 525 - / 68 1870 28 / 18 1845 29 / 19 1790 30 / 20 1735 31 / 20 1665 32 / 21 1580 33 / 22 1500 35 / 23 1400 38 / 25 1480 36 / 24 1450 37 / 24 1420 38 / 25 1380 39 / 26 1325 40 / 27 1265 42 / 28 1190 45 / 30 1075 50 / 33 1030 52 / 34 1010 53 / 35 990 54 / 36 950 56 / 37 915 58 / 39 865 61 / 41 775 69 / 46 690 77 / 51
815 65 / 43 765 69 / 46 720 72 / 50 670 79 / 53 620 86 / 57 560 95 / 63 515 - / 69 440 - / 81
1495 50 / 30 1430 52 / 31 1360 55 / 32 1275 58 / 35 1210 61 / 37 1090 68 / 40 925 80 / 48 740 - / 60 1345 55 / 33 1300 57 / 34 1240 60 / 36 1185 63 / 38 1115 66 / 40 975 76 / 45 880 84 / 67 675 - / 65
970 76 / 46 940 78 / 47 920 80 / 48 860 86 / 51 780 95 / 57 690 - / 65 575 - / 77 455 - / -
1935 38 / 23 1895 39 / 24 1835 40 / 24 1775 42 / 25 1715 43 / 26 1640 45 / 28 1555 47 / 30 1440 51 / 31 1660 44 / 27 1635 45 / 27 1600 46 / 28 1565 47 / 28 1525 49 / 29 1465 50 / 30 1400 53 / 32 1335 55 / 33 1390 53 / 32 1375 54 / 32 1330 55 / 33 1320 56 / 33 1290 56 / 34 1245 57 / 35 1200 59 / 37 1110 66 / 40 1180 63 / 37 1165 64 / 38 1140 65 / 39 1120 66 / 40 1095 67 / 41 1060 69 / 42 1015 73 / 44 970 76 / 46 2310 31 / 18 2255 32 / 19 2205 33 / 20 2155 34 / 20 2070 35 / 21 2015 35 / 22 1920 36 / 23 1840 40 / 24 2040 36 / 21 2010 37 / 22 1960 38 / 23 1900 39 / 24 1875 40 / 25 1815 41 / 25 1755 42 / 26 1650 45 / 27 1760 42 / 25 1735 43 / 25 1710 43 / 26 1665 44 / 27 1620 45 / 27 1565 47 / 28 1495 49 / 30 1410 52 / 31 1285 57 / 35 1275 58 / 36 1250 59 / 37 1225 60 / 38 1180 63 / 38 1135 65 / 39 1085 68 / 40 1065 69 / 42
1980 45 / 27 1945 45 / 28 1910 46 / 28 1860 48 / 29 1795 50 / 30 1720 52 / 31 1640 54 / 33 1545 58 / 35 1675 52 / 31 1665 53 / 32 1640 54 / 32 1610 55 / 33 1565 57 / 34 1515 59 / 35 1460 61 / 37 1375 64 / 39 1410 63 / 37 1395 64 / 38 1380 65 / 39 1360 66 / 40 1340 67 / 41 1310 68 / 42 1260 70 / 43 1185 75 / 45 1205 - / 44 1190 - / 45 1175 - / 45 1160 - / 46 1140 - / 47 1115 - / 48 1085 - / 49 1050 - / 51 2400 37 / 22 2360 37/ 23 2310 38 / 24 2255 40 / 24 2200 41 / 24 2140 42 / 25 2070 43 / 26 1990 45 / 27 2105 41 / 25 2095 42 / 25 2075 43 / 25 2060 43 / 26 2015 44 / 27 1960 45 / 27 1910 46 / 28 1845 49 / 29 1750 51 / 31 1745 51 / 31 1740 52 / 31 1720 52 / 31 1710 52 / 31 1680 53 / 32 1645 54 / 32 1600 56 / 33 1520 59 / 33 1515 59 / 33 1510 60 / 34 1500 60 / 35 1490 61 / 36 1475 61 / 37 1450 61 / 37 1425 62 / 38

7
80+ DOWNFLOW FURNACE MODELS
‡ = FACTORY SET COOLING
NOTES: 1. AIRFLOW RATES OF 1800 CFM OR MORE REQUIRE TWO RETURN AIR CONNECTIONS. DATA IS FOR OPERATION WITH FILTERS(S
)
* = FACTORY SET HIGH FIRE
2. TEMPERATURE RISES IN THE TABLE ARE APPROXIMATE. ACTUAL TEMPERATURE RISES MAY VARY
** = FACTORY SET LOW FIRE
3. TEMPERATURE RISES AND AIRFLOWS FOR EXTERNAL STATIC PRESSURES GREATER THAN 0.5 ARE FOR RFERENCE ONLY. THESE CONDITIONS ARE NOT RECOMMENDED. 4. TEMPERATURE RISES ARE DISPLAYED AS HIGH FIRE / LOW FIRE
CAPACITIES —Furnace Airflow Data (Continued)
Table 2B. Furnace Airflow Data
Model Heating
Number Input Motor Motor
*TK (Btuh) Speed HP
High‡
060-08A 60,000 Med* 1/3
Low** High‡
060-12A 60,000 Med* 1/3
Low** High‡
072-12B 72,000 Med* 1/3
Low**
High‡
072-16B 72,000 Med-High 1/2
Med-Low*
Low** High‡
100-12B 100,000 Med-High 1/2
Med-Low*
Low** High‡
100-16B 100,000 Med-High* 1/2
Med-Low**
Low
High‡
100-20B 100,000 Med-High 3/4
Med-Low*
Low** High‡
120-16B 120,000 Med-High 1/2
Med-Low*
Low** High‡
120-20B 120,000 Med-High 3/4
Med-Low*
Low**
External Static Pressure (Inches Water Column)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise
1420 31 / 20 1380 32 / 21 1340 33 / 22 1300 34 / 23 1235 36 / 24 1185 37 / 25 1110 40 / 26 1045 42 / 28 1215 36 / 23 1195 37 / 24 1175 38 / 25 1145 39 / 26 1105 40 / 27 1050 42 / 28 995 45 / 29 960 46 / 31
820 54 / 36 815 54 / 36 810 55 / 37 800 55 / 37 770 57 / 38 745 59 / 40 715 62 / 41 665 67 / 45
1420 31 / 20 1380 32 / 21 1340 33 / 22 1300 34 / 23 1235 36 / 24 1185 37 / 25 1110 40 / 26 1045 42 / 28 1215 36 / 23 1195 37 / 24 1175 38 / 25 1145 39 / 26 1105 40 / 27 1050 42 / 28 995 45 / 29 960 46 / 31
820 54 / 36 815 54 / 36 810 55 / 37 800 55 / 37 770 57 / 38 745 59 / 40 715 62 / 41 665 67 / 45
1655 32 / 21 1580 34 / 22 1500 35 / 24 1440 37 / 24 1355 40 / 26 1260 42 / 28 1155 46 / 31 980 54 / 36 1440 37 / 25 1400 38 / 25 1355 39 / 26 1285 42 / 28 1225 44 / 29 1145 46 / 31 1010 53 / 35 855 62 / 41 1015 52 / 35 1000 53 / 36 965 55 / 37 920 58 / 38 865 61 / 41 790 67 / 45 680 78 / 52 540 99 / 66 1985 27 / 18 1945 27 / 18 1900 28 / 18 1850 29 / 19 1780 30 / 20 1715 31 / 21 1640 33 / 22 1545 35 / 23 1680 32 / 21 1650 32 / 21 1625 33 / 22 1600 33 / 22 1560 34 / 23 1505 35 / 23 1420 37 / 25 1330 40 / 27 1450 36 / 24 1410 37 / 25 1390 38 / 26 1370 39 / 26 1345 40 / 27 1305 41 / 28 1245 43 / 29 1160 46 / 31 1215 44 / 29 1190 45 / 30 1175 45 / 30 1170 45 / 31 1145 46 / 31 1115 48 / 32 1070 49 / 33 1020 52 / 35 1950 38 / 33 1885 39 / 23 1815 40 / 24 1765 42 / 25 1685 44 / 26 1600 46 / 27 1535 48 / 29 1425 52 / 31 1700 43 / 25 1665 44 / 26 1630 45 / 27 1580 47 / 28 1540 48 / 27 1475 50 / 30 1410 52 / 32 1330 55 / 33 1430 51 / 30 1425 51 / 31 1395 52 / 32 1380 53 / 32 1335 55 / 33 1295 57 / 34 1230 60 / 36 1150 64 / 38 1230 60 / 36 1225 60 / 36 1215 61 / 36 1190 62 / 37 1165 63 / 38 1130 65 / 39 1110 66 / 40 1070 69 / 42 1950 38 / 33 1885 39 / 23 1815 40 / 24 1765 42 / 25 1685 44 / 26 1600 46 / 27 1535 48 / 29 1425 52 / 31 1700 43 / 25 1665 44 / 26 1630 45 / 27 1580 47 / 28 1540 48 / 27 1475 50 / 30 1410 52 / 32 1330 55 / 33 1430 51 / 30 1425 51 / 31 1395 52 / 32 1380 53 / 32 1335 55 / 33 1295 57 / 34 1230 60 / 36 1150 64 / 38 1230 60 / 36 1225 60 / 36 1215 61 / 36 1190 62 / 37 1165 63 / 38 1130 65 / 39 1110 66 / 40 1070 69 / 42 2100 35 / 20 2070 36 / 21 2010 37 / 22 1945 38 / 23 1905 39 / 23 1840 40 / 24 1790 41 / 25 1710 43 / 26 1830 40 / 23 1805 41 / 24 1760 42 / 25 1725 43 / 36 1680 44 / 27 1635 45 / 28 1555 47 / 29 1480 50 / 30 1580 47 / 27 1550 48 / 28 1520 49 / 29 1490 50 / 30 1455 51 / 31 1395 53 / 32 1355 55 / 33 1280 57 / 35 1175 63 / 37 1155 64 / 38 1120 65 / 39 1100 67 / 40 1070 69 / 41 1035 71 / 42 990 45 / 44 930 79 / 48 1950 46 / 27 1885 47 / 28 1815 48 / 29 1765 50 / 30 1685 53 / 31 1600 55 / 33 1535 58 / 35 1425 62 / 38 1700 53 / 31 1665 53 / 32 1630 55 / 33 1580 56 / 34 1540 57 / 34 1475 60 / 36 1410 63 / 38 1330 67 / 40 1430 63 / 37 1425 62 / 38 1395 64 / 39 1380 65 / 40 1335 66 / 41 1295 68 / 42 1230 72 / 43 1150 77 / 46 1230 71 / 43 1225 72 / 44 1215 73 / 45 1190 74 / 46 1165 76 / 46 1130 78 / 47 1110 80 / 48 1070 83 / 49 2100 42 / 25 2070 43 / 26 2010 44 / 26 1945 46 / 27 1905 47 / 28 1840 48 / 29 1790 49 / 30 1710 52 / 31 1830 48 / 28 1805 49 / 29 1760 50 / 30 1725 51 / 31 1680 53 / 32 1635 54 / 33 1555 57 / 34 1480 60 / 35 1580 56 / 33 1550 57 / 34 1520 58 / 35 1490 59 / 36 1455 61 / 36 1395 63 / 38 1355 65 / 39 1280 71 / 42 1175 75 / 45 1155 77 / 46 1120 79 / 47 1100 80 / 48 1070 83 / 50 1035 85 / 51 990 90 / 54 930 95 / 57

8
SAFETY INFORMATION
1. Use only with type of gas approved for this
furnace. Refer to the furnace rating plate.
2. Install this furnace only in a location and position
as specified on Table 3 of these instructions.
3. Provide adequate combustion and ventilation
air to the furnace space as specified on Pages
12 through 17.
4. Combustion products must be discharged
outdoors. Connect this furnace to an approved
vent system only, as specified on Pages 14
through 20.
5. Never test for gas leaks with an open flame. Use
a commercially available soap solution made
specifically for the detection of leaks to check
all connections, as specified on Page 23 of
these instructions.
6. Always install furnace to operate within the
furnace’s intended temperature-rise range with
a duct system which has an external static
pressure within the allowable range, as speci-
fied on Table 2 of these instructions. See
furnace rating plate.
7. When a furnace is installed so that supply ducts
carry air circulated by the furnace to areas
outside the space containing the furnace, the
return air shall also be handled by duct(s)
sealed to the furnace casing and terminating
outside the space containing the furnace.
8. A gas-fired furnace for installation in a
residential garage must be installed as
specified on Page 11 of these instructions.
9. The furnace is not to be used for temporary
heating of buildings or structures under con-
struction.
INSTALLATION REQUIREMENTS
Requirements and Codes
This furnace must be installed in accordance
with these instructions, all applicable local build-
ing codes, current revision of the National Fuel
Gas Code (ANSI-Z223.1), and in Canada with
the CAN/CGA - B149 installation code. The
current revision of the National Fuel Gas Code
is available from:
American National Standards Institute, Inc.
1430 Broadway
New York, New York 10018
Additional helpful publications are:
NFPA-90A - Installation of
Air Conditioning and Ventilating Systems
NFPA-90B - Warm Air Heating
and Air Conditioning Systems
These publications are available from:
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, Massachusetts 02269
IMPORTANT NOTE
The Commonwealth of Massachusetts re-
quires compliance with regulation 248 CMR
4.00 and 5.00 for installation of through – the
– wall vented gas appliances as follows:
(a) For direct-vent appliances, mechanical-
vent heating appliances or domestic hot
water equipment, where the bottom of the
vent terminal and the air intake is installed
below four feet above grade the following
requirements must be satisfied:
1. If there is not one already present, on
each floor level where there are
bedroom(s), a carbon monoxide de-
tector and alarm shall be placed in the
living area outside the bedroom(s).
The carbon monoxide detector shall
comply with NFPA 720 (2005 Edition).
2. A carbon monoxide detector shall be
located in the room that houses the
appliance or equipment and shall:
a. Be powered by the same electrical
circuit as the appliance or equip-
ment such that only one service
switch services both the appliance
and the carbon monoxide detector;
b. Have battery back-up power;
c. Meet ANSI/UL 2034 Standards and
comply with NFPA 720 (2005 Edi-
tion); and
d. Have been approved and listed by a
Nationally Recognized Testing Labo-
ratory as recognized under 527
CMR.
3. A Product-approved vent terminal must
be used, and if applicable, a Product-
approved air intake must be used.
Installation shall be in strict compliance
with the manufacturer’s instructions. A
copy of the installation instructions shall
remain with the appliance or equipment
at the completion of the installation.
4. A metal or plastic identification plate
shall be mounted at the exterior of the
building, four feet directly above the

9
location of vent terminal. The plate shall
be of sufficient size to be easily read
from a distance of eight feet away, and
read “Gas Vent Directly Below”.
(b) For direct-vent appliances, mechanical-
vent heating appliances or domestic hot
water equipment where the bottom of the
vent terminal and the air intake is installed
above four feet above grade the following
requirements must be satisfied:
1. If there is not one already present, on
each floor level where there are
bedroom(s), a carbon monoxide de-
tector and alarm shall be placed in the
living area outside the bedroom(s).
The carbon monoxide detector shall
comply with NFPA 720 (2005 Edition).
2. A carbon monoxide detector shall:
a. Be located in the room that houses
the appliance or equipment;
b. Be either hard-wired or battery pow-
ered or both; and
c. Shall comply with NFPA 720 (2005
Edition).
3. A Product-approved vent terminal must
be used, and if applicable, a Product-
approved air intake must be used.
Installation shall be in strict compliance
with the manufacturer’s instructions. A
copy of the installation instructions shall
remain with the appliance or equipment
at the completion of the installation.
!
WARNING:
This furnace is not approved for installa-
tion in mobile homes. Installation in a
mobile home could cause fire, property
damage, and/or personal injury.
Location
Upflow gas furnaces are shipped ready for
installation in the upflow or horizontal right or left
positions. The *TK gas furnace is for downflow
operation only. The furnace must be installed on
a level surface, located as close to the vent (or
chimney) and as close to the center of the air
distribution system as possible. See Table 1 for
overall dimensions to determine the required
clearances in hallways, doorways, stairs, etc.
to allow the furnace to be moved to the instal-
lation point. The furnace must be installed so
that all electrical components are protected
from water. The furnace must be installed
upstream from a refrigeration system. This
furnace is not to be used for temporary heating
of buildings or structures under construction.
Clearances to Combustibles
This furnace is Design Certified by CSA Inter-
national for the minimum clearances to com-
bustible material listed in Table 3. Refer to the
furnace rating plate, located inside of the fur-
nace cabinet, for the specific model number and
clearance information.
Access for positioning and servicing the unit
must be considered when locating unit. Twenty
four inches is the minimum required clearance
from the front of the unit for servicing it. Thirty
inches is the minimum required clearance from
the front of the unit for positioning it. Thirty Six
inches is the recommended clearance from
the front of the unit. Please note that a panel
or door can be located such that the minimum
clearance on the rating plate is satisfied, but that
panel or door must be removable and allow the
appropriate clearance for your installation.
This furnace is certified for use on wood floor-
ing. This furnace must not be installed directly
on carpeting, tile, or any combustible material
other than wood flooring.
Downflow Warning (*TK Models):
The design of the downflow furnace is certified
for natural or propane gas and for installation on
non-combustible flooring. A special combus-
tible floor sub-base is required when installing
on a combustible floor. Failure to install the sub-
base may result in fire, property damage and
personal injury. The special downflow sub-
bases are factory supplied accessories, part
numbers 902974, 902677, 904108 and 904165.
904165 is an adjustable sub-base kit and it can
be used in all cabinet sizes. When the furnace
is installed on a factory or site-built cased air
conditioning coil, the sub-base is not neces-
sary. However, the plenum attached to the coil
casing must be installed such that its surfaces
are at least 1" from combustible construction.
!CAUTION:
The downflow sub-base must not be
installed directly on carpeting, tile, or any
combustible material other than wood
flooring.

10

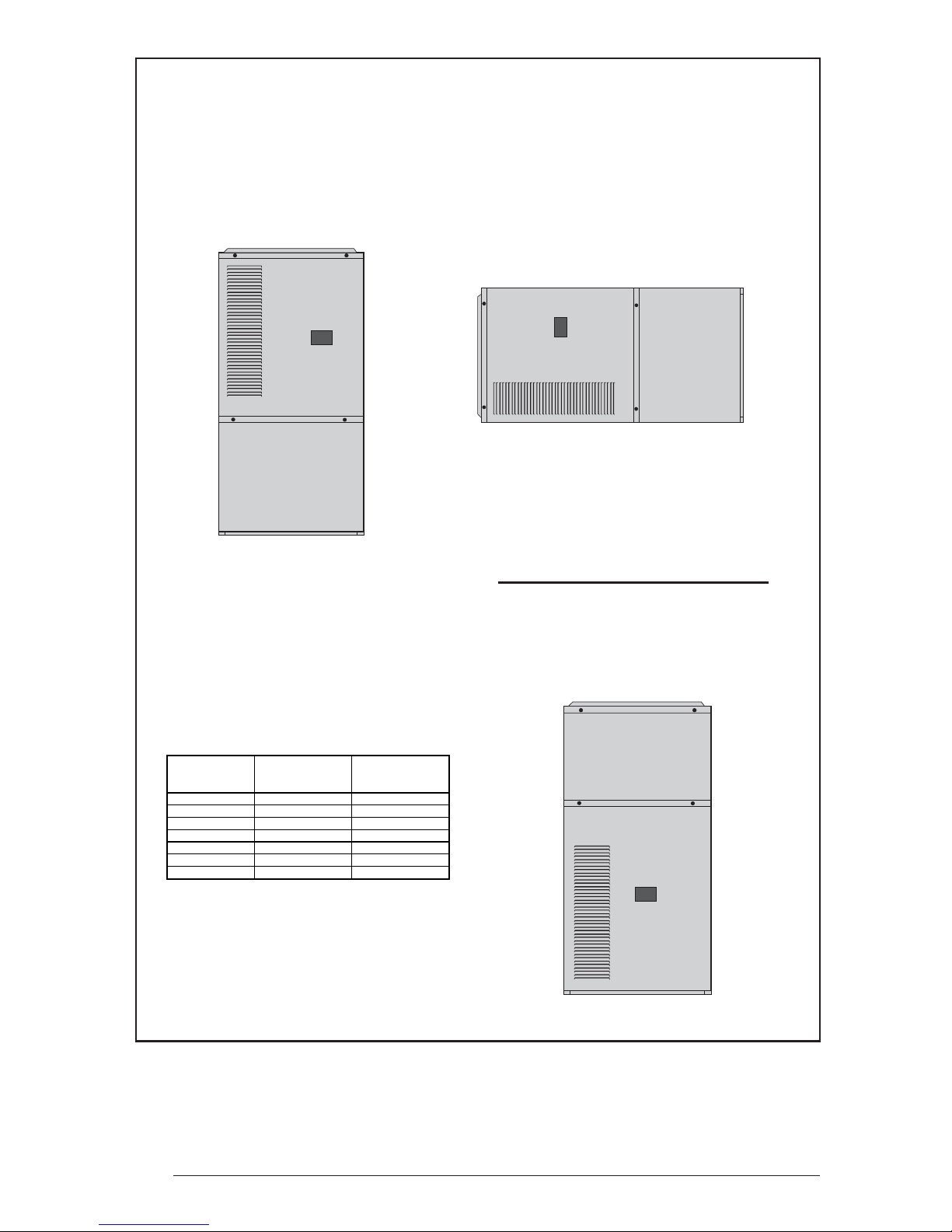

Table 3. Minimum Clearances to Combustible Material
Downflow Furnace Models
** For Downflow furnace installations only, furnace
must be installed on non-combustible flooring.
*** Allow 24" minimum clearance for servicing. The
recommended clearance is 36".
Upflow Furnace Models
Vent Connector
Type
Standard Single
Wall Metal Vent
Type B-1 Double
Wall Metal Vent
LEFT SIDE 0" 0"
RIGHT SIDE 0" 0"
VENT 6" 1"
BACK 0" 0"
BOTTOM 0"** 0"**
TOP 1" 1"
FRONT 4"*** 4"***
INSTALLATION CLEARANCES
LEFT RIGHT
BOTTOM
UPFLOWAPPLICATION
TOP
TOP
HORIZONTALAPPLICATION
BOTTOM
SIDE
SIDE
LEFT
SIDE
BOTTOM
TOP
RIGHT
SIDE

11
1 inch thick fiberglass 3 lb density
28.38"
9.25"
19.63"
3"
19.75"
or 14.25”*
2.0"
1.58"
1.50"
16.75"
18.75"
or 13.25”*
*Smaller dimension for *TK60
A gas-fired furnace installed in a residential
garage must be installed so the burners and the
igniter are located not less than 18 inches (457
mm) above the floor, and the furnace must be
located or protected to avoid physical damage
by vehicles.
!WARNING:
Do not place combustible material on or
against the furnace cabinet or within 6
inches of the vent pipe. Do not place
combustible materials, including gaso-
line and any other flammable vapors and
liquids, in the vicinity of the furnace.
Hole in
Floor
19.25"
18.75"
Hole in
Floor
19.25"
13.25"
*TK 072
*TK 100
*TK 120
*TK 060

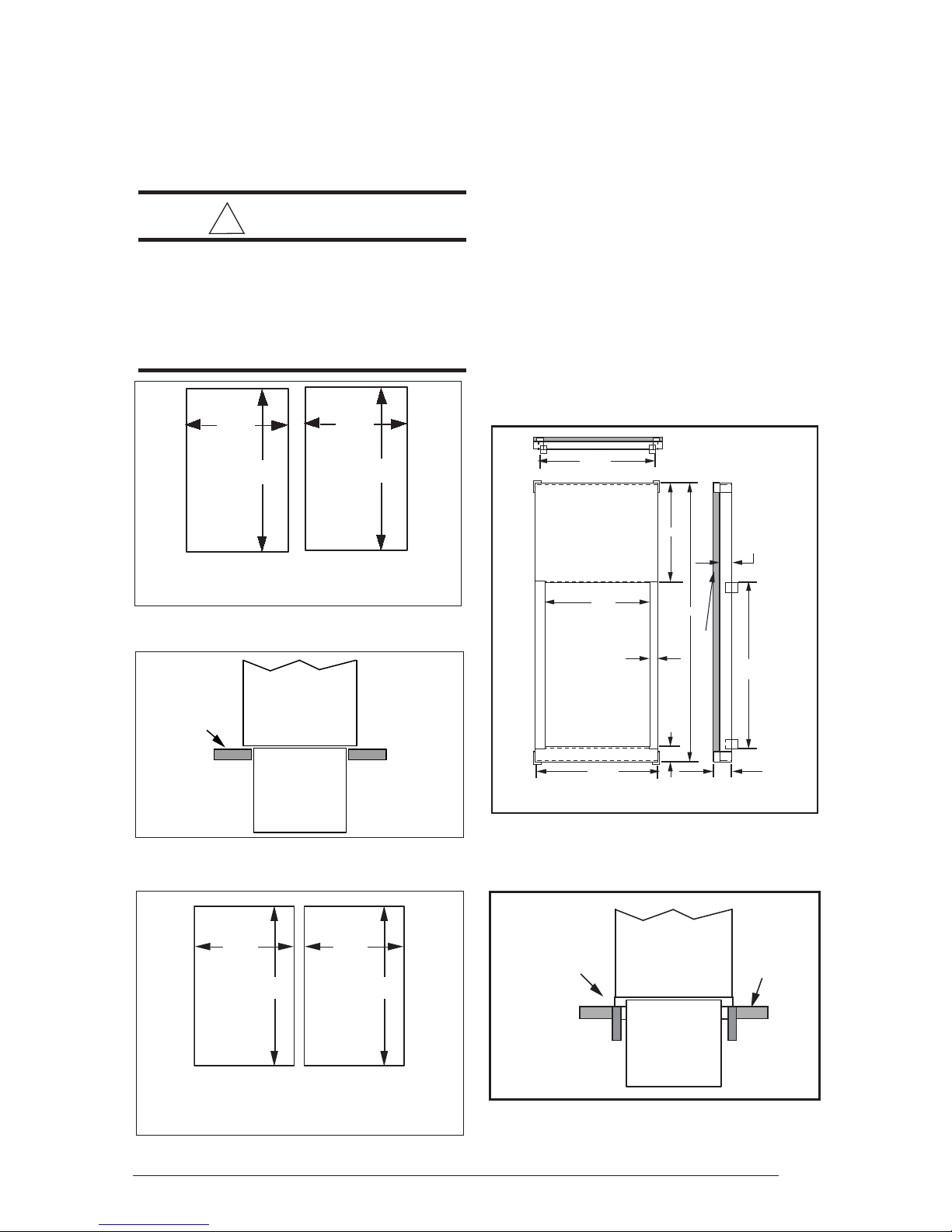

Figure 2. Opening for Concrete Slab
Figure 5. Downflow Sub-Base
Dimensions
Supply Air Plenum Installation
A. Installation on a concrete slab. - *TK
1. Construct a hole in the floor per the
dimension in Figure 2.
2. Place the plenum and the furnace as
shown in Figure 3.
B. Installation on a combustible floor. - *TK
For downflow furnace installation, this fur-
nace is approved for use on combustible
flooring when NORDYNE combustible floor
sub-base kit #904165 is used.
1. Cut hole and frame the hole per the
dimensions in Figure 4.
2. Install the sub-base according to the
installation instructions. (See Figure 5)
Figure 4. Opening in Wood Floor
Concrete
Floor
Furnace
Sheet
Metal
Plenum
Figure 3. Furnace on a Concrete Slab
20.63"
18.75"
20.63"
13.25"
Hole in
Floor
Hole in
Floor
*TK 072
*TK 100
*TK 120
*TK 060
Figure 6. Furnace with Coil Assembly
on a Wood Floor
Downflow Wood
Sub-base Floor
Furnace
Sheet
Metal
Plenum

12
3. When the furnace is installed on a fac-
tory or site-built cased air conditioning
coil, the sub-base is not necessary.
However, the plenum attached to the
coil casing must be installed such that its
surface is at least 1” from combustible
material in Figure 6.
VENTING AND COMBUSTION
AIR REQUIREMENTS
General
Provisions must be made in the installation of
this furnace to provide an adequate supply of air
for combustion. Detailed instructions for deter-
mining the adequacy of an installation can be
found in the current revision of the National Fuel
Gas Code (ANSI Z223.1 / NFPA54) or in appli-
cable local building codes. Consult local codes
for special requirements. For Canadian in-
stallations consult Canadian Installations Codes
and (CAN/CGA B149.1 or .2).
If the furnace is operated with inadequate air for
combustion one of the flame roll-out switches
located in the burner compartment or the vent
switch will open, turning off the gas supply to the
burners. These safety devices are manually
reset switches. DO NOT install jumper wires
across these switches to defeat their function.
DO NOT reset a switch without identifying and
correcting the fault condition. If a switch must be
replaced, use only the correct part specified in
the Replacement Parts List.
Air openings in the furnace door, warm air
registers, and return air grilles must not be
restricted.
When determining combustion air space,
the full rate input of this two-stage furnace
must be used.
Combustion Air Quality
To maximize heat exchanger life, the combus-
tion air must be free of chemicals which form
corrosive acidic compounds in the combustion
gases. The recommended source of combus-
tion air is to use the outdoor air supply. How-
ever, the use of indoor air in most applications
is acceptable except as follows:
1. If the furnace is installed in a confined space it
is recommended that the necessary combus-
tion air come from the outdoors by way of attic,
crawl space, air duct, or direct opening.
2. If outdoor combustion air is used, there must be
no exposure to the installations or substances
listed in Item 3 below.
3. The following types of installation may require
Outdoor Air for combustion, due to chemical
exposures:
• Commercial buildings
• Buildings with indoor pools
• Furnaces installed in laundry rooms
• Furnaces installed in hobby or craft rooms
• Furnaces installed near chemical storage
areas
Exposure to the following substances in the
combustion air supply may also require Out-
door Air for combustion:
• Permanent wave solutions
• Chlorinated waxes and cleaners
• Chlorine based swimming pool chemicals
• Water softening chemicals
• De-icing salts or chemicals
• Carbon tetrachloride
• Halogen type refrigerants
• Cleaning solvents (such as perchloroethyl-
ene)
• Printing inks, paint removers, varnishes,
etc.
• Hydrochloric acid
• Cements and glues
• Antistatic fabric softeners for clothes dryers
• Masonry acid washing materials
!
CAUTION:
Combustion air must not be drawn from
a corrosive atmosphere.
!
WARNING:
Furnace installation using methods other
than those described in the following
sections must comply with the National
Fuel Gas Code and all applicable local
codes to provide sufficient combustion
air for the furnace.
Installation In An Unconfined Space
An unconfined space is an area including all
rooms not separated by doors with a volume
greater than 50 cubic feet per 1,000 Btuh of the
combined input rates of all appliances which
draw combustion air from that space. For ex-
ample, a space including a water heater rated
at 45,000 Btuh input and a furnace rated at
75,000 Btuh requires a volume of 6,000 cubic
feet [50 x (45 + 75) = 6,000] to be considered

13
unconfined. If the space has an 8 foot ceiling, the
floor area of the space must be 750 square feet
(6,000 / 8 = 750). In general, a furnace installed
in an unconfined space will not require outside
air for combustion. However, in “tight” buildings
(with weather stripping and caulk to reduce
infiltration), it may be necessary to provide
outside air to ensure adequate combustion and
venting, even though the furnace is located in
an unconfined space.
Installation In A Confined Space
A confined space is an area with volume less
than 50 cubic feet per 1,000 Btuh of the com-
bined input rates of all appliances drawing
combustion air from that space. Furnace clos-
ets, small equipment rooms and garages are
confined spaces. Furnaces installed in a con-
fined space which supply heated air to areas
outside the space must draw return air from
outside the space and must have the return air
ducts tightly sealed to the furnace. A confined
space must have two openings into the
space for combustion air. One opening
must be within 12 inches of the ceiling, and
the other must be within 12 inches of the
floor. The required sizing of these openings is
determined by whether inside or outside air is
used to support combustion, the method by
which the air is brought to the space, and by the
total input rate of all appliances in the space.
Horizontal Furnace Installation
The *TA series furnaces can be installed hori-
zontally in an attic, basement, crawl space or
alcove. It can be suspended from a ceiling in a
basement or utility room in either a right to left
airflow or left to right airflow. (See Figures 7 and
8.)
If the furnace is to be suspended from the
ceiling, it will be necessary to use steel straps
around each end of the furnace. These straps
should be attached to the furnace with sheet
metal screws and to the rafters with bolts. The
furnace could also be suspended by an angle
iron frame bolted to the rafters. (See Figure 7.)
Access for positioning and servicing must be
considered when locating the unit. Refer to
Table 3, Minimum Clearances to Combustible
Material, for clearance specifications.
Keep all insulating materials away from the
louvered door. Insulating materials may be
combustible.
The *TA series furnace may be installed directly
on combustible wood flooring or supports, if
type "B-1" vent pipe is used (See Figure 8). It
is recommended for further reduction of fire
hazard that cement board or sheet metal be
placed between the furnace and the combus-
tible floor and extend 12 inches beyond the front
of the louvered door.
!
WARNING:
Furnaces installed with combustion air
drawn from a heated space which in-
cludes exhaust fans, fireplaces, or other
devices that may produce a negative
pressure should be considered con-
fined space installations.
Figure 7. *TA Horizontal Installation
Suspended in Attic or Crawl Space
Figure 8. *TA Horizontal installation on a
Platform
Gas Inlet
Electrical
Supply
Connection
Coil Plenum
Type “B” Vent
Combustible
Platform
Louver Door
Note: Line
Contact is Permissible

14
See the venting section for venting guidelines
and specifications.
Air From Inside (See Figure 9)
If combustion air is taken from the heated
space, the two openings must
each have a free
area of at least one square inch per 1,000 Btuh
of total input of all appliances in the confined
space, but not less than 100 square inches
of free area. For example, if the combined input
rate of all appliances is less than or equal to
100,000 Btuh, each opening must have a free
area of at least 100 square inches. If the com-
bined input rate of all appliances is 120,000
Btuh, each opening must have a free area of at
least 120 square inches.
Outdoor Air Using Vertical Ducts
(See Figure 10)
If combustion air is taken from outdoors through
vertical ducts, the openings and ducts must
have a minimum free area of one square inch
per 4,000 Btuh of total appliance input. In instal-
lations drawing combustion air from a ventilated
attic, both air ducts must extend above the attic
insulation.
If the unit is installed in an area with an exhaust
fan, provide sufficient ventilation to prevent
negative pressures from occurring in the room.
The combustion air openings must not be re-
stricted in any manner.
!
CAUTION:
Do not supply combustion air from an
attic space that is equipped with power
ventilation or any other device that may
produce a negative pressure.
Figure 11. Equipment in a Confined
Space with all Combustion Air Drawn
from the Outside through Exterior Wall
Each opening
to outside
must be at least
1 sq. in. per 4000
Btuh of total input
rating.
12" Max
12" Max
Total Input
Rating(Btuh)
40,000
60,000
80,000
100,000
120,000
140,000
160,000
Minimum
Free Area
(Each Opening)
10 sq. in.
15 sq. in.
20 sq. in.
25 sq. in.
30 sq. in.
35 sq. in.
40 sq. in.
Round Duct
Diameter
4"
5"
5"
6"
6"
7"
8"
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Furnace
Water Heater
Vent or
Chimney
Total Input
Rating(Btu/hr)
40,000
60,000
80,000
100,000
120,000
140,000
160,000
Minimum
Free Area
(Each Opening)
10 sq. in.
15 sq. in.
20 sq. in.
25 sq. in.
30 sq. in.
35 sq. in.
40 sq. in.
Round Duct
Diameter
4"
5"
5"
6"
6"
7"
8"
Inlet Air Duct must
be at least 1 sq. in.
per 4,000 Btuh of
total input rating.
Inlet and Outlet
Ductsmust
extend above
attic insulation.
Outlet Air Duct must
be at least 1 sq. in.
per 4,000 Btuh of
total input rating.
Ventilation Louversat
each end of attic
Attic
Insulation
12" Max
a. All Combustion Air from Ventilated Attic.
Furnace
Water Heater
Vent or
Chimney
Figure 10. Equipment in a Confined
Space with all Combustion Air Drawn
from the Outside through Vertical Ducts
Total Input
Rating (Btu/hr)
40,000
60,000
80,000
100,000
120,000
140,000
160,000
Round Duct
Diameter
12"
12"
12"
12"
13"
14"
15"
Minimum
Free Area
(Each Opening)
100 sq. in.
100 sq. in.
100 sq. in.
100 sq. in.
120 sq. in.
140 sq. in.
160 sq. in.
Furnace
Openings to
adjacent space.
Each opening must
be at least 100 sq. in.
or 1 sq. in. per 1000
Btuh of total input
rating, whichever is
greater. See minimum
area per table.
12" Max.
12" Max.
Water Heater
Vent or
Chimney
Figure 9. Equipment in a Confined
Space with all Combustion
Air Drawn from the Inside

15
Air Directly Through An Exterior Wall
(See Figure 11)
If combustion air is provided directly through an
exterior wall, the two openings must each have
free area of at least one square inch per 4000
Btuh of total appliance input.
Outdoor Air Using a Crawl Space and Ventilated
Attic (See Figure 12)
When directly communicating with the out-
doors, each opening shall have a minimum free
area of 1 square inch per 4,000 Btuh of total
appliance input. The openings shall communi-
cate directly, or by ducts, with the outdoor
spaces (crawl or attic) that freely communicate
with the outdoors.
Outdoor Air Using Horizontal Ducts
(See Figure 13)
If combustion air is taken from outdoors through
horizontal ducts, the openings and ducts must
have a minimum free area of one square inch
per 2,000 Btuh of total appliance input.
If the unit is installed in an area with an exhaust
fan, provide sufficient ventilation to prevent
negative pressures from occurring in the room.
The combustion air openings must not be re-
stricted in any manner.
VENTING REQUIREMENTS
General
This furnace must be vented in compliance
with, the current revision of the National Fuel
Gas Code (ANSI-Z223.1/NFPA54), with the
instructions provided below.
Figure 12. Equipment in a Confined
Space with All Combustion Air Drawn
from a Crawl Space and Ventilated Attic
Outlet Air Duct
must be at least
1 sq. in. per 4000
Btuh of total input
rating. Must extend
above attic insulation.
Ventilation Louversat
each end of attic
Attic Insulation
Ventilation Louversfor
unheated crawl space Crawl Space
Inlet Air Duct must
be at least 1 sq. in.
per 4,000 Btuh of
total input rating.
Furnace
Water Heater
Vent or
Chimney
In Canada, venting shall conform to the require-
ments of the current (CAN/CGA B149.1 or .2)
installation codes. Consult local codes for
special requirements.
For Category I furnace installations, the fur-
nace shall be connected to a factory built
chimney or vent complying with a recognized
standard, or a masonry or concrete chimney
lined with a lining material acceptance to the
authority having jurisdiction. Venting into an
unlined masonry chimney or concrete chim-
ney is prohibited.
This furnace must never be vented to a chim-
ney flue servicing a fireplace or other appliance
designed to burn solid fuel. If the furnace vent
is to be connected to a chimney serving a
fireplace, the fireplace must be sealed off from
the chimney. Single wall metal vents shall not be
used for Category I venting, Category I fur-
naces must be vented vertically or near verti-
cally.
The furnace vent, if metal, may be insulated if
local codes allow. Any part of the vent system,
metal vent only, not exposed to weather, but
which are exposed to ambient temperatures
below 35° F must be insulated to prevent con-
densation. All vent insulation shall be foil backed
fiberglass of one inch minimum thickness.
Figure 13. Equipment in a Confined Space
with all Combustion Air Drawn from the
Outside through Horizontal Ducts
Each opening
to outside
must be at least
1 sq. in. per 2000
Btuh of total input
rating.
12" Max
12" Max
Total Input
Rating(Btu/hr)
40,000
60,000
80,000
100,000
120,000
140,000
160,000
Minimum
Free Area
(Each Opening)
20 sq. in.
30 sq. in.
40 sq. in.
50 sq. in.
60 sq. in.
70 sq. in.
80 sq. in.
Round Duct
Diameter
5"
6"
7"
8"
9"
10"
10"
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Furnace
Air Duct
Air Duct
Water Heater
Vent or
Chimney
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

16
Three sheet metal fasteners (field supplied)
should be used to secure the vent pipe to the
furnace flue. These fasteners should be evenly
spaced around the flue diameter, if possible.
Category I - Common Venting
When an existing furnace is removed from a
venting system serving other appliances, the
venting system is likely to be too large to
properly vent the remaining appliances. An
improperly sized venting system can result in
the formation of condensate, leakage, spillage,
etc.
The steps outlined in the warning below shall be
followed with each individual appliance con-
nected to the vent system placed in operation,
while all other appliances connected to the vent
system are not in operation:
!WARNING:
CARBON MONOXIDE POISONING HAZARD
Failure to follow the steps outlined below for each appliance connected to the
venting system being placed into operation could result in carbon monoxide
poisoning or death.
The following steps shall be followed for each appliance connected to the
venting system being placed into operation, while all other appliances connected
to the venting system are not in operation:
1. Seal any unused openings in the venting system.
2. Inspect the venting system for proper size and horizontal pitch, as required
in the
National Fuel Gas Code, ANSI Z223. 1/NFPA 54 or the CSA B149.1,
Natural Gas and Propane Installation Codes
and these instructions. Deter-
mine that there is no blockage or restriction, leakage, corrosion and other
deficiencies which could cause an unsafe condition.
3. As far as practical, close all building doors and windows and all doors
between the space in which the appliance(s) connected to the venting
system are located and other spaces of the building.
4. Close fireplace dampers.
5. Turn on clothes dryers and any appliance not connected to the venting
system. Turn on any exhaust fans, such as range hoods and bathroom
exhausts, so they are operating at maximum speed. Do not operate a
summer exhaust fan.
6. Follow the lighting instructions. Place the appliance being inspected into
operation. Adjust the thermostat so appliance is operating continuously.
7. Test for spillage from draft hood equipped appliances at the draft hood
relief opening after 5 minutes of main burner operation. Use the flame of
a match or candle.
8. If improper venting is observed during any of the above tests, the venting
system must be corrected in accordance with the
National Fuel Gas Code,
ANSI Z223.1/NFPA 54 and/or CSA B149.1, Natural Gas and Propane Instal-
lation Codes
.
9. After it has been determined that each appliance connected to the venting
system properly vents when tested as outlined above, return doors,
windows, exhaust fans, fireplace dampers and any other gas-fired burning
appliance to their previous conditions of use.

17
The venting system should be designed to
have the minimum number of elbows or turns.
All horizontal runs shall be sloped upwards from
the furnace at 1/4 inch per running foot of vent.
Supports for the vent pipe must be installed a
minimum of every five feet along the vent run to
ensure no displacement after installation.
Under no circumstances shall any portion of
the vent system extend into or pass through
any return air duct, supply air duct, or plenum.
If the furnace is operated with blocked or
restricted venting, the blocked vent switch
located in the vent plate will open, turning off the
gas supply to the burners. The blocked vent
switch is a manually reset device. DO NOT
install a jumper wire across this switch to defeat
its function. DO NOT reset the switch without
identifying and correcting the fault condition
which caused the switch to trip. If this switch
must be replaced, use only the part specified in
the Replacement Parts List.
!WARNING:
Upon completion of the furnace installa-
tion, carefully inspect the entire flue sys-
tem both inside and outside the furnace
to assure it is properly sealed. Leaks in
the flue system can result in serious
personal injury or death due to exposure
of flue products, including carbon mon-
oxide.
Category III: Horizontal Venting
NOTE: The reduced NOx models (eighth
character N) are not approved as a Cat-
egory III (Category III) furnace for use with
horizontal venting.
The furnaces are approved for use with 3"
single wall AL29-4C stainless steel vent
pipe in horizontal vent applications. This
pipe is available from the following manufac-
turers:
Z-FLEX Inc. - vent brand name (Z-VENT)
Heat-fab Inc. - vent brand name (Saf-T Vent)
Flex-L International - vent brand name (Star-
34 Vent)
This vent pipe must be used for the entire length
of the vent run. The installation must be in
accordance with all instructions supplied by the
vent manufacturer for use on Category III
appliances. When venting horizontal, this is
defined as a Category III furnace, the vent
pressure is positive, and the venting system
must be sealed in both horizontal and vertical
runs.
For horizontal venting installations in both the
United States and Canada the transition as-
sembly must be modified by adding a bleed tube
to the pressure switch tube and bypassing the
vent switch. All model furnaces will require Vent
Kit #903196 for horizontal venting.
NOTE: No bleed tube is required for the *RA
045(C,N)-08 model.
Horizontal Venting For Upflow Models:
1. Remove the rubber tubing from the pressure
switch sensor tube and the collector pan sen-
sortube. Cut 1/2inch fromone end of the rubber
sensor tube, fold in half and cut along the bend
line. Discard the 1/2 inch long piece of tubing.
Select the correct bleed tube using the table
supplied with vent kit #903196 and place the
other two pieces of tubing on both ends of the
bleed tube. Do not cover the hole in the bleed
tube. Place the assembly back on the pressure
switch sensor tube and the collector pan sen-
sor tube. (See Figure 14.)
2. Remove the nut and restrictor plate from the
vent collar assembly and discard the restrictor
plate. Select the appropriate dilution cover plate
asnotedwith ventkit #903196. Fittheclearance
hole in the cover plate over the weld stud. The
cover plate must cover the hole(s) on the vent
collar assembly. Tighten the nut securely while
holding the cover plate in position. (See Figure
15.)
3. Bypass the vent switch by removing both wires
from the vent switch and attaching them to the
wire nut. (See Figure 16.)

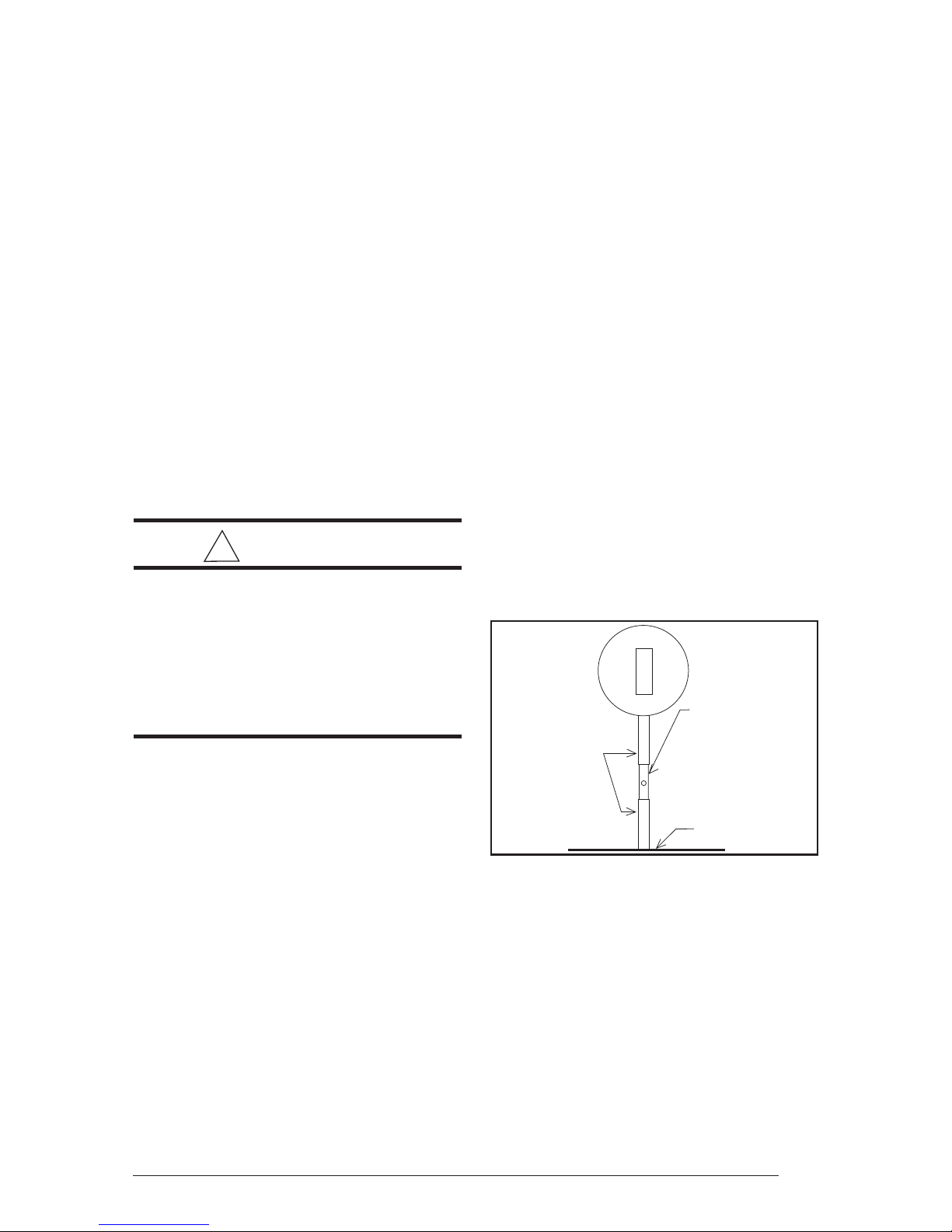

Figure 14. *TA Bleed Tube Installation
Collector
Pan
Pressure
Switch
Sensor
Tubes
Bleed Tube

18
Figure 18. *TK Horizontal
Vent Modification
Transition
Inducer
Remove
and
Discard
Combustion
Tube
Screw
Restrictor
Plate
The components of the horizontal vent system
must not be penetrated with screws, rivets, or
other devices, either when joining pipes and
fittings or using support straps. All joints must
be sealed with high temperature silicone before
locking bands are installed. If the lengths of pipe
must be cut, the joint must still be sealed with
silicone and the locking band used. When
installing the condensate tube be sure to form
a trap by means of a 3" loop filled with water.
(See Figure 20.)
Keep the number of pipe fittings to a minimum.
Maintain a minimum of 6 inches of air space
between the vent and combustibles at all times,
this includes inside and outside the building.
NOTE: The direction of the male-female joints
from the drain tee to the termination tee is
opposite to standard gas appliance venting.
The male end of the pipes point towards the
furnace.
Horizontal Venting: *TK Models:
1. By-pass the vent switch, located on blower
compartment door, by removing both wires
from the switch. Remove wire terminals, strip
wires and tie together in a wire nut. (See Figure
16.)
2. Remove the rubber tubing from the pressure
switch sensor tube and the collector pan sen-
sor tube. Cut the tubing approximately 3" from
one end. Select the appropriate dilution cover
plate as noted with vent kit #903196. Insert the
bleed tube into the tubing. Do not cover the
hole in the bleed tube. Place the tubing
assembly back on the pressure switch sensor
tube and collector pan sensor tube. (See Figure
17.)
3. To gain access to the restrictor plate, remove
and discard the combustion tube from the
transition assembly. Insure the seal between
inducer and transition assembly is not
broken. (See Figure 18.)
4. Remove and discard the restrictor plate and
screw from the transition assembly. (See Fig-
ure 18.)
5. Install andseal a4" to3" reducerto thetransition.
(See Figure 19.) Attach the new high tempera-
ture vent pipe to the reducer.
Figure 17. *TK Bleed Tube Installation
Bleed Tube
Bleed Tube
Orifice
Collector
Pan
Pressure
Switch
!CAUTION:
Do not drill holes through the vent pipe
or fittings on a horizontal vented fur-
nace. Do not use sheet metal screws, or
rivets. Drilling, screws, or rivets will
cause leaks.
Figure 15. Vent Collar Detail
Cover
Plate
Nut
Covered Vent
Collar Hole
Figure 16. Limit Circuit Wiring
Wire Nut
Switch
Limit
Switch
Flame
Roll-Out
Switch
Vent
Limit
Blue
Blue

19
90 ˚ Elbow
3" Dia. Loop Outside
Wall
Wall Thimble
(For combustible
wall material)
Termination
Tee
Support
Tee
0-6'
Drain
Plug
1
/ 4 " Per
Foot Rise
Locking Band Locking
Band
Figure 20. Typical Horizontal Vent
Installation
Horizontal Power Venting — The Tjerlund GPAK-
1 horizontal kit is certified for use
1. Apply an adhesive bead around the
outside of the pipe approximately 1/4"
from the end of the pipe. This includes
the first fitting or pipe attached to the
furnace.
2. Push the pipe and fitting together while
twisting the pipe or fitting. Twisting the
pipe or fitting spreads the adhesive
completely within the fitting socket.
3. When the pipe is at the socket bottom,
inspect the joint. Look for a complete,
uninterrupted ring of adhesive material
around the pipe at the fitting socket.
Additional adhesive or rotation of the
pipe or fitting may be required for a
complete seal. The complete adhesive
material ring provides the seal required
for the positive pressure vent.
4. All vent systems must include a tee and
drain plug for collection and disposal of
condensate. The drain tee must be
installed within the first 5 feet of vent run
to protect the furnace.
5. All horizontal sections must have a
slope toward the drain tee of not less
than 1/4" per foot to prevent the collection
of condensate at any location other than
at the tee.
6. Horizontal runs must be supported with
3/4" pipe strap at a maximum of 5 foot
intervals and at each point where an
elbow is used.
7. Maintain a 6 inch minimum air space to
combustibles from all sections of the
stainless steel vent system, except
when a wall thimble is used.
with this furnace. The kit includes a power
venter, a side-wall vent hood and a barometric
draft control. It has an electrical interlock to
assure that the furnace will not operate when
the power venter is off.
The kit is for use only when exhaust is through
an exterior wall, normally with horizontal vent
piping. The power venter establishes negative
pressure in the vent piping and the furnace
operates as if connected to Category I vertical
venting.
Installation Instructions are provided with the
kit. Installation must conform to those instruc-
tions and applicable requirements of local codes.
!WARNING:
The entire vent system must be sealed
with a high temperature sealant which
will withstand temperatures of 450°F.
Recommended sealants: Dow Corning
Sealant 736 RTV; GE 106 RTV; High
Tech Ind., High TEMP RED.
4" to 3" Reducer
Figure 19. *TK Reducer Installation
Transition
Special 3"
AL29-4C Stainless
Steel
Vent Pipe
Table 4. Horizontal
Venting Requirements
Horizontal Venting Requirements
Furnace Pipe Reducer Maximum Max. Feet
Input Size Needed # Elbows Vent Pipe
60,000 3" 4" to 3" 4 35
72,000 3" 4" to 3" 4 35
96,000 3" 4" to 3" 4 35
120,000 3" 4" to 3" 4 30

20
Figure 21. Vent Termination Clearances for Other Than Direct Vent Furnaces
VENT TERMINAL AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
1In accordance with the current CSA B149.1 Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1 / NFPA 54 National Fuel Gas Code
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family
dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
* For clearances not specified in ANSI Z223.1 / NFPA 54 or CSA B149.1, one of the following statement shall be included:
“Clearance in accordance with local installation codes, and the requirements of the gas supplier and the
manufacturer’s installation instructions.”
Canadian Installations
1
US Installations
2
A = Clearance above grade, veranda, porch,
deck, or balcony
12 inches (30 cm) 12 inches (30 cm)
B = Clearance to window or door that may be
opened
6 inches (15 cm) for appliances ≤10,000
Btuh (3 kW), 12 inches (30 cm) for
appliances > 10,000 Btuh (3 kW) and ≤
100,00 Btuh (30 kW), 36 inches (91 cm) for
appliances >100,00 Btuh (30 kW)
4 feet (1.2 m) below or to side of opening;
1 foot (300 mm) above opening
C = Clearance to permanently closed window **
D = Vertical clearance to ventilated soffit
located above the terminal within a
horizontal distance of 2 feet (61 cm) from
the center line of the terminal
**
E = Clearance to unventilated soffit **
F = Clearance to outside corne
r
**
G = Clearance to inside corner **
H = Clearance to each side of center line
extended above meter/re
g
ulator assembl
y
3 feet (91 cm) within a height 15 feet
above the meter/re
g
ulator assembl
y
*
I = Clearance to service regulator vent outlet 3 feet (1.83 m) *
J = Clearance to nonmechanical air supply inlet
to building or the combustion air inlet to any
other appliance
6 inches (15 cm) for appliances ≤10,000
Btuh (3 kW), 12 inches (30 cm) for
appliances > 10,000 Btuh (3 kW) and ≤
100,00 Btuh (30 kW), 36 inches (91 cm) for
appliances >100,00 Btuh (30 kW)
4 feet (1.2 m) below or to side of opening;
1 foot (300 mm) above opening
K = Clearance to a mechanical air supply inlet 6 feet (1.83 m) 3 feet (91 cm) above if within 10 feet (3 m)
horizontally
L = Clearance above paved sidewalk or paved
driveway located on public property
7 feet (2.13 m) † 7 feet (2.13 m)
M = Clearance under veranda, porch deck, or
balcony
12 inches (30 cm) ‡ *
Location of Outdoor Terminations
Horizontal Installation
The vent termination tee must be installed with
the following minimum clearances. (See Figure
21.) Vent termination clearances shall be con-
sistent with the
National Fuel Gas Code, ANSI
2223.1/NFPA 54 and/or the CSA B149.1,
Natural Gas and Propane Installation Code.
