Nordyne M3RL 060A AW User manual

Direct Vent (Sealed Combustion) Forced Air Gas Furnaces
M3RL Series 90+ Downflow Condensing Furnace
For installation in:
1. Manufactured Homes
2. Park Models and Manufactured Buildings
3. Modular Homes/Buildings
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death or property
damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call yourgas supplierfrom a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
-Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier
ADVERTISSEMENT:
RISQUE D'INCENDIE OU D'EXPLOSION
Le non=respect des avertissements de securite
pourrait entrainer des blessures graves, la
mort ou des dommages materiels.
- Ne pas entreposer ni utiliser de I'essence ni
d'autres vapeurs ou liquides inflammables dans le
voisinage de cet appareil, ni de tout autre appareil.
-QUE FAIRE S'ILYA UNE ODEUR DE GAZ
• Ne pas tenter d'allumer aucun appareil.
• Ne toucher a aucun interrupteur electrique;
n'utiliser aucun t61ephone dans le b_timent.
•€:vacuer I'immeuble immediatement.
•Appeler immediatement le fournisseur de gaz en
employant le tel6phone d'un voisin. Respecter
la lettre les instructions du fournisseur de gaz.
• Si personne ne repond, appeler le service des
incendies.
-L'installation et I'entretien doivent Ctre effectues
par un installateur qualifie, un organisme de
service ou le fournisseur de gaz.
J
BW Models
J
BWT Models
WARNING:
Should overheating occur, or the
gas supply fail to shut off, shut
off the manual gas valve to the
appliance before shutting off the
electrical supply.
Improper installation, adjust-
ment, alteration, service or
maintenance can cause injury
or property damage. Refer to
this manual. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.
LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER.

2

TABLE OF CONTENTS
General ...................................................... 4
Unit Dimensions .................................. 4
Shipping Weights ................................ 4
Furnace Specification ........................ 4
Air Flow Data ..................................... 4
Owner's information ................................ 5
installation Requirements ...................... 6
Location .............................................. 8
Clearance ........................................... 8
Circulating Air Supply .......................... 10
Return Air Provisions ............................ 10
Air Distribution Systems ...................... 11
Duct Connector Selection .................... 11
Duct installation .................................... 12
Venting and Combustion
Air Requirements .......................... 14
Venting Requirements .......................... 14
Vent Table ........................................ 15
Vent Pipe Material ............................ 16
Vent Pipe Length and Diameter ....... 16
Vent Pipe installation ........................ 16
Pipe Routing & Support .................... 16
Location of Outdoor Termination ..... 18
Horizontal Venting ............................ 18
Vertical Venting ................................ 19
Vent Freezing Protection ................. 19
Concentric Vent Termination ........... 20
Drainage of Condensate
From Furnace ................................ 20
Gas Supply and Piping ......................... 21
Leak Check ...................................... 22
High Altitude Derate ......................... 22
Pressure Switch ............................... 22
Conversion ............................................. 22
Lighting and Adjustment
of the Appliance ............................ 24
Electrical Wiring ..................................... 24
Line Voltage Wiring .......................... 25
Low Voltage Wiring .......................... 26
Ventilation ............................................... 26
Start-up and Adjustment ..................... 26
Start-Up Procedure ......................... 26
Shut Down Procedure ..................... 27
Verifying and Adjusting Firing Rate. 27
Temperature Rise ............................ 27
Verifying and Adjusting
Verifying Burner Operation .............. 28
Verifying Operation of the
Supply Air Limit Switch ................. 28
Description of Components ................ 29
Furnace Accessories ............................. 29
Maintenance ........................................... 29
Combustion Air and Vent System .... 29
Air Filter(s) ....................................... 29
Lubrication ........................................ 30
Condensate Drain Assembly ........... 30
Blower Compartment ....................... 30
Heat Exchanger and Burner
Maintenance .................................. 30
System Operation Information ............. 30
Sequence of Operation .................... 30
Furnace Fails to Operate ................. 31
Component Location ............................ 32
Wiring Diagram ....................................... 33
Installation/Performance
Checklist ......................................... 35
Application
M-Manufactured Home
Furnace Series
Comfort Model
RL - Condensing Downflow
M3RL-060A-A W
L
LReturn Air Configuration
Blank- Front
T - Top
Door Color
W - White
G - Gray
Cabinet Dimensions
A - 56"x 19-3/4" x 23-3/4"
B - w/Coil Cavity,
76" x 19-3/4" x 23-3/4"
Heating Capacity
input, BTUH (000')
Electrical Code
A - 1PH, 60 Hz, 120 VAC
Table 1. Model Identification 3

GENERAL
16
7/3243. I12
27-25/32
"B" Cabinet
Top Return Knockouts
-- 19-7/8 --
--3-17/32
COMBUSTION AIR INTAKE
--1-11/16
EXHAUST
VENT

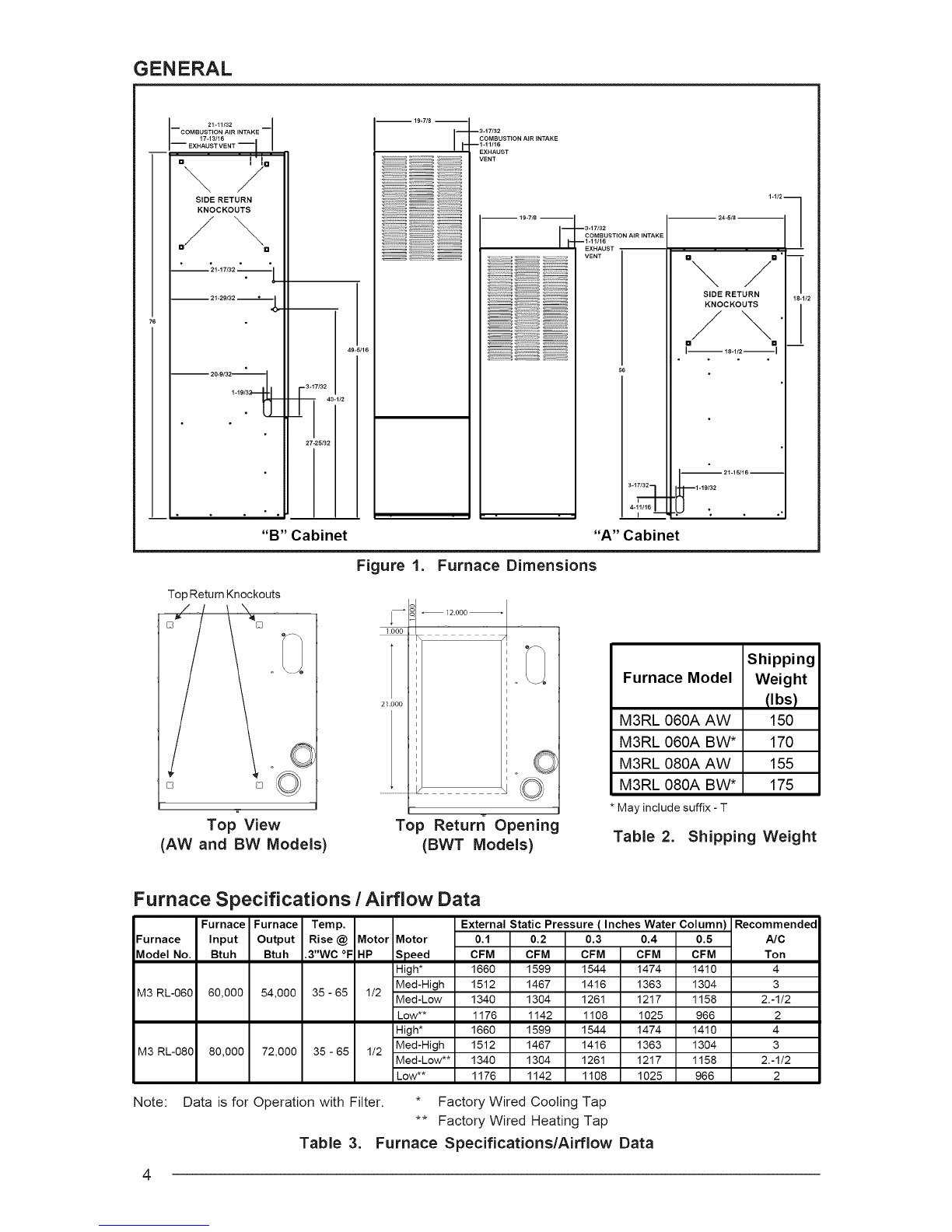

Figure 1. Furnace Dimensions
_ _ 12.000
1,000
I
:
21.000
(
Y
Top View Top Returrl Opening
(AW and BW Models) (BWT Models)
--3-17/32
COMBUSTION AIR INTAKE
--1-11/16
EXHAUST
VENT "\ /
SIDE RETURN
KNOCKOUTS
/\
L--- ......_
_ 21-15/16--
m
"A" Cabinet
Shipping
Furnace Model Weight
(Ibs)
M3RL 060A AW 150
M3RL 060A BW* 170
M3RL 080A AW 155
M3RL 080A BW* 175
*May include suffix - T
Table 2. Shipping Weight
Furnace Specifications /Airflow Data
Furnace Furnace Temp. External Static Pressure ( Inches Water Column)
Furnace Input Output
rVlodel No. Btuh Btuh
M3 RL-060 60,000 54,000
M3 RL-080 80,000 72,000
Rise @Motor Motor 0.1 0.2 0.3 0.4
.3"WC °F HP Speed CFM CFM CFM CFM
High* 1660 1599 1544 1474
Med-High 1512 1467 1416 1363
35 - 65 1/2 Med-Low 1340 1304 1261 1217
Low** 1176 1142 1108 1025
High* 1660 1599 1544 1474
35 - 65 1/2 Med-High 1512 1467 1416 1363
Med-Low** 1340 1304 1261 1217
Low** 1176 1142 1108 1025
Recommended
0.5 A/C
CFM Ton
1410 4
1304 3
1158 2.-1/2
966 2
1410 4
1304 3
1158 2.-1/2
966 2
Note: Data is for Operation with Filter. * Factory Wired Cooling Tap
•* Factory Wired Heating Tap
Table 3. Furnace Specifications/Airflow Data
4

/ WARNING:
Do not use this appliance if any part
has been submerged underwater, im-
mediately call a qualified service tech-
nician to inspect the appliance and to
replace any part of the control system
and any gas control that has been
submerged underwater,
NOTICE TO INSTALLER
Installer isadvised to follow carefully all instruc-
tions and warnings in this manual to insure
maximum performance, safety, and operating
efficiency ofthese appliances. Improper installa-
tion may create hazardous conditions, and will
void the appliance warranty.
GENERAL
General Description
The M3 series gas furnaces are listed direct
vent (sealed combustion) forced air furnaces
for use with both natural and propane gases.
The M3 series is a Category IV and type FSP
furnace. The M3 furnace series has been
certified to the ANSI Z21.47/CSA2.3-2001 for
use in the United States and Canada and to the
UL307B --1995 for use in the United States.
These furnaces may be installed in:
1. Manufactured Homes.
2. Park Models and Manufactured buildings
3. Modular Homes/Buildings
The following are safety guidelines with refer-
ences to their specific sections or pages in the
manual.
1. Use only type of gas approved for this
furnace. Refer to the furnace rating plate.
2. Install this furnace only in location and
position as specified in pages 8 - 14 of
these instructions.
3. Provide adequate combustion and ventila-
tion air to the furnace space as specified in
pages 13 - 20 of these instructions.
4. Combustion products must be discharged
outdoors, connect this furnace to an ap-
proved vent system only, as specified in
pages 14-20 of these instructions.
5. Never test for gas leaks with an open
flame. Use a commercially available soap
solution made specifically for the detection
of leak to check all connections.
6. Always install furnace to operate within the
furnace's intended temperature rise range
with a duct system that has an external
static pressure within the allowable range,
as specified in page 4 of these instruc-
tions. See Table 3 and the furnace rat-
ing plate.
7. When a furnace is installed so that supply
ducts carry air circulated by the furnace to
areas outside the space containing the
furnace, the return air shall also be handled
by duct(s) sealed to the furnace casing
and terminating outside the space contain-
ing the furnace. Note: This section only
applies to furnaces installed with side or
top return air.
8. A gas4ired furnace for installation in a
residential garage must be installed as
specified in page 9 of these instructions.
9. The furnace is not to be used for tempo-
rary heat of buildings or structures under
construction.
M3 series furnaces are air conditioning ready
as shipped. The furnace cooling capacities of
the blower motor speed taps are shown in
Table 3. Table 2 lists the shipping weights for
the M3 series furnaces.
OWNER INFORMATION
NORDYNE has been involved in the design of
products for the manufactured home industry
since the first manufactured home or trailer
was built.
NORDYNE originated the sealed combustion
system, which separates the furnace com=
bustion system from the living area of the
home, now a standard for the manufactured
home industry.
NORDYNE engineers developed the first cen-
tral heating system and the first central air
conditioner for manufactured homes.
NORDYNE is dedicated to bringing to its cus=
tomers the finest heating and cooling comfort
possible. NORDYNE constantly seeks to fur=
ther refine its products to continuously provide
exceptional comfort.

Followtheinstructionsinthisbookletcarefully
andthisappliancewillprovidemanyyearsof
superiorperformance.
If youwishto coolyour homeautomatically
witha centralairconditioningsysteminvesti-
gatetheexcellentNORDYNEcoolingsystems
availablefromyourheatingandcoolingcon-
tractor.Thesesystemsaredesignedto work
bestwithyourNORDYNEfurnaceand have
beencarefullyengineeredto deliveroptimum
performancewhen matedwith NORDYNE
manufacturedhomefurnaces.
NORDYNEalsoofferswaterheaters,fireplaces
and ventilatingsystemsspecificallydesigned
for manufacturedhousingapplications.Check
with your manufacturedhomeretailer,your
heating and cooling contractor or your
distributorfor information.Writedirectlyto the
factory8000PhoenixParkway,O'Fallon,MO
63368ifyouarenotabletolocateasourcefor
NORDYNEmanufacturedhousingproductsin
yourarea.
MANUFACTURER WARRANTY, OWNER'S
RESPONSIBILITIES
It is the sole responsibility of the homeowner to
make certain the gas furnace has been correctly
set up and converted to the proper fuel (L.P. gas
or Natural gas) and adjusted to operate prop-
erly. All gas furnaces are manufactured for
Natural gas and must be field converted when
using LP. gas.
A warranty certificate with full details is included
with these instructions. However, NORDYNE
will not be responsible for any costs found nec-
essary to correct problems due to improper
setup, improper installation, furnace adjustments,
improper operating procedure on the part of the
user, etc.
Some specific examples of service calls which
cannot be included in warranty payments are:
1. Converting the furnace to use another type
of gas.
2. Repairing ductwork in the home found to be
faulty.
3. Correcting wiring problems in the electrical
circuit supplying the furnace.
4. Resetting circuit breakers, blown fuses or
other switches.
5. Correcting problems due to improper gas
supply pressure to the furnace.
6. Providing instructional training on how to
light and operate the furnace.
7. Furnace problems caused by installation of
an air conditioner, heat pump or other air
comfort devices.
8. Revising installation of the furnace flue
assembly.
9. Adjusting or calibrating of thermostat.
10. Any construction debris which falls into
the flue system.
Carefully review these responsibilities with your
manufactured housing dealer, service company
or gas supplier so there will be no misunder-
standing at a later time.
CAUTION:
• Never attempt to alter or modify this
furnace or any of its components.
• Never attempt to repair damaged or
inoperable components. Such action
could cause unsafe operation, ex-
plosion, fire and/or asphyxiation.
• If a malfunction has occurred, or if
you feel that the furnace is not oper-
ating as it should, contact a qualified
service agency or gas utility for as-
sistance.
INSTALLATION STANDARDS
Installer shall be familiarwith and complywith all
codes and regulations applicable to the installa-
tion of these heating appliances and related
equipment. In lieu of local codes, the installation
shall be in accordance with the current provi-
sions of one or more of the following standards.
a. Federal Manufactured Home Constructions
& Safety Standard (H.U.D. Title 24, Part
3280.707[a][2])
b. The Standard for Manufactured Home Instal-
lations (Manufactured Home Sites, Commu-
nities, and Set-Ups) ANSI A225.1 and/or
CAN/CSA-2240 MH Series).
c. American National Standard (ANS1=119.2/
NFPA=501C) for all recreational vehicle in-
stallations.
d. American National Standard (ANSI=Z223.1/
NFPA-54) and/or CAN/CGA B149 for all gas-
fired furnace models.
e. American National Standard (ANSI=C1/NFPA-
70) and/or CSA 22.1 Canadian Electric Code
Part 1 for all electrical field wiring.
6

CE g6nerateurd'air chauddoit Ctreinstalle
conformementauxinstructionsdufabricantet
auxcodesIocaux.EnI'absencedecodelocal,
respecterlanormeANSIZ223.,1,instituleNa-
tionalFuelGasCodeoulescodesd'installation
CAN/GCA-B149.
the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the
property owner to secure the services of
qualified licensed professionals for the
installation of hard wired carbon monoxide
detectors.
The National Fuel Gas Code is available by
writing:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
NFPA publications are available by writing:
National Fire Protection Association
Batterymarch Park
Quincy, ME 02269
IMPORTANT NOTE
INSTALLATION REQUIREMENTS =
COMMONWEALTH OF
MASSACHUSETTS
The Commonwealth of Massachusetts
requires compliance with regulation 248 CMR
5.00 for installation of the side wall horizontal
venting. The following requirements shall be
satisfied.
INSTALLATION OF CARBON
MONOXIDE DETECTORS
At the time of installation of the side wall
horizontal vented gas fuel equipment, the
installing plumber or gasfitter shall observe
that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed
on the floor level where the gas equipment is
to be installed. In addition, the installing plumber
or gasfitter shall observe that a battery operated
or hard wired carbon monoxide detector with
an alarm is installed on each additional level of
the dwelling, building or structure served by
ALL MODELS
Front
Back
Sides
Vent
Top
Duct (Plenum)
w/Coil Box
w/o Coil Box
(within 3 feet)
CLOSET
Inches
1"
0
0
0
6
0
1/4
ALC OVE
Inches
1"
0
0
0
6
0
1/4
*Note: For 1" clearance, use a fully Iouvered door with at least
400 square inches of free airflow area.
Table 4. Minimum Clearances
In the event that the side wall horizontally
vented gas fueled equipment is installed in a
crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery
back-up may be installed on the next adjacent
floor level.
In the event that the requirements of this
subdivision can not met at the time of completion
of installation, the owner shall have a period of
thirty (30) days to comply with the above
requirements; provided, however, that during
said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall
be installed.
APPROVED CARBON MONOXIDE
DETECTORS
Each carbon monoxide detector as required in
accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certified.
SIGNAGE
A metal or plastic identification plate shall be
permanently mounted to the exterior of the
building at minimum height of eight feet above
grade directly in line with the exhaust vent
terminal for the horizontally vented gas fueled
heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2)
inch in size, "GAS VENT DIRECTLY BELOW.
KEEP CLEAR OF ALL OBSTRUCTIONS."
INSPECTION
The state or local gas inspector of the side wall
horizontally vented gas fueled equipment shall
not approve the installation unless, upon
inspection, inspector observes carbon
monoxide detectors and signage installed in
accordance with the provisions of 248 CNR
5.08(2)(a) 1 through 4.
Exemptions: The following equipment is
exempt frolTl 248 CMR 5.08(2)(a) 1 through 4:
Product approved side wall horizontally vented
f_eled equipment installed in room or structure
separated from the dwelling, building or
structure used in whole or in part for residential
purposes.

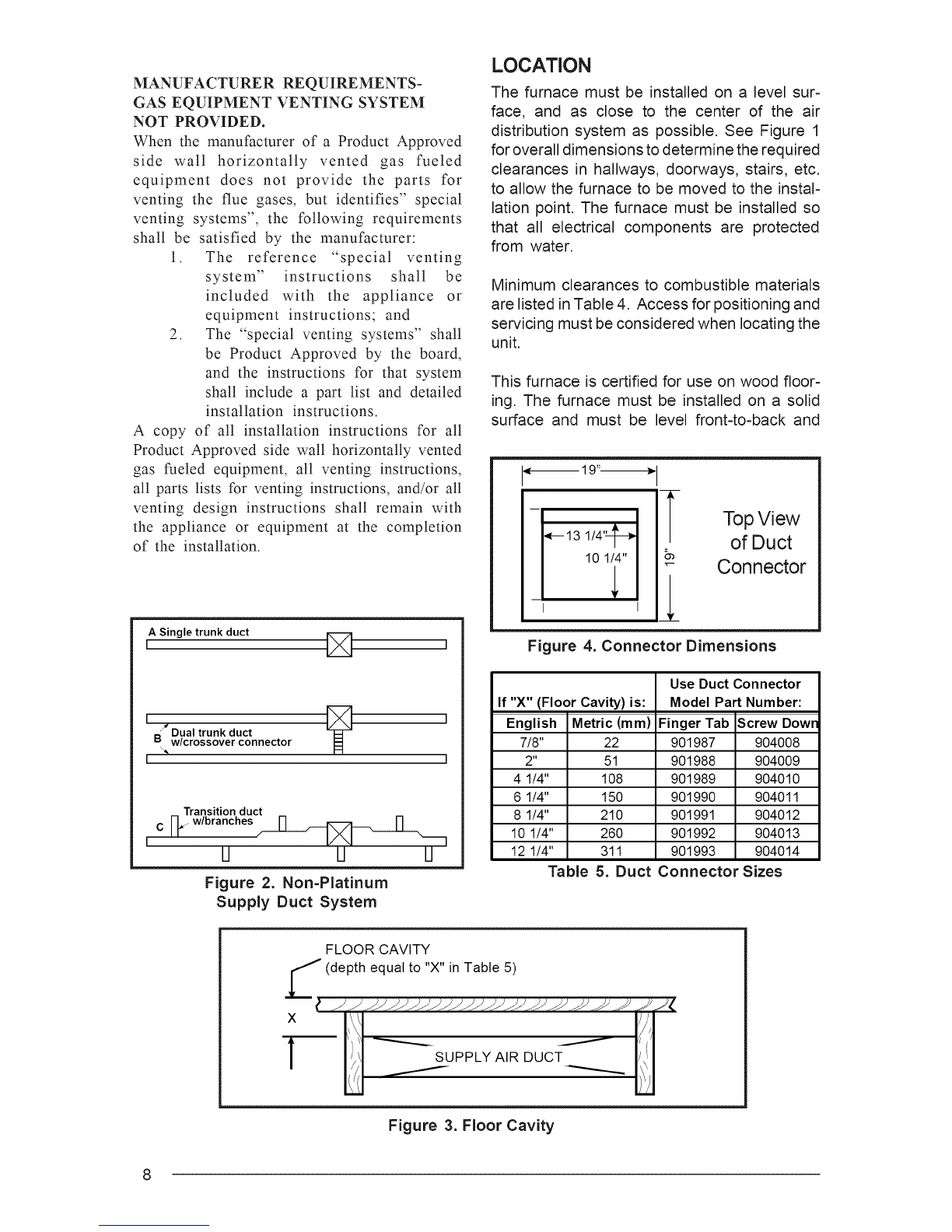

MANUFACTURERREQUIREMENTS-
GASEQUIPMENTVENTINGSYSTEM
NOT PROVIDED.
When the manufacturer of a Product Approved
side wall horizontally vented gas fueled
equipment does not provide the parts for
venting the flue gases, but identifies" special
venting systems", the following requirements
shall be satisfied by the manufacturer:
1. The reference "special venting
system" instructions shall be
included with the appliance or
equipment instructions; and
2. The "special venting systems" shall
be Product Approved by the board,
and the instructions for that system
shall include a part list and detailed
installation instructions.
A copy of all installation instructions for all
Product Approved side wall horizontally vented
gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all
venting design instructions shall remain with
the appliance or equipment at the completion
of the installation.
A Single trunk duct
,D
_" Dual trunk duct
B w/crossover connector
I
Transition duct
C[p w/branches [']____[1_
7
II II II
Figure 2. Non-Platinum
Supply Duct System
LOCATION
The furnace must be installed on a level sur-
face, and as close to the center of the air
distribution system as possible. See Figure 1
for overall dimensions to determine the required
clearances in hallways, doorways, stairs, etc.
to allow the furnace to be moved to the instal=
lation point. The furnace must be installed so
that all electrical components are protected
from water.
Minimum clearances to combustible materials
are listed in Table 4. Access for positioning and
servicing must be considered when locating the
unit.
This furnace is certified for use on wood floor=
ing. The furnace must be installed on a solid
surface and must be level front-to-back and
I I
Top View
of Duct
Connector
Figure 4. Connector Dimensions
Use Duct Connector
If "X" (Floor Cavity)is: Model Part Number:
English Metric (mm) Finger Tab ScrewDowr
7/8" 22 901987 904008
2" 51 901988 904009
4 1/4" 108 901989 904010
6 1/4" 150 901990 904011
8 1/4" 210 901991 904012
10 1/4" 260 901992 904013
12 1/4" 311 901993 904014
Table 5. Duct Connector Sizes
FLOOR CAVITY
(depth equal to "X" in Table 5)
Figure 3. Floor Cavity
8

FELT-SEAL
SPACERS
REDUCER _\
( )OPENING TO DUCT
(1) WITH PLATE (C) REMOVED
OPENING BECOMES
13-1/4" x 13-1/4"
(2) WITH PLATE (C) REMOVED
OPENING BECOMES
13"X 13". WITH REDUCER
IT IS 13"X 10-1/8",
,&
X SEE
TABLE 5
(1) FINGER TAB DUCT CONNECTOR ONLY
(2) SCREW DOWN DUCT CONNECTOR ONLY
Figure 5. Duct Connector
side=to=side. This furnace must not be installed
directly on carpeting, tile, or any combustible
material other than wood flooring. The furnace
may be installed on combustible flooring when
installed on a Nordyne duct connector (see
Table 5).
The ductwork within 3 feet of the furnaces
without the A/C coil box must be installed such
that surfaces are at least 1/4" from combustible
materials.
When installed in a residential garage, the fur=
nace must be positioned so the burners and the
source of the ignition are located no less than
18 inches above the floor and protected from
physical damage by vehicles.
lO"
FLo2
23-1/4"
HOLE \\\\\
Figure 6. Closet or Alcove
24
3-1/4
2-1/4
14-1/2
-3/4
i I
I
F F LRODOuRc_UT-oONUNTECT i O N S
fl ....
' 1-1/4 / I _ 12-7/8
ALT FUEL LINE / !. _ !__q,_
ENTRY /' / ..... I
_,, _ 15-1/2 _
_- FLOOR CUT-OUT
FOR OPTIONAL
COOLING COIL
FOR NON-PLATINUM
SERIES UNITS
F I 142-_/2 _ 2-3/4'_
_/////_.REAR WALL OF CLOSET bR_,_co_E_
g
u_
-- 3-19/32
-- 1-3/4
_- VENT
COMBUSTION AIR INTAKE
J_-- FUEL LINE ENTRY
2
_ 1-3/4
FURNACE
OUTER DOOR
17-29/32
21-7/16

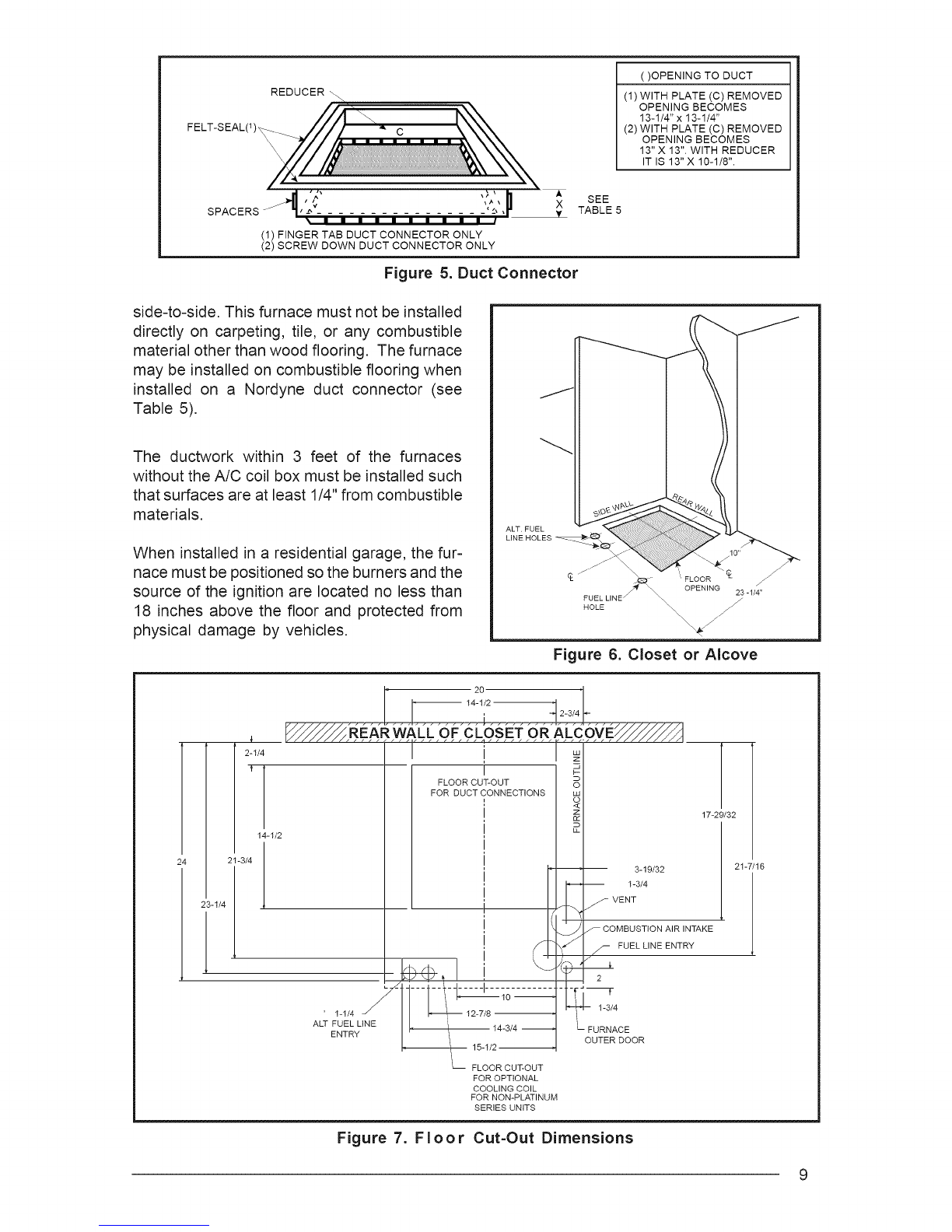

Figure 7. Floor Cut-Out Dimensions
9

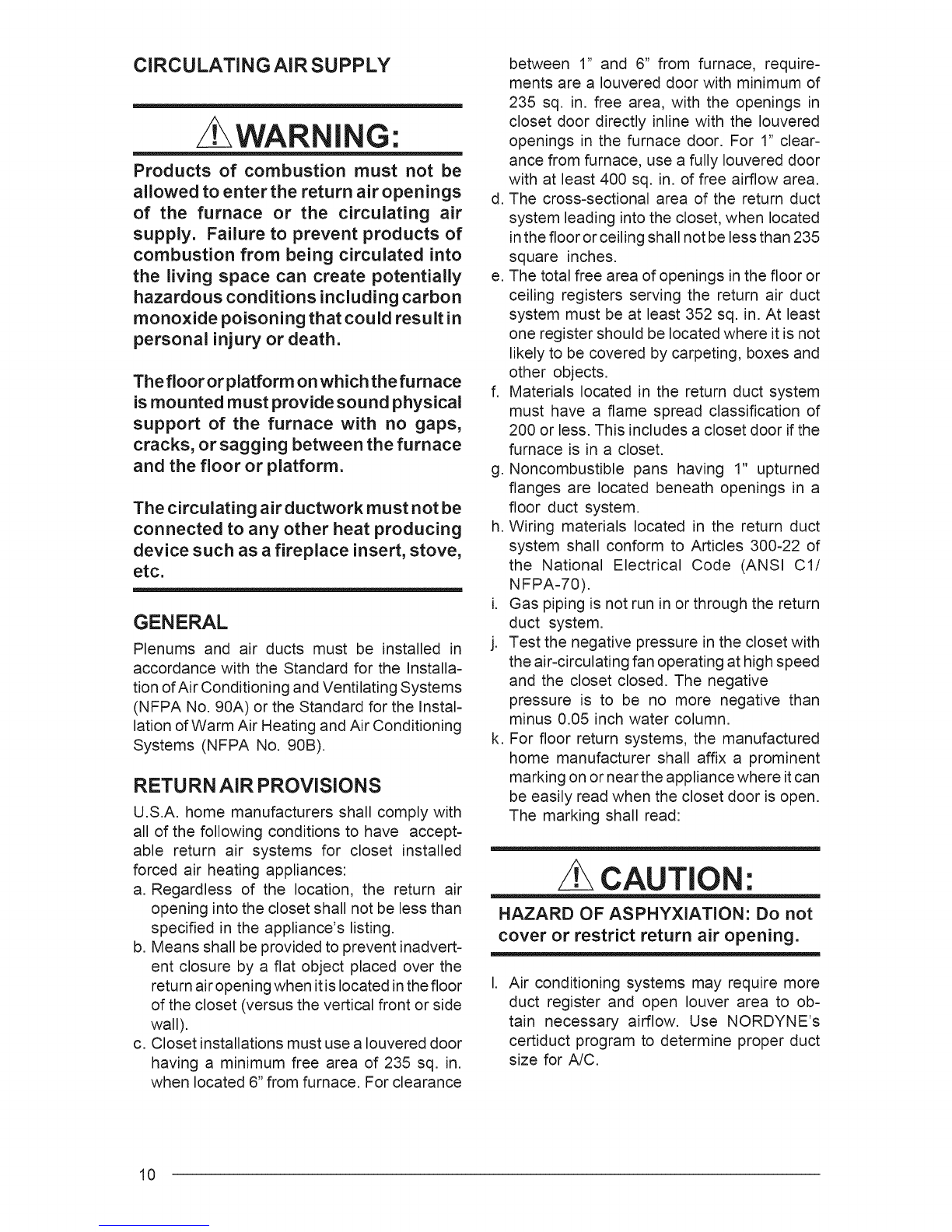

CIRCULATING AiR SUPPLY
z WARNING:
Products of combustion must not be
allowed to enter the return air openings
of the furnace or the circulating air
supply, Failure to prevent products of
combustion from being circulated into
the living space can create potentially
hazardous conditions including carbon
monoxide poisoning that could result in
personal injury or death,
The floor or platform on which the furnace
ismounted must provide sound physical
support of the furnace with no gaps,
cracks, or sagging between the furnace
and the floor or platform,
The circulating air ductwork must not be
connected to any other heat producing
device such as a fireplace insert, stove,
etc,
GENERAL
Plenums and air ducts must be installed in
accordance with the Standard for the Installa-
tion of Air Conditioning and Ventilating Systems
(NFPA No. 90A) or the Standard for the Instal-
lation of Warm Air Heating and Air Conditioning
Systems (NFPA No. 90B).
RETURN AIR PROVISIONS
U.S.A. home manufacturers shall comply with
all of the following conditions to have accept-
able return air systems for closet installed
forced air heating appliances:
a. Regardless of the location, the return air
opening into the closet shall not be less than
specified in the appliance's listing.
b. Means shall be provided to prevent inadvert-
ent closure by a flat object placed over the
return air opening when it islocated in the floor
of the closet (versus the vertical front or side
wall).
c. Closet installations must use a Iouvered door
having a minimum free area of 235 sq. in.
when located 6" from furnace. For clearance
between 1" and 6" from furnace, require-
ments are a Iouvered door with minimum of
235 sq. in. free area, with the openings in
closet door directly inline with the Iouvered
openings in the furnace door. For 1" clear-
ance from furnace, use a fully Iouvered door
with at least 400 sq. in. of free airflow area.
d. The cross-sectional area of the return duct
system leading into the closet, when located
in the floor or ceiling shall notbe less than 235
square inches.
e. The total free area of openings in the floor or
ceiling registers serving the return air duct
system must be at least 352 sq. in. At least
one register should be located where it is not
likely to be covered by carpeting, boxes and
other objects.
f. Materials located in the return duct system
must have a flame spread classification of
200 or less. This includes a closet door if the
furnace is in a closet.
g. Noncombustible pans having 1" upturned
flanges are located beneath openings in a
floor duct system.
h. Wiring materials located in the return duct
system shall conform to Articles 300-22 of
the National Electrical Code (ANSI Cl/
NFPA-70).
i. Gas piping is not run in or through the return
duct system.
j. Test the negative pressure in the closet with
the air-circulating fan operating at high speed
and the closet closed. The negative
pressure is to be no more negative than
minus 0.05 inch water column.
k. For floor return systems, the manufactured
home manufacturer shall affix a prominent
marking on or near the appliance where itcan
be easily read when the closet door is open.
The marking shall read:
CAUTION:
HAZARD OF ASPHYXIATION: Do not
cover or restrict return air opening,
I. Air conditioning systems may require more
duct register and open louver area to ob-
tain necessary airflow. Use NORDYNE's
certiduct program to determine proper duct
size for A/C.
10

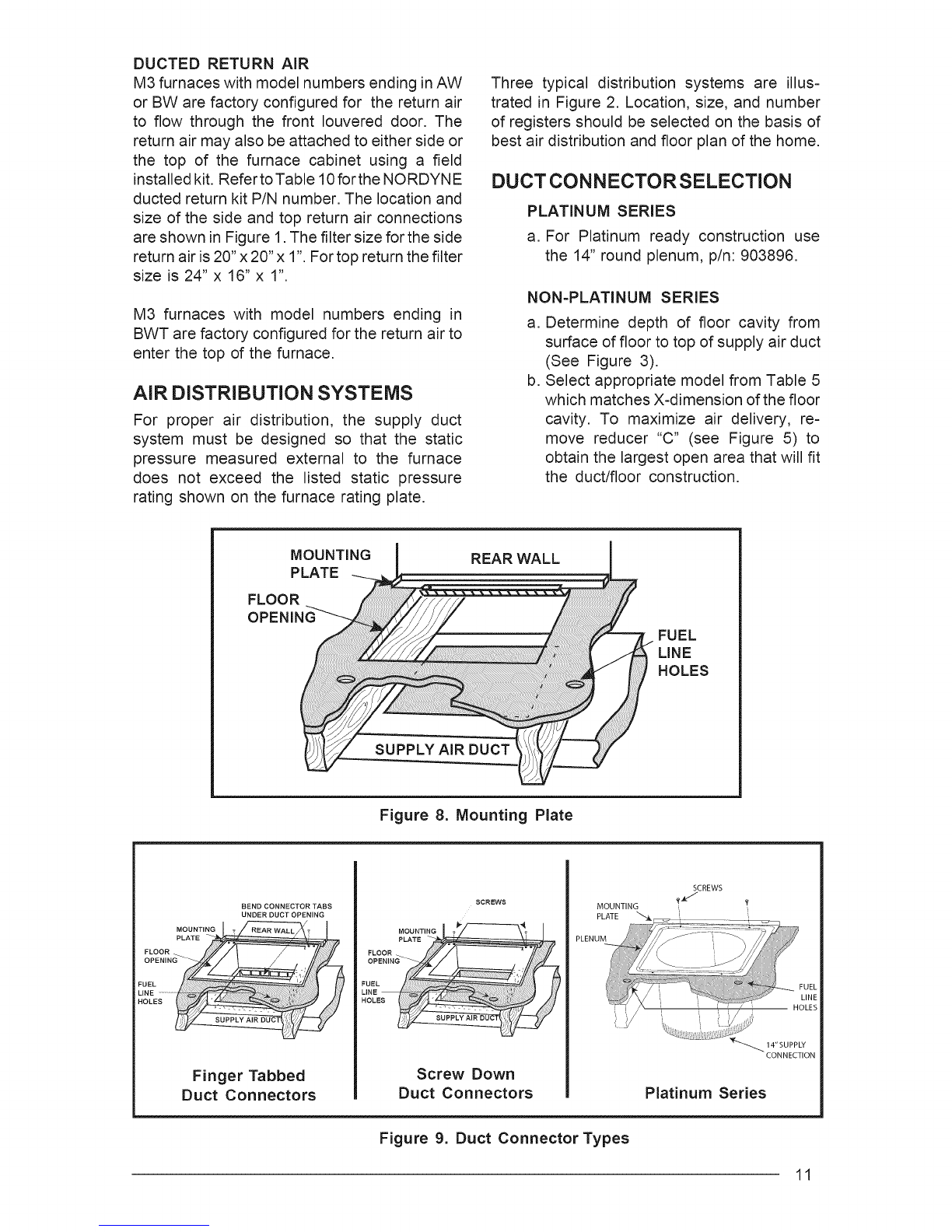

DUCTEDRETURNAIR
M3furnaceswithmodelnumbersendinginAW
orBWarefactoryconfiguredfor thereturnair
to flowthroughthefrontIouvereddoor.The
returnairmayalsobeattachedtoeithersideor
the top of the furnacecabinetusinga field
installedkit.RefertoTable10fortheNORDYNE
ductedreturnkitP/Nnumber.Thelocationand
sizeofthesideandtopreturnairconnections
areshowninFigure1.Thefiltersizefortheside
returnairis20"x20"x1".Fortopreturnthefilter
sizeis24"x 16"x 1".
M3furnaceswith modelnumbersendingin
BWTarefactoryconfiguredforthereturnairto
enterthetopofthefurnace.
AIR DISTRIBUTION SYSTEMS
For proper air distribution, the supply duct
system must be designed so that the static
pressure measured external to the furnace
does not exceed the listed static pressure
rating shown on the furnace rating plate.
Three typical distribution systems are illus-
trated in Figure 2. Location, size, and number
of registers should be selected on the basis of
best air distribution and floor plan of the home.
DUCT CONNECTOR SELECTION
PLATINUM SERIES
a. For Platinum ready construction use
the 14" round plenum, p/n: 903896.
NON=PLATINUM SERIES
a.
b.
Determine depth of floor cavity from
surface of floor to top of supply air duct
(See Figure 3).
Select appropriate model from Table 5
which matches X-dimension of the floor
cavity. To maximize air delivery, re-
move reducer "C" (see Figure 5) to
obtain the largest open area that will fit
the duct/floor construction.
MOUNTING
PLATE
FLOOR
OPENING
REAR WALL
SUPPLY AIR DUCT
FUEL
LINE
HOLES
Figure 8. Mounting Plate
BEND CONNECTOR TABS
UNDER DUCT OPENING
Finger Tabbed
Duct Connectors Screw Down
Duct Connectors
MOUNTING
PLATE
SCREWS
CONNECTION
Platinum Series
Figure 9. Duct Connector Types
11

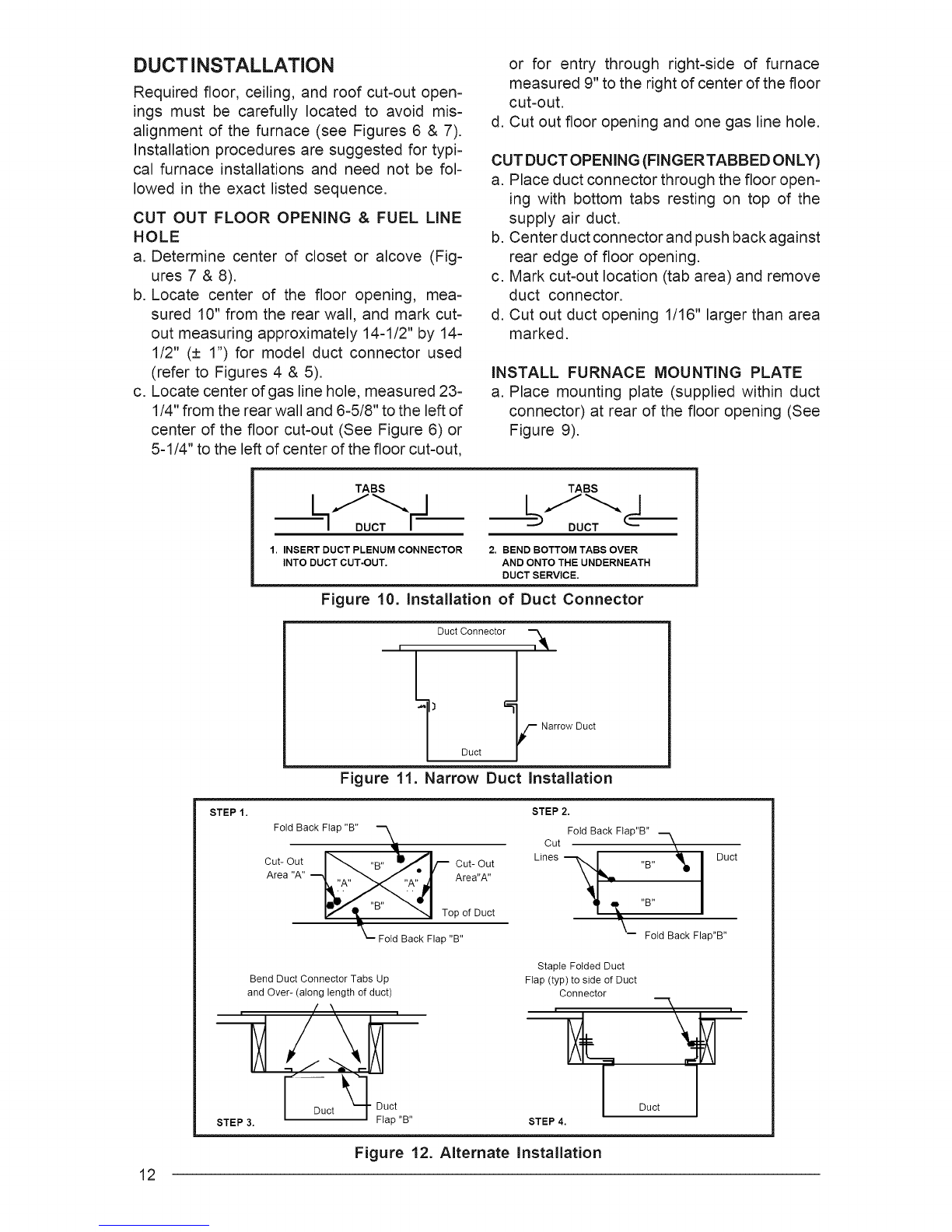

DUCT INSTALLATION
Required floor, ceiling, and roof cut-out open-
ings must be carefully located to avoid mis-
alignment of the furnace (see Figures 6 & 7).
Installation procedures are suggested for typi-
cal furnace installations and need not be fol-
lowed in the exact listed sequence.
CUT OUT FLOOR OPENING & FUEL LINE
HOLE
a. Determine center of closet or alcove (Fig-
ures 7 & 8).
b. Locate center of the floor opening, mea-
sured 10" from the rear wall, and mark cut-
out measuring approximately 14-1/2" by 14-
1/2" (+ 1") for model duct connector used
(refer to Figures 4 & 5).
c. Locate center of gas line hole, measured 23-
1/4" from the rear wall and 6-5/8" to the left of
center of the floor cut=out (See Figure 6) or
5-1/4" to the left of center of the floor cut-out,
or for entry through right-side of furnace
measured 9" to the right of center of the floor
cut-out.
d. Cut out floor opening and one gas line hole.
CUT DUCT OPENING (FINGERTABBED ONLY)
a. Place duct connector through the floor open-
ing with bottom tabs resting on top of the
supply air duct.
b. Center duct connector and push back against
rear edge of floor opening.
c. Mark cut-out location (tab area) and remove
duct connector.
d. Cut out duct opening 1/16" larger than area
marked.
INSTALL FURNACE MOUNTING PLATE
a. Place mounting plate (supplied within duct
connector) at rear of the floor opening (See
Figure 9).
12
TABS TABS
111--..... I/--.....
1. INSERT DUCT PLENUM CONNECTOR
INTO DUCT CUT-OUT.
2. BEND BOTTOM TABS OVER
AND ONTO THE UNDERNEATH
DUCT SERVICE.
Figure 10. Installation of Duct Connector
Duct Connector t-_
t) Duct _ Narrow Duct
Figure 11. Narrow Duct Installation
STEP 1.
Fold Back Flap "B"
Cut- Out
Area "A" Cut- Out
Area"A"
Top of Duct
Fold Back Flap "B"
STEP2.
Fold Back Flap"B"
Cut "--_
Lines "__lt "B"'B" _ Duct
Fold Back Flap"B"
Bend Duct Connector Tabs Up
and Over- (along length of duct)
/\
Staple Folded Duct
Flap (typ) to side of Duct
Connector -k
Duct7
STEP 4.
Figure 12. Alternate Installation

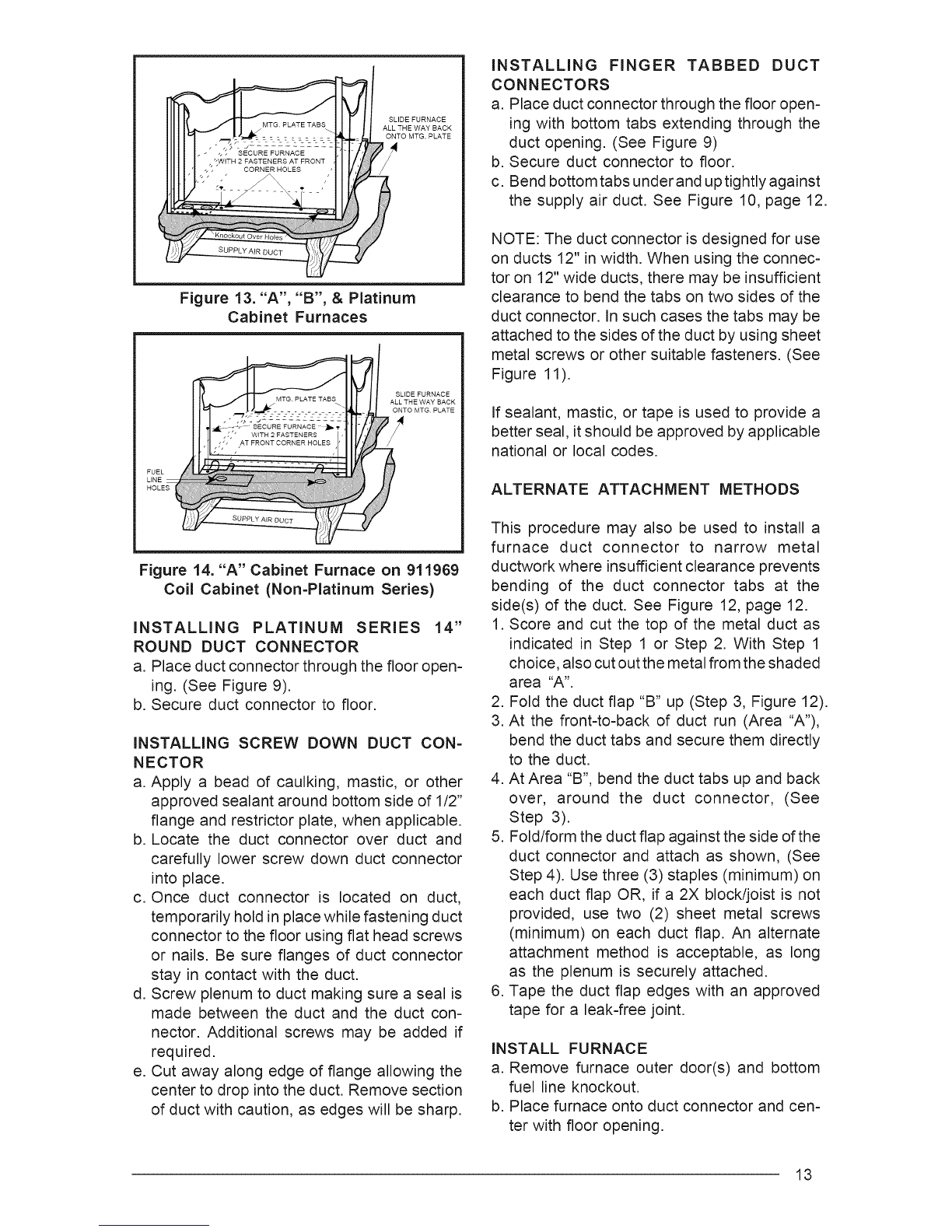

SLIDE FURNACE
ALL THE WAY BACK
ONTO MTG. PLATE
/
Figure 13. "A", "B", & Platinum
Cabinet Furnaces
SLIDE FURNACE
ALL THE WAY BACK
ONTO MTG PLATE
/
Figure 14. "A" Cabinet Furnace on 911969
Coil Cabinet (Non=Platinum Series)
iNSTALLiNG PLATINUM SERIES 14"
ROUND DUCT CONNECTOR
a. Place duct connector through the floor open-
ing. (See Figure 9).
b. Secure duct connector to floor.
iNSTALLiNG SCREW DOWN DUCT CON=
NECTOR
a. Apply a bead of caulking, mastic, or other
approved sealant around bottom side of 1/2"
flange and restrictor plate, when applicable.
b. Locate the duct connector over duct and
carefully lower screw down duct connector
into place.
c. Once duct connector is located on duct,
temporarily hold in place while fastening duct
connector to the floor using flat head screws
or nails. Be sure flanges of duct connector
stay in contact with the duct.
d. Screw plenum to duct making sure a seal is
made between the duct and the duct con-
nector. Additional screws may be added if
required.
e. Cut away along edge of flange allowing the
center to drop intothe duct. Remove section
of duct with caution, as edges will be sharp.
iNSTALLiNG FINGER TABBED DUCT
CONNECTORS
a. Place duct connector through the floor open-
ing with bottom tabs extending through the
duct opening. (See Figure 9)
b. Secure duct connector to floor.
c. Bend bottom tabs under and up tightly against
the supply air duct. See Figure 10, page 12.
NOTE: The duct connector is designed for use
on ducts 12" in width. When using the connec-
tor on 12" wide ducts, there may be insufficient
clearance to bend the tabs on two sides of the
duct connector. In such cases the tabs may be
attached to the sides of the duct by using sheet
metal screws or other suitable fasteners. (See
Figure 11).
If sealant, mastic, or tape is used to provide a
better seal, itshould be approved by applicable
national or local codes.
ALTERNATE ATTACHMENT METHODS
This procedure may also be used to install a
furnace duct connector to narrow metal
ductwork where insufficient clearance prevents
bending of the duct connector tabs at the
side(s) of the duct. See Figure 12, page 12.
1. Score and cut the top of the metal duct as
indicated in Step 1 or Step 2. With Step 1
choice, also cut out the metal from the shaded
area "A".
2. Fold the duct flap "B" up (Step 3, Figure 12).
3. At the front=to-back of duct run (Area "A"),
bend the duct tabs and secure them directly
to the duct.
4. At Area "B", bend the duct tabs up and back
over, around the duct connector, (See
Step 3).
5. Fold/form the duct flap against the side of the
duct connector and attach as shown, (See
Step 4). Use three (3) staples (minimum) on
each duct flap OR, if a 2X block/joist is not
provided, use two (2) sheet metal screws
(minimum) on each duct flap. An alternate
attachment method is acceptable, as long
as the plenum is securely attached.
6. Tape the duct flap edges with an approved
tape for a leak-free joint.
iNSTALL FURNACE
a. Remove furnace outer door(s) and bottom
fuel line knockout.
b. Place furnace onto duct connector and cen-
ter with floor opening.
13

c. Slideontomountingplate.(Bottomrearslots
on furnaceshouldengagewith mounting
platetabs.)
d.Securefrontwith one(1)fastenerat each
corner(SeeFigure13or14).
NOTE:Additionalfastenersmaybe usedat
rear,sidesorthroughdoorframe,asdesired,
to securefurnaceto closetoralcoveframing.
VENTING AND COMBUSTION AIR
REQUIREMENTS
/!X CAUTION:
Snow must not be allowed to restrict or
block the combustion air intake or vent
pipes.
General
NORDYNE condensing furnaces must be
installed with outdoor combustion air piped
directly to the furnace. Codes refer to this
type of installation as direct vent, or two pipe
installation.
Provisions must be made for adequate supply
of air for combustion and ventilation. For
United States installations, the adequacy of air
provisions can be determined by consulting
the current version of the National Fuel Gas
Code (ANSI Z223.1/NPFA=54). For Canadian
installations, requirements are specified in the
National Standard of Canada (CAN/CGA
B149.1 & .2). Consult local codes for special
requirements.
NOTE: If the furnace is operated without
adequate air for combustion and ventilation, it
may not perform properly. Furnace
components may be strained by high
temperature and could fail prematurely.
/ WARNING:
The combustion air piping must not be
blocked or restricted in any manner.
/ WARNING:
Furnace installation using methods other
than those described in the following
sections must comply with the National
Fuel Gas Code and all applicable local
codes to provide sufficient combustion
air for the furnace.
CAUTION:
Do not allow debris to fall into the fur=
nace. This could cause unsafe opera-
tion and voids the furnace warranty.
VENTING REQUIREMENTS
/ WARNING:
FURNACE MUST NOT BE COMMON
VENTED WITH OTHER APPLIANCES.
General
This section specifies installation requirements
for 2-pipe combustion air piping. The capacity
table provided in this section applies to the
maximum equivalent lengths of vent and
combustion air intake pipe.
These condensing furnaces are classified as
"Category IV" appliances, which require special
venting materials and installation procedures.
Category IV appliances operate with positive
vent pressure and therefore require vent
systems which are thoroughly sealed. They
also produce combustion condensate, which
is slightly acidic and can cause severe
corrosion of ordinary venting materials.
Furnace operation can be adversely affected
by restrictive vent and combustion air piping.
Therefore, vent and combustion air piping
lengths must conform completely to the
requirements of Table 6, page 15.
The furnace must be vented to the outdoors.
14

APPLICATION
PVC,CPVC or ABS
SCH. 40 Pipe Size
Model M3RL 060
Model M3RL 080
MAXIMUM
DIRECT VENT, DUAL
PIPE LENGTH (ft.)*
Inlet/Outlet
3" 3"
50 50
50 50
*NOTES
1. Subtract 3.5 ft. for each additional 3" 90 degree elbow.
2. Two45 degree elbows are equivalent to one 90 degree elbow
3. One short radius elbow is equivalent to two long radius
elbows.
4. Do not include termination elbows in calculation of vent length
5. This table is applicable for elevations from sea level to 400C
ft. For higher elevations, decrease vent pipe lengths by 8% pel
1000ft. of altitude.
6. Onlythe above pipe materialsare approved for usewith these
condensing furnaces.
Table 6. Vent Table
[] VENT TERMINAL (_ AiR SUPPLY INLET [] AREA WHERE TERMINAL IS NOT PERMITTED
A = Clearance above grade, veranda, porch,
deck, balcony, or snow accumaulation level
B -- Clearance to window or door that may be
opened
C = Clearance to permanently closed window
D = Vertical clearance to ventilated soffit
located above the terminal within a
horizontal distance of 2 feet (61 cm) from
the center line of the terminal
E= Clearance to unventilated soffit
F = Clearance to outside corner
G = Clearance to inside corner
H = Clearance to each side of center line
extended above meter/regulator assembly
I = Clearance to service regulator vent outlet
J = Clearance to nonmechanical air supply inlet
to building or the combustion air inlet to any
other appliance
Canadian Installations 1
12 inches (30 cm)
6 inches (15 cm) for appliances < 10,000
Btuh (3 kW), 12 inches (30 cm)for
appliances > 10,000 Btuh (3 kW) and <
100,00 Btuh (30 kW), 36 inches (91 cm)for
appliances >100,00 Btuh (30 kW)
3 feet (91 cm) within a height 15 feet
above the meter/regulator assembly
3 feet (1.83 m)
6 inches (15 cm) for appliances < 10,000
Btuh (3 kW), 12 inches (30 cm)for
appliances > 10,000 Btuh (3 kW) and <
100,00 Btuh (30 kW), 36 inches (91 cm)for
appliances >100,00 Btuh (30 kW)
6 feet (1.83 m)
US Installations 2
12 inches (30 cm)
6 inches (15 cm) for appliances < 10,000
Btuh (3 kW), 9 inches (23 cm) for
appliances > 10,000 Btuh (3 kW) and <
50,000 Btuh (15 kW), 12 inches (30 cm) foi
appliances > 50,000 Btuh (15 kW)
K=Clearance to a mechanical air supply inlet
L -- Clearance above paved sidewalk or paved 7 feet (2.13 m) 1" ,
driveway located on public property
M -- Clearance under veranda, porch deck, or 12 inches (30 cm) $ ,
balcony
6 inches (15 cm)for appliances < 10,000
Btuh (3 kW), 9 inches (23 cm) for
appliances > 10,000 Btuh (3 kW) and <
50,000 Btuh (15 kW), 12 inches (30 cm) foi
appliances > 50,000 Btuh (15 kW)
3 feet (91 cm) above if within 10 feet (3 m)
horizontally
In accordance with the current CSA B149.1 Natural Gas and Propane Installation Code
2 In accordance with the current ANSI Z223.1 /NFPA 54 National Fuel Gas Code
1" A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family
dwellings and serves both dwellings.
$ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
For clearances not specified in ANSI Z223.1 /NFPA 54 or CSA B149.1, the following statement shall be included:
"Clearance in accordance with local installation codes, and the requirements of the gas supplier and the
manufacturer's installation instructions."
Figure 15. Vent Termination Clearances for Direct Vent Furnaces
15

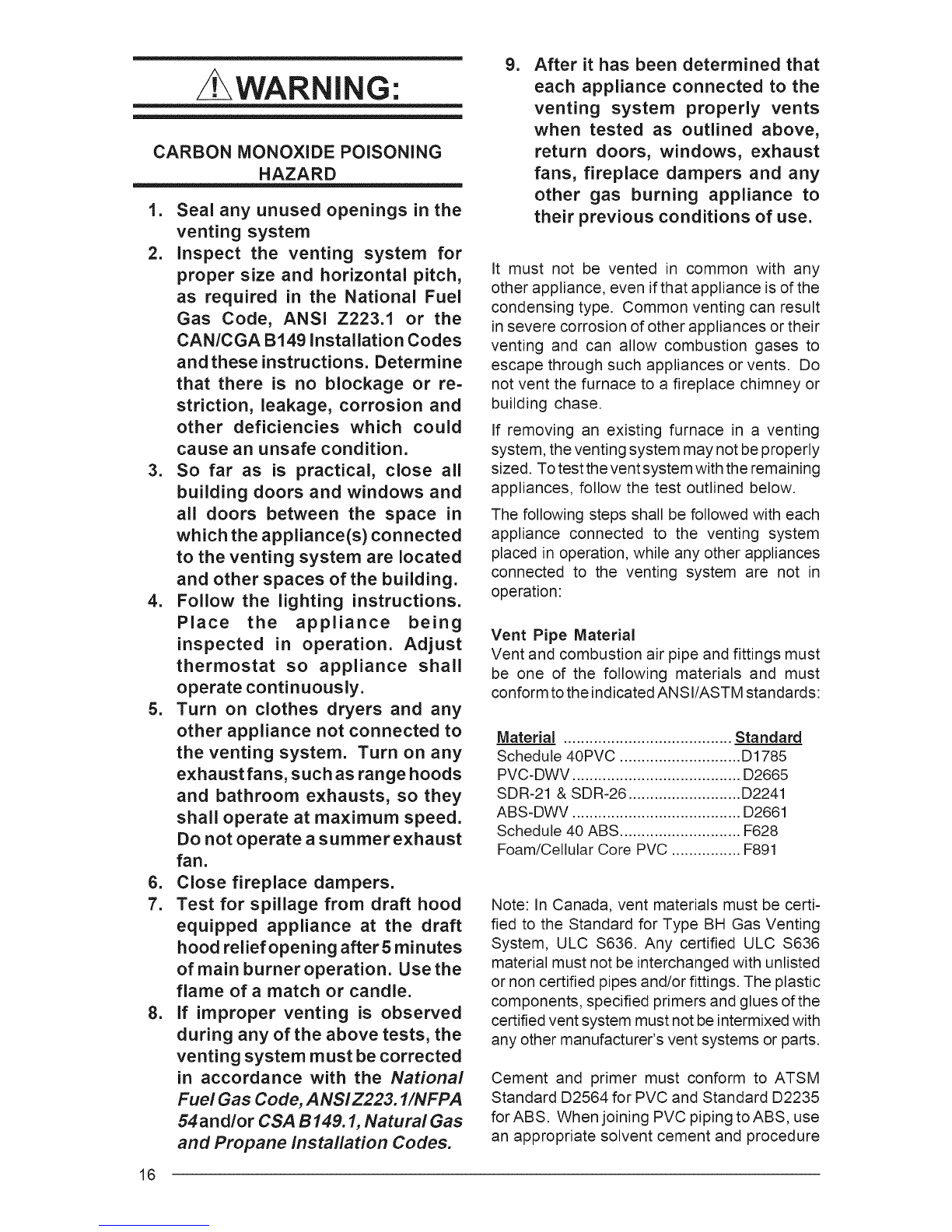

/ WARNING:
CARBON MONOXIDE POISONING
HAZARD
1. Seal any unused openings in the
venting system
2. inspect the venting system for
proper size and horizontal pitch,
as required in the National Fuel
Gas Code, ANSi Z223.1 or the
CAN/CGA B149 Installation Codes
and these instructions. Determine
that there is no blockage or re-
striction, leakage, corrosion and
other deficiencies which could
cause an unsafe condition.
3. So far as is practical, close all
building doors and windows and
all doors between the space in
which the appliance(s) connected
to the venting system are located
and other spaces of the building.
4. Follow the lighting instructions.
Place the appliance being
inspected in operation. Adjust
thermostat so appliance shall
operate continuously.
5. Turn on clothes dryers and any
other appliance not connected to
the venting system. Turn on any
exhaust fans, such as range hoods
and bathroom exhausts, so they
shall operate at maximum speed.
Do not operate a summer exhaust
fan.
6. Close fireplace dampers.
7. Test for spillage from draft hood
equipped appliance at the draft
hood relief opening after 5minutes
of main burner operation. Use the
flame of a match or candle.
8. If improper venting is observed
during any of the above tests, the
venting system must be corrected
in accordance with the National
Fuel Gas Code, ANSI Z223.1/NFPA
54and/or CSA B149.1, Natural Gas
and Propane Installation Codes.
16
.After it has been determined that
each appliance connected to the
venting system properly vents
when tested as outlined above,
return doors, windows, exhaust
fans, fireplace dampers and any
other gas burning appliance to
their previous conditions of use.
It must not be vented in common with any
other appliance, even if that appliance is of the
condensing type. Common venting can result
in severe corrosion of other appliances or their
venting and can allow combustion gases to
escape through such appliances or vents. Do
not vent the furnace to a fireplace chimney or
building chase.
If removing an existing furnace in a venting
system, the venting system may not be properly
sized. To test the vent system with the remaining
appliances, follow the test outlined below.
The following steps shall be followed with each
appliance connected to the venting system
placed in operation, while any other appliances
connected to the venting system are not in
operation:
Vent Pipe Material
Vent and combustion air pipe and fittings must
be one of the following materials and must
conform to the indicated ANSI/ASTM standards:
Material ....................................... Standard
Schedule 40PVC ............................ D1785
PVC-DWV ....................................... D2665
SDR-21 & SDR-26 .......................... D2241
ABS-DWV ....................................... D2661
Schedule 40 ABS ............................ F628
Foam/Cellular Core PVC ................ F891
Note: In Canada, vent materials must be certi-
fied to the Standard for Type BH Gas Venting
System, ULC $636. Any certified ULC $636
material must not be interchanged with unlisted
or non certified pipes and/or fittings. The plastic
components, specified primers and glues of the
certified vent system must not be intermixed with
any other manufacturer's vent systems or parts.
Cement and primer must conform to ATSM
Standard D2564 for PVC and Standard D2235
forABS. When joining PVC piping toABS, use
an appropriate solvent cement and procedure

Downflow Furnace Vent
Combust on _ _ p ,
Air intake Pipe _... I "" .i I
Seal/Caulk See Vent Table 4 _ _,-_ ._.
Around Pipe -- !_ "1_ i(1_
at Building \\ ', Straps or Other Suitable / _ I
\\ I Supports at Minimum of I
\"\ _ 5 ft" Inltervals I_ _
\
90 ° E bow \ '<, _ Coupling // /_\\ \, Top View
\ _ _ i' r-i i-i ii r-i
........ j
_2_,_ [_J,l_ _ 4, Wal Upward Pitch = 1/4" Per F°°t A
MIn i _ Wail Outlet Exhaust Vent
First Support Should be as Close to
Furnace Connection as Possible
Combustion Air
intake Pipe Furnace
Normal Snow Level
_!3 9/t 6",_ 1 7/8"
Offset with
Vent for Adequate
Dimensional Clearance
Exhaust
Vent
PVC or
ABS pipe
3"x 2"
Reducer
Figure 16. Horizontal Venting
Combustion Air !_
Intake Pipe
®
Support System
on Vertical Rise
Below Joints
...Vent
First support should be as
close to furnace as possible
" Combustion Air intake Pipe
-ooVent
Upward Pitch
1/4" per foot
J-..
Figure 17. Vertical Venting
per the piping manufacturer's recommendation
and ASTM Standard D3138.
Vent Pipe Installation
Pipe Routing and Support
Route piping as directly as possible between
the furnace and the outdoors and remember
that routing affects pipe length limitations per
Table 6. Locate the combustion air intake and
the vent exhaust in the same atmospheric
pressure zone -i.e. both must exit the building
though the same portion of exterior wall or roof.
Vent piping must be sloped upwards not less
than 1/4" per foot in the direction from the
furnace to the terminal. This is to ensure that
any condensate flows back to the furnace
where it can be disposed of through the
condensate disposal system.
CAUTION:
Combustion air must not be drawn from
occupied spaces and a corrosive
atmosphere,
The quality of outdoor air must also be
considered. Be sure that the combustion air
intake is not located near a source of solvent
17

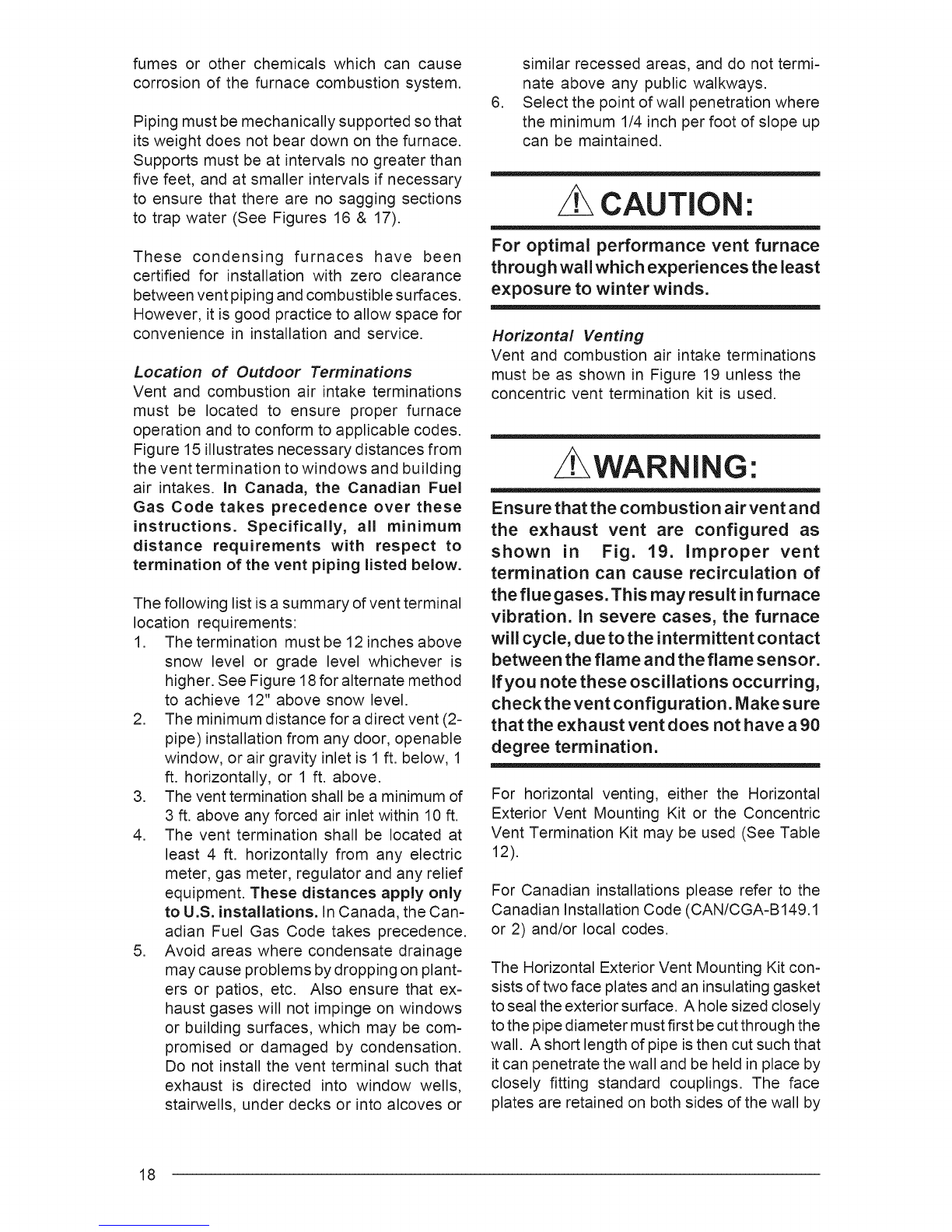

fumesor otherchemicalswhichcan cause
corrosionof thefurnacecombustionsystem.
Pipingmustbemechanicallysupportedsothat
itsweightdoesnotbeardownonthefurnace.
Supportsmustbeatintervalsnogreaterthan
fivefeet,andatsmallerintervalsif necessary
to ensurethattherearenosaggingsections
to trapwater(SeeFigures16& 17).
These condensing furnaces have been
certifiedfor installationwith zero clearance
betweenventpipingandcombustiblesurfaces.
However,itisgoodpracticetoallowspacefor
conveniencein installationandservice.
Location of Outdoor Terminations
Vent and combustion air intake terminations
must be located to ensure proper furnace
operation and to conform to applicable codes.
Figure 15 illustrates necessary distances from
the vent termination to windows and building
air intakes. In Canada, the Canadian Fuel
Gas Code takes precedence over these
instructions. Specifically, all minimum
distance requirements with respect to
termination of the vent piping listed below.
The following list is a summary of vent terminal
location requirements:
1. The termination must be 12 inches above
snow level or grade level whichever is
higher. See Figure 18 for alternate method
to achieve 12" above snow level.
2. The minimum distance for a direct vent (2=
pipe) installation from any door, openable
window, or air gravity inlet is 1 ft. below, 1
ft. horizontally, or 1 ft. above.
3. The vent termination shall be a minimum of
3 ft. above any forced air inlet within 10 ft.
4. The vent termination shall be located at
least 4 ft. horizontally from any electric
meter, gas meter, regulator and any relief
equipment. These distances apply only
to U.S. installations. In Canada, the Can-
adian Fuel Gas Code takes precedence.
5. Avoid areas where condensate drainage
may cause problems by dropping on plant-
ers or patios, etc. Also ensure that ex-
haust gases will not impinge on windows
or building surfaces, which may be com-
promised or damaged by condensation.
Do not install the vent terminal such that
exhaust is directed into window wells,
stairwells, under decks or into alcoves or
.
similar recessed areas, and do not termi-
nate above any public walkways.
Select the point of wall penetration where
the minimum 1/4 inch per foot of slope up
can be maintained.
CAUTION:
For optimal performance vent furnace
through wall which experiences the least
exposure to winter winds.
Horizontal Venting
Vent and combustion air intake terminations
must be as shown in Figure 19 unless the
concentric vent termination kit is used.
z WARNING:
Ensure that the combustion air vent and
the exhaust vent are configured as
shown in Fig. 19. improper vent
termination can cause recirculation of
the flue gases. This may result in furnace
vibration, in severe cases, the furnace
will cycle, due to the intermittent contact
between the flame and the flame sensor.
If you note these oscillations occurring,
check the vent configuration. Make sure
that the exhaust vent does not have a 90
degree termination.
For horizontal venting, either the Horizontal
Exterior Vent Mounting Kit or the Concentric
Vent Termination Kit may be used (See Table
12).
For Canadian installations please refer to the
Canadian Installation Code (CAN/CGA-B 149.1
or 2) and/or local codes.
The Horizontal Exterior Vent Mounting Kit con-
sists of two face plates and an insulating gasket
to seal the exterior surface. A hole sized closely
to the pipe diameter must first be cut through the
wall. A short length of pipe is then cut such that
it can penetrate the wall and be held in place by
closely fitting standard couplings. The face
plates are retained on both sides of the wall by
18

VentConfigurationto
Provide12"Minimum
heightabove _
Snow Level. 12" Min.
19" Max.
Support
Outside _ " __
Wail ''_
1,,2"
:__ insulation ol
__ _ Equivalent
red),
12"Above
Normally
Expected
Snow
Level
Figure 18. Alternate Horizontal
Vent Installation
Exhaust Vent
Option B
Mounting
FacepIate Secured
Combustion
Air Inlet
Exhaust Vent
Option C
Exhaust Vent
ion A
Grade
Level
jJ 12" Min, to
_fJ Normal Snow Level,o,o,
Figure 19. Exhaust and Combustion Air
Pipe Clearances
the couplings, and the gasket is retained against
the wall by the outer face plate. Face plates
must be fastened to the wall and the outside one
must be flashed as appropriate to prevent entry
of water.
When the above kits are not used the following
steps are required:
1. Check the hole size cut through the exte-
rior wall. Insure that the hole diameter is
less than the diameter of the couplings to
be used.
2. Extend the vent pipe through the wall
approximately 1" and seal the area be-
tween the wall and pipe.
3. Apply couplings to the vent pipe on the
interior and exterior sides of the wall to
insure the pipe can not be pushed or pulled
through the wall.
4. Insure the combustion air inlet pipe has a 90
degree termination elbow, and is pointing
downward as shown in Figures 19 & 20.
Note that a combustion air intake must be
provided with an elbow opening downward.
When the vent pipe must exit an exterior wall
close to the grade or expected snow level, a
riser should be provided as shown in Figure 18.
Insulation is required to prevent freezing of this
section of pipe.
Vertical Venting
For vertical venting, either the configuration
shown in Figure 20 or the Concentric Vent
Termination Kit may be used. Vertical venting is
one of the shortest routing methods when
A= 12" Above Roof or 5-Min.
36" Max.
Snow Accumulation Level
Elbow
.... Exhaust
Plumbing Vent
Roof Boot
(Typ. Both Pipes)
Note: If terminations meet=
ing these vertical require-
ments exceed the maximum
height for safe transit, the
vent and combustion air in-
takes may be shipped with
the home for assembly on
site. The furnace must be
labeled to notify the installer/
user not to use the furnace
until the vent and combus-
tion air intake terminations
are installed.
Figure 20. Vertical Vent Termination 19

.._.__.__...__-_ Collector Box
Clamp _iiill I
Step 1 :
Step 2: Burner Box
Step 3:
j _ Keep
Floor _ _-'Y"
AIt. Drain AIt. Drain
Figure 21. Furnace with Condensate Drain Trap Assembly
piping vents for furnaces. The M3 furnace
operates trouble=free when the furnace is in-
stalled with a shorter vent.
• The inlet for the combustion intake pipe must
be extended at least one foot above the roofline
or snow accumulation level.
• The outlet of the vent must be extended at least
10 inches above the inlet of the combustion air
intake pipe.
• The vent as well as the combustion air intake
pipe should be located on the same side of the
roof. Both pipes must not be closer than 5
inches apart. They should not be separated
more than 36 inches.
The roof penetration must be properly flashed
and waterproofed with a plumbing roof boot or
equivalent flashing. Termination spacing re-
quirements from the roof and from each other
must be per Figure 20.
Concentric Vent Termination
A concentric vent termination is approved for
use with these furnaces (See Table 12). For
proper installation of the concentric vent termi-
nation, follow the installation instructions pro-
vided with the kit.
NOTE: The condensate drain should be pro-
tected from freezing when in unheated spaces.
The furnace is supplied with an internal con-
densate drain trap.
CAUTION:
Do not install additional traps in the
condensate drain,
The condensate drain may exit through the left
side panel, the right side panel, or through the
left or right hole on the bottom panel. (See Figure
21). Ensure that the flexible drain hose is not
kinked.
The condensate should drain from the plastic
collector box (location "A", Figure 21) as drop=
lets or a small stream. If you notice the furnace
has operated for more than 5 minutes without
draining or the red status light on the control
board is pulsing a 2-blink code follow the steps
below.
DRAINAGE OF CONDENSATE
FROM FURNACE
/t WARNING:
The condensate produced by the furnace
must be drained, Do not connect awater
supply to the drainage hose of the
furnace,
1. Remove the collector box soft tube at
location "A", Figure 21 and verify the exit
from the collector box is clear of any
debris or obstructions.
2. Replace this tube and verify the fit to the
header spout isair tight. Air will be drawn into
the header if this connection is not tight.
3. Check other tube connections along the
drain system. Verify that all are air tight.
NOTE: Industry research studies indicate that
when condensate is routed to an active drain,
2O
