Odes Industry UTV170-10 User manual

UTV170-10
Maintenance Manual
Shandong Odes Industry Co.,Ltd
Any copy or without written permission
or authorization of Odes Industry is prohibited to use
the manual (version 1, May 2020).
All rights reserved

Foreword
This manual contains such content as introductions on
overhaul, maintenance, overhauling program,
dismantling, assembling, troubleshooting and service
data of UTV170-10
This manual will help you know the vehicle beter so
that you can assure your customers of fast and reliable
service.
This manual hass been prepareed on the basis of the
latest specifications at the time of publication.If
modifications have been made sine then,differences
may exist between the content of this manual and the
actual vehicle.
Illustrations in this manual are used to show the basic
principles of operation and work procedures.They
may not represent the actual vehicle exactly in detail.
Manufacturer reserves the right of no prior notice on
product improvement or modification. Repair and
maintenance shall be carried out according to actual
situation of vehicle.
WARNING
GROUP INDEX
GENERAL INFORMATION
1
PERIODIC MAINTENANCE
2
ENGINE
3
COOLING SYSTEM
4
FUEL SYSTEM
5
DRIVE TRAIN
6
STEERING SYSTEM
7
SUSPENSION SYSTEM
8
BRAKES SYSTEM
9
CHASSIS
10
ELECTRICAL SYSTEM
11
TROUBLESHOOTING
12
Inexperienced mechanics or mechanics without
the proper tools and equipment may not be able
to properly perform the services described in
this manual.
Improper repair may result in injury to the
mechanic and may render the vehicle unsafe for
the rider.

1.GENERAL INFORMATION
1-1
1. GENERAL INFORMATION
PRECAUTIONS ······································ 1-1
TECHNICAL SPECIFICATIONS·················· 1-3
TIGHTENING TORQUE···························· 1-6
PRECAUTIONS
1. Do not make engine under operation at a closed place or place with poor ventilation for a long time.
2. If engine stops operation, please do not touch it or silencer to avoid burning.
3. Due to high corrosiveness, battery fluid (dilute sulphuric acid)) may cause burns to skin and eyes. In case of
splashing it to skin, please clean it with water and see the doctor immediately. In case of splashing it to
clothes, please wash it with water immediately. Keep battery fluid far away from Children.
4. Cooling liquid is toxic. Do not drink it or splash it to skin, eyes and clothes. once splashing it to skin, please
wash it with a lot of soapy water. In case of splashing it to eyes, please wash eyes immediately and see the
doctor. In case of drinking cooling liquid, resulting in vomit, please see the doctor. Keep cooling liquid far
away from children.
5. Wear proper working suit, boots and hat. If necessary, please wear long-sleeve working suit and gloves for
operation.
6. Gasoline is highly inflammable. No smoking or firing. At the same time, fire sparks shall be avoided.
Vaporized gasoline is explosive as well. Operation shall be carried out at places with good ventilation.
7. Battery may produce explosive hydrogen in charging. Please ensure charging at places with good
ventilation.
8. Use legal parts, lubricating oil and lubricating grease.
9. Before overhauling, please clean soil and dust.
10. Keep accessories of each part well for correct assembly.
11. Replace dismantled gasket, O-shaped ring, piston pin retainer and cotter pin.
12. Retainer of rubber ring may be deformed after dismantling. So, please do not use loose and soft retainer.
13. Please wash and dry dismantled parts. Use lubricant on the surface of moving parts. For correct installation,
please measure data well in dismantling process.
14. If do not know length of screw, please install screws one by one to ensure their corresponding depth.
15. Pre-tighten bolts and nuts and then tighten them with designated torque from the big to the small and from
the inside to the outside.
16. Check whether rubber parts are aged. If necessary, replace them. Keep rubber parts far away from grease.
17. If necessary, special tools can be used.
18. Rotate inside and outside races of bearing to ensure flexibility of balls.
a) If axial or radial resistance is too large, please replace it. If there is concave-convex on the surface,
please use oil for washing. If no effect is achieved with washing, please replace it.

1.GENERAL INFORMATION
1-2
b) If bearing cannot be clamped tightly in pressing into machine or axle, please replace bearing.
19. Please install a side dust proof bearing at correct direction. In installation of open or double-face dust proof
bearing, pay attention to that marks of manufacturer shall be outward.
20. In cleaning and drying bearing, please keep bearing support still. Before installation, please carry out
lubrication with oil or lubricating oil.
21. Please correct install elastic retaining ring. Assembling after opening can ensure installation of snap ring into
slot.
22. After assembly, please check whether all parts are of perfect tightening and flexible movement.
23. Brake fluid and coolant may damage shell and plastic and rubber parts. In case of being splashed by them,
please use water for washing.
24. In installing pipeline, please insert them to bottom of connecting pipeline. In installing pipe clamp, please
install them to groove if there is.As for pipeline or pipe clamp that cannot be tightened, please replace them.
25. Do not mix soil or dust into engine and/or hydraulic braking system.
26. Before installation, please clean gasket and spacer of engine shell. Use oil stone to polish scratch of joint
face evenly.
27. Do not twist or bend too much cable. Twisted or damaged cables may cause inflexible operation.
28. In assembling protective caps of parts, insert cap into groove if any.

1.GENERAL INFORMATION
1-3
TECHNICAL SPECIFICATIONS
Item
Parameter
Dimensions
Overall length
2895mm
Overall width
1290mm
Overall height
1870mm
Seat height
780mm
Wheelbase
1840mm
Ground clearance
181mm
Engine
Type
Single cylinder, 4 stroke, forced air cooling
Number of valves
1(mechanical adjustment)
Cylinder diameter
61 mm
Piston stroke
57.8 mm
Compression ratio
9.5：1
Displacement
170cc
Maximum power
7.2Kw/7500rpm
Maximum torque
11.4N.m/4000 rpm
Idle speed
1500±100rpm
Lubrication
Type
Pressure spray
Oil pressure
0.08-0.26MPa at 3000rpm
Type of oil
SAE 15W-40
Oil quantity
1000mL
Replacement of
capacity
830-860mL
Fuel
Type
Unleaded gasoline only 93# or higher
Fuel pressure
250 kpa
Fuel tank capacity
23L
Valve clearance
Intake
0.06 to 0.08mm
Exhaust
0.06 to 0.08mm
Diameter of valve rod(IN)
New
4.975 to 4.99mm
Service limit
4.95mm
Diameter of valve rod(EX)
New
4.955 to 4.97mm
Service limit
4.93mm
Valve seat contact width(IN)
New
2.15 to 2.45mm
Service limit
2.5mm
Valve seat contact width(EX)
New
2.25 to 2.55mm
Service limit
2.6mm
Valve guide diameter
New
5.000 to 5.012mm
Service limit
5.040mm
Free length of valve spring
New
32mm
Service limit
30.5mm
Piston measurement
Size “A”
φ60.96mm—φ60.97mm

1.GENERAL INFORMATION
1-4
Size “B”
N.A
Cylinder measurement
Size “A”
φ61mm—φ61.01mm
Size “B”
N.A
Clearance of cylinder - piston
New
0.03mm—0.05mm
Service limit
0.090mm
Piston ring type
1st
1
2nd
1
3rd
2
Piston ring end gap
New 1st
0.10mm—0.25mm
New 2nd
0.20mm—0.35mm
New 3rd
0.15mm—0.6mm
All service limit
1st 0.4 mm；2nd0.6 mm；3rd0.8 mm
Piston/ring groove clearance
New 1st
0.03-0.07 mm
New 2nd
0.02-0.06 mm
New 3rd
0.02-0.06 mm
All service limit
1st0.15 ；2nd0.13；3rd0.2
Intake cam height
New
5.53mm—5.56mm
Service limit
5.51
Exhaust take cam height
New
5.42mm—5.48mm
Service limit
5.4
Crankshaft radial clearance
Service limit
0.06mm
Crankshaft deflection
Service limit
0.15mm
Crankshaft pin diameter
New
30 to 29.994mm
Service limit
29.98mm
Connecting rod big end diameter
Service limit
37.026mm
Connecting rod big end radial
clearance
Service limit
0.04mm
Connecting rod big end axial
clearance
New
0.1 to 0.3mm
Service limit
0.55mm
Connecting rod small end
diameter
New
15.016 to 16.027mm
Service limit
15.04mm
Piston pin diameter
New
15 to 14.992mm
Service limit
14.985mm
Spark plug
Type/manufacturer
NGK C7HSA
Gap
0.6 to 0.7mm
Transmission type
CVT(Continuously Variable Transmission)
Drive belt width
Service limit
16.5mm
Gearbox type
Mechanical two - stage gear reduction
Gearbox oil
Capacity
700mL(GL-4-90)
Gear ratio
H
6.51
R
24.241
Magneto generator output
180W@5000rpm
Tire
Type
Tubeless

1.GENERAL INFORMATION
1-5
Pressure
82 to 97KPa
Size Front
AT 24×8-12 (Rim 12×6)
Size Rear
AT 24×8-12 (Rim 12×6)
Brakes
System
Front and rear unified
Type Front
Pincer disc brake
Type Rear
Pincer disc brake
New disk thickness
3.7mm(Front) 4mm(Rear)
Minimum disk thickness
3.2mm(Front) 3.5mm(Rear)
Maximum disk warpage
0.3mm
Operation
Foot operation
Suspension and shock absorber
Front suspension
Double A swing arm
Rear suspension
towed
Front shock absorber
Coil spring / oil damper
Front shock absorber travel
80mm
Rear shock absorber
Coil spring / oil damper
Rear shock absorber travel
60mm
Electrical
Ignition system
EFI-DELPHI
Battery
Type
Maintenance Free
Voltage
12V
capacity
9AH
Fuses
Electric spray and
indicator light
20A
The light
20A
The ignition power
supply
10A
Voltage regulator
20A
Standby power
20A
Head lamp
12V
Tail light
12V
Indicator light
12V
Turn light
12V

1.GENERAL INFORMATION
1-6
TIGHTENINGTORQUE
Locking devices ( e.g.: locking tabs, elastic stop nuts ,self-locking fasteners ,etc.) must be installed or replaced
with new ones, where specified. If the efficiency of a locking device is impaired, it must be renewed.
In order to avoid a poor assembling, tighten screws, bolts or nuts in accordance with the following
recommended torque value:
Grade
Torque (N·m)
M6
M8
M10
M12
M14
M16
4.6
4～5
10～12
20～25
36～45
55～70
90～110
5.6
5～7
12～15
25～32
45～55
70～90
110～140
6.8
7～9
17～23
33～45
58～78
93～124
145～193
8.8
9～12
22～30
45～59
78～104
124～165
193～257
10.9
13～16
30～36
65～78
110～130
180～201
280～330
12.9
16～21
38～51
75～100
131～175
209～278
326～434
Grade
Torque (lbf.ft)
M6
M8
M10
M12
M14
M16
4.6
3～3.7
7.4～8.6
14.8～18.5
26.6～33.2
40.6～51.7
66.4～81.2
5.6
3.7～5.2
8.9～11.1
18.5～23.6
33.2～40.6
51.7～66.4
81.2～103.3
6.8
5.2～6.6
12.5～17
24.4～33.2
42.8～57.6
68.6～91.5
107～142.4
8.8
6.6～8.6
16.2～22.1
33.2～43.5
57.6～76.8
91.5～121.8
142.4～189.7
10.9
9.6～11.8
22.1～26.6
48～57.6
81.2～95.9
132.8～148.3
206.6～243.5
12.9
11.8～15.5
28～37.6
55.4～73.8
96.7～129.2
154.2～205.2
240.6～320.3
CAUTION
Bolt length comparison table
Length(mm)
12
14
16
20
25
30
35
40
Length(in)
0.47
0.55
0.63
0.79
0.98
1.18
1.38
1.57
Length(mm)
45
50
55
60
65
70
75
80
Length(in)
1.77
1.97
2.17
2.36
2.56
2.76
2.95
3.15
Length(mm)
85
90
95
100
105
110
115
120
Length(in)
3.35
3.54
3.74
3.94
4.13
4.33
4.53
4.72
Length(mm)
125
130
135
140
145
150
155
160
Length(in)
4.92
5.12
5.31
5.51
5.71
5.91
6.1
6.3
Length(mm)
165
170
175
180
185
190
195
200
Length(in)
6.5
6.69
6.89
7.09
7.28
7.48
7.68
7.8
Be sure to use the proper tightening torque for the proper strength grade. Always torque screws, bolts and / or
nuts in a criss-cross sequence.

1.GENERAL INFORMATION
1-7
As for important tightening torques , please refer to following standards.
Installation location
Specifications (mm)
Torque N.m(lbf.ft)
Fastening bolt of engine
M10
70(51.6)
Fastening nut of suspension arm
M10
70(51.6)
Bolt of rear shock absorber
M10
80(59)
Bolt of front shock absorber
M10
80(59)
Fastening nut of wheel rim
M10
80(59)
Nut of wheel hub
M18
250(184.5)
Bolt of rear brake/stop pump (calipers)
M10
80(59)
Rear Brake / Brake disc bolts
M8
26(19.2）
Bolt of front brake/stop pump (calipers)
M8
26(19.2)
Front Brake / Brake disc bolts
M6
15(11)
Lock nut of steering rod
M8
40(29.5)
Bolt of exhaust pipe
M6
15(11)
Sparkplug
M10
20(14.8)
Adjusting nut of valve clearance
M6
12(8.9)
Main pulley bolt
M12
100(73.8)
Driven pulley bolt
M10
60(44.3）
Magneto flywheel bolt
M16
150(110.7)
Magneto stator bolt
M6
12.5(9.2)
One way bolt
M8
30(22.1)
Engine oil drain plug
M10
20(14.8)
Gearbox oil drain plug
M12
20(14.8)
Decompression valve plug
M22
20(14.8)
Cylinder head bolt
M6
15(11）
Connecting rod bolt
M8
50(36.9)
Timing chainwheel bolt
M8
30(22.1)

2.PERIODIC MAINTENANCE
2-1
2. PERIODIC MAINTENANCE
MAINTENANCE SCHEDULE ······················ 2-1
AIR CLEANER ········································· 2-3
THROTTLE CABLE PLAY··························· 2-5
ENGINE OIL ············································ 2-5
STEERING SYSTEM·································· 2-7
BRAKING SYSTEM··································· 2-8
GEAR SHIFT············································ 2-9
WHEELS ·················································2-10
SUSPENSION SYSTEM ···························· 2-11
CHAIN MAINTENANCE··························· 2-11
MAINTENANCE SCHEDULE
In order to maintain the best performance and economical performance of vehicles, suggestions on intervals for
necessary regular maintenance are listed. Following maintenance is calculated in km, mile and hour based on
firstly appeared data.
However, keep in mind that if the vehicle isn’t used for a long period of time, the month maintenance intervals
should be followed.
Items marked with an asterisk should be performed by a dealer as they require special tools and technical skills.
In case of complicated road conditions, regular maintenance shall be carried for vehicles.
ITEM
ROUTINE
Whichever
Comes first
INTIAL
EVERY
month
1
3
6
6
12
Km
(mi)
320
(200)
1,200
(750)
2,400
(1,500)
2,400
(1,500)
4,800
(3,000)
hours
20
75
150
150
300
Valves*
● Check vale clearance.
● Adjust if necessary.
O
O
O
O
Cooling system
● Check coolant leakage.
● Repair if necessary.
● Replace coolant every 24 months.
O
O
O
O
O
Spark plug
● Check condition.
● Adjust gap and clean.
● Replacement every 24 months
O
O
O
O
O
Air filter elements
● Clean.
● Replacement every 24 months
Every 20-40 hours
(More often in wet or dusty areas.)
Crankcase breather
system*
● Check breather hose for cracks or damage.
● Replace if necessary.
O
O
O
Exhaust system*
● Check for leakage.
● Tighten if necessary.
● Replace gasket(s) if necessary.
O
O
O
Fuel line*
● Check fuel hose for cracks or damage..
●Replacement fuel hose every 48 months
●Replacement fuel filter every 24 months
O
O
O
Engine oil
● Replace (Check oil level every month) .
O
O
O
O
Engine oil filter
● Replace.
O
O
O
Differential and
gearbox oil
● Check oil level/oil leakage.
●Replacement every 24 months.
O
O
ITEM
ROUTINE
Whichever
Comes first
INTIAL
EVERY
month
1
3
6
6
12
Km
(mi)
320
(200)
1,200
(750)
2,400
(1,500)
2,400
(1,500)
4,800
(3,000)
hours
20
75
150
150
300
Brake*
●Check operation/brake pad wear/fluid
O
O
O
O
O

2.PERIODIC MAINTENANCE
2-2
leakage.
●Brake fluid needs to be above the lowest
position.
●Correct if necessary. Replace pads/disk if
worn to the limit.
Accelerator pedal*
●Check operation and free play.
O
O
O
O
O
Wheels*
●Check balance/damage/ run out
●Repair if necessary.
O
O
O
O
Wheel bearings*
●Check bearing assemblies for looseness or
damage..
●Replace if damaged.
O
O
O
O
Front and rear
Suspension*
●Check operation and for leakage.
●Correct if necessary.
O
O
Steering system*
●Check operation and for looseness/Replace
if damage.
●Check toe-in/Adjust if necessary.
O
O
O
O
O
Rear knuckle pivots
andsuspensionarms*
●Lubricate with lithium-soap-based grease.
O
O
O
Drive shaft
universal joint*
●Lubricate with lithium-soap-based grease.
O
O
O
Engine mount*
●Check for cracks or damage.
●Correct bolt tightness.
O
O
O
Front and rear axle
boots*
●Check operation.
●Replace if damage.
O
O
Stabilizer bushings*
●Check for cracks or damage.
O
O
O
Fittings and
fasteners*
●Check all chassis fittings and fasteners.
●Correct if necessary.
O
O
O
O
O
Battery
●End connection
O
O
O
O
Lamp and steering
indication
●Operation
O
O
O
O
O

2.PERIODIC MAINTENANCE
2-3
AIR CLEANER
In case of driving in dusty environment, air filter shall be cleaned regularly. It is of great possibility to
accelerate wear to engine if there is not filtering element or worn filtering element is used. So, please keep air
filter under good conditions all the time. If vehicle is used in dusty area, inspect more frequently than specified in
MAINTENANCE SCHEDULE.
If the air cleaner is clogged with dust,intake resistance will be increased,with a resultant decrease in power
output and an increase in fuel consumption. never remove or modify any component in the air filter housing. The
engine management system is calibrated to operate specifically with these components. Otherwise, engine
performance degradation or damage can occur.Check and clean the air cleaner element in the following manner:

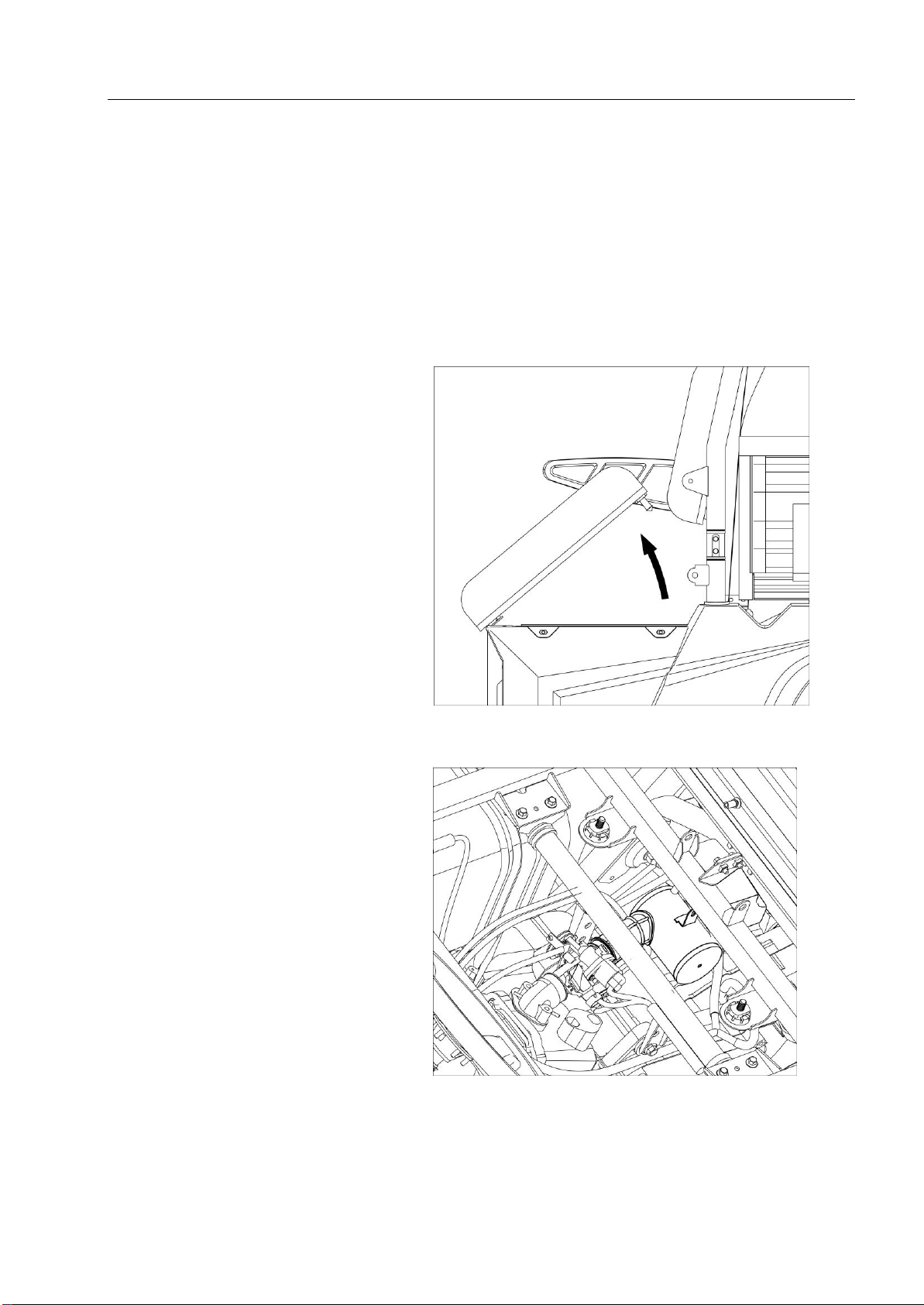

Open the tiltable seat
Remove the nuts at both ends
of the empty filter

2.PERIODIC MAINTENANCE
2-4

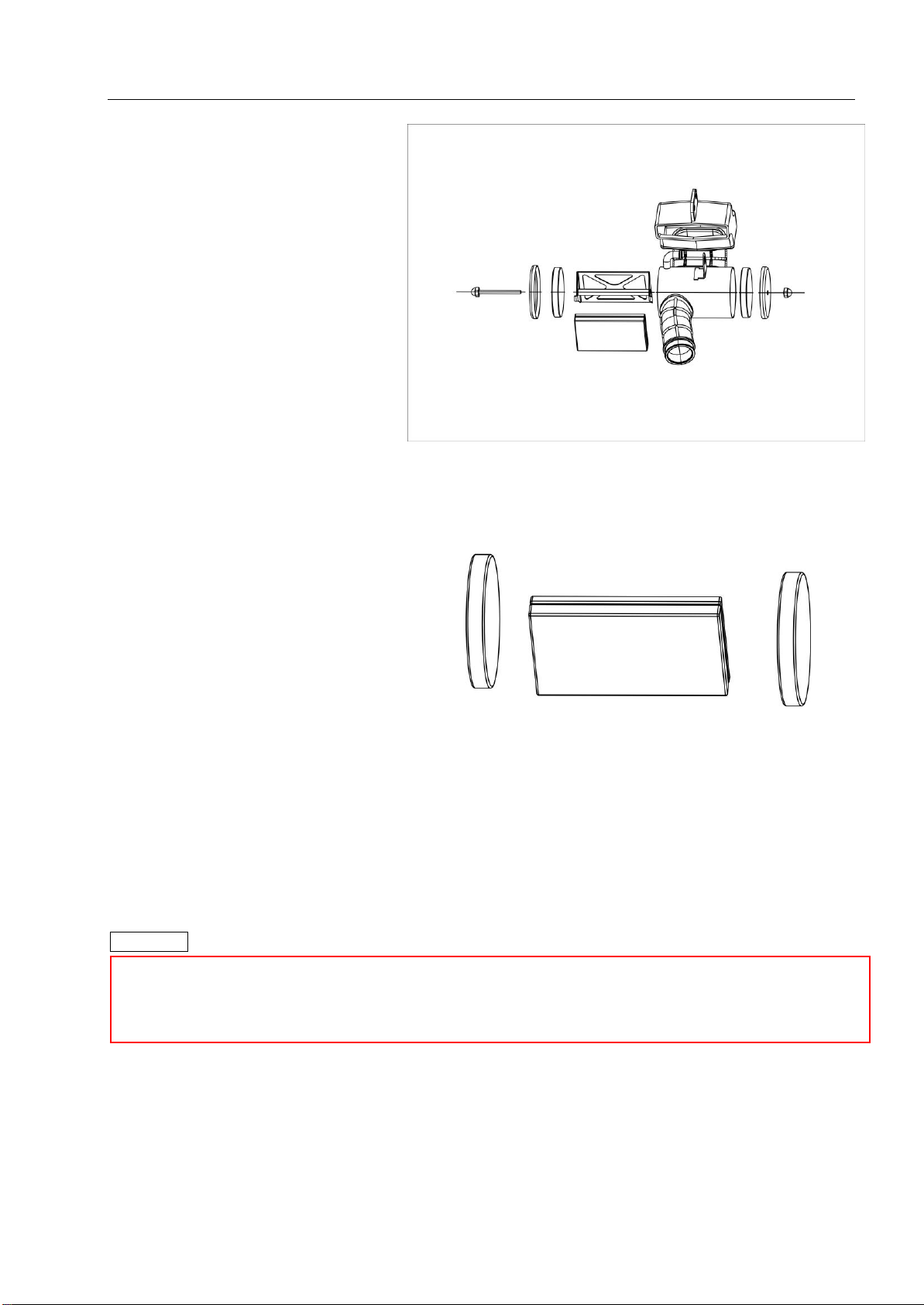

Remove bolt and filter element
Blow low pressure compressed air on filter
element to clean it.
Properly reinstall removed parts in the reverse order of their removal. pay attention to the seal gasket of air filter
housing is not skew.
CAUTION
1.If liquid /deposits are found, squeeze and dry the foam filter. Replace filter element if damaged.
2.Do not start engine if liquid or deposit are found. If there is oil in the air filter housing, check engine oil level.
Oil level may be too high.
3.Inspect the air cleaner element for tears, a torn element must be replaced.

2.PERIODIC MAINTENANCE
2-5
THROTTLE CABLE PLAY
Before starting the engine, check the gas pedal to be sure it is operating correctly. Make sure the gas pedal fully
returns to the idleposition as soon as it is released.
Check the free play and adjust if needed. Press the throttle to make sure it moves smoothly without sticking and
snaps back automatically when it is released Check to see that the gas pedal operates correctly. It must operate
smoothly and fully spring back to the idle position when released. Have a dealer repair if necessary for proper
operation.
Check throttle pedal free play: 3 - 5mm
In case of out of range: → adjustment
Loose throttle cable (bracing cable).Turn adjuster to
adjust free play of throttle pedal.
After adjustment, tighten nut.
If free play after adjustment cannot reach designated
requirement or there is viscosity for throttle valve,
replace it with new throttle cable.
ENGINE OIL
Oil level verification
Strictly follow this procedure, otherwise wrong oil
level may be indicated.
1. Ensure vehicle is on a level surface.
2. Start engine and let idle for a few minutes.
3. Stop engine. Wait a few minutes to allow oil to flow
down to crankcase then check oil level.
4. Remove dipstick and wipe clean stem.
5. Fully screw in dipstick to check oil level.
6. Remove dipstick and read oil level. Oil level must be
between minimum(2) and maximum(1) marks on
dipstick.
7. There is a capacity of 300 ml between the two marks.
Refill oil as necessary. Do not overfill.
8. Reinstall dipstick.

2.PERIODIC MAINTENANCE
2-6
Replace engine oil
Prior to change the oil, ensure vehicle is on a level surface. Oil and oil filter must be replaced at the same time.
Oil change and oil filter replacement should be done with a warm engine.
WARNING
CAUTION
1. Ensure vehicle is on a level surface.
2. Start engine and let idle for a few minutes.
3. Stop engine. Wait a few minutes to allow oil to flow
down to crankcase then check oil level.
4. Remove dipstick.
5. Raise the vehicle, support it securely. Place a
drain pan under the engine drain plug area.
6. Clean the drain plug area.
7. Unscrew drain plug then remove dipstick.
1) Drain plug
8. Allow oil to drain completely from crankcase.
9. Clean the magnetic drain plug from metal shavings
and residue.
10. Install a new gasket ring on drain plug. Torque
drain plug to 20 N.m.
11. Remove oil filter screws, oil filter cover and oil
filter.
1) Oil filter nut
2) Gasket ring
3) Spring
4) Oil filter
12. Check and clean the oil filter inlet area for dirt and
other contaminations.
13. The installation is the reverse of the removal
procedure. Pay attention to install a new gasket on
oil filter cover.
14. Refill engine with a SAE 10W-40 API SJ
classification engine oil, Oil change capacity with
filter 1850mL.
15.Check the oil level with the dipstick. Refer to OIL
LEVELVERIFICATION above.
15. Run engine to ensure oil filter and drain plug areas
are not leaking.
The engine oil can be very hot. Wait until engine oil is warm.
Dispose oil and filter as per your local environmental regulations.

2.PERIODIC MAINTENANCE
2-7
CAUTION
Replace gearbox oil
Prior to change the gearbox oil, ensure vehicle is on a level surface, should be done with a warm engine.
1. Ensure vehicle is on a level surface.
2. Drive vehicle for a few minutes.
3. Stop engine and wait a few minutes.
4. Remove the oil level check plug.
5. Place an oil pan under the gearbox case, and then
drain oil completely by removing the drain plug.
6. Tighten the drain plug to 20 N.m.
7. Pour the specified oil(GL-4-90) about 420mL by
syringe through the oil level check plug hole until the
oil over flows.
8. Tighten the oil level check plug to 20 N.m.

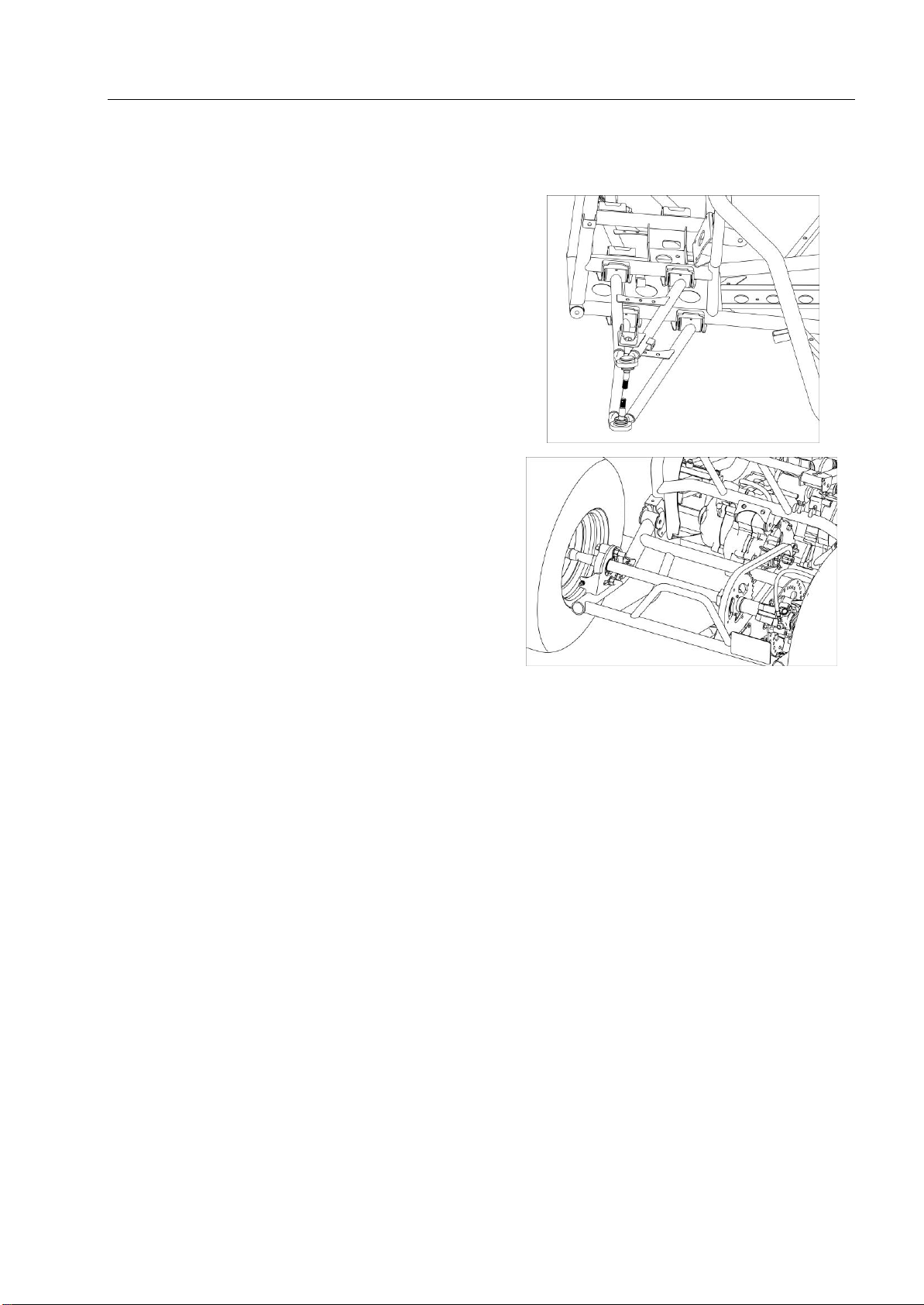

STEERING SYSTEM
Park vehicle at flat ground and hold steering wheel for wobbling to up, down, left and right.Check whether
there is loosing. In case of wobbling, tighten nut or dismantle steering column for further inspection.
Park vehicle at flat ground and turn handle left or right slowly to see whether it can be turned flexibly. In case
of obstacles, check whether it is caused by main cable or other wiring installation. If it is not caused by above
situations, please check the bottom of steering tie rod and see whether steering column bearing is damaged or
not.

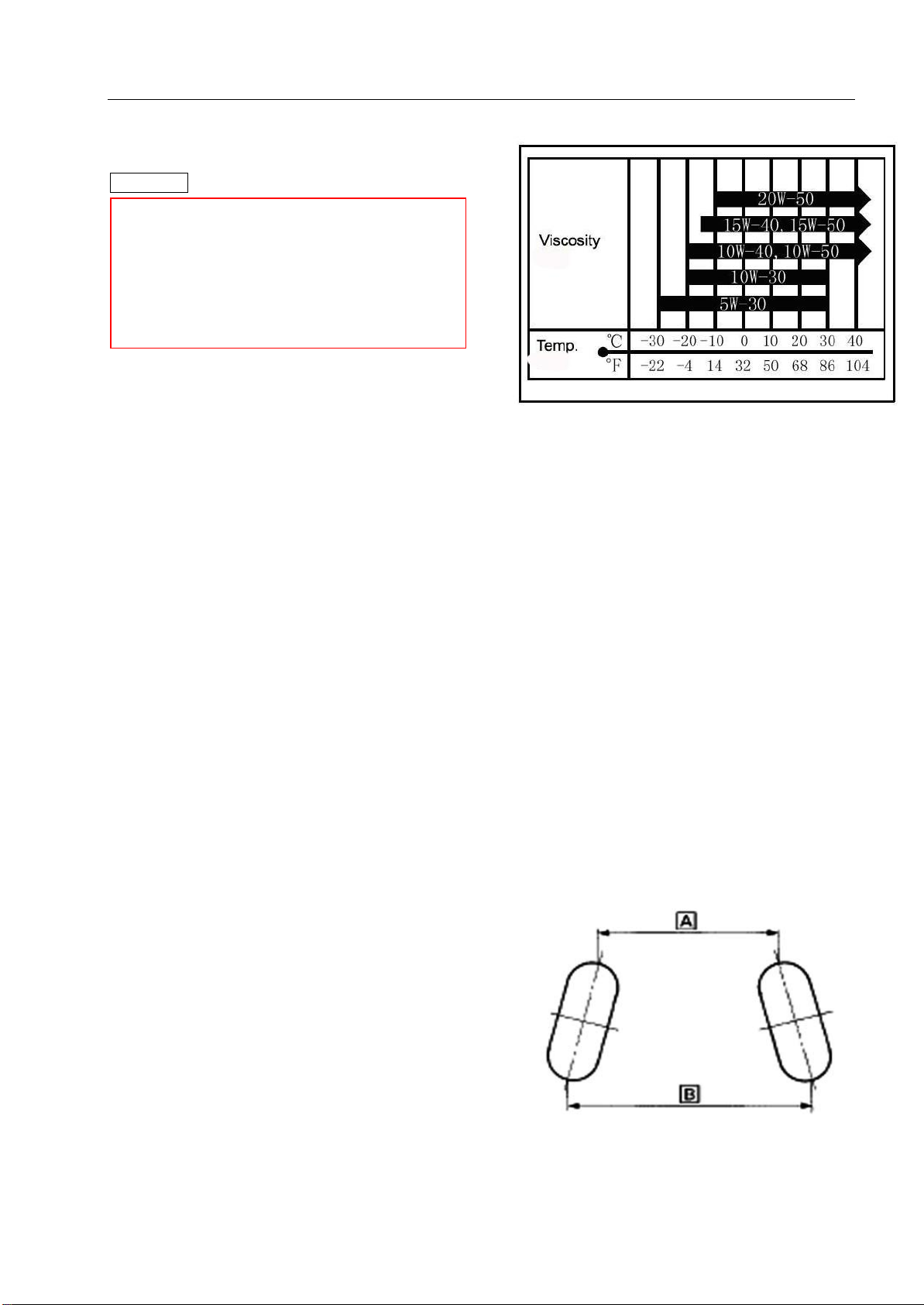

Park vehicle on flat ground, make sure the tire
pressure for right and left tires is same and set to the
proper specification, set the front wheels in the straight
position, then place a load of 75kg on the seat.
Measurethe distance A and B of the front wheels and
calculate the difference.
Toe-in.:B -A= 5mm
A: front of front wheel
B: rear of front wheel
Out of range of toe-in: →Adjust nut of tie rod
In order to expand service life of vehicle, please
use grade SJ standard engine oil conforming to
API with its viscosity indication being
SAE10W/40. If viscosity of engine does not reach
SAE 10W/40, make corresponding selection
according to drawing

2.PERIODIC MAINTENANCE
2-8
CAUTION
BRAKING SYSTEM
Check to see if any brake fluid is leaking out of the pipe joints or the brake fluid reservoir. Apply the brakes
firmly for one minute. If there is any leakage, have the vehicle inspected by an authorized dealer.
Test the brakes at slow speed after starting out to make sure they are working properly. If the brakes do not
provide proper braking performance, inspect the brake system. If needed, have the vehicle inspected by an
authorized dealer.
Brake fluid level
Check the brake fluid level by observing the lower
limit line on the brake fluid reservoir.
When the brake fluid level is below the lower edge of
sightglass, replenish with brake fluid DOT4.
Brake pedal adjustment
The brake pedal stroke is 30～40mm. If less than equal
30mm, it will be a hidden dangers, must adjust the brake
pin connecting the brake pedal.
A
Af ft te er r a ad dj ju us st ti in ng g t to oe e- -i in n, , f fi is st t r ro ot ta at te e s st te ee er ri in ng g w wh he ee el l
f
fr ro om m c ce en nt te er r p po os si it ti io on n t to o t th he e l le ef ft t a an nd d r ri ig gh ht t c co om mp pe et te el ly y, ,
t
to o e en ns su ur re e t th ha at t i is s t th he e s sa am me e c co or rn ne er r, , t th he en n s sl lo ow wl ly y r ru un n
v
ve eh hi ic cl le e t to o s se ee e w wh he et th he er r i it ts s d di ir re ec ct ti io on n c ca an n b be e
c
co on nt tr ro ol ll le ed d. .

2.PERIODIC MAINTENANCE
2-9
Parking brake adjustment
Pull the parking brake lever dowon to engage the
parking brake. To release the unit, press button on of
parking lever then push the parking lever to the bottom.
The free play is 15～20mm, the travel is 7 teeth.
If necessary, slacken the cable by loosening the
locknut and screwing the adjuster on the brake holder.
After adjusting the play, tighten the locknut. Or
screwing the adjustment nut on the parking brake caliper
GEAR SHIFT
Check the shift lever as to change gearshift from N to R
and reverse smoothly. Also the meter display is correct.
The shift lever should be vertical when the gear is in
neutral. If not, adjust the shift cable and then tighten the
nuts of the shift cable.

2.PERIODIC MAINTENANCE
2-10
WHEELS
Lift wheels up at horizontal position and ensure no
load to each wheel.
Shake wheels to left and right to see whether their
connecting parts are installed tightly and check whether
they can be swung.
No adequate tightening: → tightening
Swing: → replace rocker arm
Tire pressure
Improper tire pressure will lower comfort of operation and driving and may lead to wear to side edges of tires.
Front wheel
Rear wheel
Rated pressure
62kPa(0.62kgf/cm2
)
62kPa(0.62kgf/cm2)
Dimension of tire
26×9-14
26×1 1-14
Tire thread.
When the tire groove decreases to 6 mm (0.24 in) due to
wear, replace the tire.

2.PERIODIC MAINTENANCE
2-11
SUSPENSION SYSTEM
Lubricate both suspension arms with lithium-soap based grease. There are two grease fittings on each suspension
arm. Check operation and for leakage.
Grease fitting location of front suspension arms.
Lubricate the chain with lubricating oil.
CHAIN MAINTENANCE
The new chain is too long or extended after use, it is difficult to adjust, the chain link can be removed
according to the situation, but it must be an even number. The link should pass through the back of the chain, and
the opening of the locking piece should be in the opposite direction of rotation.
After the sprocket wears seriously, the new sprocket and new chain should be replaced at the same time to
ensure good meshing. It is not possible to replace new chains or sprockets alone. Otherwise, it will cause poor
meshing and accelerate the wear of the new chain or new sprocket.
The old chain can not be mixed with some new chains, otherwise it will easily cause impact in the
transmission and break the chain.
The chain should be filled with lubricant in time. Lubricating oil must enter the matching gap between the
roller and the inner sleeve to improve working conditions and reduce wear.
When the vehicle is stored for a long time, the chain should be removed and cleaned with kerosene or diesel,
then coated with engine oil or butter and stored in a dry place to prevent corrosion.
