OHM CT-10 User manual

total clarity series
manual
CT main systems
CT-10, CT-12 & CT-15 for main systems and arrays

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
2
Wellington Close • Parkgate • Knutsford
Cheshire • WA16 8XL • England
Tel: [phone] • Fax: [phone]
Email: [email protected] • Website: www.ohm.co.uk
1. Introduction
Thank you for purchasing an Ohm loudspeaker.
To guarantee the best possible operating of the equipment and avoiding any malfunction of the
system, please read this manual carefully before use. For your own safety we recommend you
take the time to read all the warnings and precautions contained within this manual and study
the connection details to ensure correct usage and avoid any misuse which may invalidate your
warranty.
Record the model and serial number, found on the back of the unit, in the spaces designated on
the warranty card and also somewhere safe for future reference. Refer to the model and serial
number whenever you call upon your dealer for information or service on this product.
All information contained in this manual is based on information available at the time of going to
press. The information has been carefully checked for accuracy, however no guarantee is given
with respect to the correctness.
Ohm (UK) accepts no responsibility for any errors or inaccuracies that may appear in this manual
or the information on any products described in it.
Technical specifications, dimensions, weights and properties do not represent guaranteed
qualities.
As manufacturers we reserve the right to make alterations and modifications within the constitution
of the law, as well as changes aimed at improving quality.
This manual does not include all of the details of design, production or variations of the
equipment. Nor does it cover every possible situation that may arise during installation,
operation or maintenance. If you need particular assistance beyond the scope of this
manual please contact your local dealer and if further assistance is require contact our
technical personnel.
Before setting up a system read this manual and its safety instructions and keep the
manual readily available on site.
If the product requires repair or if information about the warranty is needed, please contact
an approved Ohm distributor or the Ohm factory. The contact details are available on the Ohm
website.

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
3
2. Warranty
All Ohm products have 2 years warranty covering any faults in materials ormanufacturing. Warranty
does not cover any damage caused by using the products against Ohm UK’s recommendations.
1.1. Unpacking
Carefully open the shipping carton and check for any noticeable damage. Verify that all the items
are included, please contact your dealer if any parts are missing.
Every Ohm loudspeaker has been rigorously tested and inspected before being carefully
packaged, prior to shipping. If any damage has occurred to the packaging or the unit during
transit, please notify the delivery company as soon as possible. Only the consignee can file a
claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you
transport or ship the unit in future.
Declaration of CE Conformity
This equipment has been tested and found to
conform to the requirements of the:
EMC Directive 89/336/EEC,
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
and to the following standards:
EMC Emission EN55103-1 (1996)
EMC Immunity EN55103-2 (1996)
Electrical Safety EN60065 (1998)
Mechanical Safety EN ISO 12100-1 (2004)

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
4
For more details (UK), check The Control of Noise at Work Regulations 2005.
Noise Level (dBA) Maximum Exposure Time per 24 Hours
85 8 hours
88 4 hours
91 2 hours
94 1 hour
97 30 minutes
100 15 minutes
103 7.5 minutes
106 3.7 minutes
109 112 seconds
112 56 seconds
115 28 seconds
118 14 seconds
121 7 seconds
124 3 seconds
127 1 second
130-140 less than 1 second
140 NO EXPOSURE
Maximum Recommended Noise Dose Exposure Levels
3. Important safety instructions
1. Read this manual
2. Heed all safety warnings
3. Follow all instructions
4. The user should never incorporate equipment or accessories not approved by Ohm
5. Safety warnings
Sound systems are capable of producing high sound pressure levels which can lead to a
hearing damage especially in long term exposition.
To prevent damage to hearing avoid being too close to speakers in operation.
The generally accepted standard to minimize hearing risk is based on an exposure to
85 dBA for a maximum limit of eight hours per day, followed by at least ten hours of recovery
time at 70 dBA or lower (at which the risk of harm to healthy ears is negligible). Then
a “3 dB exchange rate” formula is applied, which means that for every 3 dB above 85 dBA,
the maximum exposure time is cut in half.
Noise levels above 140 dB are not considered safe for any period of time, however brief. For
children, the World Health Organization recommends no exposure above 120 dB.

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
5
6. Speakers have a permanent magnetic field even when they are not operating. Magnetic
fields can cause faults for magnetic data media and monitors, therefore it is important to
keep all speakers always at least 1m away from these kinds of equipments.
7. Do not expose the product to long term moisture (rain, sea spray, shower or steam) or put
in direct contact or partially immersed in water.
8. System parts and rigging inspection
Be sure to follow the relevant national specifications, norms, and safety regulations. The
information described here does not relieve the user of the duty to follow the given safety
requirements and legal regulations.
All system components must be inspected before use, in order to detect any possible
defects. Please refer to the “Care and Maintenance” section for more instruction.
Any parts showing any sign of defect must immediately put aside and withdrawn from use
to be inspected by qualified service personnel.
9. Mounting
Any mounting of the product should follow the manufacturer’s instruction given in this
manual, and should use a mounting accessory recommended by the manufacturer.
10. Condition which require immediate service
Servicing is required when the product has been damaged in any way such as:
• The product has been exposed to excess rain or moisture
• The product was dropped or the enclosure is damaged
• The product does not operate normally

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
6
CT main systems
CT-8, CT-10, CT-12 & CT-15 for main systems and arrays
CT-8, CT-10, CT-12 and CT-15 are the largest top cabinets in this range. Designed for both install
and mobile use these speakers offer great flexibility to suit even the most difficult applications.
Side walls with 20 degree wall angle together with 40 degree horizontal dispersion and the
rotatable horn allows true seamless point source arrays to be created easily with the innovative
flying system.
Phase and impedance corrected crossover networks are designed for high power applications
and the use of external EQ provides unrivalled tonal balance and transient response. Used with
the CS subwoofers these systems will provide a very high SPL with total clarity.
CT-8 & CT-10
Key Features / Technology
• Matching voicing with the CW
cabinets.
• Rotatable 90 x 40 horn
• High SPL in a compact cabinet
Use For
Small and medium installs and AV
full range applications
Use With
Small to Medium CS subwoofers
Ohm controller & software is
required
Mounting Options
TH-1 top hat fitted as standard
Brownline compatible flying points
top, bottom and back
CT-12 & CT-15
Key Features / Technology
• True full range performance
• Rotatable 60 x 40 horn
• Full range for standalone use where
space is constricted
Use For
Installations & AV applications
requiring high SPL, wide and smooth
coverage
Use With
Large CS subwoofers
Ohm controller & software is
required
Mounting Options
TH-1 top hat fitted as standard
Brownline compatible flying points
top, bottom and back

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
7
4. Product
This manual is for CT-8, CT-10, CT-12 and CT-15 full range 2-way passive loudspeakers. (If you
require a manual for any other Ohm product please visit the Ohm website).
CT-8, CT-10, CT-12 and CT-15 are designed mainly for installation use.
The loudspeakers include multiple mounting points and a wide range of installation accessories
are available.
Cabinets are available in black or white paint finish or in any desired colour on request.
CT-8
• TH-1 cast aluminium top hat
• CPFK recessed flying points
• CFEK set of three flying eyes
• ABS-1 adjustable stand bracket
• ABT-1 adjustable threaded
spigot bracket
• LWB large wall bracket
• SS-1 speaker stand
• TP-1 adjustable threaded pole
• 1 x 8” low frequency driver
• 1 x 1” horn loaded compression driver
• CT-8 steel grill assembly
• CT-8 backplate and crossover
CT-10
• TH-1 cast aluminium top hat
• CPFK recessed flying points
• CFEK set of three flying eyes
• ABS-1 adjustable stand bracket
• ABT-1 adjustable threaded
spigot bracket
• LWB large wall bracket
• SS-1 speaker stand
• TP-1 adjustable threaded pole
• 1 x 10” low frequency driver
• 1 x 1” horn loaded compression driver
• CT-10 steel grill assembly
• CT-10 backplate and crossover
CT-12
• TH-1 cast aluminium top hat
• CPFK recessed flying points
• CFEK set of three flying eyes
• ABS-1 adjustable stand bracket
• ABT-1 adjustable threaded
spigot bracket,
• LWB large wall bracket
• SS-1 speaker stand
• TP-1 adjustable threaded pole
• 1 x 12” low frequency driver
• 1 x 1.5” horn loaded compression driver
• CT-12 steel grill assembly
• CT-12 backplate and crossover
CT-15
• TH-1 cast aluminium top hat
• CPFK recessed flying points
• CFEK set of three flying eyes
• ABS-1 adjustable stand bracket
• ABT-1 adjustable threaded
spigot bracket
• LWB large wall bracket
• SS-1 speaker stand
• TP-1 adjustable threaded pole
• 1 x 15” low frequency driver
• 1 x 1.5” horn loaded compression driver
• CT-15 steel grill assembly
• CT-15 backplate and crossover
5.1 Accessories and spare parts

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
8

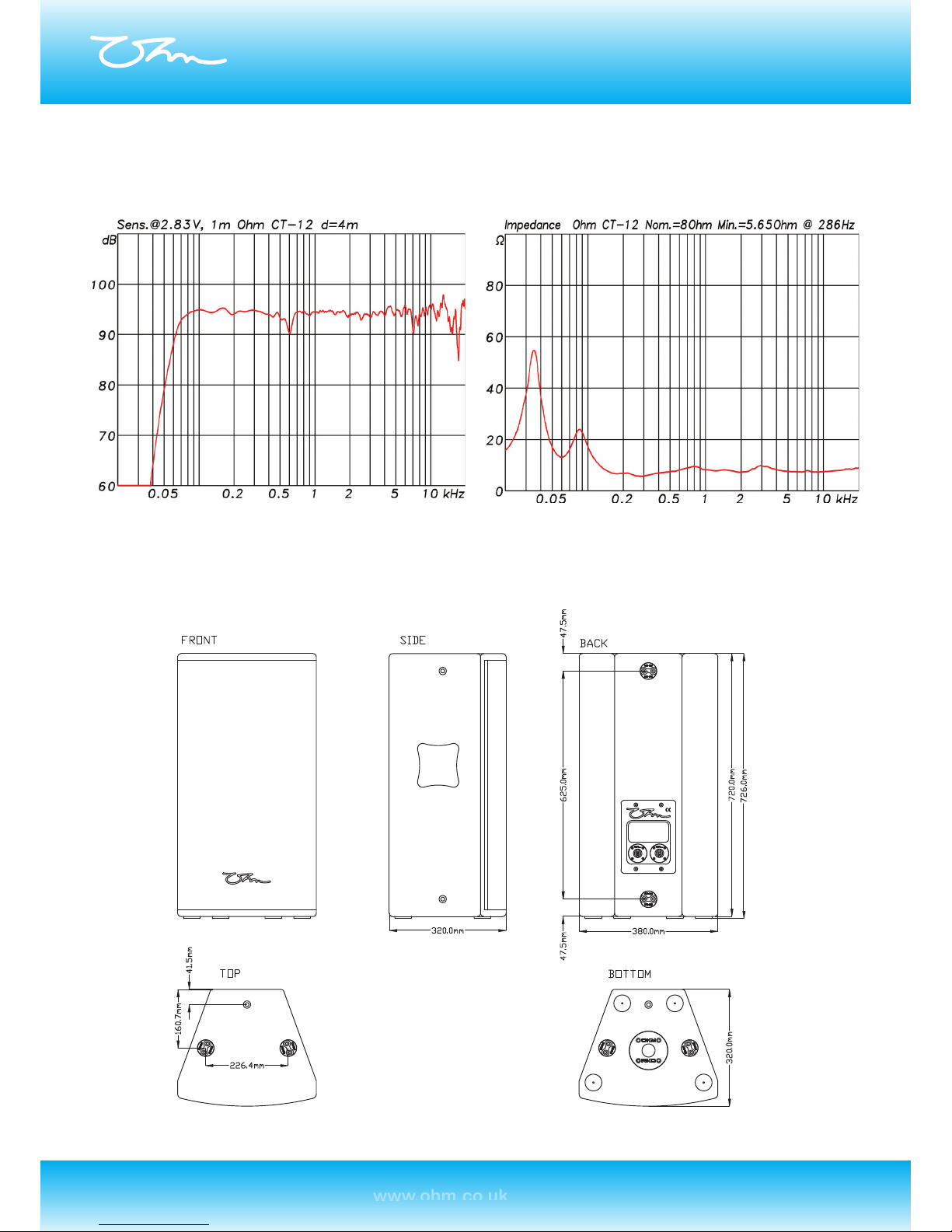

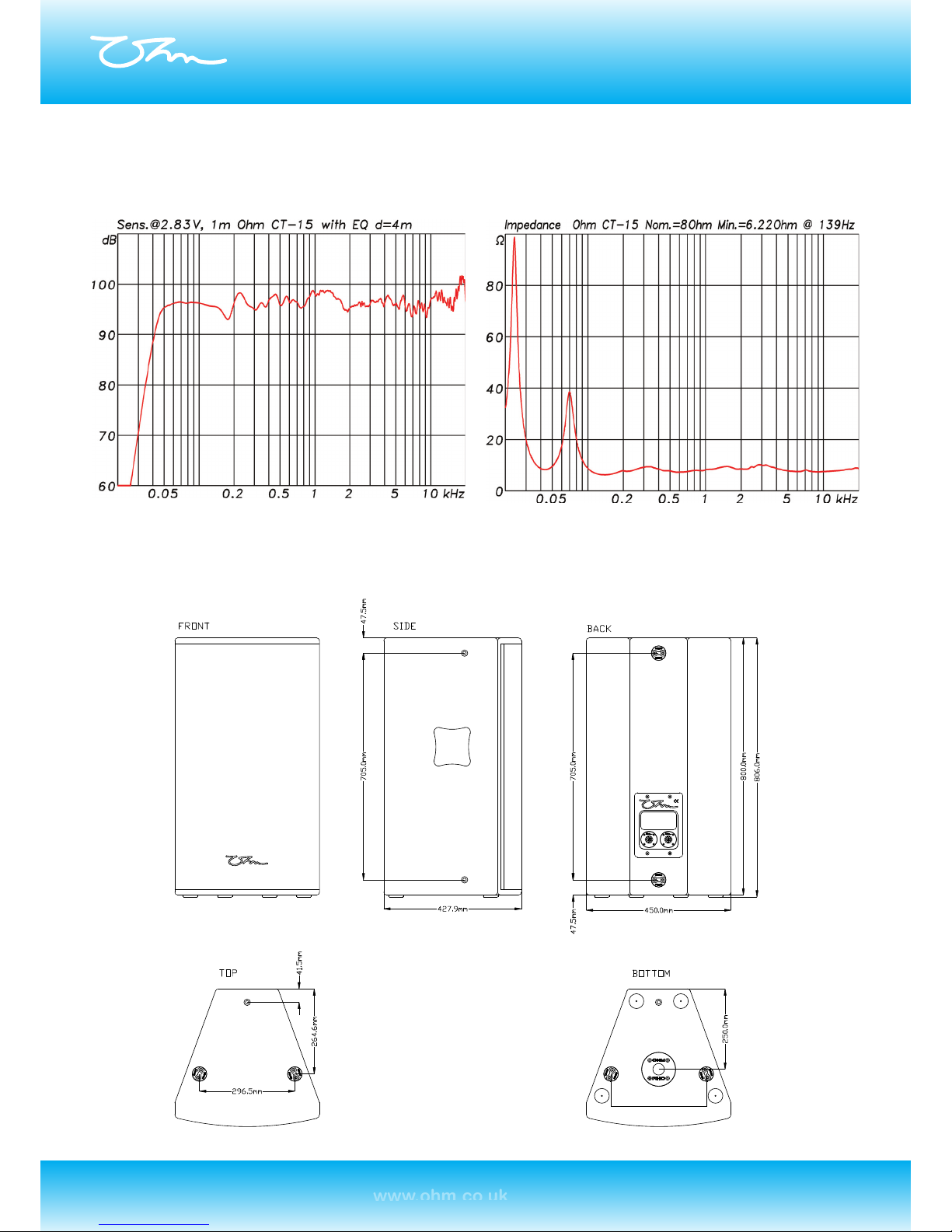

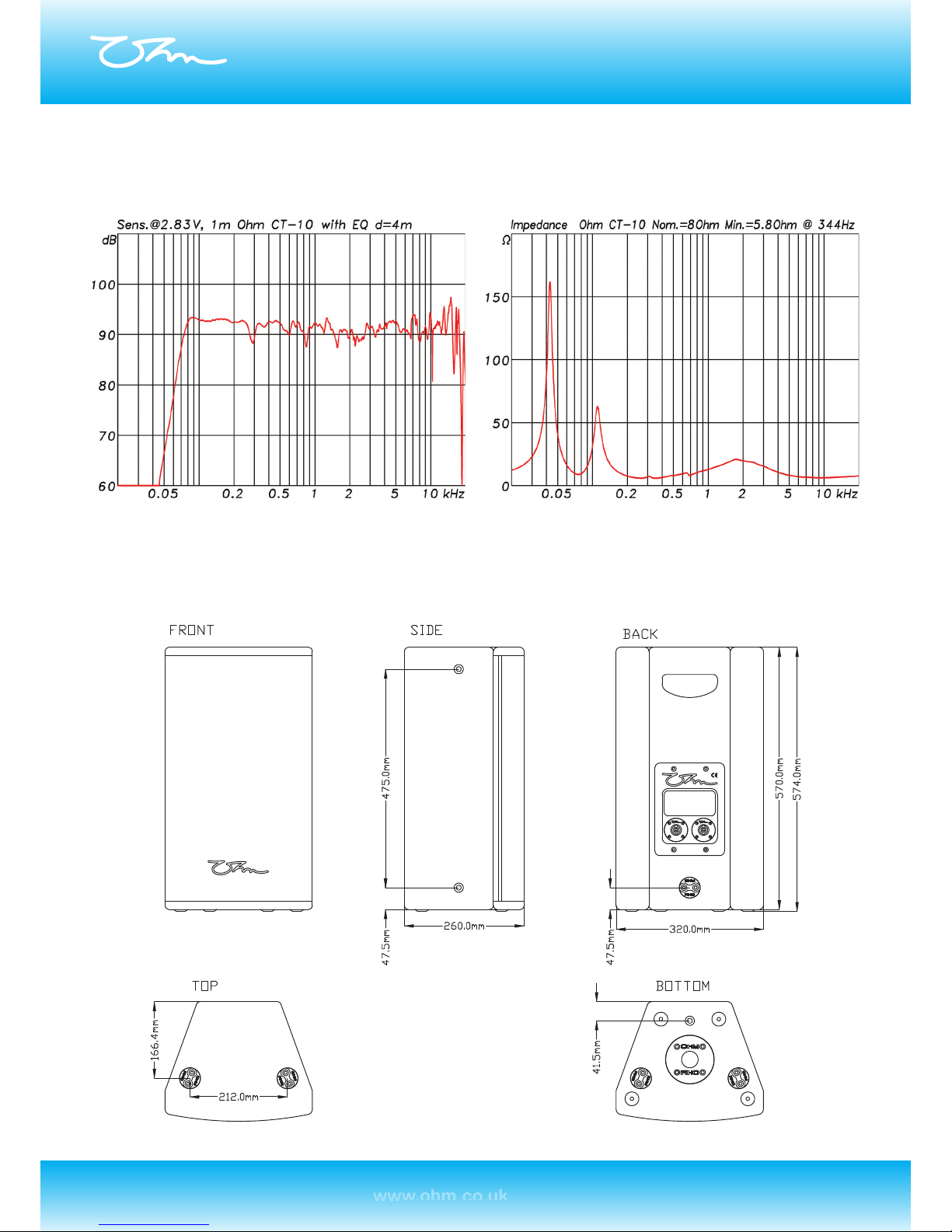

CT-10, CT-12 and CT-15 loudspeakers are fitted with threaded mounting holes, suitable for attaching
flying hardware or a wall-mount bracket. The details of the mounting points are shown in the
drawings. (pages 13, 15, 17)
5.1 Wiring
Ensure that all possible installations connections comply with the applicable safety guidelines
and that the size and strength of cables are sufficient. Ensure that all connections are secured
against coming loose.
Never use signal cables or power cords for suspending, aligning or securing the system.
Never use signal cables or power cords that are frayed.
To prevent the risk of electric shock, do not connect the loudspeaker with the amplifier switched
on.
CT-10, CT-12 and CT-15
These speakers are equipped with two parallel-wired Speakon connectors,
connected 1+/1- & 2+/2-
To avoid loss of power, the cables should have a minimum wire gauge of 2 x 4 mm2and more for
long distances. Ohm recommends using 2 x6 mm2cable and high quality Speakon connectors.
5. Installation
Installation should only be carried out by experienced technicians.
Before any installation indoors or outdoors ensure all risk assessments required are carried out.
Any technicians responsible for assembling, safe set up and use of the sound system on site must
be aware of all risk assessments.
Falling speakers can be FATAL. Always ensure that adequate attention is given to safe installation
especially when external forces could have a bearing on the stability of the speakers.
Before setup ensure every possible eventuality is addressed in order to prevent the system from
becoming unstable, i.e: uneven ground, weather conditions, unstable fixing points or people
knocking against the system.
Remember that speakers can also move as a result of vibrations.
Consult a professional rigger or structural engineer prior to suspending loudspeakers. Always
check the safe working load limit of the structure supporting any loudspeaker. Make sure that the
rigging hardware is adequately rated to handle the actual load in accordance with current health
and safety guidelines.
Avoid installing loudspeakers in places exposed to harsh weather conditions.
Maximum cable length for given cable thickness connecting one or two cabinets.
mm2SWG AWG m ft m ft
2.5 15 13 30 100 15 50
4 13 11 50 160 25 80
6 11 9 74 240 37 120
10 9 7 120 390 60 195
Length for two (4 ohm)
Length for one (8 ohm)Cable thickness

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
9
Verify that the polarity of the connections to all of your loudspeakers are correct. When more
than one loudspeaker reproduces the same frequencies, but with opposite polarity, there will be
sound cancellations. Therefore, if any of the loudspeakers are wired so that the +/- connection
polarity is reversed with respect to the others, incorrect reproduction will result. Most notably,
the bass response will suffer. This is especially true when loudspeakers are situated in adjacent
positions where the sound waves readily interact with each other.
Two cabinets can be connected in parallel, at which time the signal can be linked through from
one loudspeaker to the next. Make sure that the linked cabinets total impedance is more than the
minimum impedance indicated on the amplifier.
Systems total impedance can be calculated with the following formula:
6.1 Amplification
There is no exact answer to the question of what amplifier size you should use for a loudspeaker.
The loudspeaker power rating in Ohm’s specifications only means it has passed a standard power
test. This provides a rating that can be used as a point of comparison with other loudspeakers.
This rating does not necessarily correspond to the best amplifier size to use nor is it a measure
of a “safe” amplifier size to use. Rather, the amplifier should be sized according to both the sound
levels required and the type of audio signals that will be reproduced. If you are unsure of how to
determine this, consult with a qualified professional or contact Ohm Technical Support.
Preventing damage to the loudspeaker is a function of operating your audio system so that the
loudspeaker is not stressed beyond its design limits.
6. OPERATION
1
1/imp 1st cabinet + 1/imp 2nd cabinet + 1/imp nth cabinet
Normally systems minimum impedance should not be lower than 2 ohms, with Ohm D class
amplifiers not lower than 4 ohms.

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
10
6.2 Signal Processing
External processing is often needed, for example, to accommodate particular program material,
less than optimum acoustics, feedback control, or personal taste. Processing units are also be
used to set the delays and crossover between cabinets.
CT-10, CT-12 and CT-15 Phase and impedance corrected crossover networks are designed for high
power applications and the mandatory use of external EQ provides unrivalled tonal balance and
transient response.
All the latest Ohm signal processors can be accessed by the Ohm Spyder software which is
available for download on the Ohm website. www.ohm.co.uk/ohm_downloads.htm. Please check
back regularly to ensure you have the latest version. (Always ensure that your current settings
are backed up before installing new versions of the software to avoid deleting settings). Read the
manual for Spyder Software for further information.
6.3 Protecting the Speakers
In general, audio signals should not be over driven. If an Ohm power amplifier is overloaded at
the output stage(clipping), the amplifier will activate a clipping warning signal. The signal must
be reduced as soon as it sounds distorted. The Ohm warranty does not cover the damage to the
speaker/s or consequential damage caused by overloading the system.
6.4 Ground loop
If the cabinet makes a loud humming or buzzing noise after the speaker has been connected,
check that there is no ground loop in the system. Some amplifiers and system controllers have
a ground lift switch. Try to set these switches to the “lift” position one after the other to get rid
of the problem. Always use a “clean” power supply for the sound, meaning that the same power
supply does not run, for example, the lighting system, which may cause interference to the sound.
It is also possible that the ground loop is before the amplifications (in mixing desk, effects or
equalizers) so all other sources need to be checked if it continues.
Never try to get rid of the ground loop by disconnecting the protective earth contact at the mains
connector! This is extremely dangerous!
Use only high-quality audio connectors and cables and if possible only balanced outputs.

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
11
7. Service and Maintenance
If for any reason your Ohm product fails, contact the Ohm Technical Support (support@
ohm.co.uk) or your local dealer (check the Ohm website), this applies to both warranty and
non-warranty faults.
Faulty rigging parts can potentially cause serious consequences and liabilities, so for any rigging
hardware problems contact Ohm to determine the appropriate service solutions.
The metal components of the cradles and stacking systems are covered by a textured powder
coating which will protect them against short term moisture. All the cabinets and rigging parts
should always be stored, transported and used under dry conditions. CT-10, CT-12 and CT-15 are
not designed for long-term outdoor use.
7.1 Performance Testing and Periodic Inspection
Complete inspection of the enclosure and a listening test and formal measurements should be
done periodically. The interval between such tests will depend on system usage and the conditions
of use, but make sure these inspections are made at least yearly. All the transducers should be
tested regularly to make sure they work as intended. A sine wave sweep at approximately 10% of
rated power will usually reveal possible transducers and enclosure problems, faults usually cause
some distortion, buzzes or rattles.
Faults in internal components and wiring usually cause transducers to stop working or to be
intermittent. Only trained technicians may inspect and fix the connection problems.
Take extra care when inspecting all the rigging hardware. Visually inspect all rigging parts each
time they are used to detect all possible conditions that may affect load handling capability (i.e.
wear, deformation, cracks, corrosion).
7.2 Cleaning and Cosmetic Repairs
If the exterior surface requires cleaning, use a damp cloth to remove any dust and dirt and use a
dry cloth to finish the cleaning. Do not use any cleaning solvents or abrasives.
All the CT range cabinets are painted with a high quality paint. Enclosures that are designed
for road-use, may over time show signs of wear and tear during normal use, for paint touch up,
contact Ohm or your dealer for re-painting or to purchase the touch up paint and instructions for
its application. Before paint touch up, fix any cosmetically damaged wood parts using common
woodwork methods and materials.

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
12
Full Range, Reflex Tuning
16 Ohm, Minimum 12 ohm @ 6.4 kHz
200 Watts (continuous)
400 Watts (program) 800 Watts (peak 10 ms)
92 dB
115 dB (cont. max SPL / 1m),121 dB peak
70 Hz - 19 kHz
90° x 40°, Rotational
CT-8 TECHNICAL SPECIFICATION
Design
Impedance
Power handling AES
Maximum power handling
Sensitivity 2.83V / 1m
Max SPL
Frequency response -3 dB
Dispersion
200W @ 16 Ohm
Ohm DSP Solutions Mandatory
Min 2 x 4 mm2 Preferred 2 x 6 mm2
SYSTEM OPERATION
Recommended Amplification
System Controller
Speaker Cables
*technical specifications are preliminary and subject to confirmation
PRODUCT FEATURES
1 x 8” Low frequency driver
1 x 1” horn loaded compression driver
Passive, requires active EQ
2 x 4 pole Speakon Connectors,
504 mm x 290 mm x 226.8 mm
14.5
15
Black
Available in white or Ral colours on request.
6 x mounting points, 3 to take flying eyes, 3 to take M8 bolt.
Components
Crossover
Connectors
Dimensions (H x W x D)
Weight (Kgs)
Shipping Weight (Kgs)
Colour
Options
Rigging
LF HPF LF LPF HF HPF
Without Sub 65 Hz Butt 18 dB Oc --
With Sub 100 Hz Butt 24 dB Oc --
Bi-amp without Sub ---
Bi-amp with Sub ---
RECOMMENDED FILTER SETTINGS
TH-1 Cast aluminium top hat
CPFK Recessed flying points
CFEK Set of three flying eyes
ABS-1 Adjustable stand bracket
ABT-1 Adjustable threaded spigot bracket
LWB Large wall bracket
SS-1 Speaker stand
TP-1 Adjustable threaded pole
18 mm Birch Ply construction, with durable scratch resistant black
textured paint finish, kick-proof steel grill with stainless steel Ohm logo.
Fitted as standard
Optional
Additional Descriptive Data
HARDWARE

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
13
CT-8 Performance graphs / diagrams
CT-8 Drawing
Impedance ResponseFrequency Response with active EQ
EDISTNORF BACK
BOTTOMTOP
47.5mm
452.5mm
101.6mm
500.0mm
504.0mm
290.0mm
47.5mm
112.5mm
41.5mm
146.0mm
169.7mm
115.8mm
226.8mm

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
14
Full Range, Reflex Tuning
8 Ohm, Minimum 5.38 ohm @ 377 Hz
300 Watts (continuous)
600 Watts (program) 1200 Watts (peak 10 ms)
99 dB
123 dB (cont. max SPL / 1m), 129 dB peak
70 Hz - 19 kHz with active EQ
90° x 40°, Rotational
CT-10 TECHNICAL SPECIFICATION
Design
Impedance
Power handling AES
Maximum power handling
Sensitivity 2.83V / 1m
Max SPL
Frequency response -3dB
Dispersion
300W @ 8 Ohm
Ohm DSP Solutions Mandatory
Min 2 x 4 mm2 Preferred 2 x 6 mm2
SYSTEM OPERATION
Recommended Amplification
System Controller
Speaker Cables
*technical specifications are preliminary and subject to confirmation
PRODUCT FEATURES
1 x 10” Low frequency driver
1 x 1” horn loaded compression driver
Passive, requires active EQ
2 x 4 pole Speakon Connectors,
574 mm x 320 mm x 260 mm
19
21.3
Black
Available in white or Ral colours on request.
10 x mounting points, 5 to take flying eyes, 5 to take M8 bolt.
Components
Crossover
Connectors
Dimensions (H x W x D)
Weight (Kgs)
Shipping Weight (Kgs)
Colour
Options
Rigging
LF HPF LF LPF HF HPF
Without Sub 65 Hz Butt 18 dB Oc --
With Sub 100 Hz Butt 24 dB Oc --
Bi-amp without Sub ---
Bi-amp with Sub ---
RECOMMENDED FILTER SETTINGS
TH-1 Cast aluminium top hat
CPFK Recessed flying points
CFEK Set of three flying eyes
ABS-1 Adjustable stand bracket
ABT-1 Adjustable threaded spigot bracket
LWB Large wall bracket
SS-1 Speaker stand
TP-1 Adjustable threaded pole
18 mm Birch Ply construction, with durable scratch resistant black
textured paint finish, kick-proof steel grill with stainless steel Ohm logo.
Fitted as standard
Optional
Additional Descriptive Data
HARDWARE

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
15
CT-10 Performance graphs / diagrams
CT-10 Drawing
Impedance ResponseFrequency Response with active EQ

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
16
CT-12 TECHNICAL SPECIFICATION
Full Range, Reflex Tuning.
8 Ohm, Minimum 5.7 ohm @ 286 Hz
450 Watts (continuous)
900 Watts (program) 1800 Watts (Peak 10 ms)
103 dB
129 dB (cont. max SPL / 1m), 135 dB peak
55 Hz - 20 kHz with active EQ
60° x 40°, Rotational
Design
Impedance
Power handling AES
Maximum power handling
Sensitivity 2.83V / 1m
Max SPL
Frequency response -3dB
Dispersion
450W @ 8 Ohm
Ohm DSP Solutions Mandatory
Min 2 x 4 mm2 Preferred 2 x 6 mm2
SYSTEM OPERATION
Recommended Amplification
System Controller
Speaker Cables
*technical specifications are preliminary and subject to confirmation
PRODUCT FEATURES
1 x 12” Low frequency driver
1 x 1.5” horn loaded compression driver
Passive, requires active EQ
2 x 4 pole Speakon Connectors
726 mm x 380 mm x 320 mm
28
30.2
Black
Available in white or Ral colours on request.
12 x mounting points, 6 to take flying eyes, 6 to take M8 bolt.
Components
Crossover
Connectors
Dimensions (H x W x D)
Weight (Kgs)
Shipping Weight (Kgs)
Colour
Options
Rigging
LF HPF LF LPF HF HPF
Without Sub 50 Hz Butt 18 dB Oc --
With Sub 100Hz Butt 24 dB Oc --
Bi-amp without Sub ---
Bi-amp with Sub ---
RECOMMENDED FILTER SETTINGS
Fitted as standard
Optional
Additional Descriptive Data
TH-1 Cast aluminium top hat
CPFK Recessed flying points
CFEK Set of three flying eyes
ABS-1 Adjustable stand bracket
ABT-1 Adjustable threaded spigot bracket
LWB Large wall bracket
SS-1 Speaker stand
TP-1 Adjustable threaded pole
18 mm Birch Ply construction, with durable scratch resistant black
textured paint finish, kick-proof steel grill with stainless steel Ohm logo.
HARDWARE

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
17
CT-12 Drawing
CT-12 Performance graphs / diagrams
Impedance ResponseFrequency Response with active EQ

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
18
CT-15 TECHNICAL SPECIFICATION
Full Range, Reflex Tuning.
8 Ohm, Minimum 6.2 ohm @ 139 Hz
600 Watts (continuous)
1200 Watts (program) 2400 Watts (peak 10 ms)
103 dB
130 dB (cont. max SPL / 1m), 136 dB peak
45 Hz -20 kHz with active EQ
60° x 40°, Rotational
Design
Impedance
Power handling AES
Maximum power handling
Sensitivity 2.83V / 1m
Max SPL
Frequency response -3 dB
Dispersion
600W @ 8 Ohm
Ohm DSP Solutions Mandatory
Min 2 x 4 mm2 Preferred 2 x 6 mm2
SYSTEM OPERATION
Recommended Amplification
System Controller
Speaker Cables
*technical specifications are preliminary and subject to confirmation
PRODUCT FEATURES
1 x 15” Low frequency driver
1 x 1.5” horn loaded compression driver
Passive, requires active EQ
2 x 4 pole Speakon Connectors
806 mm x 450 mm x 430 mm
38
40.3
Black
Available in white or Ral colours on request.
12 x mounting points, 6 to take flying eyes, 6 to take M8 bolt.
Components
Crossover
Connectors
Dimensions (H x W x D)
Weight (Kgs)
Shipping Weight (Kgs)
Colour
Options
Rigging
LF HPF LF LPF HF HPF
Without Sub 40 Hz Butt 18 dB Oc --
With Sub 100 Hz Butt 24 dB Oc --
Bi-amp without Sub ---
Bi-amp with Sub ---
RECOMMENDED FILTER SETTINGS
TH-1 Cast aluminium top hat
CPFK Recessed flying points
CFEK Set of three flying eyes
ABS-1 Adjustable stand bracket
ABT-1 Adjustable threaded spigot bracket
LWB Large wall bracket
SS-1 Speaker stand
TP-1 Adjustable threaded pole
18 mm Birch Ply construction, with durable scratch resistant black
textured paint finish, kick-proof steel grill with stainless steel Ohm logo.
Fitted as standard
Optional
Additional Descriptive Data
HARDWARE

CT-8 / 10 / 12 / 15 Full Range Loudspeakers
Version 2.0
ww
ww
w.
w.
oh
oh
m
m.
co
co
u
.u
k
k
19
CT-15 Drawing
CT-15 Performance graphs / diagrams
Impedance ResponseFrequency Response with active EQ
