Oki MH920 User manual

MH920 Console International
Installation Manual

2
Table of Contents
1. Preface .......................................................................................................................... 3
2. System requirements................................................................................................... 3
3. Installing the maintenance console............................................................................. 4
4. Installing the USB Driver ........................................................................................... 8
【About trademark】
Microsoft®, Windows®, Internet Explorer® are registered trademarks or
trademarks of Microsoft® Corporation in the United States and other countries.
Windows® 7, Windows® 8.1, and Windows® 10 are operating systems.
Screen shots in this manual are used in accordance with Microsoft Corporation's
guidelines.
Other company names and product names mentioned in this manual are generally
trademarks or registered trademarks of each company.
【Others】
Oki is not responsible for any effect caused by the results of using this product and
this manual.
Please note that the contents described in this manual are subject to change
without notice.
"Maintenance console" in this manual indicates "MH 920 Console International".
"Wireless communication module" in this manual indicates "wireless
communication module (coordinator module)" and "wireless communication module
(router module)".

3
1. Preface
This manual describes the usage of "MH920 Console International" (maintenance
console) for setting wireless communication module and installation procedure of USB
driver for wireless communication module.
2. System requirements
A PC that the maintenance console is to be installed must satisfy the following system
requirements. Please check the operating environment of the installing PC before
installation.
Table 1. Hardware requirements
Component
Minimum requirements
CPU
Core Duo 1GHz equivalent or above
RAM
1GB or above
HDD
100MB minimum free space
Interface
USB version 1.1 or 2.0
Table 2. Software requirements
Component
Minimum requirement
OS
Windows® 7 Professional SP1（32bit）
Windows® 8.1（64bit）
Windows® 10（64bit）
Runtime
Microsoft .NET Framework version 4.0

4
3. Installing the maintenance console
The installation procedure of the maintenance console is described below.
(1) Extract the downloaded file of maintenance console.
(2) Execute "mh920consoleInternational.msi" in the extracted files and start
the maintenance wizard setup wizard. On the "Setup Wizard" screen, press
the "Next" button.
Figure 1. Setup Wizard
* If Microsoft .NET Framework 4 is not installed, a message box that
require installation should be displayed. After installing Microsoft .NET
Framework 4, execute mh920console_module.msi again.

5
(3) Read the license Agreement to the end with the scroll bar, select "I Agree",
then press the "Next" button.
Figure 2. License Agreement dialog
(4) On the "Select Installation Folder" dialog box, select the installation folder
and click "Next" button. Default location of an installation folder is as
follows depending on the Operating System of the destination PC.
·For 32bit OS
C: ¥ Program Files ¥ OKI ¥ MH920 Console International¥
·For 64bit OS
C: ¥ Program Files (x86) ¥ OKI ¥ MH920 Console International¥
Figure 3-1 Installation Folder Selection dialog (32 bit OS)

6
Figure 3-2 Installation Folder Selection dialog (64 bit OS)
(5) On the "Confirm Installation" message box, press the "Next" button.

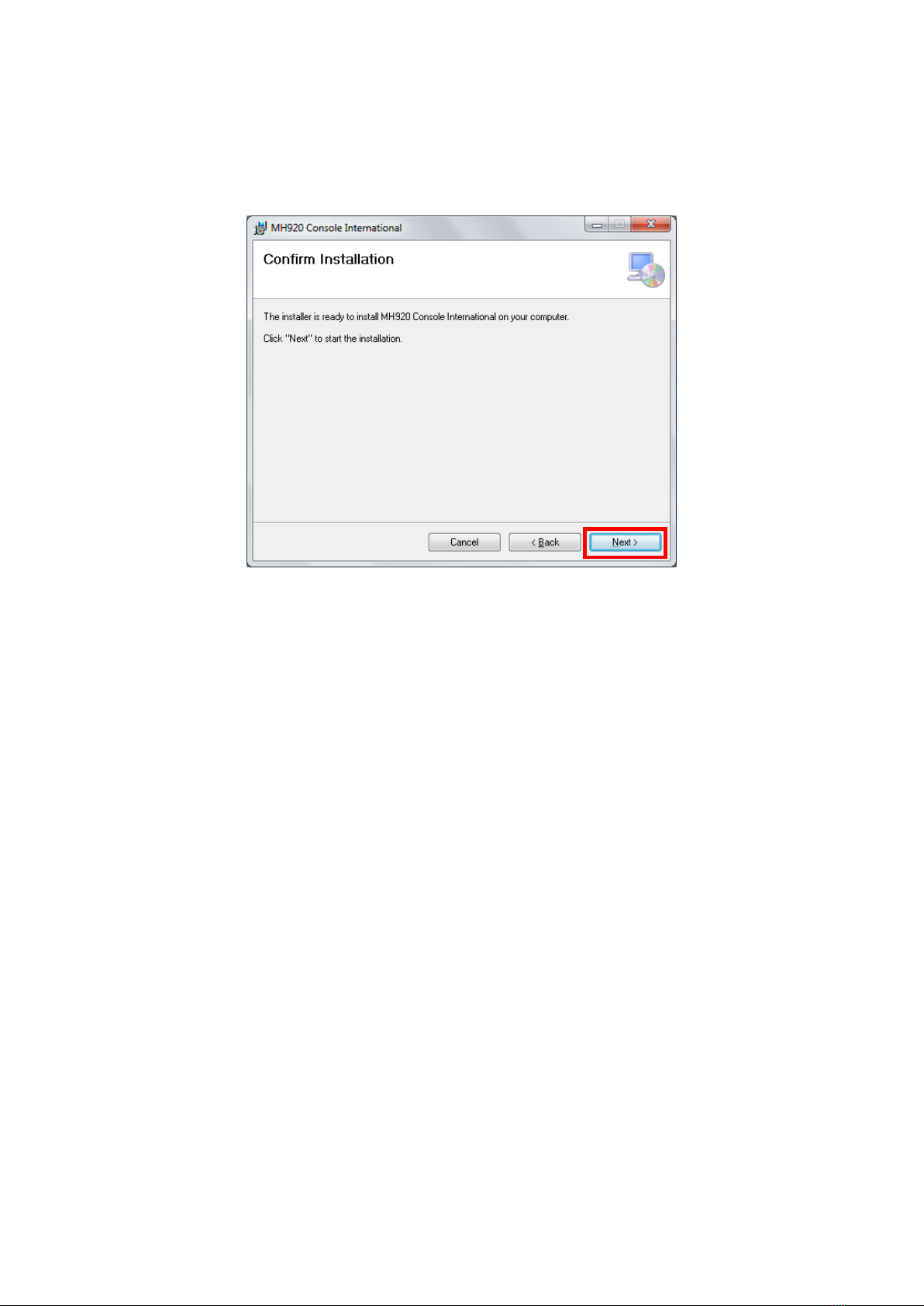

Figure 4. Confirm Installation message
* If a "User Account Control" dialog box is displayed and asked for
confirmation of permission to change, please click the "Yes" button.

7
(6) After the "Installation Complete" message box is displayed, click the
"Close" button to finish the installation.
Figure 5. Installation Complete message box

8
4. Installing the USB Driver
A USB driver is required before connecting the wireless communication module to the
PC. The installation procedure of the USB driver is shown below.
(1) When using a product with the communication module built-in, connect the USB
connector for the maintenance console on the motherboard of the product to the
PC.
(2) When using the evaluation board, connect the USB connector on the evaluation
board to the PC. Turn on the power switch while turning on the slide switch
(MOD button) on the evaluation board. Module will be activated in a state
without emitting radio wave. For details of the slide switch (MOD button),
please refer to "MH920 Wireless Communication Module Evaluation Board
Operation Manual".
(3) After a while, a message box will be displayed on the PC stating that the driver
of the wireless communication module cannot be found. If the driver installation
dialog box is displayed, cancel without installing at this time.
After this process, carry out (4), (5) and (6) if Operating System of the destination PC is
either Windows 7 or Windows 8.1. For Windows 10, carry out (7), (8) and (9).

9
For Windows 7 or Windows 8.1
(4) Select "Control Panel" from the start menu.
(5) Select "Device Manager" from the displayed list and expand the "Other devices"
section.
(6) Find "USB CDC Serial port" in the "Other devices" list. Right click the USB
CDC Serial port to display a menu and select "Properties." Then go to (10).
Figure 6-1. Device Manager (Windows 7, Windows 8.1)

10
For Windows 10
(7) Right-click the start button and select "Control Panel".
(8) Select "Device Manager" from the control panel items list. Expand the "Ports
(COM & LPT)" column on the catalog items of Device Manager.
(9) Find the "USB Serial Device (COM x)" in the "Ports (COM & LPT)" list.
Right-click "USB Serial Device (COM x)" to display a menu. Select "Update
Driver Software" from the menu and carry out (11).
Figure 6-2. Device Manager (Windows 10)

11
(10) When the "USB CDC Serial port Properties" dialog box is appeared, click the
"Update Driver" button to activate the "Update Driver Software" wizard.

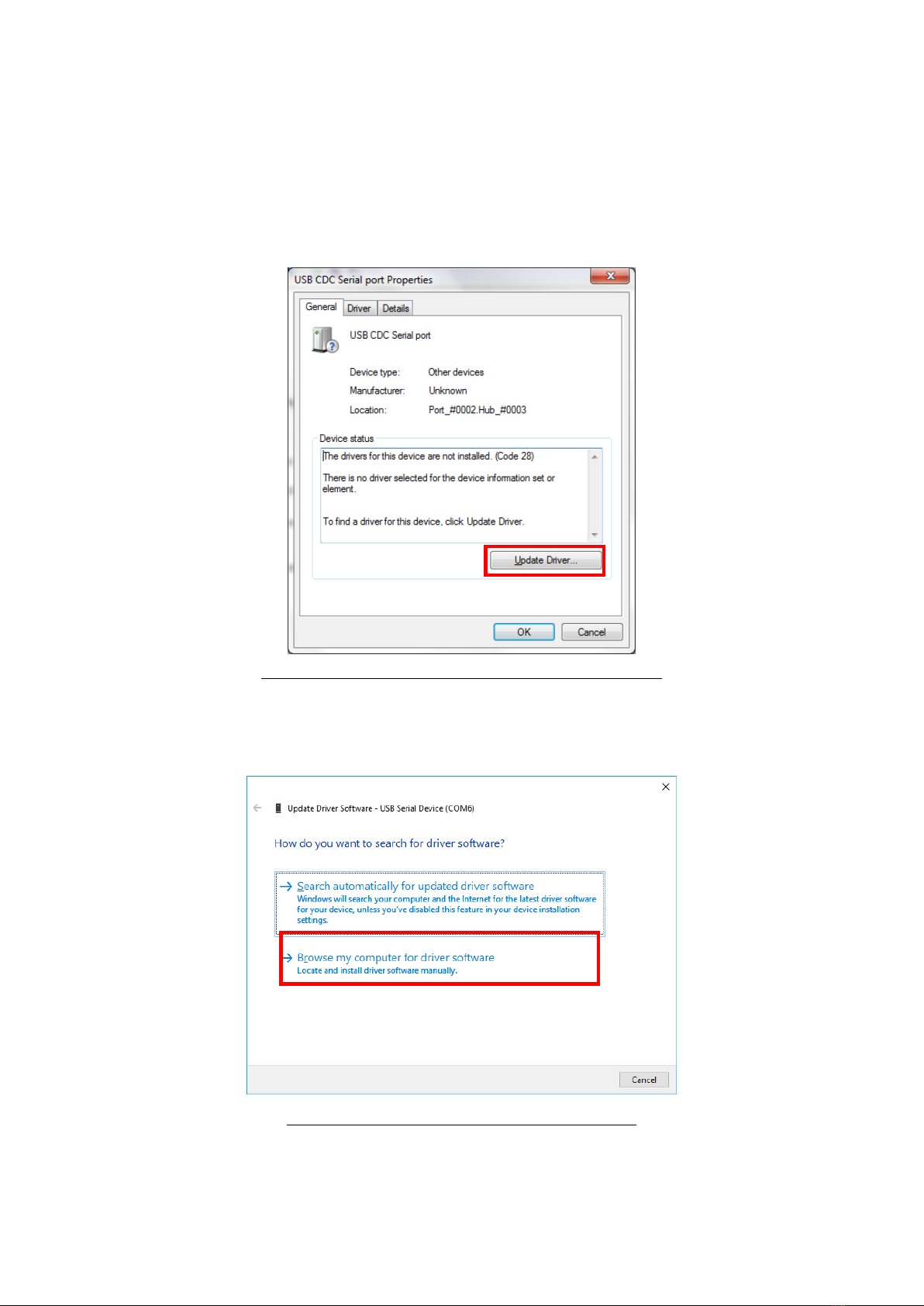

Figure 7. USB CDC Serial port's property" dialog box
(11) On the "Update Driver Software" dialog box, select "Browse my computer for
driver software".
Figure 8. Search for driver software dialog box

12
(12) On the "Update Driver Software" dialog box, press "Browse" button, select the
installation folder of the maintenance console, and click the "Next" button. The
default location of an installation folder is as following depending on the
Operating System of the destination PC.
·For 32bit OS
C:¥Program Files¥OKI¥ MH920 Console International¥USB_Driver
·For 64bit OS
C:¥Program Files (x86)¥OKI¥ MH920 Console International¥USB_Driver

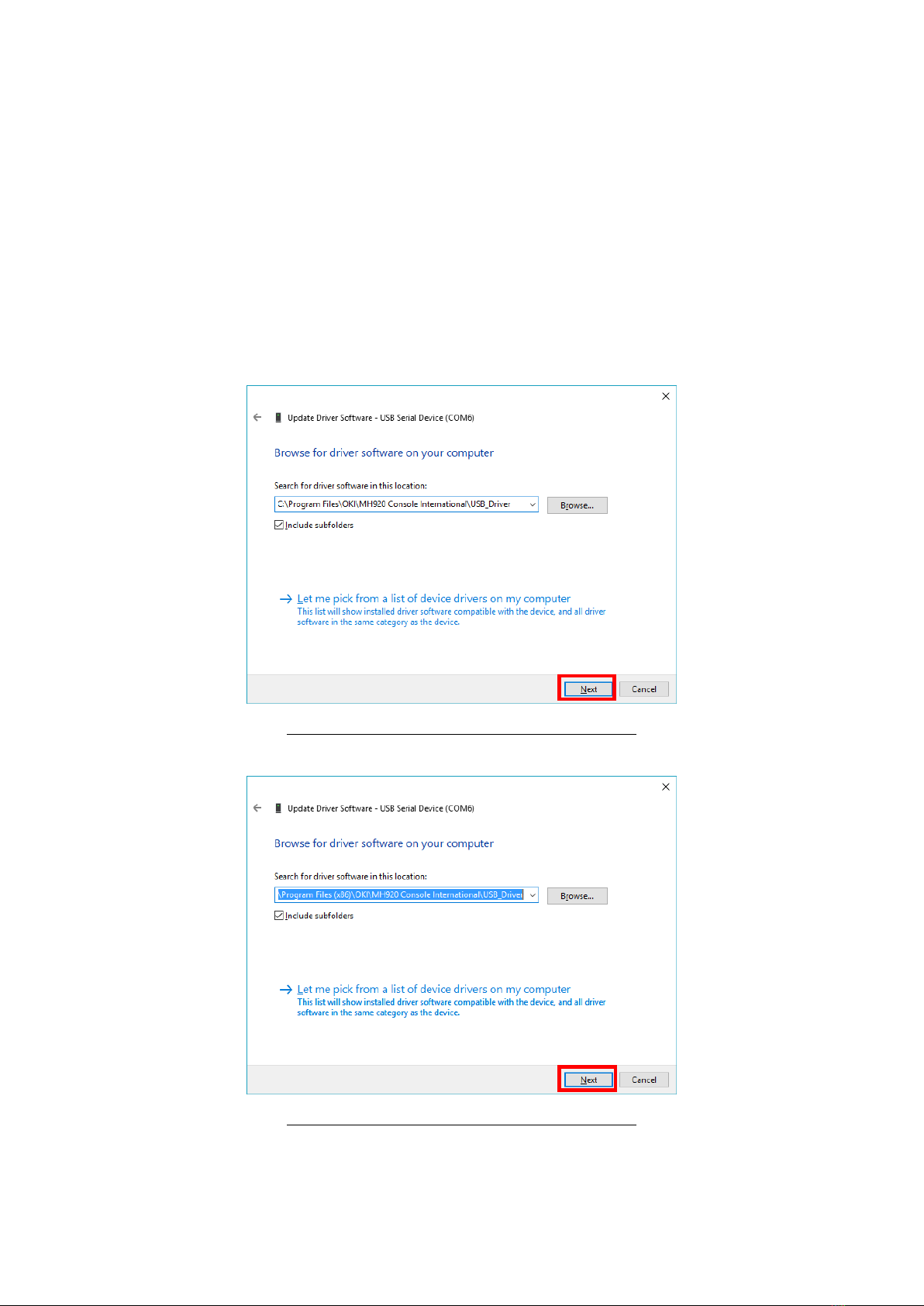

Figure 9-1. Update Driver Software (32bit OS)
Figure 9-2. Update Driver Software (64bit OS)

13
(13) If a security warning is displayed, select "Install this driver software anyway"
and continue installation.

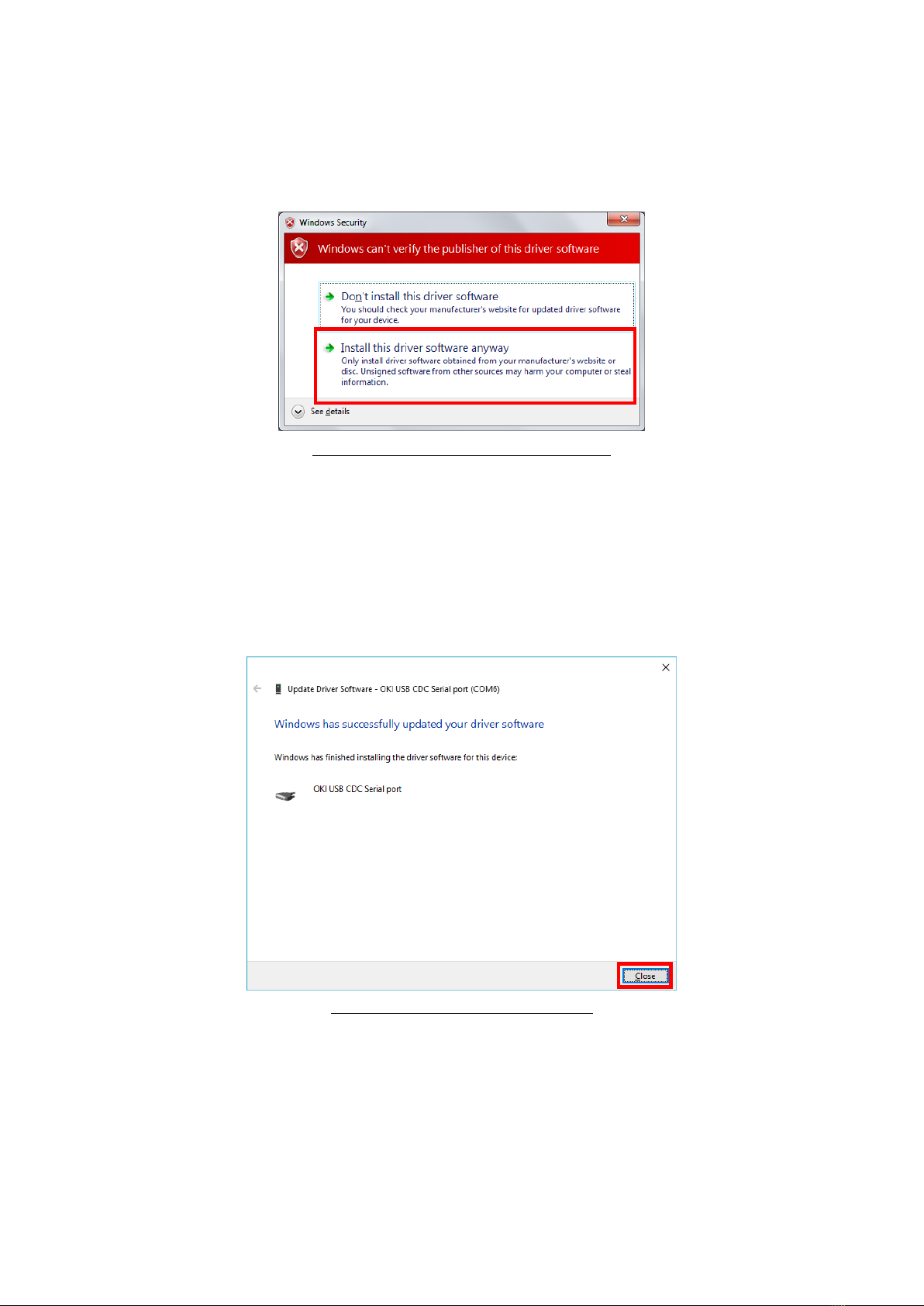

Figure 10. Windows Security dialog box
(14) An "Installing driver" message and an "Installation completed" messages
should be displayed.
(15) On the "Update Driver Software" window, confirm that the driver has been
successfully installed and press the "Close" button.
Figure 11. Update Driver Software

14
(16) Confirm that the port number of "OKI USB CDC Serial port" is displayed in
the "Ports (COM & LPT)" colum of Device Manager window.

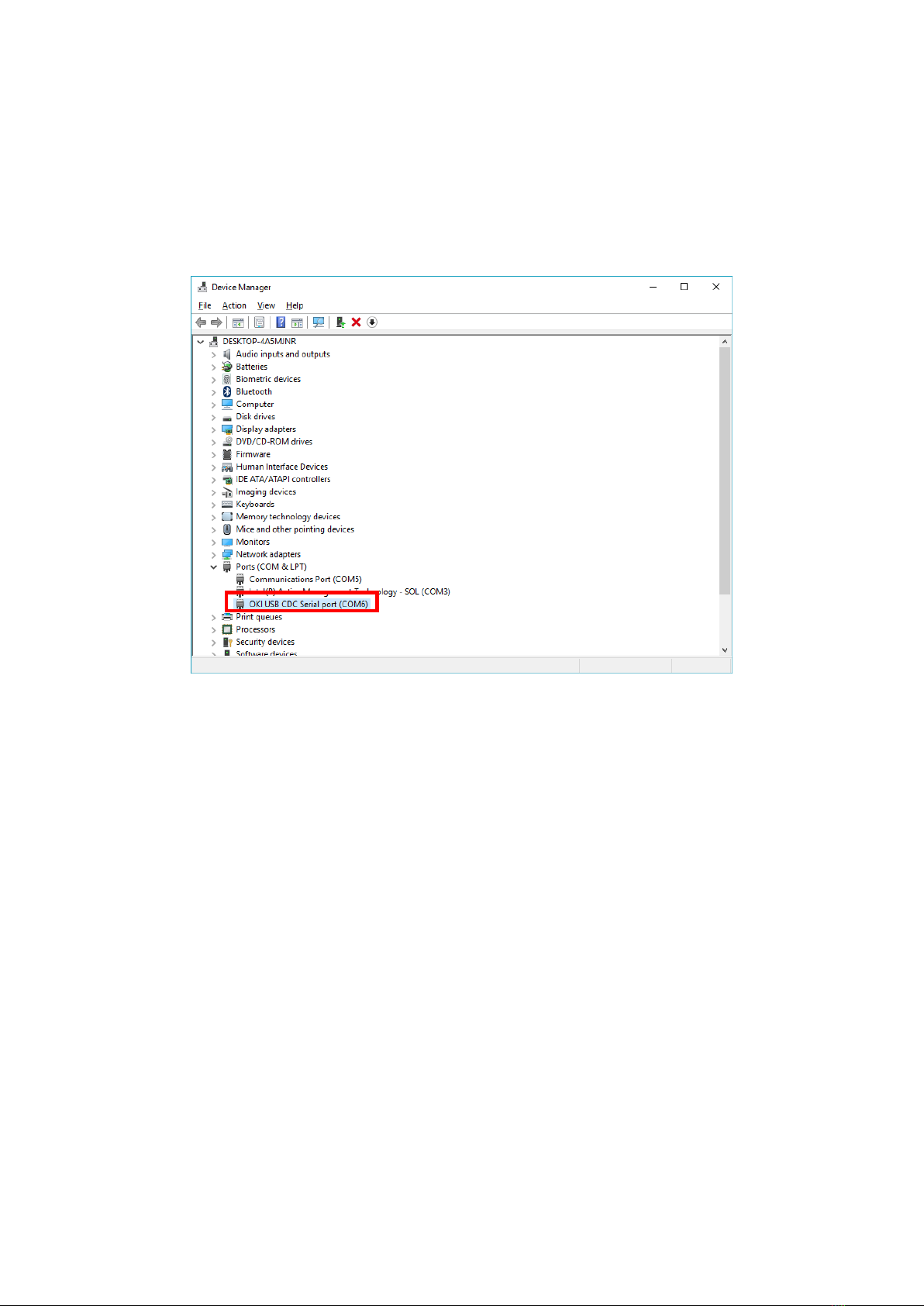

Figure 12. Device Manager
*) When setting up the maintenance console, COM port number should be specified.
Remember the COM port number set in the procedure (16). In case of Figure 12
example, COM 6 in "OKI USB CDC Serial port (COM 6)" is the COM port number.
This concludes the installation of the USB driver.

15
Document No.：MH920-0102-001
Date: October, 2017
Oki Electric Industry Co., Ltd.
