Oprema Bloom HIPPOCRATES 100 User manual
Bloom Technologies d.o.o.
Gospodarska 3
42202 Trnovec
Hrvatska / Croatia
Tel: +385 42 683 373
E-mail: in[email protected]
Web: www.bloom.eu
Original instructions v2 (06/2023)
Code 399004
USER MANUAL
EN
HIPPOCRATES SHELF AND DRAWER MOUNTING
1. Appendix 3 - Shelf mounting instruction
2. Appendix 4 - Drawer mounting instruction
Title
3
Page
5
Table of Contents
EN
2
EN Appendix 3 - Shelf mounting instruction
3
Set components
1234
Step 1.
Unpack set from boxes. Take out inox rack and
screw M4 x 12.
Screw it to the inside of the cabinet. (Figure 1.)
HIPPOCRATES 100 - Inox rack; 535 mm
HIPPOCRATES 250 - Inox rack; 1000 mm
HIPPOCRATES 400 - Inox rack; 1500 mm
Figure 1. Mounting of inox rack
EN Appendix 3 - Shelf mounting instruction
4
Step 3.
Place shelf on top of the inox holders.
Step 2.
Mount inox holders on inox rack. Use 4 holders
per shelf.
Figure 2. Shelf
Figure 2. Mounting of inox holders
EN Appendix 4 - Drawer mounting instruction
5
Set components
EN Appendix 4 - Drawer mounting instruction
6

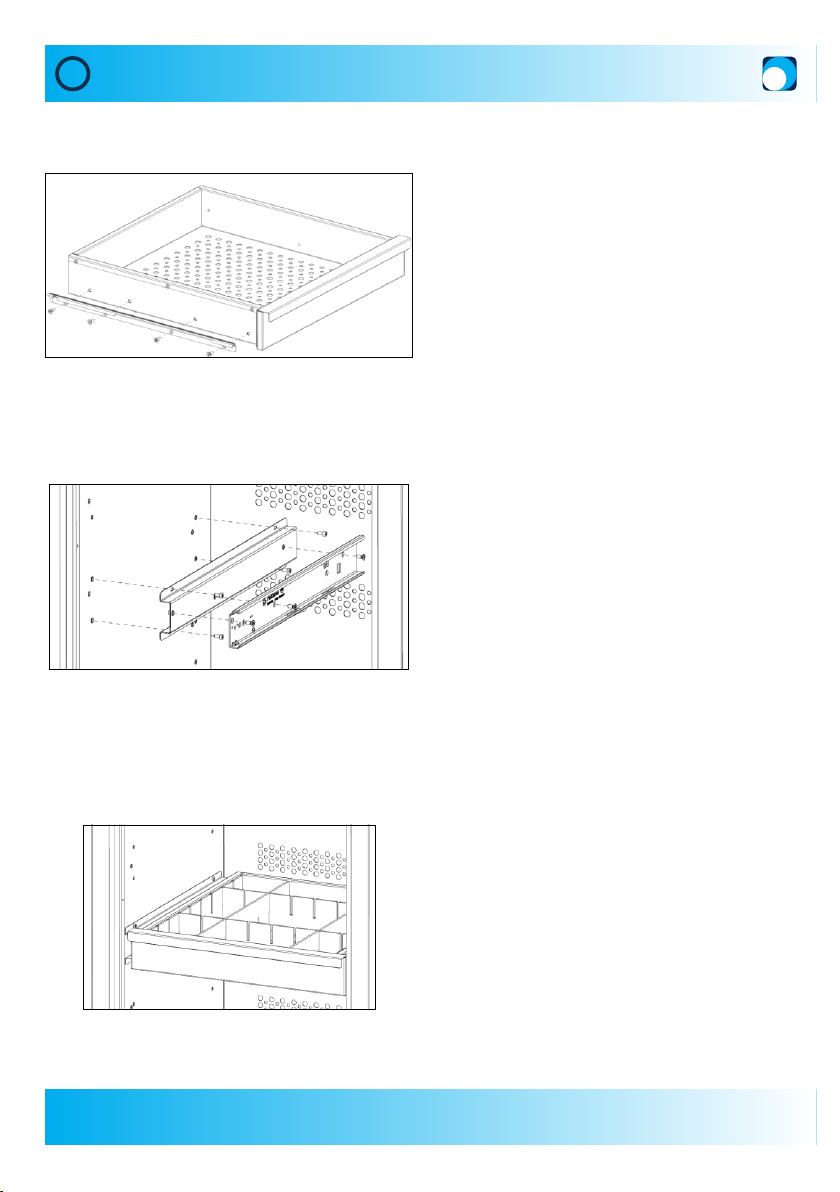

Step 3.
Insert middle profile and push it till the
stop [slide insertion instructions on
next page]. Mount drawer set to the
slides. Use drawer organizer set to
organize drawer to up to 9 smaller
compartments.
IMPORTANT: Slide set contains
mirrored left and right slide!
Step 2.
Mount slide brackets to the other
side of the cabinet. Use number 2
screw M4 x 10 A2 to tighten bracket to
the side. Use number 5 screw
M4 x 10 A2 to mount slide profile
onto brackets.
IMPORTANT: Slide set contains
mirrored left and right slide!
Figure 3. Drawer
Figure 2. Mounting of side bracket
Step 1.
Unpack set from boxes. Take out inox
drawer, slide sets and number 5 screw
M4 x 10 A2. Mount drawer profile on
the sides of the drawer.
IMPORTANT: Slide set contains
mirrored left and right slide!
Figure 1. Mounting of drawer profile
EN Appendix 4 - Drawer mounting instruction
7
