Orchid GT021 User manual

User Guide
GPS Vehicle Tracking Device
Product Overview
Thank you for purchasing portable GPS tracker.It’s for monitoring and protecting vehicle
and property with built-in U-blox GPS and GSM/GPRS technology.It also with strong
magnet in the rear and 12000mA backup battery.
Accessories:
1X Device
1X USB charge cable
1X User Guide
1X Guarantee Card

Hardware Specification:
Content
Specs.
Mainframe Dimension
122*58*22mm
Net weight
278g
GSM frequencies
850/900/1800/1900Mhz
GPRS
Class12,TCP/IP
GPS chip
UBLOX G7020
Voltage range
3.6-4.2VDC
Standby Current
≤2mAh
GPS locating time
cold start=38s warm start=32s hot start=2s
GPS Accuracy
≤ 10m
GPS sensitivity
-159DB
Work environment temperature
-40℃+80℃
Work environment humidity
20%-80%RH
Battery
Chargeable 12000mAh
Device Installation
It is suggested to stick to the iron of the chassis of the car with its strong
magnet.
SIM Card Installation
The SIM card is not included in the package.Any SIM card which support GSM 2G can
work and be available from the user’s local operator.
Note: Before installing the SIM card,please check if the SIM card has PIN code or not,if
yes,please use a cell-phone to unlock the card’s PIN code. And make sure it’s activated
with credits.
Device Charging

For the first time use,please fully charge the battery for around 2-3 hours with the USB
charger.
Turn on the device by Inserting Card
Please insert the SIM card in the right direction. You will see the indicator light
sparkles,then turn off.That means the SIM card inserted successfully.
After normal turn-on, the platform will upload position in 10 minutes and you can log on
the website for checking.
Configuration and Operation by SMS
1.To Set the Center Number
Command: CENTER,000000,phone number#
NOTE:The letters or symbols should be English and the letters should be in capital.
Example:CENTER,000000,0#
※Using your mobile phone,send the above command to the phone number of the
device,it will reply: SET CENTER OK!
2.GPRS Setting
In order to use the GPRS function,the user needs to setup the APN by sending SMS
command.
--what is APN? Access Point name(APN) is the name used to identify a general packet
radio service (GPRS) bearer service in the GSM mobile network. The APN defines the
type of service that is provided in the packet data connection.
※Make sure that the SIM card in the tracker supports the GPRS function.
※The APN can be acquired from your local GSM operators.
Command: APN,APN information,user name,password#
Note:Some APN without user name and password,so please leave it blank.
For example: APN,internet,123,456# (with the user name and password)
APN,internet# (without the user name and password)
※ please set it up when the device can not connect with the web platform or the APP.
※ After sending the command,it will reply:APN OK!

3.Set up the SMS Language
Command:LANG,0# (English)
LANG,1# (Chinese)
※The default language is Chinese.
※This is to set up the language of SMS reply content.
※after sending the command,it will reply:LANG OK!
4.Location request
4.1 Reply with coordinates and web link
Command:URL#
The device will reply:the IMEI No,the date,the time,the map link,the
longitude and latitude
Example:3568xxxxxxx2219<01-03 14:59:43>
http://maps.google.com/maps?q=N22.669534,E114.011888
※Put the coordinates to Google earth or Google maps,click on search button,then you
will find the position.
※Click on the link then the location can be shown directly on Google Map on your mobile
phone.
5.Over-Speed Alert
Command: OS,80# (80 is the set-up speed)
OS,OFF# (turn off this function)
※this is to turn on/off the over-speed alarm,speed unit:km/h
※speed range:30-180km
※this function is off by default setting.
※after sending the command,it will reply:OS OK!
6.Listen-in (Voice Monitoring)
Command: JT# (turn on the function)
JT0# (turn off the function)
※ Please call the mobile number in the device, then you can hear what happened
around the tracker after you get the SMS reply when turning on this function.
7.Checking Settings
Command:ST#
※The device will reply:
IMEI：888xxxxxxxxx888
VA：0 (Vibration alarm on/ff)
OS: 0 （Over speed alarm on/off）

LA：0（Light perception alarm on/off）
HBT：3(Heartbeat packet time)
LANG:1（language）
JT:OFF(Voice Monitoring on/off)
GMT：E8 (time zone)
Command:QP#
※The device will reply :
IMEI:3568XXXXXXXXX90
APN:cmnet
IP:b.gps903.net/7700
LMT,0#
CENTER:
SOC4：0
GSM:100
GPS:FIXED
BAT:3.9
8.Reboot device
Command:RESET#
※The device will restart itself without changing any settings.
9.Initialization
Command:RFS#
※This is to make all settings back to the factory default,except the IP.
※Only the center number has the right to operate.
※please caution to use.
10.Working Modes
Command:WKMD,2# (sleep mode)
WKMD,1# (SMS mode)
WKMD,0# (safe mode)
※ the default mode is SMS mode.
11. Anti-Fall off Alarm & Light Alarm
Command:LA,ON# ( alarm by SMS and Web Platform)
LA,OFF# ( alarm off)
※Auto-reply:LA SET OK!
※When the device falling off and the light sensor sensing the light,it will alarm SMS.

How to Connect Device to the Platform for real time tracking via GPRS
Check through PC
Web Platform : www.gps903.net (International)
Account: Device IMEI (at the back of the device cover))))
Original passwords: 123456

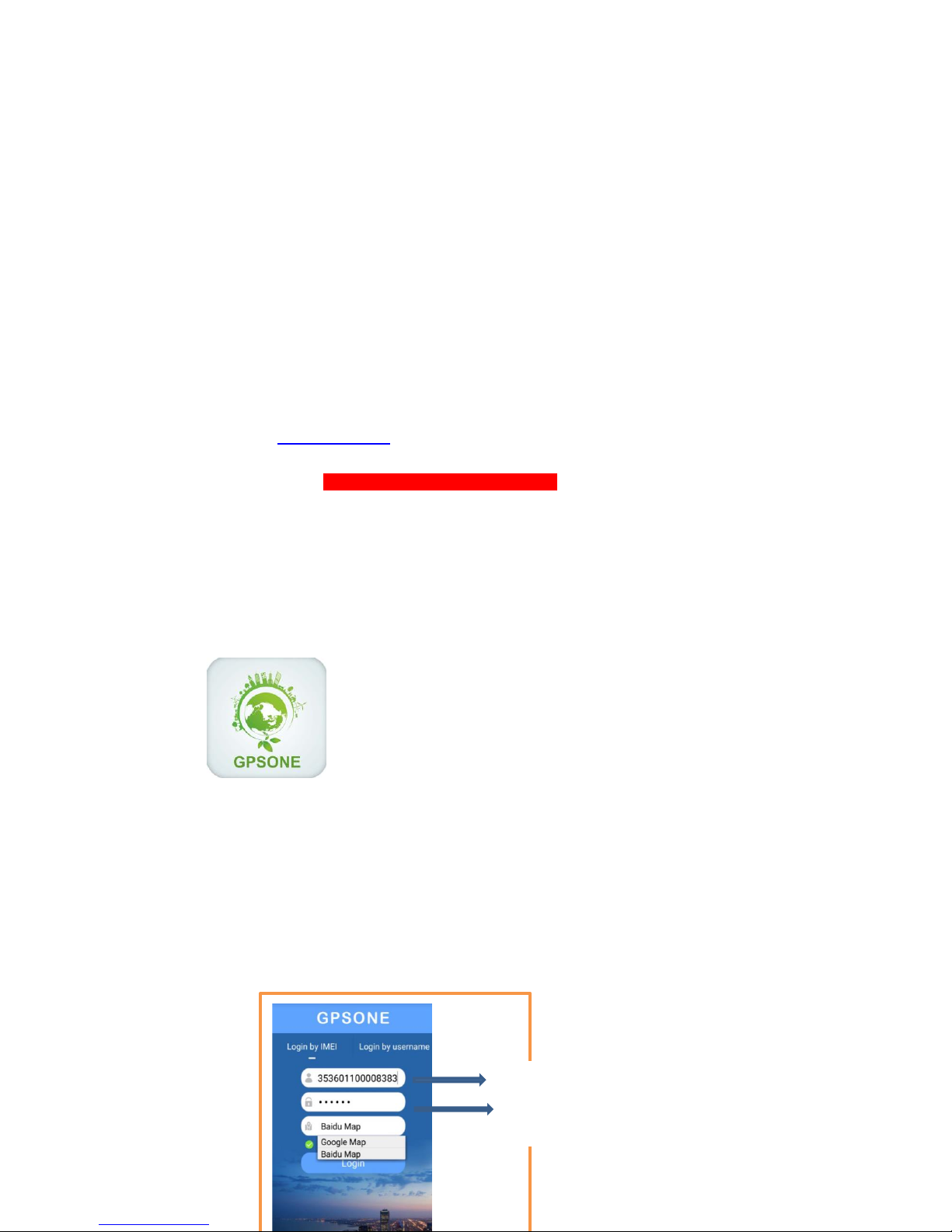

Operations of APP in a Cellular Phone
APP NAME: GPSONE
※please search it in the IOS app store or Google play store or scan the QR code from
the web platform
※please login the app as following:
IMEI serial number
初始密码：123456
passwords: 123456

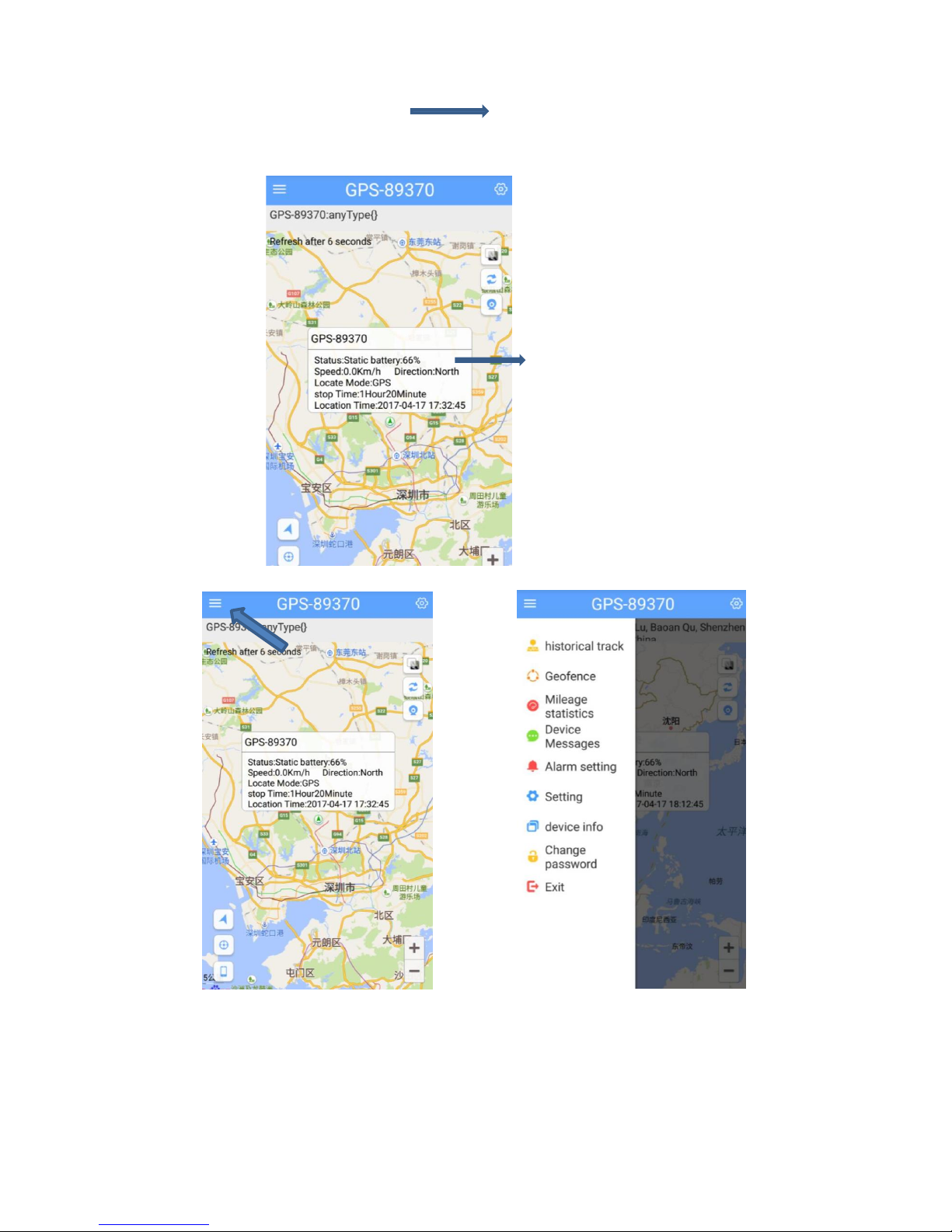

choose the maps

The remaining battery (FYR)
More functions are available after log-in

Note:Only when there is a certain distance between the phone and the GPS device,the
location will show up respectively.

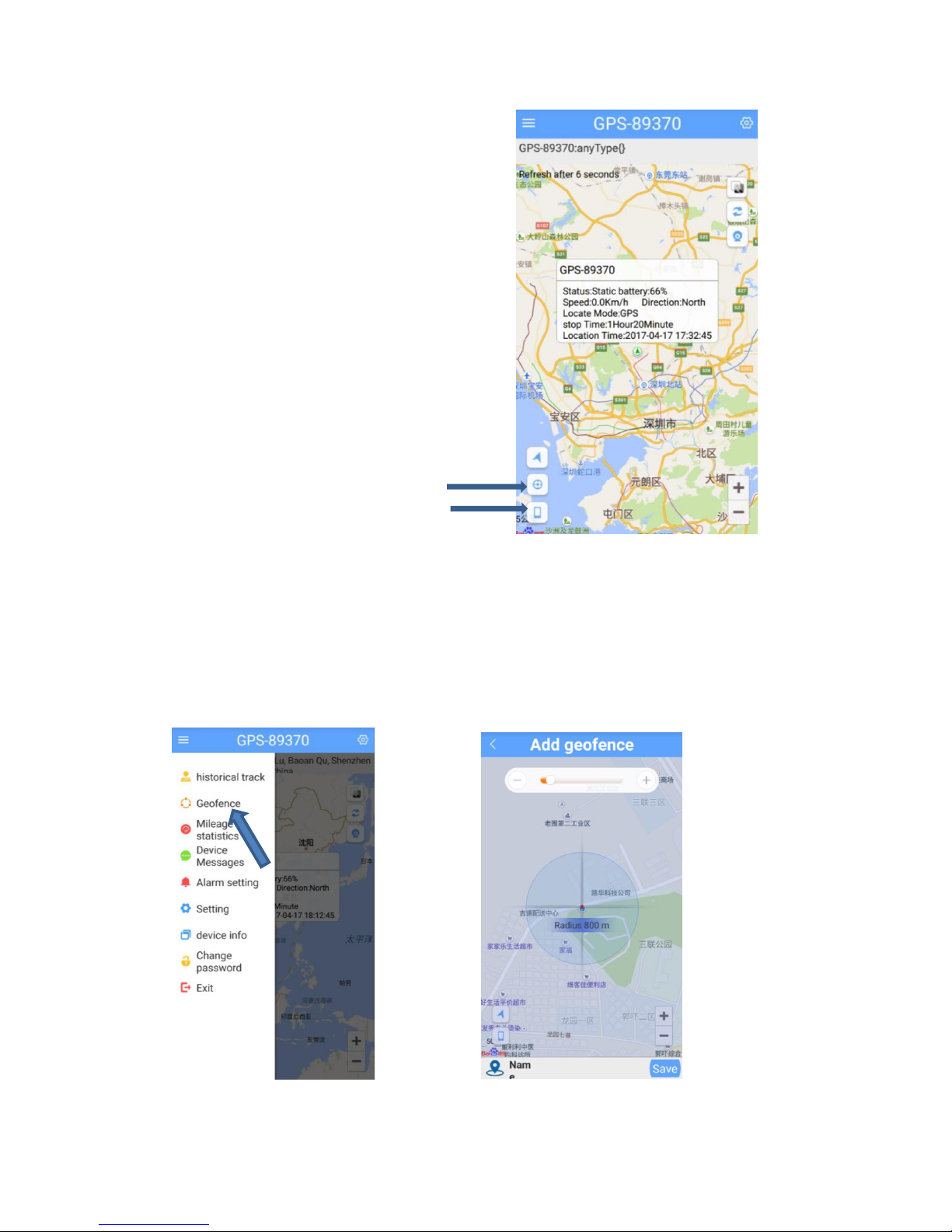

Geo Fence
An electronic fence can be set up after log-in APP or PC. Then you can check the
messages from the device messages.
Click to get the device’s location
Click to get the Cellular’s location

Cautions:
Please comply with the instructions to extend the unit life:
1.Don’t use & store the unit in dusty places.
2.Don’t put the unit in overheated or over cooled places.
3.Clear the unit with a piece of dry cloth. Don’t Clean in chemicals,detergent.
4.Don’t disassemble or refit the unit.
5.Using other batteries will cause unwanted situation.
