OXS Dolby Atmos S5 User manual


S5
User Manual
3.1.2 Dolby Atmos Soundbar
Before using the machine, please read the instructions carefully and keep them for future reference.


Attention
To prevent electric
shock, do not open it.
This symbol indicates the presence of
an internal high voltage. It is very
dangerous to touch any part inside the
product in any way.
This symbol reminds you that this
product is accompanied by important
instructions on operation and
maintenance.
Class II Products: This symbol
represents it
Safety grounding (connecting the
ground wire) is not required.
If the symbol does not appear on a
product with a power cord
The article "must" have a reliable
connection to a safety ground wire
(ground).
Safety information
Safety warning
To prevent electric shock, do not open the
back plate. There are no internal parts that
can be repaired by the user. If maintenance
is needed, please have special service
personnel carry out maintenance.
See the table below for a description of the
symbols that may appear on your OXS S5
products.
AC Voltage: This symbol
indicates that the rated
voltage shown with this
symbol is AC voltage.
DC Voltage: This symbol
indicates that the rated
voltage shown with the
symbol is DC voltage.
Note Reference:
Instructions: This symbol
directs the user to refer
to the instructions for
more security related
information.
Warning
Do not expose the unit to rain or
wet places to avoid fire or electric
shock.
The equipment is only used for
information technology audio and
video equipment and indoor use.
Do not disassemble if there is
dangerous voltage. Do not expose
the equipment to rain and humidity.
Do not expose the equipment to
places where it may come into
contact with liquids (dripping,
splashing, under a vase, for
example).
This product is suitable for use only in
non-tropical climates.
It is only suitable for safe use in areas
below 2000 meters above sea level.


Matters needing attention
1.Make sure the AC power supply in your house
meets the power requirements listed on the label
sticker at the bottom of the product. Please mount
the product horizontally on the appropriate base
(furniture) and leave enough ventilation space
around 7~10 cm.Make sure the vents are not
blocked. Do not place the device on power
amplifiers or other devices that will generate heat.
This equipment can be used continuously. To
safely disconnect the device from the power
supply, unplug the alternating current power plug
from the wall socket. If you will not use the device
for a long time, please unplug it.
2. In thunderstorm weather, unplug the AC power
plug from the wall socket. Voltage spikes caused
by lightning can damage equipment.
3. Do not expose the equipment directly to the
sun or other heat sources. This may cause the
equipment to overheat or malfunction.
4. The product should avoid contact with damp
(such as vase), overheat (such as fireplace) or
equipment that will produce strong magnetic field
or electric field. If the equipment fails, unplug the
power cord from the AC power supply. This
product is not intended for industrial use, but for
personal use. Condensation may occur if the
product is stored at low temperature. If the
equipment is transported indoors during the
winter, it will take approximately 2 hours for the
equipment to reach the indoor temperature before
use.
5. The battery used in this product contains
chemicals harmful to the environment. Do not
dispose of batteries as general household
garbage. Do not expose the battery to the sun,
flame and other places with high temperature. Do
not short-circuit, disassemble or overheat the
battery. This can be dangerous if the battery is not
replaced properly. Only the same or the same
type of battery can be replaced
Clean
Warning
Before cleaning, be sure to turn off the
system and unplug the power adapter from the
power outlet.
Immediately remove any dust or stains from
the surface of the product.
Stains or old stains on certain materials may be
difficult to remove and clean.
Pay attention to
Use vacuum cleaner or removable
adhesive roller brush to remove dust,
hand marks and other stains.
– Depending on the material used,
some cleaning brushes may damage
the product.
– Towels and cleaning clothing may
leave cloth or dust on the product.
Do not use fingernails or other tools to
scrape dust. This may damage the fabric.
To remove oil or water stains, wipe with a
clean white cloth dipped in water. If there
are stubborn stains, please use a clean
cloth with a neutral detergent diluted with
water (such as detergent) to wipe.
– Non-neutral cleaners or stain
removers may cause discoloration
or fabric damage.
– After cleaning, use a dry cloth to dry
or blow dry the clean area.
– Do not exert too much force, so as
not to cause the fading of the
product or fabric damage.


Directory
S5..........................................................................................................................................................................1
3.1.2 Dolby Atmos Soundbar..........................................................................................................................1
1.Check the components............................................................................................................................1
2.Overview of the product...........................................................................................................................2
Top panel of Soundbar.............................................................................................................................2
Soundbar interface panel.........................................................................................................................3
3.Remote Control.........................................................................................................................................4
Key Instructions for Remote Control......................................................................................................4
Output configuration for different sound modes...................................................................................6
4.Connect the subwoofer and rear surround speakers..........................................................................7
Connect power and device......................................................................................................................7
5.General Operations..................................................................................................................................7
LED Screen activity..................................................................................................................................8
Adjusting the Volume................................................................................................................................8
6.Use a cable connection to the TV...........................................................................................................8
Method 1. Connecting through HDMI....................................................................................................9
Method 2. Connecting through optical cable......................................................................................10
7.Use a wireless connection to the TV....................................................................................................11
Disconnecting sound bar from TV........................................................................................................12
Note about Bluetooth connection.........................................................................................................12
8.Connecting external devices.................................................................................................................13
Method 1. Connecting with HDMI Cable (Dolby Atmos decoding and playback).........................13
Method 2. Connecting with optical cable.............................................................................................14
9.Connecting mobile devices....................................................................................................................15
Mode 1. Connecting via Bluetooth.......................................................................................................15
10.USB Playback......................................................................................................................................17
11.Wall-mounted Sound bar...................................................................................................................18
12.Trouble Shooting.................................................................................................................................19
13.The license...........................................................................................................................................21
14.Legal &Compliance.............................................................................................................................22
15.Important notes on maintenance......................................................................................................23
16.Warranty...............................................................................................................................................23
17.Specifications.......................................................................................................................................24


1/30


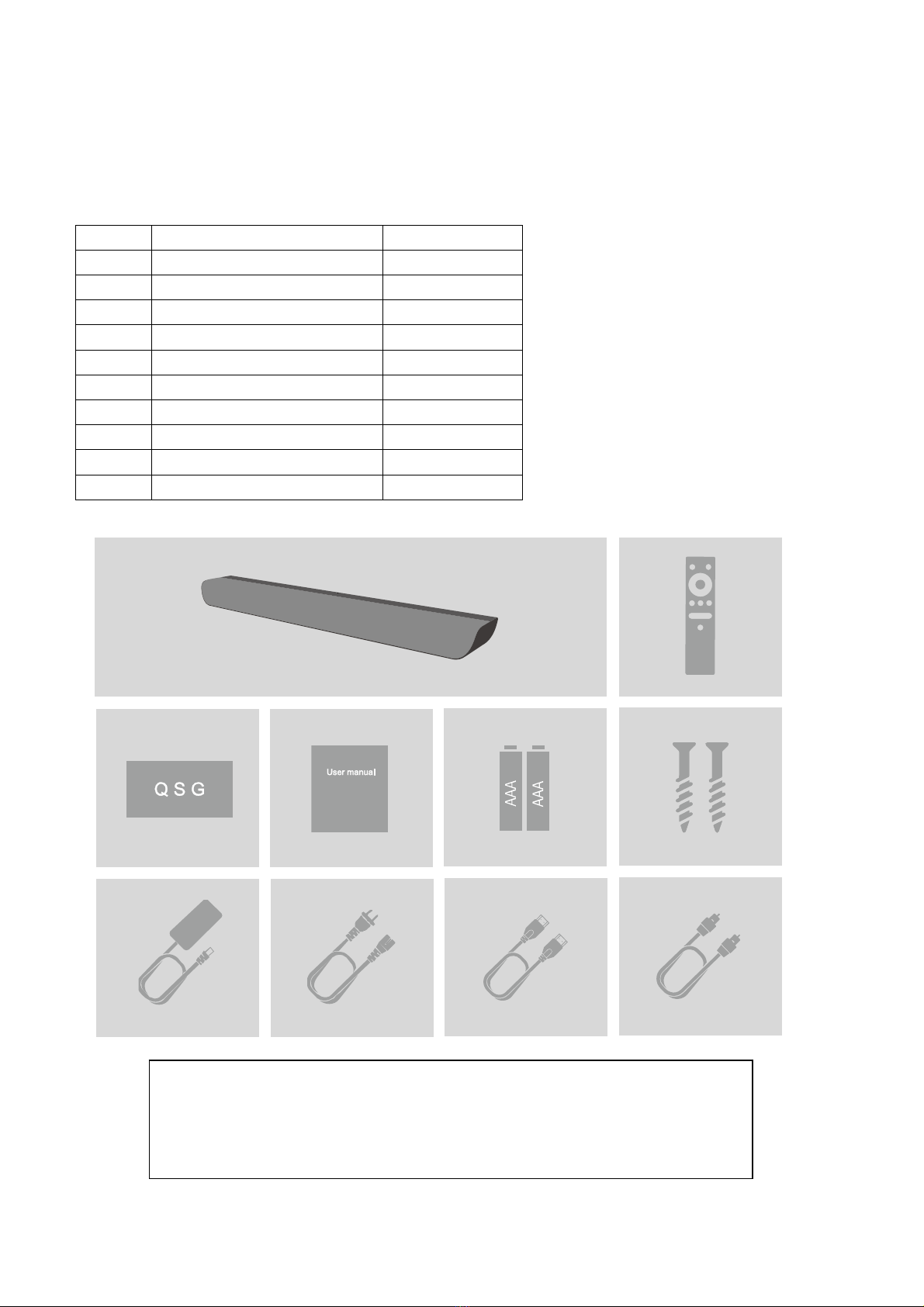

1. Check the components
No Unit Quantity
1. Soundbar 1
2. remote control 1
3. AAA Battery 2
4. Power cord 1
5. Power cable 1
6. Optical fiber line 1
7. HDMI cable 1
8. Wall mount screws 2
9. User manual 1
10. Quick Start Guide 1
• For more information about power supply and power consumption, see the label that
comes with the product. (Label: Label of active host)
• Design, specifications and application screens are subject to change without prior notice.
• The attachment may look slightly different from the one shown above.
X1 X1 X1 X1
X1 X1 X2 X2


2/30

2. Overview of the product
Top panel of Soundbar
1Standby button
In standby mode, press the standby button to turn on speaker system
2Volume up button and down button
Adjust the volume
3Audio source selection button
TV->HDMI1->-USB->Optical->BT->AUX
4 Bluetooth
Switch to Bluetooth source, or Bluetooth pairing
5display
Displays system status and current mode.
When plugged into the power supply, the power button will start working within 3 seconds.
When you turn the device on, there is a delay of about three seconds before it makes a sound.
If you hear sound from both the TV and the active main speaker, go to the TV Audio Settings menu and change the TV
speaker to the external speaker.


3/30

Soundbar interface panel
1DC
Connect the DC power supply to the speaker system.
2Aux
Connect external analog audio inputs.
3USB
For USB Playback and after sale service only.
4
5
OPT
Digital (optical cable) output connected to external devices. (see page XX)
HDMI1
Use HDMI cable to input digital video and audio signals simultaneously. Connect to the HDMI
output of external devices. (See page XX)
6HDMI Out ( eARC/ARC)
Connect to the HDMI jack on your TV.(see page XX)
• When unplugging the power cord from the wall socket, unplug the plug. Do not pull the power cord.
• Please connect this device or other components to a DC socket after completing all connections between components.


4/30 

3. Remote Control
Key Instructions for Remote Control
1
Turn on and off the soundbar.
• Auto Standby will automatically shut down in the following
cases:
In AUX /OPT/ TV/HDMI /BT mode, up to 15 minutes if no
audio signal is present.
In standby mode, press the standby button to run the
speaker.
2
You can select Standard, Voice, Music, Cinema, and Night
to set the desired sound mode.
• STANDARD
Output standard sound.
• VOICE
Provides a more enhanced sound field than the
human voice in standard Settings.
• MUSIC
Provide music mode sound effects.
• CINEMA
Provides sound effects in cinema mode.
• NIGHT
Provides night mode sound effects to reduce sound
intensity and improve subtlety and softness.
3
Press the indicated area to select Up/Down/Left/Right/OK
Press up/down/left/right/OK on the button to select or set
the function.
• Skip the music
Press the right button to select the next music file.
Press the left button to select the last music file.
• Play to suspend
4SOURCE
Press to select the signal source connected to the speaker



5/30 

system.
5
If pressed, the Settings items are displayed in order, such
as BASS, TREBLE,CENTER LEVEL,
FRONT TOP LEVEL and sync. You can use left/right keys
to adjust the desired items.
– To control the volume of TREBLE or BASS, select
Treble or Bass in the Sound Settings, and then use the
Up/Down buttons to adjust the volume between -6 and
+6.
– To control the volume of each speaker, select it in the
Sound Settings
Center Level, and Front Top Level, and then use the
Up/Down buttons to adjust the volume between -6 and
+6.
– If the video on the TV is out of SYNC with the sound
from the active home speaker, select Sync in Sound
Control and then set the audio delay between 0 and
200 milliseconds by using the up/down buttons.
– Sync is supported only for HDMI functionality.
6
The volume increase
7
The volume decreases
8
Mute and de-mute.
9
Adjust the bass volume to between -6 and +6
10
Adjust the bass volume to between -6 and +6


6/30

Output configuration for different sound modes
For the input
source
Dolby
Atmos,
the SOUND
MODE
that can
be selected
using
the Sound
Mode
button
will no
longer
be
available.(See above for more information on sound modes.)
When the input source is Dolby Atmos®, the output is 3.1.2 channel
Use the TV remote control to adjust the volume of the soundbar
Use the TV remote control to adjust the volume of the soundbar.
Set the TV speaker as the external speaker to use this feature.
Manufacturers supporting this feature: LG, Sony, Sharp, Philips, Panasonic, Toshiba, Hisense, TCL.
SOUND MODE INPUT Source S5 output
STANDARD 2.0 channel 2.1 channel
5.1 channel 3.1 channel
7.1 channel 3.1 channel
3.1.2 channel 3.1.2 channel
VOICE 2.0 channel 2.1 channel
5.1 channel 3.1 channel
7.1 channel 3.1 channel
3.1.2 channel 3.1.2 channel
MUSIC 2.0 channel 2.1 channel
5.1 channel 3.1 channel
7.1 channel 3.1 channel
3.1.2 channel 3.1.2 channel
MOVIE 2.0 channel 3.1.2 channel
5.1 channel 3.1.2 channel
7.1 channel 3.1.2 channel
3.1.2 channel 3.1.2 channel
NIGHT 2.0 channel 2.1 channel
5.1 channel 3.1 channel
7.1 channel 3.1 channel
3.1.2 channel 3.1.2 channel


7/30

4. Connect the subwoofer and rear surround speakers
Connect power and device
Please use the power cord to connect thesoundbar speaker to the power outlet in the following order:
See the label that comes with the product for more information about the power supply required and power
consumption.
(Label: Label of the thesoundbar)
1. There will be sound bar connected to the power supply.
NOTE:
If you unplug and reconnect the power cord when the product is turned on, the soundbar will turn on
automatically.
5. General Operations
When you first connect the unit to the Power outlet, the unit will be in STANDBY mode. Sound bar’s
screen show " --".
1. Press on the unit or the remote control to switch the unit to ON mode. The sound bar screen display
current source input.


8/30

2. Press again to shut down. System will go to Standby mode. In STANDBY mode sound bar’s screen
show "--" .
3. If no input, no operation and silent state after 10 minutes, sound bar goes into Standby automatically.
4. Disconnect the mains plug from the Power outlet if you want to switch the unit off completely.
LED Screen activity
Bluetooth
Bluetooth mode: the screen display"BT"
Bluetooth is pairing: the screen display"PAIRING"
Bluetooth is paired: the screen display"PAIRED"
AUX IN: the screen display"AUX"
Optical: the screen display"OPT"
HDMI: the screen display"HDMI"
ARC: the screen display "ARC"
USB: the screen display "USB"
Adjusting the Volume
Master Volume
Press VOL+/-on the unit or the remote control to adjust the volume( Volume range 0-100).
If you wish to turn the sound off , press mute on the remote control. Press mute again to resume normal
listening.
BASS Level
Short press BASS +/ BASS - on the remote control to adjusting BASS level (level range -6 to 6).

6. Use a cable connection to the TV


9/30 


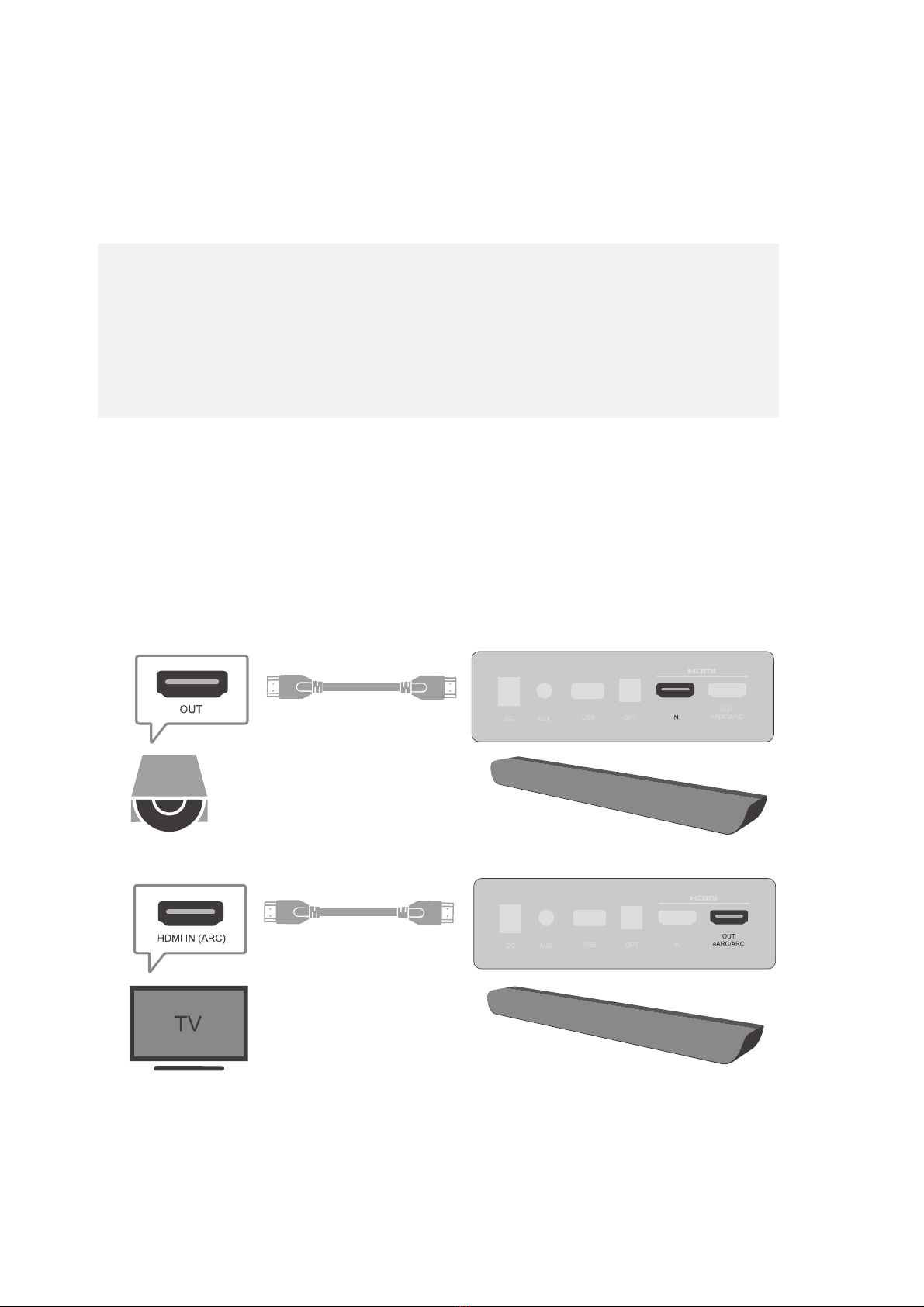

Method 1. Connecting through HDMI
Connect to a TV that supports HDMI ARC (Audio Return Channel)
1. After turning off the soundbar and TV, connect the HDMI cable as shown in the picture.
2. Turn on the soundbar and TV.
3. "TV" appears on the display screen of the main active speaker, and the soundbar plays TV sounds.
If there is no TV sound output, press the (multifunction) button on the top of the active home speaker or the
(signal source) button on the remote control to select the audio source input mode. The screen displays "TV"
in sequence and plays TV sounds.
When you connect to an EARC-enabled TV, "EARC" will appear on the screen and a sound will be heard.
To use the eARC connection, the eARC function in the TV menu should be set to on. Refer to the TV User's
Manual for more information about the setup.
If "TV" does not appear in the display of soundbar, verify that the HDMI cable is connected to the correct port.
Use the volume button on the TV remote control to change the volume on the active home speaker.
Attention
When both the HDMI cable and the cable are connected, the HDMI signal is received first.
To connect the HDMI cable between the TV and the soundbar, make sure to connect the
terminals marked ARC or eARC. Otherwise, the TV sound may not be output.
Be sure to use a cable with an advanced HDMI certification mark.


10/30 

Method 2. Connecting through optical cable
1. Optical cable is used to connect the OPTICAL port on the speaker interface board and the OPTICAL output port on the
TV with the TV and the active home speaker off.
2. Turn on the soundbar and TV.
3. Select "Opt" mode by pressing the (Multifunction) button on the top of the active home speaker or the (Source) button
on the remote control.
4. TV sound is output from the soundbar.
Check before connection
When both the HDMI cable and the cable are connected, the HDMI signal is received first.
When you are using cable and the terminals have a cover, be sure to remove the cover.


11/30 

7. Use a wireless connection to the TV
Mode 1. Connecting via Bluetooth
When using Bluetooth to connect to the TV, you can hear the stereo sound without wiring.
Only one TV can be connected at a time.
You can connect to a Bluetooth-enabled TV. Check the specs of your TV.
1. Long Press the Source button on the remote control under the BT source to enter the "PAIRING" mode.
a). Press source selection button on the top panel, and then select "BT" mode
"BT" automatically changes to "PAIRING" in a few seconds or to "BT" flicker if there is a connection record.
b). If "BT" appears and doesn’t blink. A device has already been connected to the soundbar via Bluetooth. To
disconnect the current device, long press Bluetooth button on the top panel of the soundbar for more than
3seconds to display "PAIRING".
2. Select Bluetooth mode on your TV.
3. Select "OXS S5" from the list on the TV screen.
The sound bar available are indicated as "required to pair" or "paired" on the TV Bluetooth device list. To connect
the TV to the soundbar, select the message and then establish the connection.
When the TV is connected to the mobile device, the top display will be fixed "BT".
4. You will now be able to hear the TV sound from the soundbar. The sound bar supports active reconnection after you first
disconnected from the TV.


12/30

Disconnecting sound barfrom TV
Long press Bluetooth button on the top of sound bar or the (source) button on the remote control.
Disconnection takes some time because the TV must receive a response from the soundbar.
(The time required may vary, depending on the model.)
Note about Bluetooth connection
Find new devices within 1 meter via Bluetooth communication.
Enter <0000> if a PIN code is required when connecting a Bluetooth device
In the Ready state, the soundbar automatically shuts down after 15 minutes
The soundbar may not perform a Bluetooth search or connect properly under the following circumstances
– There is a strong electric field near the soundbar.
– Several Bluetooth devices are paired simultaneously with the active home speaker.
– The Bluetooth device is off, out of place, or malfunctioning.
Electronic equipment may cause radio interference. Devices that generate electromagnetic waves must be kept away
from the host of the active host speaker - e.g. microwave ovens, wireless LAN devices, etc.
If the device connection fails
If you already have an active host speaker on your TV's speaker list (such as the OXS S5),
remove it.
Then repeat steps 1 through 3


13/30

8. Connecting external devices
Method 1. Connecting with HDMI Cable (Dolby Atmos decoding and playback)
1. Use an HDMI cable to connect the HDMI OUT port on the external device and the HDMI port on the back of the active
home speaker.
Check the list before connecting
Dolby Atmos® is supported in HDMI mode only.
If the audio output option includes Auxiliary Audio, be sure to set Auxiliary Audio to Off.
Make sure the content supports Dolby Atmos®.


14/30

2. Use an HDMI cable TO connect the HDMI IN port on the TV and the HDMI TO TV (EARC /ARC) port on the back of
the active home speaker.
3. Turn on active speakers, TVs, and peripherals.
4. Select "HDMI” modes by pressing the (source) button on the top of the active home speaker or the (Source) button on
the remote.
5. The display indicates that "HDMI” modes are currently selected, and the sound bar will start playing sounds.

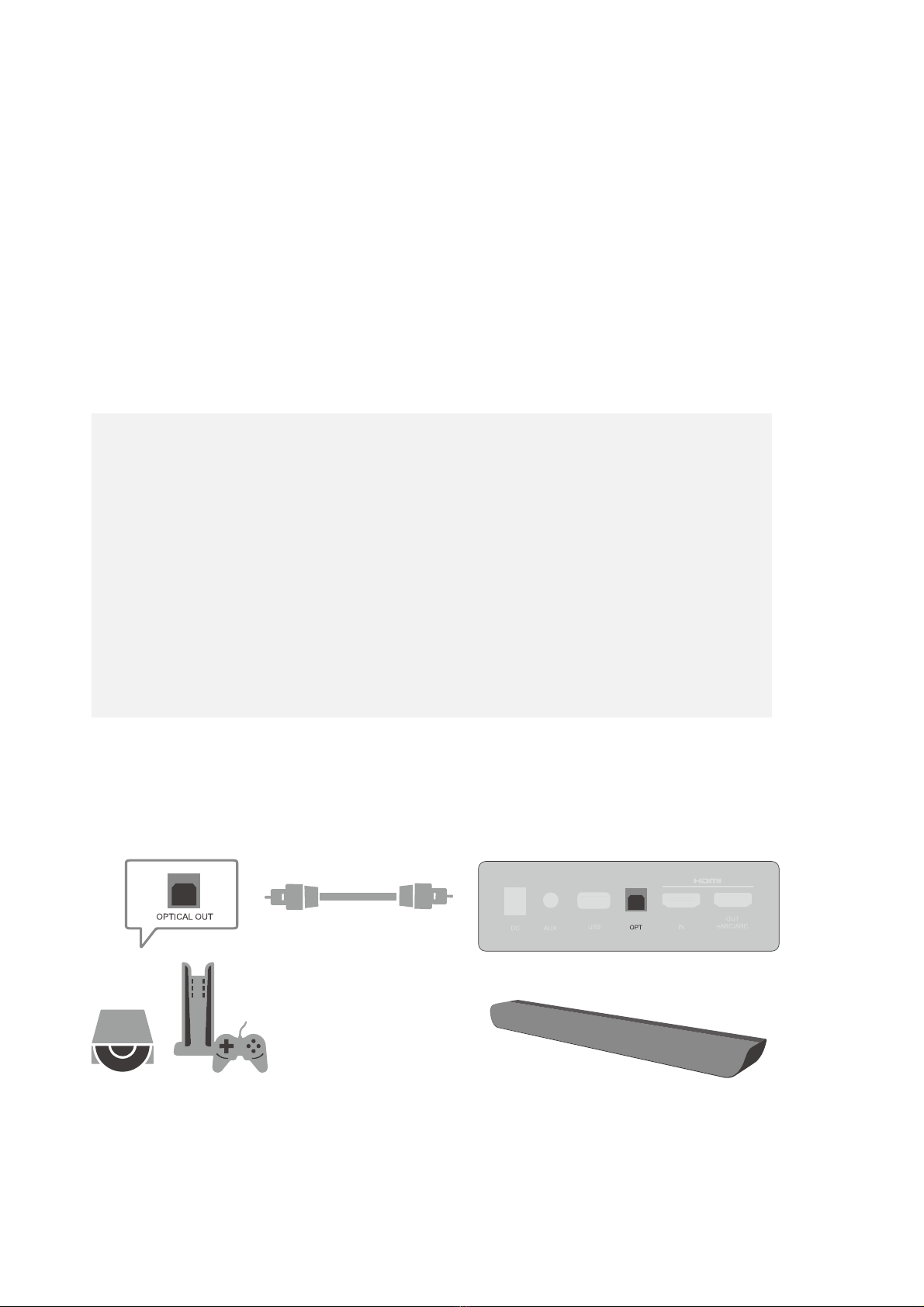

Method 2. Connecting with optical cable
1. Use optical cable to connect the “Digital Audio In (Optical)” on the back of the soundbar and the “Optical Out” port on
the external device.
NOTE
When you use Dolby Atmos® : 3.1.2 channels will be output if the input source is Dolby
Atmos®.If Dolby Atmos® is activated, the sound effect mode of the active home speaker is
not available.
When Dolby Atmos® is activated, the top display displays "Dolby Atmos".
Configure Dolby Atmos® on your BD player or other device.
Open Audio Output Options on the Settings menu of your BD player or other device and
make sure No Encoding is selected for Bitstream. For example, on the BD player, go to the
Main menu →Sound →Digital Output, and then select Bitstream (Unprocessed).



15/30 

2. Turn on the soundbar and external devices.
3. To select "OPT" mode, press the (source) button on the top of the soundbar or the (source) button on the remote
control
4. Your soundbar will play sounds from external devices.
9. Connecting mobile devices
Mode 1. Connecting via Bluetooth
When using Bluetooth to connect a mobile device, you can enjoy a wireless stereo experience.
When connecting to a new Bluetooth device, make sure the device is within 1 meter.


16/30

1. Long Press the Source button on the remote control under the BT source to enter the "PAIRING" mode.
(or)
a). Press the Bluetooth button on the top panel, and then select "BT" mode
"BT" automatically changes to "PAIR" in a few seconds or to blinks "BT" if there is a Bluetooth connected before.
b). If "BT" appears and doesn’t blink. A device has already been connected to the soundbar via Bluetooth. To
disconnect the current device,long press Bluetooth button on the top panel of the soundbar for more than 3seconds
to display "PAIRING".
2. On your device, select "OXS S5" from the list that appears.
• When the Soundbar is connected to the mobile device, the top display will be fixed to display "BT".
3. Play music files from a device connected to soundbar via Bluetooth.
• The speaker will actively reconnect after you first disconnect the active home speaker from the mobile device.
Not
e about Bluetooth connection
Use Bluetooth communication to find new devices within 1 meter.
Enter <0000> if a PIN code is required when connecting a Bluetooth device.
In the Ready state, the soundbar automatically shuts down after 15 minutes.
The active home speaker may not perform Bluetooth search or connect properly under the following conditions:
– There is a strong electric field near the soundbar.
– Several Bluetooth devices are paired simultaneously with the active home speaker.
– The Bluetooth device is off, out of place, or malfunctioning.
Electronic equipment may cause radio interference. Devices that generate electromagnetic waves must be kept
away from the host of the active host speaker, such as microwave ovens, wireless LAN devices, etc.
Soundbar support SBC data (44.1kHz, 48kHz).
Only connect to Bluetooth devices that support A2DP (AV) functionality.
You cannot connect an active home speaker to a Bluetooth device that only supports HF (hands-free) functionality.
When connecting active home speakers to Bluetooth devices, place them as close to each other as possible.
The farther away the active home speaker is from the Bluetooth device, the worse the sound quality becomes. The
Bluetooth connection may be disrupted when the device is out of range.
In areas with poor reception, Bluetooth connections may not work properly.
Bluetooth devices may experience noise or malfunction under the following conditions:
– When the subject comes into contact with a signal transceiver on a Bluetooth device or active speaker.
If the device connection fails
If you already have an active host speaker on your TV's speaker list (for example, OXS S5),
remove it.
Then repeat steps 1 to 2.
